Product Type	Soundbar
Brand	Samsung
Model	HW-T650
Soundbar Dimensions (W x H x D)	980.0 x 58.0 x 90.0 mm
Soundbar Weight	2.4 kg
Subwoofer Dimensions (W x H x D)	205.0 x 353.0 x 303.2 mm
Subwoofer Weight	6.2 kg
Power Supply	AC/DC Adapter (24 V)
Standby Power Consumption	2.0 W
Total Output Power	180 W (30 W x 6 channels) + 160 W (subwoofer)
Connectivity	HDMI with ARC, Optical input, USB port (5V 0.5A), Bluetooth
Supported Audio Formats	LPCM 2ch, Dolby Digital, DTS, DTS Virtual:X
Sound Modes	Standard, Surround Sound, Game, Smart Sound, DTS Virtual:X
Special Features	Bluetooth Multi-connection, Auto Power Down, DRC, Bluetooth Power On
Included Accessories	Remote Control, AA batteries x2, Wall Mount Guide, Wall Mount Brackets
Safety	Do not open the cover (risk of electric shock), avoid moisture
Cleaning and Maintenance	Clean with a soft, dry cloth
Spare Parts and Repairability	Subwoofer (PS-WR65BB), rear speaker kit (SWA-8500S optional). No user-serviceable parts.

Frequently Asked Questions - HWT650 SAMSUNG

How to connect the soundbar to my TV?

You can connect the soundbar via an optical cable or an HDMI cable (ARC port). For a wireless connection, use Bluetooth by pressing the PAIR button on the remote control.

Why doesn't the subwoofer connect automatically?

Check that the power cords are plugged in. If the automatic connection fails, perform a manual connection: press and hold the ID SET button on the back of the subwoofer for 5 seconds, then press and hold the Up button on the remote control for 5 seconds until 'ID SET' appears.

How to use the Bluetooth function?

Press the PAIR button on the remote to enter 'BT PAIRING' mode. On your mobile device, select '[AV] Samsung Soundbar T6-Series' from the Bluetooth list. The soundbar can connect to two devices simultaneously.

What to do if the remote control doesn't work?

Replace the batteries with new ones (AA type). Ensure no obstacles block the signal between the remote and the soundbar. The maximum range is approximately 10 meters.

How to adjust the subwoofer volume?

Use the WOOFER button on the remote. Push it forward to increase or backward to decrease the volume. The adjustment range is from -12 to +6 (or 0).

How to update the soundbar software?

Download the latest update file from the Samsung Support website onto a USB drive (FAT format). Turn off the soundbar, insert the USB drive, then turn it on. 'UPDATE' appears. Once finished, press and hold the Play/Pause button for 5 seconds to initialize.

What are the different sound modes available?

The modes are: Standard (original sound), Surround Sound (wide sound field), Game (immersive sound for games), Smart Sound (real-time content analysis), and DTS Virtual:X (3D sound).

How to install the soundbar on the wall?

Use the included wall mount guide. Mark the screw positions, drill and insert suitable wall plugs. Attach the wall brackets to the back of the soundbar, then hang it on the wall screws. Ensure the wall can support the weight (2.4 kg).

What does the message 'ID SET' on the screen mean?

The 'ID SET' message indicates that the soundbar is in pairing mode with a wireless device (subwoofer or rear speakers). Press and hold the corresponding button on the device to establish the connection.

How to disable the Bluetooth Power function?

Press and hold the SOUND MODE button on the remote for more than 5 seconds. The screen displays 'ON-BLUETOOTH POWER' or 'OFF-BLUETOOTH POWER' depending on the current state. Release the button to toggle.

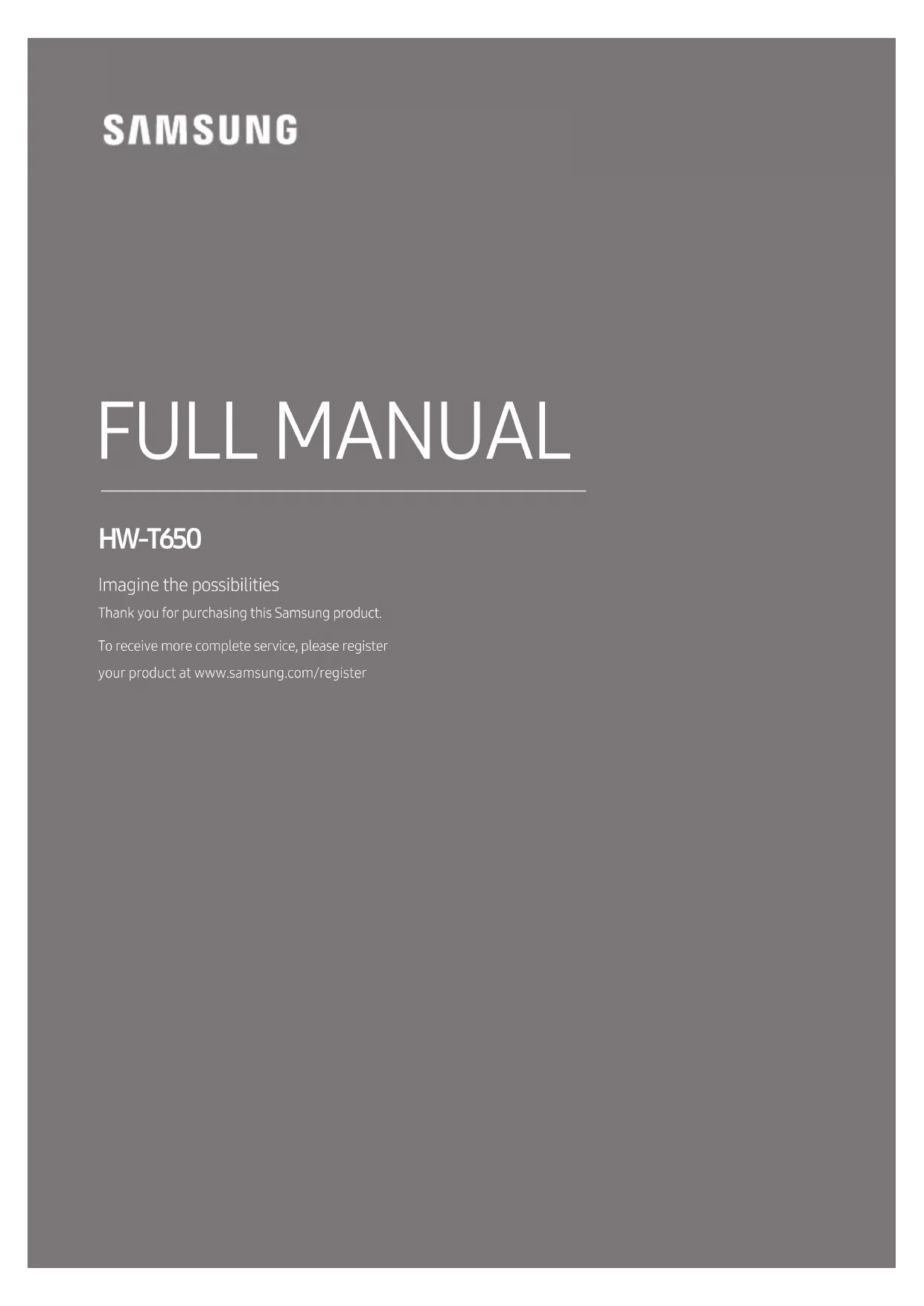

USER MANUAL HWT650 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground). If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

CAUTION

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

- This apparatus shall always be connected to a AC outlet with a protective grounding connection.

- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

- Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

- To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download.

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

FULL MANUAL

You can access the FULL MANUAL on Samsung's on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from Samsung's website. (http://www.samsung.com/support)

Design and specifications are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ____ 2

02 Product Overview 3

Front Panel / Top Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power ____ 5

Connecting the Soundbar to the Subwoofer 6

- Automatic connection between the Subwoofer and the Soundbar 6

- Manually connecting the Subwoofer if automatic connection fails ____ 7

Connecting an SWA-8500S (Sold Separately) to your Soundbar 8

04 Connecting to your TV 10

Method 1. Connecting with a Cable ____ 10

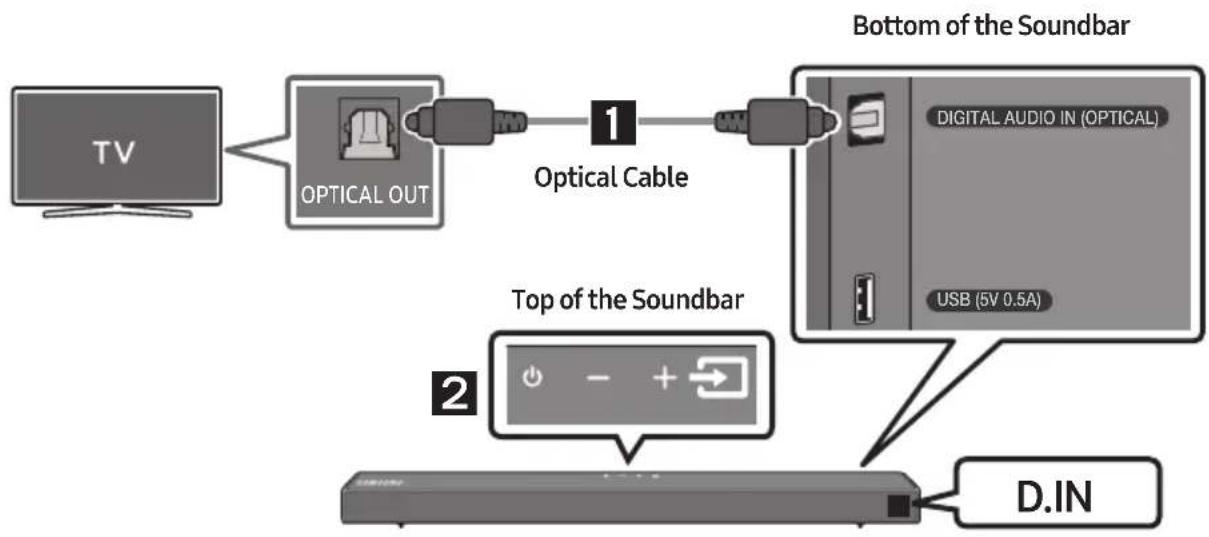

- Connecting using an Optical Cable 10

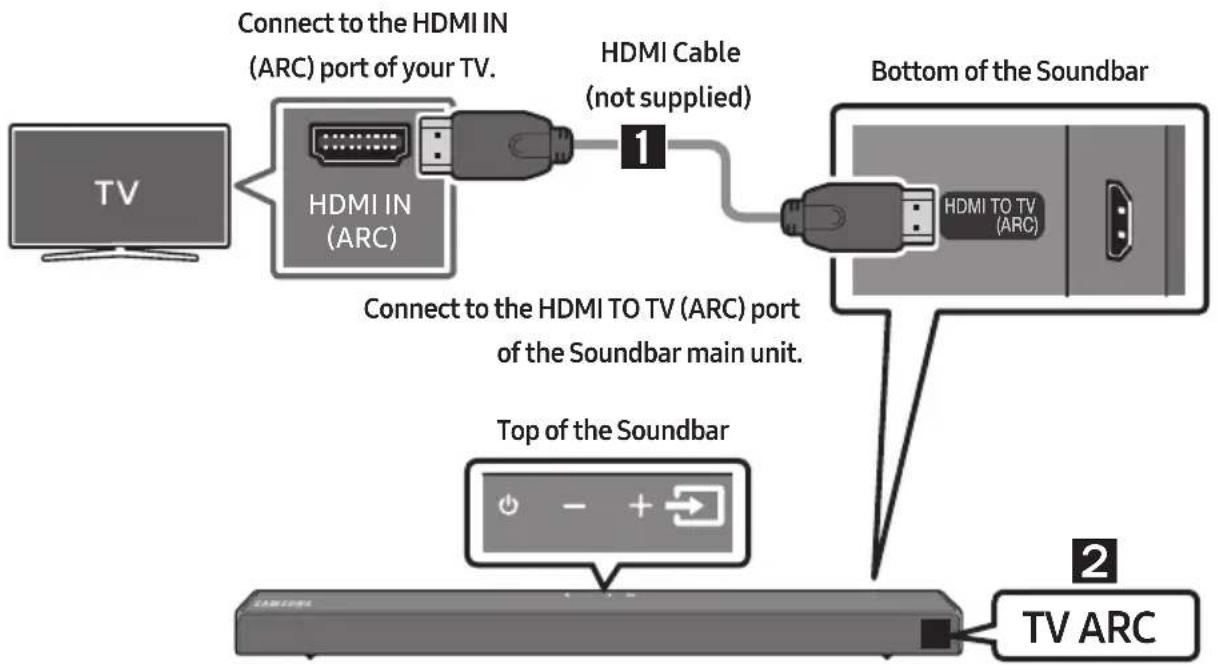

- Connecting a TV using an HDMI Cable 11

Method 2. Connecting Wirelessly ____ 12

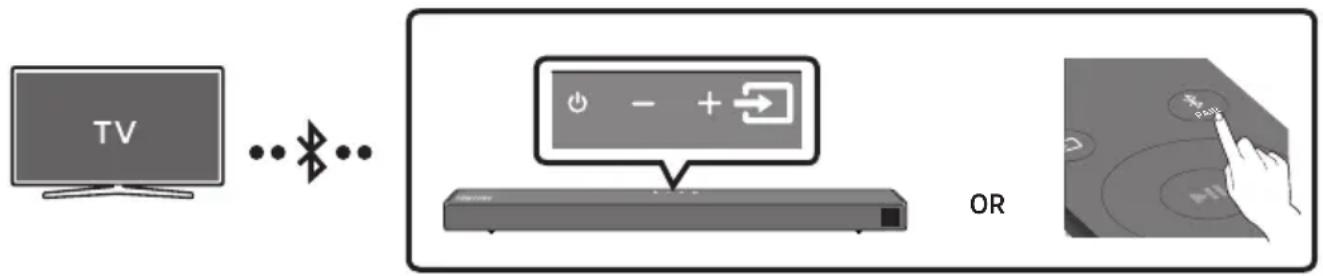

- Connecting a TV via Bluetooth 12

05 Connecting an External Device 14

Connecting using an Optical Cable 14

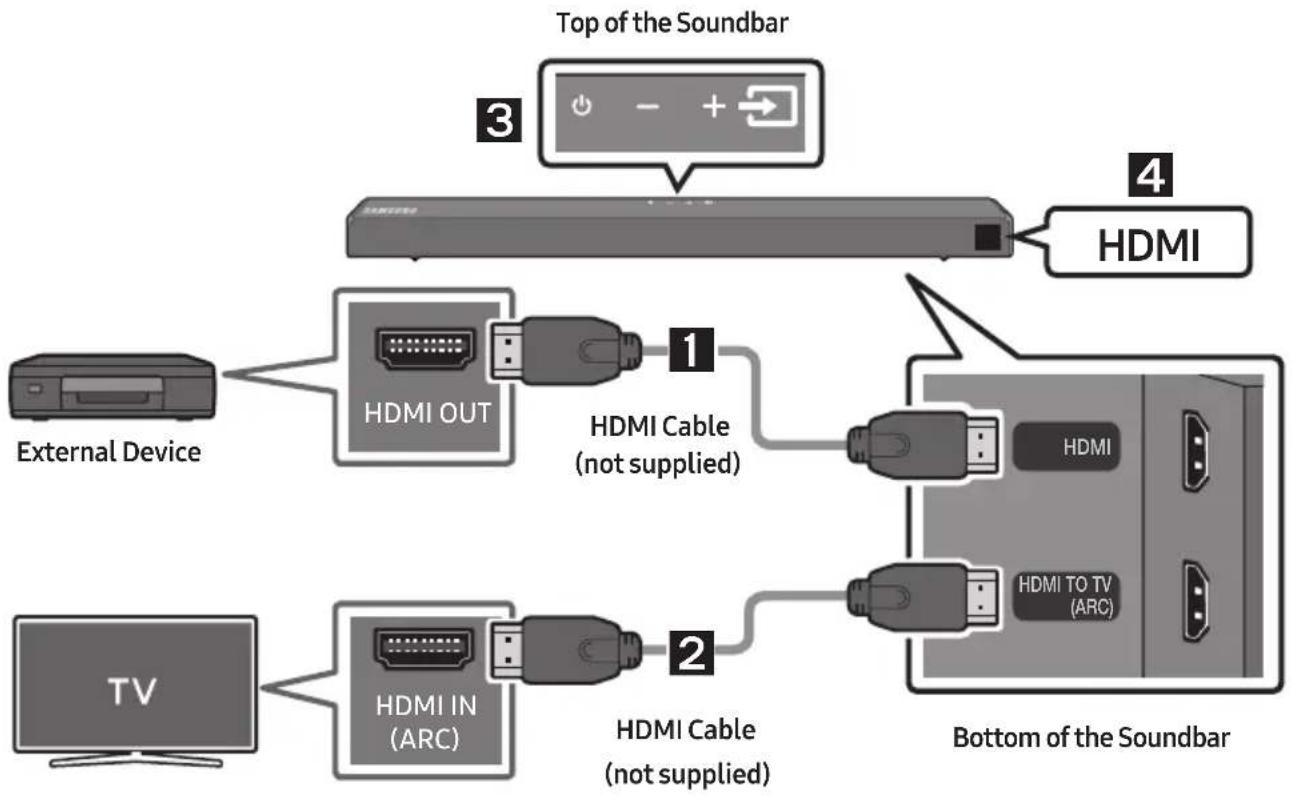

Connecting using an HDMI Cable 15

06 Connecting a USB Storage Device 16

07 Connecting a Mobile Device 17

Connecting via Bluetooth ____ 17

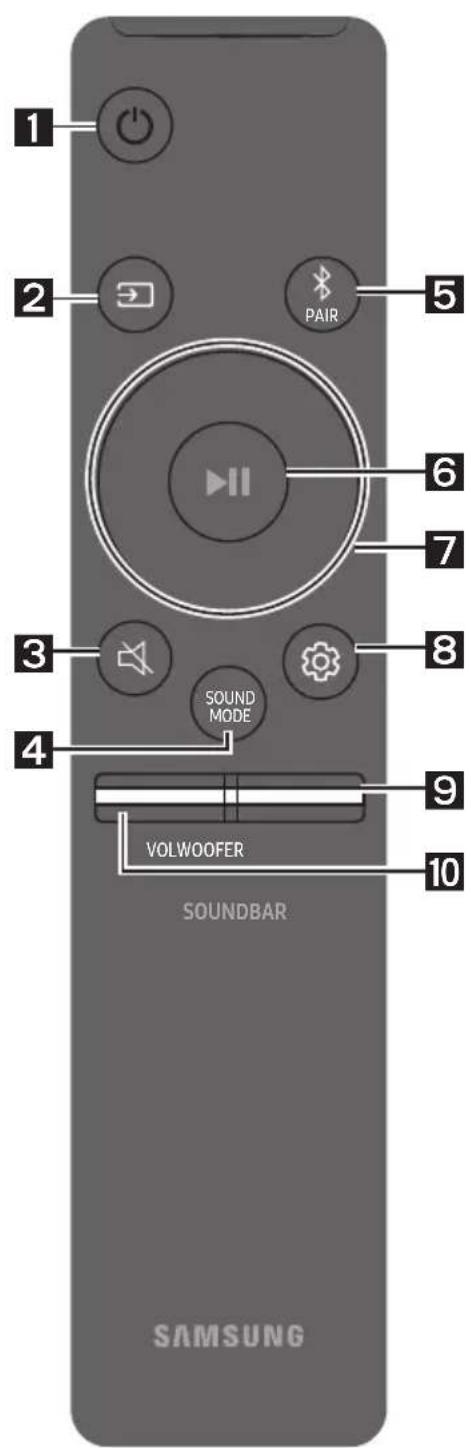

08 Using the Remote Control 21

How to Use the Remote Control ____ 21

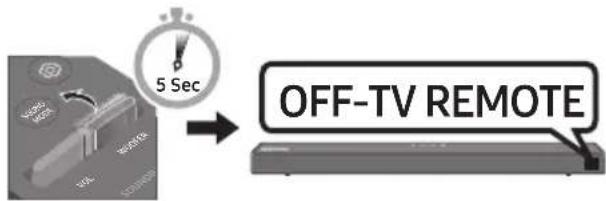

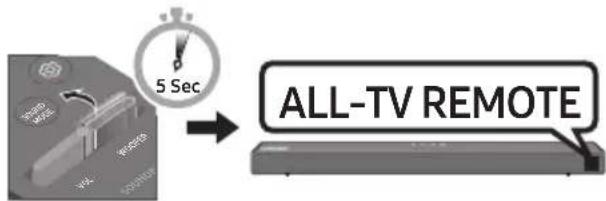

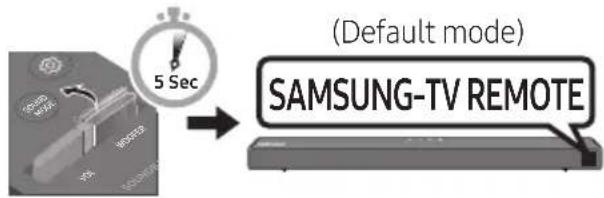

Adjusting the Soundbar volume with a TV remote control ____ 24

Using the Hidden Buttons (Buttons with more than one function) ____ 25

Output specifications for the different sound effect modes ____ 25

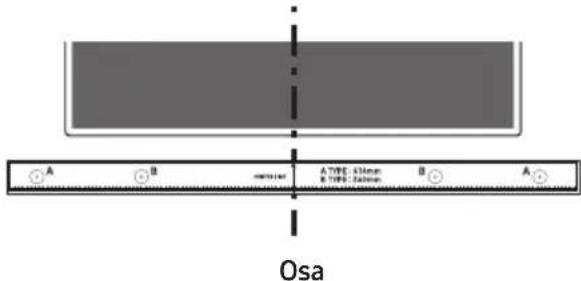

09 Installing the Wall Mount 26

Installation Precautions 26

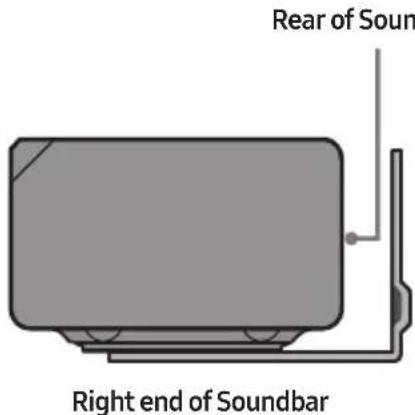

Wallmount Components ____ 26

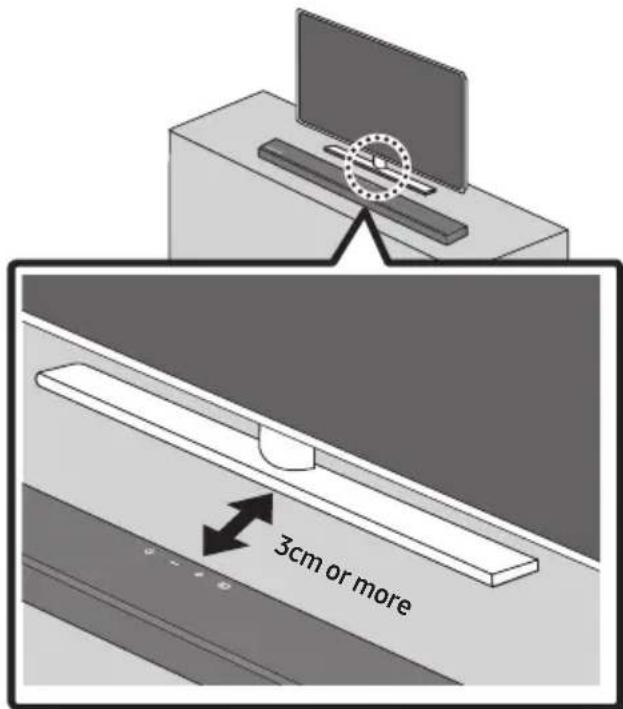

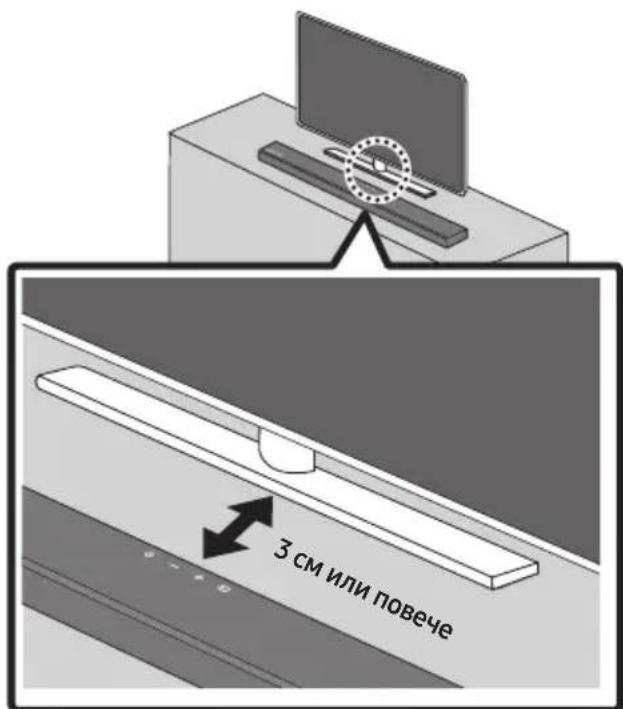

10 Placing the Soundbar on a TV stand 28

11 Software Update 29

Update Procedure 29

If UPDATE is not displayed 30

12 Troubleshooting 31

13 Licence 32

14 Open Source Licence Notice 32

15 Important Notes About Service 32

16 Specifications and Guide 33

Specifications 33

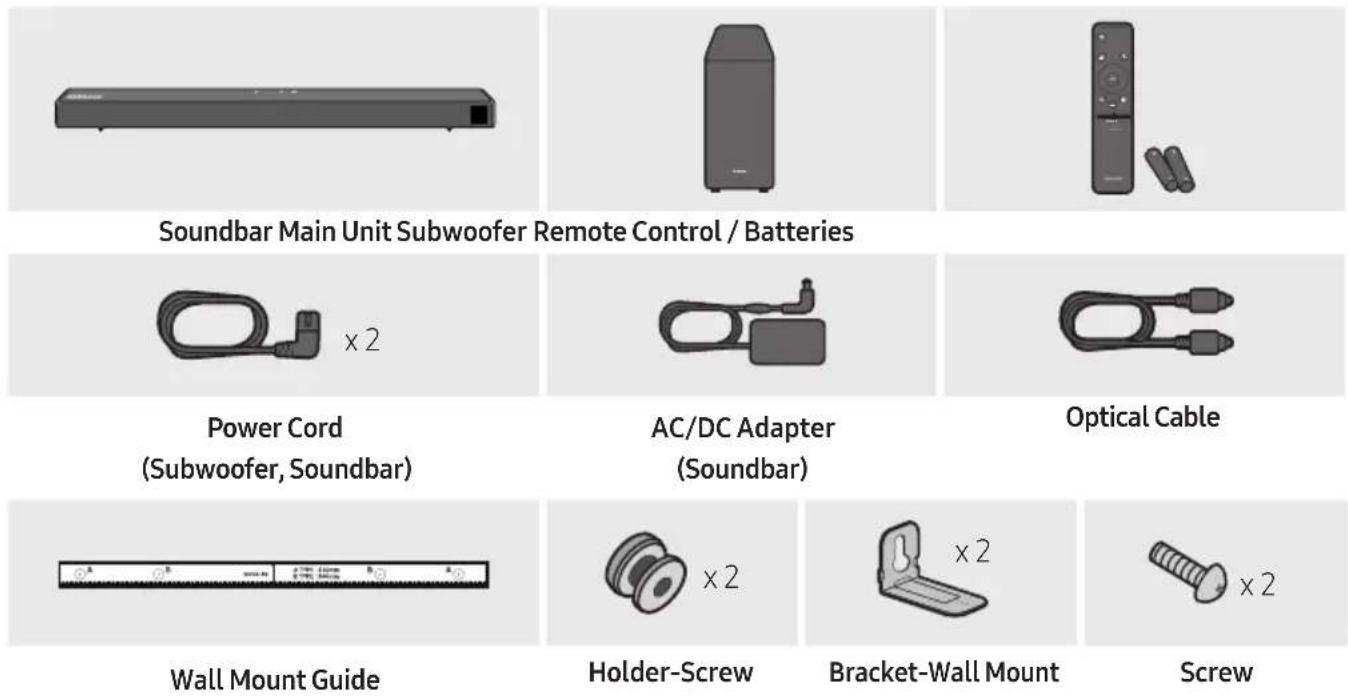

01 CHECKING THE COMPONENTS

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the back cover back into position.

Diagram illustrating the step-by-step assembly of a battery pack, showing disassembly and reassembly steps with labeled components.

02 PRODUCT OVERVIEW

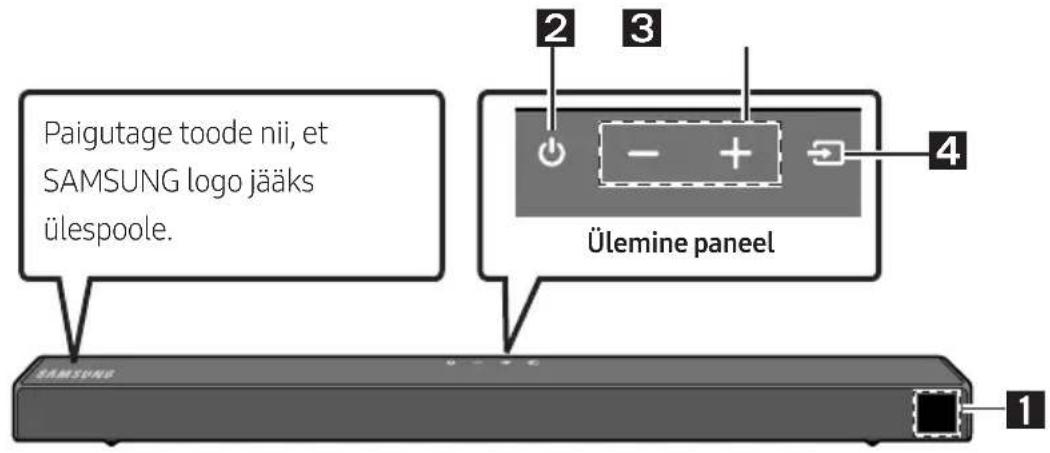

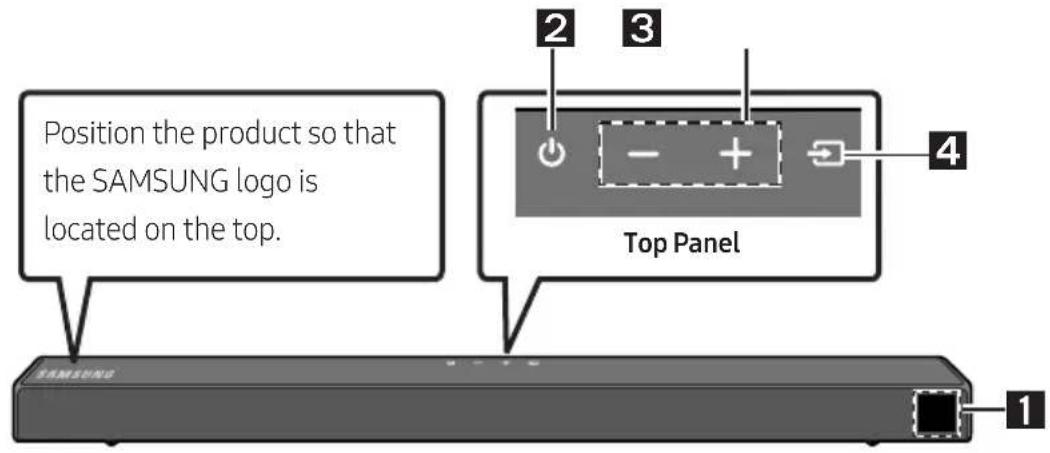

Front Panel / Top Panel of the Soundbar

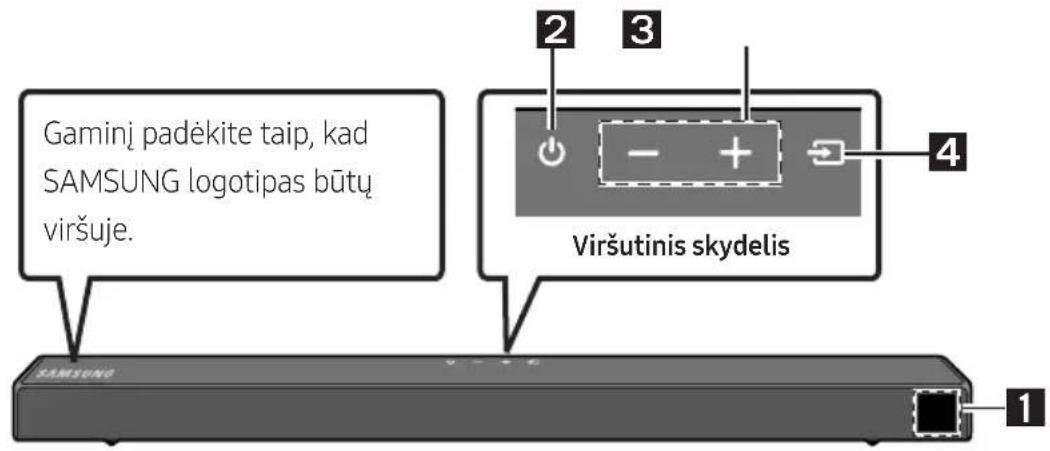

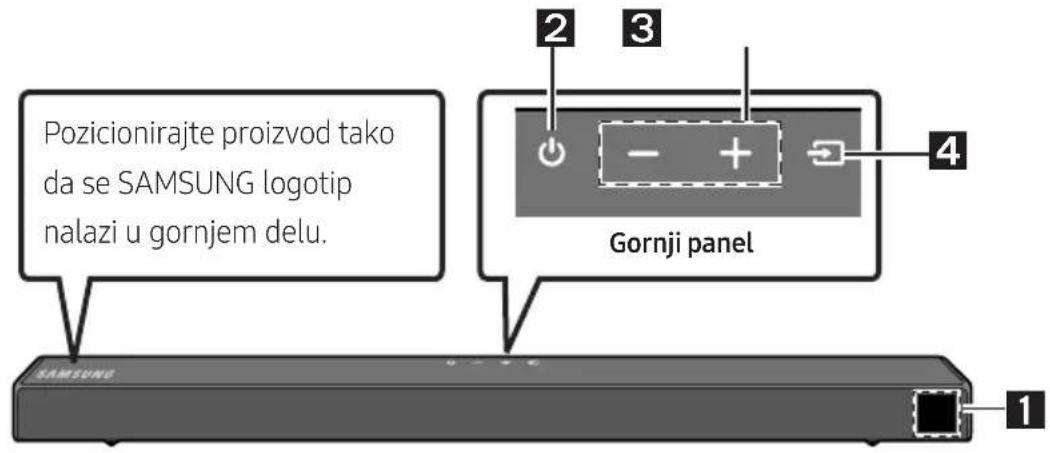

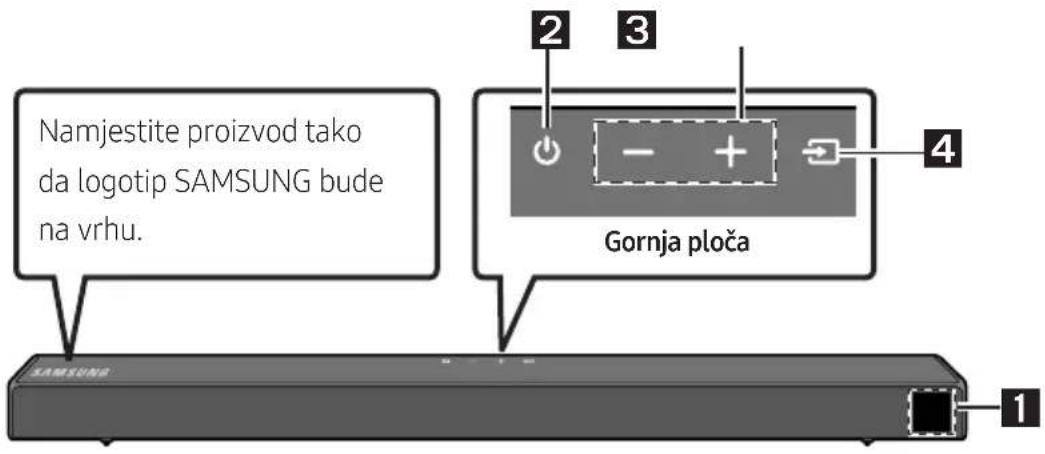

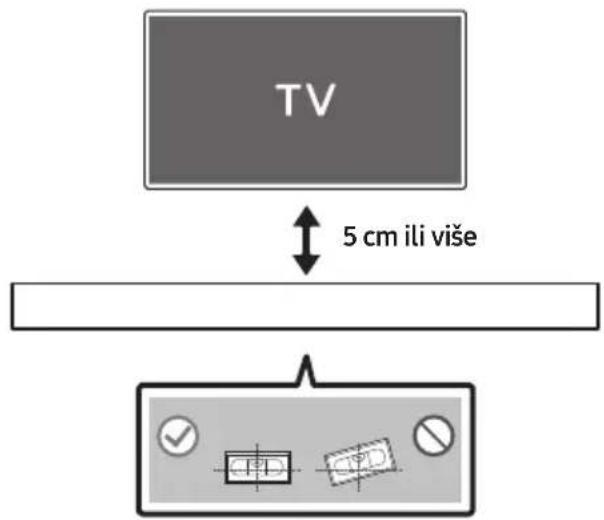

Position the product so that the SAMSUNG logo is located on the top. 2 3 Top Panel 4 1

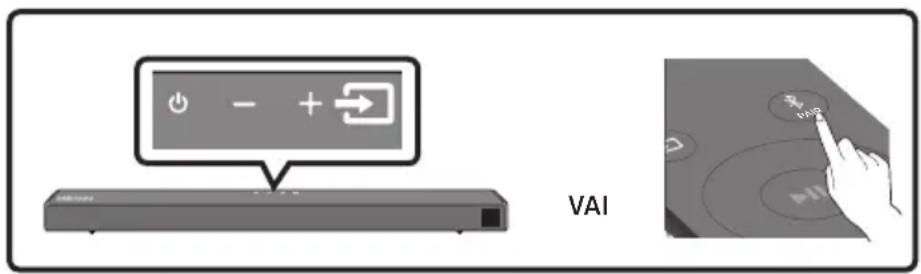

1	DisplayDisplays the product's status and current mode.
2	(Power) ButtonTurns the power on and off.Auto Power Down FunctionThe unit turns off automatically in the following situations:In D.IN / HDMI / BT / USB Mode: If there is no audio signal for 20 minutes.
3	-/+(Volume) ButtonAdjusts the volume.When adjusted, the volume level appears on the Soundbar's front display.
4	(Source) ButtonSelects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	HDMI input HDMI
	BLUETOOTH mode BT
	USB mode USB
	To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and hold the(Source) button for more than 5 seconds.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

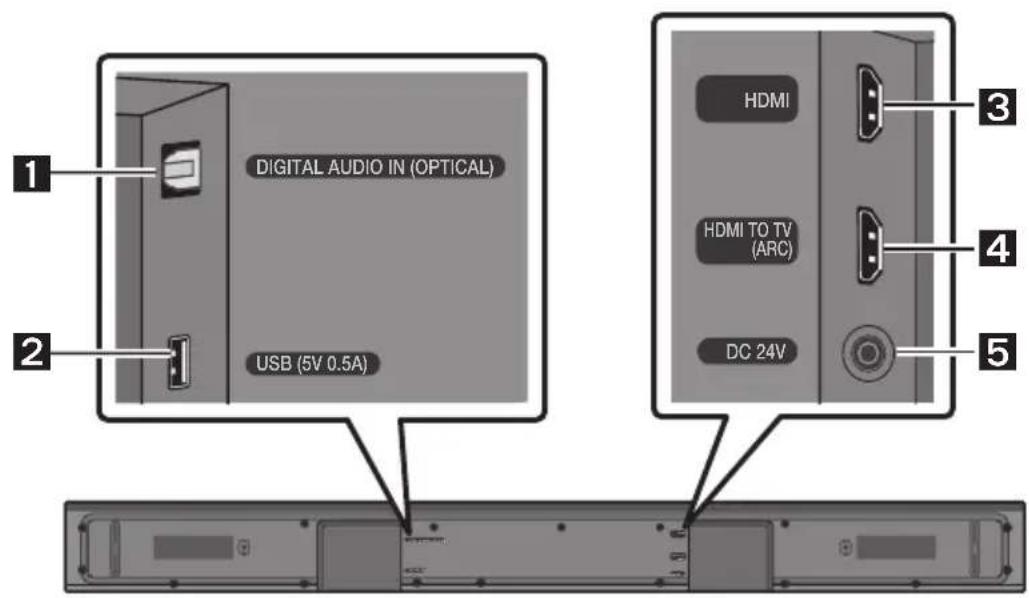

Bottom Panel of the Soundbar

DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) HDMI HDMI TO TV (ARC) DC 24V 1 2 3 4 5

1	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.

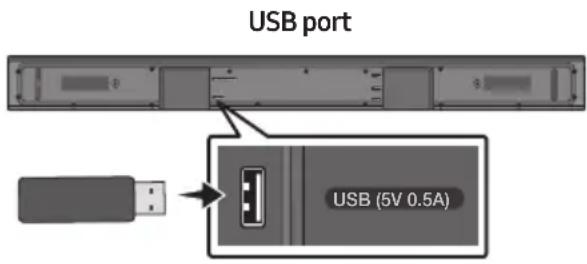

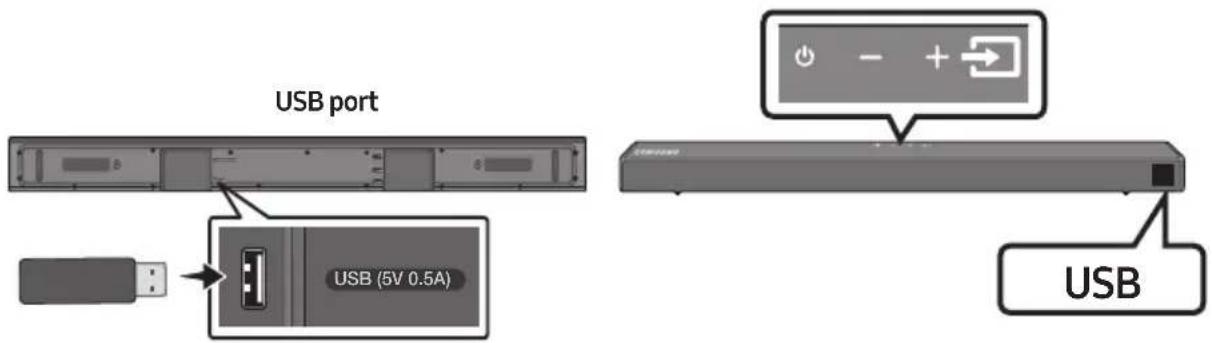

2	USB (5V 0.5A)Connect a USB device here to play music files stored on the USB device through the Soundbar.
3	HDMIInputs digital video and audio signals simultaneously using an HDMI cable.Connect to the HDMI output of an external device.
4	HDMI TO TV (ARC)Connect to the HDMI (ARC) jack on a TV.
5	DC 24V (Power Supply In)Connect the AC/DC power adapter.

• When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

1. Connect the power cord to the Subwoofer.
2. Connect the power output cable to the power adapter, and then to the Soundbar.
3. Connect the power cord to a wall socket.

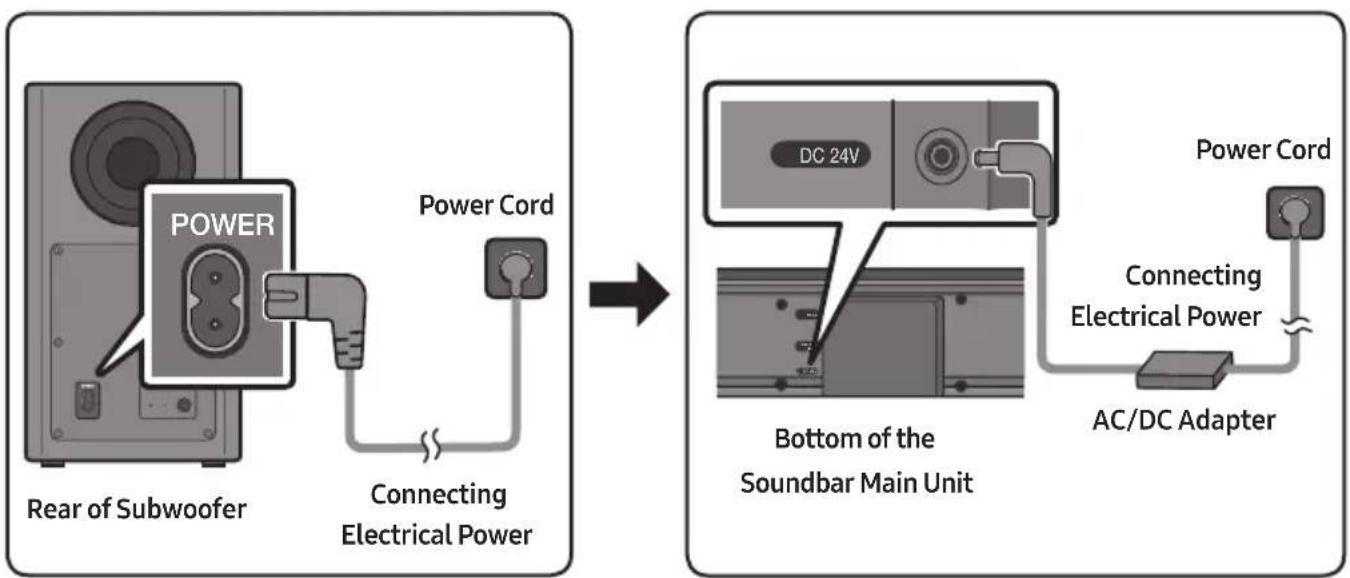

See the illustrations below.

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

- Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

- When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution
Blue	On	Successfully connected (normal operation)	-
	Blinking Re	recovering the connection	Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes. If blinking persists, try manually connecting the subwoofer. See page 7.
Red On		Standby (with the Soundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 7.
Red and blue	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.
  • Make sure that the Soundbar is turned on.

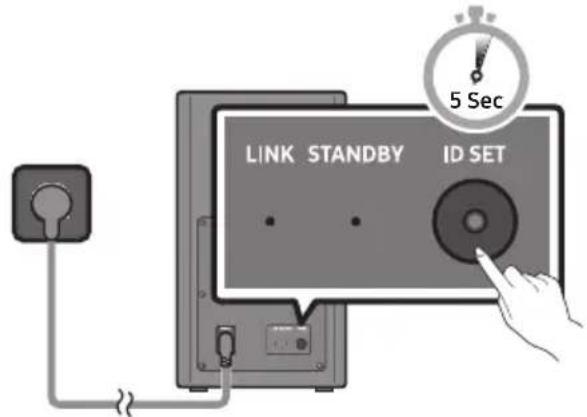

• Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

- The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

LINK STANDBY ID SET 5 Sec

Rear of Subwoofer

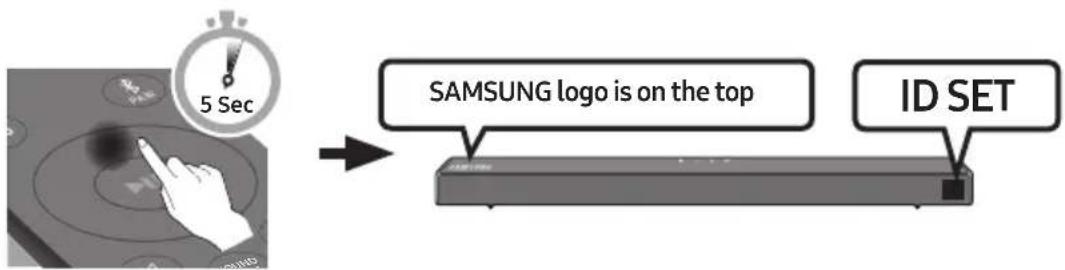

1. Press and hold the Up button on the remote control for at least 5 seconds.

2. The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

5 Sec SAMSUNG logo is on the top ID SET

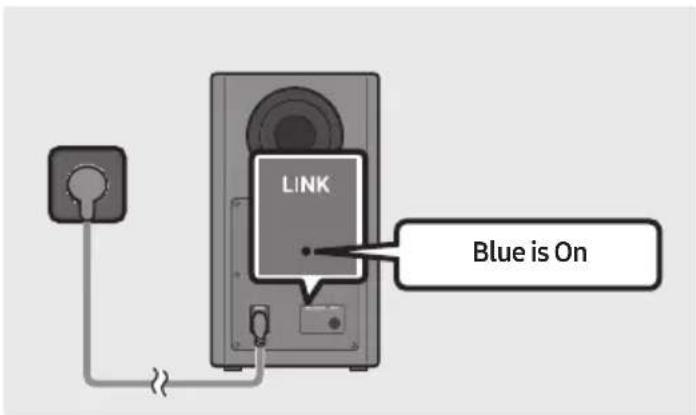

1. Check if the LINK LED is solid blue (connection complete).

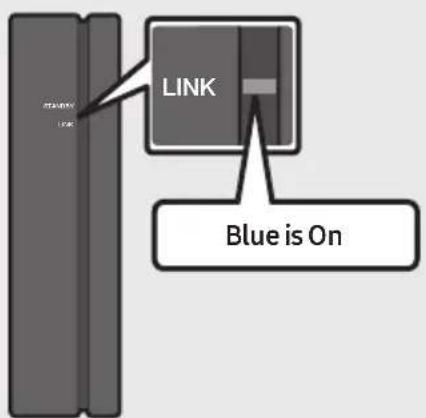

LINK Blue is On

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking in blue several times.
• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the main unit's wireless signal is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer and the Wireless Receiver Module (sold separately) is clear of any obstructions.

Connecting an SWA-8500S (Sold Separately) to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S, sold separately) to your Soundbar.

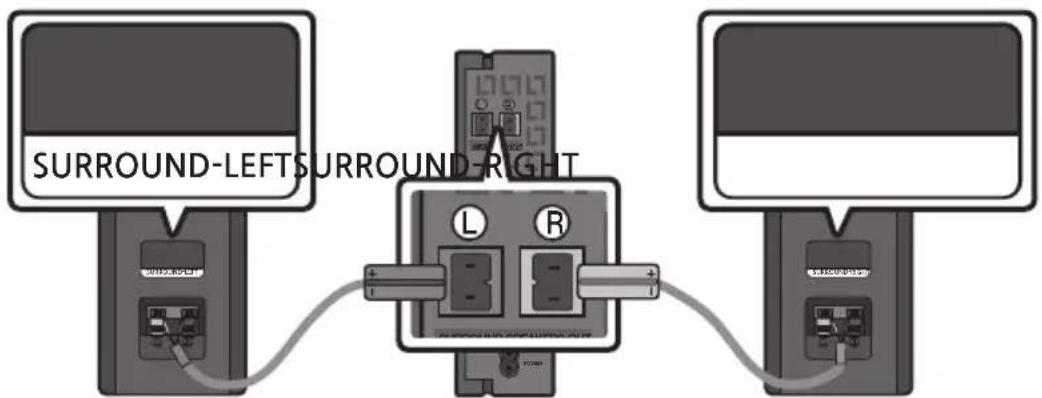

1. Connect the Wireless Receiver Module to 2 Surround Speakers.

- The speaker cables are colour coded.

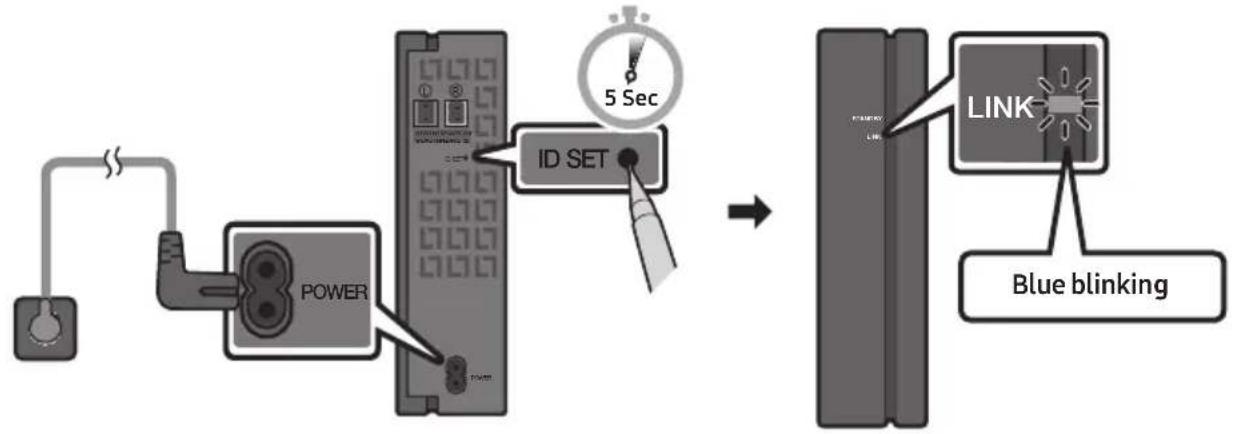

1. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet.

- The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5\~6 seconds until the LINK LED indicator blinks (in Blue). For more about the LED, please refer to the SWA-8500S user manual.


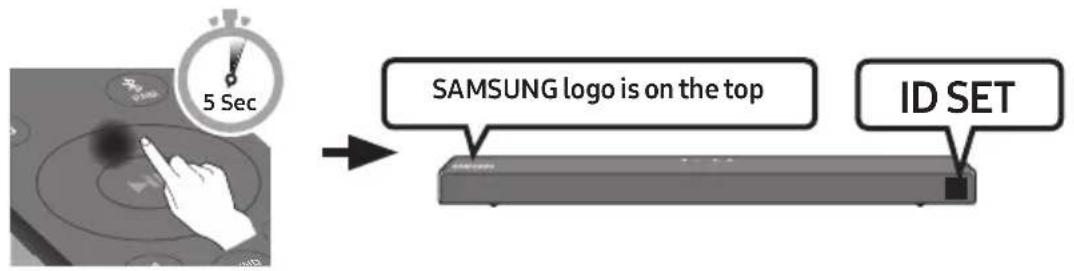

1. Press and hold the Up button on the remote control for at least 5 seconds.

2. The IDSET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

5 Sec SAMSUNG logo is on the top ID SET

CAUTION

- If your Soundbar was playing music when it connects to the SWA-8500S, you may hear some stuttering from the woofer as the connection finalises.

1. Check if the LINK LED is solid blue (connection complete).

LINK Blue is On

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Receiver Module.

1. If the SWA-8500S is not connected, repeat the procedure from Step 2.

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.
• This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.
• This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Connecting using an Optical Cable

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital Optical Cable.
2. Press the → (Source) button on the top panel or remote control, and then select the "D.IN" mode.

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the figure.

2. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

3. If TV sound is inaudible, press the → (Source) button on the remote control or on the top of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

4. If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the HDMI cable (not supplied) is connected to the correct port.
5. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
  • This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- Only one TV can be connected at a time.

TV ... OR

The initial connection

1. Press the ✗ PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the → (Source) button on the top panel and then select "BT".

"BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.

b. When "BT READY" appears, press and hold the → (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)
2. Select "[AV] Samsung Soundbar T6-Series" from the list on TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

- When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

1. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar T6-Series") appears in the list, delete it.
• Then repeat steps 1 through 3.

NOTE

- After you have connected the Soundbar to your TV the first time, use the "BT READY" mode to reconnect.

Disconnecting the Soundbar from the TV

Press the → (Source) button on the top panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the Left button on the remote control for 5 seconds with the Soundbar in "BT READY" status. (Toggle On → Off)

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the ✗PAIR button on the remote control or press and hold the ➞ (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If two or more Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired connection or Bluetooth connection to play the external device's sound through the Soundbar.

Connecting using an Optical Cable

1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital Optical Cable.
2. Select "D.IN" mode by pressing the → (Source) button on the top panel or on the remote control.

Connecting using an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI jack on the back of the product to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable (not supplied) from the HDMI TO TV (ARC) jack on the back of the product to the HDMI IN jack on your TV.
3. Press the → (Source) button on the top panel or on the remote control, and then select "HDMI".
4. "HDMI" mode is displayed on the Soundbar display panel and sound plays.

06 CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

USB port USB (5V 0.5A) USB

1. Connect the USB device to the USB port on the bottom of the product.
2. Press the → (Source) button on the top panel or on the remote control, and then select "USB".
3. "USB" appears in the display screen.
4. Play music files from the USB storage device through the Soundbar.

- The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 20 minutes.

File Format Type Compatibility list

Extension	Codec	Sampling Rate	Bit rate
*.mp3 MPEG1 Layer2 32	kHz ~ 48kHz 32kbps ~ 320kbps
	MPEG1 Layer3 32kHz ~ 48kHz 32kbps ~ 320kbps
	MPEG2 Layer3	16kHz ~ 24kHz	8kbps ~ 160kbps
	MPEG2.5 Layer3	8kHz ~ 12kHz	8kbps ~ 160kbps
*.wma	WMA7/8/9 (Audio Only)	32kHz ~ 48kHz	32kbps ~ 320kbps
*.ogg	Vorbis	32kHz ~ 48kHz	45kbps ~ 500kbps
*.aac*.m4a*.mp4	AAC-LC(MPEG2/MPEG4 Audio Only)	32kHz ~ 48kHz 32kbps ~ 320kbps
*.wav	LPCM	32kHz ~ 192kHz	1,024kbps ~ 9,216kbps
*.flac	FLAC	32kHz ~ 192kHz	162kbps ~ 8,100kbps
*.aiff	AIFF	32kHz ~ 192kHz	1,024kbps ~ 9,216kbps

- If there are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files.

07 CONNECTING A MOBILE DEVICE

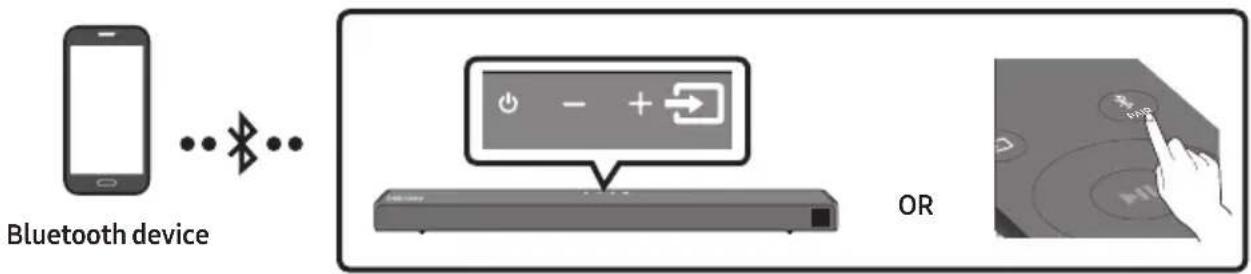

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- The connection is limited to one TV or two Bluetooth devices at the same time.

Bluetooth device OR

The initial connection

1. Press the ✗PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the → (Source) button on the top panel and then select "BT". "BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record. b. When "BT READY" appears, press and hold the → (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. On your device, select "[AV] Samsung Soundbar T6-Series" from the list that appears.

- When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → "BT" appears in the front display.

1. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar T6-Series") appears in the list, delete it.
• Then repeat steps 1 and 2.

NOTE

- After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the ✗ PAIR button on the remote control or press and hold the ➞ (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  • The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar T6-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

- The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on.
2. "ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the → (Source) button on the top panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 20 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Bluetooth Multi connection

The Soundbar can be connected to 2 Bluetooth devices at the same time.

Diagram showing three devices: smartphone, a rectangular device with Bluetooth signal, and a smartphone with wireless signal.

Bluetooth device A Bluetooth device B

1. Connect the Soundbar to up to two Bluetooth devices. (See page 17)

2. Play music from one of the connected Bluetooth devices while two devices are connected.

3. To play music from the Bluetooth device "B" while playing from the device "A", pause or stop playback on the device "A" and then start playing on the device "B".

- The device won't switch if playing music from the device "B" without pausing or stopping the device "A" first.

1. In versions prior to AVRCP V1.4, the switching time of the device playing music may be delayed.

NOTES

- If you attempt to connect a 3rd Bluetooth device, the A or B devices will disconnect. (A device that is not currently playing will be disconnected.)

- Only one Samsung TV, or 2 Bluetooth devices can be connected at the same time.

- The Soundbar will be disconnected from Bluetooth devices when it receives a connection request from a Samsung TV.

08 USING THE REMOTE CONTROL

How to Use the Remote Control

1 2 PAIR 5 6 7 3 SOUND MODE 8 4 9 VOLWOOFER 10 SOUNDBAR SAMSUNG

1	Power	Turns the Soundbar on and off.
2	Source	Press to select a source connected to the Soundbar.
3	Mute	Press the (Mute) button to mute the sound. Press it again to unmute the sound.
4	SOUND MODE	You can select the desired sound effect by choosing STANDARD, SURROUND SOUND, GAME, SMART SOUND, or DTS VIRTUAL:X.- STANDARDOutputs the original sound.- SURROUND SOUNDProvides a wider sound field than standard.- GAMEProvides stereoscopic sound to immerse you in the action while gaming.- SMART SOUNDAnalyzes the content in real time and automatically provides the optimal sound field based on the characteristics of the content.- DTS VIRTUAL:X Immersive 3D sound from any content.

		DRC (Dynamic Range Control)Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the SOUND MODE button while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)Bluetooth PowerThis feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default.-Press and hold the SOUND MODE button for more than 5 seconds to turn off the Bluetooth Power function.
5	BluetoothPAIR	Press the ✝ PAIR button. "BT PAIRING" appears in the Soundbar's display.You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar from the Bluetooth device's search list.
6	Play / Pause	Press the ▶II button to pause a music file temporarily.When you press the button again, the music file plays.
7	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.RepeatTo use the Repeat function in "USB" mode, press the Up button.Music SkipPress the Right button to select the next music file. Press the Left button to select the previous music file.ID SETPress and hold the Up button for 5 seconds to complete ID SET (when connecting to an accessory item).
		Volume Restriction functionTo protect your hearing, the Volume Restriction function restricts the volume to 20 if you turn on the Soundbar when the volume is set higher than 20.- The default value for the Volume Restriction function is Off. You must turn it on to activate it.- When turned on, the Volume Restriction function stays on even when the power is turned off.- To turn Volume Restriction on or off, press and hold theDownbutton on the remote control for 5 seconds. With Volume Restriction off, "V FREE" appears on the front display. With the function on, "V LOCK" appears.
8	Sound Control	You can select TREBLE, BASS, or AUDIO SYNCTo control the volume of the treble or bass sound, press theSound Controlbutton to selectTREBLEorBASSand then adjust the volume between -6~+6 by using theUp/Downbuttons.Press and hold the(Sound Control)button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using theLeft/Rightbuttons and each can be adjusted to a setting between -6 to +6 using theUp/Downbuttons.If the video on the TV and audio from the Soundbar are not synchronised, press theSound Controlbutton to selectAUDIO SYNCand then set the audio delay between 0~300 milliseconds by using theUp/Downbuttons. (Not available in "USB" or "BT" mode.)If Surround Speakers are connected, the Rear Speaker function can be turned ON/OFF by using theUp/Downbuttons to adjust the volume within a -6 to +6 range.AUDIO SYNCis only supported for some functions.
9	WOOFER	Rock theWOOFERbutton forward or backward to adjust the volume of the subwoofer to -12 or between -6 to +6. To set the subwoofer volume level to 0, press the button in.
10	VOL	Rock theVOLbutton forward or backward to adjust the volume.MutePress theVOLbutton in to mute the sound. Press it in again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar's volume using the IR remote control that came with your Samsung TV.

First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual. The default mode for this function is control by a Samsung TV remote. If your TV is not a Samsung TV, follow the directions below to change the settings of this function.

1. Turn Off the Soundbar.

BYE

1. If you do not want to use this function, push up and hold the WOOFER button for 5 seconds repeatedly until "OFF-TV REMOTE" appears in the display.

5 Sec OFF-TV REMOTE

1. If you want to control the Soundbar with your TV's remote, push up and hold the WOOFER button for 5 seconds repeatedly until "ALL-TV REMOTE" appears in the display. Then, use your TV's menu to select external speakers.

5 Sec ALL-TV REMOTE

1. If you want to return the Soundbar to the default mode (control by a Samsung TV remote), push up and hold the WOOFER button for 5 seconds repeatedly until "SAMSUNG-TV REMOTE" appears in the display.

(Default mode) SAMSUNG-TV REMOTE

- Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order:

"SAMSUNG-TV REMOTE" (Default mode) → "OFF-TV REMOTE" → "ALL-TV REMOTE".

- This function may not be available, depending on the remote control.

- Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up)	TV remote control On/Off (Standby)	page 24
▶II (Play / Pause)	Initialise (Standby)	page 29
Left	TV Auto connect On/Off (BT Ready)	page 13
Up	ID SET (Standby)	page 22
Down	Volume Restriction On/Off (Standby)	page 23
(Sound Control)	7 Band EQ page 23
SOUND MODE	DRC ON/OFF (Standby) page 22
	Bluetooth Power page 22

Output specifications for the different sound effect modes

Effect		Input	Output
			Without Wireless Rear Speaker Kit	With Wireless Rear Speaker Kit
[SOUND MODE]	STANDARD	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	3.1 ch	5.1 ch
	SURROUND SOUND	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
	GAME	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
	SMART SOUND	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
	DTS VIRTUAL:X	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch

• The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

09 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

- Diameter: M5

– Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

A B A TYPE: 430mm B TYPE: 340mm B A

Wall Mount Guide

Two 3D mechanical parts: a pulley and a screw, both scaled by ×2 (no text or symbols)

Holder-Screw Screw

Simple line drawing of a bracket with no text or symbols

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

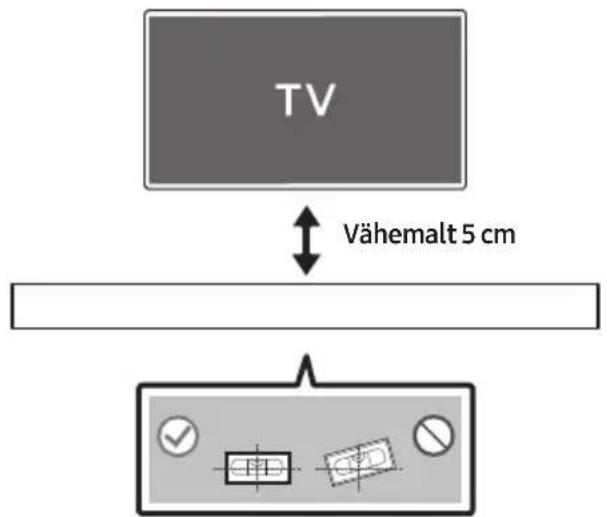

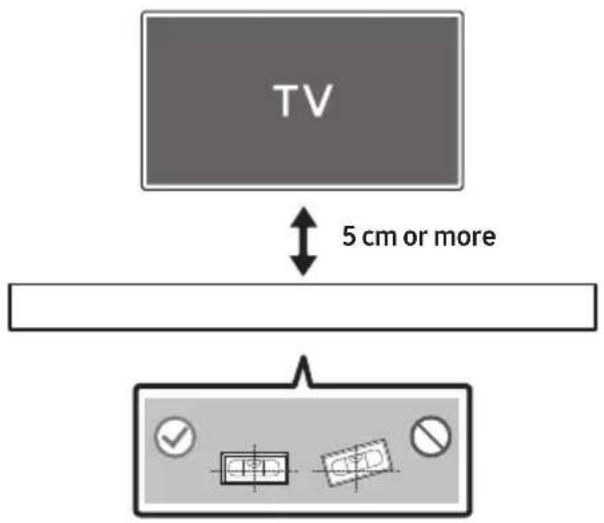

- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

TV 5 cm or more

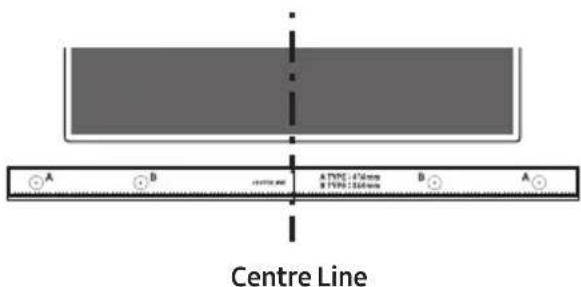

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

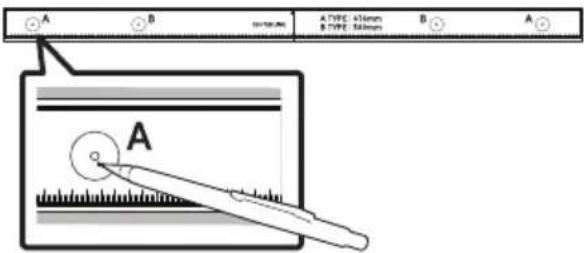

Centre Line A B A TYPE: 4.5mm B TYPE: 2.6mm

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

A B A TYPE: 45mm B TYPE: 50mm A A

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

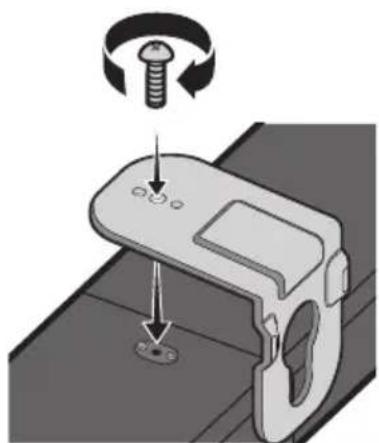

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

Diagram showing a screw being inserted into a nut, with motion arrows indicating direction (no text or symbols)

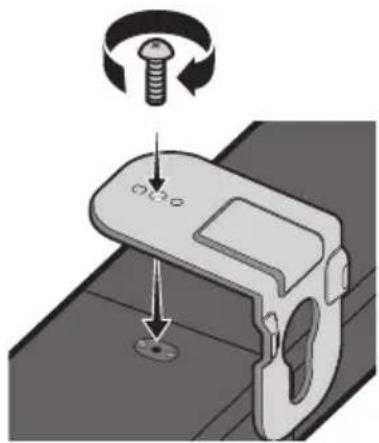

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Mechanical component diagram showing a screw being inserted into a housing with a bolt base (no text or symbols)

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

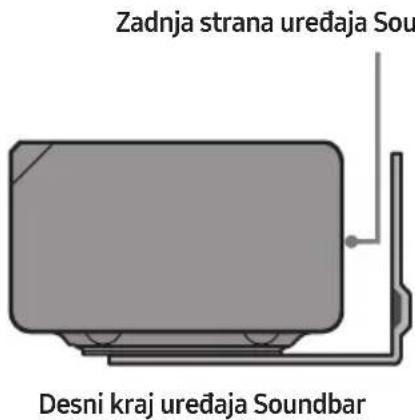

Rear of Soun Right end of Soundbar

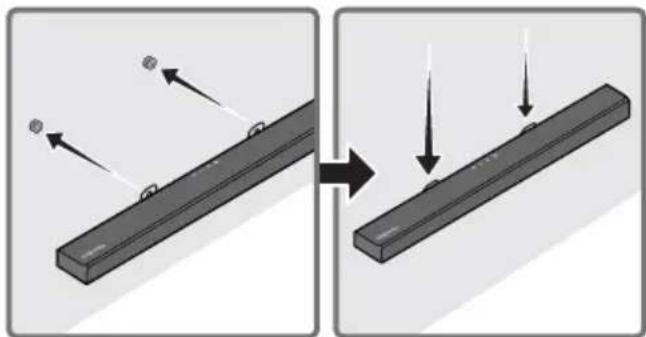

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

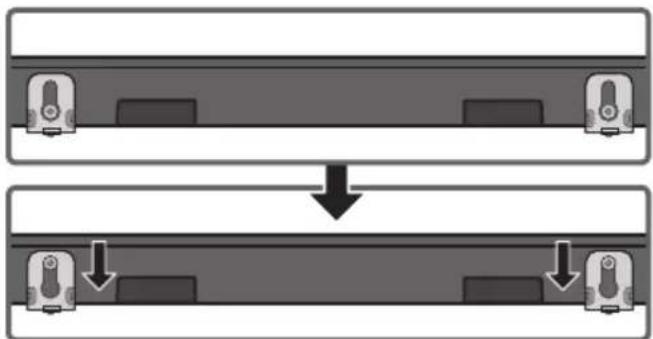

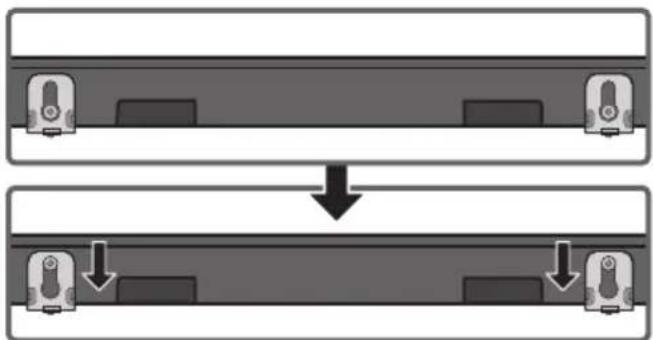

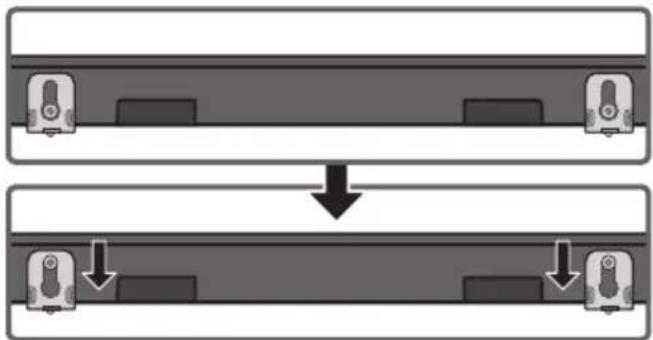

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

10 PLACING THE SOUNDBAR ON A TV STAND

Place the Soundbar on a TV stand.

3cm or more

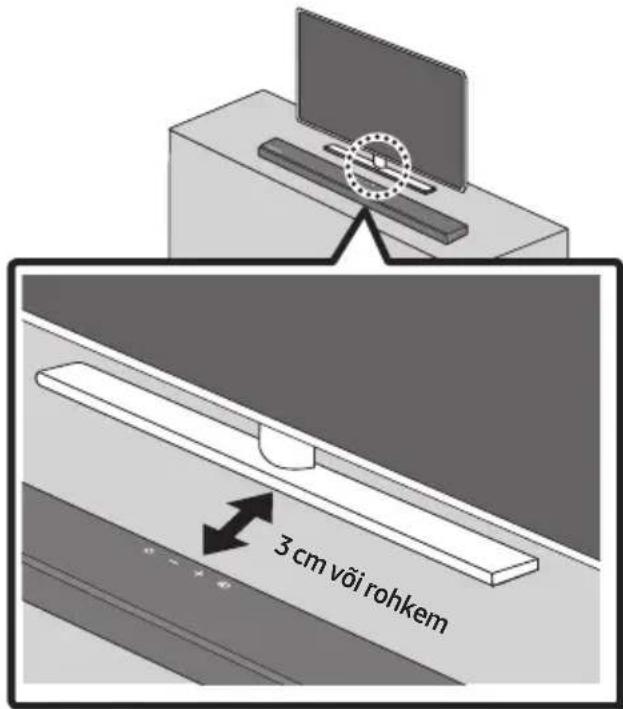

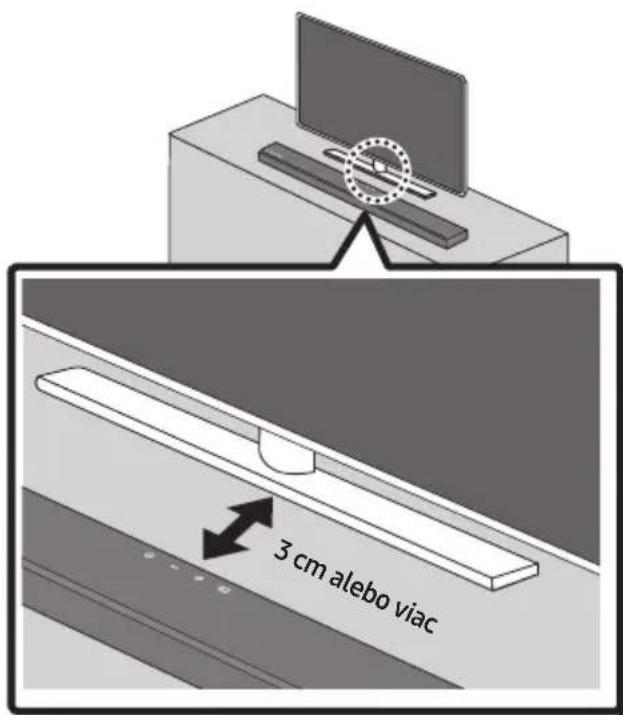

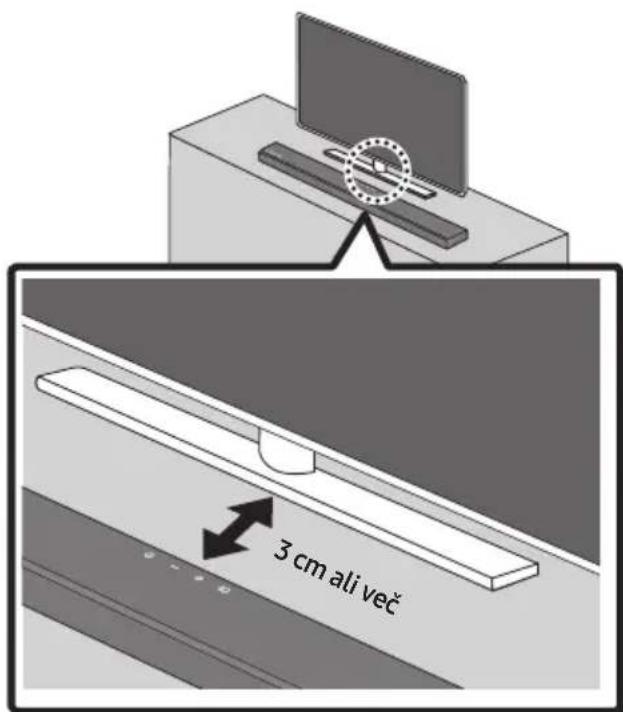

As illustrated in the image, align the centre of the Soundbar with the centre of the TV, carefully place the Soundbar onto the TV stand.

For optimal sound quality, position the Soundbar at least 3 cm away from the TV front.

NOTE

- Make sure the Soundbar is placed on a flat and solid surface.

11 SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

USB port USB (5V 0.5A)

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung website at www.samsung.com →Support. Then, select the product type or enter the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

Update Procedure

Important: The updating function erases all user settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating the firmware resets the subwoofer connection too.

1. Connect a USB thumb drive to the USB port on your computer.
   Important: Make sure there are no music files on the USB thumb drive. This may cause the firmware update to fail.
2. Go to the Samsung website (samsung.com) → select Enter Model Number and enter the model of your Soundbar. Select manuals and downloads and download the latest software file.
3. Save the downloaded software to a USB stick and select "Extract Here" to unzip the folder.
4. Turn off the Soundbar and connect the USB stick containing the software update to the USB port.
5. Turn on the Soundbar. Within 3 minutes, "UPDATE" is displayed and updating begins.
6. When the update finishes, the Soundbar turns off. Press the ▶II button on the remote control for 5 seconds. "INIT" appears on the display and then the Soundbar turns off. The update is complete.
7. This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.
8. Restore your settings on the Soundbar.

If UPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.
2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

NOTES

• The firmware update may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
• After the update is completed, the user setup in the Soundbar is initialised so you can reset your settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too.

If the connection to the subwoofer is not re-established automatically after the update, refer to page 6.

If the software update fails, check if the USB stick is defective.

• Mac OS users should use MS-DOS (FAT) as the USB format.
• Updating via USB may not be available, depending on the USB storage device manufacturer.

12 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord firmly plugged into the wall outlet and power adapter?

→Unplug and reconnect the power cord to the wall outlet and the power adapter to make sure the connection is secure.

Is the power adapter firmly connected to the main unit?

→Disconnect the power adapter from the Soundbar, and reconnect to make sure the connection is firm and secure.

A function does not work when the button is pressed.

Is there static electricity in the air?

→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 12 and 17.

Sound is not produced.

Is the Mute function on?

→ Press the ⚫ (Mute) button to cancel the mute function.

Is the volume set to minimum?

→Adjust the Volume.

The remote control does not work.

Are the batteries drained?

→Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?

→ Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur if the subwoofer is not connected to the Soundbar main unit.

→ Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.

→ Rock the WOOFER button on your remote control forward or backward to adjust the subwoofer level. (to -12, or between -6 \~ +6).

13 LICENCE

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 OPEN SOURCE LICENCE NOTICE

To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

15 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

16 SPECIFICATIONS AND GUIDE

Specifications

Model Name HW-T650
USB 5V/0.5A
Weight 2.4 kg
Dimensions (W x H x D) 980.0 x 58.0 x 90.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % ~ 75 %
AMPLIFIERRated Output power 30W x 6
Supported play formats	LPCM 2ch, Dolby AudioTM(supporting Dolby® Digital), DTS, DTS Virtual:X
WIRELESS DEVICE OUTPUT POWERBT max transmitter powerSRD max transmitter power	6mW at 2.402GHz – 2.480GHz25mW at 5.725GHz – 5.825GHz
Subwoofer Name PS-WR65BB
Weight 6.2 kg
Dimensions (W x H x D) 205.0 x 353.0 x 303.2 mm
AMPLIFIERRated Output power 160W
WIRELESS DEVICE OUTPUT POWERSRD max transmitter power	25mW at 5.725GHz – 5.825GHz
Overall Standby Power Consumption (W)	2.0W
BluetoothPort deactivation method	Press and hold the SOUND MODE button for more than 5 seconds to turn off Bluetooth Power function.

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
  • Weight and dimensions are approximate.

- Hereby, Samsung, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

COMMISSION REGULATION (EU) 2019/1782

Ecodesign requirements for external power supplies :

www.samsung.com/global/ecodesign_component

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

РЪКОВОДСТВО НА ПОТРЕБИТЕЛЯ

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

ПЪЛНО РЬКОВОДСТВО

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

A B A TYPE: 436mm B TYPE: 348mm B A

Two mechanical components: a pulley and a screw, both scaled by 2x (no text or symbols present)

Държач-винт Винт

Simple line drawing of a bracket with no text or symbols

Скоба за монтаж на стена

Diagram showing a control panel with checkmark, input box, and output button symbols

Diagram showing a screw being inserted into a nut, with motion arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a screw being inserted into a housing component with a circular arrow indicating rotation (no text or symbols present)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

10 ПОСТАВЯНЕ НА SOUNDBAR НА СТОЙКА ЗА ТЕЛЕВИЗОР

Поставете Soundbar на стойка за телевизор.

USB (5V 0.5A)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 БЕЛЕЖКА ЗА ЛИЦЕНЗА ЗА ОТВОРЕН КОД

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

KORISNIČKI PRIRUČNIK

Pogledajte ovaj priručnik za sigurnosne upute, instalaciju proizvoda, komponente, povezivanje i specifikacije proizvoda.

Illustration of a person sitting on a couch next to a laptop (no text or symbols present)

POTPUNI PRIRUČNIK

POTPUNI PRIRUČNIK možete pristupiti putem web-centra službe za korisnike tvrtke Samsung skeniranjem QR koda. Za pregled priručnika na računalu ili mobilnom uređaju preuzmite priručnik u formatu dokumenta s web-stranice tvrtke Samsung. (http://www.samsung.com/support)

Dizajn i specifikacije mogu se promijeniti bez prethodne najave.

SADRŽAJ

01 Provjera Komponenti 2

Umetanje baterija prije upotrebe daljinskog upravljača (AA baterije X 2) ____ 2

02 Pregled Proizvoda 3

Prednja ploča / gornja ploča sustava Soundbar 3

Donja ploča uređaja Soundbar 4

Diagram illustrating the step-by-step assembly of a remote control device, showing battery casing and internal components with polarity indicators.

02 PREGLED PROIZVODA

Prednja ploča / gornja ploča sustava Soundbar

Namjestite proizvod tako da logotip SAMSUNG bude na vrhu. Gornja ploča 1 2 3 4

1	ZaslonPrikazuje status proizvoda i trenutni način.
2	Gumb (napajanje)Uključuje i isključuje napajanje.Funkcija Auto Power DownJedinica se isključuje automatski u sljedećim situacijama:– U načinima rada D.IN / HDMI / BT / USB: ako 20 minuta nema audiosignala.
3	Gumb -/+ (Glasnoća)Prilagođava glasnoću.Prilikom prilagođavanja razine glasnoća se prikazuje na prednjem zaslonu uređaja Soundbar.
4	Gumb (izvor)Odabir načina unosa izvora.
	Način unosa Zaslon
	Optički digitalni ulaz D.IN
	Unos ARC (HDMI OUT)	D.IN → TV ARC (Automatska pretvorba)
	Unos HDMI HDMI
	Način BLUETOOTH BT
	Način USB USB
	Za uključivanje načina „BT PAIRING” promijenite izvor u način „BT”, a zatim pritisnite i držite gumb (Izvor) duže od 5 sekundi.

• Kad priključite kabel napajanja, tipka napajanja radi još 4 do 6 sekundi.
• Kad uključite napajanje ove jedinice, početak reprodukcije zvuka kasnit će 4 do 5 sekundi.
• Ako želite uživati u zvuku koji se reproducira samo putem uređaja Soundbar, zvučnike televizora morate isključiti u izborniku Postavke zvuka televizora. Pogledajte priručnik TV-a koji je isporučen uz TV.

Donja ploča uređaja Soundbar

DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) HDMI HDMI TO TV (ARC) DC 24V 1 2 3 4 5

1	DIGITAL AUDIO IN (OPTICAL)Povežite na digitalni (optički) izlaz vanjskog uređaja.
2	USB (5V 0.5A)Povežite USB uređaj kako biste reproducirali glazbu s uređaja USB pomoću uređaja Soundbar.
3	HDMIUnosi digitalne video i audio signale istovremeno pomoću kabela HDMI.Povežite na izlaz HDMI vanjskog uređaja.
4	HDMI TO TV (ARC)Povežite s priključkom HDMI (ARC) na televizoru.
5	DC 24V (Ulaz napajanja)Spojite AC/DC adapter.

• Prilikom isključivanja iz zidne utičnice, kabel za napajanje adaptera izmjenične/istosmjerne struje držite za utikač. Ne povlačite kabel.
• Ne spajajte ovu jedinicu ili druge komponente na utičnicu za napajanje izmjeničnom strujom dok u potpunosti ne spojite sve komponente.

03 SPAJANJE UREĐAJA SOUNDBAR

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth uređaj A Bluetooth uređaj B

1. Povežite sustav Soundbar najviše s dva Bluetooth uređaja. (Pogledajte stranicu 17.)
2. Reproducirajte glazbu s jednog od povezanih Bluetooth uređaja dok su povezana dva uređaja.
3. Kako biste reproducirali glazbu s Bluetooth uređaja „B“ dok reproducirate s uređaja „A“, pauzirajte ili zaustavite reprodukciju na uređaju „A“, a zatim pokrenite reprodukciju na uređaju „B”.
4. Uređaj se neće prebaciti kad reproducirate glazbu s uređaja „B“ ako prethodno ne pauzirate ili zaustavite uređaj „A”.
5. U verzijama koje prethode verziji AVRCP V1.4 vrijeme prebacivanja uređaja koji reproducira glazbu može biti produljeno.

NAPOMENE

A B A TYPE: 436mm B TYPE: 348mm B A

Two 3D mechanical parts: a pulley and a screw, both scaled by ×2 (no text or symbols)

Vijak držača Vijak

Simple line drawing of a bracket with no text or symbols

Zidni nosač

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

10 POSTAVLJANJE SUSTAVA SOUNDBAR NA POSTOLJE TV PRIJEMNIKA

USB (5V 0.5A)

Ako je ponuđeno ažuriranje, možete ažurirati opremu povezivanjem uređaja USB na kojem je pohranjeno ažuriranje s priključkom za USB na vašem uređaju Soundbar. Za više informacija o preuzimanju dokumenata za ažuriranje pogledajte mrežnu stranicu Samsung na (www.samsung.com → Support). Zatim odaberite tip proizvoda ili unesite broj modela sustava Soundbar, odaberite opciju Softver i aplikacije, a zatim opciju Preuzimanja. Imajte na umu da se nazivi opcija mogu razlikovati.

Postupak ažuriranja

Važno: Funkcijom ažuriranja brišu se sve korisničke postavke. Preporučujemo da zapišete sve svoje postavke kako biste ih mogli jednostavno ponovno postaviti nakon ažuriranja. Imajte na umu da se ažuriranjem firmvera resetira i priključak subwoofera.

1. Spojite USB štapić na USB priključak na računalu.
   Važno: Vodite računa da na USB štapiću nema glazbenih datoteka. To može uzrokovati neuspješno ažuriranje firmvera.
2. Idite na mrežno mjesto Samsung na adresi (samsung.com) → odaberite opciju Unesite broj modela, a zatim unesite model sustava Soundbar. Odaberite opciju Priručnici i preuzimanja i preuzmite najnoviju softversku datoteku.
3. Spremite preuzeti softver na USB uređaj za pohranu podataka i odaberite „Izdvojiti ovdje” kako biste raspakirali mapu.
4. Isključite sustav Soundbar i u USB priključak umetnite USB štapić koji sadržava ažuriranje softvera.
5. Uključite Soundbar. Unutar 3 minute prikazuje se poruka „UPDATE” i ažuriranje započinje.
6. Kada je ažuriranje dovršeno, Soundbar se isključuje. Na daljinskom upravljaču pritisnite i zadržite gumb ▶II 5 sekundi. Na zaslonu će se prikazati „INIT” i zatim će se Soundbar isključiti. Ažuriranje je završeno.
7. Ovaj proizvod ima funkciju DUAL BOOT. Ako se firmver ne ažurira, možete ga ažurirati ponovno.
8. Vratite na početak postavke sustava Soundbar.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 OBAVIJEST O LICENCI ZA UPORABU SOFTVERA OTVORENOG KODA

Za slanje upita i zahtjeva u vezi otvorenih izvora obratite se tvrtki Samsung putem e-pošte ([e-mail]).

15 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referenca i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moguća je naplata administrativne pristojbe u slučaju

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

UŽIVATELSKÁ PŘÍRUČKA

Illustration of a person sitting on a sofa next to a laptop and desk (no text or symbols)

KOMPLETNÍ PŘÍRUČKA

Diagram illustrating the process of battery charging with polarity labels (+/-) and charge distribution

02 POPIS VÝROBKU

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Two mechanical components: a pulley and a screw, both scaled by 2x (no text or symbols present)

Držák šroubu Šroub

Simple line drawing of a bracket with no text or symbols

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

10 UMÍSTĚNÍ SOUNDBARU NA STOJAN TELEVIZORU

USB (5V 0.5A)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 POZNÁMKA K LICENCI OTEVŘENÉHO SOFTWARU

Illustration of a person sitting on a couch using a laptop (no text or symbols visible)

BENUTZERHANDBUCH

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

VOLLSTÄNDIGES HANDBUCH

(AA-Batterien X 2) 2

Diagram illustrating the step-by-step assembly of a battery pack, showing charge distribution before and after disassembly.

02 PRODUKTÜBERSICHT

Diagram showing three devices: smartphone, a rectangular device with Bluetooth signal, and a smartphone with wireless signal.

A B TYPE: 45mm TYPE: 340mm A TYPE: 45mm B TYPE: 340mm A

Two mechanical components: a cylindrical screw and a threaded screw, both scaled by 2 units (no text or symbols present)

Simple line drawing of a bracket with no text or symbols

Wandhalterung

A B A TYPE:1.5mm A TYPE:2.5mm B A A

Diagram showing a screw being inserted into a housing, with arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

USB (5V 0.5A)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN

Illustration of a person sitting on a couch next to a laptop and a desk (no text or symbols)

TÄIELIKUST KASUTUSJUHENDIST

Diagram illustrating battery internal structure change with polarity labels

02 TOOTE ÜLEVAADE

Soundbari esipaneel / ülemine paneel

TV ... VõI

Bluetooth-seade VõI

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth-seade A Bluetooth-seade B

Two 3D mechanical parts: a pulley and a screw, both scaled by ×2 (no text or symbols)

Hoidikkruvi Kruvi

Simple line drawing of a bracket-like object with no text or symbols

Seinakinnituskronsteini

1. Asetage Seinakinnitusjuhik vastu seinapinda.

• Seinakinnitusjuhik peab olema loodis.
- Kui teler on seinale kinnitatud, paigaldage Soundbar vähemalt 5 cm telerist allapoole.

TV Vähemalt 5 cm

A B 100% 20% 30% A TYPE: 45mm TYPE: 30mm B A A

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing, with no visible text or symbols

- Kokkupanekul veenduge, et Seinakinnituskronstein riputusosad jääksid Soundbari taha.

Soundbar tag

Heliriba parempoolne ots

1. Paigaldage Soundbar koos selle külge kinnitatud Seinakinnituskronstein, riputades Seinakinnituskronstein seinal olevatele Hoidikkruvi.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

1. Libistage Soundbari alla, nagu on allpool näidatud, nii et Seinakinnituskronstein toetuksid Kruvihoidikutele.

- Sisestage Kruvihoidikutele Seinakinnituskronstein laia (alumisse) ossa ja seejärel libistage Seinakinnituskronstein allapoole, nii et Seinakinnituskronstein toetuksid kindlalt Kruvihoidikutele.

10 SOUNDBARI ASETAMINE TELERIALUSELE

Asetage Soundbar telerialusele.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 AVATUD LÄHTEKOODI LITSENTSI TEATIS

Illustration of a person sitting on a couch watching a computer (no text or symbols visible)

MANUEL COMPLET

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

02 PRÉSENTATION DU PRODUIT

Two types of mechanical components: a pulley and a screw, both scaled by 2 units (no text or symbols present)

Vis de fixation Vis

Simple line drawing of a bracket with no text or symbols

Support de fixation murale

TV 5 cm minimum

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component with screw and mounting base, showing rotation arrow (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 AVIS DE LICENCE LIBRE

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

ΠΛΗΡΕΣ ΕΓΧΕΙΡΙΔΙΟ

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

Diagram showing three smartphones connected by a wireless signal line, indicating data or communication between them.

A B TYPE: 45mm TYPE: 340mm A TYPE: 45mm B TYPE: 340mm A

Two mechanical components: a cylindrical pin and a threaded screw, both scaled by 2 units (no text or symbols present)

Βίδα στερέωσης Βίδα

Simple line drawing of a bracket with no text or symbols

A B TYPE: 10mm TYPE: 15mm A B A

Diagram showing a screw being inserted into a pulley and then being inserted into a screw, with no text or symbols present.

Mechanical component diagram showing a bolt and nut assembly with rotation arrow (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

FELHASZNÁLÓI KÉZIKÖNYV

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols)

TELJES KÉZIKÖNYV

Diagram illustrating the process of inserting a battery into a plastic case, showing steps from external casing to internal structure.

02 A TERMÉK ÁTTEKINTÉSE

Diagram showing three smartphones connected by a wireless signal, with icons indicating connection type.

Two types of mechanical components: a pulley and a screw, both scaled by 2 units (no text or symbols present)

Tartócsavar Csavar

Simple line drawing of a chair or bench with no text or symbols

Fali Konzol

Diagram showing a screw being inserted into a pulley, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a circular base (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

10 A SOUNDBAR TV ÁLLVÁNYRA HELYEZÉSE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 NYÍLT FORRÁSKÓDÚ LICENC MEGJEGYZÉS

Illustration of a person sitting on a sofa using a laptop (no text or symbols)

MANUALE UTENTE

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

MANUALE COMPLETO

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

02 PANORAMICA DEL PRODOTTO

TV OPPURE

Diagram showing three devices: smartphone, a rectangular device with Bluetooth signal, and a smartphone with wireless signal.

Dispositivo Bluetooth A Dispositivo Bluetooth B

OFF-TV REMOTE

A B TYPE: 45mm TYPE: 340mm A TYPE: 45mm B TYPE: 340mm A

Two mechanical components: a pulley and a screw, both scaled by 2x (no text or symbols on the parts themselves)

Simple line drawing of a chair or bench with no text or symbols

A B A TPOC:1.5mm B TPOC:0.5mm A A

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 AVVISO DI LICENZA OPEN SOURCE

http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/

REGOLAMENTO (UE) 2019/1782 DELLA COMMISSIONE

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

LIETOTĀJA ROKASGRĀMATA

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

PILNĀ ROKASGRĀMATA

Diagram illustrating battery internal structure changes with polarity labels

02 IZSTRĀDĀJUMA PĀRSKATS

USB ports USB (5V 0.5A) USB

Bluetooth ierice

Power - + VAI

Diagram showing three smartphones connected by a wireless signal line, illustrating the connection between devices.

Bluetooth ierice A Bluetooth ierice B

Two mechanical components: a pulley and a screw, both scaled by 2x (no text or symbols present)

Simple line drawing of a bracket with no text or symbols

A B TYPE: 100mm TYPE: 50mm A A

Diagram showing a screw being inserted into a pulley, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a circular base (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

10 SISTEMAS SOUNDBAR NOVIETOŠANA UZ TELEVIZORA STATIVA

USB ports USB (5V 0.5A)

12 PROBLÉMU NOVĚRŠANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 PAZIÑOJUMS PAR ATVÉRTÃ PIRMKODA LICENCI

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

NAUDOTOJO VADOVAS

Illustration of a person sitting on a couch next to a desk with a computer monitor (no text or symbols visible)

IŠSAMUS VADOVAS

Diagram illustrating battery internal structure changes, showing three stages of battery assembly with polarity indicators

02 GAMINIO APŽVALGA

Priekinis / viršutinis „Soundbar“ skydelis

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

„Bluetooth“ A jrenginys „Bluetooth“ B jrenginys

A B TYPE: 45mm TYPE: 340mm B A

Two types of mechanical components: a cylindrical pin and a threaded screw, both scaled by 2 units (no text or symbols present)

Simple line drawing of a bracket with no text or symbols

Sieninis laikiklis

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 ATVIROSIOS PROGRAMINĖS JRANGOS LICENCIJOS PRANEŠIMAS

Illustration of a person sitting on a couch next to a laptop and TV (no text or symbols)

PEŁNY PODRĘCZNIK UŻYTKOWNIKA

Diagram illustrating the process of battery charging with positive and negative charges, showing step-by-step assembly.

02 OPIS PRODUKTU

Two mechanical components: a pulley and a screw, both scaled by 2 units (no text or symbols present)

Simple line drawing of a bracket with no text or symbols

A B TYPE: 450mm TYPE: 30mm A B A

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical component diagram showing a screw being inserted into a housing with a circular base (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

10 INSTALACJA LISTWY SOUNDBAR NA PODSTAWCE TELEWIZORA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 INFORMACJA O LICENCJI OPEN SOURCE

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

MANUAL DE UTILIZARE

Illustration of a person sitting on a couch next to a laptop and a desk (no text or symbols)

MANUAL COMPLET

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

02 DESCRIERI

Panoul frontal/superior al sistemului Soundbar

Diagram showing three smartphones connected by a wireless signal, with icons indicating connection type.

Dispositiv Bluetooth A Dispositiv Bluetooth B

A B TYPE: 45mm TYPE: 34mm A TYPE: 45mm B TYPE: 34mm A

Two types of mechanical components: a cylindrical pin and a threaded screw, both scaled by 2 units (no text or symbols present)

Şurub suport Şurub

Simple line drawing of a bracket with no text or symbols

Suport de fixare pe perete

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a bolt and nut assembly with a rotating knob (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

USB (5V 0.5A)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 NOTIFICARE DE LICENȚĂ OPEN SOURCE

15 NOTĂ IMPORTANTĂ DESPRE SERVICE

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

KORISNIČKI PRIRUČNIK

Pogledajte ovaj priručnik za bezbednosna uputstva, postavljanje proizvoda, komponente, povezivanje i specifikacije proizvoda.

Illustration of a person sitting on a sofa next to a desk with a laptop (no text or symbols visible)

KOMPLETAN PRIRUČNIK

Možete da pristupite KOMPLETAN PRIRUČNIK na internet centru za korisničku podršku kompanije Samsung skeniranjem QR koda. Da biste videli priručnik na vašem PC računaru ili mobilnom uređaju, preuzmite priručnik u formatu dokumenta sa internet stranice kompanije Samsung. (http://www.samsung.com/support)

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and polarity indicators.

02 PREGLED PROIZVODA

Prednji panel / gornji panel uređaja Soundbar

Pozicionirajte proizvod tako da se SAMSUNG logotip nalazi u gornjem delu. Gornji panel 1 2 3 4

1	EkranPrikazuje status proizvoda i trenutni režim.
2	Dugme (napajanje)Uključuje i isključuje napajanje.Funkcija Auto Power DownUređaj se automatski isključuje u sledećim situacijama.- D.IN / HDMI / BT / USB režim : Ako nema zvučnog signala 20 minuta.
3	Dugme -/+ (Jačina zvuka)Podešava jačinu zvuka.Kada se podesi, nivo jačine zvuka se prikazuje na prednjem ekranu uređaja Soundbar.
4	Dugme (Izvor)Bira režim ulaza izvora.
	Režim ulaza Ekran
	Optički digitalni ulaz D.IN
	ARC (HDMI OUT) ulaz	D.IN → TV ARC (automatska konverzija)
	HDMI ulaz HDMI
	BLUETOOTH režim BT
	USB režim USB
	Da biste uključili režim „BT PAIRING“, promenite izvor na režim „BT“, a zatim pritisnite i zadržite dugme (Izvor) duže od 5 sekundi.

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth uređaj A Bluetooth uređaj B

Two 3D mechanical parts: a pulley and a screw, both scaled by ×2 (no text or symbols on the parts themselves)

Simple line drawing of a bracket-like object with no text or symbols

Nosača za montažu na zid

1. Postavite Vodicu za montažu na zid na zidnu površinu.

2. Vodicu za montažu na zid mora biti nivelisana.

3. Postavite uređaj Soundbar najmanje 5 cm ispod televizora, ako je televizor montiran na zid.

TV 5 cm ili više

1. Poravnajte Osu vodice za montažu na zid sa sredinom televizora (ako montirate uređaj Soundbar ispod televizora), a zatim pričvrstite Vodica za montažu na zid za zid koristeći traku.

- Ako ne montirate uređaj ispod televizora, postavite Osa na sredinu oblasti za montiranje.

A B TYPE: 43mm TYPE: 50mm B A Osa

A B A TYPE: 240mm B TYPE: 240mm A A

Diagram showing a screw being inserted into a nut, with motion arrows indicating direction (no text or symbols)

1. Montirajte 2 Nosača za montažu na zid u odgovarajućoj orijentaciji na dnu uređaja Soundbar, pomoću 2 Zavrtnja.

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

- Prilikom sklapanja noseći delovi Nosač za montažu na zid treba da se nalaze sa zadnje strane uređaja Soundbar.

Zadnja strana uređaja Sou Desni kraj uređaja Soundbar

1. Postavite uređaj Soundbar sa pričvršćenim Nosač za montažu na zid tako što ćete okačiti Nosač za montažu na zid na Zavrtanj držača na zidu.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Illustration of a person sitting on a sofa using a tablet (no text or symbols visible)

POUŽÍVATELŠKÚ PRÍRUČKU

Illustration of a person sitting on a couch next to a desk with a laptop (no text or symbols visible)

ÚPLNÚ PRÍRUČKU

Diagram illustrating the step-by-step assembly of a battery pack, showing internal components and charge distribution.

02 OPIS PRODUKTU

Diagram showing three devices: smartphone, a rectangular device with Bluetooth signal, and a smartphone with wireless signal.

Zariadenie Bluetooth A Zariadenie Bluetooth B

Two 3D-rendered mechanical parts: a cylindrical component and a threaded screw, both scaled by 'x2' (no text or symbols on the objects themselves)

Skrutka držiaka Skrutka

Simple line drawing of a bracket with a cutout and dimension label 'x2' (no text or symbols beyond the label)

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

Mechanical component diagram showing a bolt and screw assembly with a circular arrow indicating rotation (no text or symbols)

Simple line drawing of a monitor with a cable and antenna, no text or symbols present

Pravý koniec zariadenia Soundbar

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

10 INŠTALÁCIA ZARIADENIA SOUNDBAR NA STOJAN TELEVÍZORA

Zariadenie Soundbar umiestnite na stojan televízora.

3 cm alebo viac

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 POZNÁMKA K LICENCII S OTVORENÝM ZDROJOVÝM KÓDOM

Illustration of a person sitting on a sofa using a laptop (no text or symbols visible)

UPORABNIŠKI PRIROČNIK

Illustration of a person sitting on a couch next to a laptop (no text or symbols present)

POPOLNI PRIROČNIK

Diagram illustrating the step-by-step assembly of a battery pack, showing charge distribution and disassembly process.

02 PREGLED IZDELKA

Diagram showing three devices: smartphone, a rectangular device with Bluetooth signal, and a smartphone with wireless signal.

Naprava Bluetooth A Naprava Bluetooth B

Two types of mechanical components: a pulley and a screw, both scaled by 2 units (no text or symbols present)

Držalo vijaka Vijak

Simple line drawing of a bracket with a cutout and label 'x2' (no other text or symbols)

Stenskega nosilca

Diagram showing a screw being inserted into a pin, with motion arrows indicating direction (no text or symbols)

1. Na spodnji del zvočnika Soundbar z dvema Vijakoma (2) pravilno namestite Dva stenska nosilca (2).

Mechanical component diagram showing a screw being inserted into a housing with a bolt, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

1. Zvočnik Soundbar potisnite dol, kot je prikazano spodaj, tako da se Stenski nosilci varno zasidrajo na Vijake nosilca.

- Vijake nosilca vstavite v širok (spodnji) del Stenskih nosilcev, nato pa Stenske nosilce potisnite navzdol, da se Stenski nosilci varno zasidrajo na Vijake nosilca.

10 NAMEŠČANJE ZVOČNIKA SOUNDBAR NA STOJALO ZA TELEVIZOR

Zvočnik Soundbar postavite na stojalo za televizor.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dts

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Digital Surround, and the Digital Surround logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

dts

VIRTUAL

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

14 OBVESTILO O ODPRTOKODNIH LICENCAH

© 2020 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Area Contact Centre	[IMAGE]	Web Site
▪Europe
UK 0333 000 0353		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 91175 00 15		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com/pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 21629099		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN	0771 726 786	www.samsung.com/se/support
POLAND	801-172-678* lub [phone]*Specjalistyczna infolinia do obstugi zapytań dotyczących telefonów komórkowych: 801-672-678** (opłata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA 0800 72 67 864 (0800-SAMSUNG)		www.samsung.com/at/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)

Area Contact Centre		Web Site
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786	www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
NORTH MACEDONIA	023 207 777	www.samsung.com/mk/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
KOSOVO	0800 10 10 1	www.samsung.com/support
ALBANIA 045 620 202		www.samsung.com/al/support
BULGARIA	*3000 Цена на един градски разговор 0800 111 31 Безплатен за всички оператори	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUITAtenție: Dacă efectuați apelul din rețeaua Digi (RCS/RDS), vă rugăm să ne contactați formând numărulTelverde fără ultimele două cifre, astfel: 0800872678.	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA 8-800-77777		www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
