DB Series Subwoofoers

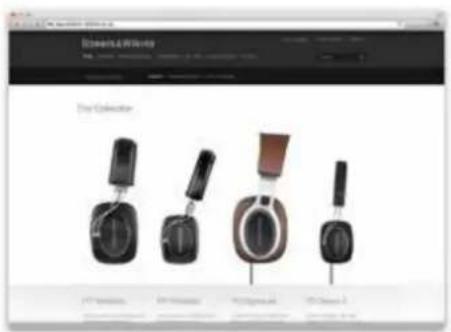

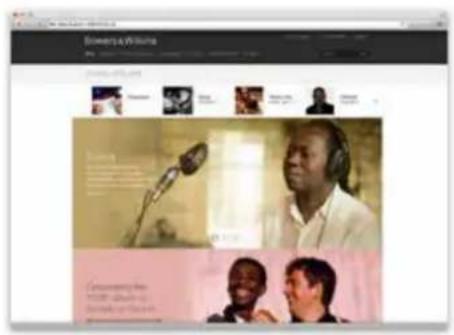

Welcome to Bowers & Wilkins and the DB Series subwoofoers.

Thank you for choosing Bowers & Wilkins. When John Bowers first established our company he did so in the belief that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home. His belief is one that we continue to share and it inspires every product we design.

Before connecting and operating this mains powered apparatus, please read carefully and observe the Important Safety Instructions in the accompanying leaflet.

This manual covers all DB Series subwoofoers.

bowers-wilkins.com

1. Carton Contents

1. DB Series subwoofer
2. Power cable(s)
3. Speaker grilles
4. Spike, decoupling and rubber feet
5. Literature pack

2. Introduction

Your DB Series subwoofer is an extremely high performance product that will reward thoughtful installation. We suggest that you take some time to read this manual before you begin.

DB Series subwoofoers can be used for low frequency applications in both conventional stereo and home theatre systems. They incorporate a comprehensive set of features that enhance versatility and enable performance to be finely tuned to the listening room, listening position and programme material. These features are briefly described in the following paragraphs:

Set Up and Control

DB Series subwoofoers can be set up and controlled only via the Bluetooth connected Bowers & Wilkins DB Subwoofoers app for iOS and Android devices.

Before you begin installing your subwoofer, please download and install the DB Subwoofer app on your iOS or Android device. It is not possible to set up or use a DB Series subwoofer without the app.

Note: The DB Subwoofer's app requires iOS version 10 and Android version 5 or later. Bluetooth must be switched on in the iOS or Android settings.

Room Equalisation

DB Series subwoofoers can automatically optimise their performance to match the acoustic characteristics of the listening environment.

Multiple Inputs

DB Series subwoofoers provide RCA Phono and balanced XLR stereo analogue inputs. The inputs can be connected simultaneously and configured independently for different system applications.

Level Adjustment

DB Series subwoofoers incorporate both level adjustment and trim adjustment. The trim adjustment enables optimum matching of different source output levels so that the subwoofer volume level matches that of the main speakers for all inputs.

Low Pass Filter Set up

DB Series subwooers provide low pass filter options for stereo configurations for both RCA and XLR connections. When using mono (LFE) connections the bass management functions of the source equipment should be employed. For stereo installations the low pass filter characteristics can be matched to either specific Bowers & Wilkins main speakers or to alternative manufacturer's main speaker specifications.

Input EQ

DB Series subwoofoers provide optional equalisation presets designed to suit music and movie programme material. Custom equalisation via a five band equaliser is also provided.

3. Installing your Subwoofer

3.1 Before You Begin

Please follow the unpacking instructions printed on the outer carton.

Your DB Series subwoofer is heavy and should be unpacked by two people working together close to its final installed position.

Note: Due to the dual driver design of the DB1D, DB2D, and DB3D subwoofer we do not recommend that they are suitable for installation within custom built furniture. If furniture installation is necessary, multiple DB4S subwoofer are likely to offer a more satisfactory solution. In any case, built-in furniture must be structurally adequate to support the weight of the subwoofer or subwoofer and provide at least 20cm (8 inches) clearance around the subwoofer sides, back, and top.

3.2 Positioning

DB Series subwoofoers are more versatile than most subwoofoers in terms of positioning thanks to their Room EQ optimisation system that can compensate for less than ideal positioning.

Best results however will be obtained if your DB Series subwoofer is placed between the left and right speakers or in the vicinity of one of them. Placing a subwoofer to the side, but still to the front of the listeners is an acceptable compromise

if domestic considerations dictate, however the subwoofer should not be located behind the listening position.

If two subwoofoers are to be used it is best to position one near the left speaker and one near the right speaker. Diagrams 1a and 1b illustrates subwoofer positioning.

Note: DB1D, DB2D and DB3D models should be orientated with their twin drivers facing sideways. The DB4S should be orientated with its single driver facing outwards into the room.

Note: Using two subwoofoers in a single installation can improve performance by maintaining stereo separation to the lowest frequencies, averaging the effects of low frequency room resonances and enabling a higher maximum volume level. In the case of two subwoofoers used in a conventional stereo system, stereo separation will only be improved if each subwoofer is located close to the appropriate main speaker.

Note: Like all speakers, the proximity of room boundaries affects the sound of a subwoofer. Bass volume increases as more boundaries come into proximity. The more boost gained from the room, the lower the volume can be set and the less hard the subwoofer has to work.

Once you have positioned your subwoofer, its performance can be optimised using the Room EQ function. This is described in Section 4.

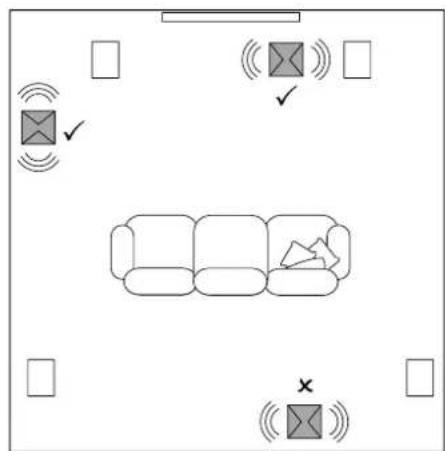

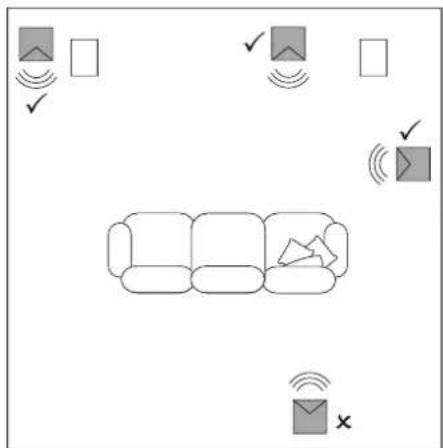

Diagram 1a DB4S positioning in a stereo (2.1) system

Diagram 1b DB1D, DB2D and DB3D positioning in a home theatre (5.1) system

3.3 Subwoofer Foot Options

DB Series subwoofoers must not be without one of the foot options fitted.

DB Series subwoofoers can be fitted with either decoupling, rubber or spike feet. Use of the different foot types is described in the following paragraphs:

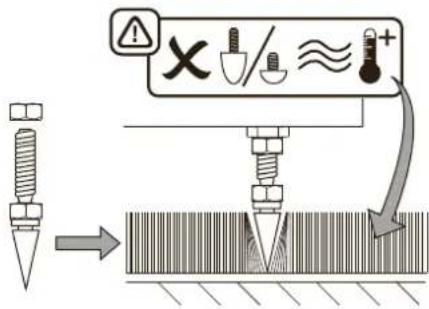

• The spike feet are intended for use on carpeted floors. The spikes pierce the carpet and rest on the floor beneath both to protect the carpet from indentation and to provide the subwoofer with a solid foundation.
• The decoupling feet are intended to be used on suspended wooden floors. The rubber material of the foot provides a degree of de-coupling between the floor and subwoofer.
• The rubber feet are intended for use on noncarpeted solid floors where spike feet might cause damage the surface.

Due to the underside location of a bwoofer heat-sink, rubber or coupling feet should not be used on heated floors.

In order for feet to be fitted to the subwoofer it must first be turned upside-down. Take care not to damage the drive units when handling the subwoofer, and ensure when upside-down that the subwoofer rests on a surface that will not damage its finish.

Fit the feet by screwing one into each of the four screw holes in the subwoofer underside. In the case of spike feet, initially screw the lock nuts fully onto the thread before screwing the feet into the subwoofer. The lock nut should then be used to raise the subwoofer above the carpet pile and to enable adjustment to minimise rocking.

Note: It is particularly important on the DB1D, DB2D and DB3D to raise the subwoofer above the carpet pile to ensure that cooling air can flow around the subwoofer amplifier heat-sink panel.

Diagrams 2a and 2b illustrate the use of each foot type.

Once the feet are fitted, the subwoofer can be turned back on to its feet. Take care not to allow the entire weight of the subwoofer to rest at an angle on one or two feet.

Never slide the subwoofer across the skin on its feet. It must be lifted if it is removed.

If the subwoofer rocks when placed on the floor in its final position on spike feet, or the thickness of carpet means that the spike points do not reach the floor beneath, adjust the foot until the subwoofer is supported firmly without rocking and is well clear of the carpet pile. When adjustment is complete, tighten all the lock nuts against the underside of the subwoofer using a 10mm spanner.

3.4 Subwoofer Grilles

Your DB Series subwoofer is supplied with optional fabric covered grilles (a single grille in the case of the DB4S). The subwoofer can be used with or without grilles fitted. The grilles are attached magnetically.

3.5 Connections

DB Series subwoofores require connection to a mains power supply and an input signal. Connectors for optional 12V trigger and RS232 control are also provided. Diagram 3 illustrates the DB Series subwoofer connection panel.

Mains Power

A variety of different power cables may be packed with your subwoofer. Use the cable appropriate for the mains socket in your territory. The subwoofer will switch on in operational mode, with its standby button indicator illuminated green, as soon as it is connected to mains power.

Note: The standby button is located on the front panel of the DB1D, DB2D and DB3D, and on the rear panel of the DB4S.

If the subwoofer remains unused for more than 20 minutes it will automatically switch to standby mode with the indicator illuminated red.

Signal Connections

DB Series subwoofer provide stereo RCA Phono and stereo balanced XLR inputs. It is possible to use the Phono and XLR sockets as independently selectable Inputs. This enables your subwoofer to be integrated with two different audio systems: a home theatre system and a conventional stereo system for example. Input selection is managed via the DB Subwoofer app.

1-XLR inputs

The balanced XLR inputs are intended for use with proamplifiers or audio-visual processors that provide balanced stereo outputs.

Diagram 2a

Using spike feet

Note: Balanced connection, where negative, positive and ground signals are carried on separate wires, is common in professional and some high-end domestic audio equipment. Balanced connection is inherently more resistant to interference and noise than unbalanced connection.

2 - RCA Phono inputs

The unbalanced RCA Phon inputs are intended for use with preamplifiers or audio-visual processors that provide only unbalanced stereo outputs.

Note: If your preamplifier or audio-visual processor provides only a mono subwoofer output, it can be connected to just one of the subwoofer input sockets.

Control Connections

In addition to mains and signal input sockets the DB Series subwoofer connection panel carries the following optional control interface sockets:

3-12V Trigger 1:3.5mm jack socket

The Trigger 1 socket enables wired remote control of the subwoofer switch on and standby functions.

4-12V Trigger 2:3.5mm Jack socket

The Trigger 2 socket enables wired remote control of subwoofer input selection.

5-RS-232:9-pin D connector

The RS232 interface enables subwoofoers to be incorporated in remote control home automation systems. Your Bowers & Wilkins retailer will be able to provide more information on RS232 based home automation systems.

Diagram 2b

Using decoupling and rubber feet

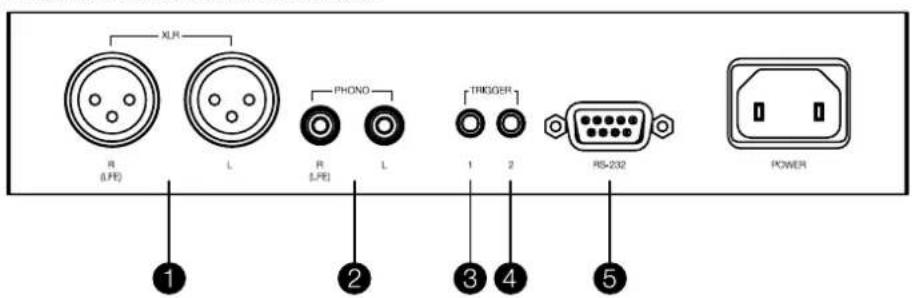

Diagram 3

DB subwoofer connection panel

4. Set Up and Control

Your DB Series subwoofer can only be set up and controlled using the DB Subwoofer app. If you have not already downloaded and installed the app on your iOS or Android device please do so now. Bluetooth must be enabled on the device in order for it to connect to the subwoofer.

Note: The DB Subwoofer's app requires iOS version 10 and Android version 5 or later. Bluetooth must be switched on in the iOS or Android settings.

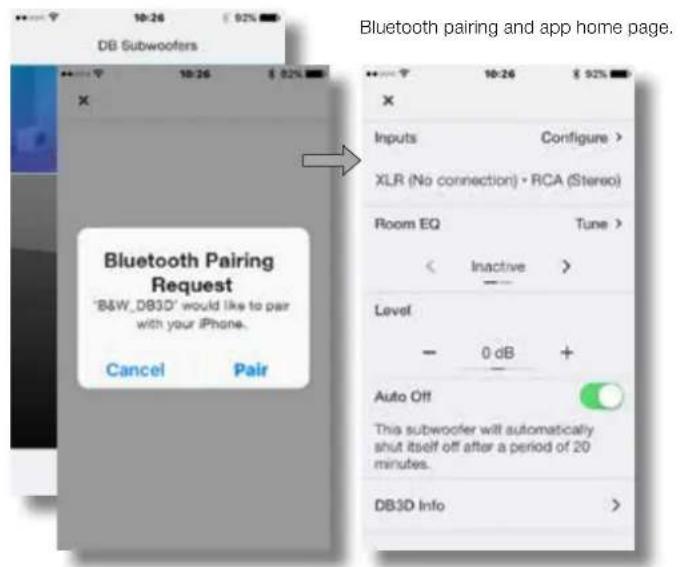

When your DB subwoofer is connected to signal cables and mains power it will switch on in operational mode with its standby indicator illuminating green. To begin the set up procedure follow the steps below:

• Launch the DB Subwoofer app and confirm Bluetooth pairing. When pairing is complete the app will display the app home page.

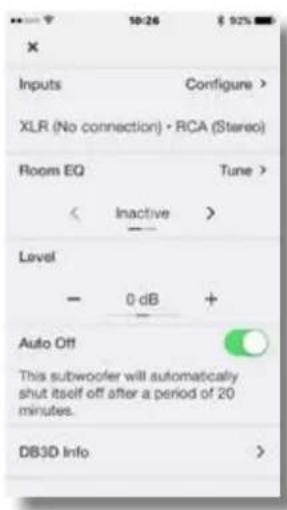

  The home page provides subwoofer level adjustment, product information, auto-standby options and access to the Room EQ optimisation procedure. Using Room EQ is not mandatory, however doing so will ensure that your subwoofer performs optimally in your room.

4.1 Input Set up

• Selecting the Input option from the app home page will open a configuration page that enables the Phono and XLR inputs to be independently set up. Selecting one of the inputs also makes it active.

Note: The set up options available for the XLR and Phono inputs are the same.

Note: Settings are input specific. Different settings can be selected for each input.

Note: If two subwoofoers are used in one system the input settings should be the same for both.

The input set up options are described in the following paragraphs:
- Connection: None, Stereo, LFE. If your subwoofer is to be used for the low frequency effects channel in a home theatre system select LFE. If your subwoofer is to be used for low frequency enhancement of stereo speakers select Stereo. If the input is not connected select None.
- Trim: Input sensitivity. Begin with the input sensitivity set to 0dB. If, in use, the subwoofer level adjustment on the app home page doesn't provide a suitable range the level trim can be adjusted.
- Input EQ: Flat (no EQ), Music, Movie, Custom. Select Flat to apply no input EQ. Select Music to apply an input EQ character appropriate for music programme. Select Movie to apply an input EQ character appropriate for movie programme. If the Custom Input EQ option is selected the app will display a five band EQ page that enables a custom equalisation curve to be applied to the input signal.

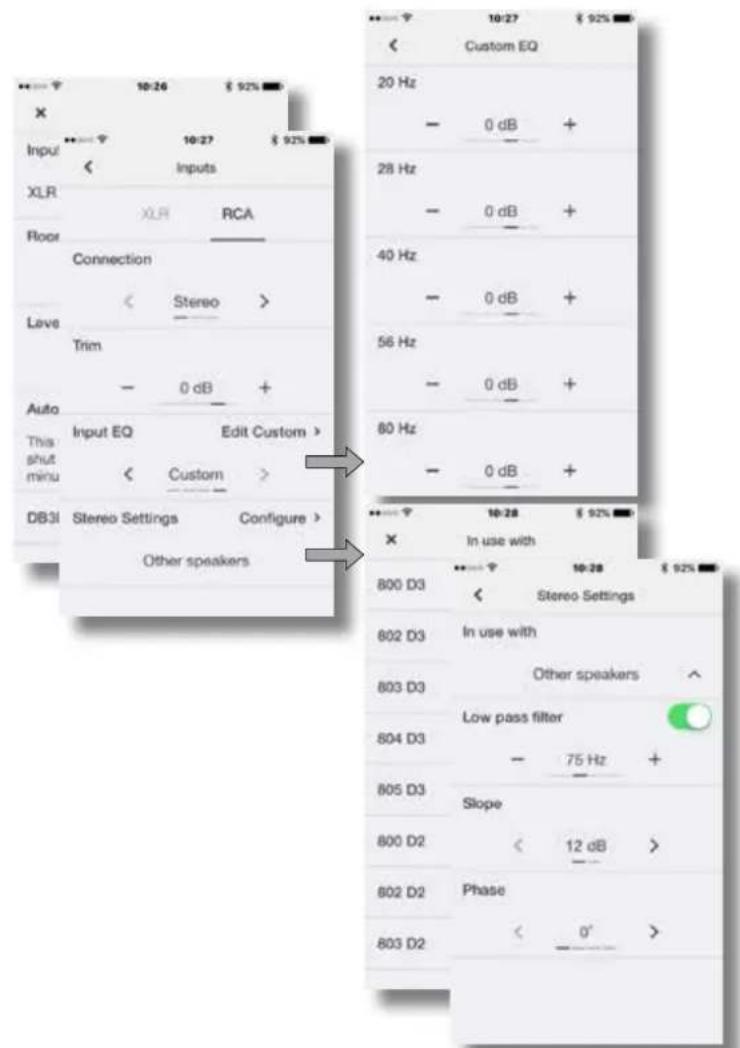

Input Options.Custom input EQ.

Stereo Settings: low pass filter selection or configuration.

• StereoSettings: Configure.
  The Stereo Settings option is available only if the Stereo input connection option is selected. In this case, selecting Configure will open a page that enables either the subwoofer's low pass input filter to be set appropriately for specific Bowers & Wilkins main speaker models, or enables a custom low-pass input filter to be specified.
• Use of a custom low pass filter is appropriate when either the main speakers are unlisted Bowers & Wilkins models, or are from an alternative manufacturer. In either case, the low pass filter should be configured to match the main speaker's published low frequency characteristics. Bowers & Wilkins or the alternative speaker manufacturer will be able to assist with the appropriate information if necessary.

4.2 Room Equalisation

Note: If two subwoofoers are to be set up, the Room EQ procedure must be carried out separately for each one.

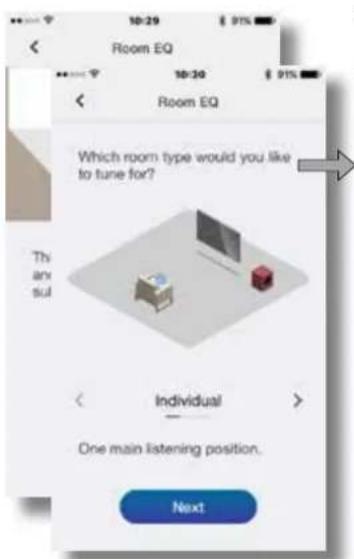

- To begin the Room EQ procedure select Tune on home page. Room EQ employs the microphone in your mobile device to analyse the performance of the subwoofer in your room, and the initial requirement is for the mobile device microphone to be calibrated. This is done by placing the mobile device in close proximity to one of the subwoofer drive units while the subwoofer generates a test signal.
Note: Due to microphone incompatibilities, Room EQ is not available with all Android mobile devices. A list of authorised devices can be found in the support section of the Bowers & Wilkins website.

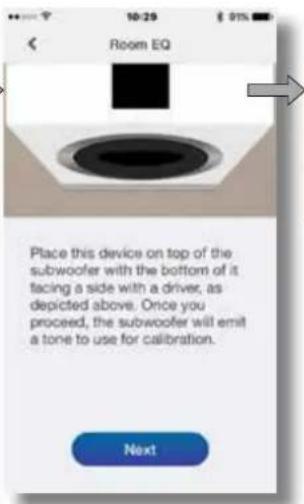

- With the mobile device microphone calibrated, the Room EQ procedure provides options for the subwoofer optimisation to be targeted at a single listening position, a listening area appropriate to two or three listeners, or targeted generally throughout the room. Choose your preferred option and select Next.

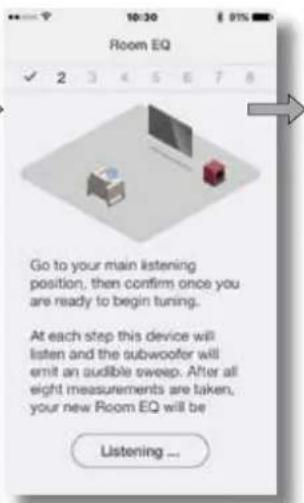

- The subwoofer will generate a series of eight separate test signals and use the mobile device microphone to measure the sound in the room and automatically apply an optimal EQ curve. If the Group or Room listening options were selected the app will ask you to move to different positions as the eight measurements are taken.
- When the measurements are complete the results will be displayed. Room EQ will then be complete. On selecting Next the app will return to the home page.

If your DB subwoofer is moved within the listening room or if large items of furniture are introduced, the Room EQ procedure should be repeated.

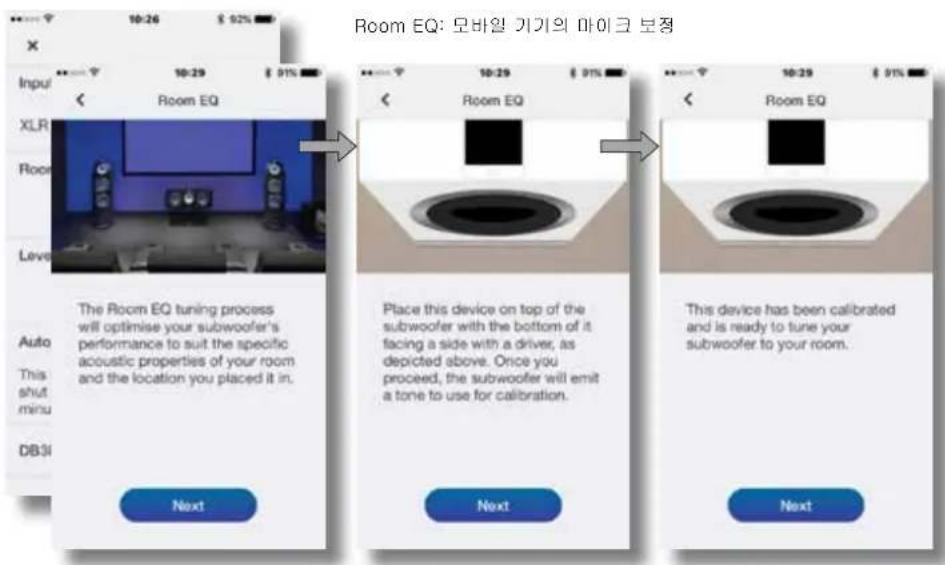

Room EQ; mobile device microphone calibration.

Room EQ: Measurement and analysis.

5. Subwoofoers In Use

Once your subwoofer has been set up it is ready for use. In normal daily use little adjustment should be necessary, however you may wish to adjust the subwoofer volume level, use an alternative input EQ, or select the other input.

• To adjust subwoofer volume use the level control on the app home page.
  To select an alternative Input EQ select from the input set up page.
  To select the alternative input select the alternative tab on the input set up page.

To switch your subwoofer to standby mode press the standby button. The button indicator will illuminate red.

Please remember that your DB Series subwoofer is capable of volume levels that have the potential to cause nuisance. If in any doubt, reduce the volume.

Note: If a DB subwoofer is overloaded its standby indicator will flash red.

The performance of your subwoofer may change subtly during the initial listening period. If it has been stored in a cold environment, the damping compounds and suspension materials of the drive units will take some time to recover their correct mechanical properties. The drive unit suspension will also loosen up during the first hours of use. The time taken for the speaker to achieve its intended performance will vary depending on previous storage conditions and how it is used. As a guide, allow up to a week for the temperature effects to stabilise and 15 hours of average use for the mechanical parts to attain their intended design characteristics.

6. Default Reset

To return your subwoofer to its default settings, press standby button three times in quick succession. When the default reset is complete the subwoofer will switch off. Press the standby button or launch the app to switch on.

Note: It will be necessary following a default reset operation to instruct previously connected mobile devices to "forget" and re-connect to your DB Series subwoofer.

7. Cleaning

Wipe surfaces with a clean lint-free cloth. If you wish to use a cleaning agent, apply it onto the cleaning cloth, not directly onto the subwoofer. Test a small area first, as some cleaning products may damage some of the surfaces. Avoid products that are abrasive, or contain acid, alkali or antibacterial agents.

8. Support

Should you require further help or advice for DB Series subwoofoers please visit the support site here.

Home page

Input set up page

5-RS-232:9-pins D-connector

5aHcHxXL8XoDblnpDnHaahHOJN7AICNOBbAOHAHc npeyCINETMNNMV AV-npoecocOAMN,MEIOUMM 5aHcHcHcSTpeoBxOuO.

Diagram 2a IcnoIbIeZoHane WnIOB

PnmaHnna:BalaHchoe cooHnHg, rge
noNkntelhBn, otpmataHbCnHnM nAemHnHa
nHnH npKpOaIIO pAsdEHeHM npOBoDnHkAM,
nPoKo pacipooctpAHen BippeccOnHa/HcHm I
HEKOTOPbXnAaXnOMaHHeRy aHyD O6pOpaHnA
Knacca high-end.BalaHcoe noCoeJInHeNe donee
HEBCiPIMNnBNC K HABQKM nHomeXM, YEM
HeBaHnchoe noCo0eHNHe

2-He6aHaHcbIe RCA BxoDbI

He6aHcHbRCABxOblnpHa3HaueHbDn
mnoIb3oBaHHc npedyCOnTolAAV
npocecoppMa,IMeIOOMMToNtko He6aHcHbCTpeo
BbXoJ.

PnmeHHe: EcmB aB npDyCmTEnb HN AV Pnpueccop oecneHNaert ToNko MoHO cAByepnh B bXo, eO MOKHO NOCEeHNHT NoCTO K OGHOMY3 BXOHNs pab3bMOcAByDpoc Copm DB.

Pazbemblnynpablenna

KpmeBxOHHbXpaBEMoDnCnHaiOBn CetEBORI nHAIHA, HAIHNIHOIOOcDOHENHcAByDEPcBcEPN DBHXaOpTcNEcOJIcpePAaHbM

3-12V Trigger 1-3.5-MM pa3bem Tnna MNHn

PaeBm Trigger 1 ObcireHwBaert npoogHoe DuctAHIOHOOyupaONe AKNIOHcM C6bEyOpOM Capn DB nepaoE rro pexmm stndby.

4-12V Trigger 2-3.5-MM pa3beM Tuna MNHn

PaaBem Triggcr 2 paaBem Daet BoaXoXHOCTb PpOoHOrO DnctaHIOHOHOY npAbaNHeNc BbOopOM BXoOB CaOaCepe.

5-RS-232-9-pin Dpa3beM

PaaBem RS232 06c0eHnBaET HHTERPAu c5bSypeoB CepaDR B CNTOMuAMUHnABTOMATKn BAuHnep Bowers &Wilkins npctdantm ABnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

Diagram 2b

IVCNON3OBAHNE MEXAHINECKn PAB3BbIAOUIX ONOP INPENOHBXI HOXEK

Diagram 3 SaHna naHn, cabnyepa Copm DB paaemann

4. HactpoynKa n ynpabnHeHne

Bau c6aypep Cepn DB moKet 6bItb Hactpoen Tolko c nomoo npinoxehn DB Subwooers. Ecn Bbl Bce ue He ckaanm He yctahobnnpnoxohne Ha Baue IOS nn Android yctpojCTAO, noXanycta, cdenai Te 30e cuaac. Ha yctpojTe BoJxhen 6bItb AKtINbPOBaH Bluetooth, 706b cooDInHTbCc a c6aypepm.

IppmueHne: PnpoxenHe DB Subwoofers rpeyer iOS seepn 10 u Android seepn 5 mnn Hoee. Fynknae Bluetooth dongnka sbh knoe a yctaoxkios OS mnn Android ycpiaactra.

KaTbIbKa c6BvpeCepuIN DB npocDnH K CIIHIIbMbKABEIM IN jIKETPOIHANHMO, ONcApy X E BKNHOCTCB Abaowm pexMN HHe AHARCPaetON 3eHNb cEBTOIOJ, TOnbHaHnBpOcUpy HcTePoiKn, PnpOeJIeIeIcIyKOJIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIe

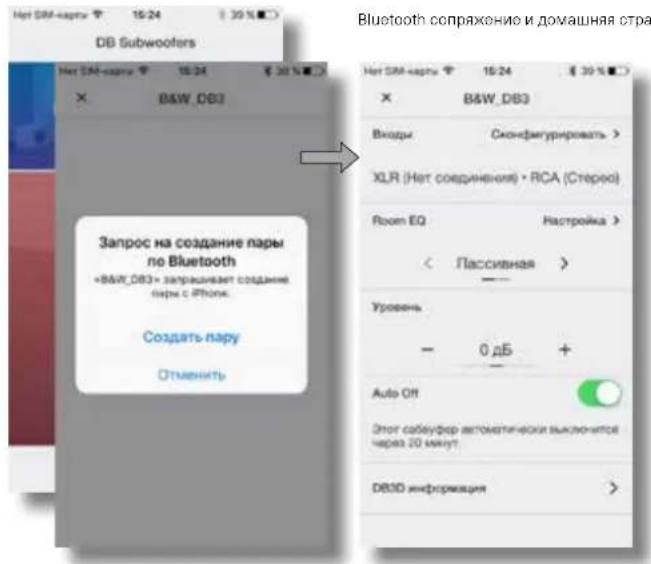

3anyctne npnnoxehne DB Subwoofoers npnoepbte Hannmhe Bluetooth conpaenHek. KaK tonko ycTPOCTBO coepdntnHcerpe3e Bluetooth, npnnoxehne npdoemOHCTpOyEETnAByHO CTPAHNO MEHO.
Mehro nabHcO cTpaHmUb oecneMaB eI npoeDpyb HAcTOPOKn yPOBnR TPOMKoCTn Ca6yDpeBa, BJaTaC HnOPMOuO O pOyoTKc, BapNaTHPoKMA autoStandby N daer doctyn k npoeDyepe KaNlboPQk axcyKn Room EQ. HcnlonbCoBt Roorn EQ He obaatolho, oAnako KaNlboPBOKa rapaHTnpyTe, TFO BaU cabBypeHactpoeHOnmHaHIO prrst Oton KOMHAt.

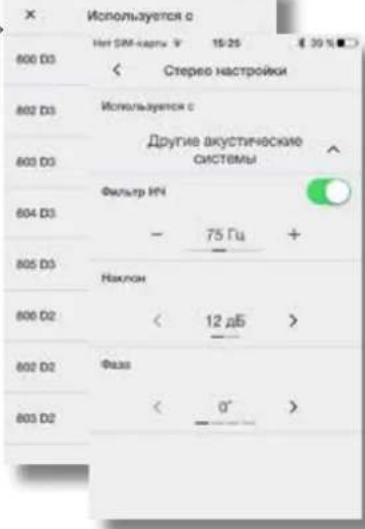

4.1 HacTpoKa BxOIOB

BbIb0aB BpAAHT BxOaH bI HABHO CTpAHUH NPIIOKHeHH, BblcTPOeTOCTpAHUY KOHOFHypaHIN, KOTOPA NO3BOEHT INHmDyabHbHO HCTPnBBTE RCA XL BXoMb. BbIbPA OaHIN MxOoOa, MaTakXeJeBem Eto aKTVBHbM.

TIPMUEYHNE: aapAAHTb HACTOOHN NAPAMETPOA, OCTyCNTHN BY XLR RCA xAOOAD, OHNI IN TE K

PnmaaHnnaNnnaaBaaBnTOnKHXpTeBnx
ExoDb. Na3hne npaeMetpybMoYr b6yBb6paHnEpn
paBxhExoDb.

PnmeHae:ecnnae caoyepo hcnnohyoTCH BDOHO CNTAMO, HcctpoKxBxDOSQONXHBb6

BapayahntAHTaPtoXnOJHbNc npaMetpoB OuaCBA 8 chyeoynx nI-KTAX:
CoenHHe: He, ctepeo, LFE. EcnBnBaCabeepyEtnncnBcBbTaBcJn KaHJIa HNkOaHCTOBxDfKToTg aDMaHHE TeATPe, BbEpTe LFE. EcnBnBaCabeepyEyn CnONBcBbTaBcJn yCnTHeHrOTaHNo HNkIM HActotAM ctepeo KOnHOx, BbEpTe ctepeo. EcnBnBXoH He NockIOeH, BbEpTe None.
Trim: y8CTBt6bHc0bTa HxOe.
HnHHe t c yHCTaTeHoCt, zadHHoK KaD B.Ecm
peytnpkoyaoyo aCaBdyepoeB domaHne CTpaHue
pnnoKeHH He oecneHaeHTyHKn dHaao3O,
MOHO NOkoppexpyoBa eNo CNOVcuTlO
Bxq EQ Flat (HET kbaan3epa), Mybka, Kn10, nonbocatebnck. Bb6pnte Flat, HTObHe No pnpMeHb tKBAAN3aIIIO XbaOa. Bb6peRtme Music 18 aadAraXap3KeP AKBNAIAIINXoN PNOXDAIIO TPOMy3bKaNBoH nporpaMMu. Bb6peRtme Movie nna aadAraXap3KeP AKBNAIAIINXoN PNOXDAIIO TPOMy3bKaNBoH nporpaMM. Ecln DnBxoHIO CnHbPAO Custom, Ha dncnnee NOBNTC5-1010cHb kgaan3ep, KOTOpB I030BHTI INPmHNbIbNb3cBATEBCKyO KpMAYO K BXOHNM CnHnAan.

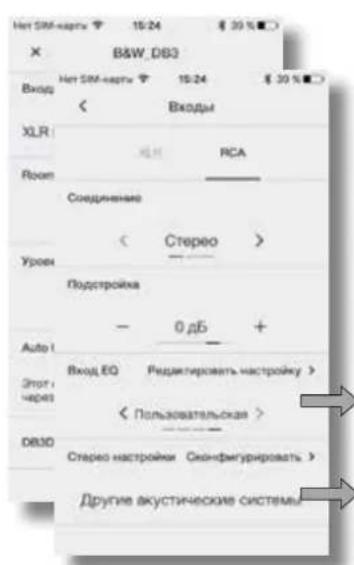

BapnHTBxOoB3Ka3HbE EQ BxoOB

HahtpoKnIaIcTepe:BaBOpΦuBtpaHU nnKoHpynpOBAHHe

Ctepeh HactpknK KOHfNpyPBOBHAo.
BapnHT Ctepeh HactpknK DOCTyHnTOIbKO TOrA, KOrda BboPaHO CtepeO DnBXOHDHO CoeHNHEIN.
3 80mTcYae, NOOE BbOpa OFigurE OTKpoTeR CTpHJua, ObeCNHeNAaOJIra PABnBIHy HOACTPOky BXOHDOR cMbTaPnH3KxHAcTOT JIOKHPETbIX MOnEOAC BCOWrs & WIKNs, mNtOBaONUaA aadab NonsobatEnckne HactpcknH HcMbtpa.
VcnoBaaHnCnOaHnHO HnTpa HnAaXn
actoTcneocooepaHO, KOrTa OcoHHbN KOLOHKn-H
ykaaBHHe B cncKae moJeN AC BoWers & Wilkins
nx AE AC HIOI pIOvBOeDITAE. BIO6cm CnYBE
fHnTp HnAaXn qACToT oONKeh 6bl HAcTOPOB n
cooTETCTAM C ONyBIAKOBAAHBMN HnKAoCACTOTBBMn
xApkTePVCNTKMA IaBbHbX AC.BoWers &Wilkins nnn
anBtepHaTHNBPiOnAOBHTeN AC Bytet pad NOMCb
BdAaHn HyKHe HmOPaMaN PnR HeOxOHNMOCTn

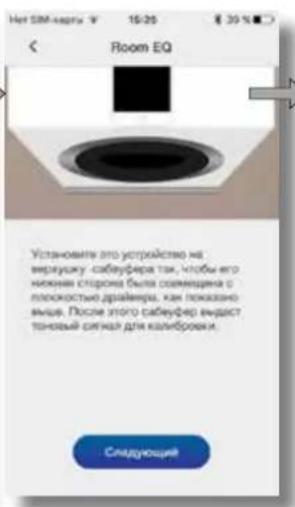

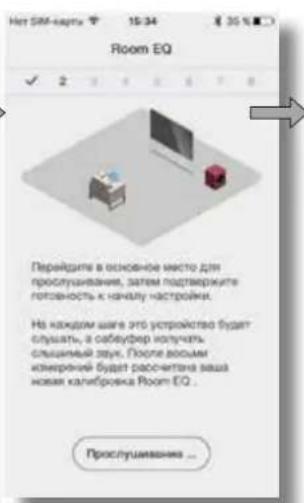

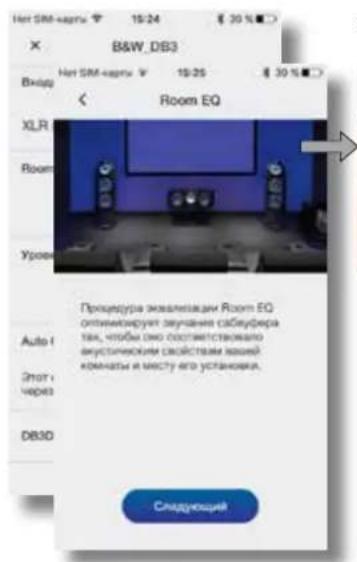

4.2 KaIIb6pOBKa KOHOK NOd aKyCTNkY KOMHaTbI - Room EQ

Pnmoohyae: oon HooochQmmo HacpOHTbBa
caobuyepoe, npocuype Room EQdoJHne bOBy
npoepeJe OTdEeHIOI KAKDPO 3NHN.

Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn Hn HH n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne ne
ПИМОЧАМ: 33-34 NOOBOMCTMOOCH MKNKPOPOHA, Room EQ DOCTUMN Hn RE AOCX MOBbNb xycrpoCTa nq Android.CNTCOK ATOAOMPOHbXyctPOCTA MOKHO HAIY B PAGDIO NcdoepkN 86-caTn Bowers &Wilkins.

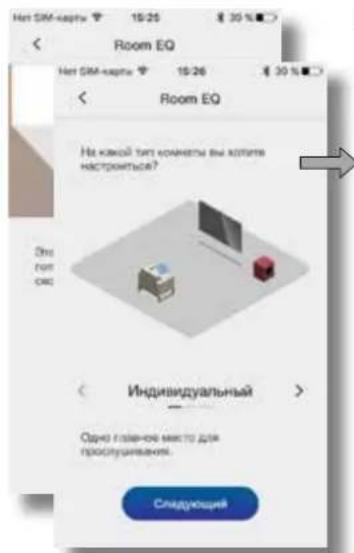

PocnTOKMKPOFOHMOBHLHOYcTPOCTBA 6yETOKANBOBAA,nopeyDpa Room EO npctaansr BAPAHHTb OTNIMMADN3ayNAHmCAByHpeo-1JIN OHDHO CNYIATeR,INRAEYNN Tpex cnyIATeR NBOHPOPCNIIHARINN K -BCOILNEJNR BCEN KOHNBTB. Bb6epTeHyXhBI BAPAHHTN HAXMITEKHONKY CNeDpyoum
Ca6bpybepyreHepoBaTcpeHnBocmN Tectobbx CHTAHO BydET MIOHbO8aB MIKpOCH MOINbHOrO YCTPOIOTBB INM3MepEH 33yaK B NOHMENH H AATOMATHECKORPO PACAHOTMMALBOH XBAxPbTePACTKNH ACTPoeK 3KAANPAEAE.EcNbbl NbpaHb BPNAHTB OHOb IpocCyuBBAHMR Group nN RmnoXeHKe NPONC BnNEPeHN B Dpyro MecTO, T.K. HebOgIMMO CnDBeT BOCemN M3MeHPen
KordaHmOpEHHa3BcPbTaT,pcyNbTaTb6dyT BBeHbHnA HcNttn,PiouyDaa Room EO ha 30m BepTe aBepHe, NocNo BbOpa Cneyuouu npnoXeknC BepHTco HA DOMAUHIO CTpauVIL.

EcnBaa cabiep cepn DB nepemaeianc a komate npocnywnbnaHn Jne Hn Bcynyctanohne npynhncnpdmoTH mcbnn, npocaypy Room EO onoyot nortopntb.

Room EQ:kan6p0ka MmKpO0ha Mo5nBHO yCToHCTBa.

Room EQ: m3mepeHHn aHaHn3.

5. McnoIb3ObaHne ca6ByΦepoB

PiopnOxHbA3BepnKpO 10nOxHcHApEeHbOMCnOaBnBaOp 10nOxHcHApEeHbOMCnOaBnBaOp 10nOxHcHApEeHbOMCnOaBnBaOp 10nOxHcHApEeHbOMCnOaBnBaOp 10nOxHcHApEeHbOMCnOaBnBaOp 10nOxHbTbEoYpOBeHbPmOKtN,3aDAtpyKc 3kBAanAAuMnIgNxAoNnAubp8pDpyrOxAoN

Dnpeynpokk npoBn rpoocn c6aepda cnonbayte DcmaHIO CTpaHny npnoKHeN -TAM ects COOTETCTyoJME KHNK.
Дд Вьбордургг АькгИЗАПС BXOД (EQ) 3aIITe HcTspHbNHYAHTROPAKINXBOD.
-Дд ВьбОг Дурого БСДАа 3aBNTUeБТБaNLYu BAPINHOBH HcTAPHIMU HACTPOKNU BXOJOD.

Динсяа ca6bye4a penKIM okaaninr standby HAKMTO KhoNky standby HaHOM, KhoNka-HnDkatoP 3aorponTc KpaChbM CEBOT.

KoKAACTA,3AMOMHTA TAKKO,TOCABGYDEP COpIN DBMOXETcQADABT,yPOBBNr pOOMKOTN,NOTHJANHO OANCHBEI DAI BAWERO cNYxN CYNYxDpyTNJNOEi EON BB COMHEBAETECB B NOCIECTBNN,YYHUEYMEHBNTTE rPOMKOTN

Ipnmuaa: Ecm cabyep Cep DE nppeyekero iyo hnckatop stady bye Mnnr kpaacbymcetom.

38yHnme Bawero Cepnn D0MxetcnK KMAEMHbBcB TceHHe HauhBoHOr npnoD npocnyuHaBnA. Ecmn EoXPHHN XBOHOHOMeHUMeHN, DEMNpuyiHMO CoCTABm MATEPVAAM NIOEBCIaDFOyOPOB DAHAMKOB NOTpeyTcH NEKTOPOE BPEM IINBOCCtAHOBHEH NHyHXb MEXAHMBCKCN BOCHTB. NIOBcB DAHAMKOB X OJHOpeBbX hACOB PAbOT TaKAE TEPET XeKTCOB, BPEM, TpeyCboHnMMAMKHN DIOCTXeHINIPpeYnCAHHO KAeCTBa 38yHnHn, MOKET BAPbIpOBaBbT B 3AEVCIMOCTN OTcONBn PpeBbUyero xPAHBN INCNOISOBAHN. OPeHTApOBHO HOMOK CUNIT, YTO HePeINOTpeyBbN DNTcAeBHn33uM TEMNEpapTyHbX 3ΦeKToB INOKo15 HAcoa BpOtn pnpcreHn HpykBe YnDIOCTXeHBN MEXAHECKMN ACTRNN PachETHBX XpaATKePTNCIK.

6. BocctaHOBJIeHne 3aBODcknx yCTaHOBOK no ymOJauHHo

HIOI TO,TO6BbBepHybCa6BybpK380DcKHM
HaCToaKaM NoyOaHnHO,HaMKTe BcCTPO Tp PAa
NoPdA KONKY standby. NocE OoKHaHNpoJpydy
cbOpca Ca6Byeep OKNHYtCH.HaMKYte eEe paa H KaHOTky
standby nI 3aryCHTe npnKxHne, YTOb BkKnHtB
cabSype

IpHmEHNHe: IocHe Oepeaun CbOpca Heo6xOJNMO, TOpBpaee NoKIOeHNHeYcTPOeTBA 3a5bIMn npo CBARb H aHaBO NO pCCeDHNMnck K bawemy cabSyepy cepm DB.

7. OuNTka ca6ByΦepa

PPTPOATE NOBPOXHOCTBOKTHBOE BOPA ECNJ Kc bAOITTO NCOONBOATb AHTMCATAK-BAPO30JI JN HKTNO,TO pACBIHNTBE 3BO30NJI HA TPOPOVHYK TKAH, AHE HEBKOPIYc. NcPOpBYte erO CHAHNA HA He5oBLOWUM YCACTKE NOBPOXHOCT,TK.HKOTOPBIE MOIOJI EBEJCTBA MORYT NOBPOEJAeTOnJE.NaIBaERTe PnIMEHINH JIKOXOETC a6PA3BbHMN HCTNUAM, CODEXAUXM XNCOTy INU IENOH, A TAICKe AHNTsBkTePmABHbI BEJCTBA.

3-12V Trigger 1-3.5mm

T 1

4-12V Trigger 2-3.5mm

DB串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串

5. 东邦万国

首忘自原道，中本用，中人歌，如

串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串

串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串串

孕的：01国用电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电

7.

本于日，不为国。

8.
