MP 815 - Manicure and pedicure set MEDISANA - Free user manual and instructions

Product type	Manicure and pedicure set
Brand	Medisana
Model	MP 815
Dimensions	approx. 15 × 3.8 × 3.7 cm
Weight	approx. 942 g
Power supply	Mains (adapter ZD8H300025EU, input 100-240 V~ 50/60 Hz 0.3 A, output 30 V = 2.5 A)
Power consumption	12 Watts maximum
Rotation speed (Level 1)	approx. 3,800 rpm
Rotation speed (Level 2)	approx. 4,600 rpm
Included bits	7 bits: sapphire cone, felt cone, coarse sapphire disc, fine sapphire disc, cylindrical cutter, file cutter, drainage grinder
Functions	On/off with rotation direction selection (clockwise/counterclockwise), two adjustable speeds, quick bit change
Recommended use	Care of hands, feet, nails (natural and artificial), treatment of ingrown, hard nails, corns, calluses
Maximum continuous use time	15 minutes
Recommended cooling time	At least 30 minutes
Cleaning the device	Soft, slightly damp cloth (soapy water), do not immerse in water
Cleaning the bits	Brush (e.g. toothbrush) and disinfection with spray or 90% alcohol
Warranty	3 years
Included accessories	Device, 7 bits, power adapter, storage bag, instruction manual
Safety instructions	Do not use in water, do not use on damaged skin, stop if pain occurs, keep out of reach of children
After-sales service	Address on separate sheet, repairs only by authorized service center

Frequently Asked Questions - MP 815 MEDISANA

How to use the MEDISANA MP 815 device?

Plug in the adapter, then push the sliding switch down (right rotation, green light) or up (left rotation, red light). Use the + and - buttons to switch from level 1 (3800 rpm) to level 2 (4600 rpm). Always start at low speed.

How many bits are supplied with the MP 815?

The device comes with 7 bits: sapphire cone, felt cone, coarse sapphire disc, fine sapphire disc, cylindrical cutter, file cutter and drainage grinder.

Can I use the device on artificial nails?

Yes, the device is suitable for cosmetic care of natural and artificial nails. Use the appropriate bits with care.

How to clean the bits?

After use, clean the bits with a brush (e.g. toothbrush). For hygiene, disinfect them with a disinfectant spray or 90% alcohol. Allow to dry completely before reassembling.

What is the warranty period of the MP 815?

Medisana offers a warranty of 3 years from the date of purchase. Keep your receipt or invoice as proof.

Can the device be used by children?

Yes, from 8 years under supervision. Children must be supervised and understand the risks. Cleaning must not be done by unsupervised children.

What to do if the device stops working?

Do not repair it yourself. Contact your dealer or authorized after-sales service. Any unauthorized intervention voids the warranty.

Can I use the device in the bath or shower?

No, never. Do not use an electrical device in the bathtub or shower. Keep the device away from water.

How to change the rotation direction?

Slide the switch down for right rotation (green light) or up for left rotation (red light). The middle position turns the device off.

How often can I use the device?

Limit each session to 15 minutes maximum. After use, let the device cool down for at least 30 minutes before reusing.

USER MANUAL MP 815 MEDISANA

Please read carefully!

A dire attentivement s.v.p.!

1 Safety Information. 9
2 Useful Information. 12
3 Operating 13
4 Miscellaneous. 14
5 Warranty. 16

FR Mode d'emploi

GB ① ON/OFF switch (clockwise / counter-clockwise rotation)
Function indicator
3 “-” button for rotation speed
4 “+” button for rotation speed
Holder for attachments
Attachments (in sequence of the illustration: sapphire cone, felt
cone, sapphire disc (rough) sapphire disc (fine), cylindrical burr, flame burr, callus remover

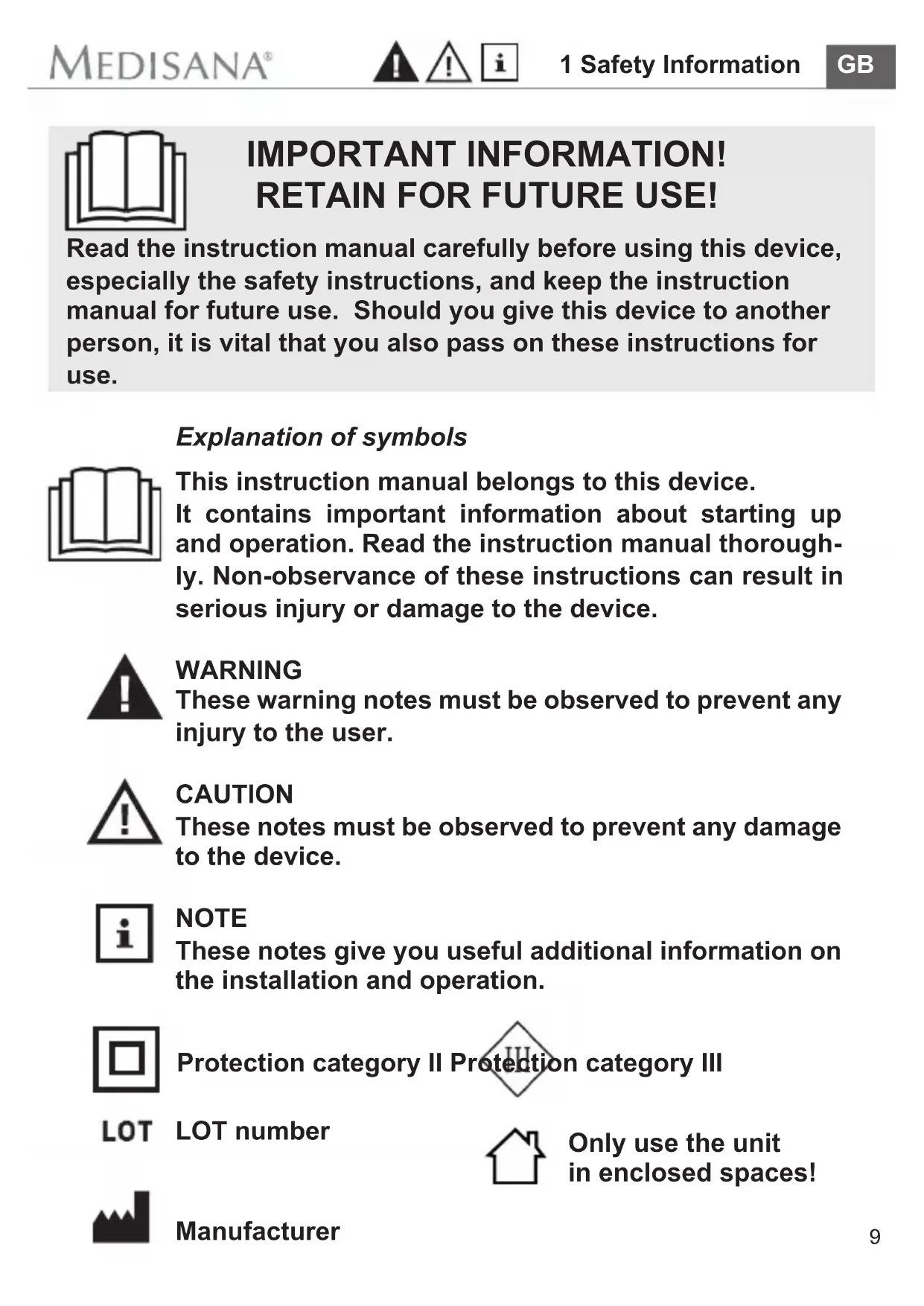

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device.

It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observation of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

Protection category II Protection category III

LOT

LOT number

Manufacturer

Only use the unit in enclosed spaces!

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only use this unit according to the intended purpose and as directed in the instruction manual.
• The device is not intended for commercial use.
• Do not use any auxiliary parts that have not been recommended by the manufacturer.
• Avoid contact with pointed or sharp objects. The warranty is null and void if it is not used for the intended purpose.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised to ensure that they do not play with the device.
• Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.
• Cleaning and user maintenance must not be performed by children unless supervised.

• Only connect the mains adapter when the unit is switched off.

• Do not reach for the unit if it has fallen into water. Disconnect the mains adapter from the mains socket immediately.

• Keep the mains cable away from hot surfaces and naked flames.

• Never use the unit in rooms in which aerosols (sprays) are being used or where pure oxygen is being administered.

• Never use the unit if the power cable has been damaged, the mains adapter is defective, if the unit does not work perfectly, if it has fallen into water or has been damaged.

• Never carry, pull or rotate the unit by the mains cable and never pinch the cable between other objects.

• Do not allow the unit to become overheated due to excessively long use.

• Uninterrupted treatment should not last longer than 15 minutes. Then switch off the unit for at least half an hour and allow it to cool down.

• Only pull the plug out of the socket when you have dry hands, when the unit has been switched off and is not being used any longer, and also do this when you have to replace or clean the heads.

• Do not use any electrical equip-

nt while in the bath or shower.

Do notstoreorkeepanyelectrical equipment in places where it could fall into the bathtub or washbasin.

• The mains cable of the device need to be laid in a way, that the risk of stumbling or strangulation is completely excluded.

Important recommendations concerning your health:

• Consult your doctor first before using this unit if you have diabetes or other related illnesses.
• Pregnant women should note the important precautionary measures and the amount of stress they can take, consult your doctor first if necessary.
• Do not treat any parts of the body that have swellings, burns, inflammation, peeling skin, wounds or other sensitive points.
• The treatment should be pleasant. Stop at once and consult your doctor if you feel pain or the treatment seems unpleasant.

Thank Thank you for your confidence in us and congratulations!

you very You have acquired a quality product with your purchase of the MP 815 much manicure/pedicure unit from MEDISANA.

To ensure that your MEDISANA MP 815 provides successful results for a long time, we recommend that you read carefully through the following notes on its use and care.

2.1 Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use the appliance and contact your delivery supplier or your service centre.

and The following parts are included:

packag- 1 MEDISANA manicure/pedicure unit MP 815

• 7 accessory heads (see chapter 3.2)
  1 mains adapter
• 1 storage bag
• 1 instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2

Special

points

concerning

the

MEDISANA

MP 815

• The MEDISANA MP 815 manicure/pedicure unit is easy to use and perfect for caring for your hands, feet and nails. It is particularly suitable for treating ingrown, thickened and very tough nails and also for treating calluses, rough skin and corns. It is also suitable for the cosmetic care of hands, nails and synthetic nails.
• The sapphire heads have an extremely long life and virtually never wear out.
• Do not soften the skin on hands and feet prior to treatment.

2.3

FAQ

Why are there so many attachments?

Each head is designed to solve a particular problem for the hands and feet and therefore especially effective and safe in use.

Can several people use one MEDISANA MP 815?

Yes. But in any case it is best that each person has its own set of the accessory heads to prevent the transmission of skin diseases.

3 Operating

3.1

Functions

WARNING

Risk of injury! Excessively long or intensive treatment can injure deeper layers of skin.

ON/OFF switch 1

To turn on the device, move the switch in one of the two possible directions. Turn the switch downwards (clockwise rotation, function indicator

lights up in green) or turn the switch upwards (counter-clockwise rotation, function indicator lights up in red) with clockwise rotation.

To turn off the device, move the switch in middle position (O).

+/- buttons 43

The MP 815 features two different rotation speed levels (level 1 and level 2). After switching on the device, the rotation starts with lower speed

(level 1). Press on button ④ to increase the rotation speed. Press 3

to decrease the rotation speed (level 1) - Start each application with low rotation speed and increase the rotating speed to suit your individual requirements.

Changing the attachments 5

The device is equipped with a hexagonal holder for the attachments. Switch the unit off. To change the attachments, first pull off the part that is not required. Place the new attachment in the holder and turn slightly until it clicks into position.

3.2

Pedicure

and

Manicure

The purpose of application for the attachments (in sequence of the illustration):

Sapphire cone 6: To remove dry hard skin.

Felt cone ⑦: To smooth the edges of the nail and to polish the nail surface.

Sapphire disk, rough 8, fine 9: For shortening nails by filing in the growth direction. Hold the unit firmly, run the nail along the disk. Only file in one direction!

Cylindrical burr 10: To remove hardened nail surfaces.

Flame burr 11: To carefully remove in-growing nails.

Callus remover 12: For large-scale and rapid removal of thick hardened skin or calluses on the sole or heel of your foot.

Creaming afterwards and regular care with the MEDISANA MP 815 contributes to well-cared for hands and feet with soft skin and firm nails with a stable structure.

4.1

Cleaning

and main

tenance

• Always pull the mains adapter out of the socket in the case of an electrical unit.
• Never use strong cleaning agents or stiff brushes.
• Clean the unit with a soft cloth which has been lightly moistened with a mild soap. Never dip the unit into water for cleaning and ensure that no water gets into the unit at any time. Only use the unit again, when it is fully dry.
• For hygiene reasons, all attachments may be cleaned with a brush (e.g. old toothbrush). It is also advisable to disinfect the grinding surfaces with commercially available spray disinfectant or 90% alcohol to prevent the transmission of infections. The pins of the attachments should be kept free from grease. First allow the heads to dry off completely before you use them again on the unit.
• Store the device in a dry, cool place.
• Fold up the power cable carefully to avoid cable breaks.

This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

4.3 Technical specifications

Name and model : MEDISANA manicure and pedicure device MP 815

Power supply : Operation with mains adapter Type: ZD8H300025EU Input: 100- 240 V~ 50/60 Hz 0.3A Output: 30,0 V = = 2.5A

Power consumption : max. 12 W

Rotation speed : approx. 3,800 rpm (level 1); approx. 4,600 rpm (level 2);

Dimensions
(Hand-held unit) approx. 15× 3,8× 3,7cm Weight
(Hand-held unit) approx.942 g
Article No. 85153
EAN number :40 15588 85153 7

In accordance with our policy of continual product improvement, we reserve the right for technical and design changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is. The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

Germany

The service centre address is shown on the attached leaflet.

REMARQUE IMPORTANTE! TOUJOURS CONSERVER!

lage Lafourniturecompend:
