USER MANUAL MP 840 MEDISANA

Please read carefully!

1 Safety Information.... 10
2 Useful Information.... 13
3 Operating.... 14
4 Miscellaneous.... 16
5 Warranty.... 18

FR Mode d'emploi

1 Consignes de sécurité.... 19
2 Informations utiles.... 22
3 Utilisation.... 23
4 Divers.... 25
5 Garantie.... 27

GB ① Rotary switch (clockwise / counter-clockwise rotation)

② Function indicator

3 +/- buttons for rotation speed

4 LED light

5 Holder for attachments

6 Attachments (in sequence of the illustration: sapphire disc, sapphire cone, felt cone, needle burr, cylindrical burr, flame burr, nail polisher)

Simple line drawing of an open book with no text or symbols visible

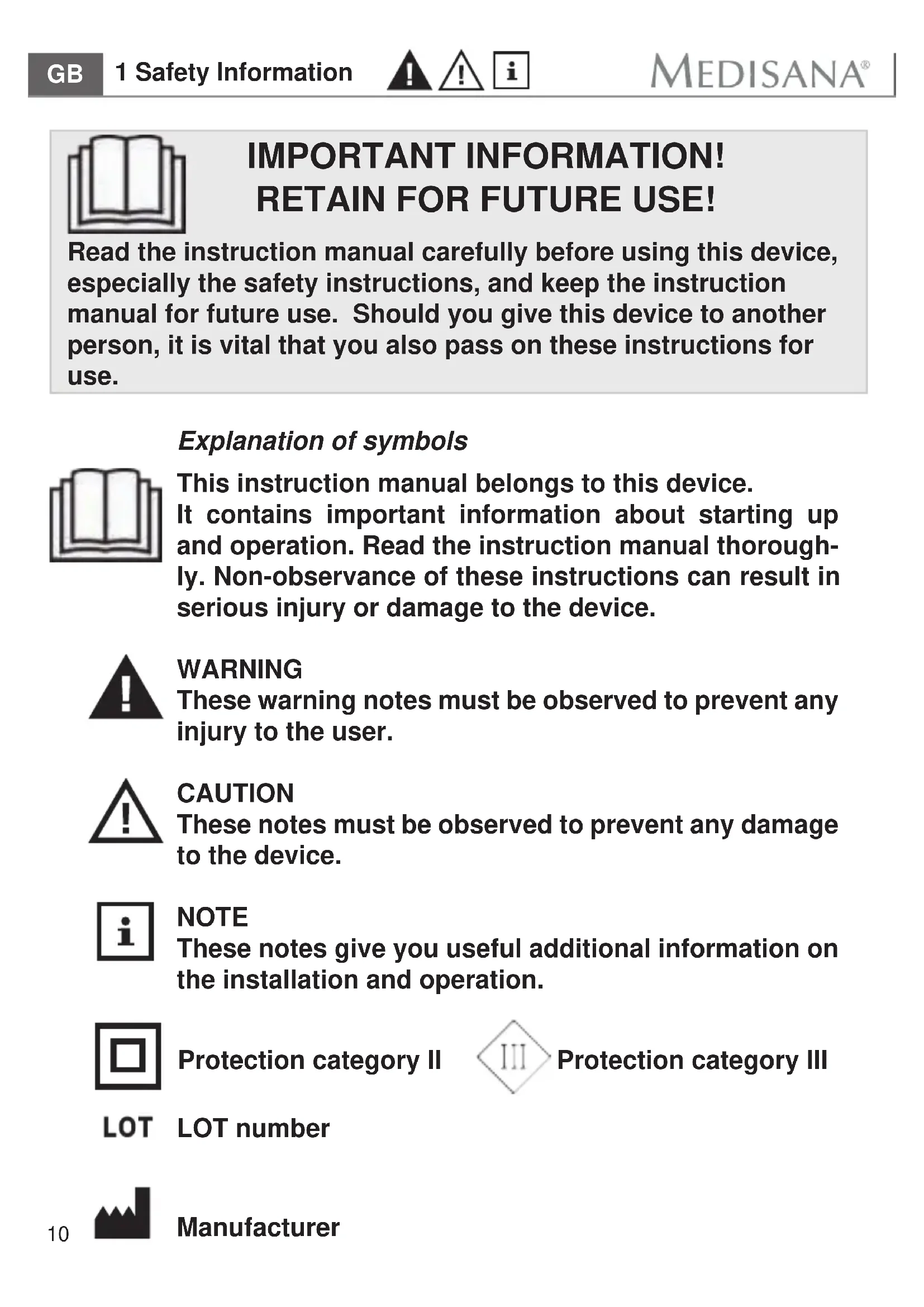

IMPORTANT INFORMATION! RETAIN FOR FUTURE USE!

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device.

It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observance of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

Protection category II

Protection category III

LOT

LOT number

Manufacturer

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only use this unit according to the intended purpose and as directed in the instruction manual.
• The device is not intended for commercial use.
• Do not use any auxiliary parts that have not been recommended by the manufacturer.
• Avoid contact with pointed or sharp objects. The warranty is null and void if it is not used for the intended purpose.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must be supervised to ensure that they do not play with the device.
• Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.
• Cleaning and user maintenance must not be performed by children unless supervised.

Please note the following in particular concerning electrical equipment:

Only use the unit in enclosed spaces!

• Only connect the mains adapter when the unit is switched off.
• Do not reach for the unit if it has fallen into water. Disconnect the mains adapter from the mains socket immediately.

• Keep the mains cable away from hot surfaces and naked flames.

• Do not use any electrical equipment while in the bath or shower. Do not store or keep any electrical equipment in places where it could fall into the bathtub or washbasin.

• Never use the unit in rooms in which aerosols (sprays) are being used or where pure oxygen is being administered.
• Never use the unit if the power cable has been damaged, the mains adapter is defective, if the unit does not work perfectly, if it has fallen into water or has been damaged.
• Never carry, pull or rotate the unit by the mains cable and never pinch the cable between other objects.
• Do not allow the unit to become overheated due to excessively long use.
• Uninterrupted treatment should not last longer than 15 minutes. Then switch off the unit for at least half an hour and allow it to cool down.
• Only pull the plug out of the socket when you have dry hands, when the unit has been switched off and is not being used any longer, and also do this when you have to replace or clean the heads.

Important recommendations concerning your health:

• Consult your doctor first before using this unit if you have diabetes or other related illnesses.
• Pregnant women should note the important precautionary measures and the amount of stress they can take, consult your doctor first if necessary.
• Do not treat any parts of the body that have swellings, burns, inflammation, peeling skin, wounds or other sensitive points.
• The treatment should be pleasant. Stop at once and consult your doctor if you feel pain or the treatment seems unpleasant.

Thank you very much

Thank you for your confidence in us and congratulations!

You have acquired a quality product with your purchase of the MP 840 manicure/pedicure unit from MEDISANA.

To ensure that your MEDISANA MP 840 provides successful results for a long time, we recommend that you read carefully through the following notes on its use and care.

2.1 Scope of delivery and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use the appliance and contact your supplier or your service centre.

The following parts are included:

• 1 MEDISANA manicure/pedicure unit MP 840
- 6 accessory heads (see chapter 3.2)
- 1 holder with 4 attachment parts (each 2 smoothing and 2 polishing rolls)
- 1 mains adapter
- 1 storage bag
• 1 instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2

Special points concerning the MEDISANA MP 840

• TheMEDISANA MP 840 manicure/pedicure unit is easy to use and perfect for caring for your hands, feet and nails. It is particularly suitable for treating ingrown, thickened and very tough nails and also for treating calluses, rough skin and corns. It is also suitable for the cosmetic care of hands, nails and synthetic nails.
• The sapphire heads have an extremely long life and virtually never wear out.
• Due to the minimal risk of injury, the MP 840 is also especially suitable for use by diabetics or older people.
• Do not soften the skin on hands and feet prior to treatment.

2.3 Why is the MP 840 especially suitable for use with diabetics?

Frequent- Because the speed is continuously adjustable and the device stops if too ly asked much pressure is used, the unit can also be used safely by persons who questions have reduced sensitivity to pain or are unable to react quickly to pain. Also, the sapphire accessory heads only remove dead skin.

answers Why are there so many attachments?

Each head is designed to solve a particular problem for the hands and feet and therefore especially effective and safe in use.

Can several people use one MEDISANA MP 840?

Yes. But in any case it is best that each person has its own set of the accessory heads to prevent the transmission of skin diseases.

They can be obtained separately from MEDISANA AG.

3 Operating

3.1 Rotary switch 1

Functions The silver-coloured ring ① close to the function indicator ② is designed as a rotary switch.

Turn the switch from ⏻ to the left to switch the device on with anticlockwise rotation. Turn the switch from ⏻ to the right to switch the device on with clockwise rotation. Turn the switch to position ⏻ to switch the device off. The round deepening in the rotary switch ① is aligned with the symbol ⏻.

If the device is switched on, the function indicator ② lights up in blue and the LED light ④ is on.

+ / - buttons ③

The MP 840 features three different rotation speed levels (levels 1 to 3). After switching on the device, the rotation starts with medium speed (level 2). Press on „+“ to increase the rotation speed (to max. level 3). Press „-“ to decrease the rotation speed - depending on the selected level - to level 1 or level 2. The change in speed takes place slowly.

Start each application with low rotation speed and increase the rotating speed to suit your individual requirements.

NOTE

The device switches off automatically if the grinding unit is blocked. Set the dial to ⏻, wait for a few seconds and start it again.

3.1

Functions

Changing the attachments 5

The device is equipped with a hexagonal holder for the attachments.

Switch the unit off. To change the attachments, first pull off the part that is not required. Place the new attachment in the holder and turn slightly until it clicks into position.

For the smoothing and polishing rolls the holder needs to be used. Place it onto the device.

Illumination 4

Two LED lights are located at the side of the holder for attachments, which are illuminated when the device is switched on to illuminate the grinding surface to be treated.

3.2

Pedicure and Manicure

The purpose of application for the attachments (in sequence of the illustration):

Fine-grained sapphire disk: For shortening nails by filing in the growth direction. Hold the unit firmly, run the nail along the disk. Only file in one direction!

Coarse-grained sapphire cone: To remove dry hard skin.

Felt cone: To smooth the edges of the nail and to polish the nail surface.

Needle burr: To carefully remove ingrowing nails and to remove small dead portions of the nails. Only to be used at slow speed!

Cylindrical burr: To remove hardened nail surfaces.

Flame burr: To carefully remove in-growing nails.

Nail polisher with 2 smoothing and polishing rolls:

Smooth nails: Gently smooth the nail surface by slightly pressing the smoothing roll onto it for approximately 15 seconds.

Polish nails: Polish the nail surface using light pressure with the polishing roll.

Creaming afterwards and regular care with the MEDISANA MP 840 contributes to well-cared for hands and feet with soft skin and firm nails with a stable structure.

4.1

Cleaning and maintenance

• Always pull the mains adapter out of the socket in the case of an electrical unit.
• Never use strong cleaning agents or stiff brushes.
• Clean the unit and the smoothing and polishing rolls with a soft cloth which has been lightly moistened with a mild soap. Never dip the unit into water for cleaning and ensure that no water gets into the unit at any time. Only use the unit again, when it is fully dry.
• For hygiene reasons, all attachments may be cleaned with a brush (e.g. old toothbrush). It is also advisable to disinfect the grinding surfaces with commercially available spray disinfectant or 90% alcohol to prevent the transmission of infections. The pins of the attachments should be kept free from grease. First allow the heads to dry off completely before you use them again on the unit.
• Store the device in a dry, cool place.
• Fold up the power cable carefully to avoid cable breaks.

4.2

Disposal

This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

4.3 Technical specifications

Name and model

: MEDISANA manicure and pedicure device MP 840

Power supply

: Operation with mains adapter

Type: RSS1001-090180-W2E

Input: 100-240 V \~ 50/60 Hz 0.4 A

Output: 18,0 V—0.5 A

Type: RSS1002-090180-W2E

Input: 100-240 V \~ 50/60 Hz 0.6 A

Output: 18,0 V—0,5 A

Power consumption : max. 9W

Rotation speed

: approx. 3,500 rpm (level 1); approx. 5,000

rpm (level 2); approx. 8,000 rpm (level 3)

Dimensions

(Hand-held unit)

: approx. 161 (L) x 38 (∅) mm

Weight

(Hand-held unit)

: approx. 270 g

Article No.

: 85155

EAN number

: 40 15588 85155 1

In accordance with our policy of continual product improvement, we reserve the right for technical and design changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:
   a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.
   b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
   c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
   d. Accessories which are subject to normal wear and tear.

5. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

Germany

The service centre address is shown on the attached leaflet.
