USER MANUAL MPS MEDISANA

GB Manicure/Pedicure Unit MPS

Please read carefully!

Please fold out this page and leave it folded out for quick reference.

+ Adjust rotating speed

3 Spiral cable with mains adapter (optional)
4 Accessory heads
5 Plug-in chuck
6 Unit

FR

Microscopic view of cellular or tissue structures with no visible text or symbols

Close-up of a metallic tool tip with a circular head and textured surface (no visible text or symbols)

4. Filzkegel

Art.-Nr. 85001

Microscopic view of a textured surface with granular patterns (no visible text or symbols)

3.3 Pediküre

Abstract grayscale pattern with no discernible text, symbols, or structured elements

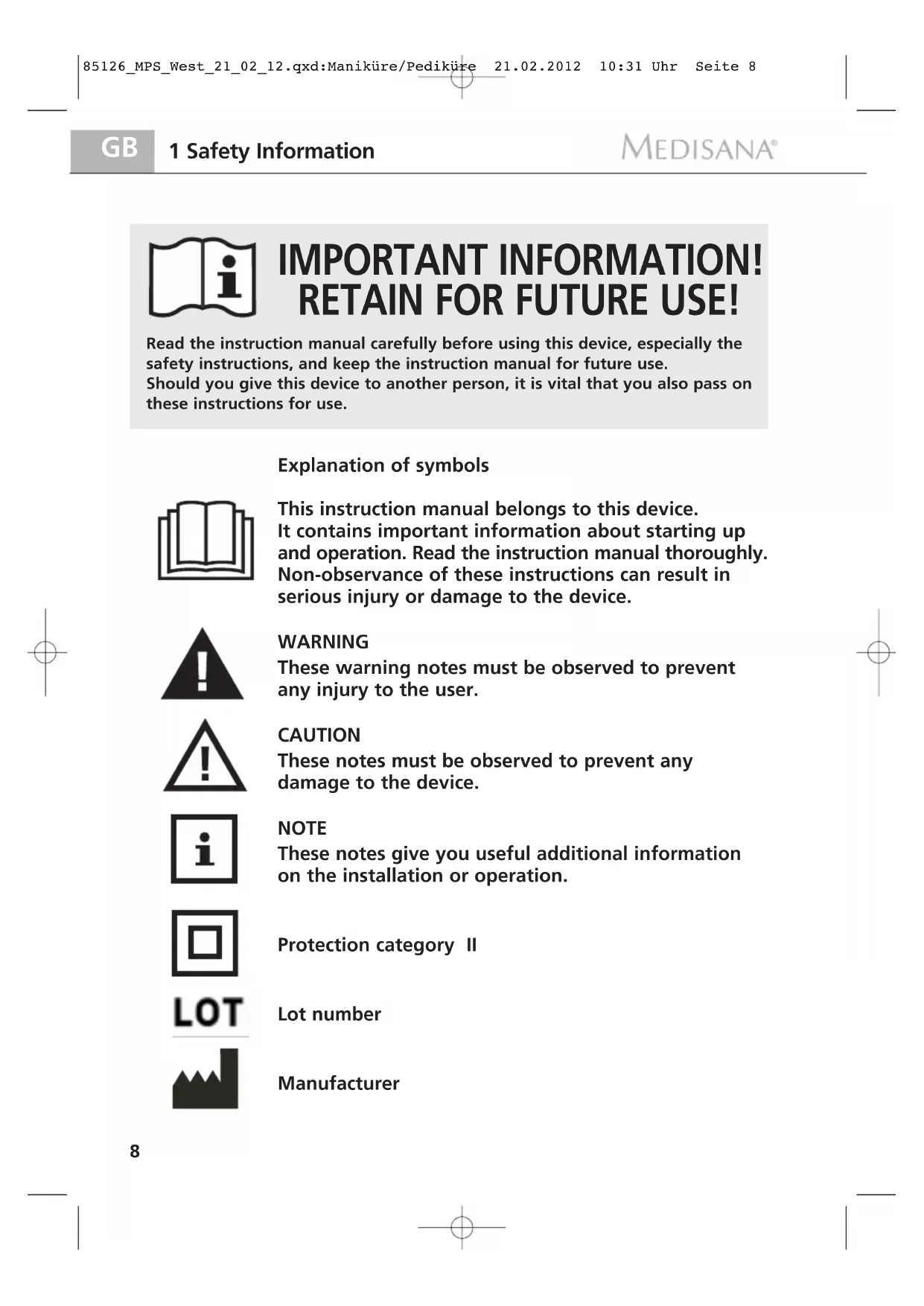

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observance of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

Safety Information

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only use this unit according to the intended purpose and as directed in the instruction manual. The device is not intended for commercial use.
• Do not use any auxiliary parts that have not been recommended by the maker.
• Avoid contact with pointed or sharp objects. The warranty is null and void if it is not used for the intended purpose.
• This device is not designed to be used by persons (including children) with limited physical, sensory or mental abilities, or by persons with insufficient experience and/or knowledge, unless under observation by a person responsible for their safety, or unless they have been instructed in the use of the device.
  • Children must be supervised to ensure that they do not play with the device.
• Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.

Please note the following in particular concerning electrical equipment:

• Only use the unit in enclosed spaces!
• Only connect the mains adapter when the unit is switched off.
• Do not reach for the unit if it has fallen into water. Disconnect the mains adapter from the mains socket immediately.
• Do not use any electrical equipment while in the bath or shower. Do not store or keep any electrical equipment in places where it could fall into the bathtub or washbasin.
• Keep the mains cable away from hot surfaces and naked flames.
• Never use the unit if the power cable has been damaged, the mains adapter is defective, if the unit does not work perfectly, if it has fallen into water or has been damaged.
• Never carry, pull or rotate the unit by the mains cable and never pinch the cable between other objects.
• Do not allow the unit to become overheated due to excessively long use.
• Uninterrupted treatment should not last longer than 15 minutes. Then switch off the unit for at least half an hour and allow it to cool down.
• Only pull the plug out of the socket when you have dry hands, when the unit has been switched off and is not being used any longer, and also do this when you have to replace or clean the heads.

Important recommendations concerning your health:

• Consult your doctor first before using this unit if you have diabetes or other related illnesses.
• Pregnant women should note the important precautionary measures and the amount of stress they can take, consult your doctor first if necessary.
• Do not treat any parts of the body that have swellings, burns, inflammation, peeling skin, wounds or other sensitive points.
• The treatment should be pleasant. Stop at once and consult your doctor if you feel pain or the treatment seems unpleasant.

GB

2 Useful Information

MEDISANA®

Thank you very much

Thank you for your confidence in us and congratulations!

You have acquired a quality product with your purchase of the MPS manicure/pedicure unit from MEDISANA.

To ensure that your MEDISANA MPS provides successful results for a long time, we recommend that you read carefully through the following notes on its use and care.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. If in doubt, do not use the appliance. n case of doubt, do not use it and contact your supplier or your service centre.

The following parts are included:

• MPS -unit with mains adapter
- 4 accessory heads
- Storage bag
- Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required.

If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 Special points concerning the MEDISANA Medistyle

• The MEDISANA MPS manicure/pedicure unit is easy to use and perfect for caring for your hands, feet and nails. It is particularly suitable for treating ingrown, thickened and very tough nails and also for treating calluses, rough skin and corns. It is also suitable for the cosmetic care of hands, nails and synthetic nails.
• The sapphire heads have an extremely long life and virtually never wear out.
• Due to the minimal risk of injury, the MPS is also especially suitable for use by diabetics or older people.
• Do not soften the skin on hands and feet prior to treatment.
• The device is equipped with a handy plug-in chuck.

2.3

Frequently asked questions and answers

Why is the MPS especially suitable for use with diabetics?

Because the speed is continuously adjustable and the device stops if too much pressure is used, the unit can also be used safely by persons who have reduced sensitivity to pain or are unable to react quickly to pain. Also, the sapphire accessory heads only remove dead skin.

Why are there so many heads?

Each head is designed to solve a particular problem for the hands and feet and therefore especially effective and safe in use.

Can several people use one MEDISANA MPS?

Yes. But in any case it is best that each person has its own set of the accessory heads to prevent the transmission of skin diseases.

They can be obtained separately from MEDISANA AG.

3 Operating

3.1

Functions

1. Rotary switch ② for switching the device on and off and adjusting the speed

The rotary switch ② with the symbols + and 0 is on the top of the device. Turn the switch from 0 to + to switch the device on. If you turn the switch to 0, the device is switched off. If you continue turning the switch to +, the speed increases. Turning towards 0 reduces the speed. The change in speed takes place slowly. Start slowly for each application and increase the continuously adjustable rotating speed to suit your individual requirements.

2. Clockwise/anti-clockwise rotation 1

The switch for clockwise/anticlockwise rotation ① is on the top of the device. Move the switch to select clockwise or anticlockwise rotation. Changeover may also be performed whilst the unit is running.

3. Plug-in chuck 5

The device is equipped with a handy plug-in chuck 5. Switch off the device. To change the attachments, first simply pull out the one you do not need. Carefully plug the attachment you want into the hole until it catches.

GB

3 Operating

MEDISANA®

3.2

Manicure

Accessory heads for a manicure (care of the hands):

1. Coarse-grained sapphire cone

Art.-No. 85003

To remove dry hard skin

2. Flame burr

Art.-No. 85011

To carefully remove in-growing nails.

Microscopic view of cellular or tissue structures with no visible text or symbols

3. Fine-grained sapphire disk

Art.-No. 85004

To trim the nails by filing: Hold the unit firmly, run the nail along the disk. Only file in one direction!

Close-up of a metallic tool tip with textured surface (no visible text or symbols)

4. Felt cone

Art.-No. 85001

To smooth the edges of the nail and to polish the nail surface.

Microscopic view of a textured surface with granular patterns (no visible text or symbols)

3.3

Pedicure

Accessory head for a pedicure (care of the feet):

Coarse-grained sapphire cone

Art.-No. 85003

To remove hard skin.

Microscopic view of a biological sample showing cellular structures (no visible text or labels)

Creaming afterwards and regular care with the MEDISANA MPS contributes to well-cared for hands and feet with soft skin and firm nails with a stable structure.

4.1 Cleaning and maintenance

• Always pull the mains adapter out of the socket in the case of an electrical unit.
• Never use strong cleaning agents or stiff brushes.
• Clean the unit with a soft cloth which has been lightly moistened with a mild soap. Never dip the unit into water for cleaning and ensure that no water gets into the unit at any time. Only use the unit again, when it is fully dry.
• For hygiene reasons, all attachments may be cleaned with a brush (e.g. old toothbrush). It is also advisable to disinfect the grinding surfaces with commercially available spray disinfectant or 90% alcohol to prevent the transmission of infections. The pins of the attachments should be kept free from grease. First allow the heads to dry off completely before you use them again on the unit.
• Store the device in a dry, cool place.
• Fold up the power cable carefully to avoid cable breaks.

4.2 Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your local authority or your supplier for information about disposal.

4.3 Technical specifications

Name and model : MEDISANA MPS

manicure and pedicure device

Current supply : Operation with mains adapter

100-240 V\~ 50/60 Hz 350 mA

18 V 500 mA

Revolutions per minute : appr. 2.000 – appr. 5.200

Dimensions (Hand-held unit) : appr. 150 (L) x 40 (∅) mm

Weight (Hand-held unit) : appr. 140 g

Article no.: 85126

EAN-Number : 40 15588 85126 1

CE

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

GB 5 Warranty

MEDISANA®

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:
   a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.
   b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
   c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
   d. Accessories which are subject to normal wear and tear (e.g. attachments).
5. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
