Product type	Steam cleaner with steam iron
Brand	Kärcher
Model	SC 4 EasyFix Premium Iron
Dimensions (L x W x H)	350 x 280 x 270 mm
Weight (without accessories)	4.1 kg
Power supply	220-240 V, 50-60 Hz, 2000 W
Iron power	700 W
Maximum operating pressure	0.35 MPa
Heat-up time	4 minutes
Continuous steam output	50 g/min
Maximum steam boost	110 g/min
Water tank capacity	0.8 L
Steam boiler capacity	0.5 L
Protection rating	IPX4
Protection class	I
Protection type	Safety thermostat, pressure regulator, safety valve
Included accessories	Jet nozzle, round brushes (small and large), hand nozzle, floor nozzle, carpet glider, steam iron, extension tubes, microfiber cloths
Main use	Detergent-free steam cleaning, steam and dry ironing, textile refreshing
Recommended maintenance	Descaling according to water hardness (every 50 to 100 fill-ups); wash cloths at max. 60 °C
Spare parts	Original accessories available at www.kaercher.com
Warranty	According to country conditions, material or manufacturing defects

Frequently Asked Questions - SC 4 EasyFix Premium Iron Kärcher

What type of water should I use in the tank?

Use tap water or a mixture with a maximum of 50% distilled water. Do not use pure distilled water, condensation water, rainwater, or detergents.

How to start the appliance?

Fill the water tank up to the MAX mark, plug in the appliance, press the On switch (Ein). Wait until the green indicator light stays constant, then operate the steam lever.

What to do if the red indicator light flashes?

The red light indicates a lack of water in the boiler. Fill the water tank up to the MAX mark. The pump will automatically fill the boiler.

How to use the steam iron?

Plug the steam connector of the iron into the appliance's socket. Wait until the orange light goes out. Press the steam switch on the bottom of the handle to emit steam.

How to descale the boiler?

Use only Kärcher descaling agent. Empty the water, open the maintenance closure, pour in the solution (1 dose for 0.5 L of water), leave to act for 8 hours, then rinse thoroughly with cold water.

What to do if the steam lever does not press down?

The child safety lock may be activated. Push the steam flow selector forward to unlock the lever.

Can you clean wooden floors with this appliance?

No, steam can damage unsealed wooden floors and painted surfaces. Use a cloth lightly impregnated with steam to wipe these surfaces.

How to store the appliance after use?

Turn off and unplug the appliance, empty the tank, allow to cool. Store the accessories on the supports, coil the hose and cable. Keep in a dry and frost-free place.

What is the carpet glider for?

The carpet glider allows you to refresh carpets with steam. Attach it to the floor nozzle with the cloth. Use reduced steam flow and do not steam for more than 5 seconds in the same spot.

What to do if the iron spits water?

This indicates excess limescale. Rinse or descale the boiler of the steam cleaner. After pauses, direct the iron at a cloth until a steady steam flow is achieved.

USER MANUAL SC 4 EasyFix Premium Iron Kärcher

Exterior view of a Karcher vacuum cleaner with attached electrical iron and cable (no text or symbols visible)

Deutsch 5

English 11

Français 18

Italiano 25

Nederlands 31

Español 38

Português 45

Dansk 51

Norsk 57

Svenska 63

Suomi 70

Ελληνικά 76

Türkçe 83

Русский 89

Magyar 97

Čeština 103

Slovenščina 109

Polski 115

Românește 122

Slovenčina 129

Hrvatski 135

Srpski 141

Български 147

Eesti 155

Latviešu 161

Lietuviškai 167

Українська 173

Қазақша 181

العربيه 194

Technical illustration showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a black arrow indicating a downward force or insertion (no text or symbols present)

Illustration of a handheld device with a cross symbol and an upward arrow, no text or symbols present

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Line drawing of a handheld pressure pump device with coiled tubing and control panel (no text or symbols)

Inhalt

Environmental protection 12

Accessories and spare parts.... 12

Scope of delivery.... 12

Warranty.... 12

Safety devices.... 12

Description of the device.... 12

Installation 13

Operation 13

Important application instructions.... 14

How to use the Accessories 15

Care and service 17

Troubleshooting guide.... 17

Technical data 17

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Only use the appliance in private households. The appliance is intended for cleaning with steam and can be used with appropriate accessories as described in these operating instructions. Detergents are not required. Observe the safety instructions.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection.

Never modify or bypass safety devices.

Symbols on the appliance

(according to type of appliance)

	Risk of burns, surface of appliance becomes hot during operation
	Risk of scalding from steam
	Read operating instructions

Pressure controller

The pressure controller keeps the pressure in the steam boiler as constant as possible during operation. The heating is switched off when the maximum operating pressure is reached in the steam boiler and is activated if there is a pressure drop in the steam boiler as a result of a steam removal.

Safety thermostat

The safety thermostat prevents the device from overheating. If the pressure regulator and the boiler thermostat fail and the unit overheats, the safety thermostat switches the unit off. Before resetting of the safety thermostat, contact the responsible KÄRCHER Customer Service.

Boiler thermostat

The boiler thermostat switches off the heating in the event of a fault; for example, if there is no water in the steam boiler and the temperature in the steam boiler rises.

As soon as you refill the water, the device is ready for use again.

Maintenance lock

The maintenance lock seals the steam boiler from the steam pressure present. The maintenance cap is also a pressure relief valve. If the pressure regulator is defective and the steam pressure in the steam boiler rises, the pressure relief valve opens and steam is escapes through the lock.

Prior to restarting the device, contact the responsible KÄRCHER Customer Service.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

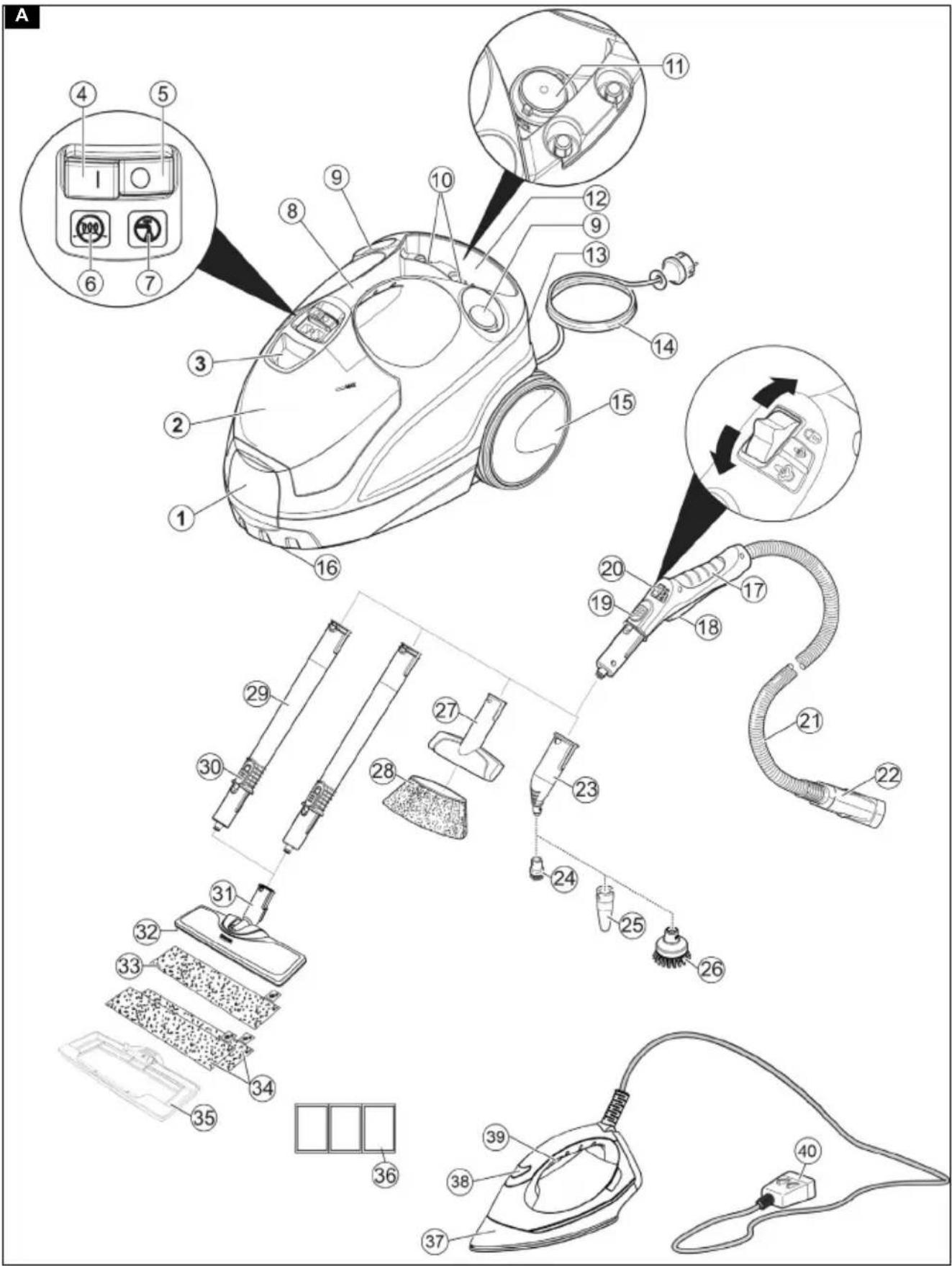

For the illustrations, refer to the graphics page Illustration A

① Device socket with cover
② Water reservoir
③ Filling hole, water reservoir
④ Switch - On
⑤ Switch - Off
⑥ Indicator light (green) - heating
⑦ Indicator light (red) - water shortage
⑧ Carrying handle
⑨ Holder for accessories
⑩Holder for accessories
⑪ Maintenance lock
⑬Park bracket for floor nozzle
⑭ Mains connection cable with mains plug
⑮ Non-driven wheels (2 x)
⑯ Steering roller
⑰Steam gun
⑱Steam lever
⑲ Unlocking button
21Steam hose
22Steam connector

⑫Mains connection cable storage compartment

⑳ Selector switch for steam volume (with child lock)

23 Spotlight nozzle
24 Round brush (small)
25**Power nozzle
26**Round brush (large)
27 Manual nozzle
⑳Manual nozzle microfibre cover
⑲Extension tubes (2 x)
③0 Unlocking button
③1 Floor nozzle
③2 Hook and loop fastener
③3 Microfibre floor cloth (1 x)
③4**Microfibre floor cloth (2 x)
35**Carpet glider
36 Descaler
③7 Steam pressure iron
38 Indicator light (orange) - heating
⑲Steam switch (bottom)
④0 Steam connector
** optional

Installation

Installing accessories

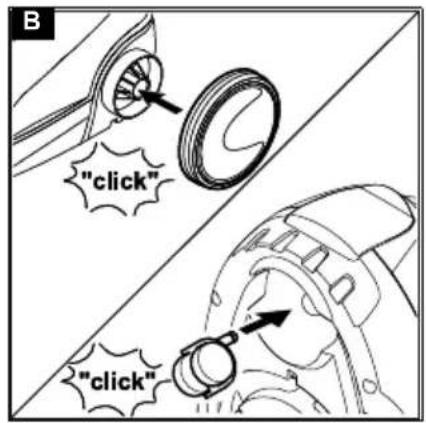

1. Insert and engage the steering roller and non-driven wheels. Illustration B

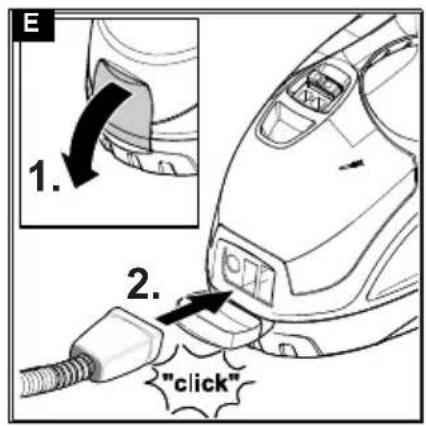

2. Open the cover on the device socket. Illustration E
3. Connect the steam connector to the device socket so that the steam connector audibly engages. Illustration E

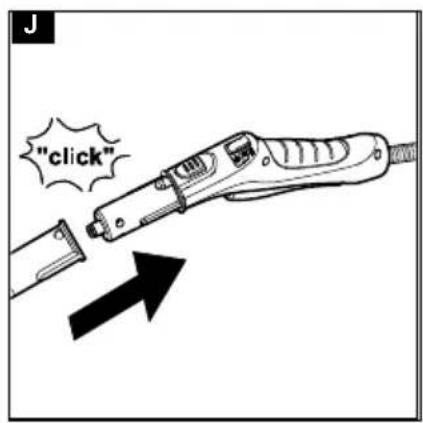

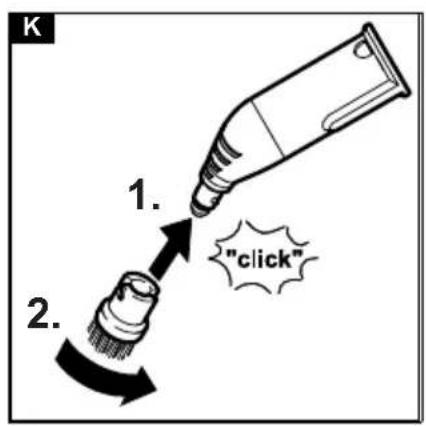

4. Push the open end of the accessory onto the steam gun so that the unlocking button on the steam gun engages. Illustration J
5. Push the open end of the accessory onto the spotlight nozzle. Illustration K

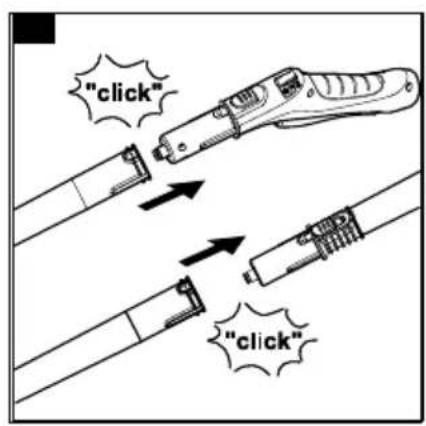

6. Connect the extension tubes with the steam gun. a Push the first extension tube onto the steam gun so that the unlocking button on the steam gun engages. The connection pipe is connected. b Push the second extension tube onto the first extension tube. The connection pipes are connected. Illustration L

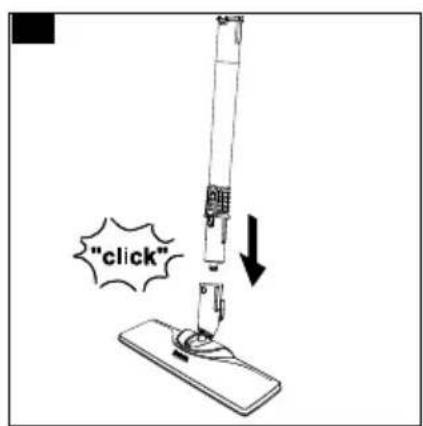

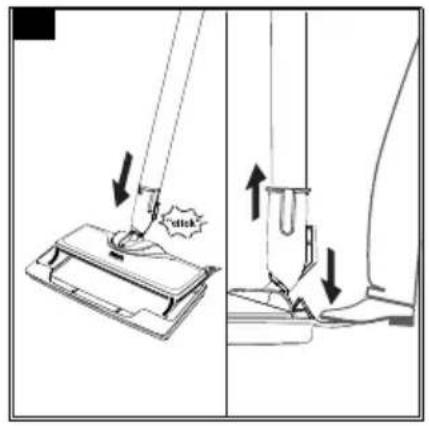

7. Push the accessory and / or the floor nozzle onto the free end of the extension tube. Illustration M The accessory is connected.

Disconnecting accessories

1. Set the selector switch for the steam volume to the rear.
   The steam lever is locked.
2. Push the cover on the device socket down and disconnect the steam connector from the device socket.

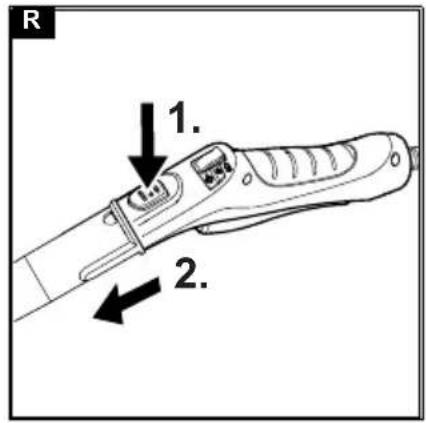

3. Push the unlocking button and pull the parts apart. Illustration R

Operation

Filling water

The water reservoir can be removed at any time for filling or be filled directly at the device.

ATTENTION

Damage to the device

Unsuitable water can block the nozzles or damage the water level indicator. Do not fill in pure distilled water. Use a maximum of 50% distilled water mixed with tap water.

Do not use condensation from the clothes dryer for filling. Do not use collected rain water for filling.

Do not use cleaning agents or other additives (e.g. scents) for filling.

Remove the water reservoir for filling

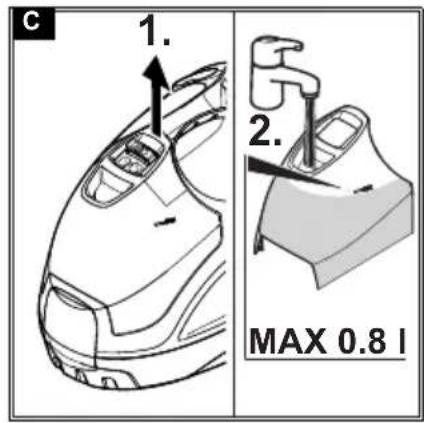

1. Pull the water reservoir vertically upwards. Illustration C
2. Fill the water tank vertically with tap water or a mixture of tap water and no more than 50% distilled water up to the "MAX" mark.
3. Insert the water reservoir and press downwards until it locks into place.

Filling the water reservoir directly on the device

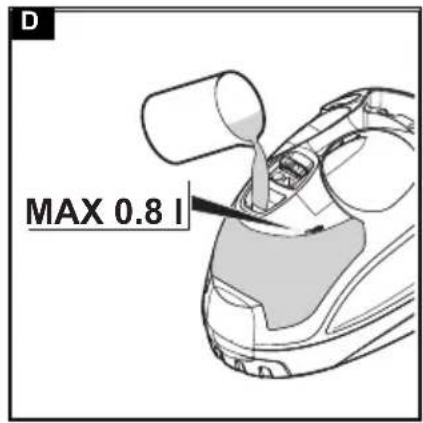

1. Fill tap water or a mixture of tap water and no more than 50% distilled water from a vessel into the filling hole of the water reservoir up to the "MAX" mark. Illustration D

Switch on the device

Note

If there is no or too little water in the steam boiler, the water pump starts to run and pumps water from the water reservoir into the steam boiler. The filling process can take several minutes.

Note

The device briefly closes the valve every 60 seconds causing an audible soft click. Closing prevents the valve from clogging. This does not affect the steam output.

1. Place the device on a firm surface.

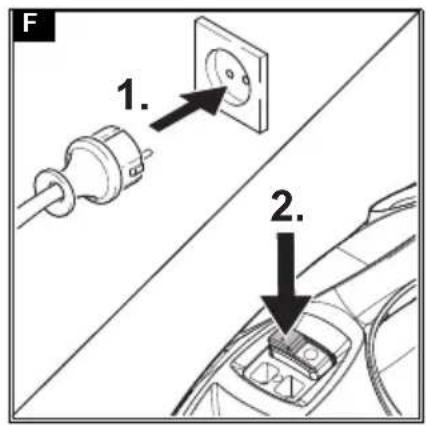

2. Insert the mains plug into a socket. Illustration F

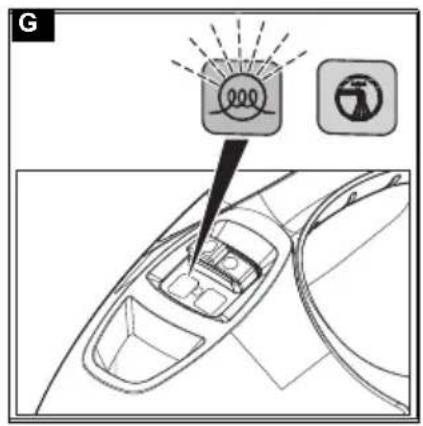

3. Press the ON switch. The green heating indicator light flashes. Illustration G

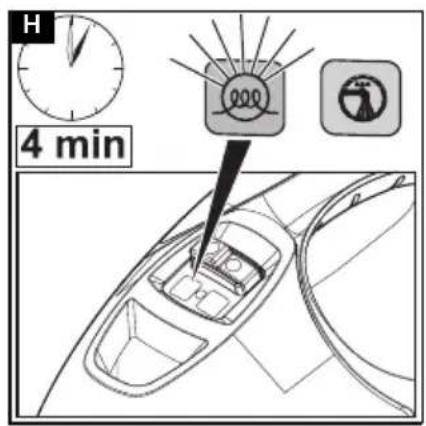

4. Wait until the green heating indicator stays on. Illustration H

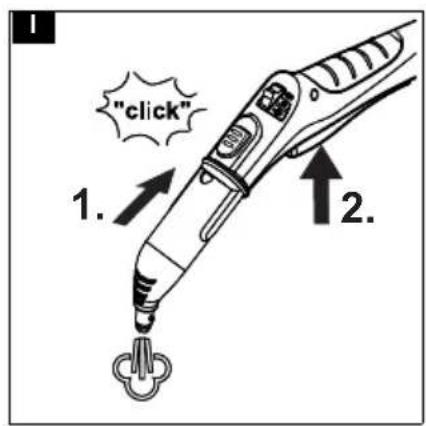

5. Press the steam lever. Illustration I Steam leaks out.

Regulating the steam volume

The expelled steam volume is regulated using the selector switch for steam volume. The selector switch has 3 positions:

Maximum steam volume

Reduced steam volume

No steam - child lock

Note

In this position, the steam lever cannot be operated.

1. Set the selector switch for the steam volume to required steam volume.
2. Press the steam lever.
3. Before starting cleaning, point the steam gun at a cloth until steam is expelled evenly.

Refilling water

If there is not enough water, the water shortage indicator lamp flashes red and a signal tone sounds.

Note

The water pump fills the steam boiler at intervals. If the filling is successful, the red water shortage indicator lamp goes out.

Note

If there is no or too little water in the steam boiler, the water pump starts to run and pumps water from the water reservoir into the steam boiler. The filling process can take several minutes.

ATTENTION

Damage to the device

Unsuitable water can block the nozzles or damage the water level indicator.

Do not fill in pure distilled water. Use a maximum of 50% distilled water mixed with tap water.

Do not use condensation from the clothes dryer for filling.

Do not use collected rain water for filling.

Do not use cleaning agents or other additives (e.g. scents) for filling.

1. Fill the water tank with tap water or a mixture of tap water and no more than 50% distilled water up to the "MAX" mark.
   The device is ready for use.

Switching off the device

1. Press the OFF switch.

Illustration P

The device has been switched off.

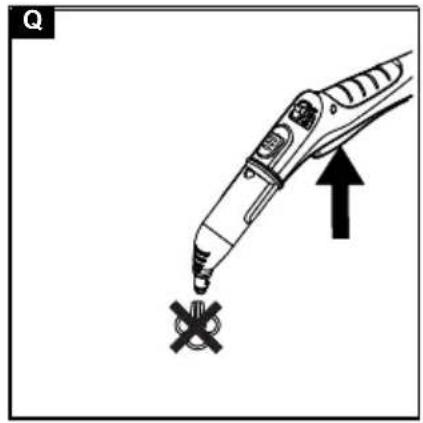

1. Press the steam lever until no more steam flows out.

Illustration Q

The steam boiler is depressurised.

1. Set the child lock (selector switch for steam volume) to the rear.
   The steam lever is locked.
2. Push the cap on the device socket down and disconnect the steam connector from the device socket.
3. Pull the mains plug out of the socket.
4. Drain the water reservoir.

Rinsing out the steam boiler

Rinse the device's steam boiler out after every tenth filling of the tank.

1. Switch the device off; see Chapter Switching off the device.
2. Allow the device to cool down.
3. Drain the water reservoir.
4. Remove the accessory/accessories from the accessory holders.

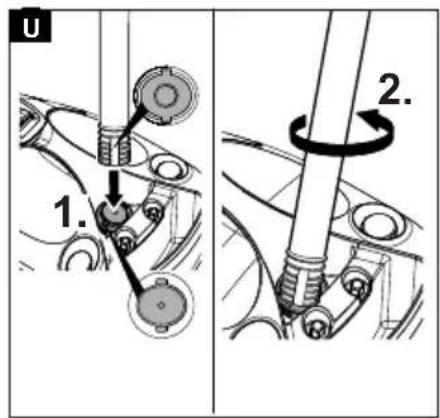

5. Open the maintenance lock. To do this place the open end of an extension tube on the maintenance lock, insert this into the guide so it engages and open it.

Illustration U

1. Fill the steam boiler with water and swing it around vigorously. Lime residue which has been deposited on the bottom of the steam boiler will be released as a result.

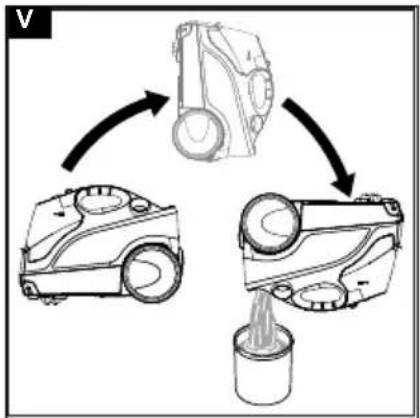

2. Drain the water completely out of the steam boiler. Illustration V

Storing the device

1. Connect the extension tubes to the large mounts for accessories.
2. Connect a manual nozzle and spotlight nozzle to each extension tube.
3. Fasten the large round brush to the spotlight nozzle.
4. Connect the small round brush and nozzles to the medium-sized mount for accessories.

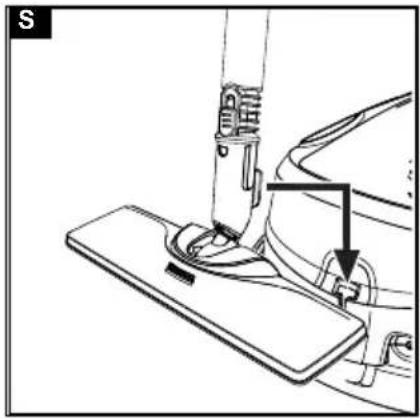

5. Hang the floor nozzle in the park bracket. Illustration S
6. Wind the steam hose around the extension tube and connect the steam gun to the floor nozzle. Illustration T
7. Wind the mains cable around the extension tube.
8. Stow the mains cable in the accessory compartment.
9. Store the device in a dry location that is protected from frost.

Important application instructions

Cleaning the floor areas

We recommend sweeping the floor or vacuum cleaning it before using the appliance. In this way the floor will be cleared of dirt and loose particles before the wet cleaning.

Freshening up textiles

Prior to using the appliance, always check the compatibility of the textiles at a concealed point: Steam down the textile, allow it to dry and then check it for any change in colour or shape.

Cleaning coated or painted surfaces

ATTENTION

Damaged surfaces

Steam can loosen wax, furniture polish, plastic coatings or paint and edge band from edges.

Do not direct the steam at glued laminated edges as the edge band may loosen.

Do not use the appliance for cleaning unsealed wood or parquet floors.

Do not use the appliance for cleaning painted or plastic coated surfaces such as kitchen or living room furniture, doors or parquet.

1. To clean these surfaces, steam a cloth briefly and use it to wipe over the surfaces.

Glass cleaner

ATTENTION

Glass breakages and damaged surfaces

Steam can damage sealed points of the window frame and, at low outside temperatures, lead to tension on the surface of window panes and hence to glass breakages. Do not direct the steam at sealed points on the window frame.

At low outside temperatures, heat up the window panes by gently steaming the full surface of the glass.

- Clean the window area with a manual nozzle and cover. To remove the water, use a squeegee or wipe the surfaces dry.

How to use the Accessories

Steam gun

The steam gun can be used for the following applications without accessories:

• For removing slight creases from the hanging clothing items: Steam the clothing item from a distance of 10-20 cm.
• For wiping damp dust: Steam a cloth briefly and use it to wipe over the furniture.

Spotlight nozzle

The spotlight nozzle is suitable for cleaning areas, joins, fittings, drains, sinks, WCs, blinds or radiators that are difficult to access. The closer the spotlight nozzle is to the soiled area, the greater the cleaning efficiency will be as the temperature and steam volume are at their highest at the nozzle opening. Larger lime deposits can be treated before steam cleaning with a suitable detergent. Allow the detergent to soak in for approx. 5 minutes and then steam it off.

1. Slide the spotlight nozzle onto the steam gun.

Illustration J

Round brush (small)

The small round brush is used for cleaning stubborn dirt. Stubborn dirt can be removed more easily by brushing.

ATTENTION

Damaged surfaces

The brush may scratch sensitive surfaces. It is not suitable for cleaning sensitive surfaces.

1. Fit the round brush to the spotlight nozzle.

Illustration K

Round brush (large)

The large round brush is suitable for cleaning large rounded surfaces, e.g. wash basin, shower tray, bath tub, kitchen sink.

ATTENTION

Damaged surfaces

The brush may scratch sensitive surfaces.
It is not suitable for cleaning sensitive surfaces.
1. Fit the large round brush to the spotlight nozzle.

Illustration K

Power nozzle

The power nozzle is used for cleaning stubborn dirt, blowing down corners, joins etc.

1. Install the power nozzle onto the spotlight nozzle according to the round brush.

Illustration K

Manual nozzle

The manual nozzle is used for cleaning small areas that can be washed down, shower cubicles and mirrors.

1. Push the manual nozzle onto the steam gun according to the spotlight nozzle.

Illustration J

1. Pull the cover over the manual nozzle.

Floor nozzle

The floor nozzle is used for cleaning washable wall and floor coverings e.g. stone floors, tiles and PVC floors.

ATTENTION

Damage due to build-up of steam

Heat and moisture can lead to damage.

Check the heat resistance and steam effect on an inconspicuous area using a minimal volume of steam prior to use.

Note

Detergent residue or care emulsions on the surface to be cleaned can lead to streaks during steam cleaning, which will disappear however once these have been used several times.

We recommend sweeping the floor or vacuum cleaning it before using the device. In this way the floor will be cleared of dirt and loose particles before the wet cleaning commences. Work slowly on surfaces that are heavily soiled so that the steam has longer to take effect.

1. Connect the extension tubes with the steam gun. Illustration L

2. Push the floor nozzle onto the extension tube. Illustration M

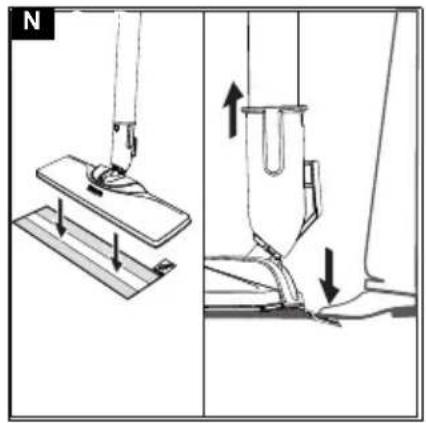

3. Fasten the floor cleaning cloth to the floor nozzle. a Place the floor cleaning cloth with the hook and loop fastener strips pointing upwards on the floor. b Place the floor nozzle onto the floor cleaning cloth, applying slight pressure.

Illustration N

The floor cleaning cloth will stick to the floor nozzle of its own accord due to the hook and loop fastener.

Removing the floor cleaning cloth

1. Place one foot on the bottom corner of the floor cleaning cloth and lift the floor nozzle up.

Illustration N

Note

Initially, the floor cleaning cloth's hook and loop fastener strip is very strong and cannot be removed from the floor nozzle easily. After the floor cleaning cloth has been used several times and washed, it is easier to remove from the floor nozzle and it has reached the optimum adhesion.

Parking the floor nozzle

1. Hang the floor nozzle in the park bracket during breaks in work.

Illustration S

Carpet glider

The carpet glider is used for freshening up carpets.

ATTENTION

Beware of damaging the carpet glider and carpet

Contamination on the carpet glider, as well as heat and moisture penetration, can result in the carpet being damaged.

Prior to the application, also check the heat resistance and impact of steam on the carpet at an insignificant spot using as small an amount of steam as possible.

Observe the cleaning instructions from the carpet manufacturer.

Prior to using the carpet glider, make sure that the carpet has been vacuumed and that stains have been removed.

Prior to application and following operating pauses, remove any possible water accumulation (condensate) in the appliance by means of evaporating the condensate into a drain (without floor cleaning cloth / with accessories).

Only use the carpet glider with a floor cleaning cloth on the floor nozzle.

Steam clean with a weak steam stage when using the carpet glider.

In order to prevent too much moistening and to avoid the risk of damage due to temperature effects, do not direct the steam continuously onto one spot (maximum 5 seconds).

Do not use the carpet glider on deep-pile carpets.

Fastening the carpet glider to the floor nozzle

1. For fastening the floor cleaning cloth to the floor nozzle, please refer to chapter Floor nozzle. Illustration N

2. Using a little force, allow the floor nozzle to slide into the carpet glider and engage there.

Illustration O

1. Start cleaning the carpet.

Removing the carpet glider from the floor nozzle

△CAUTION

Beware of burns to your feet

The carpet glider can heat up during the steaming process.

Do not operate or remove the carpet glider bare-footed or using open sandals.

Only operate or remove the carpet glider using suitable footwear.

1. Press the strap on the carpet glider downwards using your toecap.

2. Lift the floor nozzle upwards.

Illustration O

Iron steam pressure

Note

We recommend using the KÄRCHER ironing board with active steam suctioning. This ironing board is optimally matched to the device you have acquired. It facilitates and speeds up the ironing process. In any case, the ironing board used should have a steam-permeable, grid-like ironing base surface.

Note

It should be noted that in the case of an ironing board without steam extraction, it is possible for an ironing board cover to become wet if condensate accumulates.

Initial startup of steam pressure iron

ATTENTION

Ironing may cause condensation to drip on the floor and damage sensitive floor coverings.

If possible, perform ironing tasks on a floor covering which is insensitive to condensation (e.g. tiles/stone).

For sensitive floor covering, ensure that the area on which condensation can drip is adequately protected (e.g. water-impermeable floor mat).

Note

The iron plate must be hot to prevent steam from condensing on the sole plate and dripping onto the ironing laundry.

1. Ensure that tap water or a mixture of tap water and no more than 50% distilled water is in the steam boiler of the steam cleaner.
2. Insert the steam plug of the iron into the unit plug until it clicks into place.
3. Putting the steam cleaner into operation; see Chapter Switching on the device.
4. Wait until the steam cleaner is ready for use.
5. The iron is ready for use as soon as the indicator light (orange) has gone out.
6. The warning light comes on during use, when the iron is reheating. The application must not be interrupted during reheating.

Steam ironing

ATTENTION

Damage to garments

Failure to observe the ironing information in the garment may result in damage.

Observe the ironing information in the garment.

Note

With the fixed, optimal temperature setting, all ironable textiles can be ironed without additional temperature setting.

Smooth delicate fabrics and imprints on the back with steam without direct contact with the iron.

Note

The iron is fitted with an automatic switch-off which switches off the device if it has not been moved for more than 5 minutes. This automatic shut-off increases safety and saves energy as the iron does not heat up continuously. The iron will switch back on as soon as it is moved and start heating up.

Note

The iron can be held vertically for steaming curtains, dresses, etc.

1. As soon as the heating indicator light (orange) of the iron goes out, ironing can be started.
2. Press the steam switch on the handle below. Steam emits as long as the switch is pressed.
3. Before ironing and after pauses in the ironing process, direct the blast of steam onto a cloth until the steam flows evenly.

Dry ironing

ATTENTION

Damage to the device

Water shortage in the steam boiler leads to damage to the device

Make sure that there is water in the steam boiler.

ATTENTION

Damage to garments

Failure to observe the ironing information in the garment may result in damage.

Observe the ironing information in the garment.

Note

With the fixed, optimal temperature setting, all ironable textiles can be ironed without additional temperature setting.

Smooth delicate fabrics and imprints on the back with steam without direct contact with the iron.

- Wait until the heating indicator light (orange) of the iron goes out.

The iron is ready for ironing.

Care and service

Descaling the steam boiler

Note

Since the lime clogs the appliance, we recommend descaling the appliance based on the number of times the water reservoir is filled as specified in the table (TF=tank fillings).

Hardness range °dH		mmol/l TF
I soft 0-7 0-1.3 100
II	Medium	7-14	1.3-2.5	90
III	Hard	14-21	2.5-3.8	75
IV	Very hard	>21	>3.8	50

Note

Your water board or municipal utilities authority can provide information on hardness of tap water.

ATTENTION

Damaged surfaces

The descaler may corrode sensitive surfaces.

Fill and empty the appliance carefully.

1. Switch off the appliance, see Chapter Switching off the device.
2. Allow the appliance to cool down.
3. Drain the water reservoir.
4. Remove the accessory/accessories from the accessory holders.
5. Open the maintenance lock. To do this place the open end of an extension tube on the maintenance lock, insert this into the guide so it engages and open it.

Illustration U

1. Drain the water completely out of the steam boiler.

ATTENTION

Appliance damage due to descaler

An unsuitable descaler or incorrect dosing of the descaler may damage the appliance.

Only use KÄRCHER descaler.

Use 1 dosing unit of the descaler for 0.5 l water.

1. Apply descaler solution to the descaler according to the details.
2. Fill the descaler solution into the steam boiler. Do not seal the steam boiler.
3. Allow the descaler solution to take effect for approx. 8 hours.
4. Drain descaler solution completely out of the steam boiler.
5. Repeat the descaling process if necessary.
6. Rinse the steam boiler 2-3 times with cold water in order to drain all the descaler solution residue.
7. Drain the water completely out of the steam boiler.
8. Dry the mounting for the grid connection cable.
9. Close the maintenance lock with an extension tube.

Care of accessories

(Accessories - depending on scope of delivery)

Note

The micro fibre cloths are not suitable for dryer.

Note

When washing the cloths, observe the instructions on the washing tag. Do not use any liquid softeners as this will affect the ability of the cloths to pick up dirt.

1. Wash the floor cleaning cloths and covers at a max. temperature of 60 °C in the washing machine.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

△WARNING

Risk of electric shock and burns

Trying to eliminate faults while the appliance is connected to the mains or has not yet cooled down is always dangerous.

Remove the mains plug.

Allow the appliance to cool down.

The water shortage indicator light flashes red and a signal tone sounds

No water in the tank.

- Fill the water reservoir up to the "MAX" marking.

The water shortage indicator light is lit in red

No water in the steam boiler. The pump's overheat protection has triggered.

1. Switch the device off; see Chapter Switch off the device.
2. Fill the water reservoir.
3. Switch on the device; see Chapter Switching on the device.

The water tank is not inserted correctly or is calcified.

1. Remove the water reservoir.
2. Rinse the water reservoir.
3. Insert the water reservoir and press downwards until it locks into place.

The steam lever cannot be pressed

The steam lever is locked with the child lock.

- Set the child lock (selector switch for steam volume) to the front. The steam lever is released.

Long heating-up time

The steam boiler is scaled.

- Descale the steam boiler.

High water output

The steam boiler is scaled.

- Descale the steam boiler.

The steam pressure iron "spits" water

● Rinse or descale the steam boiler of the steam cleaner; see Chapter Descaling the steam boiler.

After ironing breaks, water droplets come out of the steam pressure iron

During longer ironing breaks, steam can condense in the steam line.

● After pauses in the ironing process, direct the blast of steam onto a cloth until the steam flows evenly.

Technical data

Electrical connection
Voltage	V	220-240
Phase	~	1
Frequency	Hz	50-60
Protection class		IPX4
Protection category		I
Performance data
Heating capacity	W 2000
Heating capacity of iron	W 700
Maximum operating pressure	MPa	0.35
Heating-up time	Minutes	4
Continuous steaming	g/min	50
Maximum steam blast	g/min	110

Filling quantity

Water reservoir | 0.8

Steam boiler I 0.5

Dimensions and weights

Weight (without accessories) kg 4.0

Length mm 350

Width mm 280

Height mm 270

Subject to technical modifications.

Contenu

Geen water in de tank.

(alt after apparattype)

Tarvikute monteerimine

www.kaercher.com/REACH

Black silhouette of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
