USER MANUAL BP7 Nature Sense NUK

Electric Breast Pump

NUK 88:88

Please note inner coverpage

Français 39

Nature SenseFirst Choice

B

Diagram illustrating the step-by-step installation of a portable air conditioner, showing steps from base to final packaging.

C

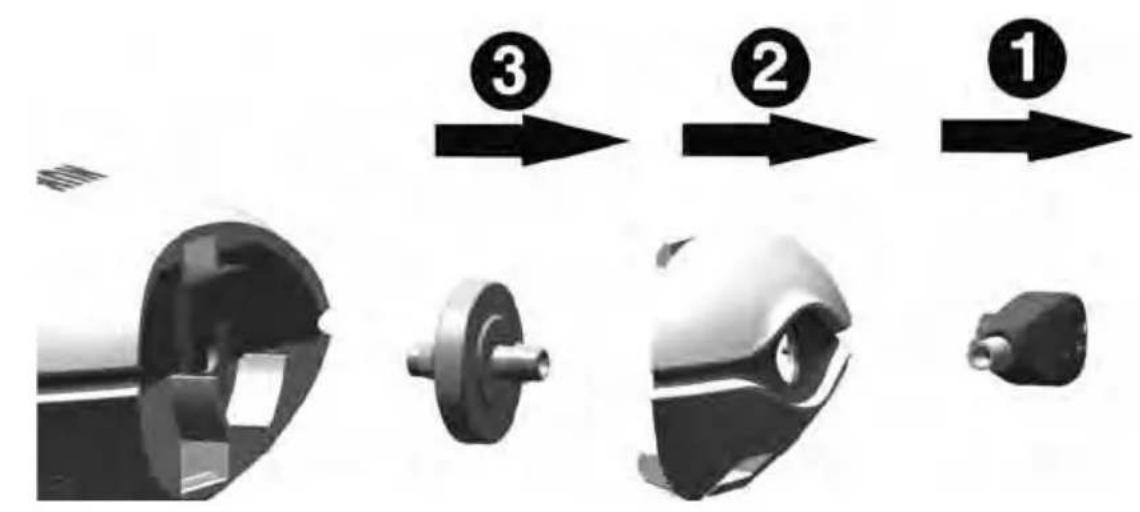

Diagram showing three-step assembly steps of a mechanical component, labeled 1 to 3 with directional arrows.

Inhalt

Simple diagram of a cell with internal structures and radiating lines, no text or symbols present.

2 Description of Device 23

2.1 Intended use 23
2.2 Models 23
2.3 Description of function 23
2.4 Contraindications 23
2.5 Side effects.... 24
2.6 Symbols on the product 24

3 Safety Information.... 24

3.1 Explanation of terms.... 24
3.2 General information....25
3.3 Hygiene....25
3.4 Notes for the Breast Milk Container and Teat. 25
3.5 EMC 26

4 Designation of Components and functional Elements (Figure A) ..... 27

5 Cleaning and Sterilising 28

5.1 Cleaning (Figure A in reverse order) 28
5.2 Sterilising.... 28
5.3 Special cleaning of tube and filter. 29
5.4 Tube blow-dry function 29

6 Assembling the pump.... 29

7 Power supply.... 30

7.1 Mains operation 30
7.2 Power bank 30
7.3 Battery operation (Nature Sense model only) 30

8 Operation.... 30

8.1 Expressing milk....30
8.2 Automatic switch-off.... 32
8.3 Mobile operation 32
8.4 Feeding expressed milk 32

9 Tips for Successful Expressing 32

9.1 Frequency 32
9.2 Method 32
9.3 Quantity of milk 33
9.4 Let-down reflex.... 33

10 Hygiene tips.... 33

11 Storing Milk 33

11.1 With Breast Milk Container 33
11.2 Important notes for handling breast milk 34

12 Troubleshooting 35

13 Technical Data.... 36

14 Maintenance 37

15 Disposal 37

15.1 Device....37
15.2 Packaging 37

16 Warranty.... 38

16.1 Service Centres. 38
16.2 Manufacturer.... 38

17 EU declaration of confirmity 38

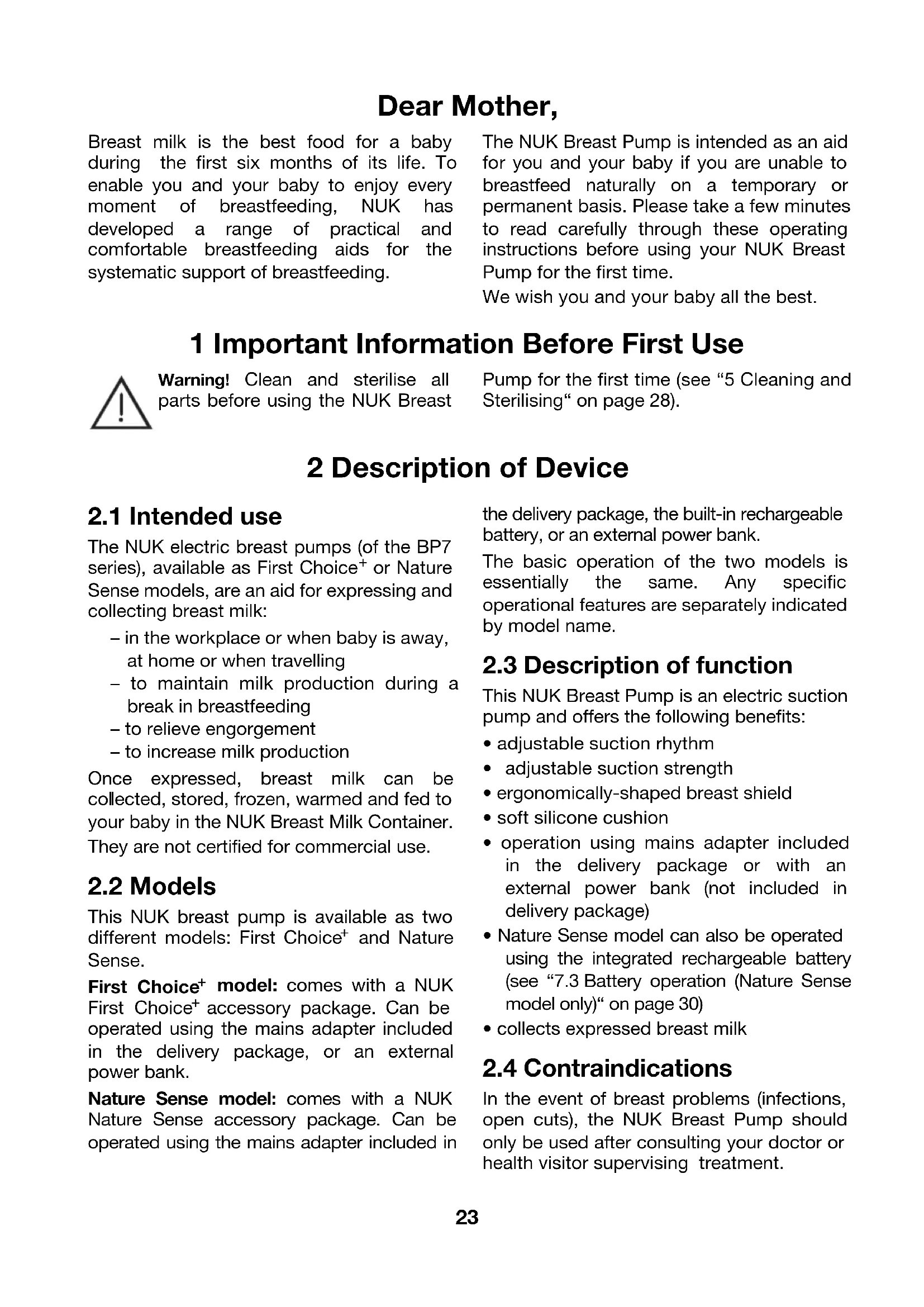

Dear Mother,

Breast milk is the best food for a baby during the first six months of its life. To enable you and your baby to enjoy every moment of breastfeeding, NUK has developed a range of practical and comfortable breastfeeding aids for the systematic support of breastfeeding.

The NUK Breast Pump is intended as an aid for you and your baby if you are unable to breastfeed naturally on a temporary or permanent basis. Please take a few minutes to read carefully through these operating instructions before using your NUK Breast Pump for the first time.

We wish you and your baby all the best.

1 Important Information Before First Use

Warning! Clean and sterilise all parts before using the NUK Breast

Pump for the first time (see “5 Cleaning and Sterilising” on page 28).

2 Description of Device

2.1 Intended use

The NUK electric breast pumps (of the BP7 series), available as First Choice ^+ or Nature Sense models, are an aid for expressing and collecting breast milk:

– in the workplace or when baby is away, at home or when travelling
- to maintain milk production during a break in breastfeeding
– to relieve engorgement
– to increase milk production

Once expressed, breast milk can be collected, stored, frozen, warmed and fed to your baby in the NUK Breast Milk Container.

They are not certified for commercial use.

2.2 Models

This NUK breast pump is available as two different models: First Choice ^+ and Nature Sense.

First Choice ^+ model: comes with a NUK First Choice ^+ accessory package. Can be operated using the mains adapter included in the delivery package, or an external power bank.

Nature Sense model: comes with a NUK Nature Sense accessory package. Can be operated using the mains adapter included in the delivery package, the built-in rechargeable battery, or an external power bank.

The basic operation of the two models is essentially the same. Any specific operational features are separately indicated by model name.

2.3 Description of function

This NUK Breast Pump is an electric suction pump and offers the following benefits:

• adjustable suction rhythm
  • adjustable suction strength
  • ergonomically-shaped breast shield
• soft silicone cushion
• operation using mains adapter included in the delivery package or with an external power bank (not included in delivery package)
• Nature Sense model can also be operated using the integrated rechargeable battery (see “7.3 Battery operation (Nature Sense model only)” on page 30)
  • collects expressed breast milk

2.4 Contraindications

In the event of breast problems (infections, open cuts), the NUK Breast Pump should only be used after consulting your doctor or health visitor supervising treatment.

2.5 Side effects

If at any time you experience an unexpected reaction, please consult your midwife, health visitor, doctor or pharmacist.

Should you experience any serious problems using the breast pump, please notify the manufacturer (see "16.2 Manufacturer" on page 38).

2.6 Symbols on the product

On the device
Symbol	Meaning
	Manufacturer
	Refer to the operating instructions
	Attention! Observe the safety instructions in the operating instructions
	Serial number
	Model name
	Complies with all the requirements of applicable EC directives
	Electrically protected device, Protection Class II
	Electromedical device, Type BF
IP22	Protection against foreign bodies > 12.5 mm and against falling, dripping water, if the housing is inclined up to 15°

On the device
Symbol Meaning
=	Direct current
	Do not dispose of batteries or the pump with household waste
	CN RoHS

On the packaging
Symbol	Meaning
	Keep away from sunlight
	Temperature limit at storage +5 °C to +50 °C
	Keep dry
	Humidity limit at storage 15% - 75% rH
	Article number
	Batch identification
	Attention! Observe the safety instructions in the operating instructions
	Complies with all the requirements of applicable EC directives
	Please note that the packaging can be recycled and disposed of accordingly
	Do not dispose of batteries or the pump with household waste

3 Safety Information

3.1 Explanation of terms

The following keywords are used in these user instructions:

Warning!

Ignoring this warning could result in a serious risk to life and limb.

Caution!

Ignoring this warning can cause minor personal injury and/or property damage.

Note:

Points to be noted when handling the appliance.

3.2 General information

• Before using the pump, please carefully read the operating instructions. These instructions are part of the device and should be available at all times.
• Use the NUK Breast Pump and accessories only for the intended use described (see "2.1 Intended use" on page 23).
• Electrical medical devices such as this one must only be used by adults.
• The breast pump must only operate with the mains adapter supplied.

Warning! N ever submerge the pump unit 3 in water, as there is a risk of electrocution and the motor unit might be damaged by water penetration.

- Do not expose the device to direct sunlight, as UV rays and overheating may make plastics brittle.

Warning! Keep small parts out of the reach of children: risk of swallowing and suffocation.

• We recommend removing any fatty or oily creams from your breast before using the pump, as these can damage the surface of the silicone cushion.
• Use only NUK original accessories.
• Please note that any claims of liability against the manufacturer under the terms of the warranty expire if accessories are used that are not recommended in these operating instructions.
• A damaged mains adapter cable or USB cable must be replaced by the original spare part in each case.
• In the event of any malfunction, the pump must be returned to the manufacturer for repair. Failure to do so will invalidate your warranty.

• Never open the pump unit housing 3 – this will invalidate the warranty.

• If the breast milk is intended for a premature baby, it is essential that you follow your doctor's advice.

• The packaging is not a toy. Keep it out of reach of children. There is a risk of injury and suffocation.

Nature Sense model:

Warning! The rechargeable battery is permanently built-in and cannot be replaced by you.

An incorrectly replaced battery can result in an excessive temperature build-up, explosion and/or fire.

be mains

3.3 Hygiene

Warning! When handling breast milk, hygiene is of particular importance to ensure your baby's healthy development.

• Please refer to the section entitled "5 Cleaning and Sterilising" on page 28 to prevent infection or bacterial contamination (build-up of bacteria) and to prevent the device from becoming damaged.
• Only a breast pump which has been thoroughly cleaned will achieve full suction strength.
• Wash your hands thoroughly before using the breast pump.
• Remove all body jewellery (e.g. piercings) before using the breast pump.

3.4 Notes for the Breast Milk Container and Teat

For your child's safety and health: WARNING!

• Always use this product with adult supervision.
• Never use feeding teats as a soother.
• Continuous and prolonged sucking of fluids will cause tooth decay. This applies in particular to sweetened drinks and fruit/vegetable juices.

• Always check food temperature before feeding.

• Always check the teat for signs of excessive wear by pulling the teat in all directions before each use especially when the child has teeth. Replace when sticky from use, visibly damaged or showing signs of tears or bites to avoid the danger of small parts being swallowed.

• For safety and hygiene purposes, replace the teat after 1-2 months use.
• Do not expose the teat to direct sunlight/heat or leave in sterilising solution for longer than the stated time as this can damage the teat.
• Store hygienically in a dark and dry place.
• Do not dip the teat in in medicine!
• If the bottle/breast milk container is damaged on the inside (e.g. scratches), it should be replaced for reasons of hygiene.
• Keep all components not in use out of the reach of children.

Note: NUK Bottles and Teats are compatible only with the corresponding product range (First Choice ^+ or Nature Sense). NUK Product complies with EN 14350.

Caution! Ignoring this warning can cause minor personal injury and/or property damage:

• Do not microwave bottles filled with feed or water (risk of explosion/product damage).
  Uneven heating may result in scalding!
• Never heat closed bottles as they may explode!
• Before each use, softly squeeze the teat vent and drinking hole to ensure they are open.
• Cooling down a plastic bottle that has been filled with hot liquid (> 80 °C) and sealed with the lid, could cause the bottle to deform permanently.

3.5 EMC

The electric breast pump complies with the limits for group 1, class B of a medical electrical device (according to CISPR 11).

Electromagnetic compatibility (EMC) refers to the ability of a device to function properly in its electromagnetic environment without inducing inadmissible electromagnetic interferences. Such interferences can be transmitted among others by connecting cables or air.

Inadmissible interference from the environment can lead to incorrect behaviour of the medical device. Likewise, in certain cases the electric breast pump can cause such interferences with other devices. To resolve the problems, one or more of the following measures should be taken:

• Change the orientation or distance of the device to the source of the interference.
• Use the electric breast pump in a different location.
• Please contact our customer service for further information.

The electric breast pump must not be used directly next to or stacked with other appliances. If such operation is required, the electric breast pump must be observed in order to check its intended operation in this arrangement.

Further precautions with regard to electrical disturbances to maintain basic safety during expected service life are not provided.

Note:

The electric breast pump has no essential features according to EN 60601-1. The system may be interfered with by other devices, even if these devices comply with the emitting requirements specified in CISPR 11 (Comité international spécial des perturbations radioélectriques - International Committee on Radio Interference).

Warning!

Portable HF communication devices (radio devices) (including their accessories, such as antenna cables and external antennas)

should not be used at a distance of less than 30 cm (or 12 inches) to the parts and pipes of the electrical breast pump. Failure to do so may result in a reduction in the performance of the equipment.

Warning!

Modifications or extensions to the device or the use of non-recommended accessories (E.g. mains adapter or USB cable) can result in increased electromagnetic interference or a reduced electromagnetic immunity of the device and lead to a faulty operation.

4 Designation of Components and functional Elements

(Figure A)

1 Lug for shoulder strap
2 USB port for charging (cover removable)
3 Pump unit
4 Tube
5 Protective cap
6 Filter (plus 1 replacement)
7 Tube connector plug
8 Tube connector on breast shield
9 Breast shield
10 Silicone cushion
11 Lip valve (plus 1 replacement)
12 Breast milk container
13 Mains adapter (breast pump must only be used with the mains adapter included in the delivery package)
14 USB cable
15 Feeding teat
16 Screw ring
17 Protective cap
18 Sealing disc
19 Stand
20 Shoulder strap

Control buttons of the pump unit

21 Memory button

22 Change suction rhythm

23 Reduce suction strength

24 Increase suction strength

25 Pause button

26 Master power switch

First Choice ^+ model display (LED)

The symbols light up when the appropriate function is active.

27 Displays the suction rhythm
28 Memory function Flashing: current pumping session is being saved Constant: saved pumping session is running
29 Pause
30 Blow-dry function
31 Displays the suction strength

Nature Sense model display (LCD)

The symbols are displayed when the appropriate function is active.

32 Displays the suction rhythm
33 Memory function Flashing: current pumping session is being saved Constant: saved pumping session is running
34 Displays the expression time
35 Blow-dry function
36 Displays the charge state of the rechargeable battery
37 Error message !
38 Displays the suction strength

5 Cleaning and Sterilising

Warning! Hygiene is the top priority when handling breast milk and all parts which come into contact with it. You should therefore only use a pump that is clean and sterilised.

Wash your hands thoroughly before using the breast pump.

The following parts come into contact with your breast milk and must be immediately cleaned and sterilised after every use (see “5.1 Cleaning (Figure A in reverse order)” on page 28 and “5.2 Sterilising” on page 28):

9 B reast shield

10 Silicone cushion

11 Lip valve

12 Breast milk container

15 Feeding teat

16 Screw ring

17 Protective cap

18 Sealing disc

The following parts must never be cleaned and sterilised with water:

3 Pump unit

13 Mains adapter

14 USB cable

5.1 Cleaning (Figure A in reverse order)

Warning! To avoid the risk of electric shock:

Unplug mains adapter 13 from the wall socket before cleaning.

Caution! To avoid damage, carefully clean the lip valve 11. We recommend just rinsing off the lip valve and boiling it to sterilise. Cleaning implements may lead to damage.

1. Dismantle the device as shown in figure B, proceeding in reverse from 7 to 1.

Warning! Never submerge the pump unit 3, the mains adapter 13, or the USB cable 14 in water, as this will damage the electrical contacts.

1. Clean the following parts with warm water and a little washing-up liquid (or NUK Rinsing Agent).

Then rinse the parts in running water:

9 Breast shield

10 Silicone cushion

11 Lip valve

12 Breast milk container

15 Feeding teat

16 Screw ring

17 Protective cap

18 Sealing disc

Warning! Milk residues may damage the product and result in microbial growth.

Caution! The parts should not be cleaned in a dishwasher – dishwasher detergents can cause product damage.

Note: When rinsing with dishes (for example), certain foodstuffs may discolour the material (e.g. carrot juice) or affect its odour (e.g. fennel tea). This has no effect on the fitness for use or safety of the bottle.

1. Next, sterilise all parts (see "5.2 Sterilising" on page 28).

2. Wipe the pump unit 3 with a damp cloth.

5.2 Sterilising

Before sterilising, clean as described in the section entitled "5.1 Cleaning").

Warning! Risk of scalding during sterilisation.

Caution!

- Dismantle each part into its individual components for boiling or steam-sterilizing (temperature above 80 °C) and leave open, otherwise deformation can result.

- The pump unit 3 and the mains adapter 13 must never be sterilised in this way, as this can damage the electrical contacts and cause deformation.

• Incorrect treatment can damage the parts.
• Before using again, allow the sterilised parts to cool and dry completely before reassembling.

• Only use water and steam for sterilisation:

• Use a NUK Steam Steriliser, following the operating instructions of the device.

Alternatively,

1. sterilise the parts in boiling water for 5 minutes.

Ensure there is sufficient water in the pan to avoid damage.

Alternatively,

1. use a NUK Micro Express Plus Microwave Steam Steriliser for sterilisation in your microwave oven.

- Only use the NUK Micro Express Plus Microwave Steam Steriliser for microwave sterilisation. Follow the operating instructions of the device.

5.3 Special cleaning of tube and filter

1. If milk enters the tube 4, switch the device off immediately.
2. Dismantle the device as shown in figure B, proceeding in reverse from 7 to 1.
3. Remove the filter 6 (see figure C).
4. Clean the following parts with lukewarm water and a little washing-up liquid and/or NUK Rinsing Agent:

-rinse filter 6;
- flush tube 4 with tube connector plug 7.

1. Reassemble according to figure C or B in reverse order and then use the blow-dry function (see "5.4 Tube blow-dry function" on page 29) of the device to dry the tube 4 and the tube connector plug 7.

Note: Since the filter 6 would be a virtually impermeable barrier while wet or damp, it would inhibit the blow-dry function and the pump suction. Insert the dry replacement filter instead. Leave the freshly cleaned and rinsed damp filter to air-dry for at least 4 hours.

5.4 Tube blow-dry function

1. Assemble the device as shown in figure B. Do not insert a filter that is still damp, but use a dry replacement filter instead.
2. To start the blow-dry function press the master power switch 126 and then simultaneously touch the buttons 22 and 11 25.

The blow-dry function runs for 5 minutes.

1. Check that the tube is completely dry (no droplets visible inside), before starting the next pumping session.

If the tube is not yet completely dry, start the blow-dry function again.

You can pause the blow-dry function by touching the Pause button 25 and continue it later by touching the Pause button 25 again.

1. To stop the blow-dry function, switch the pump unit off by pressing the master power switch 26.

6 Assembling the pump

1. Assemble the device as shown in figure B.

Note: Make sure the silicone cushion 10 fits snugly in the breast shield 9 and the lip valve 11 is properly mounted, as the pump can otherwise draw in air, which will prevent it from working properly.

7 Power supply

Notes:

- If the power supply supplies a current less than 2 amperes, an error message will appear in the display when the pump is switched on and you will hear a beep. Nature Sense model display:

Symbol 37

First Choice ^+ model display:

Simple diagram of a sunlit cell with internal structures and water droplets (no text or symbols)

- No further check of the power supply is made once the device is in operation.

7.1 Mains operation

Warning! Only the mains adapter included in the delivery package must be used for operation from mains power.

To disconnect from the mains supply, unplug the mains adapter from the socket.

7.2 Power bank

A power bank is not included in the delivery package.

The power bank must provide an output current of at least 2 amperes. Otherwise, an error will be visually and audibly indicated when the pump is switched on.

Use the USB cable 14 to connect the power bank with the USB port 2 of the pump.

7.3 Battery operation (Nature

Sense model only)

If no mains adapter is connected, the device will run off the integrated battery. To this end, the battery must be adequately charged (at least 2 bars shown in battery charge symbol), so that at least one pumping session can be completed.

The battery charge state is displayed by the battery charge symbol 36

Fully charged (4 bars in the battery charge symbol 36), the battery power will last for three full pumping sessions of 30 minutes each.

Note: While connected to mains power or a power bank, the battery will also be charged during operation.

8 Operation

8.1 Expressing milk

Warning! As hygiene is particularly important, please wash your hands thoroughly before expressing your milk, and read the information in "11 Storing Milk" on page 33.

1. Assemble the pump (see "6 Assembling the pump" on page 29).

Start-up mode

1. Switch on the pump unit 3 by pressing the master power switch 26.

This places the pump into start-up mode.

First Choice ^+ model: display 29 is lit.

Nature Sense model: display 34 flashes (00:00) and the screen background is blue.

Note: The buttons 21 to 25 are touch keys. They only need to be touched lightly to select the appropriate function.

Starting the pumping session

1. Position the breast shield 9 with the fitted silicone cushion 10 on your breast so that your nipple is in the centre of the shield. Gently press the breast shield in place in order to ensure a good seal for expressing your milk. In doing so, take care to keep

the breast milk container 12 attached to the breast shield in an upright position.

Caution! To ensure the required results, never allow the milk level to rise beyond the lower rim of the lip valve 11.

1. To start pumping, touch either of the buttons ⏻ 22, — 23, or + 24.

Pumping will start with the fastest suction rhythm and the lowest suction strength (default setting).

Setting the suction strength

1. Use the buttons - 23 and + 24 to adjust the suction strength to one of 4 levels.

Touch-and-hold will cause the suction strength to adjust step by step up to the maximum or minimum level respectively.

The selected suction strength is displayed with 31 (First Choice ^+ ) or 38 (Nature Sense).

You can adjust the suction strength any time during the pumping session.

Setting the suction rhythm

1. Touch the 📄 22 button once to adjust the suction rhythm to the next level.

Touch-and-hold will cause the suction rhythm to adjust step by step until you release the button.

The selected suction rhythm is displayed with 27 (First Choice ^+ ) or 32 (Nature Sense).

You can adjust the suction rhythm any time during the pumping session.

Pause mode

1. Touch the Pause button 25 to place the pump unit into pause mode. To continue pumping, touch the Pause button 25 again.

Memory function

The memory function can be used to save the sequence of a pumping session from the moment it is started.

1. To save a pumping session, you must first change to pause mode by touching the Pause button 25.

2. Then touch the Memory button 21 for at least 2 seconds.

While the session is being saved, the symbol 28 (First Choice ^+ ) or 33 (Nature Sense) will flash.

Once the session has been saved, the pump will return to start-up mode.

1. To start the saved session, touch the Memory button 21 while the pump unit is in start-up mode after being switched on. The symbol 28 (First Choice ^+ ) or 33 (Nature Sense) is lit.

Nature Sense model: in addition, the screen background will change to red.

1. You can pause and resume the pumping session at any time by touching the Pause button 25, even while running a saved session.

2. To exit the Memory function and return to the default settings for the remainder of the pumping session, touch either of the buttons 22, -23, or +24 while the pump unit is in pause mode.

This will return your pumping session to the default settings.

Troubleshooting

1. If you notice a reduction in the suction power over time, clean the filter 6 (see "5.3 Special cleaning of tube and filter" on page 29), or swap the clogged filter for the replacement filter included in the delivery package.

2. If milk has entered the tube, immediately switch off the pump unit using the master power switch ⏻ 26, and clean the tube and the filter 6 (see “5.3 Special cleaning of tube and filter” on page 29).

After each pumping session

1. Switch off the pump unit 3 by pressing the master power switch 26.
2. Place the breast shield 9 with the attached breast milk container 12 in the stand 19.
3. Remove the tube connector plug 7 from the pump unit 3.
4. Remove the tube 4 from the breast shield 9.
5. If you used the mains adapter 13, unplug it in order to ensure that the device is completely disconnected from mains power.
6. Unscrew the breast milk container 12 from the breast shield 9.

Make sure you hold the breast milk container upright while doing so.

1. Clean the necessary components immediately after completing your pumping session (see "5 Cleaning and Sterilising" on page 28).

8.2 Automatic switch-off

If no buttons are touched during operation (during an active pumping session), the pump unit will automatically switch to start-up mode after 30 minutes.

This does not apply when the Memory function is being used. In other words, once started, a saved pumping session will always run through until the end before the device switches to start-up mode.

If no buttons are touched when the pump unit is in start-up mode or pause mode, it will automatically switch off after 15 minutes.

8.3 Mobile operation

You can also use the pump while moving about your room, using the shoulder strap to carry it.

The shoulder strap is securely fixed to the pump unit.

1. Should the shoulder strap need cleaning, detach it from the lug 1, wash it in water with a little soap or gentle detergent, and air dry it

2. before reattaching it to the lug 1 on the pump unit.

Note: The shoulder strap 20 must not be sterilised.

8.4 Feeding expressed milk

Screw the feeding teat 15 onto the breast milk container 12 using the screw ring 16.

9 Tips for Successful Expressing

Correct expressing takes practice. You will first need to get used to your new pump.

9.1 Frequency

How often you need to express depends on the reason for expressing. If you will be apart from your child and/or want to sustain milk production, the natural breastfeeding rhythm should be maintained. You should therefore express 6 to 8 times daily, including once during the night. In all other cases you should express entirely according to your personal wishes and requirements.

9.2 Method

Milk should be expressed from each breast in turn. The different settings you can choose for your pumping session allow you to emulate the natural suckling action of your baby as closely as possible.

• In the "stimulation phase", the rhythm is rapid and urgent to stimulate the milk flow reflex. This emulates the suckling action of most babies, which will initially suck rapidly and avidly at the start of feeding.
• In the "milk flow phase", suction is slow and strong to ensure maximum milk flow.

Again, this corresponds to most babies' natural behaviour. As soon as a baby's initial appetite is satisfied, it will change to a calm, slow and intensive sucking action while drinking its fill.

If the milk flow drops:

• Change breast
• Alternatively, you can repeat the "stimulation phase" in order to stimulate your milk flow reflex anew.

The amount of time needed to express milk will vary considerably from one person to another.

9.3 Quantity of milk

Don't be surprised if it takes a little while for the milk to start to flow properly at first. This is not unusual. In fact it is quite normal because

milk production adapts itself to daily requirements.

This means that the quantity of milk produced may vary considerably.

• Ensure you drink plenty of liquid yourself.
• Do not set suction strength too high. A higher suction strength does not increase the quantity of milk produced.

9.4 Let-down reflex

During natural breastfeeding, placing the baby on the breast stimulates the let-down reflex and milk begins to flow. You can also stimulate the let-down reflex as follows:

• Find yourself a quiet place to sit, where you can relax fully when using the breast pump.
• Adopt a comfortable and relaxed sitting position.
• Place a warm compress on your breast for a few minutes, to relax the tissue, and massage your breast.
• The let-down reflex triggers milk flow in both breasts simultaneously. You can use the NUK Breast Shell Set to collect breast milk leaking from the breast you are not currently expressing.

10 Hygiene tips

Hygiene is particularly important when using the breast pump. This applies to all the individual pump components as well as to your own personal hygiene. We recommend regularly washing your nipples in clean water. Where possible, avoid using soap on your nipples, as this can cause irritation.

11 Storing Milk

11.1 With Breast Milk Container

Breast milk may be chilled, frozen and defrosted in the breast milk container 12. The breast milk container 12 may also be used for warming and feeding. It is important that you follow the instructions about handling breast milk which is provided in “11.2 Important notes for handling breast milk” on page 34.

Warning! To ensure adequate hygiene at all times:

If your collected breast milk is not for immediate use, firmly seal the filled breast milk container 12 with the sealing disc 18 and screw ring 16 and store it in your refrigerator or freeze it.

Using a suitable pen or label, write the date and the time when the breast milk was expressed. Be sure to note the retention periods in “11.2 Important notes for handling breast milk” on page 34.

Caution! To avoid damage:

- When freezing breast milk, do not fill the breast milk container 12 with more than 150 ml (5 fl oz), as breast milk expands as it freezes and the container could burst.

For a spacesaving solution you can use NUK Breast Milk Bags for freezing and storage of breast milk.

11.2 Important notes for handling breast milk

Breast milk Storage location Storage periods
Freshly expressed	At room temperature Max. 6-8 hours
	Refrigerator (not in door) 72 hours at 4 °C
	Refrigerator freezer compartment 2 weeks
	Upright/chest freezer 6 months at -18 °C
Defrosted, unopened	Refrigerator (not in door) 24 hours at 4 °C
Defrosted, opened	Refrigerator (not in door) 12 hours at 4 °C
Defrosting milk	Gradually in refrigerator	Approx. 24 hours at 4 °C
	At room temperature followed by immediate feeding
	If time is short, defrost container with breast milk in lukewarm water (max. 37°C), then feed immediately.

Warning! To ensure adequate hygiene at all times:

If transporting chilled breast milk make sure that it stays chilled at all times, otherwise the milk could go off and be harmful to your baby. Use a cooler bag with ice packs, for example.

Defrosted, warmed or unused milk must be disposed of and not refrozen.

Warning! Risk of scalding and risk of destroying valuable nutrients:

Do not use a microwave to defrost breast milk, as this can destroy valuable nutrients and damage the container material (risk of explosion). Uneven heating may result in scalding!

If milk is heated excessively, you risk destroying the vitamins and other valuable nutrients it contains. There is also a risk of scalding for your baby.

Always check the temperature of your warmed up breast milk before feeding it to your baby.

1. To achieve the correct drinking temperature of approx. 37 °C, put the container of defrosted breast milk in the baby food warmer.

Caution! The container must be open to prevent pressure build-up as the milk warms up.

1. Shake the milk gently before feeding so that milk and milk fat are properly mixed again.

2. If you express breast milk more than once within a period of 24 hours, the freshly expressed milk may be added to the previously cooled breast milk.

However freshly expressed milk must be cooled down before being added to milk that is already cool. The temperatures must be the same (cold on cold).

Notes:

• Consult your health visitor, midwife, doctor or pharmacist for detailed information about long-term storage.
• You can find more information about breastfeeding on our NUK website (www.nuk.com).

12 Troubleshooting

Problem Reason Remedy
Pump does not work	No power supply Battery operation	on: Check that the battery is adequately charged (see "7.3 Battery operation (Nature Sense model only)" on page 30).
		For mains operation: check that the mains plug and mains adapter are correctly inserted
		External power bank: Check that the power bank is adequately charged.
	Lip valve missing, incorrectly positioned or damaged	Check that the lip valve is correctly positionedIf it is damaged, use the replacement lip valve supplied
	Breast milk container is full and lip valve is already contacting the expressed milk	Replace breast milk container
	No suction or suction level too low	Check that the lip valve is correctly fitted.
		Make sure that the breast shield forms a complete seal around your breast.
	Filter is wet Remove filter and a	low more time to dryor use dry replacement filter (see "5.3 Special cleaning of tube and filter" on page 29).
Pump suction is weak	Low battery power Check whether battery power is sufficient (see "7.3 Battery operation (Nature Sense model only)" on page 30).
	Suction strength is set too low Increase the suction strength until you achieve the best results (see "Setting the suction strength" on page 31).
	Silicone cushion incorrectly positioned and not properly flush with the breast shield	Ensure that the silicone cushion is completely flush with the breast shield
	No vacuum can be built up Ensure that the breast shield is completely flush with the breast
	Filter blocked Clean or replace filter (see "5.3 Special cleaning of tube and filter" on page 29).
	Filter is wet Remove filter and a	low more time to dryor use dry replacement filter (see "5.3 Special cleaning of tube and filter" on page 29).
Pump suction too strong	Suction strength is set too high Reduce suction strength (see "Setting the suction strength" on page 31).
Pump making strange noises	Lip valve unable to cope with milk flow volume	Reduce suction strength (see "Setting the suction strength" on page 31). If you have a high milk flow volume, a low suction strength will be perfectly adequate to achieve good results.
		Check whether the breast milk level has already reached the lip valve. If so, replace the breast milk container with an empty one.
	Milk has entered the tube Imme	diately switch off the pump unit and clean the tube and the filter (see "5.3 Special cleaning of tube and filter" on page 29).
Nature Sense:The display shows symbol!First Choice+:Symbol X is lit in the display	Inadequate power supply: Not enough current supplied through mains adapter or power bank	Mains power operation:Check that the mains adapter is properly plugged in to the power supply socket and the USB connector is firmly pushed into the port on the pump unit.Check that you are using the correct mains adapter included in the delivery package.
		External power bank: Check that the USB cable is connected to the 2A output of the power bank and that the power bank is adequately charged.
Replacement parts needed (filter, lip valve)		Contact your local Service Centre (see "Contact addresses" on page 177).

13 Technical Data

The mains adapter included in the delivery and the breast pump form a medical electrical system in accordance with EN 60601-1. All devices in the ME system comply with the requirements of EN 60601-1 or EN 60950-1.

Medical product according to directive 93/42/EEC	Class I
NUK electric Breast Pump	complies with EN 60601-1, EN 60601-1-2, CISPR 11 Class 1 Group B
Mains adapter complies with IEC 60950-1
NUK TeatNUK Breast Milk Container	complies with EN 14350
Suction ca. 0 - 330 mbar
Cycles ca. 30 - 120 cpm (cycles per minute)
Applied parts silicone cushion
Environmental conditionsAtmospheric pressureoperation/storage/transportRelative humidity:operation/storage/transportTemperature• operation• storage/transport	70 kPa – 106 kPa15 % – 75 %+5 °C to +30 °C+5 °C to +50 °C
Power supplyInletMains power operation using mains adapter included in delivery type:PS10J050K2000EU/PS10J050K2000AU/PS10J050K2000BUPower bank (not included in delivery)	USB-CTMcompatible port (no further USB function, power supply only)Input: 5 VDC, 2000 mAInput: 110 - 240 V ~ / 50/60 HzOutput: 5.0 VDC, 2000 mAOutput 5 VDC, minimum 2000 mARecommendation: power bank with at least 8000 mAh
Rechargeable battery (Nature Sense model only)Battery operating time	Li-ion, corresponds to IEC 62133,capacity: 2500 mAh, voltage: 3.7 VDC1.5 hours
Expected service life at least 400 h

14 Maintenance

Device requires no preventive maintenance except for cleaning (see "5 Cleaning and Sterilising" on page 28).

Warning! Modifications of the device are prohibited! The pump unit 3 must not be opened!

15 Disposal

15.1 Device

In the European Union, the symbol of a crossed-out wheelie bin means that the product must be disposed of at a separate waste collection point. This applies to this product and to all

accessories marked with this symbol. Products labelled in this way must not be disposed of with normal household waste, but should be taken to a collection point for recycling electric and electronic equipment.

15.2 Packaging

When you wish to dispose of the packaging, please observe the relevant environmental regulations for your country.

16 Warranty

Subject to careful treatment of your appliance and observance of these operating instructions, the manufacturer offers a 24 month warranty from the date you purchase the product.

Appliances sent to us postage paid will be repaired free of charge in the event of faulty materials or workmanship. Any further claims are in accordance with your statutory rights.

No compensation will be given for damage caused by improper use of the device.

Worn parts are excluded from the warranty.

Within the first 24 months after the date of purchase we will rectify any recognised faults without any charge for incidental costs incurred.

Under all circumstances, the device must be returned accompanied by the purchase receipt or other proof of the purchase date must be supplied.

If no proof of purchase date is provided, you will be invoiced for the costs incurred without further inquiry, and the item will be returned to you with a request of payment on delivery.

Please complete the warranty form immediately after purchase and keep this, or the till receipt, in a safe place as proof of purchase. Lost warranty certificates will not be replaced.

In case of complaints: please keep the address, Art. No., and SN for future reference. The serial number can be found on the rating plate, identified as "SN xxxx".

16.1 Service Centres

The addresses for service can be found under “Contact addresses” on page 177.

16.2 Manufacturer

Please note that the address below is not a service address. In the event of problems or queries relating to your product, contact one of the Service Centres (see “Contact addresses” on page 177).

MAPA GmbH

17 EU declaration of confirmity

The device meets all applicable European directives, as well as their respective essential requirements. These are detailed in the EU declaration of conformity, which can be requested from the manufacturer. The Declaration of Conformity can be found at www.nuk.de.

Sommaire

Simple diagram of a cell with internal structures and labeled elements (no text or symbols)

26 Interruptor principal

Pantalla Modelo First Choice ^+ (LED)

Illustration of a stylized sun and water droplet inside an oval frame (no text or symbols)

Illustration of a stylized cell with internal structures and radiating lines (no text or symbols)

26 Interruptor principal

Visor do modelo First Choice ^+ (LED)

Simple diagram of a sunlit circular object with surrounding light sources and water droplets (no text or symbols)

Display model Nature Sense (LCD)

Weergave model Nature Sense:

Symbool ! 37

Weergave model First Choice ^+ :

Illustration of a cell with visible chromosomes and surrounding particles (no text or symbols)

Illustration of a stylized cell with surrounding suns and droplets, no text or symbols present

Illustration of a stylized sunburst or explosion with no text or symbols

Surface of pump unit 100% ABS 100% ABS 100% Silicona 100% PA 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona 100% PP 100% Silicona Surface of plug 100% ABS Cable outside 100% PVC First Choice+ Nature Sense:

Contact addresses

D - DEUTSCHLAND

MAPA GmbH

Newell Brands Pty Ltd

Level 3 35 Dalmore Dr

Scoresby VIC 3179

www.nuk.com.au

1800 804 918

BG - BULGARIA

БЕБОЛИНО ООД

KARAKA PROMET D.O.O.

Blizanci bb

88260 Citluk

[e-mail]

BY - BELARUS

German Products Estonia OU

Punane 16

13619 Tallinn

Estonia

([phone]

www.nuk.ee

[e-mail]

F - FRANCE

Allègre Puériculture

Berkeley Business Park

Wainwright Road

Worcester WR4 9ZS

www.nuk.co.uk

GEO - GEORGIA

GiSi Ltd

Tsereteli 115a

Tbilisi 0119

e-mail: [e-mail]

GR - GREECE

Intrapharma Consumer Health

Magna Business Park, Citywest

Road

Dublin 24

United Drug House

LT - LITHUANIA

German Products Lithuania UAB

Lukšio q. 32

Vilnius, LT-08222

Lithuania

([phone]

e-mail: [e-mail]

LV - LATVIA

German Products Baltics SIA

Vietalvas Street 1

Riga, LV-1009

Latvija

([phone]

e-mail: [e-mail]

MK - MACEDONIA

Euroalba Skopje d.o.o.

Bul. Partizanski Odredi 64 g 3/6

1000 Skopje

[phone]

N - NORWAY

MAPA GmbH

9 Southgate Place, Henderson

Auckland, New Zealand 0612

www.nuk.net.nz

0800 333 006

P - PORTUGAL

Maresi Foodbroker SRL

Str. 9 Mai Nr. 3

310118 Arad

Romania

Tel.: [phone]

Fax: 0257 / 210 211

E-mail: [e-mail]

RUS - RUSSIA

Zrenjaninski put bb (121t)

11211 Beograd - Borca

Srbija

[phone]

TR - TURKEY

ATAK DIŞ TIC. A.Ş.

Maya Akar Center K:20 Esentepe

Istanbul

212 211 74 00

www.nuk.com.tr

UA - UKRAINE

Імпортер в Україну:

ТОВ «СМАРТИ ФЕМИЛИ»

вул. Боженка б. 19,

оф. 308, м. Одеса

Одеська обл., 65098

Тел. [phone]

UAE - UNITED ARAB

EMIRATES

Arabian Ethicals Co.

Al Quoz 1

Dubai

United Arab Emirates

04-3392141/02-6270720

Fax: [phone]

e-mail: [e-mail]

ZA - SOUTH AFRICA

Artemis Brands (PTY) LTD

P.O. Box 130782

Bryanston 2074

South Africa

[phone]

Fax: Fax: [phone]

www.nuk.co.za
