Luna - Breast Pump NUK - Free user manual and instructions

Product Type	Electric breast pump
Brand	NUK
Model	Luna
Power Supply	100-240 V AC mains adapter, battery operation possible
Dimensions	Approx. 200 x 150 x 100 mm
Weight	Approx. 0.5 kg
Materials	BPA-free plastic, silicone
Main Functions	Multiple suction levels, stimulation and expression modes
Cleaning	All parts that contact milk are dishwasher safe; sterilizable (100°C for 5 min)
Safety Certifications	IEC 60601-1, EMC compliant
Spare Parts Availability	Replacement parts available via NUK service centers
Warranty	Standard manufacturer warranty (check local terms)
Intended Use	For single user, domestic use
Operating Environment	Domestic, hospital environments (with precautions)
Separate Accessories	Bottle set, storage bags, spare membranes

Frequently Asked Questions - Luna NUK

How do I clean the NUK Luna breast pump?

Disassemble all parts that come into contact with milk. Wash them in warm soapy water or place in dishwasher. For sterilization, boil parts for 5 minutes at 100°C or use a steam sterilizer.

Can I use the breast pump while it is charging?

Yes, the pump can be used while connected to the mains adapter. However, for safety, do not use if the adapter or cable is damaged.

How do I adjust the suction level?

The pump offers multiple suction levels. Use the control buttons to increase or decrease vacuum strength. Always start at the lowest level and adjust to comfort.

Is the NUK Luna pump suitable for daily use?

Yes, it is designed for regular use. The motor is built for durability, but it is recommended to follow the usage guidelines in the manual to prolong lifespan.

Can I use the pump with other NUK bottles?

Yes, the pump is compatible with standard NUK bottles and most NUK accessories. Check the manual for a list of compatible products.

How do I change the batteries?

Open the battery compartment on the back of the pump. Insert batteries (if applicable) according to polarity markings. Alternatively, use the mains adapter for continuous use.

What should I do if the pump loses suction?

Check that all parts are correctly assembled and the valve membrane is not damaged. Clean the parts thoroughly. If the problem persists, contact NUK customer service.

Is the NUK Luna pump safe to use near electronics?

The pump complies with EMC standards. However, keep it away from devices like microwave ovens or strong RF transmitters to avoid interference. Refer to the manual for separation distances.

Can I travel with the breast pump?

Yes, the pump is portable. It can be powered by batteries or mains adapter. Ensure it is properly packed and protected during travel.

Where can I find replacement parts?

Replacement parts such as membranes, bottles, and adapters are available from authorized NUK retailers or the NUK website. Check the manual for part numbers.

USER MANUAL Luna NUK

3D rendered mechanical component with a funnel and cylindrical part, showing a downward arrow (no text or symbols)

3D rendering of a showerhead with an upward arrow indicating motion or force (no text or symbols)

3D rendering of a mechanical component with a downward arrow indicating transformation (no text or symbols)

3D illustration of a spray gun with a bottle and arrow indicating motion (no text or symbols)

3D rendering of a mechanical component with a rotating base and upward arrows indicating motion (no text or symbols)

3D rendered image of a handheld device with a speaker cone and base mount, showing no text or symbols.

Three identical robotic devices with black arrows indicating movement or assembly, showing internal components and battery connections (no text or symbols present)

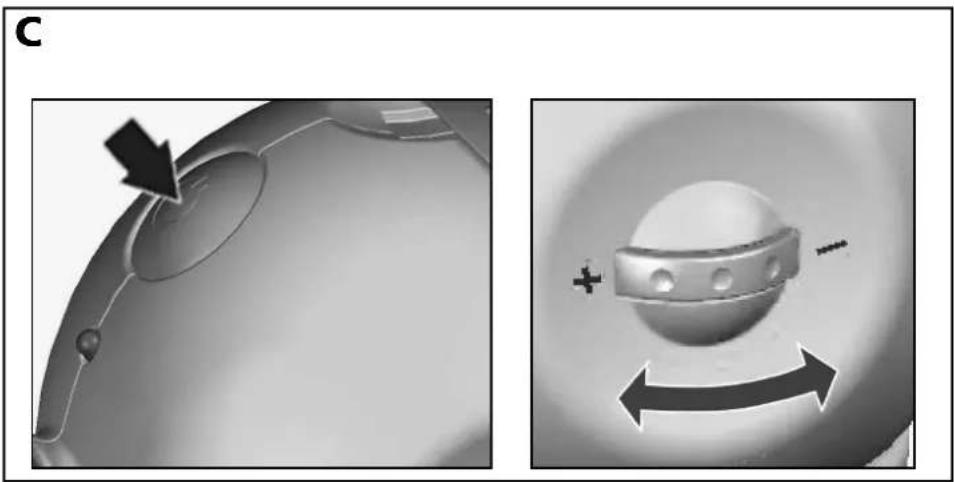

Two grayscale images showing a 3D object with an arrow pointing to a circular feature, and a magnified view of a spherical object with directional arrows indicating motion or force (no text or symbols)

Pure geometric crosshair symbol with concentric circles and radial lines, no text or labels present

D

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Liebe Mutter,

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Indice

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Care mamme,

Three geometric crosshair symbols: a target, a circular target with internal patterns, and a vertical alignment line (no text or labels)

Pure geometric diagram with crosshair and circular target shapes without any text or symbols

Three geometric crosshair targets with central dots and alignment lines (no text or symbols)

Pure geometric diagram with crosshair and circular target-like shapes (no text or symbols)

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Αγαπητή μητέρα,

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Droga Mamo!

Three geometric diagrams with crosshairs and central dots, no text or symbols present

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

1. Zamykanie komory baterii:

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Dragă mămică,

Three geometric crosshair targets with central dots, no text or symbols present

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

Three geometric diagrams with crosshairs and central dots, no text or symbols present

Pure geometric crosshair symbol with concentric circles and lines, no text or labels present

• Medical electrical equipment needs special precautions regarding EMC. The following EMC guidelines must be

observed during installing and put into service of the device.

- Portable and mobile RF communications equipment can affect medical electrical equipment.

Guidance and manufacturer's declaration - electromagnetic emissions
The electrical breast pump NUK Luna is intended for use in the electromagnetic environment specified bellow. The customer or the user of the electrical breast pump NUK Luna should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment - guidance
RF emissions CISPR 14 complies	The electrical breast pump NUK Luna is not suitable for interconnection with other equipment.
Harmonic emissions IEC 61000-3-2	Class A The electrical breast pump Luna is suitable for use in all establishments, including domestic establishments and those directly connected to the public-low-voltage power supply network that supplies buildings used for domestic purposes.
Voltage fluctuations / flicker emissions IEC 61000-3-3	complies

Guidance and manufacturer's declaration - electromagnetic emissions
The electrical breast pump NUK Luna is intended for use in the electromagnetic environment specified bellow. The customer or the user of the electrical breast pump NUK Luna should assure that the breast pump is used in such an environment.
Immunity test IEC 60601-1 test level		Compliance level E	Electromagnetic environment - guidance
Electrostatic discharge (ESD)IEC 61000-4-2	+/- 6kV contact+/- 8 kV air	+/- 6kV contact+/- 8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic materials, the relative humidity should be at least 30%.
Electrical fast transient/ burstIEC 61000-4-4	+/- 2 kV for power supply lines+/- 1 kV for input/output lines	+/- 2 kV for power supply lines+/- 1 kV for input/output lines	Mains power quality should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	+/- 1 kV differential mode+/- 2 kV common mode	+/- 1 kV differential mode+/- 2 kV common mode	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11	<5% for 5s<5% for 0,5 cycles40% for 5 cycles70% for 25 cycles	<5% for 5s<5% for 0,5 cycles40% for 5 cycles70% for 25 cycles	Mains power quality should be that of a typical commercial or hospital environment. If the user of the electrical breast pump NUK Luna requires continued operation during power mains interruption, it is recommended that the electrical breast pump NUK Luna be powered from an uninterruptible power supply or battery.
Power frequency (50/60Hz)magnetic fieldsIEC 61000-4-8	3 A/m 3 A/m Power frequency magnetic		fields should be at levels characteristic of the typical location in a typical commercial or hospital environment.
The electrical breast pump NUK Luna is intended for use in the electromagnetic environment specified bellow. The costumer or the user of the electrical breast pump NUK Luna should assure that it is used in such an environment.
Immunity test	IEC 60601-1 test level	Compliance level	Electromagnetic environment - guidance
conducted RF IEC 61000-4-6	3 Veff150 kHz to80 MHz	3 V Portable and mobile RF communications equipment should be used no closer to any part of the Public Access Defibrillator (COR 043), including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended Separation distance: d= 1,17 * SQRT(P/W)
Radiated IEC 61000-4-3	3 V/m80 MHz to2,5 GHz	3 V/m d= 4 * SQRT(P/W) for 80 MHz to 800 MHzd= 7,67 * SQRT(P/W) for 800 MHz to 2,5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strength from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range.Interference may occur in the vicinity of equipment marked with the symbol "nonionising radiation".
NOTE: At 80 MHz and 800 MHz the separation distance for the higher frequency range applies.
NOTE : This guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Field strength from fixed transmitters, such as base stations for radio (Cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the electrical breast pump NUK Luna is used exceeds the applicable RF compliance level above, additional measures may be necessary, such as reorientation or relocating the electrical breast pump NUK Luna.
Recommended separation distances between portable and mobile RF communications equipment and the electrical breast pump NUK Luna
The electrical breast pump NUK Luna is intended for use in an electromagnetic environment in which the radiated RF disturbances are controlled. The costumer or the user of the electrical breast pump NUK Luna can help prevent electromagnetic interference by maintaining a minimal distance between portable and mobile RF communications equipment (transmitters) and the electrical breast pump NUK Luna as recommended below, according to the maximum output power of the communications equipment.
	Separation distance according to frequency of transmitter in m
Rated maximum output power of transmitter P in W	80 MHz to 800 MHz 800	MHz to 2.5 GHz 150 KHz to 80 MHz
	d=1,17 * SQRT(P/W) d=2,33 * SQRT(P/W) d=1,17 * SQRT(P/W)
0,01 0,12 0,23	0,12
0,1 0,37 0,74	0,37
1 1,17 2,33	1,17
10 3,70 7,37	3,70
100 11,70 23	30 11,70
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be determined using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE: At 80 MHz and 800 MHz the separation distance for the higher frequency range applies.
NOTE : This guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
