USER MANUAL Multiply 6in1 Joie

IMPORTANT!READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Highchair Assembly

1

2 CLICK CLICK

7

8 CLICK CLICK

3 2 2

4 1 2 1 2

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Line drawing of a mechanical device with a 'CLICK' button and number 10 in the corner (no text or symbols on the device itself)

Line drawing of a small wheeled chair with legs and seat, showing no text or symbols

Line drawing of a quadruped robot with legs and frontrest (no text or symbols)

Line drawing of a portable device with handle and wheels (no text or symbols)

Line drawing of a helmet with a seatbelt and seat, showing no text or symbols

13

Diagram of a medical device with internal components and directional arrows (no text or labels)

17

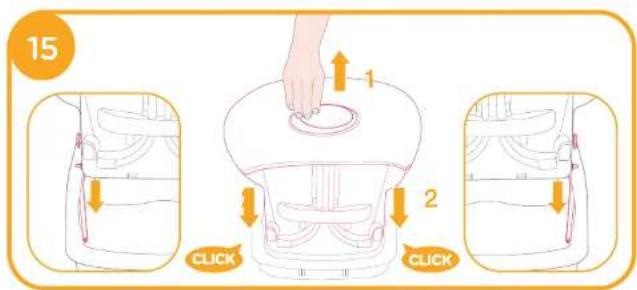

15 1 2 CLICK CLICK

18

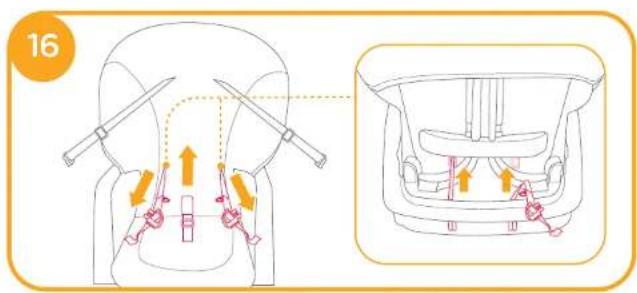

16

20 CLICK 21

Line drawing of a baby boom seat with a highlighted button labeled 'CLICK' (no text or symbols on the diagram itself)

23

Line drawing of a car interior compartment with a directional arrow indicating rotation (no text or symbols)

29 1 2 1

Illustration of a hand pressing down on a device component (no text or symbols visible)

Line drawing of a baby boom seat with seatbelt and tray (no text or symbols)

30

Line drawing of a car interior with a lid and seat, showing layered compartments (no text or symbols)

Highchair Operation

Line drawing of a baby seat with a hand adjusting the seat (no text or symbols)

Illustration of a baby in a high chair with a hand adjusting the tray (no text or symbols)

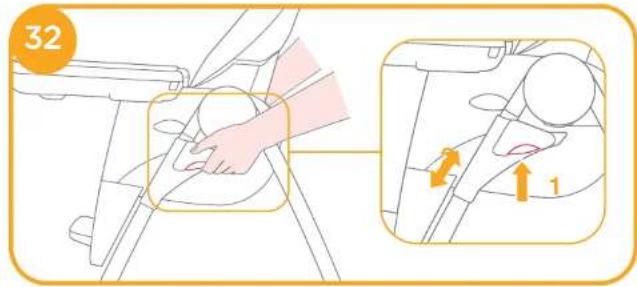

32 1

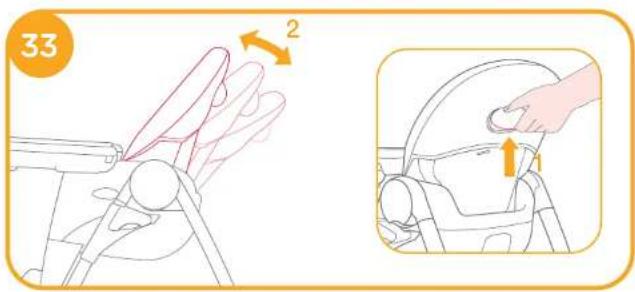

33 2

Illustration of a hand pressing down on a baby seat with a numbered label (38) in the corner, no text or symbols present.

39 1 2 3 CLICK

Illustration of a hand holding a lock mechanism with a red lock icon, no text or symbols present

35 A 1 2 3

40 3 2

42 1 2 2

Line drawing of a baby seat with an arrow pointing to the seat area (no text or symbols)

Illustration of a hand adjusting a car seatbelt with a numbered label (37) in the corner, no text or symbols present.

Fold Highchair

41 2 1 1

Line drawing of a bicycle with luggage and seat (no text or symbols)

Infant Booster Operation

44 1 2

49

Illustration of a hand adjusting a chair seatbelt with a numbered label (50) and an orange arrow pointing to the seat area (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

46

Illustration of a hand placing a small object into a wooden chair frame (no text or symbols)

Illustration of a hand placing a small object into a wooden structure (no text or symbols)

Line drawing of a baby seat with two arrows indicating seat movement (no text or symbols)

Line drawing of a baby seat with a backrest and seatbelt, no text or symbols present

Line drawing of a baby car seat with orange badge showing number 53 (no text or symbols on the diagram itself)

Illustration of a baby wearing a full-body seatbelt, no text or symbols present

55 1 2 1

Line drawing of a baby in a high chair with a 'CLICK' button (no text or symbols on the diagram itself)

61

Diagram of a vehicle front panel with directional arrows indicating movement or flow (no text or symbols)

57

58

Line drawing of a backpack with front panel and side panels, no text or symbols present

Toddler Booster Operation

Illustration of a car seat with orange arrows indicating motion or movement, no text or symbols present

Illustration of a hand inserting a baby into a high chair seat (no text or symbols)

Illustration of a hand adjusting a baby seat using a tray, with no text or symbols present.

65

66

Illustration of a person's head in a seat with directional arrows indicating movement or force (no text or symbols)

68 2 1

73

Line drawing of a hand adjusting a chair seatbelt, no text or symbols present

69 1 2 2

70

Illustration of a hand placing a small object into a chair frame with arrows indicating motion (no text or symbols)

Illustration of a hand placing a small object on a wooden chair frame (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

Line drawing of a baby seat with two seats and a seatbelt, no text or symbols present

78

Toddler Chair Operation

Line drawing of a hand pressing down on a device component (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Toddler Sized Chair & Table Operation

Line drawing of a baby seated in a high chair with arms extended (no text or symbols)

81

Line drawing of a child sitting on a ladder, no text or symbols present

87 2 2 1 1

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a mechanical device with internal compartments and mounting holes (no text or symbols)

88 ← 2 ↓ 1 ← 2 ↓ 1

89

2 2

1 1

Infant Insert Assembly

2 2

1 1

Detach Seat Pad

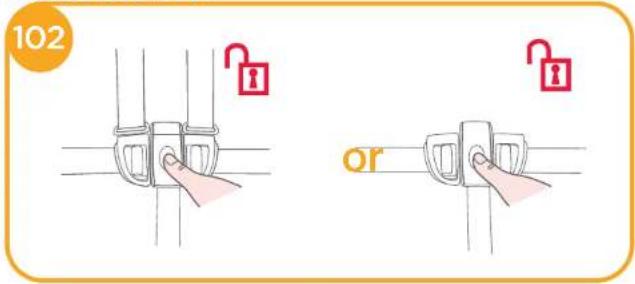

102 or

Diagram of a car interior showing seat, dashboard, and seatbelt with directional arrows indicating movement (no text or symbols)

108

103

104 1 2 2

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a baby seat with an arrow indicating upward motion (no text or symbols)

Line drawing of a baby seat with arrows indicating movement or change (no text or symbols)

106

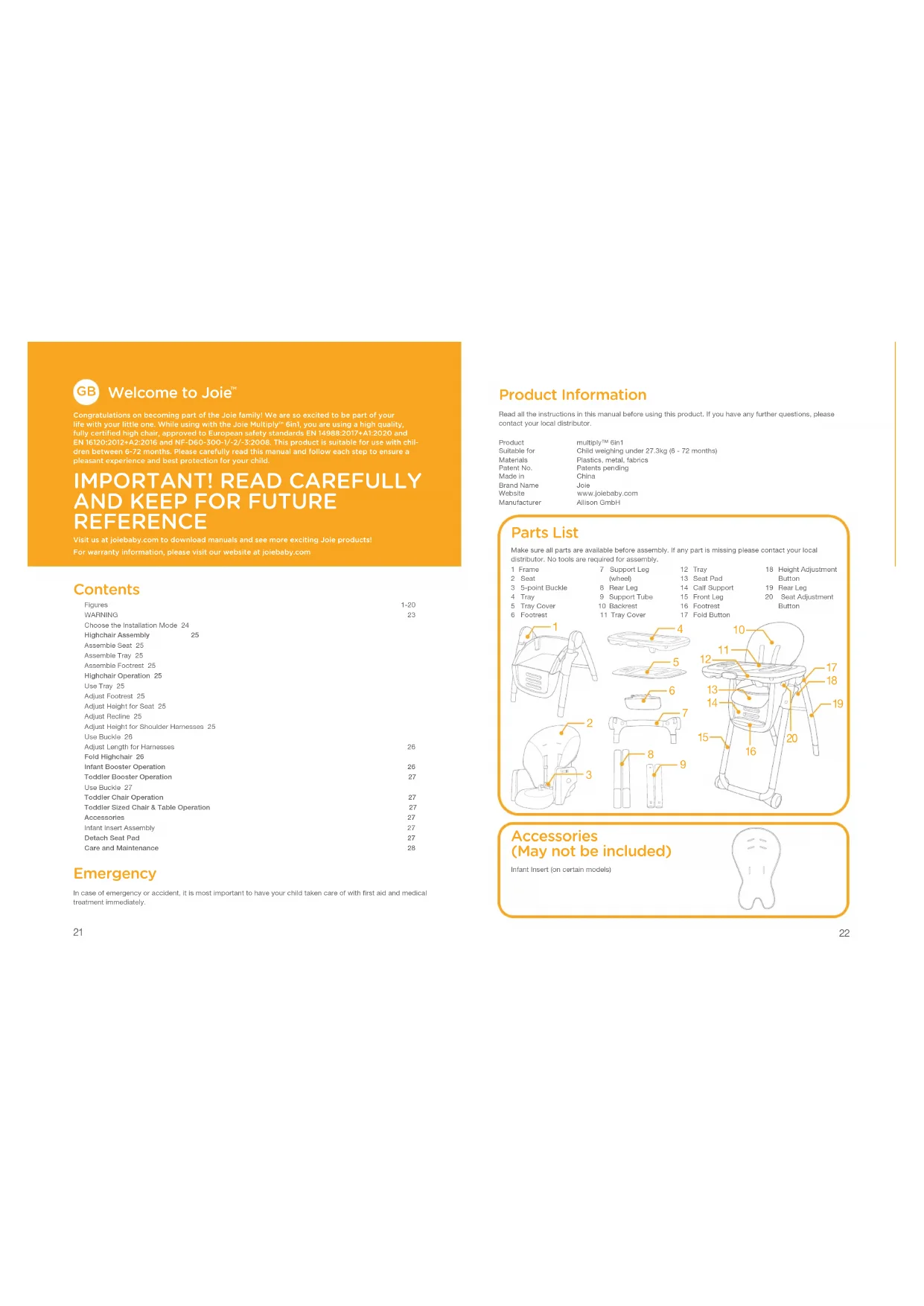

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using with the Joie Multiply™ 6in!, you are using a high quality, fully certified high chair, approved to European safety standards EN 14988:2017+AT.2020 and EN 16120:2012+A2:2016 and NF-060-300-1/-2/-3:2008. This product is suitable for use with children between 6-72 months. Please carefully read this manual and follow each step to ensure a pleasant experience and best protection for your child.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Contents

Figures	1-20
WARNING	23
Choose the Installation Mode 24
Highchair Assembly 25
Assemble Seat 25
Assemble Tray 25
Assemble Footrest 25
Highchair Operation 25
Use Tray 25
Adjust Footrest 25
Adjust Height for Seat 25
Adjust Recline 25
Adjust Height for Shoulder Harnesses 25
Use Buckle 26
Adjust Length for Harnesses	26
Fold Highchair 26
Infant Booster Operation	26
Toddler Booster Operation	27
Use Buckle 27
Toddler Chair Operation	27
Toddler Sized Chair & Table Operation	27
Accessories	27
Infant Insert Assembly	27
Detach Seat Pad	27
Care and Maintenance	28

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please contact your local distributor.

Product	multiplyTM fin1
Suitable for	Child weighing under 27.3kg (6 - 72 months)
Materials	Plastics, meta/, fabrics
Patent No.	Patents pending
Made in	China
Brand Name	Jole
Website	www.jolebaby.com
Manufacturer	Allison GmbH

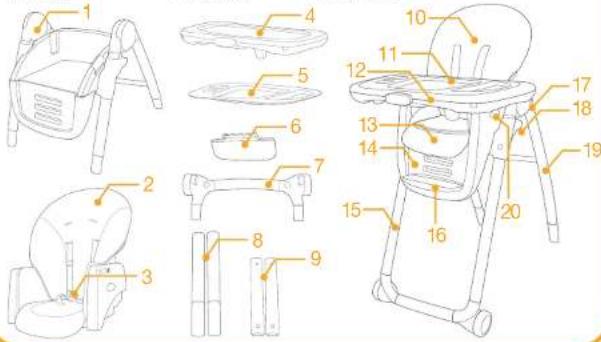

Parts List

Make sure all parts are available before assembly. If any part is missing please contact your local distributor. No tools are required for assembly.

1 Frame	7 Support Leg (wheel)	12 Tray	18 Height Adjustment Button
2 Seat		13 Seat Pad
3 5-point Buckle	8 Rear Leg	14 Calf Support	19 Rear Leg
4 Tray	9 Support Tube	15 Front Leg	20 Seat Adjustment
5 Tray Cover	10 Backrest	16 Footrest	Button
6 Footrest	11 Tray Cover	17 Fold Button

Technical diagram of a baby seat with numbered parts for identification

Accessories (May not be included)

Infant Insert (on certain models)

WARNING

Adult assembly required.

Please read all the instructions in this manual before assembling and using this product.

Please keep instruction manual for future reference.

This product is suitable for children between 6-72 months of age (under 27.3kg).

Failure to follow these warnings and the assembly instructions could result in serious injury or death.

DO NOT make any modification to this product or use it along with component parts from other manufacturers.

Not to use accessories or replacement parts other than those approved by the manufacturer.

DO NOT use the product if any parts are broken, torn or missing.

DO NOT leave the child unattended. Always keep your child in view.

To prevent serious injury or death from falling or sliding out, always use the restraint system and ensure it is correctly fitted.

Always use the chair attachment system and ensure it is correctly fitted before use.

Always check the security and the stability of the product on the adult chair before use.

Do NOT use this product on stools or benches

Make sure that any harness is correctly fitted.

Secure your child at all times using the restraint harness provided in both the reclining or upright positions.

The tray is not designed to hold your child in the product.

DO NOT use the highchair until the child can sit up unaided.

It is recommended that the product be used in the upright position only by children capable of sitting

upright unaided.

DO NOT allow your child to stand in or on the highchair.

DO NOT lift and carry highchair while occupied.

DO NOT allow children to play with or around highchair while occupied.

DO NOT allow children to lean over sides of highchair. It may become unbalanced and tip over.

DO NOT place any heavy bags, packages, or other items on the highchair tray. They may cause the chair to tip over.

Falling hazard: Prevent your child from climbing on the highchair.

To ensure that the adult chair with the chair mounted seat is placed in a position where the child is not able to use its feet to push against the table or any other structure as this can cause the tip over of the adult

chair supporting the chair mounted seat.

Always use on a flat and level floor.

Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.

To avoid strangulation hazard. DO NOT place product in any location where there are cords, such as

window blind cords, drapes, phone cords, etc.

All assembly fittings should be unfolded completely, tightened and latched properly before using the product.

DO NOT use the product unless all components are correctly fitted and adjusted.

Regularly check the locks and fittings for security.

To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag

and packaging materials should then be kept away from babies and children.

Regularly inspect the product for damaged hardware, loose joints, missing parts or sharp edges.

Remove your child from product before folding or adjusting the highchair.

Make sure the product has been folded or unfolded completely before letting your child approach

the highchair.

Consult your local distributor for issues concerning maintenance, repair and part replacement.

To avoid burns. DO NOT place hot food on tray

WARNING Never leave the child unattended.

To prevent serious injury or death from falling or sliding out, always use the restraint system and ensure it is correctly fitted.

Falling hazard: Prevent your child from climbing on the high chair.

Keep children away when unfolding and folding the product to avoid injury.

Be aware of the risk of tilting when your child can push its feet against a table or any other structure.

Always use the restraint system.

Choose the Installation Mode

Child's Weight	Figure for Installation
The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg
	Highchair
This product is intended for children able to sit unaided (minimum 6 months) and up to 36 months or a maximum weight of 15kg.
	Infant Booster Toddler Booster
Child weighing under 27.3kg(3 - 6 years)The children below 36 months do not use this product
	Toddler Sized Chair & Table Toddler Chair

Highchair Assembly

Please read all the instructions in this manual before assembling and using this product.

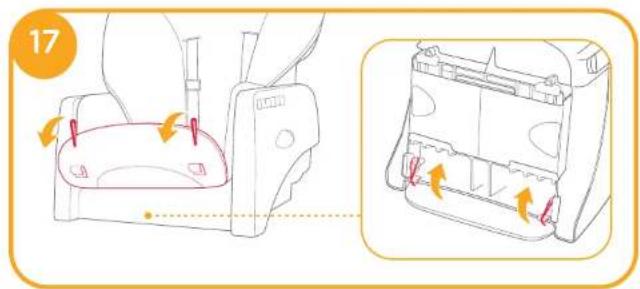

Assemble Seat

see images 1 -

Press the folding button to open support legs.

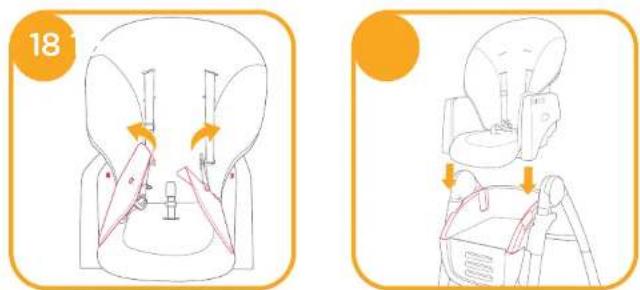

Fit the seat onto the frame 19. An audible "click" means the seat is secured to the frame.

Please do not make the webbing which is on the back of seat clamped while attaching the seat, otherwise the seat can not be attached completely.

! Lift the seat up to be sure it is locked into place.

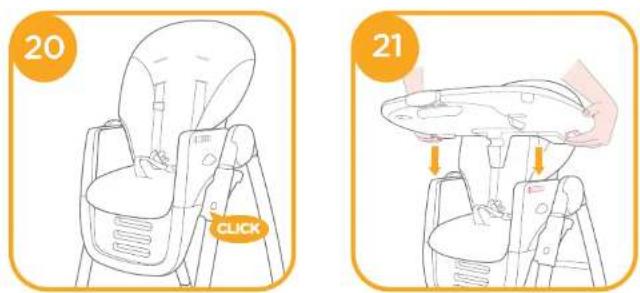

Assemble Tray

see images 21 - 23

Assemble Footrest

see images

The completely assembled highchair is shown as

Highchair Operation

Use Tray

see images ② - ③

The tray can be adjusted to 4 positions.

Adjust Footrest

see images

The footrest can be adjusted to 3 positions.

Adjust Height for Seat

see images

The seat can be adjusted to 5 positions.

Adjust Recline

see images

The recline can be adjusted to 3 positions.

Adjust Height for Shoulder Harnesses

see images

Note

1. The shoulder harness must go into the slot that is even with or slightly above the shoulders.
2. In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder harnesses are at proper height.

- 1 Shoulder harness anchor A

-2 Shoulder harness anchor B

-3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots.

For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

Choose a pair of proper shoulder slots. Insert the shoulder hameses into slots in seat pad and seat back.

When changing shoulder harness slots, make sure shoulder harnesses are going through same slots in seat pad and seat back.

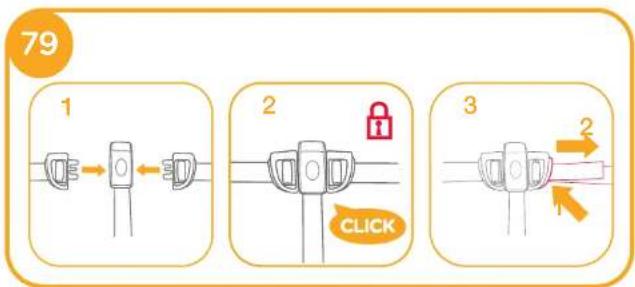

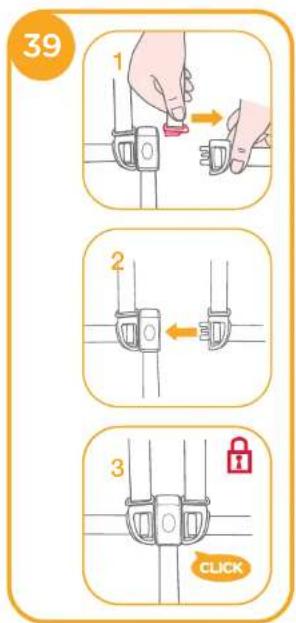

Use Buckle

see images

Note

1. To prevent serious injury or death from falling or sliding out, always secure child in the restraint.
2. Make sure the restraint harness is fitted correctly and the space between the harness and the child does not exceed the thickness of an adult hand.
3. DO NOT cross the shoulder belts. This will cause pressure on child's neck.

Lock Buckle

Match the waist belt buckle up with the shoulder buckle and slide together - 1. Insert buckles into the center buckle - 2. A "click" means the buckle is locked completely - 3.

Release Buckle

Press the center button to release the buckles.

Adjust Length for Harnesses

see images

1. Use slide adjuster to change the harness length.
2. Pull waist harness to tighten to proper length - 2. Press the button to loosen the waist harness.

Fold Highchair

see images 41 - 43

Infant Booster Operation

see images

1 The backrest of infant booster can not be reclined when using infant booster with chair.

Please refer to the form data to use the product to avoid it falling and cause hurting child

Recommended adult chair seat dimensions to be minimum 38cm (width)×44cm (length).

Minimum height of the adult chair's backrest should be 13cm.

Toddler Booster Operation

see images ② - ③

! Please adjust the backrest to the most reclined position before removing it.

Please refer to the form data to use the product to avoid it falling and cause hurting child

Recommended adult chair seat dimensions to be minimum 38cm (width)×44cm (length).

Minimum height of the adult chair's backrest should be 13cm.

Use Buckle

see images -

Toddler Chair Operation

see images 📄 - 📅

When using the product in toddler chair mode, please remove the footrest for convenient use.

Toddler Sized Chair & Table Operation

see images ⑦ - ⑩

Accessories

Accessories may be sold separately or may not be available depending on region.

Infant Insert Assembly

see images

If need to use small insert, please assemble it as

Detach Seat Pad

see images 12 - 10

To assemble seat pad, reverse the steps above.

Care and Maintenance

The tray cover is dishwasher safe.
Your seat pad can be spot cleaned with a sponge and soapy water. DO NOT use bleach.
! Drip dry the washed seat pad. DO NOT put in dryer.
To clean the frame, wipe with a damp cloth and mild detergent then wipe out any traces of moisture on the frame with a dry cloth.
DO NOT use undiluted neutral detergent, gasoline or other organic solvent to wash the product. It may cause damage to the product.
From time to time, check your product for worn parts, torn material or stitching. Replace the parts as needed.
If the product is not in use for a long period of time, please put it somewhere your child cannot access it.

Bienvenue sur Joie™

Diagram of a baby boom seat with numbered labels pointing to specific seats and legs

Accessoires

-1 Shoulder harness anchor A

-2 Shoulder harness anchor B

-3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

Diagram of a baby boom seat with numbered labels pointing to specific seats or seating areas.

Zubehör

Technical diagram of a baby seat with numbered parts for identification

Accesorios

Diagram of a baby boom seat with numbered labels pointing to specific seats and legs

Acessórios

consulte as imagens 1 - 40

consulte as imagens -

consulte as imagens ① - ②

consulte as imagens 📄 - 📅

Nota

consulte as imagens + - 48

consulte as imagens Ⓟ - Ⓑ

consulte as imagens Ⓞ - Ⓤ

consulte as imagens -

consulte as imagens 📄 - 📅

consulte as imagens 📞 - 📄

Acessórios

consulte as imagens 📷 - 📥

Para montar a almofada, inverta os passos acima.

Diagram of a baby boom seat with numbered labels pointing to different seats and legs

Accessoires

Diagram of a baby boom seat with numbered labels pointing to different seats and legs

Akcesoria

Diagram of a baby boom seat with numbered labels pointing to specific seats and legs

Принадлежности

Diagram of a baby boom seat with numbered labels pointing to different seats and legs

Diagram of a baby boom seat with numbered labels pointing to specific seats and legs

Εξαρτήματα

Technical diagram of a baby seat with numbered parts for identification

Doplňky

Diagram of a baby boom seat with numbered labels pointing to different seats and legs

Dopinky

JO16 Asset Importance to Global

www.jolebaby.com

Amazon GMH - 50%

قائمة الأجنبية

Diagram of a baby boom seat with numbered labels pointing to different seats and seating areas.

لاملاحظات

(قد لا تكون مرفقة)

ال Authentic Representation

العناية والصيانة

1. يكنGlulngluu Apsinna fi guaa la Apblaq

Diagram showing nine labeled parts of a mechanical or electronic component, likely from an engineering or manufacturing document.

Diagram of a baby boom seat with numbered labels pointing to specific seats and chairs

配件（可能不包含）

小座垫

警告

！本產品需由成人組裝。

Technical diagram of a portable toaster with numbered parts for identification

Labeled diagram of a baby boom chair with numbered parts for identification

Accessori
