On Safety

Thank you for purchasing this product.

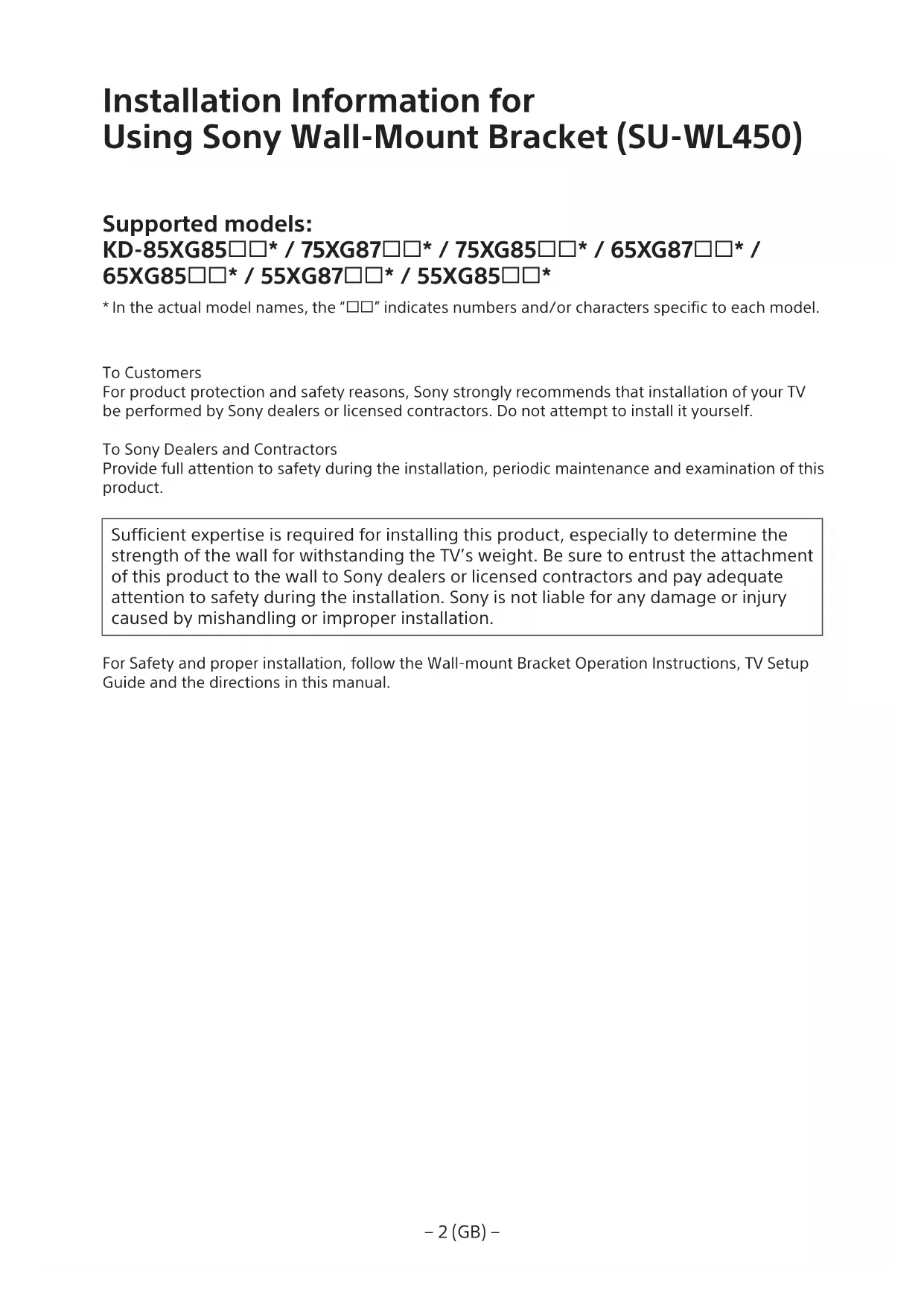

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

The TV may fall and cause a serious injury such as a bruise or a fracture.
- If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's Reference Guide for its weight.)
- If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons (three or more persons for 75 inches and above TV set) carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/ right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
• If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
• Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the WallMount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.

Do not install the WallMount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

Do not install the TV over or under an air-conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8mm diameter (or equivalent).

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

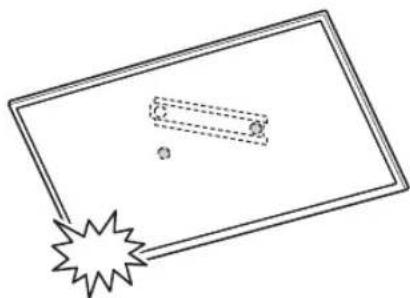

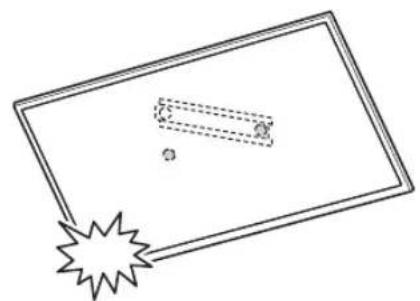

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the mains lead or the connecting cable to be pinched.

If the mains lead or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

Table of Contents

Preparing for installation. 5

Checking the parts. 5

Deciding on the installation location 6

Installing the Base on the wall 8

Preparing for the installation of the TV. 9

KD-85/75XG85□□，KD-75XG87□□

KD-65/55XG87□□，KD-65/55XG85□□.11

Installing the TV on the wall 13

KD-85/75XG85□□，KD-75XG87□□.13

KD-65/55XG87□□，KD-65/55XG85□□.15

Confirming the completion of the

installation 18

Other information. 18

Specifications. 18

Installing the TV onto the wall

Installation procedure differs, depending on your TV.

Use the Wall-Mount Bracket SU-WL450 to install the TV to the wall.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

Preparing for installation

• Have the TV's Reference Guide and Setup Guide at hand before installation.
• Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
• Confirm the installing position of your TV.
• Prepare four or more screws of 8mm diameter and one screw of 5mm or equivalent (not supplied). Select screws suitable for the material of the wall.

Checking the parts

Supplied with SU-WL450

• Verify that all the parts are included.

A Base (20) (1) B Pulley (2)

◎ PSW 6x20 (4)◎ PSW 4x20 with Bush (2)

E Spacer (20) (2) E Belt (1)

G Bush (20) (M4) (2) G PSW 4x20 (2)

I Base Adaptor (2) I PSW 4x10 (8)

K Spacer (60) (2) L PSW 6x50 (2)

M Bush (M4) (2) N PSW 4x50 (2)

Deciding on the installation location

1 Decide on the installation location.

Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV.

Refer to the following table on installing the TV to the wall. Refer to your TV's Reference Guide for the TV's weight.

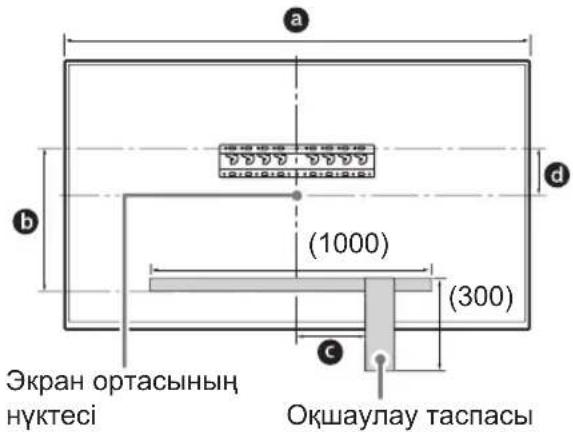

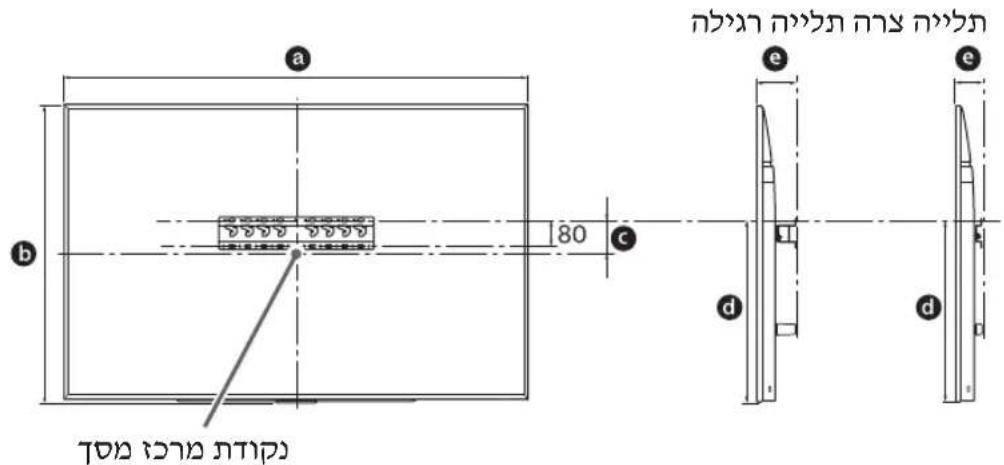

Standard mounting Slim mounting
Screen centre point

Unit: mm

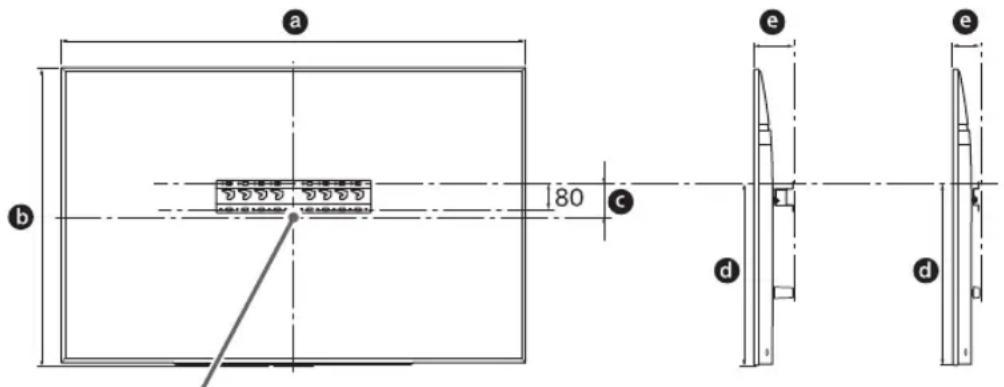

Model Name	Display dimensions		Screen centre dimension		Length for mounting
	a	b	c	d	e
					Standard mounting	Slim mounting
KD-85XG85□□	1,909	1,097	251	803	142	100
KD-75XG87□□ KD-75XG85□□	1,673	963	107	595	116	75
KD-65XG87□□ KD-65XG85□□	1,450	836	99	523	115	73
KD-55XG87□□ KD-55XG85□□	1,231	713	106	468	115	73

Note

• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

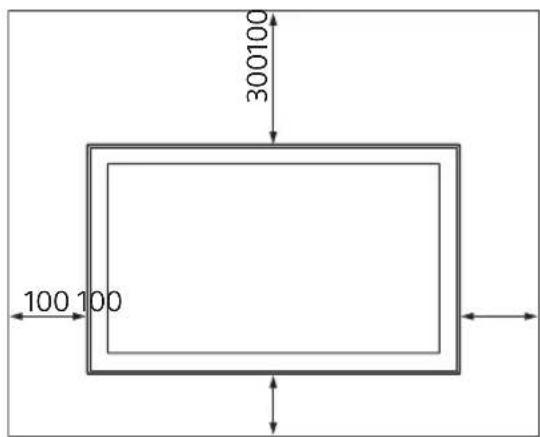

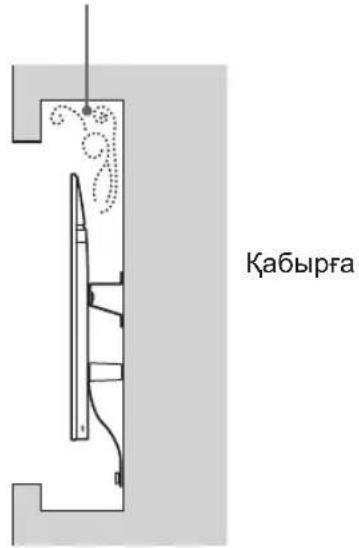

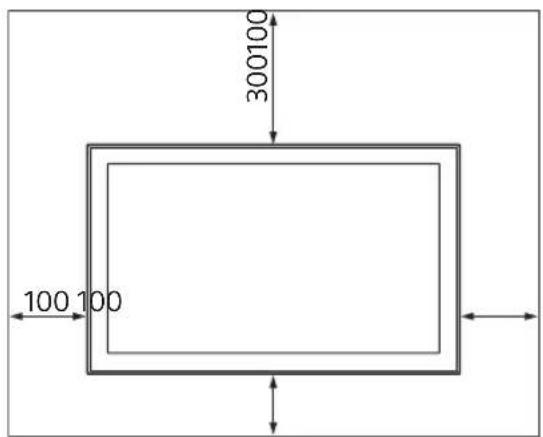

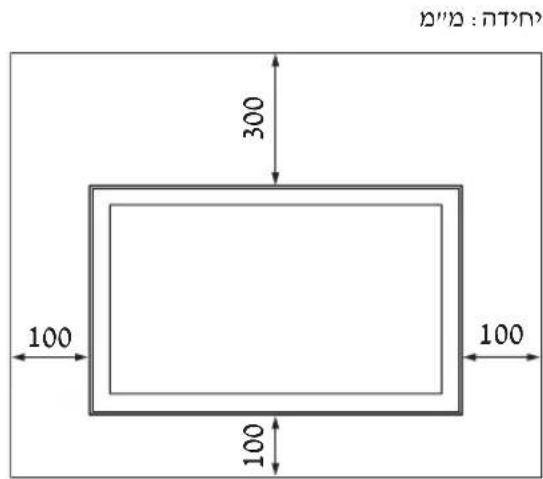

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm

To ensure proper ventilation and prevent the collection of dirt or dust:

Do not lay the TV set flat, install upside down, backwards, or sideways.
- Do not place the TV set on a shelf, rug, bed or in a closet.
- Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
- Do not install the TV set as shown below.

Air circulation is blocked.

Note

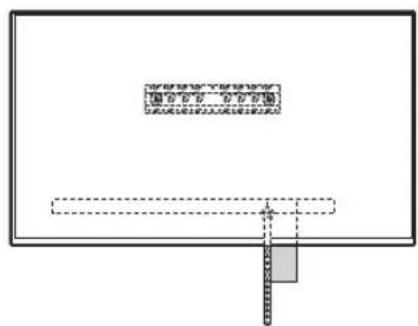

• If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) A,Base Adaptor 1 and Spacer (20) E,Spacer (60) K.

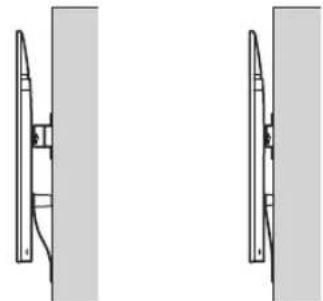

2 Select Wall mounting style. It is selectable as shown below.

2-a Standard mount

2-b Slim mount

Refer to the table of step 1.

WARNING

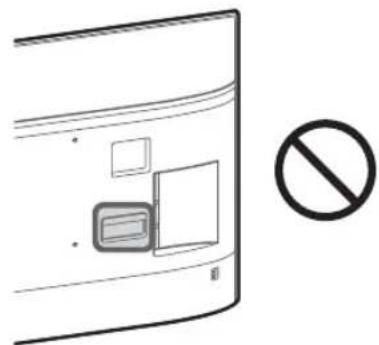

• When 2-b is selected, rear terminal access is limited.

2-a 2-b

3 Refer to the below table about the Base Adaptor fitting location. In case of selecting 2-b, then skip this step.

Model Name Hook location
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

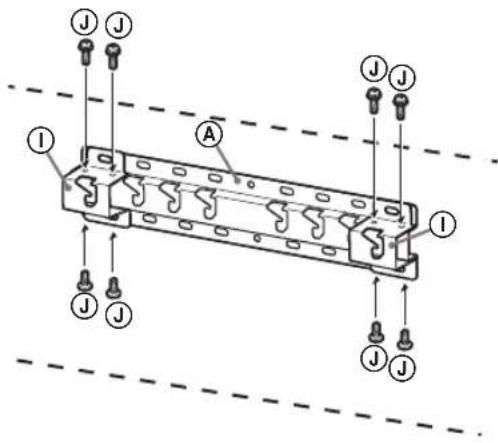

Fit Base Adaptor ① by using Screw (PSW 4x10) ② to Base (20) ④ when selecting 2-a.

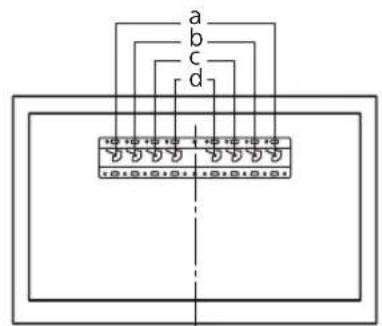

4 Decide the positions of the screws for installing the Base (20) A.

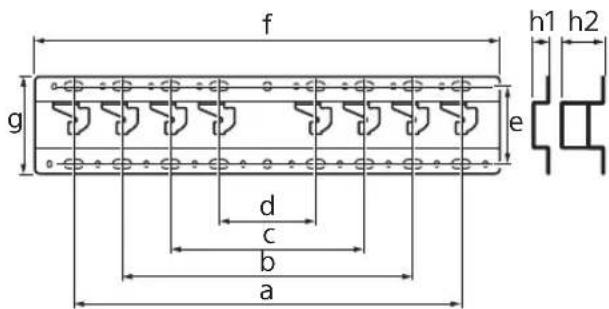

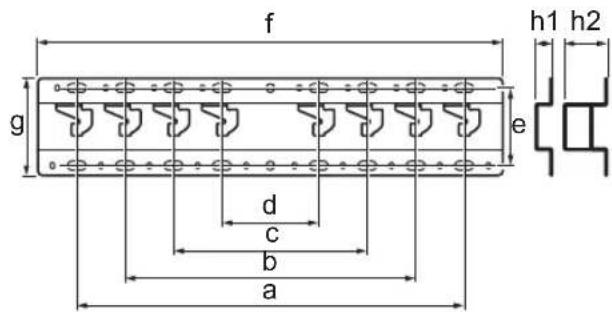

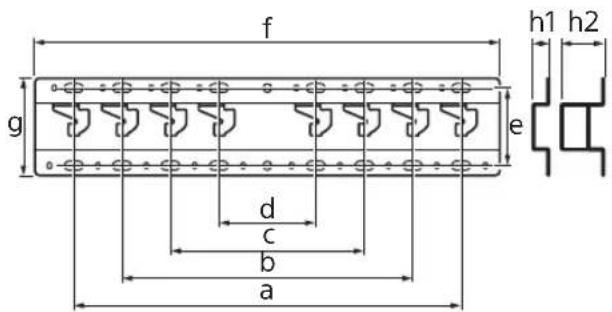

Refer to the specifications on page 18. When selecting 2-a, please use the hole positions of Base Adaptor ①

WARNING

The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's Reference Guide for its weight.).
- Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

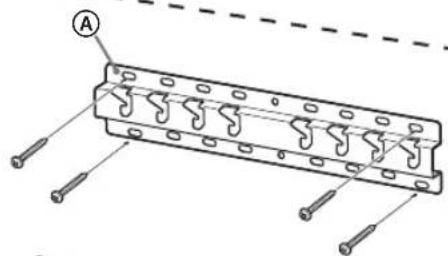

Installing the Base on the wall

• Use four or more screws of 8mm diameter or equivalent (not supplied).

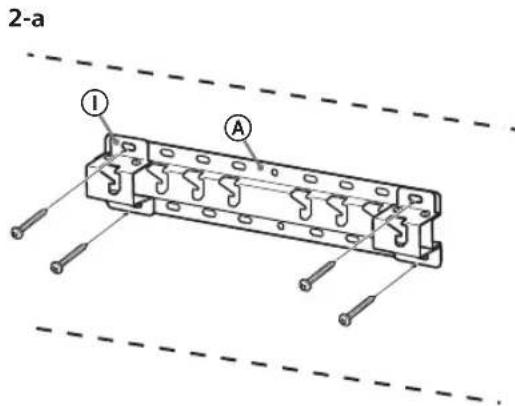

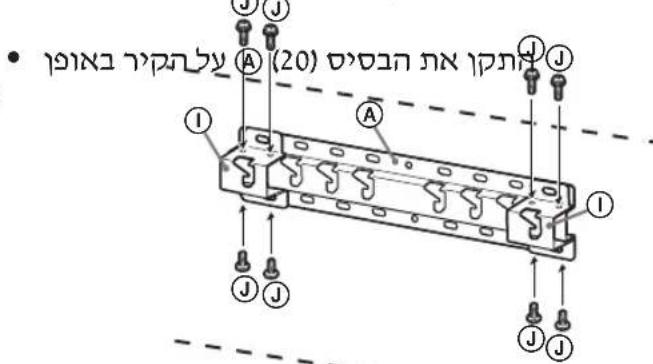

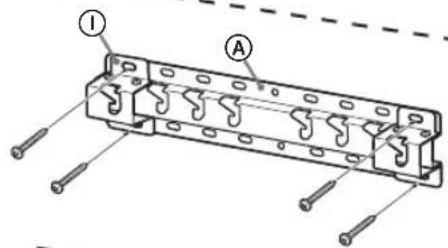

• Fit four screws to the holes of Base Adaptor ① with Base (20) A (2-a only).

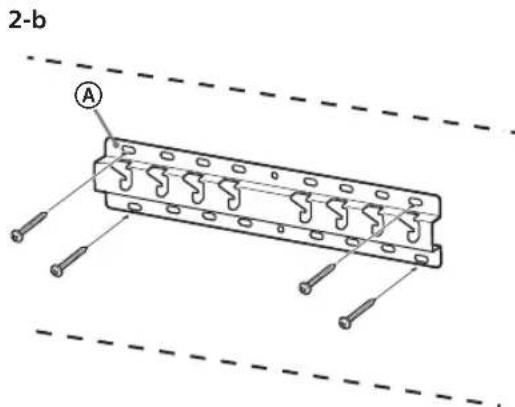

  Install the Base (20) A on the wall horizontally.

Preparing for the installation of the TV

Refer to the Setup Guide for stand installation.

KD-85/75XG85□□，KD-75XG87□□

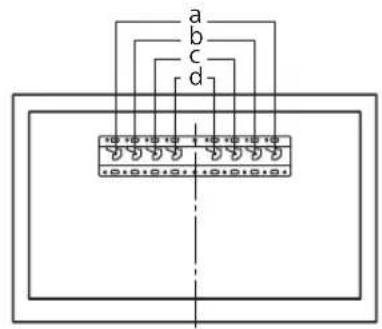

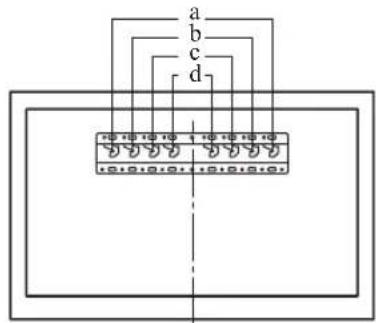

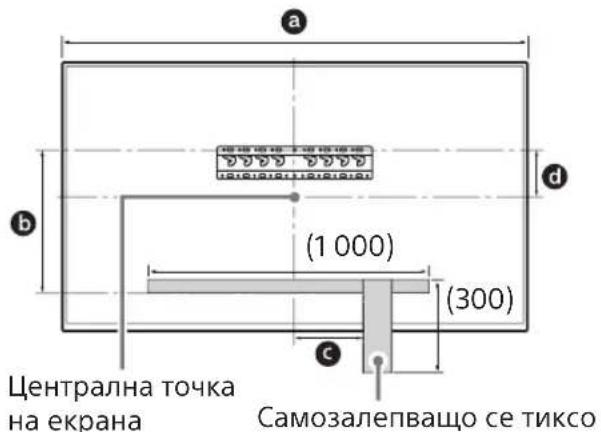

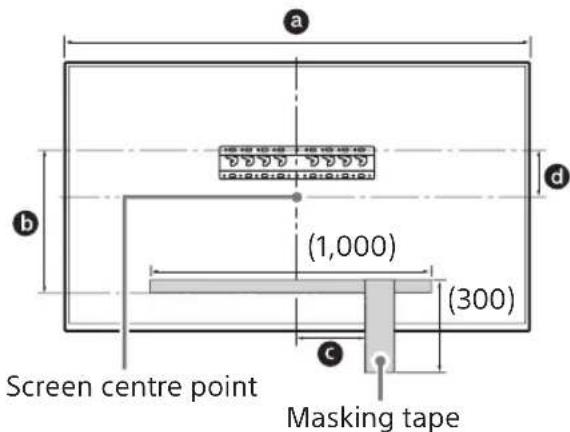

1 Mark the installation location on the wall.

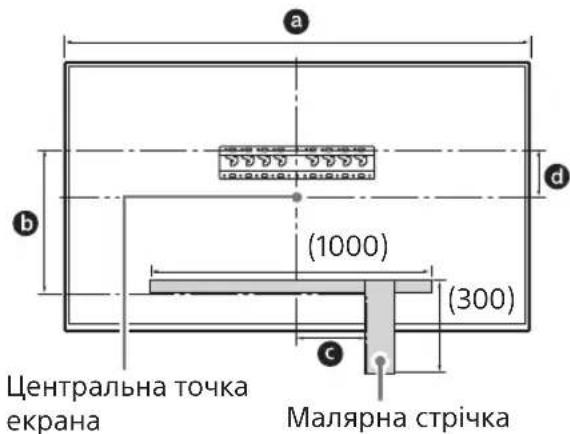

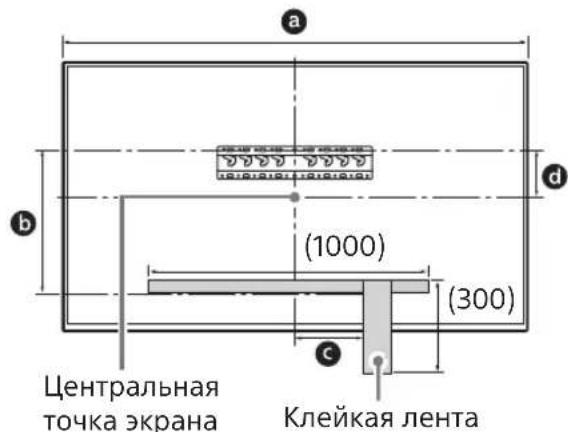

• Use masking tape, etc. (not supplied) to mark the location of the TV near the Base or Base Adaptor. Refer to the following table.

Model Name	Length for marking			Screen centre dimension
	a	b	c	d
KD-85XG85□□	1,909	683	200	251
KD-75XG87□□ KD-75XG85□□	1,673	468	200	107

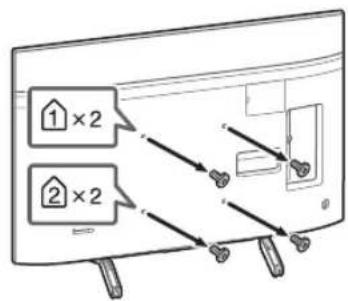

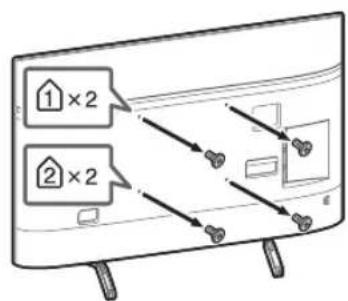

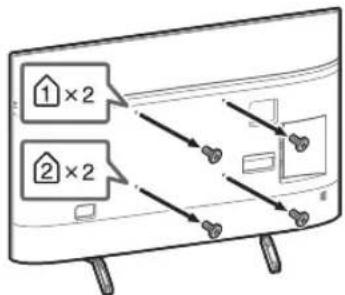

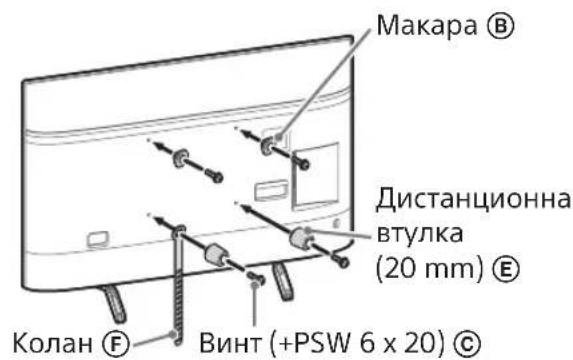

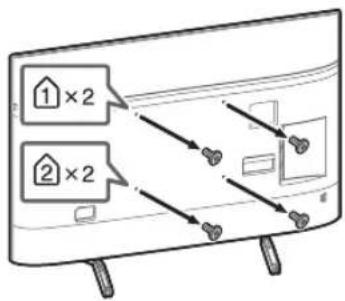

2 Remove the screws from the rear of the TV.

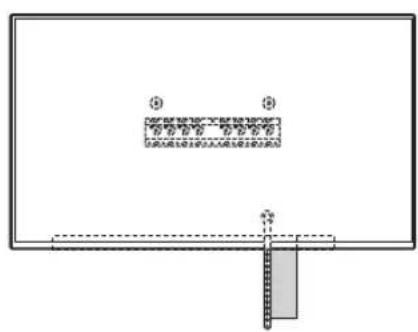

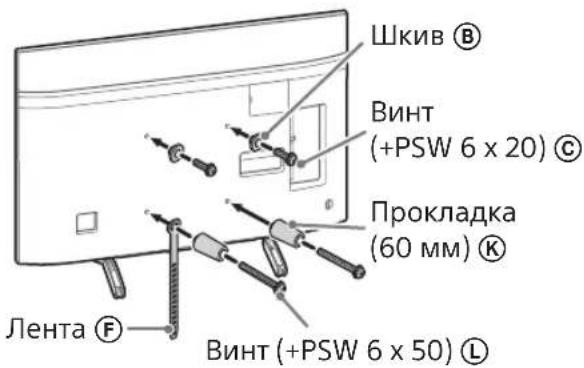

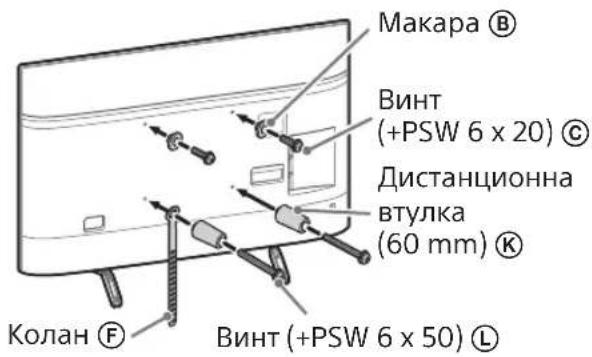

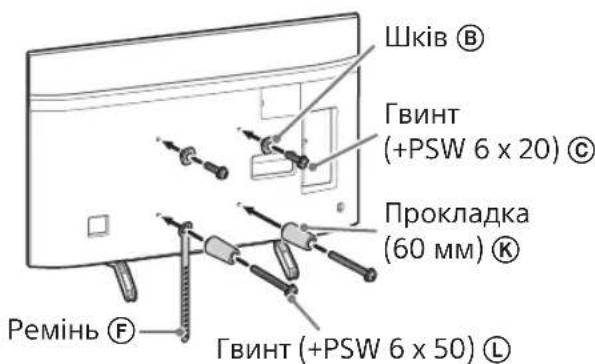

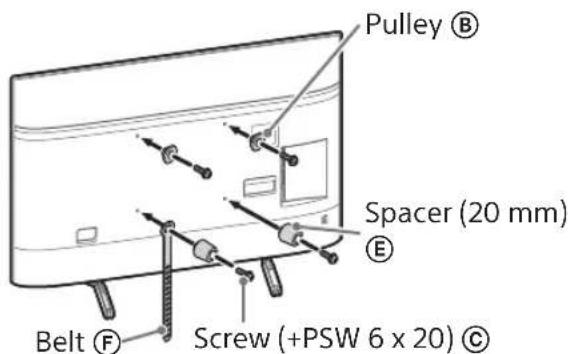

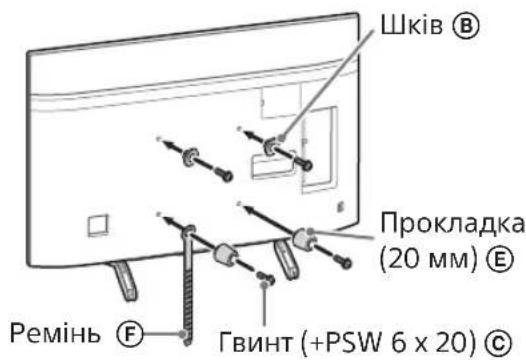

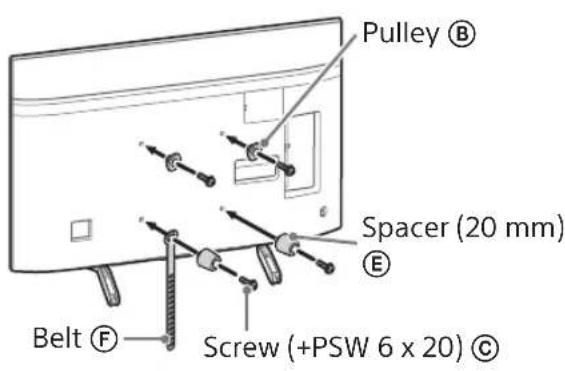

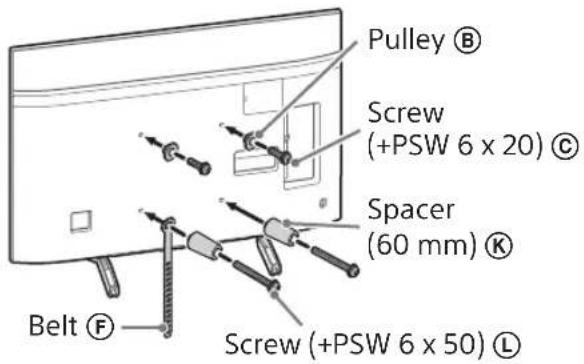

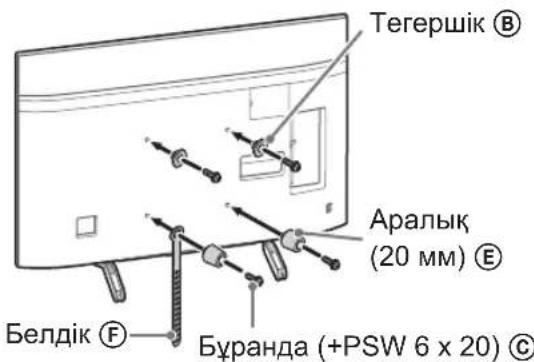

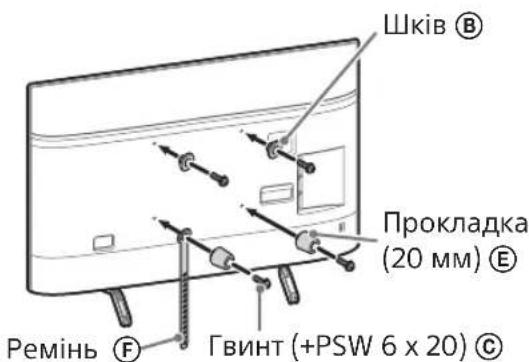

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

• Firmly secure the Attachment parts using screws.
• When using an electric screwdriver, set the torque setting to approximately 1.5N· m {15 kgf·cm}.
• Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

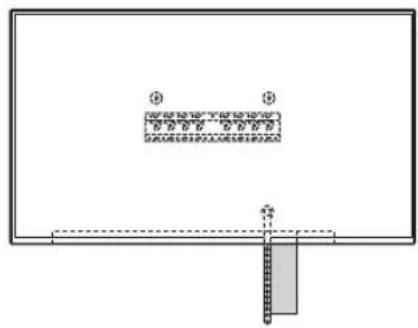

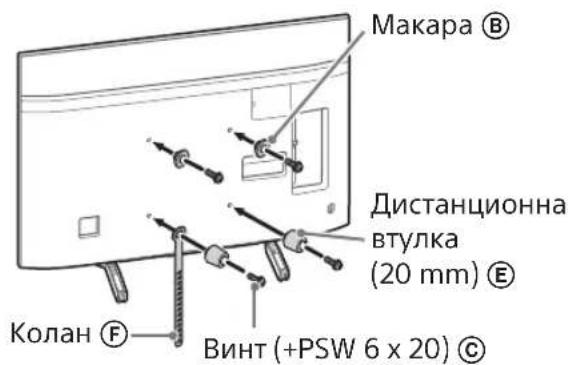

Standard mounting (2-a)
Slim mounting (2-b)

Note

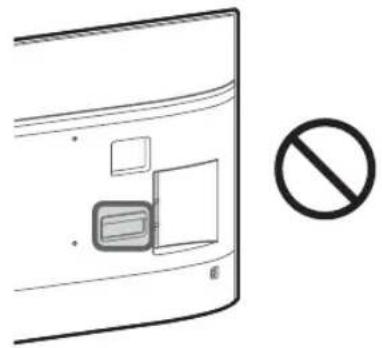

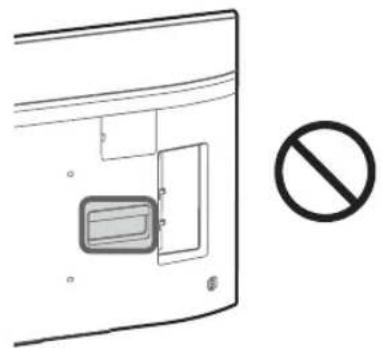

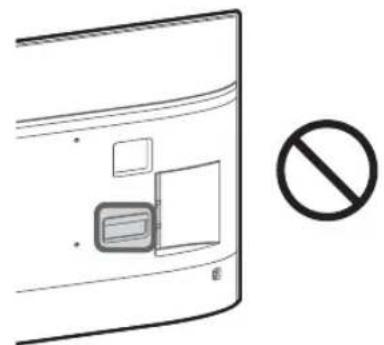

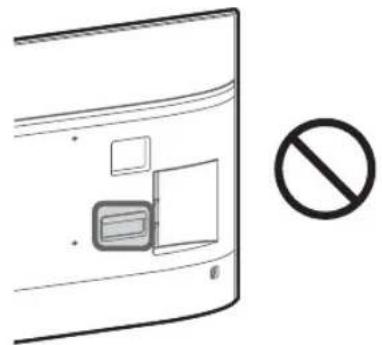

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

4 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed. Refer to the Reference Guide supplied with your TV.

Note

• Subcontract the cable routing in the wall to a licensed contractor.
• Bundle the connecting cables to prevent stepping on them before wall mounting.

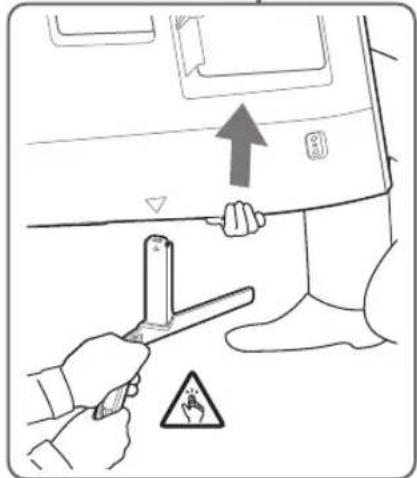

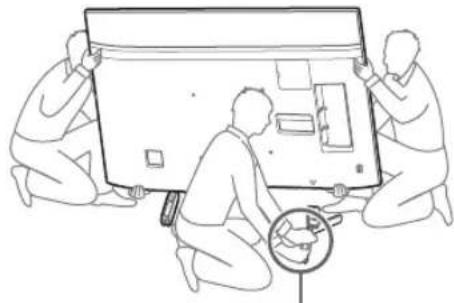

5 Detach the Table-Top Stand from the TV.

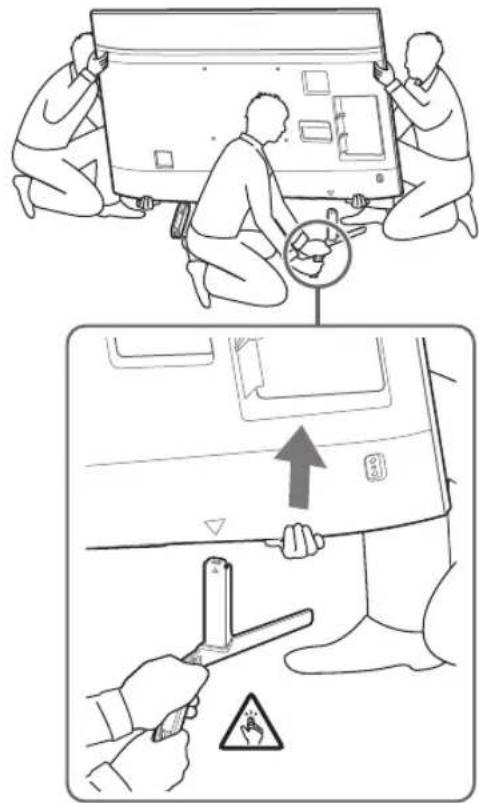

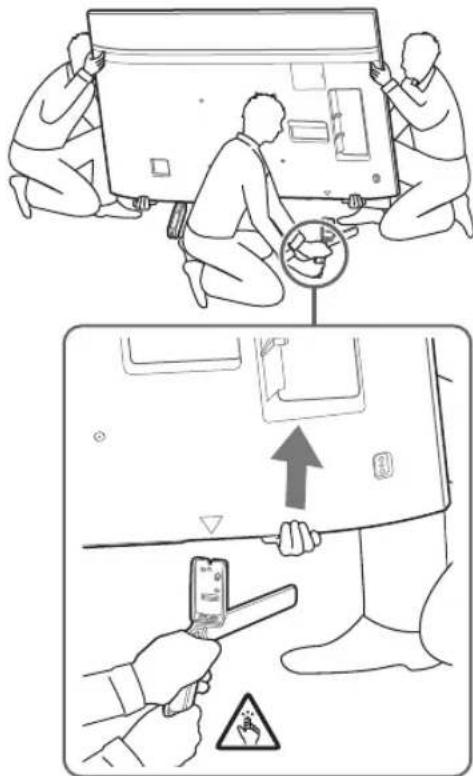

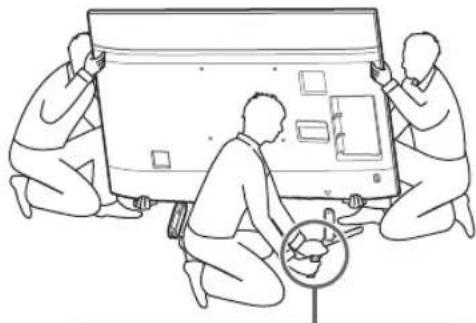

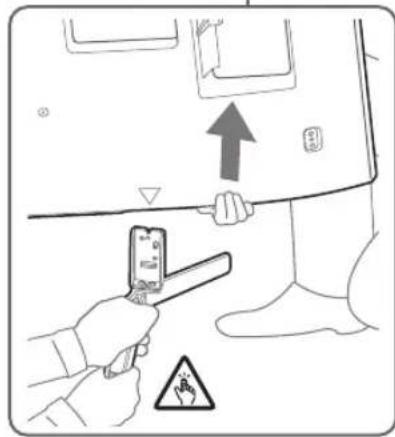

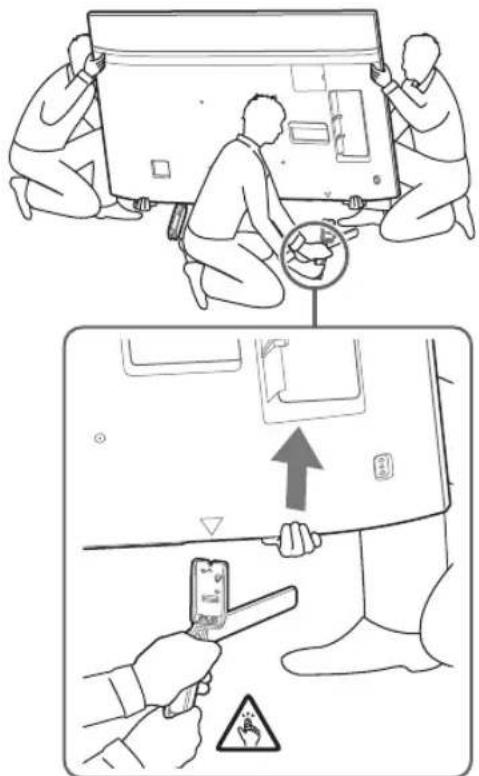

• Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• Repeat the previous step and remove the other side of the Table-Top Stand.

Note

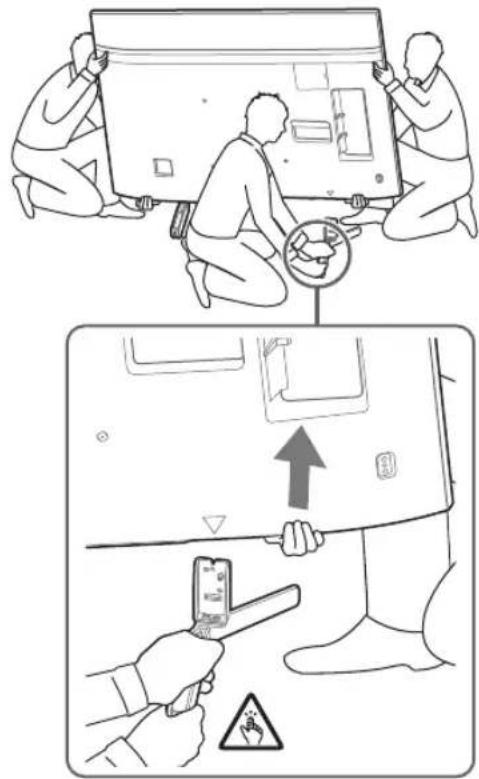

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

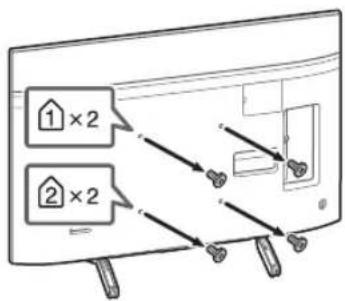

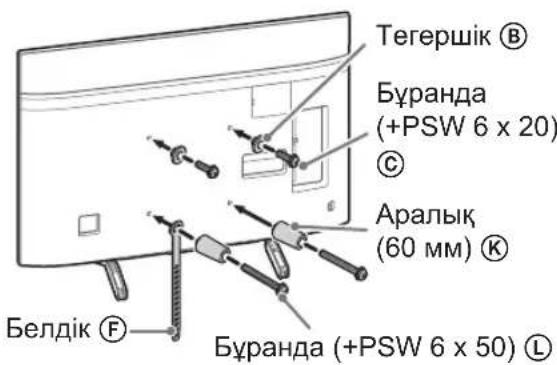

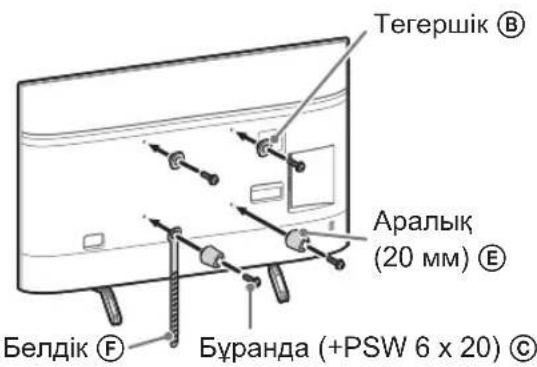

1 Remove the screws from the rear of the TV.

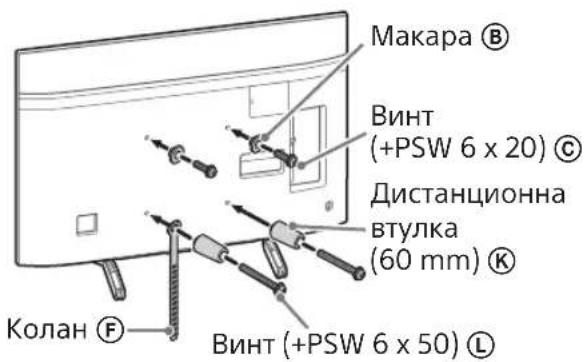

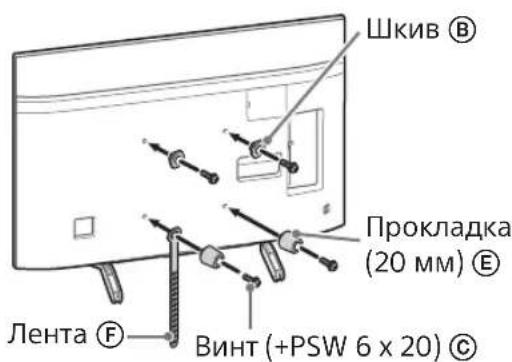

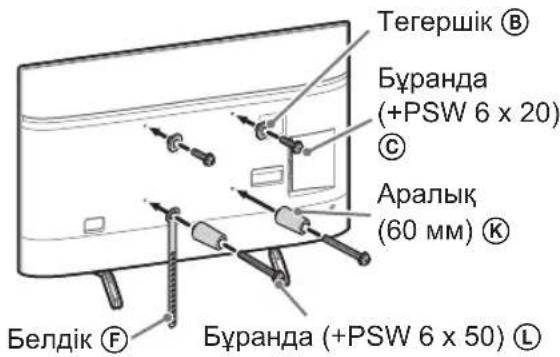

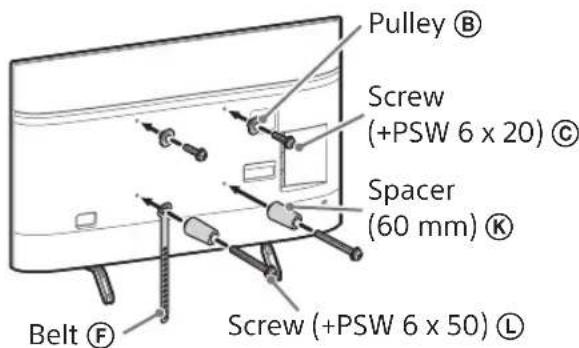

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

• Firmly secure the Attachment parts using screws.
• When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting (2-a)

Slim mounting (2-b)

Note

• You cannot use some of the terminals on the rear of the TV when using this mounting style.

3 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

• Subcontract the cable routing in the wall to a licensed contractor.
• Bundle the connecting cables to prevent stepping on them before wall mounting.

4 Detach the Table-Top Stand from the TV.

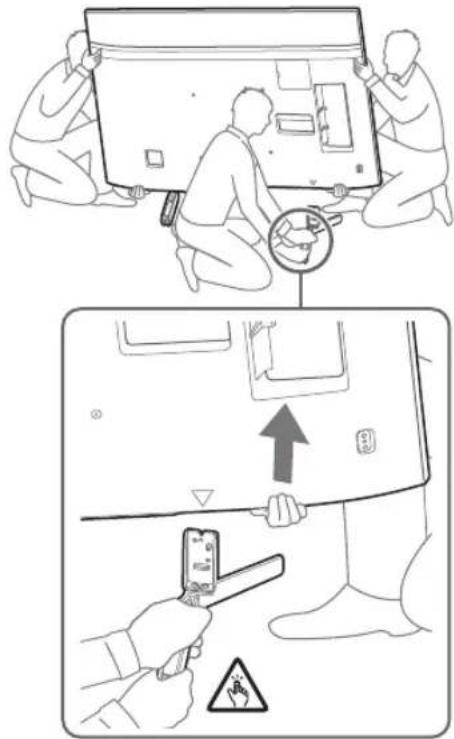

• Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

• Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

Installing the TV on the wall

KD-85/75XG85□□，KD-75XG87□□

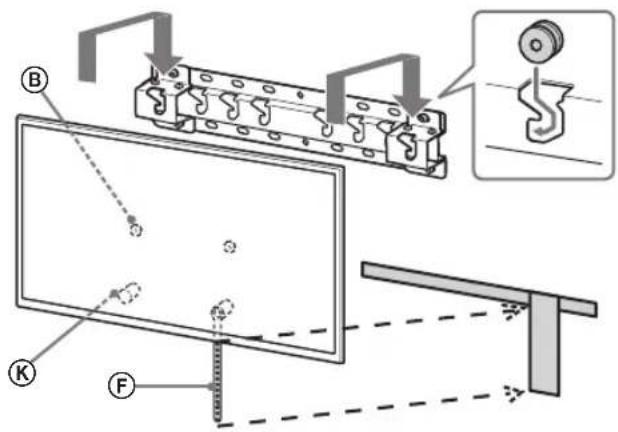

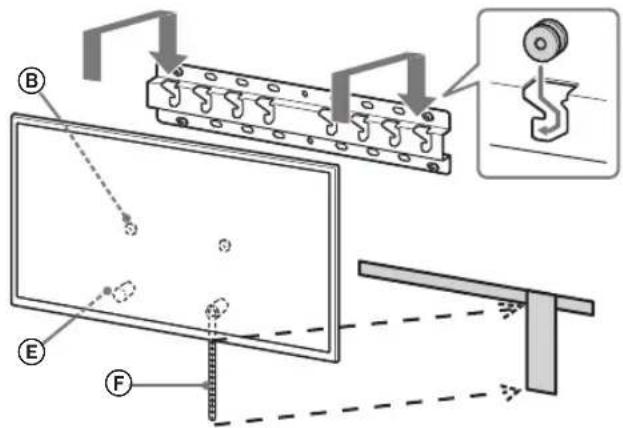

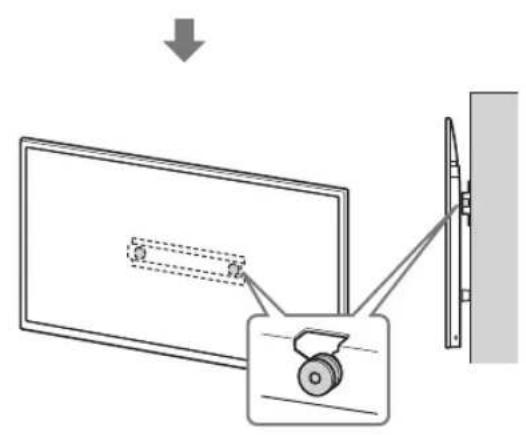

1 Lift the TV.

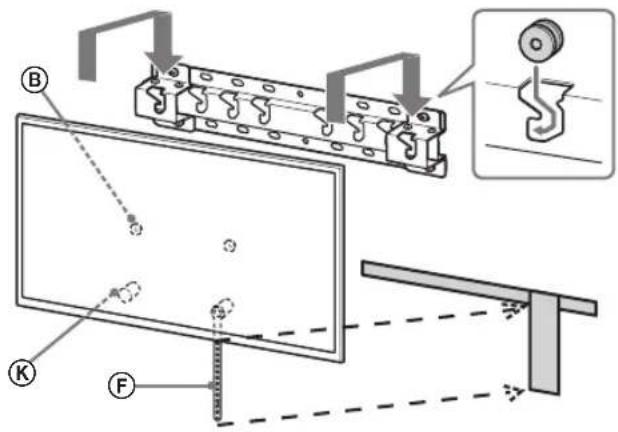

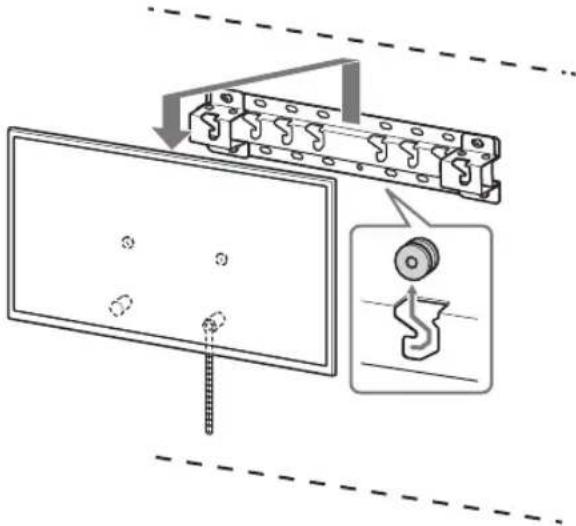

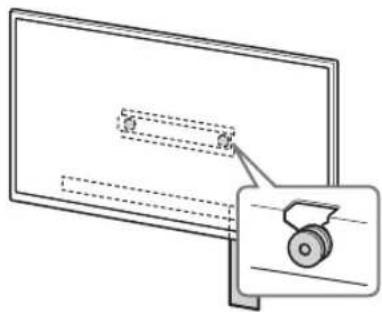

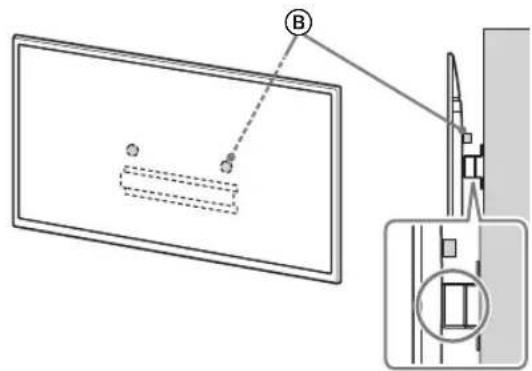

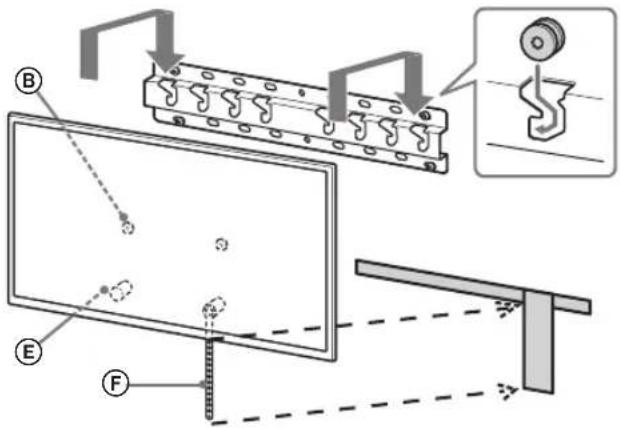

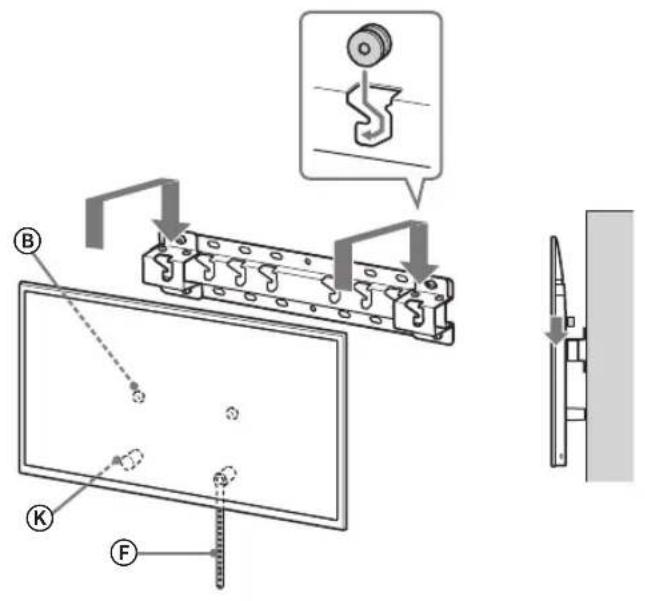

• For the location of the Pulleys (B) to the hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7.
• Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

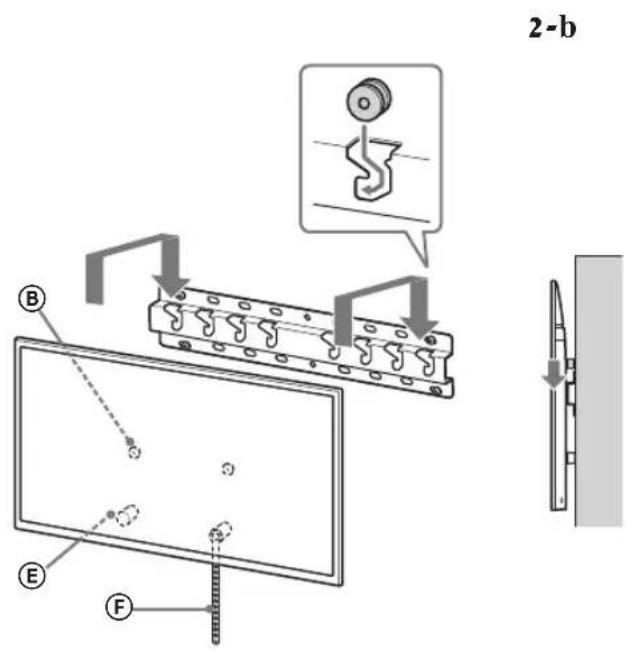

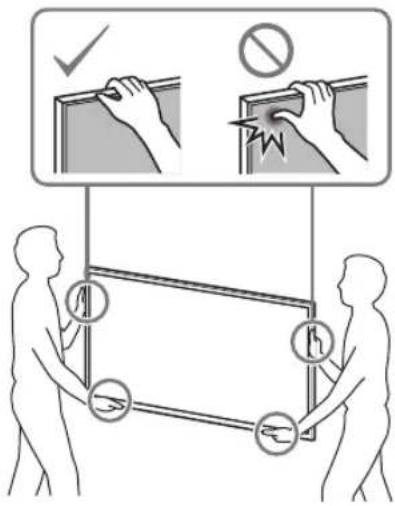

• Hold the TV securely with both hands and make sure the Belt (F) and the bottom of the TV align with the masking tape.

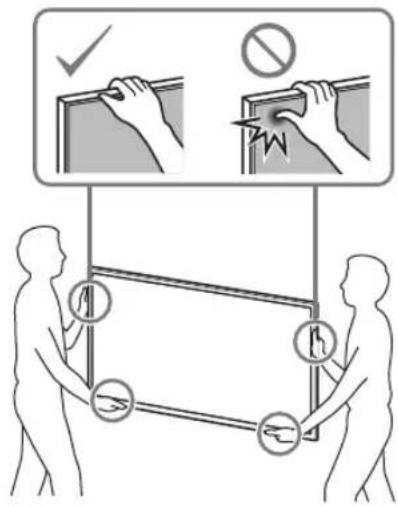

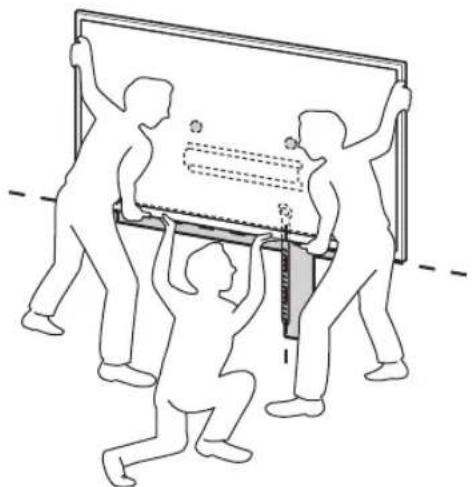

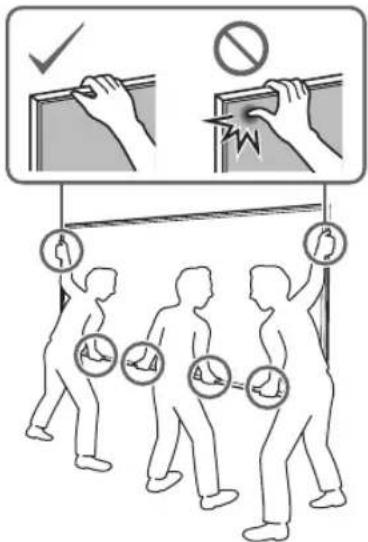

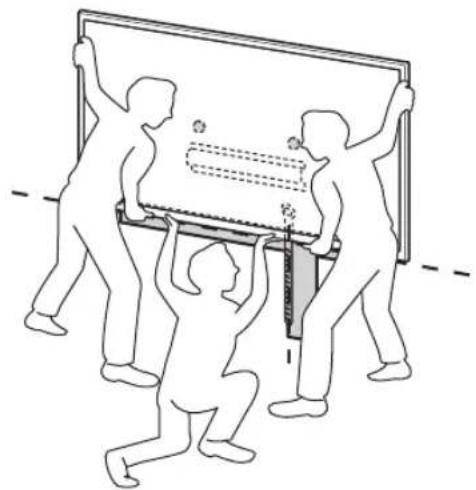

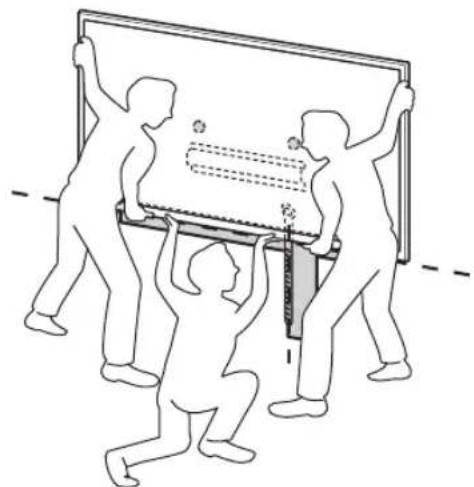

• Carry the TV with three people and the person who is in front of the TV leads the others to adjust the position.

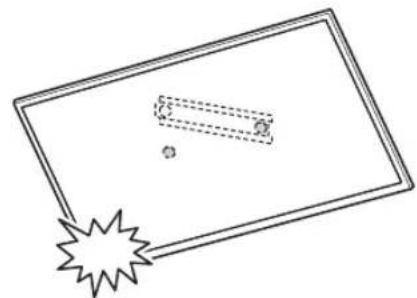

Take great care when installing the TV to the wall especially for the person who is supporting the TV from below, the television set may fall, causing serious bodily injury or even death.

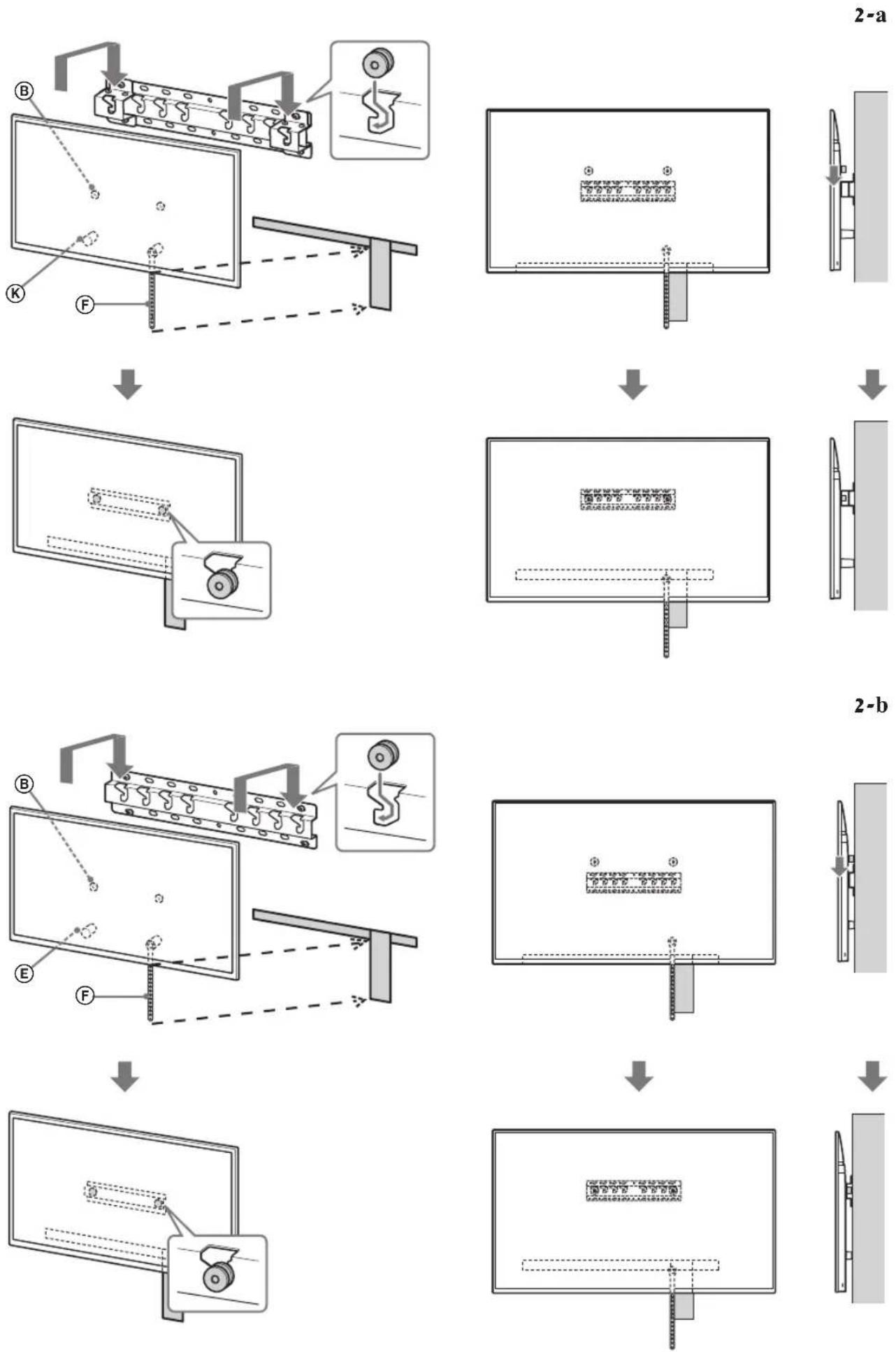

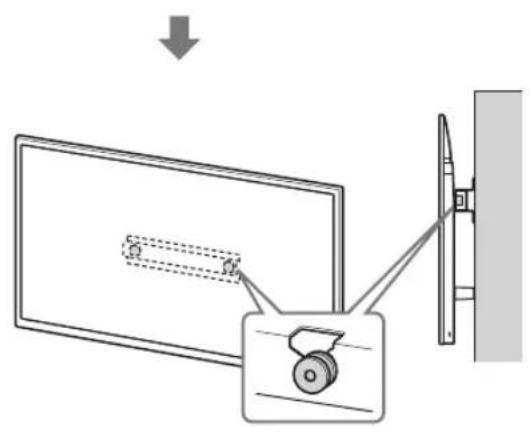

2 Install the TV onto the Base or Base Adaptor.

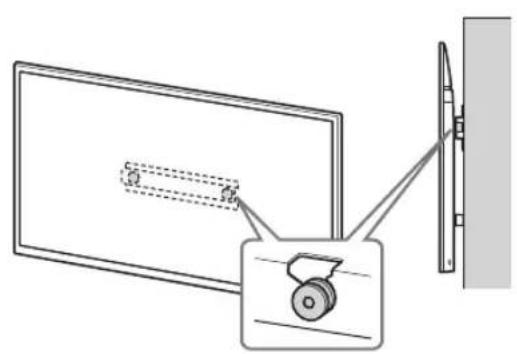

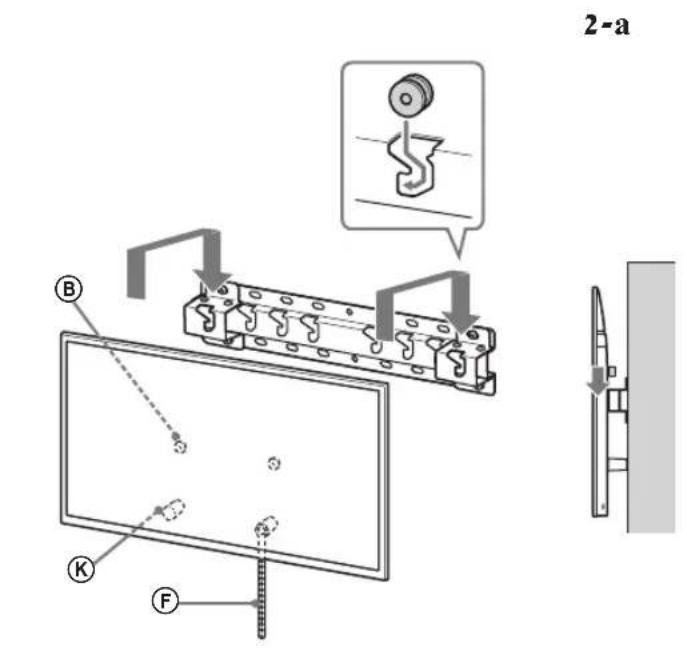

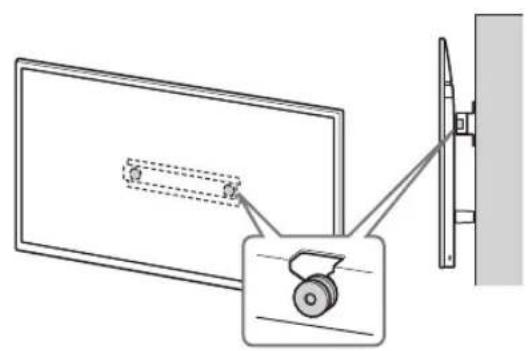

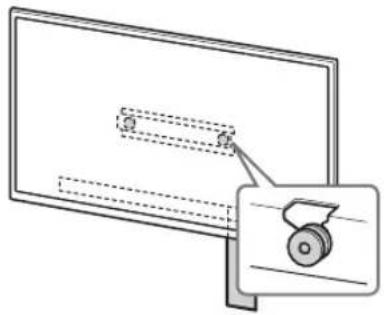

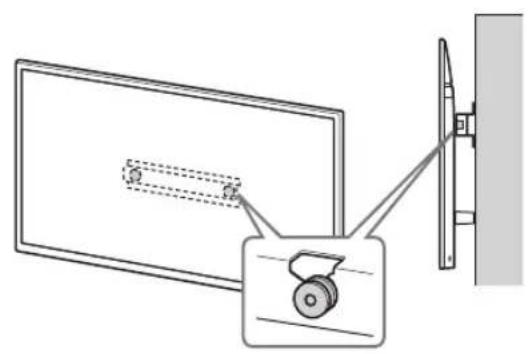

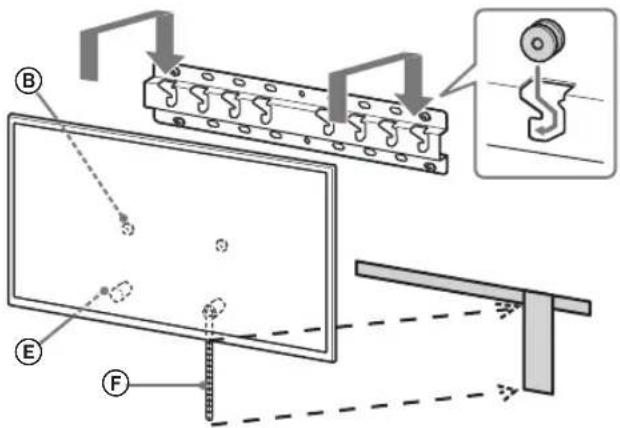

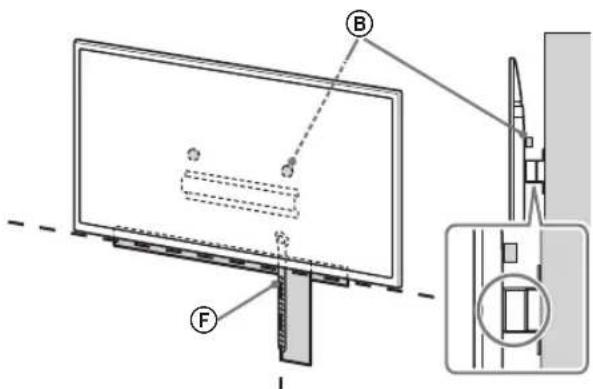

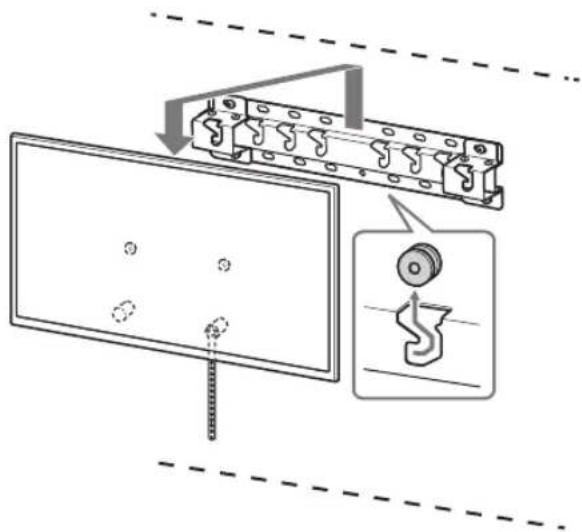

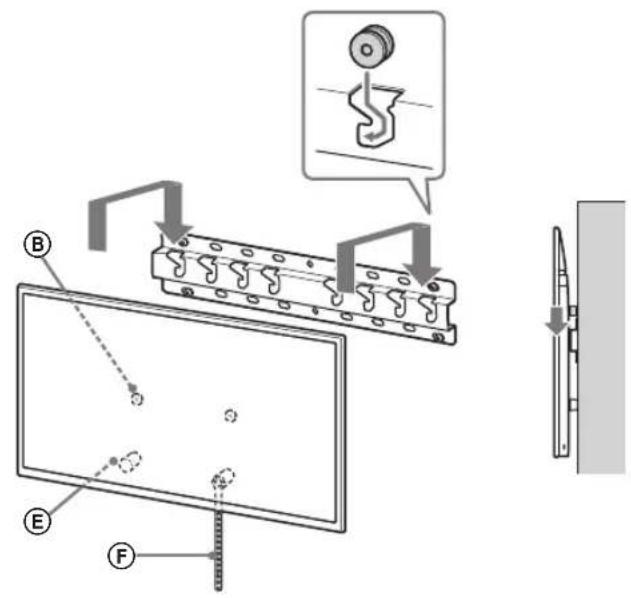

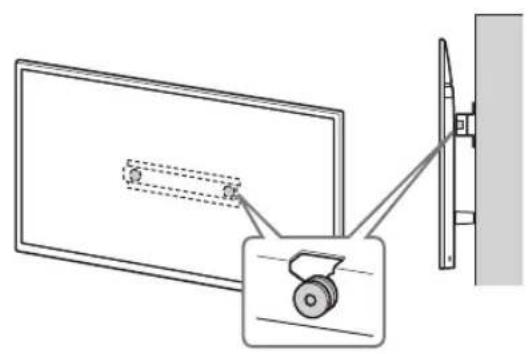

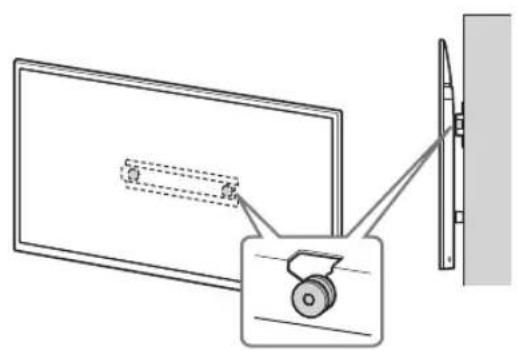

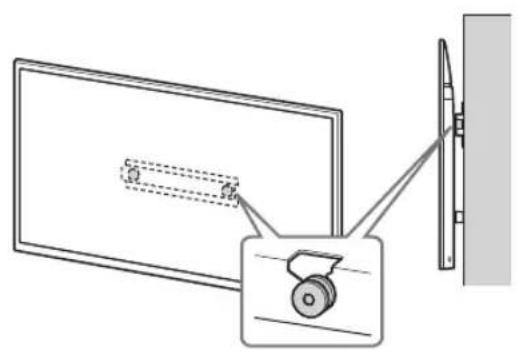

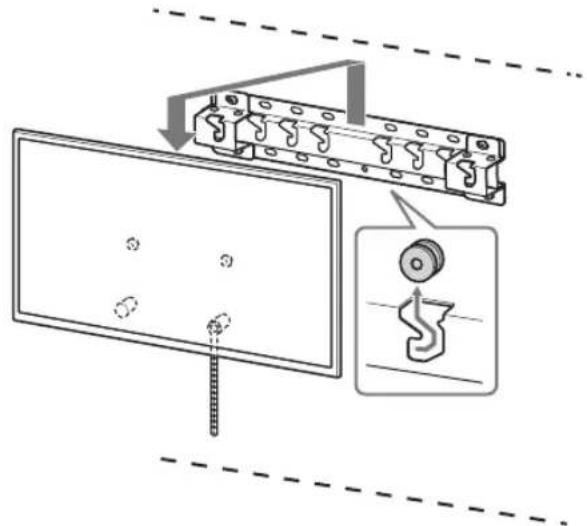

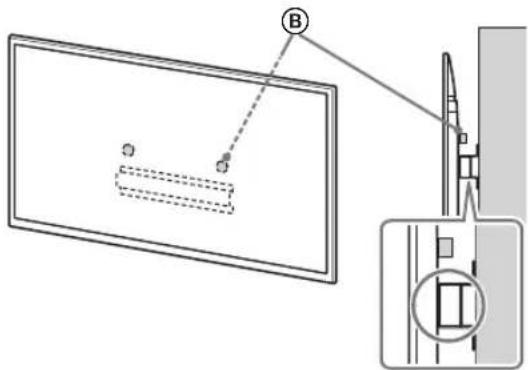

• Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.

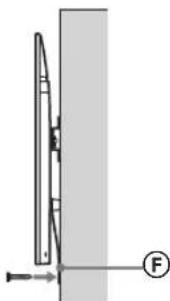

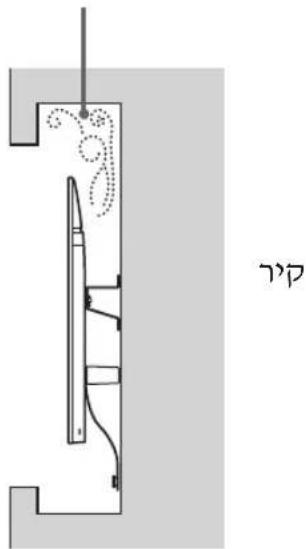

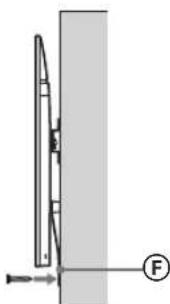

  After installing the TV on the wall, confirm the Pulleys ⑧ are firmly latched into the Base or Base Adaptor.
• Release both hands slowly to ensure that the TV does not fall.

After installing the TV on the wall, remove the masking tape, etc. from the wall.

2-a

2-b

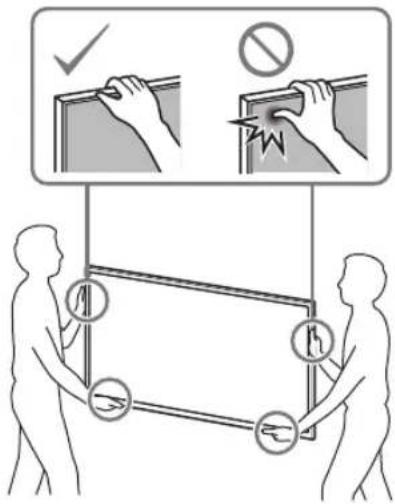

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

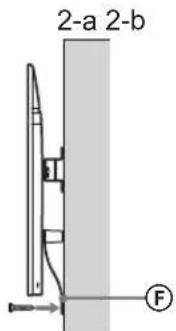

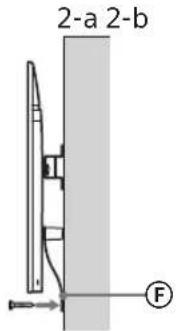

3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt F and attach it to the wall tightly.

• Use a 5mm diameter screw or equivalent (not supplied).

Note

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again.

KD-65/55XG87□□

KD-65/55XG85□

1 Lift the TV.

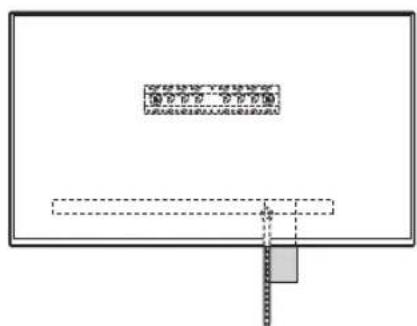

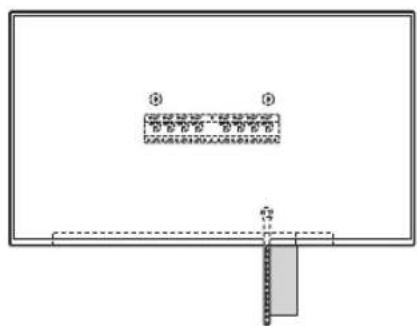

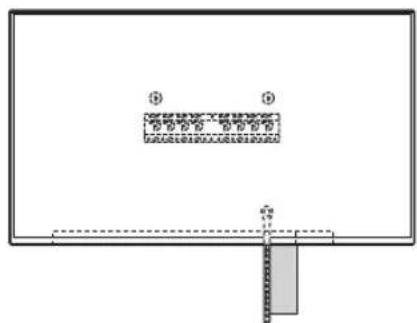

• For the location of the Pulleys to the hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7.
  Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

• Hold the TV securely with both hands.

2 Install the TV onto the Base or Base Adaptor.

Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.
After installing the TV on the wall, confirm the Pulleys are firmly latched into the Base or Base Adaptor.
- Release both hands slowly to ensure that the TV does not fall.

2-a

2-b

↓

↓

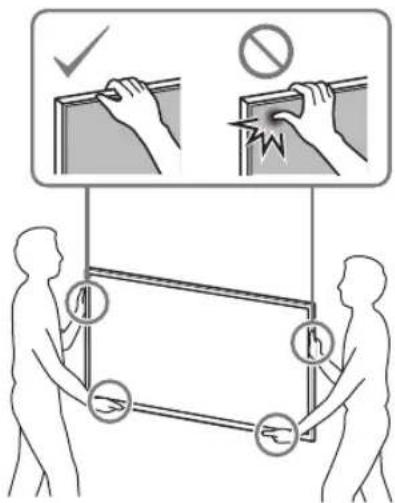

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

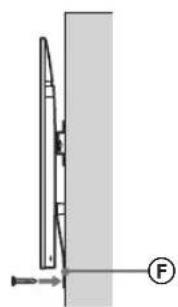

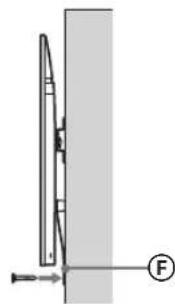

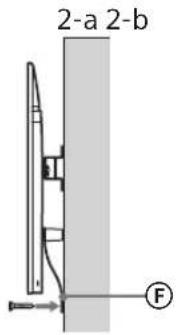

3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt F and attach it to the wall tightly.

• Use a 5 mm diameter screw or equivalent (not supplied).

Note

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again.

Confirming the completion of the installation

Check the following points.

• The Pulleys (B) are firmly hung onto the Base or Base Adaptor.
• The cord and the cable are not twisted or pinched.
• The Belt (F) is tight with no slack.

WARNING

• Improper placement of the mains lead, etc. may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

Other information

When removing the TV, reverse the previous installation procedure.

WARNING

• Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when removing it.

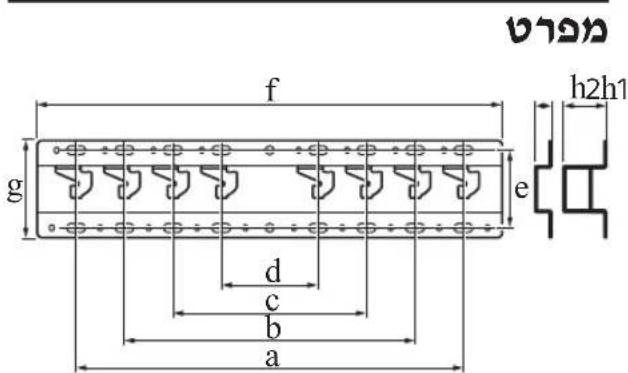

Specifications

Dimensions: (Approx.) [mm]

a:400

b : 300

c:200

d:100

e:80

f:480

g : 100

h1 : 20 (case 2-b)

h2:60(case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without notice.

Dimensions : (Environ) [mm]

a:400

b : 300

c:200

d:100

e:80

f:480

g : 100

h1:20 (cas 2-b)

h2:60 (cas 2-a)

Dimensoes: (Aprox.) [mm]

a : 400

b : 300

c:200

d : 100

e:80

f : 480

g : 100

h1 : 20 (caso 2-b)

h2:60 (caso 2-a)

Peso (apenas base): (Aprox.) [kg]

0.8

Klargoring for installation. 5

Kontrol af dele 5

Find en placering 6

Klargøring for installation

1 Find TV'ets placering.

PpOeToIaOia yia tooTheTnO

Na exete kovtac tov Onyo avaopac Kai tov Onyo Eykaotaon tsn tnEopaonpiiv ano tv EykataoTao.
- Pniv ano tvntootheon fpovtioTe va exe eva kaotalpha Philips nou v a taipiae i otic bi8ec.
- Eπαληθεύστε τη θέση τοῦθέτησις της τηλέρασης.
- Etoiaote teoepic n nepioootepc bi8e c diapetou 8 mm ka iia bi8a diapetou 5 mm n ooduvan (ev npexovtai). EuaEte bi8ec nou evai kataaanlc yia to uiko kataaekunc tou toixou.

EeVxoc twv eXapntmuatwv

Rozmery: (pribl.) [mm]

a:400

b : 300

c:200

d : 100

e:80

f:480

q : 100

He cBaJnTe BnHTObe n DpyrN CJeD MOHTaKa Ha TeLeBu3opa.

Ako ro HanpaBnte, TeneBn3OpbT MoKe Da naHe n da npuHn HapaRbAne nn NOpeBaHa NmUcECTBO.

He npomehnyte yactnte Ha KOH3OJaTa 3a MOHTaX Ha CTeha.

Ako Ro HapnabITE, KOH3OJATA 3a MOHTax Ha CTeha MoKeJa NaJdHe N da npuHmH HapahBaHE uNOBPeHa HAIMUcECTBO.

He mONTupaTe npyro o6opyDbaHe,ocBeH yKa3aHnI npOdyKT.

Ta3n KOH3OJa 3a MOHTax Ha CTHe a e npoeKtnpHa 3a 3IIOJI3BaHe cMo C yKa3AHn IPOyKT. Ako MOHTnapTe o6OpYBaHe, pa3NmuHO O TYKa3AHOTo, T0 MoKe Da NaHe Nn Da Ce Cyyn N da pnuHn HapAraBaHe Nn NobpeDa Ha mMyuectBO.

He noJaraTe KOH30JaTa 3a MOHTaX Ha CTeHa Ha HnKaKbB Dpyr TOBap,OCBeH Ha To3n Ha TeLeBu3Opa. He KlaTeTe TeLeBu3Opa HaJIyBO/HaIЯCHO, Harope/HaDony.

Ako ro HanpaBnTe, TeneBn3OpbT MoKe Da naDHe N da npuHnH HapaHraBaHe nn NOBpeHa Ha MMyIeCTBO.

He ce oBlaraTe n He ce BnCeTe Ha TeLeBu3Opa.

He ce 0bIraIte Hc yBncBaIeOT TeIeBn3Opa,3aIoTO MoKe da naDHe n da npuHnH cepno3HO hapaHbaHe.

BHIMAHNE

Ako CneIeHnTe NpeDna3Hm MepKn He ce cnaBAt,MOKe Da Bb3HnKHe HapAHBaHe NnN NobPeDa Ha mMyuIeCTBOTo.

He TpeTnpaIte npOdykTa c npeKaIeHa cnla no BpeMe Ha noUcTbaHe IINn pOdRpKka.

He npinarai Te npekaihe cui Bpxy RopHATA qacnHa TEJIeBn30pa.Ako ro HapnBaTe,TeJIeBn3OpbT MoKe Da naHe I da npuHn HapaHraBe NIn nobPeDa Ha NMUyIeCTBO.

PpePn3HmepKn

• AkoNbIro BpeMe N3NON3BaTe TeNeBn3Op, MOHTInpaH Ha KOH3OJa 3a MOHTaxK Ha CTeHa,CTeHaTata 3aNII HA HeFo MKe6 Da ce Obe3uBeTu INI TaTeTb TcA pa3aJIeIN, B 3aBNCIMoCT OT MaTePnJa HA CTeHaTaa.
• Ako KOH30JATA 3a MOHTaK Ha CTHe b6Je CBaJIeHa OT CTHeTa CNeI MOHTaKa, Ie OCTaHaT OTBOpN OT BHTOBTe.
  HeN3No13BaIte KOH3OJaTa 3a MOHTaK Ha CeHa Ha MCTo, KbTeTo MoKe JdaBde NoJIOXeHa MExaHnHn BIBpaunu.

MOHTAX Ha KOH30Ja 3a MOHTAX Ha CTeHa

KbM TbproBunTe Ha Sony

PNEyPPEKDEHNE

CneHnTe HNCTpyKuIN Ca cAmo 3a TbpROBNTe Ha Sony. PnpOeTete MepKte 3a Be3oNaCHocT, OINCAHN NO-TOpe N o6bPHeTc CNEUAnHO BHIMAHHe Ha Be3oNaCHocCTTa No BpEme HA MOHTXa, NoDpBxKkTa INHCNEKUNrTa Ha npOdykTA.

He MoHTnpaIte KOH3OJaTa 3a MOHTaJx Ha CTeHa Ha CTeHHN IOBbpxHOCTn, KbDeTo bTInTe NIn CTpaHIne Ha TeJIeBu3Opa Ce N3DaBaT HaCTpaHn OT NOBbpxHOCTTa Ha CTeHaTa.

HEMOHTpApTe KOH3OJaTa 3a MOHTax Ha CTHeHa CTeHHN NOBbpxHOCTn, HAnpIMep KOnOHa, KbTeTO bTnIte NtCTpaHITe Ha TeLEBn3Opa Ce n3DaBaT HAcTpAHoT NOBbPxHOCTTa Ha CTeHaTa. Ako IInCe IIN ppeMET YdApn INaDeHn BfI INn CTpaHa Ha TELeBn3Opa, TOBa MoKe Ja pNCHn HapAHBaHe INI NobpeHa HA MyUcctBO.

He montupaTe TeIeBn3opa NaD nJN nOd KInMaTnK.

Ako TeIeBn3OpbTe n3IIOKeH npOJbJXnTHeHO Na TeUObe NnBb3DyWHO TeUeHne OT KInMaTn, TOBa MoKe Ja npEaBnBkNaNoKap, eNeKTPnueKu YdAp nn HEn3npaBHoCT Ha TeIeBn3Opa.

MOnTnpaIte 3dpaBO KOH30JaTa 3a MOHTaJHa CTeHa KbM CTeHaTa KaTO CJIeDbATE NHCTpyKcNITe B TOBa pBKOBoDCTBO 3a pa6ota.

Ako HKOJ OT BNTOBeCe ce paxna6n nI nn PaHHe, KOH30JaTa 3a MOHTaK Ha CTeHa MOKe Da PAnHe N Da npuHHn HapAHBaHe nN NOBpeHa Ha mMyUcTeBO. N3NoJ3BaTne NOxOJaUN 3a MaTePunAna Ha CTeHaTa BNTOBe IN MOHTpaJIte KOHCTpyKUnrta 3dPaBO KaTO I3NON3BaTe YeTIPn NN NOBEue BNTa C dAmEtbp 8 mm (nn EKBINBaJIeHTH).

Изпольваite правлино ДОCTаВеHnte ВИNTОBE И OKачБаши части КATO Следыт ИНСТPyкциnteВTOBA рьководъво 3а разота.Ако ИЗПОЛЗВаTe ЗамecгьБаш eLementn, Телевизорьт може д паднe и да причин Телесна NOВpeда сд дa ce NOВpedn.

YBepTe ce, ye crIIO6BaTe KOH3OJaTa npaBnHNO KaTO CLEdBATE npoueDypaTa, ONICAHa B TOBa pBKOBOCTBO 3a pa6ota.

Ako HkaKo OT BnHTObTe Ce pa3Xna6n nn NaHHe, TeneBn3OpBT MoKe Da naHne n da npuChyTneLecha NoBpeDa nn Da ce NopeDi.

3aTeHHeTe 3dpaBO BnHTOBeTe B yKa3aHOTO NIOJXKeHne.

Ako He ro Hanpabnte, TeneBnOtpb MoKe da naHe n Da npuynHn TeneCha NobpeDa nn da Ce nobpeDn.

BnMaBaTe Da He ydapnte TeJeBn3opa no BpeMe Ha MOtaja.

Ako TeneBn3OpBT 6bDe NpOAnKEn Ha yIap, ToT moKeJa daNpHe Ia de CcuyIIN. ToBa MoKeJa doBede Do hapArBaHe.

MOnTnpaIte TeJeBn3Opa Ha CTeHa, KOrTo e nepNeHdNkUyIrpHa n paBaHa.

Ako He HapnabNTe TOBa,TeJIeBUN3OpbT MoKe Da naHne N da npuHHn HapaHbaHe.

Cnei npabunHnmoHTaX Ha TeJeBn3opa,06e3ONaCeTe npabUNHo Ka6eIte.

Ako xopa unn npdeMeTu ce 3aJIeTaB Ka6eJIte, TOBa MoKe Da npuHH HapaHbAHe unn NobpeDa Ha TeENB3Opa.

He donyckaia Te npTnCKaHe Ha 3axpaHbAunKa6eI nIHa CBbp3BaunKa6eI.

Ako 3axpaHbauNt Ka6eI IIN CbBp3Baunr Ka6eI BbDat npTnCHaTN MeKdy KOHTpyKUInra TcTeHATA IIN AKO 6bDat OByHaTN IIN ycKaHN CbC CuNA, BBTpEHNTE npBOOHNm MOKe Da ce OOrJr N da pNnHr KbCo CbeDInHeHne IIN eEeKTPuecku Ynap. TOBA MOKe Da npNHH noXap IIN eEeKTPuecku Ynap.

BnHTOBeTe,Heo6xOdIMN 3a 3aKpenBaHe Ha KOH30JaTa 3a MOHTaX Ha CTeHa KbM CTeHaTa, He Ca BKJIIOUeHN B KOMJIeKTA.

M3noN3BaIteNoDxOJaUNBHTObeCnopeMaTePnAHa HA CTeHAta N KOHCTpyKlIraT, KOrato MOHTnPate KOH3oNaTa 3a MOHTaX HaCTHeA.

CbDbpxkHne

IoproTOBka 3a MoHTax. 5

ПоверкаHaчacntTe.5

OnpeIeJIeHaMrcTOTOHaMOHTaX.6

MOHTaK Ha OCHOBaTa Ha CTeHaTa 8

IoproTOBka 3a MOHTaX Ha TeNeBn3opa...9

KD-85/75XG85□□，KD-75XG87□□

KD-65/55XG87□□，KD-65/55XG85□□.11

MOHTaK Ha TeIeBn3opa Ha cTeHaTa.13

KD-85/75XG85□□，KD-75XG87□□.13

KD-65/55XG87□□，KD-65/55XG85□□.15

PpOBepKaHa npKJIIOUbaHeTo Ha

MOHTaxa 18

Dpyra uHΦopMaun 18

Cneunphiauu.. 18

Mоntак Ha TeJIeВиЗopa Ha CTeHaTа

IpoueypaTa 3a MoHTaK e pa3nUHa cnopei TeJeBn3opa.

ИЗПОЛЗВайтЕ KOH3ОЛаТа 3a 3aКрпВаHe КБМ CTeHa SU-WL450, 3a Дa мontираTe TEлевиЗopa на CTeHATA.

3a6eJekka

He nponyckaIte Da cbxpaHITe CbaJIeHITe BnHTOBe Ha cnryphHO MRCTo, KaTO rN Na3NTe OT Deua.

Повтовka 3a мотаж

CnpaBOOHOTpkoBOOCTBO npkoBOCTBOTO3aHaCTpoiKaHa TeJeBn3opa Tpr6Ba Da caNoD pka npei 3aIOuBaHe Ha MOHTaKa.
- Ppei crno6BaHTo OcnHypeTe OTBeptKa Phillips, KOrTo OTroBapra Ha 6oTobete.
- Поберете положенeto 3a мотаж на Телевизopa.
- PnirrotBeTeYeTnpuNInNoBuee BnHTa C DnAmetbp 8 mm n eDIn H BuHT C DnAmetbp 5mm nIn eKbVbaIeHTHn (He ca BkIIOyeHN B KOMnJIeKa). N36peTe BnHTObe, NOxOJaun 3a MaTePnaJHa cTeHaTa.

Поберka на частпe

DocTaBeHo c SU-WL450

• Поберета дал BCNчкн ча налчн.

A Oснова (20) (1) B Мakара (2)
◎ PSW 6x20 (4)◎ PSW 4x20 c Втулka (2)
E Дистанционна Втулka (20) (2)	F Колан (1)
◎Втулka (20) (M4) (2)	H PSW 4x20 (2)
◎Aдантетер на Оснobата (2)	◎J PSW 4x10 (8)
◎Дистанционна Втулka (60) (2)	◎L PSW 6x50 (2)
◎Втулka (M4) (2)◎PSW 4x50 (2)

OnpejeIHe Ha MrcTOTO Ha MOHTaK

1 N36epete MrcTOTO Ha MOHTaX.

YBepTe Ce, Ye Ha CteHaTnMa DoCTaTbUHO MxCTO 3a TeLeBn3Opa Nye TRe cNoCo6Ha Da
N3DbpxN TeXeCT, NOHe YetnpNKpaTHo PpeBnAbaUa Ta3n Ha TeLeBn3Opa.
BnxTe CneHaTaNbIuca OTHOCHO MOHTaXa Ha TeLeBn3Opa Ha CteHaTa. BuxTe cnpabOuyHOTo
pbkoBOdCTBO Ha TeLeBn3Opa OTHOCHO TErIoto My.

CTaHdapTeH MOHTaK TeceH MOHTaK
LentpalaToKaHaekpaHa

Mepn einnu: mm

Иme на морел	Размери на ekранa		Размер на цentьра на ekранa		Дылжина на моHTах
	a	b	c	d	e
					Стоцартын MOHTах	Teсен MOHTах
KD-85XG85□□	1909	1 097	251	803	142	100
KD-75XG87□□ KD-75XG85□□	1673	963		107	595	116
KD-65XG87□ KD-65XG85□□	1450	836	99	523	115	73
KD-55XG87□ KD-55XG85□□	1231	713	106	468	115	73

3a6eJekka

• Yncnata B Ta6nnta MoKe JneKo Da Ce pa3nueBaT B 3aBnCmOcT O NaHHa N3BbPwBaHe Ha MOHTaxa.
  Korato Baunr TeneBn3Op e MOHTnpaHa CTeHaTa, rOpHaTa My aCt IeKO Ce HakJaHaH HanpeI.

OCTaBeTe NOxOJaIoo pa3cTOrHne MeJxNy TeJeBn3Opa, TaBaHa N I3JaDeHIne YactH Na CTeHaTa, KaKTo e NOKa3aHO No-DoJy.

Mepn eDHHu: mm

3a da noctnHHeT npabnHa BeHTnlaUmaI Da npedOTbpaNTe C6bnpaHETo Ha npax mPbcOTna:

He cnaarTe TeBnOpa Da JLeKu Ha NIOCKaTa Cn CTpaHa, He ro MOHTnpaTe O6bPhAT C rOpHna Kpa HADONY, HaONAKU INCTpaHNUHO.
He cnaaTe TeneBn3opa Bbpxy paTOBe,KnIMM, Ierno nnB DpeWHNK.
He nokpnbAaTe TeneBn3opa C TBkaH, KaTo HAnnpMep nepdTa, INN C npEaMeTu KaTo BEcTHnU IN Dp.
He MoHTnpaIe TeIeBUN3Opa, KaKTo e NOKa3aHO no-DOy.

BnKHeHneTo Ha Bb3nyXa e 6JIOknpaHO.

3a6eJexKka

AkoBb3HaMepeBaTe da npekapate KaBeNITE B CTeHaTa, HAnpaBete OTBOP B CTeHaTa, 3a Da BMbKHeTe KaBeNITE npEn HaHauIOTo Ha MOHTaKa. 3a Da npeDoTbpatNTe 3aunnBaHe Ha KaBeNITE, HAnpaBete OTBOP B CTeHaTa N3BbH nepmEtpa Ha OCHOBaTa (20) A, aanTep Ha OCHOBaTa 1 NDCtAHNoHHa Ta BTyIka (20) E, DnCTaHNoHHaTa BTyIka (60) K.

2 N36epeTe BnMOnTaJxHa cTeHa.Pa3cToHnETo OT 3aHaTt aact Ha TeJeBn3Opa Do CTeHaTa MoKe Da ce n36epe, KaKTo e NOKa3aHo NO-DoJy.

2-a CtaHdapTeH MOHTaX 2-b TeceH MOHTaX

BnKTe Ta6JnUcaTa OT C7bNka 1.

PNEyUNPEKDEHNE

Korato e n36paHO 2-b,doCTbNT do 3aHnTe KneMn e orpaHnueH.

2-a 2-b

3 BuxTe Ta6nIaTa nO-dOly 3a MeCTOnOLOXKeHneTo Ha aAnTePHnA ΦNTnHr 3a OCHOBaTa. Ako cTe n36paIi 2-b, IpnOynCHeTe Ta3n CTbNka.

Име на мodyел Мecтоноожени На Кукatinga
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

MOnTnpaIte aIaITepaHa OCHObAta ① KaTO n3NoJ3BaTe BnHT (PSW 4x10) J KbM OCHObAta (20) A, aKO cTe n36paJIu 2-a.

4 OnpeJeIeTe MeCTaHa BInHTOBeTe 3a MOHTaX Ha OCHOBaTa (20) A.

BnKTe cneuNfNkauNTe Ha cTpaHnca 18.

Korato n36epete 2-a, n3noJ3BaIte cIeHNITe N03nUHa OTBOpHTe 3a aAnTepa Ha OCHObATA ①

PNEyNPEKDEHNE

CTehata,HaKoTOnuebdeMOHTnpaHTeJeBn3OpbT, Tp6Ba da MoKe Da noDlbpxKa Hain-MaNko Yetnpn Bttn TerIto My (BnxTe CnpaBOHOTo pBkoBOcTBO Ha TeJeBn3Opa OTHOCHO TerIto MY.).

• OnpeJeIeTe 3dpaBnHaTa Ha CteHaTa, Ha KOrTo Ie 6bJe MOHTnpaH TeNeBn3OpbT. AKe e Heo6xoJIMo, ycJIeTe CteHa Ta DoCTaTbUHO.

MOHTaK Ha OCHOBaTa Ha CTeHaT a

• IN3NoJ3BaIte YeTnp NIN NOBuee BnHTa C DaNaMeTbp 8 mm NIN eKBNBaJIeHTHn (He ca DOCTaBeHN).
  3aKpeNeTe YeTnpNTe BNHTa B OTBOpNTe Ha aAnTepa Ha OCHObata ① C OCHObata (20) A (camo 2-a).
• MoHTnpaIte OCHOBaTa (20) A XOpN3OHTaJIHO Ha CTeHaTa.

ПодгOTOBka 3a MOHTaЖ Ha TeJIeВиЗopa

IpnMOHTaXHaCTOaBnKTe pkoBOcTBOTo 3a HactpoKa.

KD-85/75XG85□□，KD-75XG87□□

1 OtbeJexKeTe MrcTOTO 3a MOHTaX Ha CteHata.

• I3noI3BaIte cAmO3aJIeNBAUcO Ce TUKCO n np. (He e npedocTaBeHc KOMnJIeKtA), 3a Da OT6eJekTe MrcTOTO Ha TeJIeBn3Opa, B 6JIu3OCT Do OCHOBaTa NII aJaITepa 3a OCHOBaTa. BuxTe CJIeDbaUcaTa Ta6JIuCa.

Мернейнци: mm
Име на м odeл	Дыжина 3a otбелязвае	Размер на центьра на ekранa
	a b c d
KD-85XG85□□	1909 683 200 251
KD-75XG87□□	1673 468 200 107
KD-75XG85□□

2 Cbane BnHToBete OT 3aHaTa CTpaHa Ha TeJIeBn3Opa.

3ПикpenTe OKaUbaunTe Yactn 3a KOH30JaTa 3a 3aKpeNbaHe KbM cTeHa. ПрOBepTe YactnTe 3a OKaUbaHe, KaTO cpaBHnTe C "IocTaBeHo c SU-WL450" B "ПрOBepKa Ha YactnTe" Ha cTpaHnua 5.

3a6eJexKka

3akpenete yactnte 3a OKaYBaHe c nOMOHTa H BnHTOBe.
Korato n3non3BaTe eNEktpnuecka OTBepKa, 3aadte HacptpoKaTa Ha BbPTaIIMOMeHT npu6IIN3NTeJIHO Ha1,5N·m{15kgf-cm}.
3ana3eTe m3no3BaHnTe nn HeN3no3BaHnTe YaCTNa 6e3oNaCHO MRCTO 3a 6bdeu yNoTpe6a.3ana3eToBa pkoBOcTBO 3a 6bdeua cnpabka.

CTaHdapTeH MoHTaX (2-a)

TeceH MOHTaX (2-b)

3a6eJexKka

Korato N3NOJ3BaTe TO3n CTnI 3a MOHTaK, HMa Da MoXKeTe Da N3NOJ3BaTe HAKON OT TepMNHaJIte Ha Tbp6a Ha TeNeBUN3opa.

4 CbpxKeTe Heo6xOaMnTe Ka6eJI N KbM TeJeBn3opa.

YBepTe ce, ye cTe Cbbp3aJn Ka6eJnte
Ipei Da MOHTnpaTe TeJeBn3Opa Ha
CTeHata. Hma Da MoKTe Da rN CBbpKTe,
Cnei KaTO TeJeBn3OpbT e MOHTnpaH.
BxKTe cPpABoCHOTo pBKOBoDCTBO,
DOCTaBeHO C Baunr TeJeBn3Op.

3a6eJekka

Bb3JNOKTe npokpBaHTo Ha Ka6eJIte BCTeHa HnueH3npaH NOIN3bNHTeI.
- YBnIte CbP3BaUNTe Ka6eI INpeIIMoHTnpaHTo KbM CTHeHaT, 3a Da He CTbNITe Bbpx Tx.

5 CbaleTe nocTaBkata 3a Maca OT TeJIeBu3Opa.

• OtctpaHete eHaTa cTpaHa Ha cToKata 3a Maca. IpbXTe 3dpaBO cToKata 3a Maca cTa6nHc DBeTe cn Pbue, dOKaTO npyTu NOBnRaT TeNeBn3Opa.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• IOBTOpeI npEINuHaTa CTbNka n OTCTpaHete Ipyrata CtpaHa Ha CToiKaTa 3a Maca.

3a6eJexkka

CbaHrTo Ha NoCTaBkata 3a Maca CJIeDbA da ce H3BbPmOT DbMa Mnn NOBeYe dywn.
BHMabaTe da He npnlaTate npekomepha cnla, KOraTO CBaJIrTe NOCTaBkata 3a Maca OT TeLEBu3Opa, TbKATO TEeBu3OpbT MoKe Da NaHHe N da npuHHn TeLecHO HapaHaBaHe nn CamnT TeLEBu3Op da ce noBpeN.
-БьдeTe BnMaTeHn, KOrato pa6Ote C nOCTaBkata 3a Maca, 3aДа n36eHete NOBpeKdaHe Ha TeJIeBu3Opa.
BHHMaaTe, KOrato NOBdrateteTeneBn3opa, TbKaTO cToiKaTa 3a Maca He e 3akaueHa n CToikata 3a Maca MoKe Da ce H3Cnne N da npuHn HapaHBAHe.
BHMmabaiTe, KORATO npemaxbATE CToKkata 3a Maca OT TeJEBN3Opa, 3a Da npedOTbpatNTe NadaHTo HapaHBAHeTO Ha NOBbpxHOCTTa, Bbpy KOrTO CToT EeBn3Opa.

KD-65/55XG87□□,

KD-65/55XG85□

1 Cbale Te BnToBete OT 3aHaTa CTpaHa Ha TeIeBn3opa.

2ПикpenTe OKaUbaunTe yactn 3a KOH30JaTa 3a 3aKpePbAne KbM cTeHa. ПрOBepTe yactnte 3a OKaUbaHe, KaTO cpaBHTe C "OocTaBeHo c SU-WL450"В "ПрOBepKa Ha yactnte"Ha cTpaHnua 5.

3a6eJekka

3akpeeneTcactTe 3a OKaYBaHe c NOMOHTa HbNHTOBe.
Korato n3no3BaTe eNEktpnuecka OTBepTka, 3aadaTe HacptpoKaTa Ha BbPTaUN MomeHT npu6n3NTeJHo Ha 1,5 N·m {15 kgf·cm}.
- 3ana3eTe m3no3BaHnTe nI IN He3no3BaHnTe YaCTNa 6e3oNACHO MCTO 3a 6bDeu yNoTpe6a.3ana3eToBa pkoBOcTBo 3a 6bDuea cnpabka.

CtahdapTeH moHTax (2-a)

TeceH MOHTaX (2-b)

3a6eJexKka

Korato N3NOJ3BaTe TO3N CTNI 3a MOHTaX, HMa Da MoKTe Da N3NOJ3BaTe HAKON OT TepMNHaNTe Ha Tbp6a Ha TeNEBUN3opa.

3 CbpxKeTe Heo6xOIMnTe Ka6eI N KbM TeJIeBn3opa.

YBepTe ce, ye cTe Cbbp3aN Ka6eNITe
Ipei Da MOHTnpate TeJeBN3Opa Ha
CTeHata. Hma Da MoKTe Da rCbPKeTe,
cNei KaTO TeJeBN3OpBT e MOHTnpaH.
BnKTe cnpabOCHOTo pBKOBOCTBO,
IOCTaBeHO C Baunr TeJeBN3Op.

3a6eJexKka

Bb3noKTe npokpBaHTo Ha Ka6eIte BCTeHa HJIuEHNpaH NOIN3bJHHTeI.
- YBnIte CbP3BaUNTe Ka6eN IpeN MOHTnpaHTo KbM CTHeTAta, 3a Da He CTbNITe Bbpx Tx.

4 CbaleTe nocTaBkata 3a Maca OT TeJIeBu3Opa.

• OtctpaHete eHaTa CtpaHa Ha CTOnKaTa 3a Maca. IpbXTe 3npaBO CTOnKaTa 3a Maca cTa6nIHO C DBeTe CN Pbue, DOkATO npytn NOBnIgat TeJeBu3Opa.

-Повторе пешнота CTынka n OTсразене Дугата CTраHa Ha CTойКаТа 3a МаС.

3a6eJekka

CbAJIHeTo Ha NoCTaBkata 3a Maca CneIbDa Ia Ce N3BbPmN OT DbMa MnIOBEYe DyuM.
BHMabaTe Da He npilarate npekomepHa cnla, KOraTO CBaJIe TIOCTaBkata 3a Maca OT TeLEBn3Opa, Tb KaTO TELEBn3OpbT MoKe Da NaHHe N da npuHHn TeLecHO HapaHbAe nn CamnT TeLEBn3Op da Ce NOBpeN.
-Будente BHHMaTeHn, KOraTo pa6Otnte cNoctaBkata 3a Maca, 3a Da n36eHHe T nobpeXdaHe Ha TeBEN3OpA.
BHMabaTe, KOrato NOBnIraTe TeneBn3Opa, TbN KaTO CToIKaTa 3a Maca He e 3aKaueHa N CToIKaTa 3a MaCa MoKe Na Ce U3CunE Na PnPsHn HapaHbaHe
BHMmabate, KOrato npemaxBaTe cToKaTa 3a Maca ot TeNEb3Opa, 3a Da npedOTbPaTte naHaTeo HapaHbAHeTo Ha NOBbpxHOCTTa, BbpyKOrTO CToI TEb3Opa.

Mоntаж Ha TeJIeВиЗopa Ha CTeHaTа

KD-85/75XG85□□，KD-75XG87□□

1 NOBdInrHeTe TeJeBn3opa.

3a MeCTOnONoXeHHeTo Ha MaKapnte ⑧ 3a OKaUBaHe BbPxy OCHOBaTa NnnaTepa 3a OCHOBaTa, BnKTe TaBnIuata B CTbnka 3 B "OnpeJeIHa MRCTO Ha MOHTaX"OT CTpaHnua 7.
- YBepete ce, Ye 3aHaTa CtpaHa Ha TeJIeBn3Opa IOKOCBa OCHOBaTa NII aIaITepa 3a OCHOBaTa, KOraTO IbpxNTE TeJIeBn3Opa.

3a6eJekka

-ДьжTe 3npaBo TeNeBnOpa C dBe pBu e Nce yBepeTe, Ye KOnaHbT F nDOnHaTa CTpaHa Ha TeNebu3Opa Ca HapabHO CbC CaMO3aJIenBaUTo Ce TUKCO.
TpmaDyuHOCTe TeneBn3opa,nto3N KOTo e nped TeJeBn3opa Da BOIN OCTaHaNTe, 3a da perynpa no3nIOHOHPaHeTo.

MHOROBHIMBaTe, KORATo MOHTnPaTe TEeBu3Opa KbMCTeHaTa,OCo6eHa 3a YOBeKa,KoITo rO DbpxN OTdony,TbKATO TEeBu3Opa MoKe Da NaDHe N da npuHHcepNo3Ha KOHTy3N JIN DOpN Cmbpt.

2 MoNTpaIte TeIeBn3Opa B OCHOBaTa IJIaIaITePa 3a OCHOBaTa.

BHHMaTeHNO NJIb3HeTe HaOJy TeJeBn3Opa n 3aKaayTe MaKapnte B, 3aKpeHn KbM 3aHaTa CtpaHa Ha TeJeBn3Opa, KbM OCHOBaT aAnTepa 3a OCHOBaTa, KaTo npOBepnte fOpMaTa Ha OTBOpTe.
Cne MoNTax Ha TeJeBu3opa npOBepTe DaIIM MaKApITE B ca 3dpaBO 3aKaueH NbM OCHOBaTa IIN aAnTepa Ha OCHOBaTa.
Babno npchete n DBeTe cn pbce, 3a da cte cnpyn, ye TeJeBn3OpbT HMa da naHe.

CneI KaTo MOHTnPaTe TeJIeBn3Opa KbM CTeHaTa, IpemaxHete Camo3aJIeNBAUToCe TIKCO I np. OT CteHaTa.

2-a

2-b

PNEyIpyEKdEHNE

• YBepete ce, ye Dbama nn noBee dyu (TPma nn noBee duw 3a KOMnKeT TeeBu3Op c pa3MePn OT 75 uHa) dbpxat TeeBu3Opa, koraTo ro Hocnte.

2 MoHTnpaIte TeIeBn3Opa B OCHOBaTa IJIaIaNTepa 3a OCHOBaTa.

BHHMaTeHNO NJIb3HeTe HaOJy TeJeBn3Opa n 3aKaueTe MaKapnte B, 3aKpeNeHn KbM 3aHaTa CtpaHa Ha TeJeBn3Opa, KbM OCHOBaTaNn aAnTepa 3a OCHOBaT, KaTO npOBepNTe fOpMaTa Ha OTBOpTe.
Cne MoTack Ha TeJeBn3opa npOBepTe daH MaKapnte 8 ca 3dpaBO 3aKaueH NbM OCHOBaTa nn aanTepa Ha OCHOBaTa.
- BaBHO nCyHete N DBeTe Cn PbCe, 3a Da CTe CNrpyH, Ye TeJIeBn3OpbT HMa Da naHe.

2-a

2-b

↓

↓

PNEyIpyEKdEHNE

• YBepete ce, ye Dbama nnno Boeye dyu (TPma nn noBoeye duw 3a KOMnKeT TeNeBn3Op c pa3MePn OT 75 nHa) dbpxat TneBn3opa, koraTo ro Hocnte.

3 PpeoTbpaTaBaHe

IpeMeCTBaHeTo HaДоЛHaTa ЧаСТ Ha TeJIeВиЗОпа.

• N3dbpnaIte pa3xla6eHaTa qact Ha KOJahF IЯ 3aKaYeTe PJIbTHO KbM CTeHaTa.

• I3noJ3BaIte BnHT c DnaMeTp5 mm NII eKBuBaJIeHTeH (He e BKIOueH B KOMnJIeKTa).

3a6eJexKka

-OnntaTe IeKo Da n3dbpnte KbM c6e cn dOnHaTa
HCT Ha TeBnOpa, 3a Da CE yBepuTE, He He CE
IpeMeCTBa HAnpei. Ako Ce DnKnU, ToH He e
3akpenen npabunHO N KOanH F Tpr6Ba OTHOBo Da ce
3akpen 3dpabo.

Поберка на

PondepkInBaemble MoeI:

KD-85XG85□□*/75XG87□□*/75XG85□□*/65XG87□□*/ 65XG85□□*/55XG87□□*/55XG85□□*

^* B ΦaKTnuecknx Ha3BaHnJx MoJeI ^ " 06o3Haaye T uΦpbl n/nn CmBOJbI, xapaKTePbIe IJI KOHKeTHOJ MoJeI.

K cBeHeHnO nokyNaTeJIe

Дя obecneuehenia coxpaHnoCTn n3dJIy n n3 COOpaXeHn 6e3OnaCHOCTn KOMpaHn Sony HactoTeJbHO peKOMeHdyET npNBLeKaTb dIy UcTaHOBKn TeJIeBn3Opa TOLbKO dIJIepOB nIIN IInCeH3NpOBaHHbIX NOprdAnKOB Sony. He nbItaTecb BbINOHNbY cTaNOBky camocToTebHo.

K cBeHeHnIO dIJIePoB n IOJaYnIKOB Sony

YdJIyTe NOBbIeHHoe BHIMaHHe 6e3oNaChOCTn BO BpeM yCTaHOBKn, IepNoDiueckoro 0cbLyXuBaHnI N OCMOTpa DaHHOro n3JeNIA.

Для паразиьногу установки данноюн HeобхODIM DoCTaTOHbI ONblT,В OOCobeHHocTN npn onpeDEJIeHnTOrO, B COCToHnJN CTeHa BbldePkaTb BeC TeleBn3Opa.ОБЯЗATEЛбн ДпЯ UCTaHOBKn 3TORO n3DeJIIN Ha CTeHy DInIEpOB IIN JINUeH3NUPOBAHbIX NOdprAnKOB Sony n cTporo co6JIOnaIte TexHnky 6e3ONaChOCTn npn BblONHeHn pa6OT no yctahOBke. Kompanya Sony He Hecet OTBeTCTBeHHocTb 3a JIObIe NOJOMKn IIN TpaBMbl, Bbl3BaHHbIe HENpaBUNbHbIM 6ObaScheHem C n3DeJIeHm IIN erO HeNPaBUNbHOY uCTaHOBKOJ.

Mepbl npedeoctopoXHOCTN B OTHOWeHn DeTei

He no3B0JaTe TeTbMaB36npaTbcHaTeJIeBUN3Op.
XpaHnTe MeKnKe DetaIIN BHe DocraeMoCTn DeTe, TcObI OHn He MOrJI CnyaHNO pRrNtntb nx.

Iocne MoTaxa TeJeBn3opa He BbIHMa'Te BNHTbl N T. D.

B npOTHNOM CNYaE TeneBn3Op MoKET yNaTb N CTaTb PNpHNOH TpaBM NIN NOBpeJdEHN MmUeCTBa

He pa36bpaaiTe n He MeHnTe DeTaJI N KPOHSTeHa dJa HaCTeHHoY yCTaHOBKn.

B npotmbHOM cnuyae kpoHtTeHH nla
HaCTeHHOYcTAHOBKM MoKeT YNaCTb N CTaTb
npuHHoTpaBMnnnOBpeKdEHHNmyUeCTBa.

He yctaHaBnBaIte Ha KpOnuTeH KaKoe-Jn6o Dpyroe o6OpyObaHne, Kpome yKa3aHHoro.

3TOT KPOHHTeIN DIA HACTeHHOYCTAHOBKN
PpEHa3HaueHEN DIA NCIIOJIb3OBAHINr TOnBkoC
yKa3aAHbIMN 13DeIINMAH. ECNn HA DaHHOM
MOHTAXHOM KPOHHTeHNE KPeNTTCs
OBopyDobAHne, He npEHa3HaueHHoe DIA
TAkOYCTAHOBKN, OHO MOKeT yNaCTb NII
NOLyUTb NOBpeXdEHNA, a TAkXE MOKeT
CTaB pPruHHoT PpaBM NII NOBpeXdEHNA
mMyIecTBa.

Bo n36exkHe peperpy3KN KPOHSTeHa dIra HAcTeHHoH yCTaHOBKn He yCTaHaBJIbBaIte Ha HeM HnueRo, KpOme TeJeBu3Opa. He Tpcnte TeJeBu3Op BLeBO/BnpaBO,BBepx/ BHn3.

B npoTnBHOM cnYae TeJeBn3Op MOKeT yNaCTb N CTaTB npuHNO TpaBM nNIOBpeKdHnMMyeCTBa.

He onnpaTecb Ha TeIeBn3Op n He depXHTecb 3a Hero.

He OnnpaIteCb Ha TeneBn3Op n He depXnTcB 3a Hero, TAK KaK OH MOKET yNaCTb N CTb pNpHINOH NOnyueHnE CpeB3hUp TpaM.

BHIMAHNE

PnHec6bIeHN CJeDyUOxN MeP npDeTOpOxHOCTN CyueCTByET BepoTHOCb NOpUyeHn TpaBM nIN nobpeXeHn IMUeCTBa.

YXOD3aHMM Heo6xOIMO OcyuieCTBnTb,He npNKlaIbIBa Qpe3MepNbIX yCNI.

He neperpykaTe BepxHIOU qactb
TelenB3Opa. B npOTNBOM Cnyuae
TelenB3Op MOKeT yNactb N CTaTb pNHyHOI
TpaBM IIN NOBpeXdEHHM MMyueCTBa.

Mepbl npedoctopoXHocTN

EcnTeneBn3Op,ycTaHOBHeHHbHa KPOHHTeHNe DnI HaCTeHHO YCTaHOBKn IN CNOJIb3yeTcB TcTeHHne DnITeBHorO BPeMeHN,TO B3aBCNMOCTOn OT MaTePnaJa CTehbIO3aDN Hero HIN HAD HMM MORYT BBILBEcTB CteHbI INOTCTaTb O60N.
-Посné Демотраха Кронштейна Дпя Н acteHноу cTaHOBKn B cTeHe oCtahyTcR OTBepCTN.
He nCnoJb3yTe KPOHJTEHN Jnla HAcTeHHOYcTaHOBVKN BMeTax C mExAHuYeCKMm BVpAuaRMn.

He yctaHaBnBaIte KPOHHTeH DJI HaCTeHHoY UCTaHOBKN Ha TaKHX CTeHax, rKe Kpa TeneBn3opa 6yDyT BbICTyNaTb 3a Kpa CTehbl.

He yctaHaBnBaIte KPOHtEnH nIa HAcTeHHoYCTaHOBKN Ha TaKNX NOBepxHocTAX CTEN (HaNPIMep, Ha KOLOHnax), rJe Kpaar TEJEBN3Opa 6ydyT BbICTyNaTb 3a Kpaar NOBepXHOCTn CTHebl. 3aDeB 3a BlcTynauIe Kpaar TELEBN3Opa, MOxHO NOLyUHTb TpABMy IINIOBpeDnITb IMyIeCTBO.

He yctaHaBnBaITe TeIeBn3Op nOd KOHdNcNoHepOM nIn HaD Hm.

EcnnB TeueHne npoJOnKnteIbHorO npomExyTKa BpeMeHN TeJeBn3Op NOBpeXeH Bo3dECTBNO KOHeHCATA NIO NOTOKa BO3dyxaN KOHNuOHepa, 3TO MOKeT CTaTb PnUHNO B03RopAHN TEeBN3Op, NoPaxeHNe 3JIeKTPnCeKNM TOKOM INN HEnCnPaHBnCTN TeJEbn3OpA.

O63aTeIbHo HaedeKHO npKpeNte KPOHSTeH dHaCTeHHo yCTaHOBKn K CTeHe, cJeDy INcTpyKcNm, pNBBeEHbIM B HAcToaem pyKOBOdCTBe.

ECNI KAKO-NI60 N3 BINTOB OCLa6JeH UINBbINAN, KPOHTEIN DnA HCTEHNOYCTAHOBKNMOKET YNaCTbN CTaTBnPHUHOITPbAM INN NOBPEXDEHNA MUYueCTBA. PnBbIOJIHeHIMMOTAAxO83aTeNbHOICNOL3yTE BNTBt, KOTopbe COOTBeTCTBYOTMaTePNAYCTeHb, INADEXHO YcTAHOBNTYCTPOINCTBO, INCNJb3yH He MeHee YeTbipexBINTOB 8 MM (ININ aHaONrHyhIX).

O6a3aTeIbHo
NcNoIb3yIte
BXoJaUne B KOMnJIeKT
BnHTbI N DeTaJIu DJIa
KpeJIeHnI N CTpOro
CleDyIte
NHCTpyKzIaM,
PnIBeDeHHbIM B
DaHHOM pYKOBoDCTBe
no yCTaHOBKe. Ecln
PnYCTaHOBKe 6bln
NCIOJb3OBAHbI INHbIE
KpeIeXHbIe
MaTePnaJIbI,
TeJIeBn3Op MoKeT
yNaCTb N NOJyHTb
NOBpeJdeHnI NJIi
CTaTb PnUHHoN
TpaBM.

063aTeIbHo
BbIOJIHryTe c6OpKy
KPOHHTeHa,TOUHO
CJeDyI INCTpyKcIyM,
N3IOKeHHbIM B
HaCTOJsem pyKOBOdCTBe
No yCTaHOBKe.

Ecnn KaKoi-Jn6o n3 BnHToB ocna6JeH nn BbInan, TeneBn3Op MOKeT yNaCTb NONYuHTb NOBpeXDeHnN nN CTaTb npuHHo NOnyueHn TpaBM.

Haedekho 3aTaNHTe BnHTbIB npedHa3NaueHHbIX JI HNX KpeNexKhbIX OTBepCTnX.

B npoTnBHOM cnUyae, TeJeBn3Op MoXeT yNaCTb NnOlyuNTb NOBpeXdHmN nIN cTaTb npuHHoT TpaBM.

CneITe 3a TeM, YTo6bI BO BpeMa yCTaHOBKn TeLeBn3Op He NOdBepraJcR BO3eICTBnIO TOJNUKOB.

TOnyMnMOrY Bb3BaTb naJeHne n nopuy TeEnBn3opa.3To MoKet npNBeCTN K TpaBME.

YcTaHaBnBaIte
TeJIeBn3Op Ha CTeH eTOLbKO B TOM Clyuae,
ecn OHa IIOCKa N
pacNoJoxKeHa nOd
npAmbIM YrIOM K NOy.

B npotnbHOM cnyae TeNeBn3Op MOKeT ynaCTb nCTaB npuHNO TpaBM.

IocneHaJekkaueyCTaHOBKnTeJIeBN30paObeCneUbTe 6e3OpacHoepacNoJoxKeHne Ka6eJe.

KabEn, npedTaNIOUne npenrTCTBnIa IIOeN ObEeTOB, MOryT CTb PnHNO nOlyeHn cepBe3HbIX TpaBM NIN NOBpeXeHn TeneBnOpa.

He donyckaite 3aueemJIeHnKa6eJnNTaHnIcoeINHnTeIbHbIX Ka6eJeI.

EcnnKaebn NITaHINN INI COeHNHTeBnHbI KaebIb 6ydt 3axat MeKdy UCTPOCBOM n CTEOH INN CNIJNO N3ORHY INN nepekpyeh,TO I3OJIaUN BHYTpEHHNX npoBOIOB MOKeT 6bITb HApUWeHa, YTO MOKeT cTaB pInuHNO KOPOTKOrO 3AmkaHIN NIN O6pbIBA.30 MoKeT Bb3BaTb BO3RopaHHe INI pINBecTN K nopaxHeHIO 3NeKTpUeCKM TKOM.

BnHbI, KpeneJne KpoHHTeHbI dJa HAcTeHHoY cTaHOBKn K CTHe,B KOMPJIeKT NocTabKn He BXOJrT.

IpiMoHTaKe KpoHHTeHa IJn HaCTeHHOYCTAHOBKINCNOB3yTe BHTbI, COOTBeTCTByUoMe MaTePmAny n CTpykTypeCTHei.

M3dJIINr DOJXHbI XpaHHTbcB KAPTOHHoYyAOKOBKe B TEMHom,CYXM, YICCTOM INxopoWBeHTnInpyeEMOM NOMEeHNBYdaHeHNOT MecT XpaHeHNKNCLOTNIeNoey. TemNepaTypa XpaHeHNr:ot-20°Cdo+60C.BnaXHoCTb XpaHeHNr: <80%.

Copepkane

IoproTOBka K yCTaHOBke. 6

PpOBepKa KOMnJIeKTAuN 6

OnpeJeHne MeToNoJoxHeNn yCTaHOBKn 7

YcTaHOBka OCHOBaHHa Ha CTeHy 9

IoproTOBka K yCTaHOBKe TeJeBu3opa...10

KD-85/75XG85□□，KD-75XG87□□ 10

KD-65/55XG87□□，KD-65/55XG85□□.12

YcTaHOBka TeJIeBn3Opa Ha cTeHy.14

KD-85/75XG85□□，KD-75XG87□□ 14

KD-65/55XG87□□，KD-65/55XG85□□ 16

PpOBepKa BbINOJIHeHn yCTaHOBKn 19

IpoouaHΦopMaun 19

Texnueckne xapaktepnctkn. 19

IcnoJb3yIte KPOHHTeH IJIa HAcTeHHoI yCTaHOBKn SU-WL450 IJIa YCTaHOBKn TEJIeBu3Opa Ha CTehY.

PpmeaHne

XpaHnTe n3BnueHHbE BNHTbIB HaJeXHOM HeIOCTyHOM IaIeTeMecTe.

• OnpeJeInte npOuHocTb cTeHbI, Ha KOTopyo 6yIET yCTaHOBHeN TeEbn3Op. Ipn Heo6xoAnMOCtn yKpeJIte CTeHy.

YctaHOBka OCHOBaHnHaCTehy

• IVcnoIb3yIte yeTbIpe nn 6oJIee BnHTOB dnaMetpOM 8 MM nnn aHaIOnuHbIX NM (B KOMnJIeKT NOCTaBKn He BXOJrT).

BCTaBnB YeTbIpe BNHTa B OTBepCTna aanTepa OCHOBaHn ①, npKpeNte erok OCHOBaHnO (20) A (ToJbKO 2-a).

• YctaHOBNTe OCHOBaHne (20) A Tropn3OHTaJIbHO Ha CTeHy.

1 OTMeTbTe MeCTO yCTaHOBKn Ha CTeHe.

• Icnoj3yIte KJIeKkyIO JIeHTy I. d. (He BXoJNT B KOMNJIeKT), YTObI OTMeTITb MeCTOJNOJoxHne TeJIeBn3Opa prdOM C OCHOBAHNEM NII aJaANTepOM OCHOBAHnA. CM. cJeDyUOuYIO Ta6JNuY.

EduHnucbui3MepeHHa:MM

• I3BLeKaIeCTOpOHyI HAcToJbHOI NOCTaBKn NooUpeENo. Kpenko YdepxKBaIte HaCToJbHyIO NODCTaBky DByM pyKaMn, NOKa DpyRne npINoDnHMaIOT TeJeBn3Op.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• IOBtopuTe yka3aHHe DeiCTBne n 13BJIeKInTe DpyryIO CTOpOHy HaCTOJbHOI NOICTaBKn.

PpimcyaHne

-OTCOEINHHeHnHaCTOJbHOI NOCTaBKn Heo6xOIMO TPNN 60eue YenOBeka.
- Bydte octopokhbln He nCnoB3yIte qpe3mepHycNny npn OTCoEINHeHn HAcToLbHOI NOCTaBKn OTeNeBn3Opa, TAK KAK 3TO MOXET PnVBecTn K NaDeHIO TeNeBn3Opa n TpaBMnpOBaHnKOro-Jn60nn NoBpeKJdeHIO TeNeBn3Opa.
- Bydte octopoxhbl npn o6paueHn n HactoIbHno noCTaBko, yTO6bl npedotbpaTntb noBpeXdeHne TeIeBn30pa.
- BydTe octopoXhI npn noHrTm TeleBn3opa, TaK KaHactoBHaI NOCTaBA MoKeT OTCoeHNHTbCn UyNaCTb, YTO MOKeT PnBECTN K TpaBMe.
-Bybte octopoxhbl npn OTcoeHHeHH NaCTOJbHOI NOCTaBKn OT TeLEBn3Opa BO n36ExKaHne ONpOKnDbBaHNy YCTpoNCTBa N NOBpeXJeHNA NOBepxHOCTN, HA KOTopoP pACNOIOXeH TEJEu3Op.

KD-65/55XG87□□

KD-65/55XG85□

1 CHIMnTe BnHTbI C 3aHHei NaHeJI N TeJIeBn3Opa.

2ПркpenTe Kpeнжьie DeTaJI N KPOHHTeHaДЯ HabTeHHoYCTaHOBKn. BbIOnHnTe npOBepky KpeNexHbIX DeTaJIeN COJIaCHO nyHKTy "PpIlaRaETcK SU-WL450"В pa3deJe "PpOBepKa KomJIeKtaUH Na CTp.6.

PpmeaHne

-ПлOTHOЗakpenITEКpenexHbIeДетаисnomouьBOB.
-ПуИСЮЛБОВAHIM3JIeKTPUpeCKOOTBepTKI 3aДaTe MOMeHT 3aTЯKKu,paBHyI npu6JIu3NTeJIbHO 1,5H·M{15Krc-CM}.
XpaHnTe NcNoB3OBAHHbIe NIN HeNcNoB3OBAHHbIE DeTaN B HAdExKHOM MeCTe, YTObI B 6yUysem NX MoXHO 6bIIO NCNoB3OBAbT. CoXpaHnTe DaHHYIO NHCTpyKuIO NO EKpIyatauIN IaJIbHeJWeRO NcNoB3OBAHnI.

CtahapThoe KpenneHne (2-a)

Komnaktha yctahOBka (2-b)

PpmeaHne

-ПиТаКоУCTaHOBKeTeJIeBn3Opa HeKOTObpe pa3beMbHa erO 3aIHeN NaHEIn 6yUT HeIOCTynHbI.

3 PoiKJIIOUHTe Heo6XoIMbIe Ka6eI N K TeJIeBn3OpY.

Ipepe yctahOBKO TeJeBu3Opa Ha cTeHy
6b3aTeNbHO NOKJIouHte Ka6eJn.
Piocne yCTaHOBKn TEJeBu3Opa
IOKJIouHeNe Ka6eJn cTaHET
HeBO3MOxHbIM.
Cm.CnpabOuyHoe pykoBoDcTBO,
Ppnilaraemoe K TeJeBu3Opy.

PpmeaHne

-Длпрoklaадк kabelaВстенHaIMnTeJIHcHpOBaHHORO NOpRdUka.
-Пелед Креленем устpoCTBa Ha CTeHy CBЯкNTe coeINHITeIbHbIe Ka6eN, YTO6bl ClyuHaNo He HAcTyIINrB Ha HnX.

4 OToCoeHnHte HactoIbHyIO nOCTaBky OT TeJIeBn3Opa.

• I3BLeKaIeCTOpOHyI HAcToJIbHOI NOICTaBKn NooUpeEiNo. Kpenko yIepXnBaIte HaCTOJIbHyIO NODCTaBKy IByM pyKaMn, Noka dpyrne npINoDnHMaIOT TeJeBn3Op.

IIOBTOPe yka3aHHoe DeiCTBne n 13BNEKITE Dpyryo CTOpOHy HAcTOnbHOI NOCTaBKn.

PpMueaHne

-ITRAOTCOEINHEHNACTOJIbHOI NOCTABKN Heo6xOIMTO TPNNN 60Jee YeNoBeka.
- Bydte octopokhbln He nCnoB3yIte ype3mepHyO cnny npn OTCoEINHeHN HAcToBHOH NOCTaBKNO TTeBn3opa, TaK KaK 3TO MoKET PnIBecTNI K NaDeHHIO TeBn3opa IN TpaBMnPOBaHN KORO-JINBO NIN NOBpeXJDEHNTO TEBn3opa.
- Bydte ocToPOxHbI npn o6paueHN n HacToJbHO nOCTaBKO, YTO6bI npedOTbPaTnTb NOBpeXeHne TeneBn30pa.
- Bydte octopoxhbl npn noHrtn TeleBn3opa, TAK KaHactoIbHaN POCTaBkAMoKet OTcoeHNHTbcn UynaTb, yTO MoKet PnBcTn K TpaBme.
- Bydte octopoxhbl npn OTcoeHHeHH NaToBHO NoCTabKn OT TeLEBn3Opa Bo n36exKaHne OpiKnDbBaHn yCTpoiCTBa n NOBpeXKeHn NOBepxHOCTN, Ha KOTopo paCNOJoxKe H TeLEBn3Op.

YctaHOBka TeJIeBn3opa HaCTehy

KD-85/75XG85□□，KD-75XG87□□

1ПоднIMITE TeJIeBn3Op.

PacnoJoxeHne 6KnBOB 8 nI KpeJIeHnO OCHOBaHn IIN aAnTepa OCHOBaHn CM. B Ta6nue WaRa 3 B pa3dene "OnpeJeHne MeCTOnoJoxeHn IIN yCTaHOBKn" Ha cTp.8.
- Y6eIntecb, yTO 3aHnra naHeIb TeJIeBn3Opa cOpnKacaetcC OCHOBaHnem nIi aIaTepom OCHOBaHnI npu yIepXaHn TeJIeBn3Opa.

PpimueaHne

• YdepknBaIte TeNeBn3Op oBeIMn pykAmn y6eIntecb, yTO IeHTa F HIXKHa qAcTb TeBn3Opa BbIPOBHeHb IO KneKoJ NeHTe.
• IpeHoc TeENBn3Opa DOJXeH OcyuEcTBnTbC TpEmraIOdbMn:YeNoBek, KOtOpbHaXoDHTcra CnpepaTeENBn3Opa,DOJXeH HAnpaBnTb OCTaIbHbIX IOJeDNy YCTaHOBKn TeENBn3Opa B HaJIeKaUee NOJoxKeHne.

-Пи установке телевизopa Ha CTeHy Heo6xOДИМО co6IIOaTb OCTopoxKHOCTb, Oco6eHNO YeIOnBeky, KOTOpBn NOdepkXINBaETelEVN3Op CnH3y, TAK KaK OH MOKeT yNaCTb N CTaTb PnUHON cepbe3HbIX TpaBM nIu daxke CmepTN.

2 YctaHOBnte TeJIeBu3Op Ha OCHOBaHne IIn aIaNTep OCHOBaHn.

• Octopoxho onyctnte TeJeBn3Op n HaBeCbTe uKnBbl 8, yCTaHOBJIeHHbIe Ha 3aHHe NaHeJIMoHITopa,Ha OCHOBaHne IIN aJaTep OCHOBaHn, co6IIOda fOpMy OTBepCTn.
• Iocne yCTaHOBKn TeJIeBn3Opa Ha CTeHy y6eIInTEcB B TOM, YTO UKNBbl B HApExKHO 3aΦNkCnpOBaHbI B OCHOBaHN nn aadantpe OCHOBaHna.
  MeJHeHNo y6epnte oBe pyKn u y6eIInTeCb, YTO TeJIeBn3Op HAnEKeHNO UCTaHOBneH.

• Nocle yctaHOBKn TeIeBu3Opa Ha CTeHy ydaJIte KneIkyIJeHTy I T. D. CO CTeHbI.

2-a

↓

↓

↓

2-b

RU

↓

↓

↓

PNEyIpyEKdEHNE

• Y6eDntecb,уTo TeBn3Op yIepKnaBoT dBa nnn 60onee chOBek (Tpnn nn Bonee chOBek nnn TeneBn3Opa c DnaRoHaNbIO 75 IIOmOB n BoJbWe) npn ero nepeHoce.

3 PpeoTbpaueHne cmeeHn HxKHeuactn TeJeBn3opa.

• YctpaHnTe cnaBnHy JeHTa E n HaJeKHO npNKpeHnTe erO K CteHe.

• NcnoIb3yIe BnHT dIaMeTpom 5 MM nnn erO kBnBaIeHt (He npunaraetc).

PpmeaHne

Clerka NotaHnTe HxNHO Yoactb TeeBn3Opa Ha ce6y, YTO6bI y6eNTBCr, TTo OHa He DnKcTc Bnepe. EcnEctb He6oJbWOn IIOFT, To TeeBn3Op He 3akpenHe HAnEkaUm Obpa3OM, aJeHTa F CNeDyET 3akpenITb HAdexKhee.

KD-65/55XG87□□，KD-65/55XG85□□

1ПОДнIMITE TeJIeBn3Op.

PacnoJoxeHne 6KuBOB B dny KpeJIeHnO OCHOBaHnI aAnTepa OCHOBaHn CM. B Ta6Nue WaRa 3 B pa3dene "OnpeJeHne MeCToNoJoxeHn Iy YCTaHOBKn" Ha cTp.8.
- Y6eIntecb, yTO 3aHnra naHeIb TeJeBn3Opa cOpnKacaetcC OCHOBaHnem nIi aAnTepom OCHOBaHnI npu ydepXaHn TeJeBn3Opa.

PpmeaHne

• YdepeKuBaIeTeTeLeBn3Op 6eMm pyKaMM.

2 YctaHOBnte TeIeBn3Op Ha OCHOBaHne IJIaIaITeP OCHOBaHnI.

• Octopoxho onyctnte TeJeBn3Op n HaBeCbTe 5KNBbl (8, yCTaHOBJIeHHbIe Ha 3aHHe N aHEn MoHITopa, Ha OCHOBaHne IIN aAnTep OCHOBaHn, CO6IIOda φOpMy OTBepCTn.
• Iocne yCTaHOBKn TeJIeBn3Opa Ha CTeHy y6eIInTEcB B TOM, YTO UKNBbl B HAnExKHO 3aΦNkCnPOBaHbI B OCHOBaHN nn aadantpe OCHOBaHna.
  MeJHeHNo y6epnte oBe pyKn n y6eInTeCb, YTO TeIeBn3Op HAnEKeHNO yCTaHOBJIeN.

2-a

2-b

↓

↓

RU

PNEyIpyEKdEHNE

• Y6eDntecb,уTo TeBn3Op yIepKnaBoT dBa nnn 60onee chOBek (Tpnn nn Bonee chOBek nnn TeneBn3Opa c DnaRoHaNbIO 75 IIOmOB n BoJbWe) npn ero nepeHoce.

3 PpeIoTbpaueHne CMeueHn HxKHeuactn TeJeBn3opa.

• YctpaHnTe cnaBnHy IeHTa F n HaJeKHO npNKpeNITe erO K CteHe.

• NcnoB3yIe BnHT dNaMeTpom 5 MM nIeero KBuBaJIeHT (He npJnaeraTc).

PpmeaHne

Cnerka notaHnTe HxKHOu Yactb TeJeBn3Opa Ha ce6y, yTo6bI yBeiNbTcR, yTo OHa He DnXkETcB npeD. Ecn eCTb He6oJIbWoJIOΦT, To TeJeBn3Op He 3akpenneH HndnxKaUIM o6pa3OM, a JeHTa F CneNyET 3akpenntb HndexKHee.

• WKNBbI ⑧ HaJExKHO HaBeWeHbI Ha OCHOBaHHe NnN aDanTeP OCHOBaHn.
• Hyp n KaebIb He nepekpyeHb I He 3aueMneHbI.
• JeHtA F HAnExKHO npNkpeHnEh 6e3 Cna6nHbI.

PNEyNPEKDEHNE

• HenpaBnIbHoe paonoloxKeHne Ka6eI npTaHnI n. d. MoKET IINBeCn K Bo3RopaHnIO NII NopaxKeHIO 3JIeKTPuueckm TOKOM B pe3yIbTaTe KOpOTKOrO 3aMbKaHn.IIg oEocneueHnE 6e3onacHOCTN y6eDNTecB B TOM, YTO BCE IIYHKTbI yCTaHOBKn BblINOJIHeHbl.

Почая Информацья

Pn cHrTn TeIeBn3Opa BbInOnHnTe OINcaHHyO BblSe IpoceDpy B o6paTHo NocJeIOBaTeJIbHOCTN.

PNEyIpyKdHne

• Y6eIITecb,уTO MOHITOp yIepKINBAHT IBa IINI 6OJIe eJIOBek (TpN INI 6OJIe eJIOBek IINI TeJIeBUN3opa C dIinaRoHaJIbIO 75 IIOIMOB I 6OJIbIe) npn erO CHaTUN.

TexHnueckne xapakTepncTkNk

Pa3mepb:(npn6J.)[MM]

He BnKpyuYTe rBnHTn, Too, nCJMa MOHTyBaHHa TeIeBi3opa.

Kkuo 3poobTu Nce, TeneBizop MoKe BnactTa 3aBdaTc Cepno3Hx TpaBM YN npu3BeCTNo NOIkwokxeHH MaHa.

He 3miHouTe deTaJI KPOHHTeHa dJa HAcTIHHOrO KpinJeHHa.

Kkto 3pObTuN Ce, KPOHTeH DnA HACTHNO KpIJIeHN M0Xe Bnactn Ta3aBdATCepo3Hnx TpaBM Yn Pn3BcETn Do N0KWQJxEHHaMaHa.

He BCTaHOBJIouTe HiaKnx iHmX npncTpoIB, Kpim 3a3NaueHOro Bnpo6y.

Ley KPOHHTN DIA HACTIHORO KPIINENH
Pn3HaueHO DIA BUKOPCTAHN IINIE 3
3aHaueHIM BNPoBOM.Y BUNADKY
BCTAHOBENHH INHIX PnCtPoB, KpIM
3aHaueHBOHNMOKytBnactuY
3naMaTNA Ta 3aDaTAt CEPNOHx TPABM Y
Pn3BeCTNo NO WKOJKeHH MaHa.

He 3actocobyTe do KpoHwTeHa dJa HactiHHoro KpinIeHHa IHsi HabaHTaXeHHa OKpIM TeJIeBi3opa. He po3xITyIte TeJIeBi3Op yIbO/BnpaBO qN Bropy/ BHn3.

Kkuo 3pObntu ce,TeeB1Op MoKe Bnactu Ta 3aBdaTc Cepno3Hux TpaBM YN PnIN3BeCTNu NOIWOKOJKeHHMaHa.

He cnpuaTecna TeleBizop i He yinJaTec3a Hboro.

He cnnpaTecHa TeLeB3Op I He cinnnTeCe 3a HbOro, OCKInbKn BiH MoKe Bnactn Ha Bac Ta 3aBdAn CepNo3HNx TpaBM.

PONEPEIXEHH

Kkuo He DOTPmMyBaTnca HabeDeHnx HNxue 3aCTepeXHHx 3axoDIB, CE MoKe npi3BcTn Do cepno3HN TpaBM NnOwKOxHeHH MaHa.

Пд часочишениаобocnyrobyBaHЯВИробу He пнладаitedo HbOrHaMipHOi cnII.

He npknadaTne HaidmipHOi CnIN Do
BepXHbOJtAHNI TeneBI3Op. JxUO
3pOuNTnCe,TeNEBi3Op MOnE Bnactn Ta
3aBdATn cepoNHX TpaBM Nn PnPn3BeCTn Do
noKoKjxEHH MaHa.

3acTepeKHi 3axoDi

KkoTeNebI3Op,ycTaHOBNeHnHa KpoHHTeIN DnHa HAcTIHHORo KpInNEHnB 6yde BnKOpNCbOByaTncnPOTAROM TpMaNoRo Yacy,3aExxHO BId MaTepeiany, kIMM BkpuTc CTHa, NoBPexHr CTInn 3a TeNebI3Opm Hn HaHMM MoKe 3He6apBUTnc a60 BiD CTInn MOKyt bBiKnEITncs Wnaepn.

KpOHNHTINHOro KpIeHHN3HnTNIcToro,AKNoroBNO BCTAHOBHeHO H CTHi, B CTHi 3aJIuWbTaBCr OTBOPu Bid WypnIB.
He BnKOpNCTOBYTe KPOHUITeHN DnA HactHHOrO KpInJIeHHB MicX, De BiIDbYaBaTcBcMEXAHUHcBiBpaCaI.

BcTaHOBLeHnKpOnuTeHnA dIHa nactiHHoro KpInJeHHa

IiHacMOHTyBaHHKPOHHTeHa DnHactiHOrO KpInJIeHHB NKOpNCTOByTeBnHTN BiINOBiHO DO CTpykTpyn CTHN TaMaTepiJy, kIM MOBA BkPNTa.

36epiraTe BnBnB KAPToHHI KopoBcU, y TEMHOMY,CXYOMY,NCTOMy NpMIiueHHi 3 do6poHO BEHTNIAIEO, OKPEmo BiD MlCtB 36epiraHHa KNCLOT I lyrib.TemnepaTpya 36epiraHHa:BiD-20°C Do+60°C.Bonorictb 36epiraHHA: <80%

3mict

PiIroTOBka Do BCTaHOBJeHHra 5

Ipebeipka detae.. 5

Bn3haeHHMaicBcTaHOBJeHH.6

YcTaHOBJIeHHBa3Ha cTIHi 8

ПиД�Товka ДО ВСТаНовЛЕнь ТелевиЗopa......9 KD-85/75XG85□□,KD-75XG87□□......9 KD-65/55XG87□□,KD-65/55XG85□□......11

YCTaHOBJIeHHaTeJIeBi3OpaHa CTiHi.13 KD-85/75XG85□□,KD-75XG87□□ 13 KD-65/55XG87□□,KD-65/55XG85□□ 15

Ipebeipka nicra 3aBepweHnB BCTaHOBLeHHn 18 IHI BiOMocTi 18

TexhiyihapaKtepcntnki 18

BcTaHOBJIeHHaTeJIbI3opaHa cTiHi

Iopraok yctaHOBJeHHa 3aJIeKHTb BiD MoJeJI TeJIeBi3Opa.

Uo6 BCTaHOBtN TeJIeBi3Op Ha cTIHi, BnKOpNCTOByTe KPOHHTeIN dIra HAcTIHHOrO KpInJIeHHr SU-WL450.

PnpMItka

TpmaTe BnKpyeHrBnHTN B63neHOMy, HeocxHOMy dIaIteMicui.

Пидrostовkado

BCTaHOBLeHn

• IpepeBCTaHOBHeHHyYBaXHo O3HaHOMTecb i3 DOBiHNKOM Ta Noci6HNKOM i3 HalaHTyBaHHr TeIeBi3opa.
  -Перед 3биразням поpekeонайтеся,ю MaTe xpectOby BnKpyTKy,Як niДхоДNTb Дя ГИNTIb.
• IpepeBipTe NOIOXeHHB BCTaHOBJIeHHN TeJIeBi3Opa.
  PiIroTuYe npHaMHi QOTnpu rBnuHTn diAmetpOM 8 MM i OAnH rBnuHT diAmetpOM 5 MM a6o ekBbAJIeHTHi (He BXOJaTb Do KOMNJIeKTy NOCTaHaHH).PiIbepiTB rBnuHTu BiINOBiIDHO DO MaTePiaJy,AKIM BkPITa CTiHa.

Ipebeipka deTaJIeN

Noctaeta3SU-WL450

• Ipepebipte, uBci deTaJI BKIOUeHO DOKOMNJIeKtY NOCTaHaHH.

AБаза(20)(1)ВШК	В(2)
CГВИNTPSW6x20(4)	DГВИNTPSW4x20i3ВТУЛКОЮ(2)
EПрokладka(20)(2)	FРемиь(1)
GВтулka(20)(M4)(2)	HГВИNTPSW4x20(2)
IПерекладka(60)(2)	IДГВИNTPSW4x10(8)
KПрokладka(60)(2)	LГВИNTPSW6x50(2)
MВтулka(M4)(2)	NГВИNTPSW4x50(2)

Bn3haeHHa Micra BCTaHOBJIeHHa

1 Bn3haute Micce BCtahOBJIeHHra.

IpekeohaiTecra, 0cTiHa Mae IocTaTHi po3mipn i B 3Mo3i BntpMaTu Bary, OHaHMeHwe B. qotnp pa3n 6ilbuy 3a Bary TeleBizopa.

IaHI, Heo6XiHl IJIy BCTaHOBHeHHr TeJeBi3Opa Ha CTiHi, MoXHa 3HaHTu B HabeJeHIN HIXKYe Ta6nui. Bary TeJeBi3Opa MoXHa 3HaHTu B DoiHNky Io TeJeBi3Opa.

CtaHdapTHe KpInnHnToHKe KpInnHnH

LentpaIbHa ToyKa ekpHa

OdHnIy BmIpOBaHH:MM

Ypa3i Bn6opy 2-b Doctyn Do rHi3d Ha 3aHi nHaHei 6yde o6mexeHn.

3 Miche BCTaHOBHeHnaAaantepa OCHOBn DnBiTbcra Tabniu HnKue. Kaio Bn6paHo 2-b, npOnycitb ue Kpok.

Назва модени Розташуванни raков
KD-85XG85□□	a
KD-75XG87□□
KD-75XG85□□
KD-65XG87□□	b
KD-65XG85□□
KD-55XG87□□
KD-55XG85□□

ПрикpiniTb nepexiДнК ДЯ 6a3n ① 3a ДОпOMоTO ГВИНТа (PSW 4x10) ②do 6a3n (20) A (якso ВибраHo BapiaHT 2-a).

4Bn3HaTe NIOJKeHHr BnHTiB DJIa BCTaHOBJeHHra 6a3n (20) A.

ДиВ.ТexHiHIXapaKTePncTnKnHa cTOp.18.

KaHcBn6paHO BapiaHT 2-a, BnKOpNCTOByte OTBOPn Ha nepexiDnky Jla 6a3n ①.

3ACTEPEXEHH

• CtiHa, Ha kAiYcTaHOBIOEbCtTeNBeI3Op, Ma€ 6yTu 3aTHoB BnTPMaTn Bary, 10 npHaiMHi B YoTnpu paNnepeBnUcBary TeNebI3opa (Bary TeNebI3opa MoXHa Di3HaTncB DObiHNky.).

Bn3HaTcMIuHCTb CTiHn,Ha kYbYE BCTaHOBNEHO TeIeBi3Op.3a Heo6XiHocTi 3MiHiTb CTiHY HAnExHM MHHOM.

YctaHOBJIeHHa3nHa cTiHi

BukopncOByTe npHaMHi QOTnPn TBnHTn diametpom 8 MM a6o eKBiBaIeHTHi (He BXoJrTb Do KOMJIeKTy NOCTaHaHH).
BkpyTb yOTnpn rBNHTN B OTBOpn Ha nepexiHnky dny 6a3n ① 3 6a3o10 (20) A (tIbKn 2-a).
BCTaHOBIOIte 6a3y (20) A ropu3oHTaJIbHO Ha CTiHi.

Пид�товka дOBCTановленnersTelebi3opa

IINB.Noci6HnK i3HaJauSTyBaHHaIBACTaHOBHeHHnOpN.

KD-85/75XG85□□，KD-75XG87□□

1 Po3mitbte Micu e MOHTaKy Ha CTiHi.

3a donomoro mo marnpHOI cTpiKu nn noi6HOro MaTePiaNy (He BXOINTb DO KOMnlekTy NoCTaHaHH) po3MitbTe po3TaWyBaHH TeJIeBi3opa 6Jna 6a3n a6o nepexiDnka dJa 6a3n. DInB. HAcTyNHy Ta6nio.

OdHnIa BmMipObHaHH:MM

ToHke KpInJIeHHa (2-b)

PpimItka

Y pa3i 3actocyBaHH TaKOro Tnny KpInJIeHH He MoXHa BnKOpNCTOBByBaTn OKpeM i po3'EMn Ha 3aHi nAneI TeJIeBi3opa.

4Пдклочьdo TeleBizopa Heo6xidiKa6eJI.

Ipebeipte niknueHHKa6enib nepeyCTaHOBHeHHMaTeLeBi3Opa Ha ctiHi. Picna BCTaHOBHeHH TaJIeBi3Opa 6yHe HEmoXJINBO nIKnIOHTu Ka6eni.

IINB. OoiHnK Do TeJIeBi3opa.

PnIMtKa

Ka6eIb y cTIH MaE npoklaaTn IiueH3oBaHn nIDPAHnK.
- YnpaKyTe Ka6eni, He Hactyntn Ha Hx, nepu HIX MOHTyBaTH Na CTHI.

5 Bi'ειηαίte hactiβHy πiδnopy Bi TeileBi3opa.

3HimaTe OndHy CTOpOHy HactIbHOi nIa np 3a pa3. MiuHo TpMaTe HactIbHy IINOPy DbOMa pykAm, B Toi Yac k IHwi OcO6n NiIMaOTb TeJIeBi3Op.

KD-85XG85□□

KD-75XG87□□，KD-75XG85□□

• Nobtopitb nonepedhi Kpok Ta 3HIMtB iHw cytoPOHy HactiNbHOI iDnOpn.

Pnpimtka

-ⅢoHaHMeHHe TPNOC6nNtPio6Ho,IO6 BiD'EDHaTn HactiBHy nIDnpy TeeBi3opa.
OctepiraTecra 3actocyBaHHHaMipHcNIN, BID'EDHyOuH NACTIbHny NiDnOpby BiD TeneB3Opa, OMOKe Pn3BecTu Do NaiHHr TeneB3Opa i CtaTN npuHIO TpaBMyBaHH JIOeJ a6o NoKoJKeHHr TeneB3Opa.
-ObepexHo NOoBbTec3 HactiIbHOIO niNnopoIO, 06 He noWkoDIT TeJeBi3Op.
-ПиДИМанTe TelenBizOp ObepeKHo, OCKINbKN BiI'cDHaHa HAcTINbHa ПДINOPa MOnKe NepeKHyTnCra Ta CnpuHHTn TpaBMn IIOdeN.
- BydTe Bkpa ObepeXHMM, KOJI 3HImaTmMeTe HactInbHy nIINpOy 3 TeNeBI3Opa. JaKIO nIINopa BnAe, BOHa MOKe NOUKOHTN NOBepxHO, Ha KIK TpMaCTbCg TENeBI3Op.

KD-65/55XG87□□

KD-65/55XG85□

1 BnkyiTb rBnHTn i3 3aHbOi naHeI TeJIeBi3opa.

2 3aФICyIe KpINJIbHi eIemENTKPOHHTeHaДЯ NaCTIHHO KpINJIeHHa. IpeBipTe HaABHicThycix KpINJIbHnx eIemEHtIB, KopNCTUOuNCb CnNCKOM «ПocTачaETbc3 SU-WL450» y po3dJIi «IpeBipKa Detalee» Ha cTOp.5.

PpIMtka

HaIiHo 3aΦikCyIe KpInuIbHi eJIeMeHTn 3a DOnOMOrOIO rBnHTIB.
Дя eNeKtpnHoi BukpyTkn BCTaHOBITb MOpENT o6eptAHHa np6n3Ho 1,5 H·M {15 Krc-cM}.
-ObOB'3KOBO 36epeXitb BnKOpuctaHia 60 HeBnKOpuctaHI KOMNoHEHTN B 6e3neHOMy MiCi Ha BNanok, kAIO BOH N3HaOobJrbcB MaBbYTHbOMy. 36epeXitb uei Nocihk dIbn BnKOpuctaHHB MaBbYTHbOMy.

CtaHdapThe KpinneHnra (2-a)

ToHke KpInJIeHHa (2-b)

PpimItka

Y pa3i 3actocyBaHH TaKOro Tnny KpInJIeHH He MoXHa BnKOpNCTOBByBaTn OKpeM i po3'EMn Ha 3aHi nAneI TeJIeBi3opa.

3Пдклочьdo Telebi3opa Heo6xidi Ka6eni.

Ipebeipte niknueHna Ka6ebiib nepeyctahOBHeHHa TeleBi3opa Ha ctiHi. PicnaBCTAHOBHeHHa TeleBi3opa 6yndeHEMOXINBO nIKNIOHTu Ka6eni.1NB. ObiHNK do TeleBi3opa.

Ppimitka

KaebIyCTIHMaEPnpoKlaaTNIueH3oBaHNIiPraHk.
- YnpaKyTe KaBenI, He HactyntHa Hx, nepHIX MOHTyBaTn Ha CTHI.

4 BiD'eHaHTe HaCTiBHy NiDnopy BiD TeLeBi3opa.

3HimaTe OndHy CTOpOHy HactIbHOi nIa np 3a pa3. MiuHo TpMaTe HactIbHy IINOPy DbOMa pykAm, B Toi Yac k IHwi OcO6n NiIMaOTb TeJIeBi3Op.

• Nobtopitb nonepedni Kpok Ta 3HIMITb iHw cytoPOHy hactiNbHOi niDnOpN.

PnpMItka

• OohaHMeHHe Tpu Ooc6n Notpi6Ho, 0o6 BiD'eHaTn HactiBHy niDnpy TeNeBi3opa.
  OctepiraTecra 3actocyBaHH HaMipHcNIN, BID'EDHyOnn HAcTInbHy NiDnOpny BiD TeneBi3Opa, MoMe npn3BecTN Do naHHr TeneBi3Opa i CtaTN npuHIO TpaBMyBaHH JIOeJ a6o NooKoJXeHHr TeneBi3Opa.
  -ObepexHo NOOBbTec3 HactiNbHOI iINopoIO, 06 He noWKoDIT TeEbi3Op.
  PiHimaTe TeneBizop ObepeKHO, OCKINbBiEHaHa HactIbHaPiNopaMOKe nepeKHyTcTa CnpuHHHT TaPBMn IIOe.
• ByIbTe BkpaObepeXHmM, KOJI 3HIMaTmMeTe HactInbHy nIDnopy 3 TeNeBi3opa. JaKIO nIINopa BnaJe, BOHa MOKe NOuKOJNTn NOBepxHIO, Ha KaIITpMaCTbCRA TneB13Op.

YctaHOBJIeHHaTeJIeBi3opaHa cTIHi

KD-85/75XG85□□，KD-75XG87□□

1ПiДнimitsTeJIeBi3Op.

• ⅢHaTnca po3aWbHn HaKIB ⑧, 3a Jki TeJIeBI3Op NiDiBiWyEcHa Ha 6a3i a6o nepexiHnky dny 6a3n, nB. Ta6JnIu Iy eTany 3 B po3diI i «Bn3HaueHHra Micra BCTaHOBHeHHra» Ha cTOp.7.
• Tpmaou TeIeBi3Op, nepeKoHaNTecra, 3aHn6iK TeIeBi3Opa TopKaETbC8 6a3n a6o nepexiHnka dna 6a3n.

Pnpmitka

HaHIO TpMaTe TeIeB1Op O6oma pykAm. PemHb F y HxKHi YaCTnHi TeEbi3opa Ma6 6yTu BnPIBHn3a MaJIArPHoO CTpiKoO.
- TpmaTn TeB3Op nobHHI troe IIOJe. To, xTo po3TaOBycBcra Cpepey BiHocHO TeB3Opa, Ma DaBaTu Bka3iBKn IHWM, 06BupiBHTn nIoXeHHa TeneB3Opa.

-6yDBe Bkpa ObepeXHmN, KOIN BCTaHOBIOeTe Tenebi3Op Ha cTIi. OocblnBO obepeXHM cnid 6ytu TOMy, xTO niTpmye Tenebi3Op 3HN3y. PaHHa Tenebi3opa MoKe npu3BecTu DO TAAKnx TpaBM Ta HABiTb CMEptI.

2 YcTaHOBITb TeIeBi3Op Ha 6a3y a6o nepexiHNK Ila 6a3n.

• O6epexHo onyctiB TeJIeBI3Op Ta nIDbcIte uKIBu 8, npNKpINLeHi 33aNy TeJIeBI3Opa, Ha 6a3i a6o nepexiHnky dJa 6a3N (BOHN NOBHHI BiINOBiDaTu PO3Mipam OTBOpIB).
• Iicra BCTaHOBHeHHaTeBeI3Opa Ha CTiH ipekoHaTecra, 10 WkIBn HauHIO 3aikcoBaHo B 6a3i a6o B nepexidnky nn 6a3n.
• NobilbHO BiDnyckaIte TeIeBi3Op 6Oma pykam, uo6 nepecBIDHITnC, uo BIn He BnaJe.

-ПисяВCTaHOBHeHЯTeJIbI3OpaHa CTiHi 3HIMITb MaJIpy Cy CpiUky (u aHaIorIcHm MaTePiaJ) 3i CTiH.

2-a

2-b

3ACTEPEKEHH

Ohuke paigaldus (2-b)

Markus.

Ohuke paigaldus (2-b)

Markus.

Mass (ainult alus): (umbes) [kg]

0,8

Teneiapra cyeHcH3 he acblbIn typcaHbN, on ci3re Kyan, aybI jxapaKaT ayHbI3 MyMIKH.

ABAI BOJIbIHbI3!

OcbI anbHiny aIapanaIbI cKaTAmaca, kapaKaI aIyIbH3 HeMece MyNIk 3aKIMdAHybl MyMKHl.

KypbIINfbIHbTa3aJay He OraH KYTIM Xacay Ke3iHde KaTbI KYW CaImHaB13.

Teneiapdbh korapb benerihe kahtbkyu mamahbi. Erep coaI cTeHTH 60ncabhi, Teneiapbp Knyalb Hemece MyntkTH 3aKbIMDaHybl MYMkiH.

AldbH any shaapanapbl

Ka6biprafa 6eKty KpOnHteHiHe opHbIInaTneIeNIdapdbI y3ak YakBt 60bl NaIaIaNcHbI3, Ka6bIpaHbIH MaTePnIbHa 6aJIaNbHcTbI TeNepiAp aTbHdAbe He yctHderI TycErepyI MeMece Tyckara3dbI H TYCI KEty MyMKH.
Ka6bprara 6kty kpoohuetaHH opHaTkaHHaH KeiH KaIaTa aCaHa3, Ka6bprada 6ypaHa cBaHaynapb Kaalab.
Kabipara 6kity kpoHtTeHH
mexankanbTep6eic acep eTeIH opbHa
naiDanaHaB13.

Ka6biprara 6ekity kpoHwTeHH opHaTy

Sony dnilnepepi ywiH

ECKEPTY

Keneci Hcykaynap Tek Sony dinyepnepine
aphanrah. KOrapbda 6epinreH andbin
any wapanapabH bIn bIbfbH3 xHe
ocby KpyblfBbOpHaTy, oFaH KYTIM
Xacay, OHb Tkepey Ke3iHde aca Ha3ap
aydpabHb3.

Ka6biprara 6ekity kpoHwTeHH

TeIeIuIapdbIH

6ypbIHTapbI He KaNTaJIbI Ka6bIpra 6eTIHeH WbIFbIN TypaTbIH OpbIHApFa opHaTNaHbI3.

Ka6biprafa 6eKity KPOHtTeHHIN TepeiAapdbin BypbiuTapbl He KaNTanbl Ka6bipra 6eTIHeH uBbl Tpyatbl GaraH cekindi OpiHApra opHaTnHb. Aam Hemece BaCa 3aT TepeiAapdbin uBbl Tpyah BypbiuHa He KAANTaBHa COkca,On Xkapatanyhmece MyNk 3akBmDahybl MYMKH.

TeJeIaApbIH caKbIHDaTkbIHTbIH ycTiHe He acTbHa opHaTaNaHbI3.

TeneiDapfa caKbIH DAkBHTAH yakyt Bokby cy tamblapb akca He cankih ay acoKca, onepTKe, Tokcoryf Hemece TeneiDapbH Dpybc XyMbic ICTeMyiHe eKenyi MYMKH.

Ka6biprara 6ekity kpoHHTeHH OcbI

naindaanhy HcayIbIbHa cyneHe OTbIPbIMMbIKTan 6ekiriH3.

Bpyanapabih6piKofanbinHeTycin Kanran
60nca,Kabipfara6eKity KPOHHTeH Kyanan,
XkapaktaHMece MyNIKTIN 3aKbIMDaHbHa
Eeknyi MymkH.KabipraHbMATEpnaIbHa
cainbpyanapabn naIaNanahb13 XeHe
DnAmetpi8MM (Hemece YKcac)6ONaTbH Tep
He ODA HAN KApyanapabn NaIaNAna
OTbPbN KpyanblMbIKTan6eKITIH3.

BepinreH 6ypaHdaIap
meh 6ekity
6eIweKTePin OcbI
HyckayNbIKTaftbI
HyckaynapFa cyneHe
OTbIPbIN dypbc
naindaHaHbIHbI3.
KocankbI 3JeMeHTTepdi
naindaHaHcaHbI3,
Tepeiadap Kynan,
6ipeyre Dehe
XapaKaTbIH canybl
Hemce TeJeIaDapbl
3aKbIMdAybl MymkiH.

HcyaynbkTa 6epiReh npoceDypanapra cyneHe OTbIPBn KPOHwTeHdi DypbICTa

KypactbipbiHbl3.

Bypanapapb6pi jkorfanca Hemece Tycin
Kanfah Bonca, Tepeuap Kynan, Bipeyre
DeHe KapakatbH canyib Hemece
Tepeuapdp3akmbmdaybyMymkiH.

Бураздалар корсетин reн opьИда мьiktанбекитиу kepek.

OcbnaiopbHdalmaca，TepeuapKylan, 6ipeye dehe kapaKaTabh canyib Hemece Tepeuadpa3aKbMdaay MykH.

OpHaTy Ke3iHdTeNeIaDapbI COfbIn aImaHbI3.

Teneiapdbcofbin ancaHb3, on knyaybI Hemece cbHybMyMkiH. ByaH xapaKaT anybHbM MyKhi.

TeJeIaIapbI Ka6bIprA MeH eDeHRe nepEnHKyIrp 6oNaTbIHdai etin opHaTy KepeK.

Erep conai 6oImaca, Teneiupap KnyaybI Hemece xapaKaT anyBIsMMyKIn.

Tepeiap dypbic opHaTbIraHHaH KeiH Ka6eJIbepdi Aypbc 6ekITiHi3.

Aaamap HeMece 6acka 3attap KaebIe opanatbH 60nca, xapaKaTka He TeEniDapdbH 3akBIMdAhybHa eKeyi MymKiH.

AinHbIMaJIbI TOK cbIMbl HeMece Kocy Ka6eni KbICbIJbn KaImaybl KepeK.

Ainbimab Tok cbmbi Hemece Kocy ka6eni
KpaJI MeH Ka6bipra apacBHa KaCbIbn
KaIcA, MaBICaH Hemece KyuTEN opaIraH
Bonca, Iki KaBITTaftap 3aKbIMDaHIn,
KbIcKa TybIKaTnyra Hemece 3neKtp Ke3IHH
y3inyHe ce6en 6onyb MyMkh. ByeptTtH
naJa bOmyHa Hemece Tok coryr Akenyi
MyMKH.

KpoHtTeHdi Ka6bipfara 6ekityre kaxeTTI 6ypaHaJap 6epiImereH.

Ka6bipfara 6eKity KPOHHTeHH 6eKITy Ke3iHe Ka6bipraHH MaTepnaJIbMeH KpyblmbHa caBypaHdaanapDb naDaanahbHb3.

Ma3MyHbI

OpHaTyfdaaibHbIK 5

OpHaTbIaTbIH opBHdbI aHbIKay 6

Ka6bipfara TyfbipDbl opHaTy 8

TeleNiIapIbI opHaTyfRa daIbHday 9 KD-85/75XG85□□,KD-75XG87□□.9 KD-65/55XG87□□,KD-65/55XG85□□.11

Ka6bipfara Telendapdbi opHaTy 13 KD-85/75XG85□□,KD-75XG87□□ 13 KD-65/55XG87□□,KD-65/55XG85□□ 15

OpHaTydbH aayTaNfRaHdbfBbH TeKcepy 18 BaKa aKnapat 18

TexHnKaIbIK cInaTTaMaIapbl 18

TeJeIaIapIbI ka6bIpraFa oPHaTy

TeneiapdbH Typhe 6aHaNbICTbOpHaTy npoedypacbi e3rewe 60ana.
TД-нbl Ka6bipfara opHaTy ywiH SU-WL450 Ka6bipfara opHaTaTBH KPOHHTeHiH
naiDanaHbIHbI3.

Hycay

• AnbIHrAn 6paHdIaIapDbI 6anaIapdaH anbc, Kayinc3 opbIHra KoibHbI3.

Ophatyfa daHbIHdbIK

OpHaTy aIbHda Td aHbIKaMaJIbIK HcayIbIFbIH XHe opHaTy HcKayIbIFbIH aIbHbI3.
Kypactbipmac 6ypbH 6paHdaapra cai Keletin Phillips 6ypaybiu 60nyi kepek.
TeJeIaIap 6eKITInTeIH opbIHbI aHbIKTaHbI3.
Диамет pi 8 MM 60nataBH Tep Hemece OdaH da KEN 6ypaHaJa XHe 5 MM-Nik Hemece YKcac (6epiImereH) 6ypaHa DaBbIHdAhl3. Ka6bIprAhMATEpnaJIbHa caN KeJETH 6ypaHaJaapDbTaHaHbI3.

БелшекердTekcepy

SU-WL450 KypbIrfbcBImeH 6epinei

BapIbIK 6eJIWeKTePdIH 6ap eKeHdiIRiH TeKcePiH3.

A Heri3 (20) (1) B Terepušík (2)
◎ PSW 6x20 (4)◎ TbIFbIH PSW 4x20 (2)
E Apaŋbɪk (20) (2) E	Bénpáík (1)
◎ TbIFbɪH (20) (M4) (2)	H PSW 4x20 (2)
① Herižrì aðanptep (2)	J PSW 4x10 (8)
K Apaŋbɪk (60) (2) L	PSW 6x50 (2)
M TbIFbɪN (M4) (2) N	PSW 4x50 (2)

OphaTbIaTbIH opbIHdbi aHbIKtay

1 OpHaTbIaTbIH opbIHdbI aHbIKTaHbI3.

Ka6bipraT dyin ketkinikti opbH 6ap ekeHH xhe T-dbH KEMiHte TepTe cce aybpIbIbIH KeTepe aanaTbHdaarH TeKcepH3.

TeeIuapbI Ka6bIprara opHaTy TypaIbKeNeci Kccteni KapaHb3. TeeIuapdbIH caMaFbIH TeKcepy ywiH TeeIuapdbIH AHBkTaMaNbIK HycKay 6JIIMH KapaHb3.

CTaHdapTTbI opHaTy KaKbIH opHaTy
3kpah opTacbIHbIH HykTeci

Kypan:MM

Ynliri hemipi	экразецемерi	экразецьим элшемi	Орнату узbingьгы
	a	b	c	d
				Стондантсы орнату	Жа KBIN орнату
KD-85XG85□□	1909	251	803	142	100
KD-75XG87□□	1673	963	107	595	116 75
KD-75XG85□□
KD-65XG87□□	1450	836	99	523	115 73
KD-65XG85□□
KD-55XG87□□	1231	713	106	468	115 73
KD-55XG85□□

HycKay

KecTeDipeKeTep opHatyra 6aIaNahbictb a3dAn e3eweeneHyi MymKin.
TД ka6bIPfA OF OPAHbIINFaHd TД JxOFApFBi 6eNiri a3d an aHaEKeHeiDi.

TepeHap MeH Te6e XaHe Ka6bipraHbIH 乌fblHKbl 6JIiKTepi apacbIHda TeMeHde KepcetilreHdien aUbIK opbIH KaIbIHbI3.

Kypan:MM

Tnicti xenety khe Kip MeH wahhbH xHHanybH 6oNdbpMay yuH:

• TД-ды Калларын КйmaHbI3,Жorapfbl KaftbH TeMeH Kapa apKa KapTaBn Hemece KblpImeH opHaTnaHbI3.
  TД-дblcepere,kiemre,TceKKe Hemece WkaФKa KOIMaHbI3.
  TД-ды nepденер сяктшубepkeн HeMece ra3etTeP T.6.CNkTbI 3JIeMeHTTepeMn KaHNaHbI.
  TД-дытemeнда КерсTiHReHdO opHaTnAbI3.

Aya aHaHaNbIMbI 6JOKTaJFaH.

Hyckay

Ka6eBnepi Ka6bipra iWine caNtH 6oNcaHb3, opHaTnac 6ybpH Ka6eB caNbHaTbH Ka6bipraHb Tecin anybHb3 KepeK.

KaBeIbIep KbcIbIbn KaMnac yIiH Heri3 (20) A, Heri3ri aIaIaTep ① MeH apaIbIK (20) E, apaIbIK (60) K nepuMeTpIHeH Tbc KaBipRaHaH CaHbIay DaIbIHDaHbI3.

2 Ka6bipfara opnaty ctniH TaHaHbI3. TeJeNiadapdbIH apTKbl XaftMeH Ka6bipfa apakaawbIKtbfbIH TEmHeKepcetinreHdenn TaHdayFa 6oNaDbpeTteNeDi.

2-a CtaHndapTTbOpHaTy
2-b KaKbIH opHaTy

1-Kaam KecTecIHe KaapAh3.

ECKEPTY

-2-b TaHdaIraH Ke3e, ApTkbl TepMHaIra KaTbHac WeKteyni 60anaB1.

3 Heri3ri aanTepdi 6eKity opHbI TypaJIbI TeMeHderi KeCTeDeH KapaHbI3.2-b TaHaJFaH XaFdaNda, OcbI KaamDbI eTKi3in Xi6epiHi3.

Yürgi Hämipi İnmek Öpnbı
KD-85XG85□□
KD-75XG87□□	a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□	b
KD-55XG87□□
KD-55XG85□□

AanTop ① Heri3iH (PSW 4x10)
② BypaHdaIapbImeH 2-a
TaHdaIraH Ke3de (20) A Heri3iHe
6ekity.

4 Heri3di (20) @ opnaty ywiH 6ypaHaIapdbIH opHbIH aHbIKTaHbI3.

18-6eTteri cinnatamanaapbI kapaHbI3. 2-a TaHdAnFaH Ke3De, ① AanTop Heri3iHIn Tecik opHbIn naJaHaHBHbI3.

ECKEPTY

TeJeIaIap OPhaTbIaTbIH Ka6bIpFa TeNeIaIap caMaFbHaH TopEce aybp CaIcAeTbI KeTepe aNybl Tnic (CaMaFbIH TekcepY yIiH TeNeIaIapDbIH AhbIKTaMaIbIK Hcyay 6JIIMH KapaHbI3.).

TeJeIaIap 6ekITinTIN Ka6bIpFaHbIH 6epiKTIirn aHbIKTaHbI. KaXeT 6oNca, Ka6bIpFaHbI XeTKiNkTI TypDe KyuweTIH3.

Ka6bipfara TyfbipdbI opHaTy

-Диametpi 8 MM 60nataBH He yKcac Tept Hemece OdaH da KEN 6ypaHaHbI naaHbHb3 (6epinmereH).
① AanTopbHbH Heri3iHe TepT 6paHaJapBbI (20)A Heri3imEn 6eKtiH3 (Tek 2-a).
Tfbypbl (20) Ka6bipfara KeIeHeH etin OPHaTHb3.

TeJeIaIopHaTyFa daIbIHday

Tipek opHaTy HxckaynbIFbIH KapaHbI3.

KD-85/75XG85□□，KD-75XG87□□

1 Ka6bipfadaftbOpHaTy opHbIH 6enrineHi3.

Heri3 Hemece Heri3 aadanTepi XaHbIHaarbl TeJeIaapdbIn opHbIN 6enriney yuHn Okaynaay TacnacBn, T.6. (6ipre 6epimereH) naDanaHbIHbI3. Keene KecTeHi KaPbI3.

Kypan:MM

Yntri hemipi	Белriney Узblдыflы			Зкpen opТасblнIH Елшемi
	a	b	c	d
KD-85XG85□□	1909	683	200	251
KD-75XG87□□	1673	468	200	107
KD-75XG85□□

2 TeIeIaIapbIH apTbIHdaftbl 6ypaHaIapdbI aIbIN TaCTaHbI3.

3 Ka6bipfara opHaTaTbIn KPOHHTeIN YwIH TIPKey 6eIWeKTePIn TIPKeHi3. 5-6eTTeri «BolweKTePdi TekcepY» 6eImiHderi «SU-WL450 KpypbIJIbICbIMeH 6epinei» TapMaftbIN Kapay apKbIbI MoHTaXday 6eIWeKTePIn TekcepPi3.

HycKay

-6ekity 6eIeKTePi 6ypaHdAnap apkblbMbIKtan 6ekit13.
-3NeKtp 6bybIbTb naIaIaHaHda, aHany 15 KkCm opHaTbHb3.
- NaIaHaHbIraH HeMeCe naIaHaHbIMarHaB6JIeKTeP anDarbl KOnDaHbc yWIn Kayinc3 opBHaKaTaNFaHbIH TeKcepiH3. Byn HcayNtBbI 60NaaKaTaKapay yWIn CaKaTaHbI3.

CTaHdapTTbI opHaTy (2-a)

XaKbIH opHaTy (2-b)

HycKay

-5yI opHaty CTNIH naIaIaNHaHaHaTe TENEiIapDbIH apTKbI XaFbIH DaFBI KOHTAKTTap Kei6ipeYIH naIaIaNHa aImaiCb13.

4 KaKeTTi Ka6eNbDi (Ka6eIbIepDi) TeJeNIdapra Kajray.

Tepeiapbl Ka6bipfara opHaTnac 6ypbH Ka6ebepin XaJraHraHBn TEKcepH3. Tepeiapbl OPhATKaHHaN KeiH Ka6ebepdi XaJray MyMKIn 6oJMaNbbl. TepeiapMeH 6epineTIn AhbikTamabIK Hcyckay 6eimH kapaHbI3.

HycKay

Ka6bipfara Ka6en bkypri3ydi nuehen3nncb6ap Meepirepre 6epiH3.
Ka6bipfaraMOHTaXday aIbIHda,6acBIn Ketney yuH, XanFactbpyu bKa6enbepdi KocbHb3.

5 TД-дан YcteI TyfblpH aXbIpaTbIHbI3.

• YcTeJin yCTiHri TaKTaBbHbH 6ip Jxak 6aHaacbH 6ipDeH aNbIn TAcTaHbI3. BaKa aAamdap TeJeNDapDbI KeTepeRHe We YcTeJin YcTIHri TaKTaBbHbH 6aFaHaCbH KaTbI YCTaHbI3.

KD-85XG85□□

KD-75XG87□□,KD-75XG85□□

AnbHbKaamMbKaTaNbI3XHe yTeiINyCTIHrTaKTabHBnEkiHwJxak 6araHaacbH anbIn TaTaHbI3.

HycKay

• YCTEN TyfbipbH WEEWY YUIN YU H OdaH KEN aam KaKET 60nabbl.
  YcTeN TfYbipH TeNeiDapAn WeuKeH Ke3Je WAmadH KEN KYU CaMMyaTbPbcIbH3,ce6eBi 6yTEniDapBn H Kyan, DeHe XapaKaTbHa HeMece TeNiDapBn Fm3KaNbIK 3akMbHa eKeJyIMyKiH.
  TeIeIaIapbH 3aKbIMdaNybiH 60nblpMAY yuH yCTen TyfbpbH abaian kondaHbHb3.
  TeIeIaapblkotepeHneabai6oJIbHb3,eiTkeHi yCTeTIyfBipAlxkbipaTbInn,kapamcbI3bIKKa yubpaybiMymKIN.
  TeIeIaIapAnyCTenTylbipbHanyKe3InDeKynatbn anydAnXeHe TeneIaIapOpHaTbINFaH6Etke 3aKbIM KeTIpyEnCaTbIKwapanapabHKonfAanbHbI3.

1 TeIeIaIapbIH apTbIHdaFbl 6ypaHaIapDbI aIbIN TaCTaHbI3.

2 Ka6bipfara opHaTaTbIn KPOHHTeIN yWIn TIPkey 6eIWeKTePIn TIPKeHi3. 5-6eTteri «BeIWeKTePdi TekcepY» 6eImiHderi «SU-WL450 KypblfbcimEn 6epinei» TapMaTbIn Kapay apKbIbIMOHTaXday 6eIWeKTePIn TekcepH3.

HycKay

-6ekity 6enwekepiH 6ypaHdaanap apkblb MblkTan 6ektiH3.
3NeKtp6pyaybIITbnaIaIaNHaHda,aHany 1515KcMOPHaTbHbI3.
-Паадааньлган Hemece naДаланылmafah6eTep andafk kondaHc yin Hayinci opbHa caktaFaHbH TeKcepiH3. Byn Hcyaynbktb6onaawKaTa kapay yin cakTaHbI3.

CTaHdapTTbI opHaTy (2-a)

XaKbIn opHaTy (2-b)

Hycay

• By npHaTy cTnH naIaIaNHaHaTaTe TeneIuapDbH apTKbI XaFbIHdaFbI KOHTAKTTap Kei6ipeyH naIaIaNHa anMaIcbl3.

3 KaKeTTi KaBeIbI (KaBeIbIepI) TeJeIaIapFa XaIraY.

Teneiapbl ka6bipfara opHaTnac 6ypbH Ka6eIbdepin H KaIraHraHbIH TeKcepH3. Tepeiapbl opHaTKaHHaH KeiH Ka6eIbdepj KAnfay MymKiH 6oMaJbI. TepeiapMeH 6epineTiH AnbiktamaNbIK Hyckay 6enimH kapaH3.

HycKay

Ka6bipfara Ka6en bxypri3ydi NnueH3nrcbl 6ap Meepirepre 6epiH3.
Ka6biprafmoTaxkdayaIbHda,6acbnKeTneyyuih, KaIfactbpyu b Ka6enbdepni Kocbl3.

4 TД-дан Yстел Tyfblpbln axblpaTbIHbI3.

YCTeJIiH yCIiHi T aK TaIbIHbH 6ip Jxak 6aFaHaCbIH 6ipDeH anBn TactaHbI3. Baca aamap TeNeiDapDb KTepeRHeJe YCTeIN H yCIiHi TaKaTaNbIHbH 6aFaHaCbIH KaTbI YCTaHbI3.

AaHbIbI Kaambl KaTanaHb3 XHe yCTeINIH YCTIHr TaTaNbIHbEkiHwJ KAK 6araHaacbIH anbIn TactaHbI3.

Hycay

YCTEN TYfbiPBbH WEEWY YwIH Yw He OdaH KcN aam KaKcET 60nabbl.
YcTeI TYfblpH TeeNuaapan WeuKeH Ke3de 1aHaAN KEN KYU CaMMyFa TbplcbHb3,ce6e6i 6yTeneuIaepbH Kylan, DeHe XapaKaTbHa HeMece TeneuIaepbH Fm3KaNbIK 3akMbHa eKenvi MVMKH
TeIeIaapbH 3akbIMdanybH 60nDipMAY yuH yCTeTyfbpH a6aINaN KOnDaHbHb3.
Teeneiapblketepehneabai6oJIbHb3，eHTkeHi yCTeTIyFbipAlxkbpaTbIbIN，XapaMcbIaBikKa yUbipaybMYMKH.
TeEniapanYCTenTfblpbiHanyKe3iHcKynaTbni anyaHxHe TeneiDap opHaTbIaNFA 6eTke 3akim KeTIpydeh CaTbIK WapaanapBn KONFa anlbHbI3.

Ka6bipfara TeIeIiIapIbI opHaty

KD-85/75XG85□□，KD-75XG87□□

1 TepeiapdbI KeTepiHiz.

Heri3deri Hemece Heri aanTepihderi imekteri TerepukkTe 8 opbH 7-6Tteri «OpHaTbIaTbH opbIHbI aHbIKay» iwiHderi 3-Kaam keCTecHeK kapaHbI3.
TeeneiapdbI yctaraH Ke3e TeJeiap apTbI Hei3re HemeC Hei3 aanTepiHe TneTIiHe Ke3 XeTKi3iH3.

HycKay

TeNepiapbki konmeh 6epik yctan,6en6ey F xane Tepeiap actbi OKwaynay TacnacbImeH TypanaHaHbHa Ke3 XeTKi3iHi3.
TeIeINapbl yu aam BoNbIn TacbImaHaB3KeHe TeNeINap anDbHafbl aam BackanapbHaOpbH peTey BoHbIHwHcykay bepy KepeK.

TeeneiapblKa6bIprafae6eKITyKe3Hneabai 60nblb3 (acipece, Teeneiapbl acTBHaH yCTaTbH aam), c6e6ti Teneiap KINHArly Kynan, aybp DeHe JapaKaTaHa Hemece Tiinti EImre eKenyi MymkiH.

2 TepeiapIbI Herizre Hemece Heriz aanTepiHe opHaTbIHbI3.

TeeneiIapabiaakbpihTemeHcbipfblIN, TeeneiIap apTbHa TipKeIreH terepwikTepdi 已 heri3re Hemece Heri3 aanTepine inin, cahbnaynap niwiin paCTaHbI3.
TД-ды ka6bipfara opHaTKaHHaKeiH TereepwikTeP ⑧ Herizre Hemece Herizri adanTepre 6ekem iinHreHdiirn Tekcepiny3.
TeIeIaIapDbIH KJlAmaHTbIHbHa Ke3 XeTki3y ywiH eKi KOJIbIHbI3dbI 6aay 6ocatblbI3.

Tepeiapbl Ka6bipfara opHaTKaHHaH KeiH, Ka6bipraHaN Okuaynay TacnacbiH, T.6. WewiH3.

2-a

↓

↓

↓

2-b

↓

↓

↓

ECKEPTY

TeIeIaIapbI TacImaIay KeiHne eKi Hemece OaH KAp aAM (75IOHMdi XHe OaH YKeH TeJeIaP aKHaFbI yIH YH Hemece OaH Kp aAM) YcTaFaHbIH TeKcepij3.

3 TepeiapbH TeMeHri 6eJIiriH Xblkbln KeTyH 6oJbIpMay.

• BeNdiKti F aIbIn, OHbl Ka6bIpfara MblTan 6ekTiH3.

-Диametpi 5 MM 60nataBH HeMece YKcac 6ypaHdaHbI naDanaHbIHbI3 (6epimereH).

Hyckay

TeEniDapbH anFa Kapai KblkbimauTbHbH TeKcepy yuiH TeneDuapdbH TemeHri 6enirih e3iH3re Kapai akbpH TaTpBn KePiJ3. KblknTuH 6onca, dyplic 6ekitimeren 6onfaHbXeHe 6enikTI KaTa 6ekitih3.

KD-65/55XG87□□

KD-65/55XG85□

1 TepeiapdbI KeTepiH3.

Heri3deri Hemece Heri3 aanTepiHderi imMeKteri TerepWikTep 8 opHbH 7-6eTTeri «OpHaTbIaTbIH opbIHbI aHbIKay» iwiHderi 3-Kaam keCTecHeH KapaHbI3.
TepeiapbI yCTaFAn Ke3De Tepeiap apTbI Heri3re Hemece Heri3 aanTepiHe TneTIiHe Ke3 XeTki3iH3.

HycKay

TeIeIaIapIbI eki KJIbHbI36eH TbIFbI3 YcTaHbI3.

2 TeIeIaIapIbI Heri3re Hemece Heri3 aIanTepiHe opHaTbIbI3.

TeeneiIapdbiaakbpihTemeHcbipfblIN, TeeneiIap aptbHa TipKeJreH terepwikTepdi 已 Heri3re Hemece Heri3 aanTepine inin, cahbnaynap niwiHn paCTaHbI3.
TД-ды ka6bipfara opHaTKaHHan KeiH TereepwikTeP ⑧ Herizre Hemece Herizri adanTepre 6ekem iinHreHirH TeKcepij3.
TepeuapdbIH KyaMaHbHbHa Ke3 KETki3y yuih eki KOJIbHbI3dbl 6aay 6ocatbHbI3.

2-a

2-b

↓

↓

ECKEPTY

TeIeIaIapIbI TaIbMaIay Ke3iHne eKHe Hemece OaH KEN aAM (75IOHMdi XKeH eOaN YNKeH TeJeIaIap KINHaFbI YWIn YW Hemece OaH KEN aAM) YCTaFaHbIH TEKcepH3.

3 TeIeIaapbH TEmehri 6enirinH Xblkbln KeTyIH 6oIbIpMay.

• Beiikti F anbIn, OHbl Ka6bIpara MbiKtan 6ekitiH3.

-Диametpi 5 MM 60nataBH HeMece yKcac 6ypaHdaHbI naDanaHbIHb3 (6epimereH).

HycKay

TeIeIaIapbH anFa Kapai KblKbMaTbIHbH TeKcepy yuiH TeneIaIapbH TemHri 6enirH e3iH3re Kapai akbpH TaTpBn KePiJ3. XblNkTuBn 6onca, dyplic 6ekITINmereh BonFaH bKeHe 6enlkiT F KaTa 6ekTIH3.

OpHaTydbIH aKaTaNfAHDbIFbIH Tekcepy

Kenecinepei TekepiHiz.

TerepuikTepeHemerceHerizirandepre aantepihe bekem iniHdi.
- CbIM MeH Ka6eNb opaMaFaH Hemece KbICbIMMaFaH.
- BeNDiK (F) MbykTan 6ekitijreH.

ECKEPTY

AinbimbltOKcmbihHemeceT.5.KateophaIacyb KbickaTyibkTanyCaIaapbIHHaepTTiNaJa6OlybHa Hemece TokcofYKayniHEeKeJyIMKIn.OpHaTy KMybICTapbHbIKayinc3dk TaanTapbHa caOpbHdaTaNbHaKa3XeTKi3H3.

Backa aknapaT

TeneiIapbl anfah Ke3de andbHfb opHaTy npoeDypacbH KepiciHwe opbHdaHbI3.

ECKEPTY

TeIeIaIapbIweuYKe3Hde eKHeMeceOaHKeN aam (75IOHMJI XaHE OaH YnKHe TeneiHaP JnHaBj YwIH YW Hemece OaH KeN aAM) YCTaFaHBH TeKcepHJ3.

TexHnKaJIbIK cHnTaTamaJapbl

in 1000000000000000000000000000000000000000000000000000000000

,yn by npnnn nn n npnnn nn n nn n nn n nn n nn n nn

nni nni nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

ybynnn,ynynn

IN nnnn nn nn

ynnn nn nnnn nnynnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

#

Dn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

n nn nn nn nn nn nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

yyn pnn by nno nyon bnbynwn,nyon on.ynbn ypninnyo

177

DINNNN NNNN BYNPN INN NNNN NNNN NNNN NNNN NNNN NNNN

ybn npnnv topn

07712 0316 7-5y 131 077 pnnn .npnnn

IN np nnnn 1000

n

n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

y nynnnn nn np 1

y 107

10000000000000000000000000000000000000000000

NNN 107

yhy nybn,nyyn ON

yyn yyn

yhy npn nny on

7777777777777

ybn by pwn yyn np nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

mno 2y

y

mmppb

yipnnn npnnn npn n nn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn npnnn

Sony

y 10000000000000000000000000000000000000000000000000000000000000000000000

ynnn nn nnnn nn nnnn

N NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

in nnnn nn nnnn nn nnnn

NNPnnpn TINNp bynnn.

ybnbynnbnynnynn

5vnnn nnN 107 p7n,

，

IN nn an 7vannn .

Onnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

yDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDyDy

ywnn nnynnnn nnynnn

IN OIN NIN INN ON
NIN,NNN NNNNNNN
NIN IN NINNNNN,NNN

NNnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nna, n 100000000000000000000000000000000000000000000000000000000000000000000

ywnynn 10
nnnnpn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnn

nppnnn

0

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

N 5 100

• nyn nn nn nn nn, npnnn 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• 6
  ·
  8 9 KD-65/55XG87□□11 KD-65/55XG85□□
• 1. KD-85/75XG85□□,KD-75XG87□□ KD-65/55XG87□
     . KD-65/55XG85□

#

SU-WL450 1

(1)(20) (A)(2) 防火手B

18
18. 0792

PSW 4x20 (2)

(4) PSW 6x20 (5)

(2) (20) n（1）n

F

nnuuun nnnn nn nnnn nnnn Su-WL450 npnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

(2)PSW4x20 H

(2) (M4) (20) ⑨

.075v07vnnopnnn

，

(2) D

①⑧)PSW4x10 ⑥

(2) (60) mnn

K(2)PSW6x50 L

(2) (M4)

M(2)PSW4x50 N

nppnn npny noyn

1.nppnn

yNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnN

：

	\( \mathrm{n} \)	\( \mathrm{y} \)	\( \mathrm{z} \)	\( \mathrm{w} \)	\( \mathrm{h} \)
	e	d	C	b	a
n	n	n
n	n	n
					1,9091,097KG
					KD-75XG87□□
					KD-75XG85□□
					KD-65XG87□□
					KD-65XG85□□
					KD-55XG87□□
					KD-55XG85□□

.
.

nna 1nnn nn nnnn nn nnnn nn

2-a

npt nvn 2-b

12y

77

nnn nn nyn,2-b nna

nnn

.0000000000000000000000000000000000000000000

a	KD-85XG85□□KD-75XG87□□KD-75XG85□□
b	KD-65XG87□□KD-65XG85□□KD-55XG87□□KD-55XG85□□

2 1

n:n
IN PBN5V 7
- by in Tn,
-NNnNn
-，
m : x = 1 或 3x + 4y + 1 = 0

.

n nn n

nnpnn nnnnn nn noan noan np

yinnnnn nn, nnnn nn

(20) nnnn ① v nn, (20) v nn

(60) nnnn

7pn 2x-5y 0oan npnn

（）

.（2-a）A(20)VVA#N①V

.

2-a

2-b

ONnn 1pnn,2-a nnny

· 87

A (20) v'v'v'v (PSW 4x10)

• ANNAN

4 npnn

A(20)

.18 0y

yinnipwn2-ainny

.①

77

·

ynnn nn nnnn nn nnnn

mmbn by nnnn nn mmbn

.1npwn npny

. mnnn nn

nnpnnpinnnp

3nnae

TNNN NNNN NNNN NNNN

nn nn n nn .n nn 7" yy y y -y "SU-WL450 0y 0y 0y 0y 5 0y "0y nn np

KD-85/75XG85□□, KD-75XG87□□

#

077777777

NININININININININININ
- ynnn nn np, nnnn nn nnnn
·nNnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

1. n

1007 10 (p910

ONN BY IN O'ON BY NIBN W

NTN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7TNDN7T

nnnnnnnnnnnnnnnnn

INO

nunbn nn nnnn pnnn F nywnny

-

07NNN 1111111111111111111

DTNTOVON

• non, np by np bn npnn nn

by monbbon n

nynnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

nnn by n nn by n nn wnn 3 27777777777777777777777777777777

nnnnnnnnnnnnnnn

1. nnnn nn nn
2. ⑧ 的一个定义：

IN 022 ynnn nnnnNTN

3nnn

.

• nnnn（

. npnna

.

n nn n nn nn 8 nn nn nn np by np, nn nn

Tn nn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

NNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTN

niv 5 vip nn . (pov) Tv

#

72N mmbv

nON.nN NNNnNnNpNn,nnnnnnnn

#

·INOW

75 75

3nnn

.

• nnnn（

.

niv 5 7

(pan)

#

• 72x mnnn

nON. nN NNNNnNnNnNnNnNnNnNn

[1]（7y）：

400 : a

300:b

200:c

100:d

80:e

480:f

100:g

(2-b nppn) 20:h1

(2-a nnp) 60 : h2

[1]（7y）：（7y）

0.8

y

nppnn nnsyn nn

.

.07070

S OBC = S COD + S_ BOC

.

.

77

·

nn Dn np n nn nn nn

mivan yn npnn

77

nppnn nn nyn yy, npbn nn ny

PB BA

77

ybn75

nannnny
