Product type	Oil-free air compressor for hobby use
Brand	Erba
Model	17001
Power supply	230 V ~ 50 Hz
Motor power	1100 W (1.5 HP)
Motor speed	3750 rpm
Max operating pressure	8 bar
Air consumption	180 L/min
Duty cycle (S3)	15 % (1.5 min on / 8.5 min off)
Sound power level (LwA)	97 dB(A) ± 3 dB
Sound pressure level (LpA)	83 dB(A) ± 3 dB
Protection rating	IP20
Weight	5.5 kg
Main functions	Inflation (tires, boats, mattresses) and dusting
Included accessories	Air hose, blow gun, inflation adapters (x2), needle, dust nozzle, universal adapter
Safety	On/off switch, overheat protection (automatic shutdown)
Intended use	Domestic and hobby use only (non-industrial)
Maintenance	Clean regularly, check seals, use original parts
Warranty	Applicable legal warranties
Disposal	Recycle according to local regulations (metals, plastics, oils)

Frequently Asked Questions - 17001 Erba

How to turn on the compressor?

Plug in the device, then press the on/off switch (2) to start. The maximum continuous operating time is 1.5 minutes (cycle S3 15%).

What does the S3 15% duty cycle mean?

It is an intermittent duty cycle: 1.5 minutes on followed by 8.5 minutes off to cool down. Do not exceed this time to avoid overheating.

The motor does not start, what should I do?

Check the power supply (cable, socket, fuse). Avoid long extension cords (minimum 2.5 mm²). If the motor has overheated, let it cool down. Ambient temperature must be between 5°C and 40°C.

Why is the compressor not producing pressure?

This may be due to leaking seals. Check the seals and have them replaced by a certified technician if necessary.

Can I use high-flow air tools?

No, this hobby compressor has a limited flow rate of 180 L/min. It can only power low-consumption tools (blow gun, inflator). Tools like sanders or jackhammers are not compatible.

What accessories are included with the compressor?

The kit includes: air hose, blow gun, inflation adapters (tires, boats, mattresses), needle, dust nozzle, and universal adapter.

How to maintain the compressor?

Keep the device clean and dry. Regularly check the condition of the cable and seals. Use only original spare parts.

Where to store the compressor after use?

Store it in a dry and locked room, out of reach of children. Unplug it and drain the air tank if present (not applicable here).

What is the noise level of the compressor?

The sound pressure level is 83 dB(A) and the sound power level is 97 dB(A) (±3 dB). Wear hearing protection if necessary.

What does the warranty cover?

The legal warranties apply. Any unauthorized repair or alteration voids the warranty. Keep the manual as proof of purchase.

USER MANUAL 17001 Erba

Blue Erba-branded portable electric shock absorber with visible control panel and hose (no text or symbols on device body)

CE

* Technical changes reserved

For and on behalf of ERBA GmbH (authorized signature)

Dominik Schilling

1. Safety instructions 11
2. Product description 12
3. Designated use 12
4. Restrictions of use 12
5. Technical data 12
6. Noise emission values 12
7. Important information for initial operation 13
8. Operation instructions 13
9. Service and replacement parts 14
10. Warranty 14
11. Disposal 14
12. Legal information 14
13. Declaration of conformity 15

1. SAFETY INSTRUCTIONS

Read this material before using this product. Failure to do so can result in serious injury. KEEP THIS MANUAL. When giving this machine to third parties, always include this manual. We do not accept any liabilities for accidents or damages that result from misuse. Removal/Alteration of any safety devices or of the machine in general will result in the loss of warranty. The buyer assumes all risk and liability arising out of his or her repairs/alterations to the original product or replacement parts thereto, or arising out of his or her installation of replacement parts thereto.

■ Always keep your work area well lit, clean and free of obstacles.
■ Do not use the product in the vicinity of ignition sources.
- Keep children away from your work area.
■ Avoid contact with grounded surfaces (eg. pipes, radiators, etc.) to avoid the risk of electric shock.
■ Do not use the product in moist or wet areas.
■ Never carry the product on its electric cord. Do not pull the cord to unplug the product. Check the cord for any damage on a regular basis.
■ When using the product outdoors, always use suitable outdoor-extension cords/outlets.
■ Always use proper personal protection equipment (eye-protection, gloves, etc.).
■ Make sure the product is turned off when plugging in the cable.
■ Do not wear loose clothing, jewellery or any other accessory that might get caught in the machine. If you have long hair, wear a hair-net.
■ Always disconnect the powercord when doing maintenance work.
Never leave the product unattended when children are present.
- Check the product for any sign of damage each time before you use it.
■ Do not attempt to repair the product when it is damaged! Repair work must only be done by authorized, qualified service technicians.
■ When unused, the compressor should be stored in a dry, locked room out of reach for children.
- Keep the compressor clean.

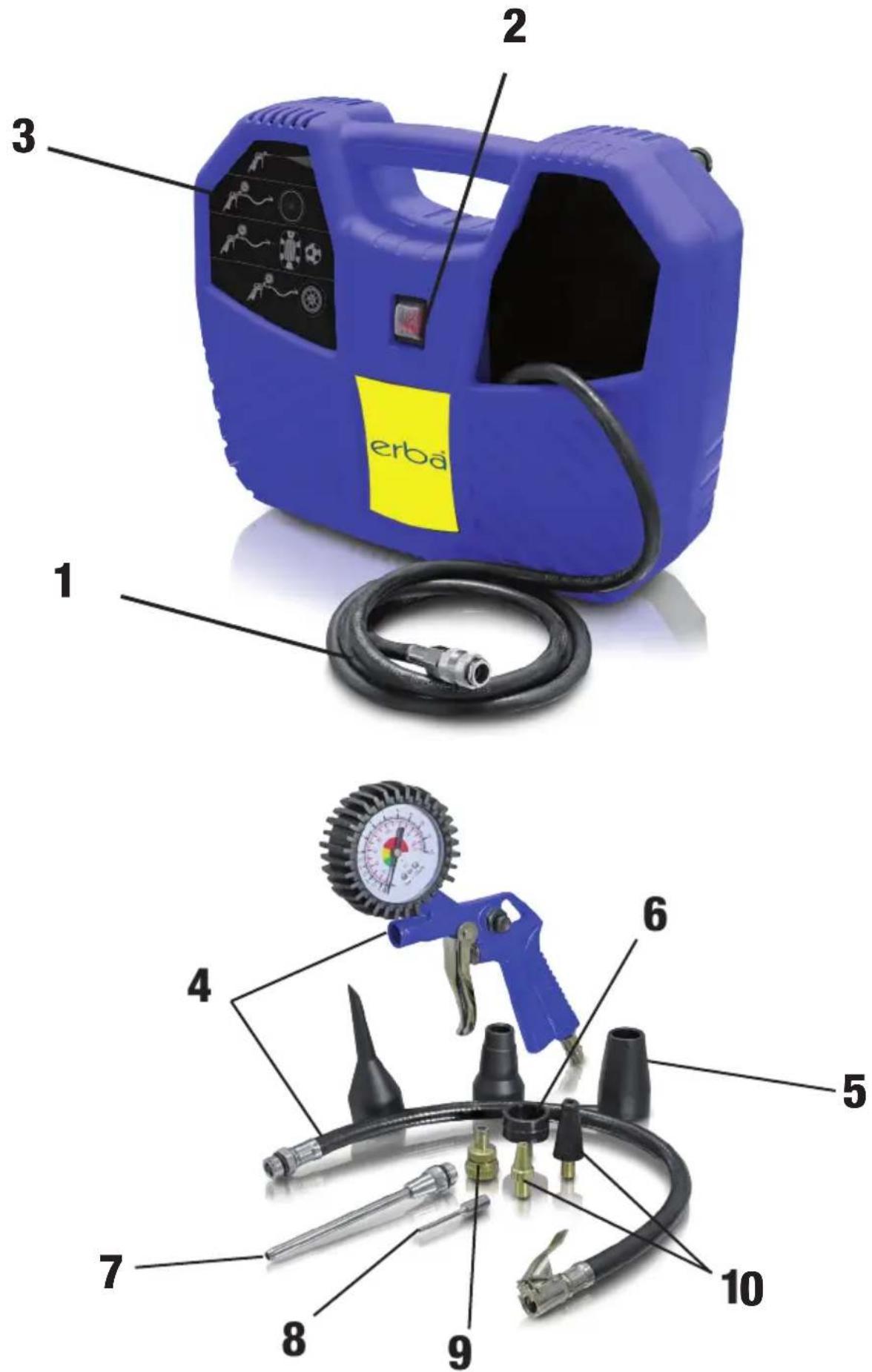

2. PRODUCT DESCRIPTION

1. Air hose 6. Holder for (5)
2. On/Off switch 7. Dustgun nozzle
3. Power connector 8. Ballneedle
4. Air gun + tire inflating hose 9. Tire valve adapter
5. Various adapters (rubber boats, air mattresses, etc.) 10. Universal adapter

3. DESIGNATED USE

The hobby-compressor is designed to provide compressed air for air tools that can be operated with an air flow of up to 180l/min (tire inflator guns, air dust blow guns, etc.). Due to the limited air flow capacity it is not possible to operate air tools that require large amunts of air flow (air sanders, air saws, impact hammers, etc.). Any other use is prohibited. The buyer accepts all liabilities, legal and otherwise, for any damage or injury resulting from improper use of the product (i.e. any other use than the above stated designated use).

4. RESTRICTIONS

Please note, that this product is not designed for commercial or industrial use. We accept no liability or warranty claims should the product be used in industrial and/or commercial operations.

5. TECHNICAL DATA

Rated power:	230 V ~ 50 Hz
Engine power:	1,5 PS/1100 W, S3 15%
Engine rpm:	3750 U/min ^-1
Working pressure:	max. 8 bar
Air consumption:	180 l/min.
Sound power level LwA:	97 dB (A) ± 3 dB
Sound pressure level LpA:	83 dB (A) ± 3 dB
IP Class:	IP 20
Weight:	5,5 kg

6. NOISE EMISSION VALUES

See technical data.

7. IMPORTANT INFORMATION FOR INITIAL OPERATION

■ Check the product for transport any damage. Notify the carrier if you find any transport damage.
■ Position the compressor as close to the working area as possible to avoid long air hoses and extension cords.
■ Intake air must be dry and clean.
■ After filling the air tank the compressor engine must cool down for 2-5 minutes to avoid overheating.

8. OPERATION INSTRUCTIONS

Quick coupling (1)

Connect:

Put the plug of your hose directly into the coupling until you hear a clicking sound.

Disconnect:

Pull back the sleeve of the quick coupling and pull out the plug.

Use the on/off switch (2) to operate the compressor. The maximum continuous operation is „S3 15%“ (1.5 min on and then 8.5 min off for cooldown). After the engine is switched off, the remaining air from the hose will vent with an audible hissing noise. This is normal and no sign of damage.

Troubleshooting:

Compressor engine does not work

Cause: No power present.

Solution: Check cables, plugs, fuses and outlets.

Cause: Power level too low.

Solution: Avoid using long extension cords. If you have to use extension cords, make sure they are sufficiently thick (at least 2.5 mm ^2 ).

Cause: Ambient temperature too low.

Solution: Do not operate below 5 °C.

Cause: Engine overheating.

Solution: Let the engine cool down. Do not operate above 40^ C ambient temperature.

Compressor engine working, but no pressure

Cause: Seals leaky.

Solution: Check seals and let a certified technician replace them.

9. SERVICE AND REPLACEMENT PARTS

Use original spare parts only.

10. WARRANTY

Legal warranty regulations apply.

11. DISPOSAL

Our products are packed in order to prevent damage during transport. Packing materials are valuable resources and therefore can and should be recycled. The product itself consists of various materials (metals, oils, plastic, etc.) and should be disposed with care and in accordance with your federal and local disposal regulations.

12. LEGAL INFORMATION

All rights reserved. This manual is copyrighted. Reproduction in and form (digital, print, etc.) is strictly prohibited without the written permission of ERBA GmbH.

DECLARATION OF CONFORMITY

Models: 17001 Hobby Air Compressor oilfree

ERBA GmbH, Talpagasse 6, 1230 Wien, hereby states, that the mentioned model meet the following CE/RoHS quality standards, approvals and relevant safety requirements:

Machinery Directive: 2006/42/EC EMC Directive: 2014/30/EC ROHS: 2002/95/EC

• EN 60335-1:2012/A11:2014
• EN 1012-1:2010
• AfPS GS 2014:01 PAK
• EN 55014-1:2006/A2:2011
• EN 55014-2:2015
• EN 61000-3-2:2014
• EN 61000-3-3:2013

Wien, 01.09. 2017

For and on behalf of ERBA GmbH (authorized signature)

Dominik Schilling

Technical coordinator

ERBA GmbH, Talpagasse 6, 1230 Wien, Austria
