| Product type | Random orbital sander |
| Brand | Worx |
| Model | WX654 |
| Rated input power | 480 W |
| Rated voltage | 230-240 V ~ 50 Hz |
| No-load speed | 4000 - 11000 opm (variable speed) |
| Base plate size | 150 mm diameter |
| Orbit diameter | 2.5 mm |
| Weight | 2.3 kg |
| Protection class | Double insulation (Class II) |
| Sound pressure level (LPA) | 83.4 dB(A), uncertainty K=3 dB(A) |
| Sound power level (LWA) | 94.4 dB(A), uncertainty K=3 dB(A) |
| Vibration value (ah) | 9.19 m/s², uncertainty K=1.5 m/s² |
| Dust reservoir capacity | Not specified (dust box included) |
| Dust extraction adapter | 32 mm and 35 mm |
| Accessories included | Dust box, 32/35 mm adapters, velcro sandpaper (60, 80, 120 grit) - 3 each, 125 mm sanding pad (for WX654) |
| Main functions | Sanding wood, plastic, filler, painted/varnished surfaces; polishing possible with electronic adjustment |
| Speed adjustment | Built-in variable speed dial |
| Maintenance and cleaning | Clean with dry cloth; keep ventilation slots clean; no lubrication needed |
| Safety | Wear eye, ear protection, dust mask; unplug before adjustment/maintenance |
| Spare parts and repairability | No user-repairable parts; replace sanding pad if damaged |
Frequently Asked Questions - WX654 WORX
User questions about WX654 WORX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual WX654 - WORX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WX654 by WORX.
USER MANUAL WX654 WORX
- Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX653 WX654 (650~659-designation of machinery, representative of Random orbital sander)
| WX653 WX654 | ||
| Rated voltage 220-240V~50/60Hz 2 | 30-240V~50Hz | |
| Rated input power 360W 480W | ||
| Rated no load speed | 7000-12000rpm | 4000-11000rpm |
| Belt size 125mm 150mm | ||
| Orbital diameter 2.5mm | ||
| Protection class | ☐ /II | |
| Machine weight 2.1kg 2.3kg | ||
NOISE AND VIBRATION DATA
| WX653 | WX654 | |
| A weighted sound pressure | LPA: 78.6dB(A) | LPA:83.4dB(A) |
| KPA: 3.0dB(A) | KPA: 3.0dB(A) | |
| A weighted sound power | LWA: 89.6dB(A) | LWA: 94.4dB(A) |
| KW: 3.0dB(A) | KW: 3.0dB(A) | |
| Wear ear protection when sound pressure is over 80dB(A) | ||
| Typical weighted vibration | ah=6.47m/s2 | ah=9.19m/s2 |
| K=1.5m/s2 | K=1.5m/s2 | |
The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10^ or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSIONS
Dust box 1
32mm dust extraction adaptor 1
35mm dust extraction adaptor 1
60 grit velcro sanding paper 3
80 grit velcro sanding paper 3
120 grit velcro sanding paper 3
125mm baseplate 1(only for WX654)
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
SYMBOLS OPERATING INSTRUCTIONS
To reduce the risk of injury, user must read instruction manual
NOTE: Before using the tool, read the instruction book carefully.
Warning
INTENDED USE
The machine is intended for dry sanding of wood, plastic, metal and filler material as well as painted surfaces. Machines with electronic control are also suitable for polishing.
Double insulation
Wear eye protection
Wear ear protection
Wear dust mask
ASSEMBLY THE ROTARY SANDER
1. REPLACING THE SANDING PLATE (See Fig A)
To replace the sanding plate, pull off the Sand paper. Loosen and remove the screw. Replace damaged sanding plates without delay.
2. REPLACING THE SAND PAPER
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
A) Selecting the sand paper
Depending on the material to be worked and the desired material removal, various Sand paper qualities are to be used:
-
Use coarse grits to sand down rough finishes medium grit to smooth the work and fine grit to finish off.
-
The higher the grade number, the finer the grit. For rough work, start with a low grade of grit. (e.g.60 grit) and change to a higher, finer grade (e.g.120 grit) for finishing.
B) Replacing the sand paper (See Fig B)
Lift the Sand paper at the side and pull it off the sanding plate. Clean the sanding plate, if required. Press the new Sand paper against the bottom of the sanding plate. To ensure optimum dust extraction, the holes of the Sand paper must match with those of the sanding plate.
OPERATION
1. SWITCHING ON/OFF (See Fig C)
Depress "I" on the sliding on-off switch to
start the machine.
Depress "0" on the sliding on-off switch to stop it.
2. VARIABLE SPEED CONTROL (See Fig D)
With the variable speed control dial (7), the required speed can be selected (also while running).
The required speed is dependent on the material and is to be determined by a practical trial.
After longer periods of working at low speed, allow the machine to cool down by running it for approx. 3 minutes at maximum speed with no load.
| Sanding work | Grain | Speed setting(opm) | |
| Coarse sanding | Precision sanding | ||
| Sanding down varnishes | 180 400 | 8700~11000 | |
| Stripping paint | 40 120 | 9800~11000 | |
| Touching up paintwork | 120 120 | 7600~10000 | |
| Sanding wood | 60 240 | 7600~11000 | |
| Machining veneer | 180 400 | 8700~11000 | |
| Sanding aluminium | 80 240 | 7600~11000 | |
| Derusting metal | 40 120 | 9800~11000 | |
| Sanding metal and steel | 120 240 | 9800~11000 | |
| Sanding plexiglass | 180 400 | 6500~8700 | |
3. DUST BOX (See Fig E, F) A) Attach the dust box (See Fig E)
Your sander is equipped with a dust collection box. To attach, slide the dust box onto the outlet piece and take care that the dust box
locks in the grooves of the outlet.
CAUTION: To prevent the possibility of sanding dust or foreign body being thrown into your face or eyes, never attempt to use your sander without the dust box properly installed.
B) Empty dust box (See Fig F)
For more efficient operation, empty dust box every 5-10mins. This will permit the air to flow through the box better. To empty the dust box, pull off the dust box out of the dust extraction outlet directly and shake out dust.
4. USING THE DUST EXTRACTION ADAPTER (See Fig G)
Your sander is equipped with two dust extraction adapters, which are designed for connecting the hose of a vacuum cleaner. If the vacuum hose is 35mm Insert the 35mm dust adapter (a) directly into the rear dust outlet of sander. If the vacuum hose is 32mm insert the 32mm adapter (b) into the back of 35mm adapter (a).
NOTE: Please pull the dust adapter to make sure tightened securely on the dust outlet.
5. SANDING SURFACES
Place the machine with the complete Sand paper on the surface to be worked. Ensure uniform sanding pressure. Less sanding pressure increases the sanding capacity and protects the machine and the sanding tool. The removal capacity and the sanding pattern are determined mainly by the selection of the Sand paper (grain size), the speed of the sanding plate and the application pressure.
ROUGH SANDING
Attach a Sand paper with coarse grain. Apply only light sanding pressure to achieve increased material removal.
FINE SANDING
Attach a Sand paper with fine grain. With moderate pressure, move the machine in a circular pattern or alternately in lengthwise and crosswise directions over the work piece. Do not tilt the machine to avoid sanding through the work piece (e.g. when sanding veneer). After finishing the work, switch off the machine and lift it from the work piece.
WORKING HINTS FOR YOUR ROTARY SANDER
If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always use sand paper that is suitable for the material you want to sand.
Always ensure the work-piece is firmly held or clamped to prevent movement.
Any movement of the material may affect the quality of the sanding finish.
Start your sander before sanding and turn it off only after you stop sanding. For the best results, sand wood in the direction of the grain.
Do not start sanding without having the sandpaper fitted.
Do not allow the sand paper to wear away it will damage the base-plate. The guarantee does not cover base-plate wear and tear.
Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for the final surfaces. If necessary, first make a test run on scrap material.
Use only good quality sand paper.
The sand paper controls the sanding efficiency, not the amount of force you apply to the tool. Excessive force will reduce the sanding efficiency and cause motor overload.
Replacing the sand paper regularly will maintain optimum sanding efficiency.
MAINTAINANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal. If the supply
cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.

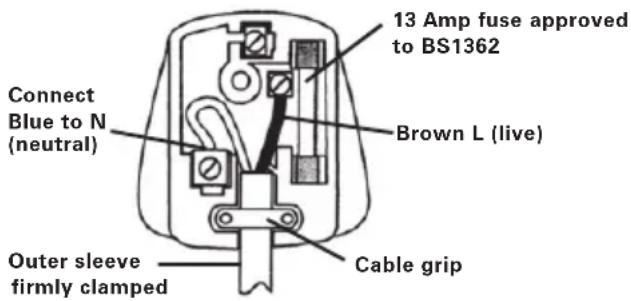

PLUG REPLACEMENT (UK & IRELAND ONLY)
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL BROWN =LIVE
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.
WARNING! Never connect live or
A neutral wires to the earth terminal of a plug. Only fit an approved 13ABS1363/AB
plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Declare that the product,
Description WORX Random orbital sander
Type WX653 WX654(650~659-
designation of machinery, representative of Random orbital sander)
Function Removing surface material using an abrasive medium
Complies with the following directives:
2006/42/EC
2004/108/EC
2011/65/EU
Standards conform to:
EN 55014-1
EN 61000-3-3
EN 55014-2
EN 60745-1
EN 61000-3-2
EN 60745-2-4
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe)
Ltd, PO Box 152,Leeds,LS10 9DS,UK
2014/07/19
Leo Yue
POSITEC Quality Manager
