ZHT621X - Basket ZANUSSI - Free user manual and instructions

Product type	Range hood
Brand	Zanussi
Model	ZHT621X
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Power supply	220-240 V ~ 50 Hz
Insulation class	Class I
Number of speeds	3 (low, medium, high) + stop
Lighting control	Push button L (on/off)
Motor control	Push button V (speed selection and stop)
Lighting	Bulb 4 W, socket E14, 220-240 V, dimensions 107x37 mm, ILCOS code DRBB/F-4-220-240-E14-35/100
Grease filter (H)	Non-washable, replace every 2 months
Activated carbon filter (W)	Non-washable, replace every 4 months (or more often depending on use)
Exhaust type	External exhaust (duct) or recirculation (charcoal filter)
Cleaning maintenance	Damp cloth and neutral liquid detergent
Grounding	Mandatory (Class I appliance)
Use	Domestic
Safety	Do not flambé under the hood, do not leave open flames, do not use with combustion ducts

Frequently Asked Questions - ZHT621X ZANUSSI

What is the safety distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. If your cooking surface instructions specify a greater distance, follow that.

How to clean the ZHT621X hood?

Clean the hood with a damp cloth and a neutral liquid detergent. Do not use abrasive products or solvents.

How often should the filters be replaced?

The grease filter (symbol H) must be replaced every 2 months. The activated carbon filter (symbol W) must be replaced every 4 months, or more often with heavy use.

Can I use the hood with a gas hob?

Yes, but ensure adequate ventilation of the room. Negative pressure must not exceed 0.04 mbar. Maintain the safety distance of 650 mm.

What type of bulb to use for lighting?

Use a 4 W bulb with E14 socket, voltage 220-240 V, dimensions 107x37 mm, ILCOS code DRBB/F-4-220-240-E14-35/100.

Does the hood need to be grounded?

Yes, this appliance is Class I and requires grounding in accordance with your home's electrical installation.

Can I flambé food under the hood?

No, flambéing is prohibited under the hood due to fire risk. Also avoid leaving open flames.

What diameter of exhaust duct to use?

Use a duct with a minimum diameter of 120 mm. The smoke path must be as short as possible.

Can children use the hood?

This appliance is not intended for use by children under 8 years old or by persons with reduced capabilities without adequate supervision. Children should not play with the appliance.

How to completely turn off the hood?

Use the V control on the stop position (Motor Off). For any cleaning operation, unplug the appliance from the mains.

USER MANUAL ZHT621X ZANUSSI

ENUSERMANUAL 2
DE GEBRAUCHSANLEITUNG 6
FR MANUEL D'UTILISATIO 10
NL GEBRUIKSAANWIJZING 14
ES MANUAL DE USO 18
PT LIVRO DE INSTRUÇÉS PARA UTILIZAZão 22
IT LIBRETTO DI USO 26
SV ANVÄNDNINGSHANDBOK 30
NO BRUKSVEILEDNING 34
FI KAYTTOOHJEET 38
DA BRUGSVEJLEDNING 42
RU PYKOBODCTBO IO 3 KCIIV ATALIM 46
ET KASUTUSJUHEND 50
LV LIETOSANAS PAMACIBA 54
LT NAUDOTOJO VADOVAS 58
UK IHCTpykIy3 EKcIyATAU 62
HU HASZNÁLATI UTMUTATO 66
CS NAVOD KPOUZITI 70
SK NAVOD NA POUZIVANIE 74
RO MANUAL DE FOLOSIRE 78
PL INSTRUKCJA UZYTKOWANIA 82
HR KNJIZICA S UPUTAMA 86
SL NAVODILO ZA UPORABO 90
EL O△HIEXPHEH 94
TR KULLANIM KITAPCIIGI 98
BG PbKOBOIDCTBO HA NOTPEBNTEJI 102
KKIAIJIAHUYbI HYCKAYlbIFbl 106
MK YIATCTBO 3A KOPICHIK 110
SQUDHEZUESPERPERDORIMIN 114
SR KOPINCHINKO YIYTCTBO 118
AR 122

USER MANUAL

ZHT621W ZHT621X

ZHT611W ZHT611X

ZHT921W ZHT921X

ZHT611W ZHT611N

Cooker Hood Motorházte tō
Dunstabzugshaube Odsavae Par
Hotte De Cuisine Kapucha
Afzuigkap Cartier
Campana Okap Kuchenny
Exaustor Kapuljaca
Cappa Napa
Spisflakt AToppoqntnpac
Kjokkenvifte Ocak Davlumbaz
Liesituuletin AcnupaTopa
Emhaette
Bbitykka
Pliidikumm
Tvaiku Nosucejs
Dangtis
BntaXka
Motorháztetō
Odsavač Par
Kapuchna
Cartier
Okay Kuchenny
Kapuljaca
Napa
Anoppoqntnpac
Ocak Davlumbaz
AcnupaTopa
CopbIn
Acnnpatopot
Kapak Tenxhere

KyuHbckor AcnupaTopa

= ( x1,y1) , = ( x2,y2)

ZANUSSI

EN

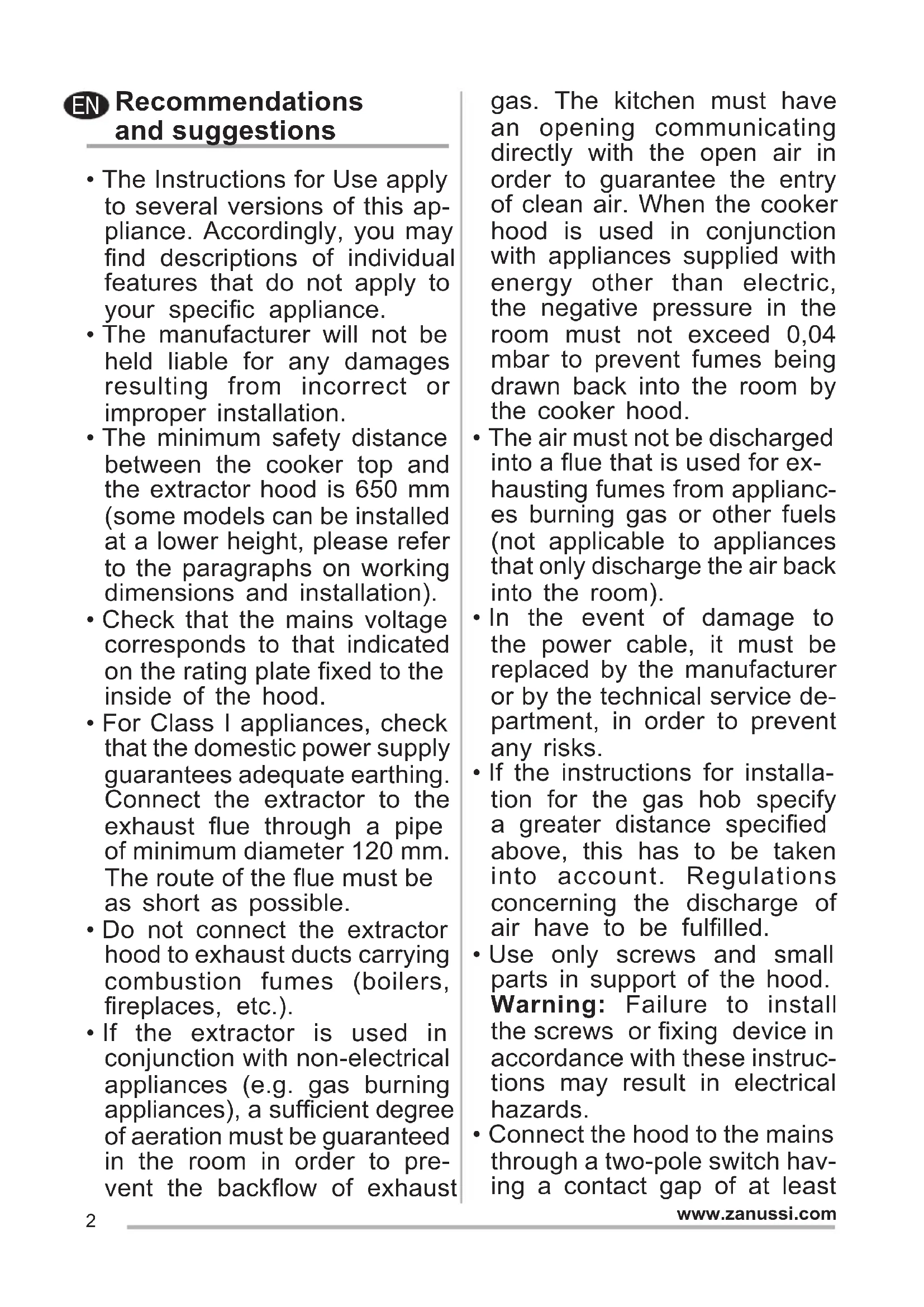

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
- Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Connect the hood to the mains through a two-pole switch having a contact gap of at least

3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flâbè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa

bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

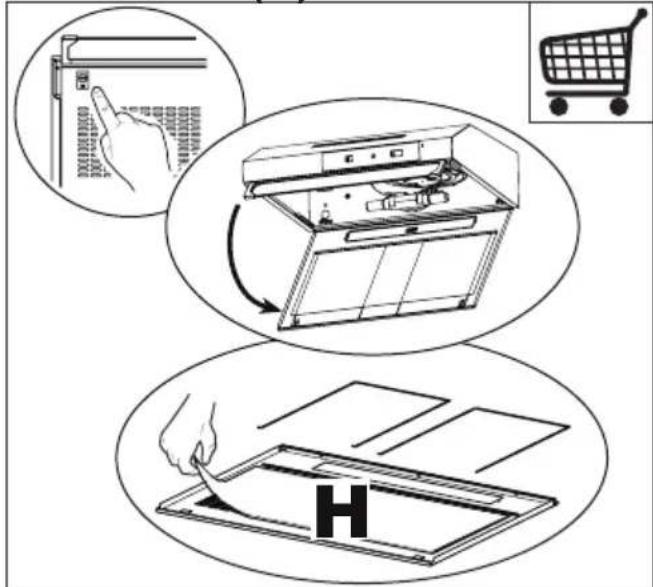

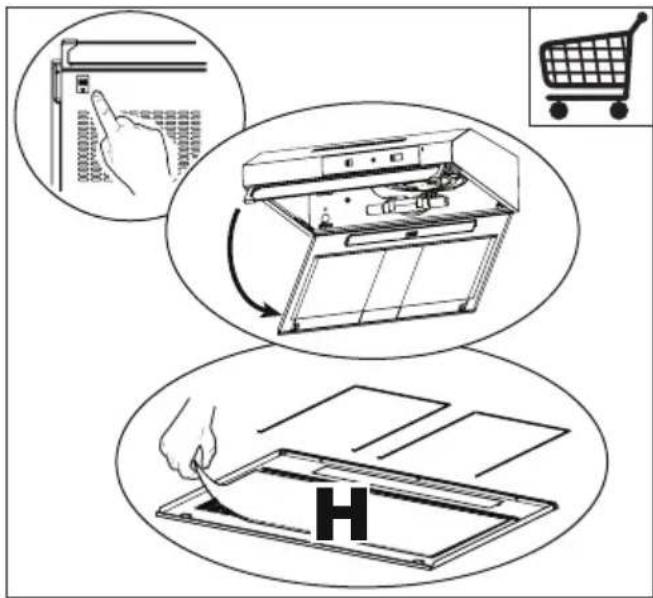

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• This filter cannot be washed

and should be replaced every 2 months (H).

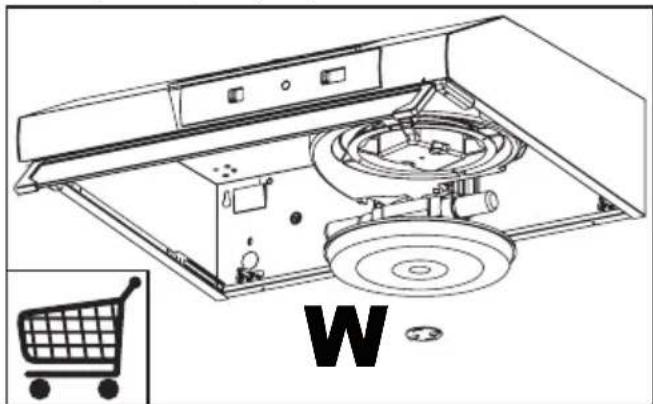

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L	Light Switches	the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operat-ing conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Lighting

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
4 E14 220 - 240 107 x 37 DRBB/F-4-220-240-E14-35/100

IpeynpejdeHne: NcnoJb-3OBaHHe BNHTOB 3axHMbIXyCTPOINCTB, He COOTBETCTBYUOxNYka3aHnM DaHHbIX INHCTpyKuN,MOXET PnIBECTN K BO3HNKHO

BENIO ONaChbIX CNTyaCnI N K 3JIeKTpNueCKIM ydapam.

CoeHnTe BbITJkKc C cetbIO NHTaHnC NOMOuBIO DByX- NOIHOCHOro BbIKIouaTeJIa C MHNMaJIbHbIM pa3BeDeHneM KOHTaKTOB 3 MM.

3KcPnyataza

• BcacbBaIOUaBbITJgKa npedHa3NaUeHa TOnbKO dIpymHeHnB 6bI TY dJIyUdJIeHnI3 KUXH 3aIaxOB OT rOTOBKn.
• HnKOrda He noJIb3yITeCb BblTJxKoB B nHbIX cIeJx, OTnUHbIX OT Tex,ДЯ KOTOpbIX OHa npedHa3HaueHa.
  HnkOrda He octaBnTe BblCOKoe PnAmr NOD BbITJxKoH, HaxOJaUeIcR B pa6ote.
• Peru npyte cnny nlaMeHn TaKIM 6pa30M, yTO6bl OHO OCTaBaJocb IOd dHOM eMKoCTN DIIra IOTOBKN IN He BblBaJIoCb 3a erO npedeJIbl.
• Пи ratOBke BO ФрntHOpHnCe NOCTOaHNO CNeIaTe 3a ee paBotoi: cnIbHO HaPeToe MacNo MOxET BOCnJaMaHHTbcra.
  He roTOBbTe 6JIoDa Флam6e NOI BbITJxKoI: ONaCHOCTb BO3- HNKHOBeHnI NOXapa.
  -Прибором могут полььзоватбаяdetистарше 8 лет и лица сорранчehнblIMN TCINXHueCKIMN,фиЗИчесКIMN И СЕHCOPHBIMN cNoCo6HOCTЯМN, a ТAKKE He IMeHOUINE DOCTaTOUHOrO ONBITa N 3HaHn, HO TOЛьКО ПOD пri-CMOTPOM OTBETCTBEHHbIX ЛИЦИпгИУСLOВИN, YTO OHI OБчЕНы 6e3ОпаСнOH ЭКСПУАТAUПИ-бopaи 3HaIOT O CBЯЗHAHbIX C erO

HeppaBnIbHbIM nCNoJIb3OBAHneem onaChocTg. CJeIte, yTo6blDeTI He ngpAIN c np6OpOM. OunchkU yXoJ 3a np6OpOMdoJxeh ObecneuBaTb Nolb3OBaTeJb, TaKHe DeiCTBnMOryTBbINOJIHrTb I DeTI, HO ToJIbKO NOd HAd3OpOM B3PocJIbIX.

BHIMAHNE: DOCTYNHbIe Ya-CTN BbITaJxKn MOrYT CnJIbHO HArpeBaTbCra BO BpEma pa60TbI Ra3OBbIX np6OpOB.

yxo

CnmboHa n3dJIHn Hn Ha ynaKOBKe yka3bIBAeT, YTO np6bOp HeJIb3a Bbl6paCbIBaTb, KaK ObIyHbIb 6bITOBO Mycop. Pnp6op, NODJIeJXaUHn YHNHTOKeHIO, He-0BXODIMO CdaTb B CNEuaJIbHbIc6OpHbIpyHKT dJa IOBTOPO IcNOJIb3OBaHnA 3JIeKTPuYeCKNX I 3JIeKTPOHbIX KOMHOENTOB. TOnb3OBaTeIb, npabNtBHO cdaUOUsn Pnp6op Ha nepepa6OTKy, NOMORAET PpeDTBpATNTb NOTENaJIbHbIe HeTaINBHeIe NocJIeDCTBnA dJa OKpyKaHOUsE CpeIb I dJa 3IDOPOBBy JIODei, BO3HnKaIOUne B Cnyuae HeIpaBnIbHOrO erO yHNHTOKeHnA. 3a 6OJee NOdpo6HOh INΦOpMaUne O BTOPNUHOM NcNoJIb3OBaHn INp6opa O6paAsaIteScb B rOpOckO CBet, B MeCTHyIO CNYk6y IIO nepepa6OTke OTxODOB nIN B MaRa3HH, rJe np6bp 6bl npno6peTeH.
- Пераци NO Ounchke uXody BbIKIQUHTe IIN OTCOeHNHTe np6op ot 3JIeKtpnueckoCetN.
OuHauTe n/nn 3aMeHnTe

ФИЛБТРБI NO INCTeueHn yKa3aH-HOrO NepNoDa BpeMeHn (OnacHOCTb BO3HNKHOBeHnЯ NOxapa).

• «Опасноctь BOЗнКовеня пожара, ecn Oчистka npибopa He BblIOJIHЯETcB COOTBETCTBnC ИНСТPyKцЯMu».

• He moke da ce nepe HHTn peTReHepnIe na Mopa da ce MeBaOTnpuNke Ha cBaKa 2 MecepaPada, a y cIyUajy Beoma nHTen3NBHe ynoTppeBn ueShne (H).

-ФильТр HaakTbBnPoBaHHom yIe HeIb3a MbITb I BOCCTaHaBJIINBaTb,ero CneDyET MeHrTaBnpIMepHo pa3 B 4 Mecya pa60TbI nIIu YaSe B Cnyue OyeHbINTeHCNBHO rCNoJb3OBaHn np6bopa (W).

OuHuaTe BbITJkKBy BJaXHOI

TpIKNo, CMOueHHOB HneITpaJIbHOM XnIDKOM MOIOeM BeIeCTBe.

KhoPkn

I MaIe DeIOBe KoJn DpJke acnnpaTOp.

Yno3opebe: PocTaBbAbe 3aBpTHeBa NnHocaya Koje HnJe y cKnady ca OBm yNYTCTBOM MOKe IOBecTn Do CtpyJHor ydapa.

• Прикъчи-te acnnpaTop y ctpju npeko DBOONHOR npekndaça KoI Kora je pactojaHe n3MeHy KOHTaKaTa 6ap 3 mm.

Ynotpe6a

• AcnpaTop je npojeKToBaH NCKJbUyNBO 3a yKlaHaBe KuxNbCKNX Mnpica y DOMaHnHCTBy.
  HnkaI He KopnCTnte acnpaTOp 3a 6nlo 7Ta OCIM 3a OHO 3a 7Ta je HameHbeH.
• HnkaI He octaBbajTe OTBOpeH PImaMeH NcNoD yKbUyeHOr acnnpaTopa.
• ПODEСITE ИNTeH3IITeT Пламена тako за-byde усмepen сamo на дно Тигаьа, a Heда обухваши и НBEROBE 6OчHe CTpaHe.
  -Фрnte3e ce TOKOM ynoTpe6e Mopajy HePpeKnIHO Na3npaTI: nperpejaHo yJIbe MOKe Da ce 3aNaII.
  He pfam6bnpajTe HAMnprHnue nCnoaCnnpaTopa; onaCHOCT od BaTpe.
  Obaj ypehaj Mory da KopncTe deca y3pacTa od 8 roDnHa HABnIe n Oco6e ca CmaHBeHIM qn3nUkM, yJInHM nIN MeHTaJIHm cNooc6HoCTnMa, Kao n

ocobe koje HeMajy DOBOJbHo
NCKyCTBa N 3HaHb,aKO
cy NOd Hau3Opom nIi
cy unyhe y 6e36eDaH
Haun ynoTpe6yeypej a
pa3ymej myrhe onacnctn.
Maoj deu He Do3BOJnte
da ce irpajy ca ypehajem.
Ushene i OdpkaBaHbe He
Tpe6a da obabBJajy deca 6e3
Haad30pa.

OBaj ypehaj He Tpe6a da Kopncte ocobe (yKbuyjyn n Deuy) ca CmaHBeHIM m3nukm, yJHnM nIIM MeHTaJIHnM cNoC6HOCTnMa, Kao n ocobe Koje HemaJy DOBOJbHO NCKyCTBa n 3HaHa, Cem aKO nx Ha3npy nIIN O ynoTpe6n ypehaja cabetyjy oc6e OndROBOpHe 3a HbNXOBy 6e36eHNocT.
- "ONPE3: Ппстуарни дени могу пости врел кад се корисе за сдно са anapatima 3a Кубаъ.

OdpkaBaHe

Cm60n Ha npOn3Bodny nHBeROoJ aM6aJaXn O3NaUbA Da ce OH He CMe cMaTpaTn ObUnHnM KyHnM OTnApOM. UMeCTO Tora Mopa Ce npEdaTn Ha oDroBapajyHem MeCTy cLyXbN 3a peuKnaJx yIeKtpuHnx N eJeKTPOHcKnx ypehaja.Obe36eHnBaHem npabINHOr yKlAbHa bA OBOr npOn3BOda DOpPnHeheTe cnpeuBaHy IOTeHunJaHNx HeratNBHX NocJIeNiua NO XHBTHY CpeDInHy n

3dpaBbe Jbyn,do yera 6n MOrNo DoHn y clyuajy HBeROBor HeoDrOBapajyHer yKnaHaBa.3a DeTaJbHnje INΦOpMaunje O peuzKnaJx N OBor npOn3BOda o6paTnte Ce IOKaJIHOJ ynpaBN, cLyX6n 3a OndHOse CmeHa nI npOdaBHNu y Kojoj cTe Kynnn npOn3BOd.

• Nckbuynte ypehaj nIra pa3dBojTe od n3Bopa HanajaHa的答案 KaKBOr pada Ha oDpxaBaHbY.
  OuNCTnTe n/nn 3aMeHnTe nnTepeHaKoH OndpeHcHOr BpeMeHcKOr nepNoDa (onacHOCT od BaTpe).
  "Ushnebe Koje Ce He obavn KaKo je Ha3NaYeHO DoBeeHne DO OnaCHocTn Ondnojapa". -He moKe Da ce nepe HHTn peRHePnIe Na Mopa Da ce MeBa OTnpNIke Ha CBaKa 2 Mececa paDa, a y cIyaujy BeOMa INTeH3NBHe yIOTpe6e n YeeHne (H).

-ObajФиNTep He MoKe Da ce nepe n pereHepnWe BeH Mopa Da Ce MeHa Ha OTnpNJnke

CBAKx 4 Mecea pa, a y Cnyajy BeOMa INHTeH3NBHe ynoTpe6e n yeuhe (W).

• Acnnapot quCTte BnaXHOM Kpnom HeytpaJIHm TeuHm DeTepeHTom.

Komahne

L Φсветъение укъ ууяи и поъ ууи сиюшиe.

V Брзина Подашава Брзини рада acnnapatopa:0.МоторOff.1 Мana Брзина, корости ce 3aнелраздани Нechулан погotokВаздуна у сCityajу мале колчинеКухиьскпх Исалерьа.2 Срedingа Брзина, поеда 3aВehину раднix усюва, пружаОптималан оДнOC KolчинеВаздуна и буke.3Нajveha Брзина, корostи ce 3aУкалыаье Нajveberx колчинаКухиьскпх Исалерьа, чak и уДужем лесiodу.

Дампа

Сиjsал��а	Снarga (W) Гло Нанон (V)Димензиje	(mm) ILCOS ознaka
	4 E14 220 -	240 107 x 37	DRBB/F-4-220-240-E14-	35/100
