Product type	UHF wireless microphone set with two microphones
Brand	Nedis
Model	MPWL611BK
Receiver power supply	230~240 V AC, 17 V DC via power adapter
Microphone power supply	2 AA 1.5 V batteries
Battery life	4 to 6 hours
Power consumption	4 W
UHF frequencies	Channel A: 863.30 MHz, Channel B: 865.00 MHz
Transmission power	10 mW
Frequency response	40 Hz - 15 kHz (±3 dB)
Dynamic range	>90 dB
Total harmonic distortion	<0.5%
Signal-to-noise ratio	>90 dB
Audio output level	0 - 400 mV
Modulation	FM
Receiver audio outputs	6.35 mm unbalanced and XLR balanced
Microphone type	Dynamic (internal capsule)
Number of microphones	2 (wireless)
Simultaneous use	Yes, without interference
Maintenance	Clean with a dry cloth, no solvents or abrasives
Safety	Do not expose to water or humidity. Disconnect if any issue. Opening only by qualified technician.
Warranty	Not valid in case of modification or incorrect use

Frequently Asked Questions - MPWL611BK NEDIS

How to turn on the receiver?

Press the POWER button on the front of the receiver. The red power indicator lights up.

How to turn on a microphone?

Set the ON/OFF switch to the ON position (up). The status indicator flashes once then stays on continuously when the battery is low.

What is the range of the wireless microphones?

Typical range is about 30 meters in open field, but may vary depending on the environment. Keep antennas straight for optimal reception.

How to mute the microphone without turning it off?

Set the ON/OFF switch to the middle MUTE position (sound cut-off).

What type of batteries to use for the microphone?

Use two AA 1.5 V batteries. Respect the polarity indicated in the battery compartment.

How to connect the receiver to an amplifier?

Use a 6.35 mm jack cable (included) from the AUDIO OUTPUT of the receiver to the amplifier input. You can also use an XLR cable (not included) for a balanced connection.

What does the flashing orange indicator on the receiver mean?

The PEAK INDICATOR orange flashes when the audio signal is too strong and may distort. Reduce the microphone volume or move away from the sound source.

Can I use both microphones at the same time?

Yes, both microphones work simultaneously without interference, each on its own channel (A and B).

How to clean the microphone and receiver?

Use a dry, soft cloth. Do not use solvents or abrasive products. Avoid any liquid.

What to do if the microphone does not work?

Check that the batteries are inserted correctly and sufficiently charged. Make sure the receiver is on and the antennas are deployed. Also check the audio connections.

USER MANUAL MPWL611BK NEDIS

MANUAL DE USO (p. 22)

INSTRUKCJA OBSLUGI (str. 62)

MANUAL (p. 26)

MHCTPYKUNA (66 ctp.)

HASZNÁLATI UTMUTATÓ (o. 30)

KILAVUZ (s. 70)

KÄYTTÖOHJE (s. 34)

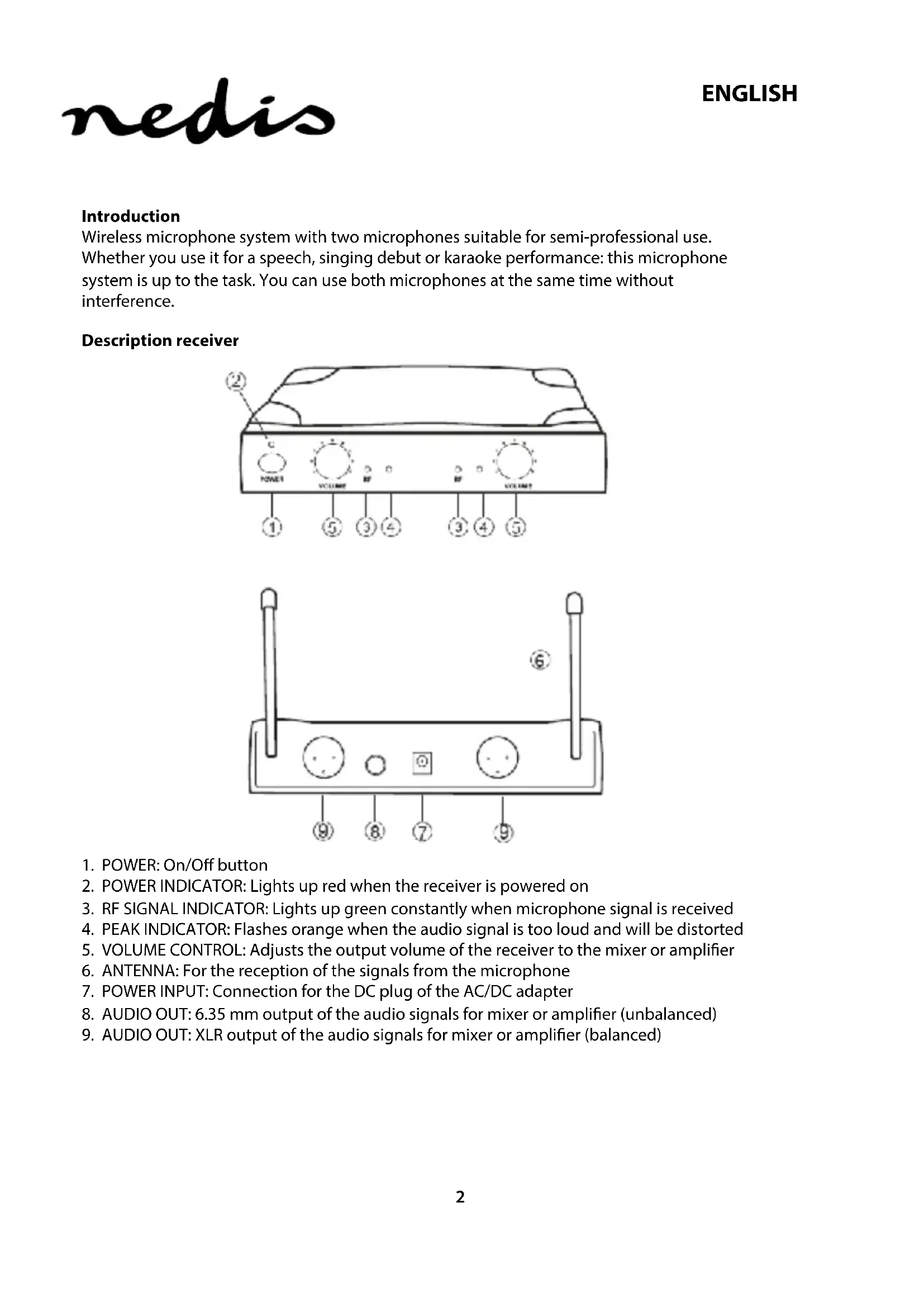

Wireless microphone system with two microphones suitable for semi-professional use. Whether you use it for a speech, singing debut or karaoke performance: this microphone system is up to the task. You can use both microphones at the same time without interference.

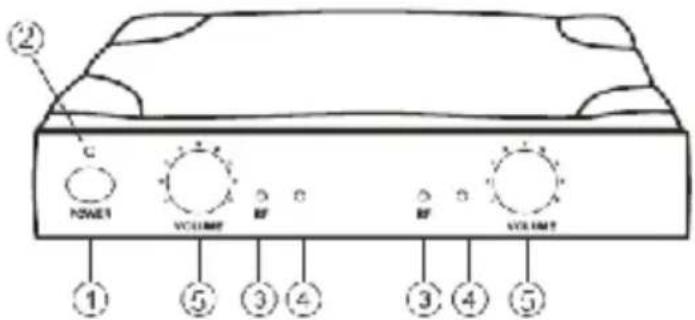

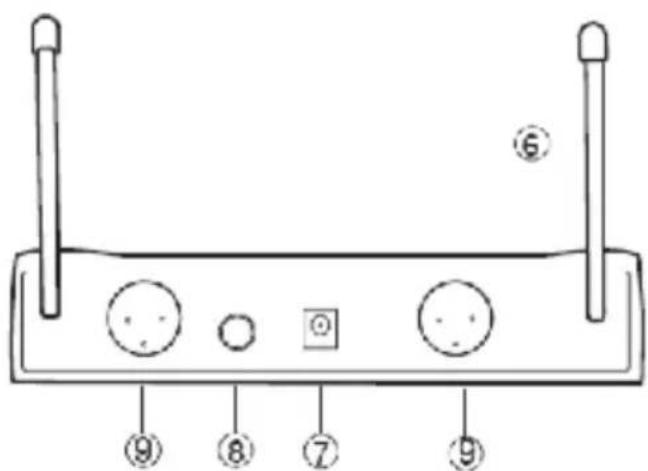

Description receiver

1. POWER: On/Off button
2. POWER INDICATOR: Lights up red when the receiver is powered on
3. RF SIGNAL INDICATOR: Lights up green constantly when microphone signal is received
4. PEAK INDICATOR: Flashes orange when the audio signal is too loud and will be distorted
5. VOLUME CONTROL: Adjusts the output volume of the receiver to the mixer or amplifier
6. ANTENNA: For the reception of the signals from the microphone
7. POWER INPUT: Connection for the DC plug of the AC/DC adapter
8. AUDIO OUT: 6.35 mm output of the audio signals for mixer or amplifier (unbalanced)
9. AUDIO OUT: XLR output of the audio signals for mixer or amplifier (balanced)

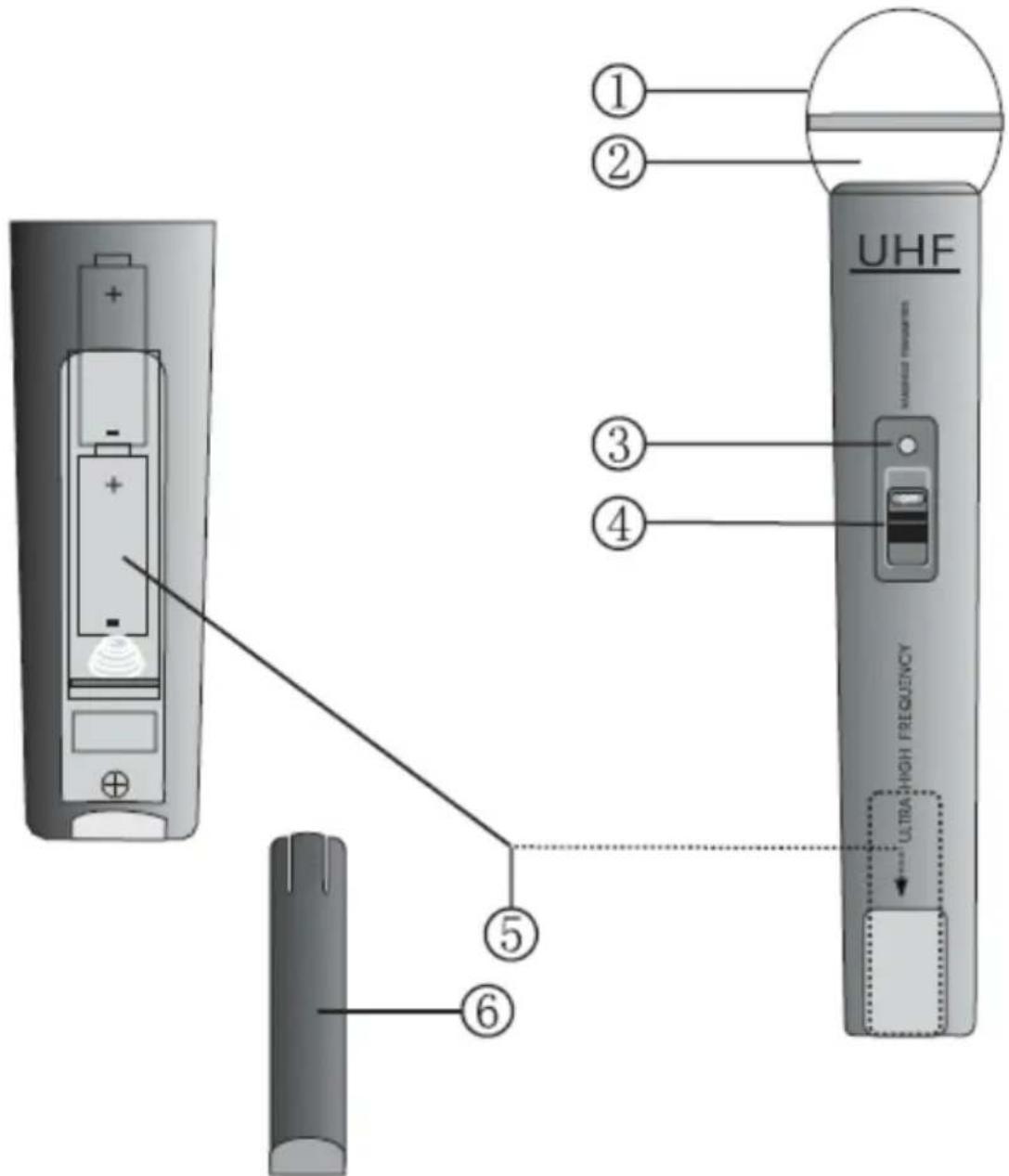

Description microphone

1. GRILL: Covers and protects the inside microphone element
2. MICROPHONE ELEMENT (inside):Picks up the audio signal
3. POWER/BATTERY INDICATOR: Flashes once when the power is on and lights up constantly when the battery is running out of power
4. ON/OFF SWITCH: 3 positions for ON, MUTE (middle position) or OFF
5. BATTERY COMPARTMENT: For 2x AA batteries
6. BATTERY COVER: Provides access to the battery compartment

Operation

1. Put the antennas straight up for optimal reception.
2. Connect the connection cable with the 6.35mm plugs to the output of the receiver and mixer or amplifier. Or connect the receiver with the XLR cable (not included) per channel (A/B) to a mixer or amplifier.
3. Connect the DC plug of the AC/DC adapter to the DC input on the rear side of the receiver. Connect the power plug to a wall outlet and switch on the receiver with the power button.
4. Open the battery compartment of the microphone and place 2x AA batteries according to the indicated polarity markers.
5. Switch on, after closing the battery compartment, the microphone with the ON/OFF switch.
6. The system is ready to use.

Specifications

Frequency channel A: UHF 863.30 MHz

Frequency channel B: UHF 865.00 MHz

Transmit power: 10mW

Dynamic range: >90 dB

Total harmonic distortion: < 0.5%

Frequency response: 40Hz - 15KHz,± 3 dB

Modulation: FM

Audio output level: 0 - 400mV

Power supply: 230 240V AC, 17 V DC

Power consumption: 4 W

S/N ratio: >90 dB

Battery: 2x AA 1.5 V

Battery life: 4-6 hours

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required.

Disconnect the product from mains and other equipment if a problem should occur.

Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC's-Hertogenbosch, THE NETHERLANDS
