USER MANUAL NC 120 MICROLIFE

Read the instructions carefully before using this device.Type BF applied partThis Microlife thermometer is a high quality product incor-porating the latest technology and tested in accordance with international standards. With its unique technology, this device can provide a stable, heat-interference-free reading with each measurement. The device performs a self-test every time it is switched on to always guarantee the specified accuracy of any measurement.This Microlife thermometer is intended for the periodic measurement and monitoring of human body temperature.This thermometer has been clinically tested and proven to be safe and accurate when used in accordance to the operating instruction manual.Please read through these instructions carefully in order for you to understand all functions and safety information. Microlife Non Contact Thermometer NC 120

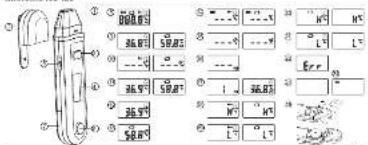

1 Measuring sensor2 Protection cap3 START button4 Display5 ON/OFF button6 Mode switch7 Battery compartment cover8 All segments displayed9 MemoryAT Ready for measuringAK Measurement completeAL Body modeAM Object modeAN Low battery indicatorAO Changing between Celsius and FahrenheitAP Recall modeAQ Recall the last 30 readingsAR Measured temperature too highAS Measured temperature too lowBT Ambient temperature too highBK Ambient temperature too lowBL Error function displayBM Blank displayBN Flat batteryBO Replacing the batteryKeep dry2NC 120 EN Table of Contents

3. How this Thermometer measures Temperature

4. Control Displays and Symbols

5. Changing between Body and Object Mode

6. Directions for Use

7. Changing between Celsius and Fahrenheit

8. How to recall 30 readings in Memory Mode

10.Cleaning and Disinfecting 11.Battery Replacement 12.Guarantee 13.Technical Specifications 14.www.microlife.com Guarantee Card (see Back Cover)

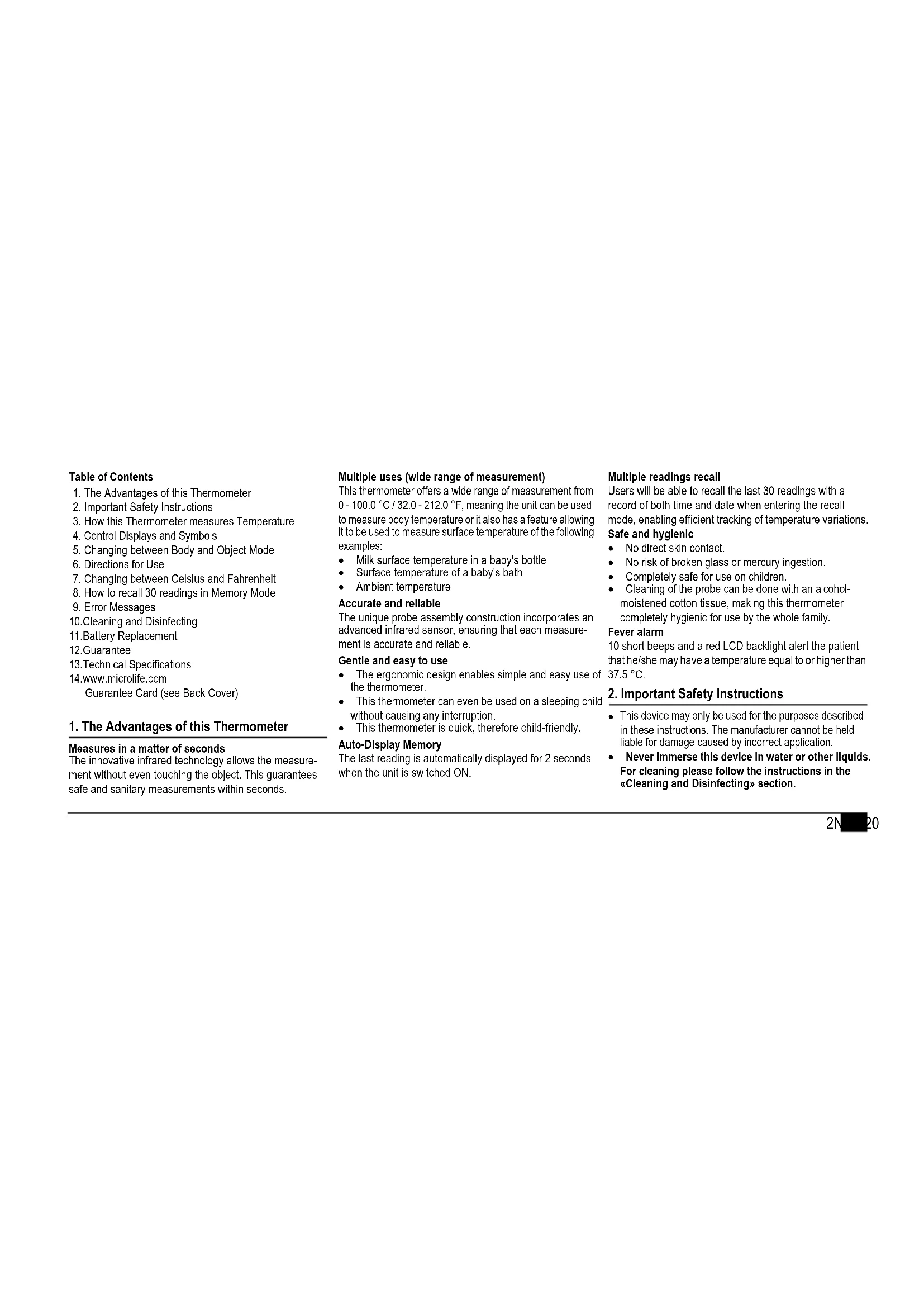

1. The Advantages of this Thermometer

Measures in a matter of seconds The innovative infrared technology allows the measure- ment without even touching the object. This guarantees safe and sanitary measurements within seconds. Multiple uses (wide range of measurement) This thermometer offers a wide range of measurement from

0 - 100.0 °C / 32.0 - 212.0 °F, meaning the unit can be used

to measure body temperature or it also has a feature allowing it to be used to measure surface temperature of the following examples: Milk surface temperature in a baby's bottle Surface temperature of a baby's bath Ambient temperature Accurate and reliable The unique probe assembly construction incorporates an advanced infrared sensor, ensuring that each measure- ment is accurate and reliable. Gentle and easy to use The ergonomic design enables simple and easy use of the thermometer. This thermometer can even be used on a sleeping child without causing any interruption. This thermometer is quick, therefore child-friendly. Auto-Display Memory The last reading is automatically displayed for 2 seconds when the unit is switched ON. Multiple readings recall Users will be able to recall the last 30 readings with a record of both time and date when entering the recall mode, enabling efficient tracking of temperature variations. Safe and hygienic No direct skin contact. No risk of broken glass or mercury ingestion. Completely safe for use on children. Cleaning of the probe can be done with an alcohol- moistened cotton tissue, making this thermometer completely hygienic for use by the whole family. Fever alarm 10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than

This device may only be used for the purposes described in these instructions. The manufacturer cannot be held liable for damage caused by incorrect application. Never immerse this device in water or other liquids. For cleaning please follow the instructions in the «Cleaning and Disinfecting» section.3 Do not use this device if you think it is damaged or notice anything unusual. Never open this device. A basic physiological effect called vasoconstriction can occur in the early stages of fever, resulting in a cool skin effect. The recorded temperature using this thermom- eter can, therefore, be unusually low. If the measurement result is not consistent with the patient's finding or unusually low, repeat the measure- ment every 15 minutes or double check the result by another core body temperature measurement.

This device comprises sensitive components and must be treated with caution. Observe the storage and operating conditions described in the «Technical Specifications» section. Ensure that children do not use this device unsuper- vised; some parts are small enough to be swallowed. Be aware of the risk of strangulation in case this device is supplied with cables or tubes. The function of this device may be compromised when used close to strong electromagnetic fields such as mobile phones or radio installations and we recommend a distance of at least 1 m. In cases where you suspect this to be unavoidable, please verify if the device is working properly before use. Protect it from: - extreme temperatures - impact and dropping - contamination and dust - direct sunlight - heat and cold If the device is not going to be used for a prolonged period the battery should be removed.

Use of this device is not intended as a substitute for consultation with your physician. This de- vice is NOT waterproof so do not immerse in liquids.

3. How this Thermometer measures Temperature

This thermometer measures infrared energy radiated from the forehead as well as objects. This energy is collected through the lens and converted to a temperature value.

4. Control Displays and Symbols

All segments displayed 8: Press the ON/OFF button 5 to turn on the unit; all segments will be shown for 2 seconds. Memory 9: The last reading will automatically be shown on the display for 2 seconds. Ready for measuring AT: When the unit is ready for measuring, the «°C» or «°F» icon will keep flashing while the mode icon (body or object) will be displayed.

» icon and the mode icon steady. The unit is ready for the next measure- ment as soon as the «

» icon is flashing again. Low battery indicator AN: When the unit is turned on, the battery icon will keep flashing to remind the user to replace the battery.

5. Changing between Body and Object Mode

For changing from body to object mode, slide the mode switch 6 at the side of the thermometer downwards. For switching back to body mode, slide the switch up again.

6. Directions for Use

Measuring in body mode

is activated to show all segments for 2 seconds.

2. The last measurement reading will automatically be

heard and the thermometer is ready for measuring AT.4NC 120 EN

4. Aim the thermometer at the center of the forehead

with a distance of no more than 5 cm. Please remove any hair, sweat or dirt from the forehead before measuring to improve the accuracy of the readings.

5. Press the START button 3 and ensure that the

measuring sensor is aimed at the center of the fore- head. After 3 seconds a long beep will verify the comple- tion of measurement.

6. Read the recorded temperature from the LCD display.

Measuring in object mode

1. Follow steps 1-3 above, then aim the thermometer at the

center of the object you want to measure with a distance of no more than 5 cm. Press the START button 3. After 3 seconds a long beep will verify the completion of measurement.

2. Read the recorded temperature from the LCD display.

NOTE: Patients and thermometer should stay in similar room condition for at least 30 minutes. Don't take a measurement while or immediately after nursing a baby.

Don't use the thermometer in high humidity environments. Patients should not drink, eat or exercise before/while taking the measurement.

Don't move the measurement device from the measuring area before hearing the termination beep.

Use an alcohol swab to carefully clean the probe and wait for 15 minutes before taking a measurement on another patient. 10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than 37.5 °C. Always take the temperature in the same location, since temperature readings may vary according to locations. Doctors recommend rectal measurement for newborn infants within the first 6 months, as all other measuring methods might lead to ambiguous results. If using a non contact thermometer on those infants, we always recom- mend verifying the readings with a rectal measurement. In the following situations it is recommended that three temperatures are taken with the highest one taken as the reading:

1. Children under three years of age with a compromised

immune system and for whom the presence or absence of fever is critical.

2. When the user is learning how to use the thermometer

for the first time until he/she has familiarized himself/ herself with the device and obtains consistent readings.

3. If the measurement is surprisingly low.

Readings from different measuring sites should not be compared as the normal body temperature varies by measuring site and time of day , being highest in the evening and lowest about one hour before waking up. Normal body temperature ranges: - Axillar: 34.7 - 37.3 °C / 94.5 - 99.1 °F - Oral: 35.5 - 37.5 °C / 95.9 - 99.5 °F - Rectal: 36.6 - 38.0 °C / 97.9 - 100.4 °F - Microlife NC 120: 35.4 - 37.4 °C / 95.7 - 99.3 °F

7. Changing between Celsius and Fahrenheit

for 5 seconds; after 5 seconds, the current measurement scale («

. Change the measurement scale between °C and °F by pressing the START button

. When the measure- ment scale has been chosen, wait for 5 seconds and the unit will automatically enter the «ready for measuring» mode.5

8. How to recall 30 readings in Memory Mode

This thermometer can recall the last 30 readings. Recall mode AP: Press the START button 3 to enter Recall mode when power is off. The memory icon «M» will flash.

Reading 1 - the last reading

Press and release the START button

to recall the last reading. Display 1 alone with memory icon. Reading 30 - readings in succession: Press and release the START button 3 consecutively to recall the last 30 readings in succession. Pressing and releasing the START button 3 after the last 30 readings have been recalled will resume the above sequence from reading 1.

Measured temperature too high

when measured temperature is higher than 42.2 °C /

108.0 °F in body mode or 100 °C / 212 °F in object mode.

Measured temperature too low AS: Displays «L» when measured temperature is lower than 34.0 °C /

93.2 °F in body mode or 0 °C / 32 °F in object mode.

Ambient temperature too high BT: Displays «H» and when ambient temperature is higher than

Ambient temperature too low

» and when ambient temperature is lower than 16.0 °C / 60.8 °F in body mode or lower than 5.0 °C / 41.0 °F in object mode.

The system has a malfunction.

Check if the battery has been loaded correctly. Also check polarity (<+> and <->) of the battery. Flat battery indication BN: If the steady battery icon is the only symbol shown on the display, the battery should be replaced immediately. 10.Cleaning and Disinfecting Use an alcohol swab or cotton tissue moistened with alcohol (70% Isopropyl) to clean the thermometer casing and the measuring sensor. Ensure that no liquid enters the interior of the device. Never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the device in water or other cleaning liquids. Take care not to scratch the surface of the sensor lens and the display. 11.Battery Replacement This device is supplied with one lithium battery, type CR2032. Replace with a new CR2032 battery when the flashing battery symbol appears on the display BN. Remove the battery cover BO by sliding it in the direction shown. Insert the new battery with the + at the top. Batteries and electronic devices must be dis- posed of in accordance with the locally applicable regulations, not with domestic waste. 12.Guarantee This device is covered by a 2 year guarantee from the date of purchase. The guarantee is valid only on presentation of the guarantee card completed by the dealer (see back) confirming date of purchase or the receipt. The guarantee covers the device. The battery and pack- aging are not included. Opening or altering the device invalidates the guarantee. The guarantee does not cover damage caused by improper handling, a discharged battery, accidents or non-compliance with the operating instructions. Please contact Microlife-service.6NC 120 EN 13.Technical Specifications This device complies with the requirements of the Medical Device Directive 93/42/EEC. Technical alterations reserved. According to the Medical Product User Act a biennial tech- nical inspection is recommended for professional users. Please observe the applicable disposal regulations. 14.www.microlife.com Detailed user information about our thermometers and blood pressure monitors as well as services can be found at www.microlife.com. Type: Non Contact Thermometer NC 120 Measurement range: Body mode: 34.0-42.2 °C / 93.2-108.0 °F Object mode: 0-100.0 °C / 32-212.0 °F Resolution:

Measurement accuracy: Laboratory:

Display: Liquid Crystal Display, 4 digits plus special icons Acoustic: The unit is turned ON and ready for the measurement: 1 short beep. Complete the measurement: 1 long beep (1 sec.) if the reading is less than 37.5 °C /

99.5 °F, 10 short «beep» sounds, if the

reading is equal to or greater than 37.5 °C /

System error or malfunction: 3 short «bi» sounds. Memory: Auto-Display the last measured temperature 30 readings recall in the memory mode Backlight: The display light will be GREEN for 4 seconds, when the unit is turned ON. The display light will be GREEN for 5 seconds, when a measurement is completed with a reading less than 37.5 °C / 99.5 °F. The display light will be RED for 5 seconds, when a measurement is completed with a reading equal to or higher than 37.5 °C /

Operating conditions: Body mode: 16-40.0 °C / 60.8-104.0 °F Object mode: 5-40.0 °C / 41-104.0 °F Storage conditions: -20- +50°C / -4- +122°F 15-95 % relative maximum humidity Automatic Switch-off: Approx. 1 minute after last measurement has been taken. Battery: 1 x CR2032 battery 3V Battery lifetime: approx. 2000 measurements (using a new battery) Dimensions: 120 x 28 x 21 mm Weight: 39 g (with battery), 36 g (w/o battery) IP Class: IP21 Reference to standards: ASTM E1965; IEC 60601-1; IEC 60601-1-2 (EMC);
