SHFX67 - Hi-Fi System PANASONIC - Free user manual and instructions

Product type	Wireless surround speaker system (rear kit)
Model	SH-FX67 (transmitter SH-FX67T, receiver SE-FX67)
Brand	Panasonic
RMS output power (surround)	125 W per channel (3 Ω, 1 kHz, 10% THD) – 250 W total
DIN output power (surround)	70 W per channel (3 Ω, 1 kHz, 1% THD) – 140 W total
Power supply	AC 230-240 V, 50 Hz
Power consumption (transmitter SH-FX67T)	1.5 W
Power consumption (receiver SE-FX67)	43 W
Standby power consumption	~0.3 W
Radio frequency band	2.400 – 2.4835 GHz
Wireless range	Approx. 10 m (depending on environment)
Number of supported channels	5.1 or 7.1 (with second kit)
Compatible speaker impedance	3 to 6 Ω
Operating temperature	0 °C to +40 °C
Operating humidity	20% to 80% RH (no condensation)
Supplied accessories	2 power cords, 2 speaker cables
Maintenance	Soft dry cloth – do not use alcohol, thinner or benzine
Safety	Do not open or repair yourself – unplug in case of problem
Spare parts / repairability	Contact dealer or authorized center – transmitter card replaceable (pairing required)
General information	Designed for temperate climate – compatible with Panasonic home theater (e.g., SC-BT100, SC-PT860)

Frequently Asked Questions - SHFX67 PANASONIC

How to install the SH-FX67 wireless system?

Place the wireless system about 10 m from the home theater device. Connect the surround speakers to the corresponding color connectors (blue/gray). Insert the SH-FX67T digital transmitter into the slot of the home theater device. Connect the power cords, then turn on the power.

How to create a wireless link between the transmitter and receiver?

Turn on the wireless system (I button), then turn on the home theater device. The link indicator (e.g., 'W1') should light up. If it flashes, refer to the troubleshooting guide. The link is established automatically.

What to do if the link indicator flashes?

Flashing indicates a loss of link. Turn off and then turn on the wireless system. You can also disconnect and reconnect the power cord of the receiver.

How to pair a second wireless system for 7.1 channels?

Turn on the second receiver. On the home theater device, press [▶▶/▶] and the numeric key [3] until 'P' is displayed. Then press [I/D SET] on the back of the second receiver with a pointed object. Finish by pressing [▶/▶] and [3] again.

What are the installation precautions?

Avoid installing the system in a metal cabinet. Keep it at least 2 m away from devices using the 2.4 GHz band (wireless LAN, cordless phone). Place the surround speakers next to or slightly behind the seating positions.

How to clean the wireless system?

Use a soft dry cloth. Never use alcohol, paint thinner or benzine. If using a chemically treated cloth, read the instructions first.

Can I use the wireless system with another home theater device?

The SH-FX67 is specifically designed for compatible Panasonic home theater systems (e.g., SC-BT100, SC-PT860, SC-PT560). Check compatibility in your device's manual.

How to reduce standby power consumption?

Even when off, the receiver consumes about 0.3 W. If not used for an extended period, unplug it from the mains to save energy.

What to do in case of radio interference?

Move other transmitting devices (WiFi router, DECT phone) at least 2 m away from the wireless system. If possible, bring the receiver closer to the home theater device. The automatic free channel search function should minimize interruptions.

Are speaker cables supplied?

Yes, two speaker cables are supplied with the SH-FX67 kit. Use them to connect the surround speakers to the SE-FX67 receiver respecting colors (blue for left, gray for right).

USER MANUAL SHFX67 PANASONIC

POUR RÉDUIRE LES RISQUES D'INCENDIE, D'ÉLECTROCUTION OU DE DOMMAGES AU PRODUIT,

• N'EXPOSEZ PAS CET APPAREIL À LA PLUIE, À L'HUMIDITE, À UNE CHUTE DE GOUTTES OU À DES ÉCLABOSSURES ET NE PLACEZ AUCUN RÉCIPIENT CONTENANT UN LIQUIDE TEL QU'UN VASE AU-DESSUS.
• N'UTILISEZ QUE LES ACCESSOIRES RECOMMANDÉS.
• NE RETIREZ PAS LE COUVERCLE (OU L'ARRIÈRE) : IL N'Y A AUCUNE PIECE REPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIEZ TOUTE INTERVENTION À UN PERSONNEL DE DÉPANNAGE QUALIFIÉ.

Per l'Europa, contattare: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, F. R. Germany

CZ (Rep. Ceca), DE (Germany), DK (Danimarca),

EE (Estonia), ES (Spagna), FI (Finlandia), FR (Francia),

GR (Grecia), HU (Ungheria), IT (Italia), LT (Lituania),

(DoC, Declaration of Conformity)

Kontakt i EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, F. R. Germany

Temperaturinterval for drift

0^ till +40^

Luftfuktighetsinterval for drift

20% till 80% RH (ingen kondens)

f.eks. After parring

20% a 80% RH (sin condensation)

Kontakt w krajach UE: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, F. R. Germany

PROSTOROVy (LS): Modry ZADNI PROSTOROVy (LB): Sedy

Network Business Group

Kadron,Osaka,Japan

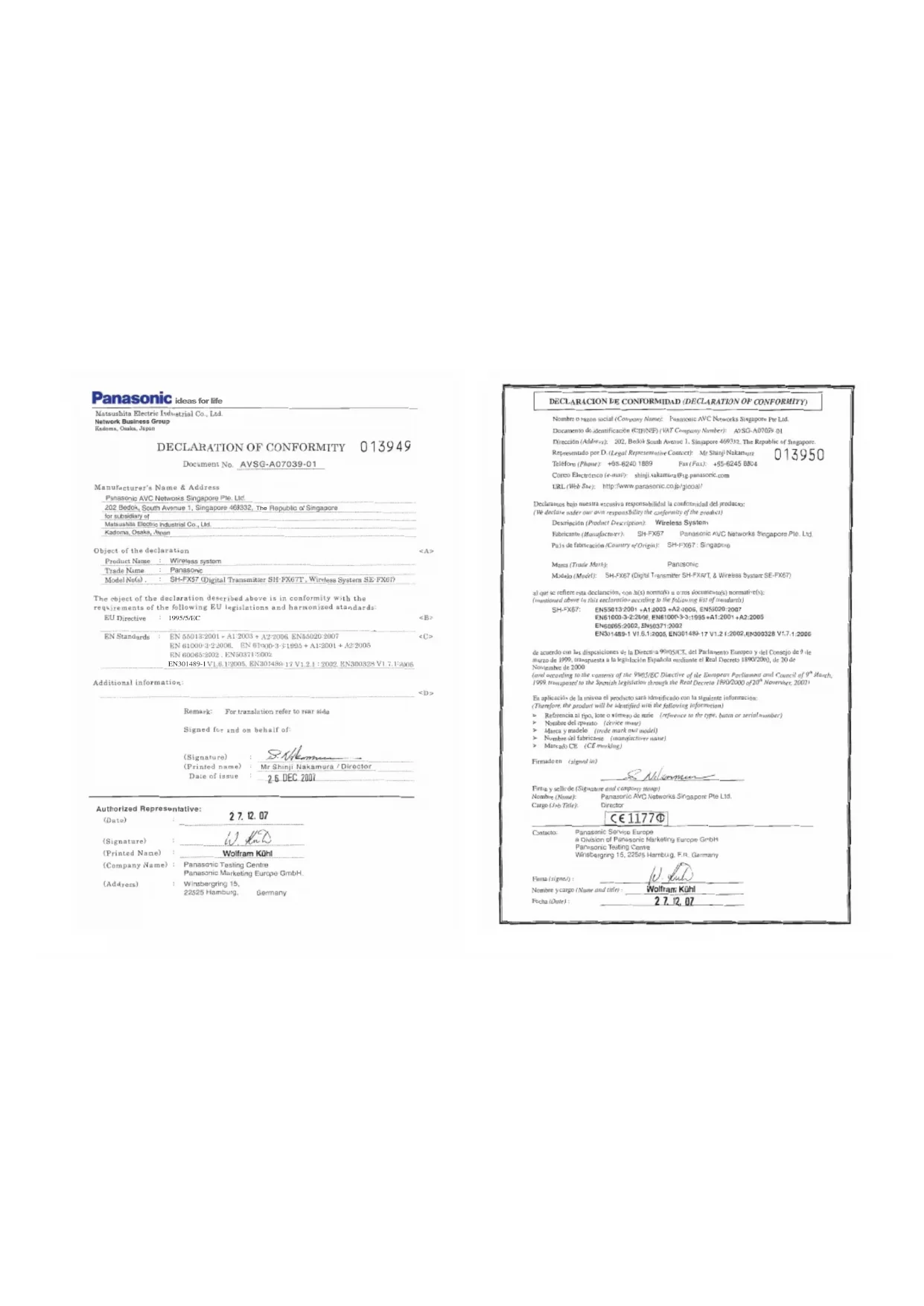

DECLARATION OF CONFORMITY
