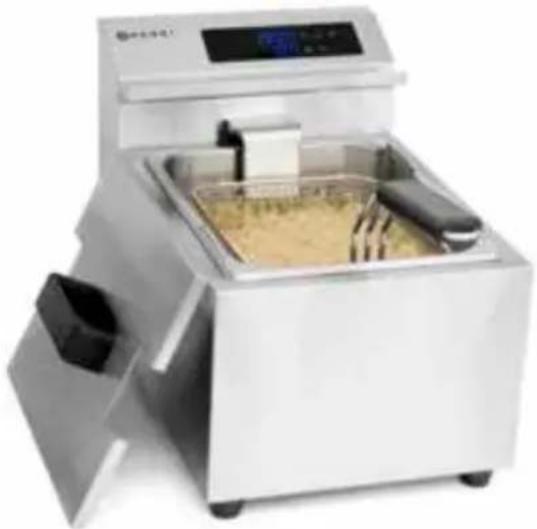

USER MANUAL Mastercook Digital 207369 Hendi

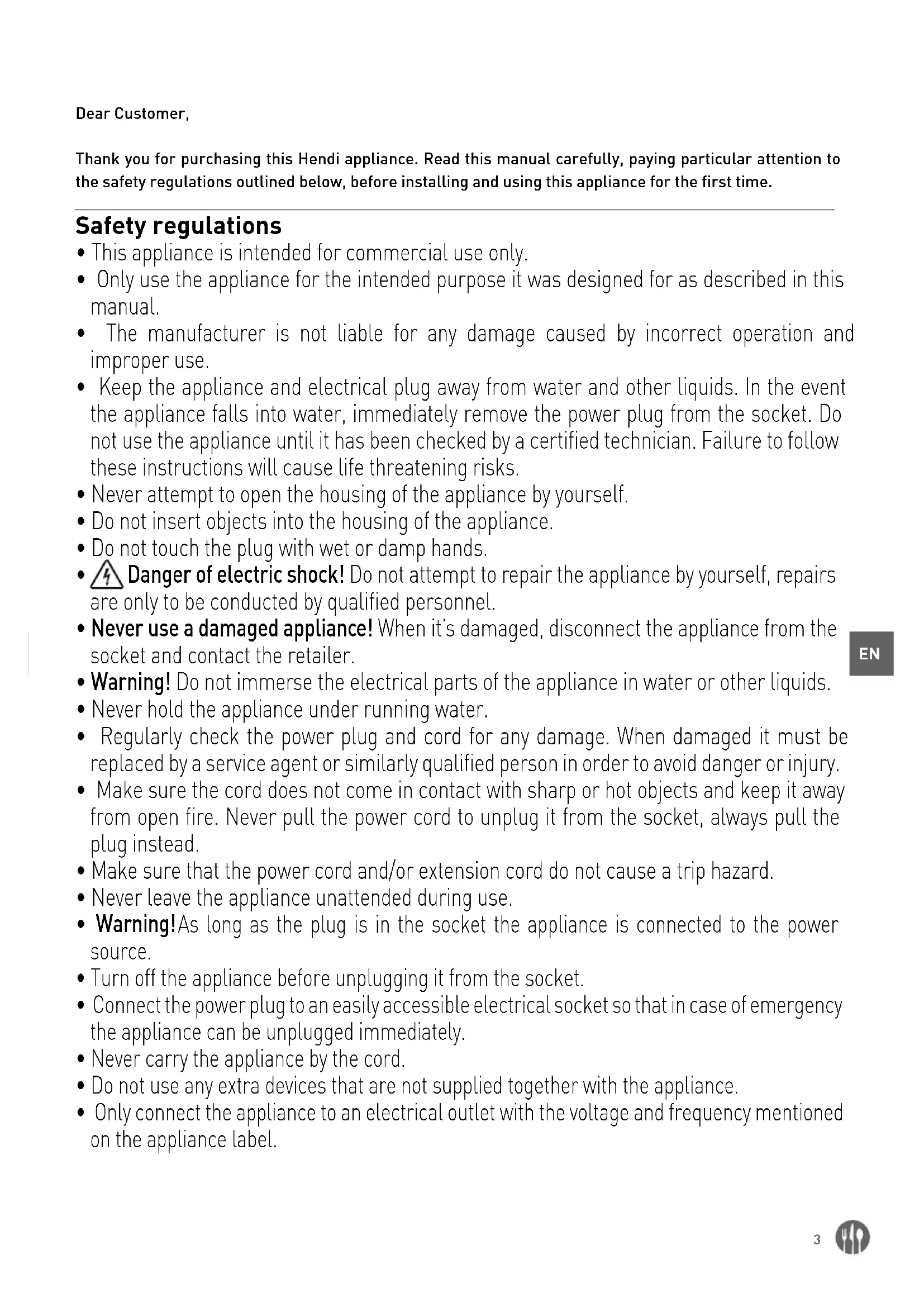

Dear Customer, Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time. Safety regulations

• This appliance is intended for commercial use only.

• Only use the appliance for the intended purpose it was designed for as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Never attempt to open the housing of the appliance by yourself.

• Do not insert objects into the housing of the appliance.

• Do not touch the plug with wet or damp hands.

Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.

• Never use a damaged appliance! When it’s damaged, disconnect the appliance from the socket and contact the retailer.

• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.

• Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Make sure that the power cord and/or extension cord do not cause a trip hazard.

• Never leave the appliance unattended during use.

• Warning! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before unplugging it from the socket.

• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.4

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its power cord out of reach of children.

• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage. Special Safety Regulations

• Caution! Hot surface! The temperature of the accessible surface is very hot during use. Touch the icons on the control panel only.

• When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative finishes, etc., it is recommended that they are made of non-com

bustible material; if not, they shall be cladded with a suitable non-combustible heat in- sulating material, and that the closest attention be paid to fire prevention regulations.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.). Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

• Do not use the appliance near explosive or flammable materials, credit cards, magnetic discs or radios.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• WARNING: Danger of fire exists if oil level below “L” (Min) marking or no oil in the oil container.

• WARNING: Do not fry too wet foodstuffs and too much food at each time to avoid exces

sive foaming and spill out of oil. Maximum batch load is approximately 1kg.

• Allow at least 20 cm spacing around the appliance for ventilation purpose during use.

• Only use suitable oil or fat for frying. Replace the oil or fat at regular intervals. Over

cooked or dirty oil or fat can be ignited if it is overheated.

• Do not use plastic cutlery during operation.

• Danger! Never use old oil, old oil has a reduced flash point and is more prone to surge boiling which increases the risk of fire and dangerous situations.

• Warning! Deep frying moist foods and large quantities at once has an negative influence on the boiling point of the oil.

• Always clean the appliance and other accessories after each use (-->Cleaning and main

• Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.

• Caution! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.5

• Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.

• Do not clean or store the appliance unless it is completely cooled down.

• No part is dishwasher safe.

• Always remove the plug from the socket when filling or cleaning the deep fryer.

• The electrical installation must satisfy the applicable national and local regulations.

• The Fryer tank and element should be placed in a safe position in your kitchen before usage due to the hot contents when in use. Intended use

• This appliance is intended for professional use and can be operated only by qualified personnel.

• The appliance is designed only for frying appro- priate food only such as French fries, etc. Any other use may lead to damage of the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the de- vice. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded. Preparations before using for the first time

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier im- mediately and do NOT use the appliance.

• Remove all the packing material and protection film (if applicable).

• Clean the appliance with luke-warm water and a soft cloth.

• Place the appliance on a level and steady surface, unless mentioned otherwise.

• Make sure there is enough clearance around the appliance for ventilation purposes.

• Position the appliance in such a way that the plug is accessible at all times.

• Keep the packaging for storing your appliance when not in use for an extended period of time. Installation

• Place the appliance on a level, stable, clean, heat-resistant and dry surface with its rubber feet.

• Carefully install the back support with heating el- ement on the rear edge of the oil container. NOTE:

1. Make sure that the pin on the back support is in

the correct position & properly mounted.

2. The appliance should be placed in a safe posi-

tion in your kitchen before use due to hot hazard when in use.6

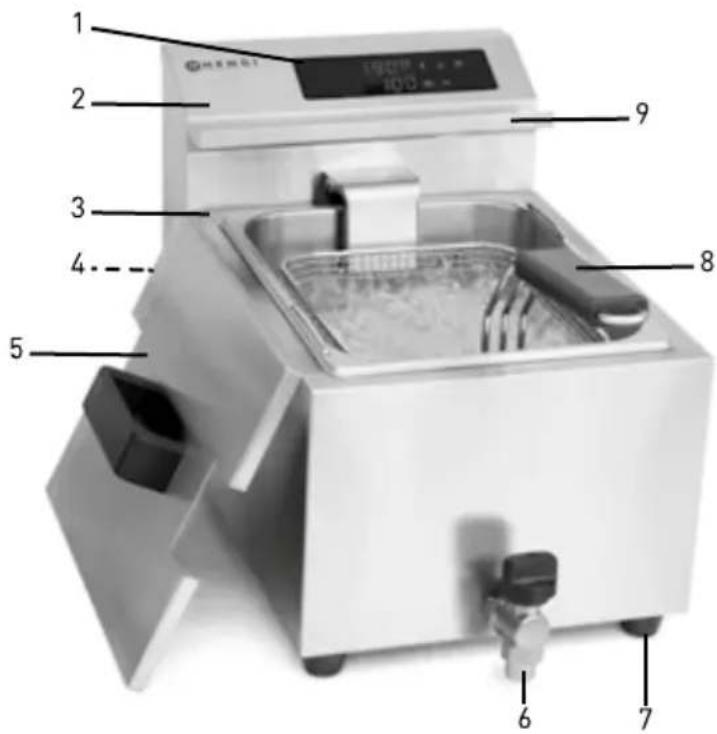

Main parts of the appliance

2. Detachable back support with heating element

3. Base unit with oil container

4. RESET button (At the rear and bottom of the back

6. Oil drain tap (Supplied for item 207369 and

8. Frying basket with handle

• Make sure the oil drain tap is closed.

• Remove the plug from the socket.

• Make sure the oil container is clean and dry and no water inside.

• Carefully fill the container with oil between the “L” marking (Min) and the “H” marking (Max).

• Plug the earthed plug into an earthed socket.

• You can now use the deep fryer. Deep-frying The deep fryer is designed with a unique cold zone to allow crumbs and residue to sink to the bottom this also enables the usable life of the fat/oil to ex- tend considerably. Regularly check if there is sufficient oil or fat in the container. The level should never be below the “L” marking (Min) line. Operation

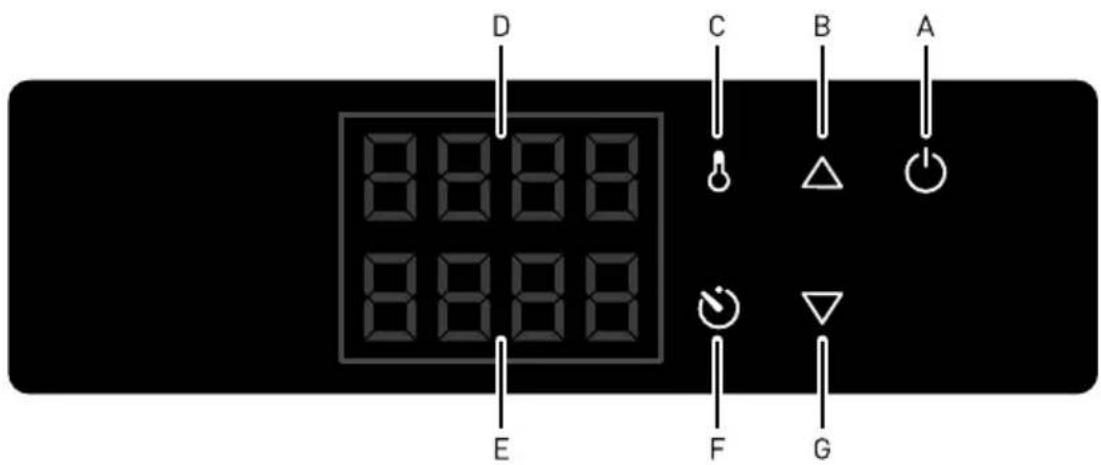

1. Setting the TEMPERATURE

1.1 Fill the container with oil and make sure that

the oil level is between the “L” and “H” mark. Note: Remember that placing food in the oil will also raise the oil level. Do not put too wet foodstuffs or large amount of food at each time.

1.2 Connect the power plug to a suitable electrical

1.3 Press the ON/OFF Icon & light up. The IN-

heating operation. The upper display will show the ACTUAL TEMPERATURE of the oil. And the TEMPERATURE icon will blink constantly.

1.5 You can also press TEMPERATURE icon to

see the last SET TEMPERATURE for 2 sec- onds.Within this period, press INCREASE or DECREASE icon to adjust the SET TEMPERA- TURE if need.Press INCREASE / DECREASE icon once for +1,0°C / - 1,0°C. Press & hold for fast adjustment. After stop pressing for about 3 seconds, the new SET TEMPERATURE will be stored automatically.

1.6 Under heating operation, the TEMPERSTURE

icon will blink constantly until the SET TEM- PERATURE is reached. After reaching the SET TEMPERATURE, the TEMPERATURE icon light will go off and keep within a range of ± 2°C.

1.7 When switch off the appliance, “oFF” will be

2.1 During operation, you can activate the TIMER

2.4 The newly set TIMER will be stored and start

countdown within about 3 seconds.

2.5 When count down is finished, “End” will be

blinked continuously on the lower display. Two short beep sounds will be heard with about 10 seconds duration for over period of 1 minute.

2.6 Press the TIMER button once to return to the

last preset time. Press again the TIMER button to enter TIMER set mode for changing the time. The INCREASE/DECREASE icon will blink. The newly set TIMER will be stored and start count- down again within about 3 seconds.

2.7 During count down, press and hold the TIMER

icon for 3 seconds to cancel counting mode. “oFF” will be shown on the lower display. ATTENTION: The frying basket holder is just for temporarily holding for excess oil discharge only. Do not hold too long time to prevent from fall down accidently and spill out of heated oil.8

Calibration function This function allows the user to calibrate and ad- just the “display temperature” align with the “ac- tual temperature”. A calibrated thermometer with probe is required (not included) for measurement.

• During operation, press and hold both the IN- CREASE and DECREASE buttons for 6 seconds to enter “calibration mode”.

• Then, the “display temperature” shown on the display will blink constantly.

• Next, put the thermometer (not included) inside the oil tank for comparison. Be careful as the oil is hot.

• When under steady situation, press INCREASE or DECREASE button to align the “display temper- ature” with the reading in the thermometer (not included).

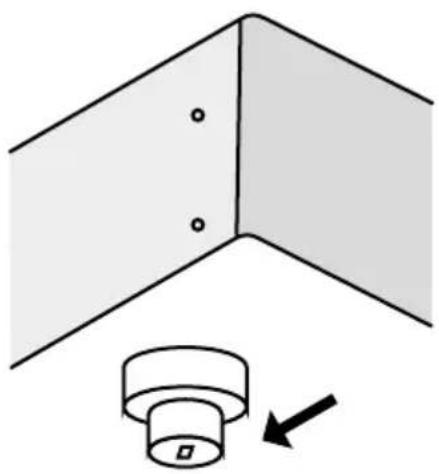

• After that, press TEMPERATURE icon to confirm it after finishing calibration. RESET the Hi-limiter (thermal cut-out) Please note that the RESET button is located at the bottom of the detachable back support with a protective cap (See line drawing to avoid overheat).

• Unplug the deep fryer from the electrical outlet first.

• Allow the deep fryer to completely cool down.

• Remove the detachable back support from the support.

• Unscrew the black protective cap of the RESET button.

• Press the RESET button of the Hi-limiter (ther- mal cut-out). You should hear a click sound.

• Screw back the protective cap on the RESET but- ton.

• Reinstall the detachable back support on the support. Deep frying tips

• Only use liquid frying oil (preferably) or fat.

• The recommended temperature for frying chips and snacks is 175°C max.

• Heat the oil slowly. Preferably in 3 steps for ex- ample first at 100°C, then from 100-140°C and later from 140°C to 175°C with 15 minute breaks between steps.

• Remove ice and crumbs from frozen foods.

• Do not deep-fry too much at one time. This can cause the oil or fat to cool down too much. Cooled down oil/fat does not properly sear the surface of the food, so that more fat will be absorbed. The ideal proportion of frozen products to frying oil/ fat is 1:10 maximum.

• When used intensively, crumbs and other debris should be filtered out of the oil/fat.

• Replace oil or fat in time. Use test strips or test equipment regularly to track when oil/fat should be replaced.

• If oil or fat starts to foam, smoke or gets too vis- cous you should replace it. Also replace the oil/fat when it has a strong smell or taste. After use

• Turn off the appliance by pressing the ON/OFF icon and removing the plug from the socket.

• Remove the basket from the oil container. This avoids the basket becoming stuck in the solidi- fied fat.

• Put the lid on the deep fryer, so that the fat does not age.9

Cleaning and maintenance

• Always remove the plug from the socket cool down completely before cleaning the appliance.

• Beware: Never immerse the appliance in water or any other liquid!

• Clean the outside of the appliance with a damp cloth (water with mild detergent).

• Never use aggressive cleaning agents or abra- sives. Do not use any sharp or pointed objects. Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary. Do not use abrasive materials.

• Do not clean the appliance with steam cleaner or water jet.

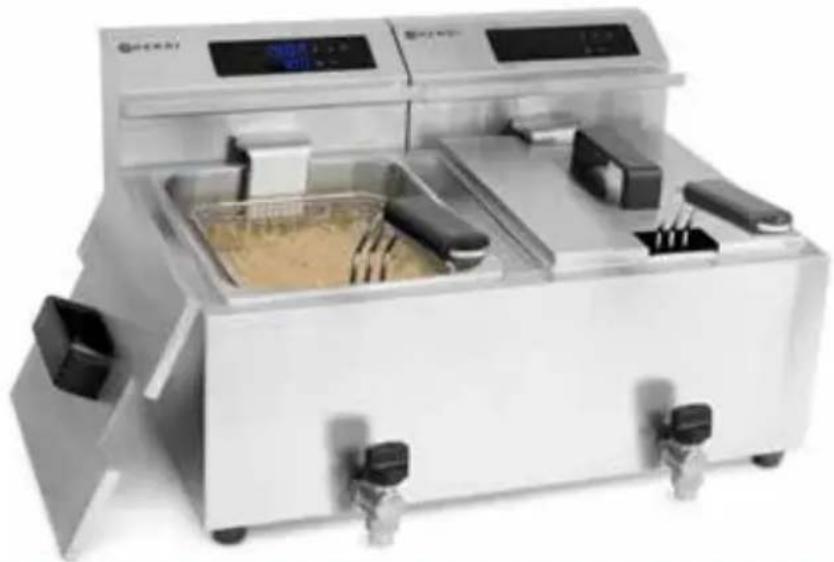

• Assemble the appliance after cleaning and make sure that the heating & control panel is mounted properly, otherwise the appliance will not func- tion. Technical Specification Item no 207345 207352 207369 207376 Operating voltage & frequency 230V~ 50Hz Rated input power 3500W 2 x 3500W 3500W 2 x 3500W Capacity 8L 2 x 8L 8L (with tap) 2 x 8L (with tap) Protection class Class I Waterproof protection class IPX3 Timer range 30 seconds ~ 20 minutes Temperature range 25°C ~ 195°C Exterior dimension 300x455x(H)345mm 605x455x(H)345mm 300x515x(H)345mm 605x515x(H)345mm Remarks: Technical specification is subjected to change without prior notification. Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Fault Symptom Possible cause Possible solution Appliance does not do anything Orange light doesn’t light No mains voltage Check the electrical installation. Switch light defective Hi-limiter (thermal cut-out) tripped. Reset the Hi-limiter (thermal cut- out) (See RESET on page 8) Hi-limiter (thermal cut-out) de

fective Contact your supplier Thermostat defective Contact your supplier Appliance does not reach the set temperature. Long frying time. Thermostat defective Contact your supplier Element defective Contact your supplier If after these controls, the malfunctioning continues, it is advisable to contact technical assistance. In case of any doubt, always contact your supplier!10

Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.11
