Product type	Battery charger
Brand	Panasonic
Model	EY0110
Weight	0.78 kg
Input voltage	Check the rating plate
Compatible battery types	Panasonic batteries from series EY9000, EY9001, EY9065, EY9066, EY9080, EY9086, EY9101, EY9106, EY9136, EY9166, EY9168, EY9180, EY9182, EY9200, EY9201, EY9210, EY9230, EY9231, EY9251, EY9268 (voltages 7.2 V to 24 V)
Charging time	From 20 to 90 minutes depending on battery model
Indicator light	Charge indicator (green), standby indicator (orange)
Overheat protection	Yes, charging suspended if battery hot
Low temperature protection	Yes, charging time prolonged if battery cold
Automatic shut-off	Yes, at end of charge
Indoor use	Yes, do not expose to rain or moisture
Charging temperature	Between 0 °C and 40 °C
Maintenance	Unplug before cleaning; do not immerse; use a dry cloth
Repairability	Do not disassemble; refer to an authorized specialist
Safety instructions	Read the manual before use; use only with recommended batteries; do not use an extension cord
Included accessories	Power cord
Country of manufacture	Not specified

Frequently Asked Questions - EY0110 PANASONIC

What types of batteries can I charge with the Panasonic EY0110 charger?

The EY0110 charger is designed to charge Panasonic batteries from series EY9000, EY9001, EY9065, EY9066, EY9080, EY9086, EY9101, EY9106, EY9136, EY9166, EY9168, EY9180, EY9182, EY9200, EY9201, EY9210, EY9230, EY9231, EY9251 and EY9268, under voltages ranging from 7.2 V to 24 V.

What does the orange light staying on mean?

The orange indicator (standby indicator) indicates that the battery is too hot to be charged. The charger waits for the battery to cool down, then charging starts automatically.

How long does it take to charge a battery?

Charging time varies by battery model: from 20 minutes (for some 7.2 V) to 90 minutes (for some 24 V). Consult the specifications table in the manual for more details.

Can I use an extension cord with the charger?

No, using an extension cord is not recommended to reduce the risk of fire or electric shock.

What to do if the charge indicator does not light up?

Check that the power outlet works and that the battery is correctly inserted. If the problem persists, consult an authorized dealer for technical assistance.

Is the charger protected against overheating?

Yes, the charger has a protection that interrupts charging if the battery becomes too hot. The orange light turns on until it cools down.

Can I charge a cold battery?

Yes, but charging may take longer. If the battery is below 5 °C, let it return to room temperature for at least one hour before charging.

What does the rapid flashing of the green indicator mean?

The rapid flashing of the green indicator indicates that charging is complete. The battery is then ready to use.

Can I use the charger outdoors?

No, the charger must not be exposed to rain or snow, nor used in a humid place. It is designed for indoor use.

How to maintain the charger?

Always unplug the charger before cleaning. Wipe it with a dry cloth. Do not immerse it in water and do not use chemicals.

USER MANUAL EY0110 PANASONIC

Original instructions: English

Translation of the original instructions: Other languages

German: Page 8

Original instructions: Other languages

Ukrainian: Page 48

Original instructions: English

Translation of the original instructions: Other languages

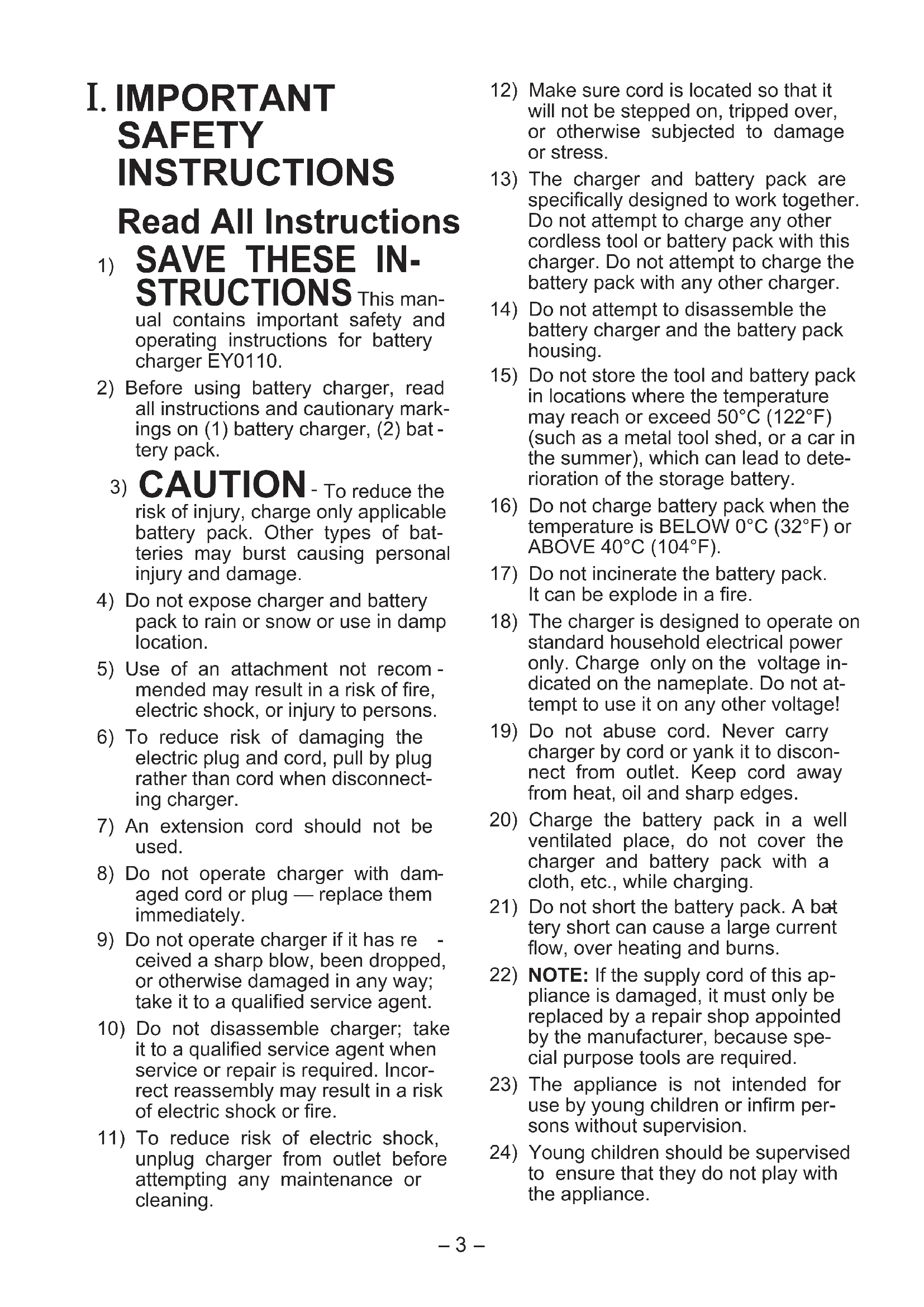

I. IMPORTANT SAFETY INSTRUCTIONS

Read All Instructions

1)

SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions for battery charger EY0110.

ual contains important safety and operating instructions for battery charger EY0110.

2) Before using the battery charger, read all instructions and cautionary markings on (1) the battery charger and (2) the battery pack. 3) CAUTION - To reduce the risk of injury, charge only the applicable battery pack. Other types of batteries may burst, causing personal injury and damage. 4) Do not expose the charger or battery pack to rain or snow, or use them in damp locations. 5) Use of an attachment not recommended may result in a risk of fire, electric shock, or injury to persons. 6) To reduce the risk of damaging the electric plug and cord, pull by the plug rather than the cord when disconnecting the charger. 7) An extension cord should not be used. 8) Do not operate the charger with a damaged cord or plug - replace them immediately. 9) Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified service agent. 10) Do not disassemble the charger; take it to a qualified service agent when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. 11) To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning.

12) Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. 13) The charger and battery pack are specifically designed to work together. Do not attempt to charge any other cordless tool or battery pack with this charger. Do not attempt to charge the battery pack with any other charger. 14) Do not attempt to disassemble the battery charger or the battery pack housing. 15) Do not store the tool and battery pack in locations where the temperature may reach or exceed 50°C (122°F) (such as a metal tool shed, or a car in the summer), which can lead to deterioration of the storage battery. 16) Do not charge the battery pack when the temperature is BELOW 0°C (32°F) or ABOVE 40°C (104°F). 17) Do not incinerate the battery pack. It can explode in a fire. 18) The charger is designed to operate on standard household electrical power only. Charge only on the voltage indicated on the nameplate. Do not attempt to use it on any other voltage! 19) Do not abuse the cord. Never carry the charger by the cord or yank it to disconnect from the outlet. Keep the cord away from heat, oil, and sharp edges. 20) Charge the battery pack in a well-ventilated place; do not cover the charger and battery pack with a cloth, etc., while charging. 21) Do not short the battery pack. A battery short can cause a large current flow, overheating, and burns. 22) NOTE: If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special-purpose tools are required. 23) The appliance is not intended for use by young children or infirm persons without supervision. 24) Young children should be supervised to ensure that they do not play with the appliance.

II. CHARGING THE BATTERY

NOTE

When you charge the battery pack for the first time, or after prolonged storage, charge it for about 24 hours to bring the battery up to full capacity.

Battery charger

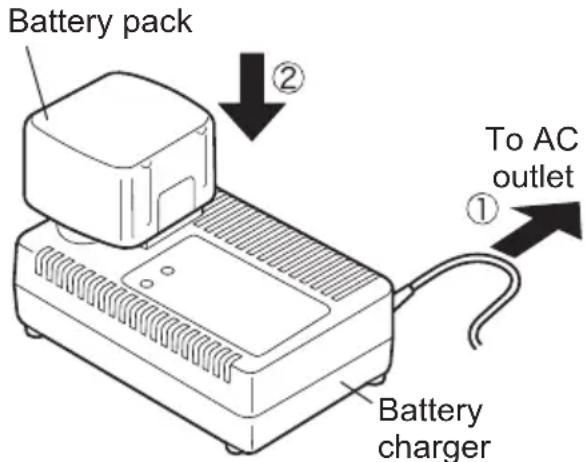

1. Plug the charger into the AC outlet.

NOTE:

Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

1. Insert the battery pack firmly into the charger.

1. During charging, the charging lamp will be lit.

When charging is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

Charging will not start if the battery pack is warm (for example, immediately after heavy-duty operation).

The orange standby lamp will be lit until the battery cools down. Charging will then begin automatically.

1. When charging is completed, the charging lamp will start flashing quickly in green color.
2. When in any of the conditions that the battery pack is too cool, or the battery pack has not been used for a long time, the charging lamp is lit. In this case, charging takes longer.

to fully charge the battery pack than the standard charging time.

If a fully charged battery pack is inserted into the charger again, the charging lamp lights up. After several minutes, the charging lamp may flash quickly to indicate that charging is completed.

1. If the charging lamp does not light immediately after the charger is plugged in, or if after the standard charging time the lamp does not go off, consult an authorized dealer.

NOTE:

• When charging a cool battery pack (below 5°C (41°F)) in a warm place, leave the battery pack at the place and wait for more than one hour to warm up the battery to the level of the ambient temperature. Otherwise, the battery pack may not be fully charged. Cool down the charger when charging more than two battery packs consecutively.
• Do not insert your fingers into the contact hole when holding the charger or any other occasions.

CAUTION:

• Do not use a power source from an engine generator.
• Do not cover the vent holes on the charger and the battery pack.
• Unplug the charger when not in use.

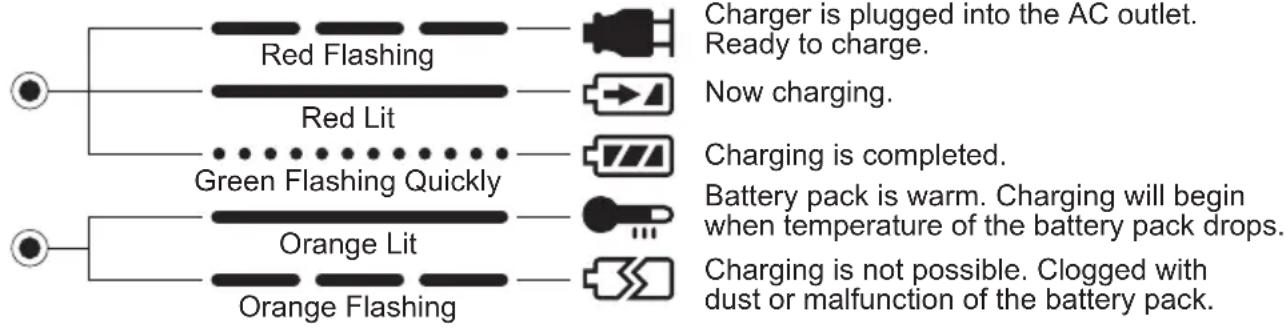

LAMP INDICATIONS

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery, and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

III. SPECIFICATIONS

Model EY0110
Electrical rating See the rating plate on the bottom of the charger.
Weight 0.78 k	g (1.72 lbs)
Charging time	7.2 V	9.6 V 12	V 15.6 V 18	V 24 V
	EY9065	EY9080	EY9001
	EY9066	EY9086
	20 min.
		EY9180	EY9101
		EY9182
		25 min.
	EY9166	30 min.	EY9106	EY9136	EY9117
	EY9168
	30 min.
	EY9268	30 min.	EY9210
	45 min.	90 min.
			EY9201	EY9231	EY9251
			55 min.	65 min.

NOTE: This chart may include models that are not available in your area. Please refer to the latest general catalogue.

ONLY FOR U. K.

IV. ELECTRICAL PLUG INFORMATION

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug.

Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover, the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME, THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover if it is removable.

This apparatus was produced to BS800.

INDICATOR LIGHTS

III. TECHNICAL DATA

Malli	EY0110
Sähköarvot	Katso laturin pohjassa olevaa arvokilpeä.
Paino	0,78 kg (1,72 lbs)
Latausaika	7,2 V 9,6	V 12 V 15,6	V 18 V 24 V
	EY9065	EY9080	EY9001
	EY9066	EY9086
	20 min.
		EY9180	EY9101
		EY9182
		25 min.
	EY9166	EY9168	EY9106	EY9136	EY9117
	30 min.	30 min. 60 min.
	EY9268	EY9200 EY92	30 EY9210
	45 min. 90 min.
			EY9201	EY9231	EY9251
			55 min. 65 min.

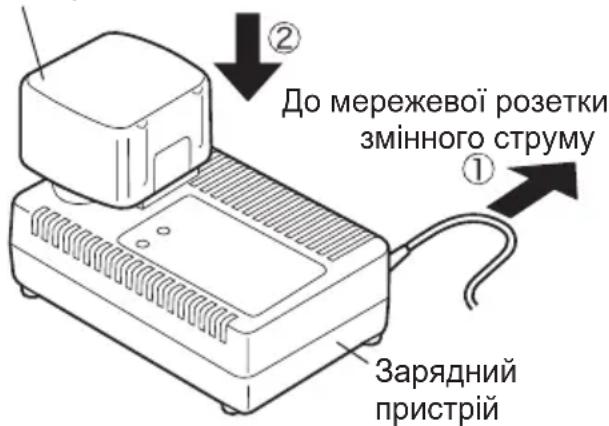

1. Plug the charger into a wall socket.

NOTE:

When unplugging the plug from the power source

sparks may occur, but this is not a safety problem.

1. Insert the battery pack firmly into the charger.

Battery pack

3. During charging, the charging indicator lamp lights up.

After charging is complete, the internal electronic switch automatically turns off, preventing overcharging.

Charging will not start if the battery pack is too hot (for example, after heavy use at high voltage). The orange standby lamp will remain lit until the battery cools down. Then charging will start automatically.

4. When charging is complete, the charge indicator will light green. 5. If any of the above conditions occur, the battery pack is too cold or the battery pack has not been used for a long time, the charge indicator will light. In this case, charging will take longer than the standard charging time until the battery pack is fully charged.

If a fully charged battery pack is inserted into the charger again, the charge indicator will light. After a few minutes, the charge indicator may start blinking, indicating that charging is complete.

6. If the charge indicator does not light immediately after plugging in the charger, or if the indicator goes out after the standard charging time, contact an authorized service center.

NOTE:

- When charging a cold battery pack (with a temperature below 5°C) in a warm room, place the battery pack in the room and wait for about one hour until the battery pack warms up to the ambient temperature. Otherwise, the battery pack may not charge fully. - Cool the charger after consecutive charging of more than two battery packs.

Do not insert your fingers into the contact openings while holding the charger, as well as in other cases.

WARNING:

Do not use the charger as a power source for other devices. Do not block the ventilation openings of the charger and the battery pack. Disconnect the charger from the mains when it is not in use.

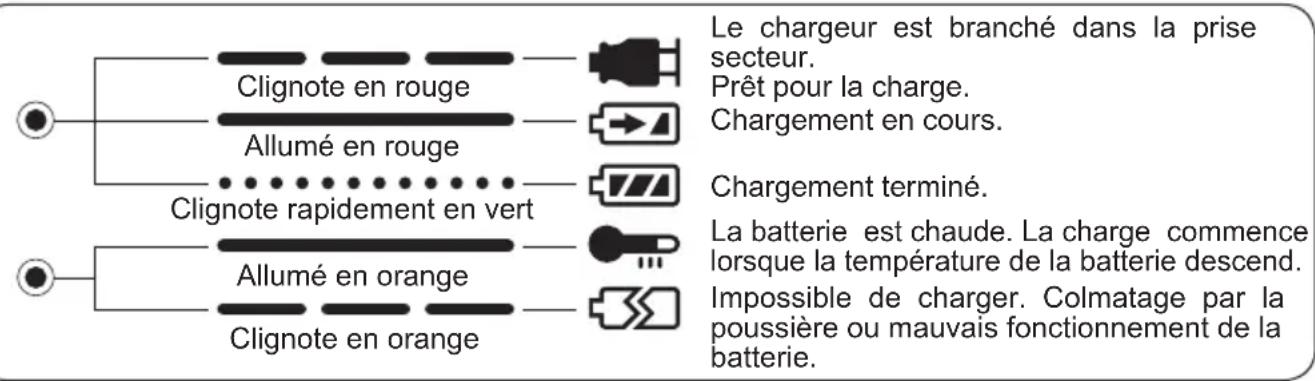

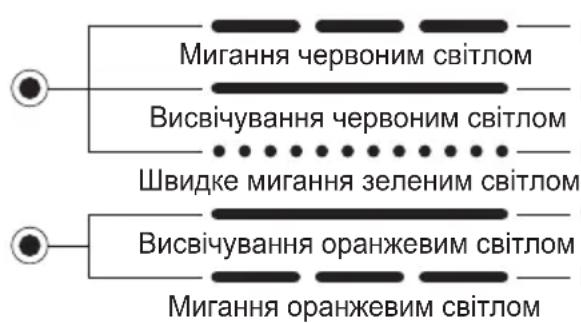

LED INDICATORS

Charger connected to the mains socket. Ready to charge. Charging in progress.

Charging complete.

Battery pack hot. Charging will start when the battery pack temperature drops. Charging impossible. Battery pack defective or not inserted correctly.

Information on disposal for countries not in the European Union

These symbols apply only within the European Union.

For disposal of these elements, contact your local authorities or dealer for the correct disposal method.

III. TECHNICAL CHARACTERISTICS
