Product Type	Battery Charger
Brand	Panasonic
Model	EY0230
Weight	0.83 kg
Input Voltage	See rating plate on bottom of charger
Charging Time	20 to 45 minutes depending on battery
Compatible Battery Type	Panasonic batteries (e.g., EY9001, EY9006, EY9080, EY9068, etc.)
Indicator Lights	Red light (charging, complete, protection) and orange light (standby)
Protection	Overcharge, temperature, short circuit
Cooling	Built-in fan
Charging Temperature	0°C to 40°C
Number of Batteries Chargeable Simultaneously	1
Power Cord	Do not use extension cord; replace if damaged
Safety	Do not expose to water, do not disassemble, use only by adults
Maintenance	Unplug before cleaning, do not cover during charging
Reparability	Have repaired by an authorized Panasonic specialist
General Information	Charger designed to work with specific Panasonic batteries; do not use for other types

Frequently Asked Questions - EY0230 PANASONIC

What types of batteries can I charge with the EY0230 charger?

The EY0230 charger is designed to charge compatible Panasonic batteries, such as models EY9001, EY9006, EY9080, EY9068, EY9101, EY9180, EY9182, EY9136, EY9106, EY9107, EY9108, EY9168, EY9230, EY9200 and others listed in the manual. Do not attempt to charge other types of batteries.

How long does it take to charge a battery with the EY0230?

Charging time varies by battery: approximately 20 minutes for 15.6 V/12 V/9.6 V/7.2 V batteries (e.g., EY9001, etc.), 25 minutes for some models, 30 minutes for others, and up to 45 minutes for 7.2 V batteries (e.g., EY9230, EY9200). The first charge after prolonged storage may take up to 24 hours.

What do the indicator lights on the charger mean?

The red light flashes during charging, stays solid when charging is complete, flashes quickly to indicate protective charging (cold battery or long unused), and flashes slowly for protective charging. The orange light turns on if the battery is too hot and turns off when the temperature drops; if it flashes, it may indicate a problem (dust or defective battery).

Can I use an extension cord with the charger?

No, using an extension cord is not recommended and may pose a risk of fire or electric shock. Plug the charger directly into a wall outlet.

What should I do if the charger does not work or the light does not come on?

First check that the wall outlet works. If the light does not come on after plugging in, or if after the standard charging time the light does not go out, stop using and consult an authorized Panasonic dealer for technical assistance.

Can I charge a hot battery?

No, the charger does not start charging if the battery is hot (e.g., after heavy use). The orange light turns on and charging starts automatically when the battery cools down.

Can I leave the charger plugged in permanently?

It is recommended to unplug the charger when not in use to save energy and avoid any risk. However, the charger is designed with overcharge protection and can remain plugged in, but it is better to unplug it.

How do I clean the charger?

Always unplug the charger before cleaning. Use a dry cloth to remove dust. Do not block the ventilation holes and do not use liquid or abrasive products.

Where can I get my charger repaired if needed?

Do not attempt to repair the charger yourself. Contact an authorized Panasonic dealer or a repair workshop indicated by the manufacturer. Special tools are necessary for replacing the power cord.

Is it safe to charge a damaged battery?

No, never charge a battery that leaks, is cracked, deformed, or damaged. This could cause fire or injury. Replace the defective battery immediately.

USER MANUAL EY0230 PANASONIC

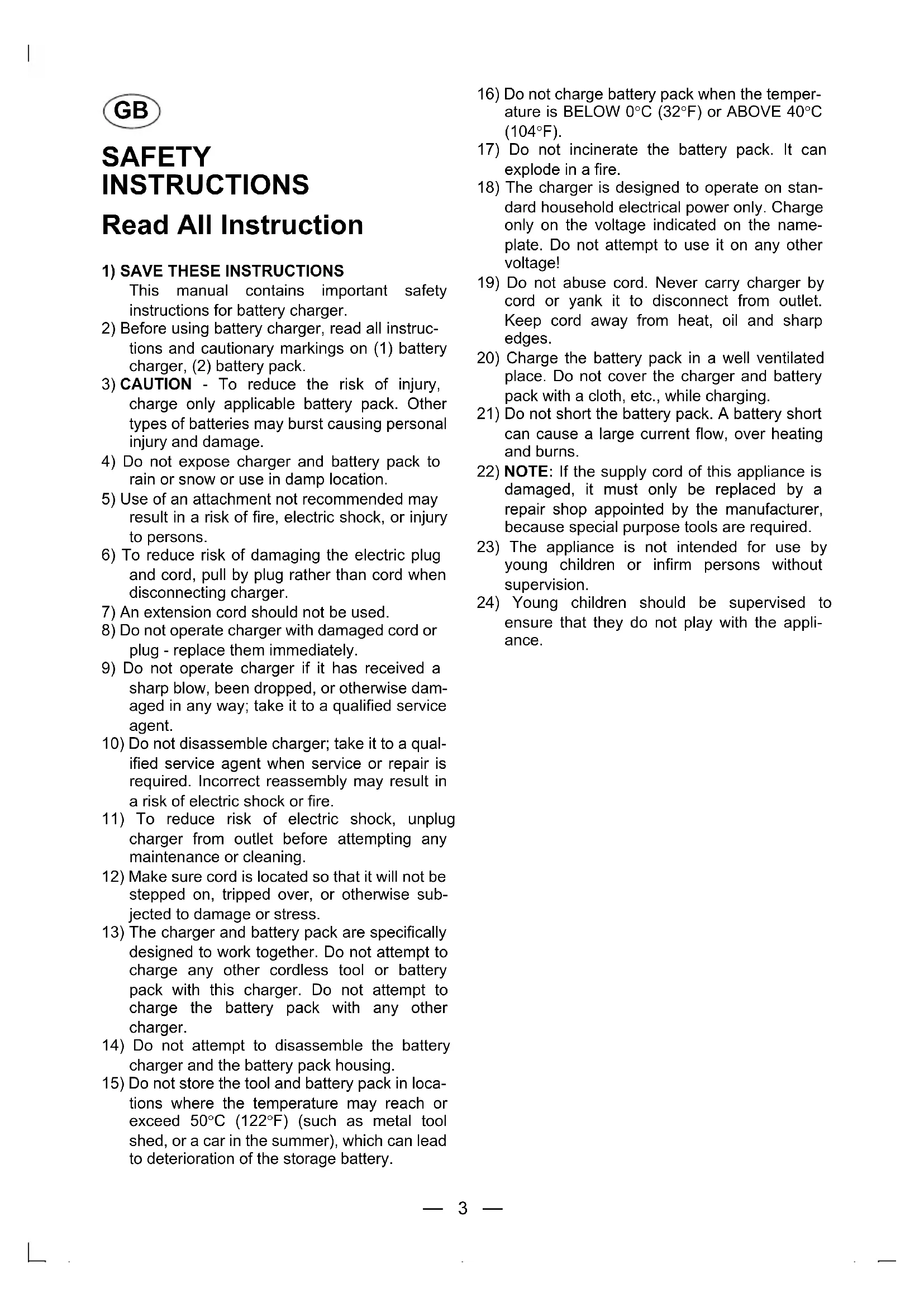

SAFETY INSTRUCTIONS Read All Instruction

1) SAVE THESE INSTRUCTIONS

This manual contains important safety instructions for battery charger.

2) Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery pack.

3) CAUTION - To reduce the risk of injury, charge only applicable battery pack. Other types of batteries may burst causing personal injury and damage.

4) Do not expose charger and battery pack to rain or snow or use in damp location.

5) Use of an attachment not recommended may result in a risk of fire, electric shock, or injury to persons.

6) To reduce risk of damaging the electric plug and cord, pull by plug rather than cord when disconnecting charger.

7) An extension cord should not be used.

8) Do not operate charger with damaged cord or plug - replace them immediately.

9) Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified service agent.

10) Do not disassemble charger; take it to a qualified service agent when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

11) To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.

12) Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

13) The charger and battery pack are specifically designed to work together. Do not attempt to charge any other cordless tool or battery pack with this charger. Do not attempt to charge the battery pack with any other charger.

14) Do not attempt to disassemble the battery charger and the battery pack housing.

15) Do not store the tool and battery pack in locations where the temperature may reach or exceed 50^ C ( 122^ F) (such as metal tool shed, or a car in the summer), which can lead to deterioration of the storage battery.

16) Do not charge battery pack when the temperature is BELOW 0°C (32°F) or ABOVE 40°C (104°F).

17) Do not incinerate the battery pack. It can explode in a fire.

18) The charger is designed to operate on standard household electrical power only. Charge only on the voltage indicated on the nameplate. Do not attempt to use it on any other voltage!

19) Do not abuse cord. Never carry charger by cord or yank it to disconnect from outlet. Keep cord away from heat, oil and sharp edges.

20) Charge the battery pack in a well ventilated place. Do not cover the charger and battery pack with a cloth, etc., while charging.

21) Do not short the battery pack. A battery short can cause a large current flow, over heating and burns.

22) NOTE: If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

23) The appliance is not intended for use by young children or infirm persons without supervision.

24) Young children should be supervised to ensure that they do not play with the appliance.

CHARGING THE BATTERY

Note: When you charge the battery pack for the first-time, or after prolonged storage, charge it for about 24 hours to bring the batteries up to full capacity.

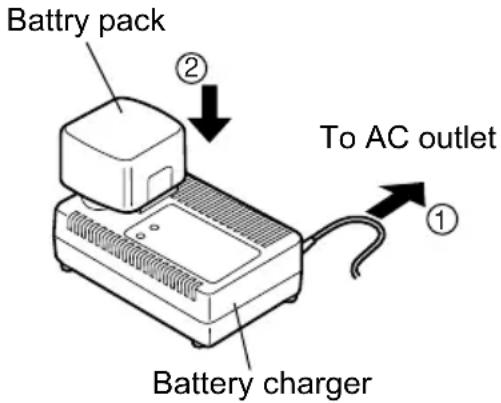

1. Plug the charger into an AC outlet.

EY0225:

- Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

1. Insert the battery pack firmly into the charger.

(* EY0230 is referred for illustration.)

EY0214:

- When charging, cooling fan in the charger functions to cool down the battery pack, and the sound of fan can be heard. This is normal. If this sound cannot be heard, it is a malfunction. Stop charging immediately and consult an authorized dealer.

1. During charging, the charging lamp will light up. When the charge is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

- Charging will not occur if the battery pack is warm (for example, immediately after heavy-duty operation). The orange standby lamp will light up until the battery becomes cool. Charging will then begin automatically.

1. When charging is completed, the charging lamp will start flashing quickly.

EY0230/EY0214:

- When the battery pack has not been used for a long time, the charging lamp starts flashing slowly to indicate protective charging. Protective charging takes longer to fully charge the battery pack, then the standard charging time. (Max. charging time is approx. 90 minutes.)

1. If a fully charged battery pack is inserted into the charger again, the charging lamp may light up. After several minutes, the charging lamp may flash quickly to indicate the charging is completed.

- If the charging lamp does not light immediately after the charger is plugged in, or if after the standard charging time the lamp does not go off, consult an authorized dealer.

Note: • When a cold battery (of about 5^ C or less) is to be charged in a warm room, leave the battery in the room for at least one hour. Charge the battery when the battery temperature has leveled with room temperature. (Failing to do so may result in less than a full charge.)

- Cool down the charger when charging more than two battery packs consecutively.

- Do not insert your fingers into contact hole, when holding charger or any other occasions.

CAUTION: • Do not use power source from an engine generator.

- Do not cover vent holes on the charger and the battery pack.

- Unplug the charger when not in use.

ONLY FOR U. K.

ELECTRICAL PLUG INFORMATION

FOR YOUR SAFETY PLEASE READ

THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 3 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 amp and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol 12

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover if it is removable.

This apparatus was produced to BS800.

LAMP INDICATIONS

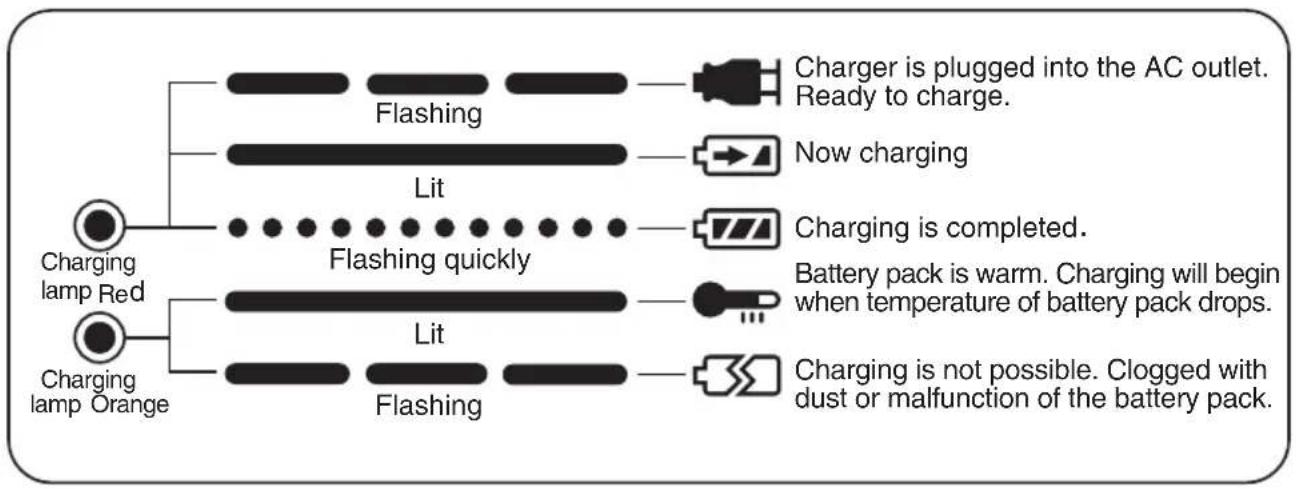

EY0225


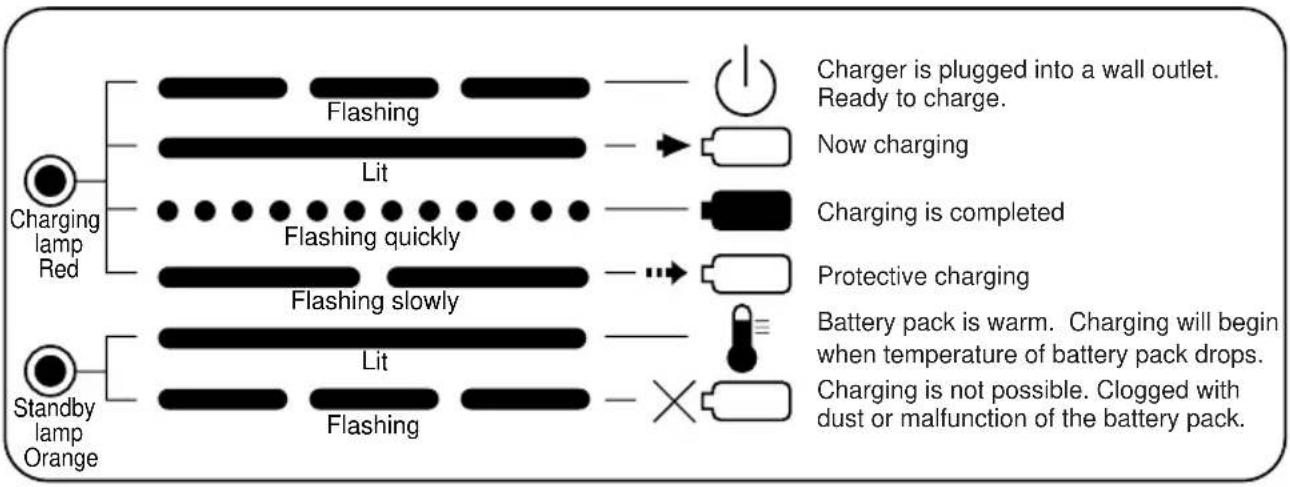

EY0230


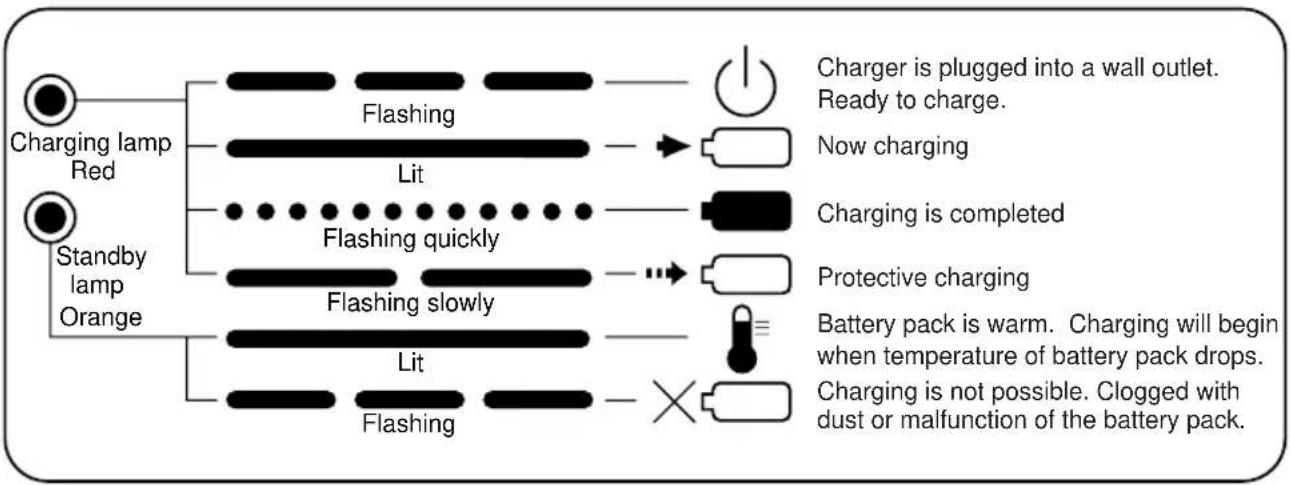

EY0214

SPECIFICATIONS

Model EY0225 EY0230 EY0214
Weight 0.6 kg (1.3 lbs) 0.83 kg (1.83 lbs) 1.12 kg (2.47 lbs)
Electrical Rating See the name plate on the bottom of the charger.
Charging time	EY0225:
	3.6 V 2.4 V Standard charging time
	EY9025 EY9021 Approx : 15 min
	EY0230:
	15.6 V 12 V 9.6 V 7.2 V Standard charging time
	-	EY9001 EY9006	EY9080 EY9068	EY9065 EY9066	Approx. 20 min.
	- EY9101		EY9180 EY9182	-	Approx. 25 min.
	EY9136	EY9106 EY9107 EY9108	- EY9168 Approx. 30 min.
	EY9230 EY9200 -		-	Approx. 45 min.
	EY0214:
	24 V 15	6 V 12 V 9.6 V 7.2 V Standard charging time
	-	-	EY9001 EY9006	EY9080 EY9086	EY9065 EY9066
	-	- EY9101		EY9180 EY9182	-
	EY9117 EY9136		EY9106 EY9107 EY9108	- EY9168 Approx. 30 min.
	EY9210 EY9230 EY9200 -			-	Approx. 45 min.

Note: This chart may include models that are not available in your area.
Please refer to the catalogue.

D

SICHERHEITSHINWEISE

Matushita Electric Works, Ltd.

Osaka, Japan

No.1 EN. GN. FR. IT. ND. ES. DN. SW. NR. FN. RUS. Uk

EY971002304 H1706 Printed in Japan
