Model No. FZ-VCBM11U

DFQW5990XAT HS0514-2055

ENGLISH

OPERATING INSTRUCTIONS

Introduction 2

Read Me First 2

Precautions 5

Specifications 5

DEUTSCH

BEDIENUNGSANLEITUNG

Einführung 6

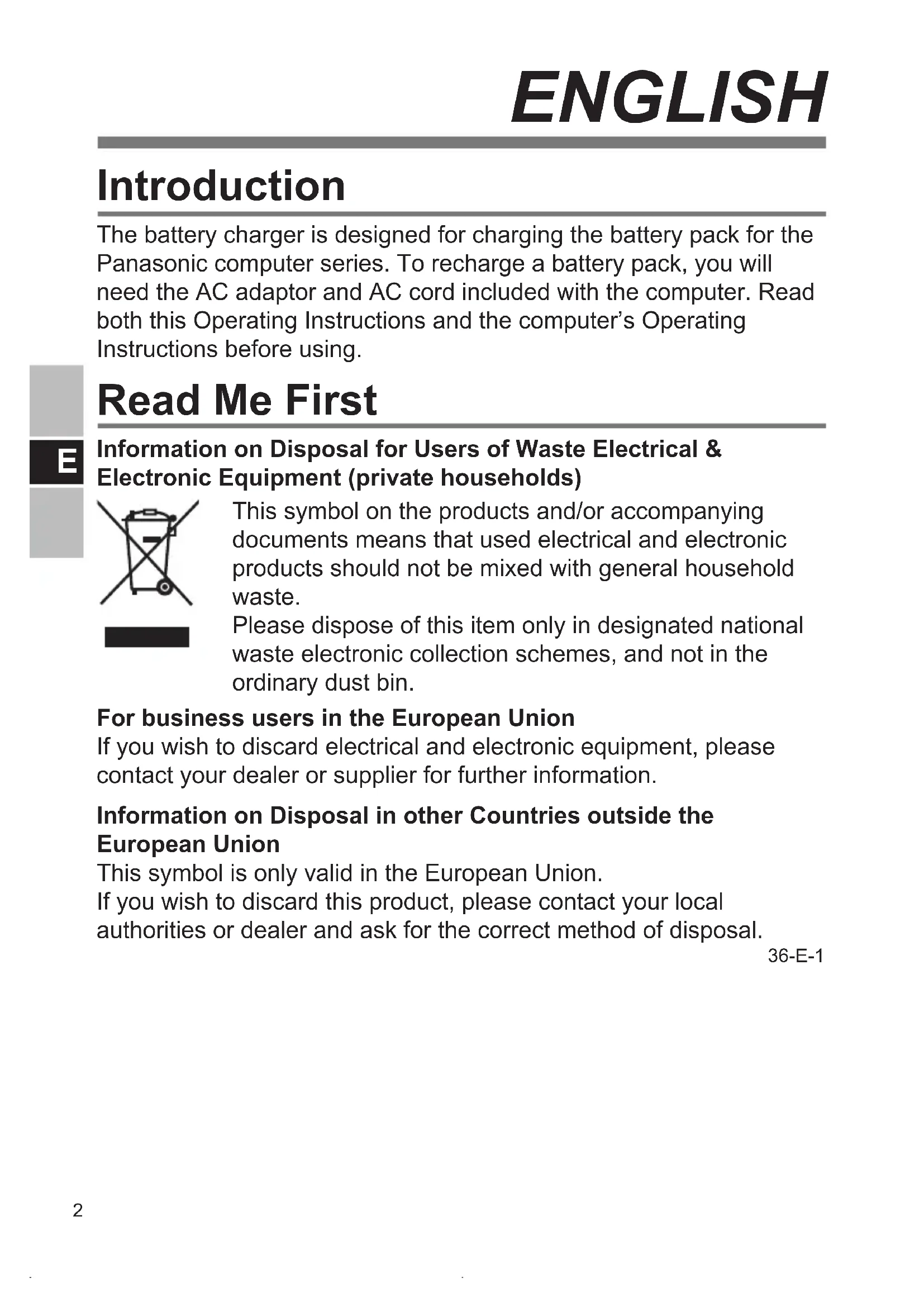

The battery charger is designed for charging the battery pack for the Panasonic computer series. To recharge a battery pack, you will need the AC adaptor and AC cord included with the computer. Read both this Operating Instructions and the computer's Operating Instructions before using.

Read Me First

E

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

Symbol of a trash bin crossed with no visible text or labels

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

Please dispose of this item only in designated national waste electronic collection schemes, and not in the ordinary dust bin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

36-E-1

< For U.S.A. >

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This device is Class B verified to comply with Part 15 of FCC Rules when used with Panasonic Notebook Computer.

Responsible Party: Panasonic Corporation of North America

Two Riverfront Plaza

Newark, NJ 07102

Support Contact:

http://www.panasonic.com/contactinfo

68-M-1

CE

Declaration of Conformity (DoC)

"Hereby, Panasonic declares that this Battery Charger is in compliance with the essential requirements and other relevant provisions of EU Council Directives."

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

18-1-E-2

[India Only]

Declaration of Conformity with the requirements of the e-waste (Management and Handling) Rules, 2011. (adopted by Notification S.O.1035(E) of Ministry of Environment and Forests)

The Product is in conformity with the requirements of Rule 13 of the e-waste Rules.

The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the e-waste Rules:

1. Lead (Pb) - not over 0.1% by weight;
2. Cadmium (Cd) - not over 0.01% by weight;
3. Mercury (Hg) - not over 0.1% by weight;
4. Hexavalent chromium (Cr6+) - not over 0.1% by weight;
5. Polybrominated biphenyls (PBBs) - not over 0.1% by weight;
6. Polybrominated diphenyl ethers (PBDEs) - not over 0.1% by weight.

For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product.

Please see the Panasonic website for further information on collection centers, etc.

http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html

68-M-1

- Use This Charger to Charge Only the Specified Battery Pack (listed in the table below) and No Other

Electrolyte leakage, generation of heat or rupture may result.

- Use Only the Specified AC Adaptor With This Battery Charger Using an AC adaptor other than the one supplied (Model No.: CF-AA6503A) may result in a fire.

CAUTION

● Install or remove the battery pack on a flat stable surface.
- Remove the battery before transporting the battery charger. The battery pack may fall out while the charger is being carried.
- Do not touch the battery charger connectors as it can damage or transfer dust to the connectors and cause malfunction.
- Refer to the “Operating Instructions” that came with the computer for information on proper handling of the AC adaptor.

- If dust or dirt has built up on the connectors, disconnect the AC adaptor and battery pack, turn the battery charger over, and remove the dust and dirt. Dust buildup can cause faults and prevent charging from being performed successfully. Clean away dust regularly. Do not drop the battery charger or subject it

Illustration of two hands holding a rectangular object with motion lines indicating movement (no text or symbols)

- Specified Battery Pack

Battery Pack Charging Time*	1
FZ-VZSU94W / FZ-VZSU0HW Approx. 2.5 hours
FZ-VZSU95W / FZ-VZSU0JW Approx. 4.5 hours

*1 Charging times given above are applicable regardless of the number of batteries.

Specifications

Input Voltage 15.6 V - 16 V
Current Capacity 5.0 A - 7.05 A
Dimensions(W × H × D)	Approx. 107 mm × 190 mm × 81.35 mm{4.2” × 7.5” × 3.2"}
Weight Approx. 460 g {1.0}	lb.}
