Model No.

TY-SP65PV600

Speakers for Plasma TelevisionInstallation InstructionsBefore commencing work, carefully read these Instructions and the Manual for the plasma television to ensure that fitting is performed correctly.(Please keep these instructions. You may need them when maintaining or moving.)	EnglishDe
Lautsprecher für Plasma-Fernseher InstallationsanleitungVor der Montage lesen Sie bitte diese Anleitung und die Bedienungsanleitung für den Plasma-Fernseher sorgfältig durch, damit die Montage richtig ausgeführt wird.(Bitte bewahren Sie diese Anleitung auf. Sie kann bei der Wartung oder der erneuten Montage der Lautsprecher benötigt werden.)
Luidsprekers voor Plasmatelevisie InstallatiehandleidingLees deze installatiehandleiding en de bedieningshandleiding voor het plasmatelevisie zorgvuldig door voordat u begiut, zodat de montagewerkzaamheden op de juiste wijze worden uitgevoerd.(Bewaar deze handleiding. U hebt de handleiding weer nodig wanneer u de bevestigingssteun verwijdent of verplaats.)	Nederlands
Altoparlanti per il televisore al Plasma Istruzioni per l'installazionePrima di iniziare il montaggio leggere attentamente queste istruzioni ed il manuale dee televisore al Plasma per poter procedere al montaggio in modo corretto (conservare poi queste istruzioni che si renderanno necessarie per la manutenzione e l'eventuale spostamento della staffa).	Italiano
Enceintes pour téléviseur à Plasma Instructions d'installationAvant de commencer le travail, lisez attentivement ces instructions ainsi que le mode d'emploi de téléviseur à Plasma de manière à réaliser un montage convenable.(Conservez soigneusement les présentes instructions. Vous pouvez en avoir besoin pour effectuer un entretien ou si vous désirez déplacer l'applique.)	Français
Altavoces para televisor con Pantalla de Plasma Instrucciones de instalaciónAntes de empezar el trabajo, lea atentamente estas instrucciones y el manual del televisor con Pantalla de Plasma para asegurar una instalación correcta.(Guarde estas instrucciones. Podrá necesitarlas cuando haga trabajos de mantenimiento o mueva el soporte.)	Español
Högtalare för plasma-TVMonteringsanvisningarInnan arbetet pâbörjas ska du noga läsa dessa anvisningar och bruksanvisningen som medföljer plasma-TV för att försäkra att arbetet utförs på rätt sätt.(Bevara dessa anvisningar. Du kan behöva anlita dem på nytt för underhåll eller flyttning av hållaren.)	Svenska
Højttalere til plasma-TVMonteringsvejledningFør arbejdet påbegyndes, skal De omhyggeligt læse disse instruktioner og betjeningsvejledningen til plasma-TV en for at sikre at opsætningsarbejdet udføres korrekt.(Gen disse instruktioner. De kan få brug for dem ved vedligeholdelse, eller hvis ophænget skal flyttes.)	Rodnánk
Zestawy głośnikowe dla telewizora plazmowego Instrukcja instalacjiPrzed przystąpieniem do pracy przeczytaj uważnie niniejszą instrukcję i instrukcję telewizora plazmowego, aby zapewnić prawidłowe zamocowanie.(Zachowaj niniejszą instrukcję. Może być ona potrzebna przy konserwacji lub przenoszeniu.)	Magyar PolskiČesky
Hangszórók plazma televízióhozTelepitési útmutatóMielőtt munkához látna, a helyes telepítés érdekében figyelmesen olvassa el ezt az útmutatót és a plazma televízió kézikönyvét.(Örizze meg az útmutatót! Karbantartáskor vagy költözéskor szüksége lehet rá.)
Reproduktory pro plazmový televizor Návod k instalaciDříve než začnete s instalací si pečlivě přečtěte tento návod a návod k obsluze plazmového televizoru, abyste zajistili provedení správné montáže.(Uschovejte si prosím tento návod. Můžete jej potřehovat při provádění údržby nebo při stěhování.)
Difuzoare pentru televizoare cu plasmă Instructiuni de instalareÎnainte de a începe lucrul, citiți cu atenție aceste instructiuni și manualul pentru televizoarele cu plasmă pentru a vă asigura că montarea este efectuată corect.(Vă rugăm să păsrați aceste instructiuni. Puteți avea nevoie de ele în caz de întroținere sau mutare.)
Акустические системы для плазменного телевизора Инструкция по установкеПеред приведением работ внимательно прочитайте эту Инструкцию и Руководство для плазменного телевизора, чтобы убедиться в том, что установка выполняется правильно.(Сохраните, пожалуйста, эту инструкцию. Она может Вам понадобиться для технического обслуживания или перемещения.)	Русский
Динаміки для плазмового телевізора Інструкції з встановленняПеред початком робіт уважно прочитайте ці інструкції та інструкції з експлуатації плазмового телевізора, аби забезпечити правильний монтаж.(Збережіть ці інструкції, оскільки вони можуть знадобитись Вам, коли виникне необхідність у технічному обслуговуванні або встановленні в іншому місці.)	Українська

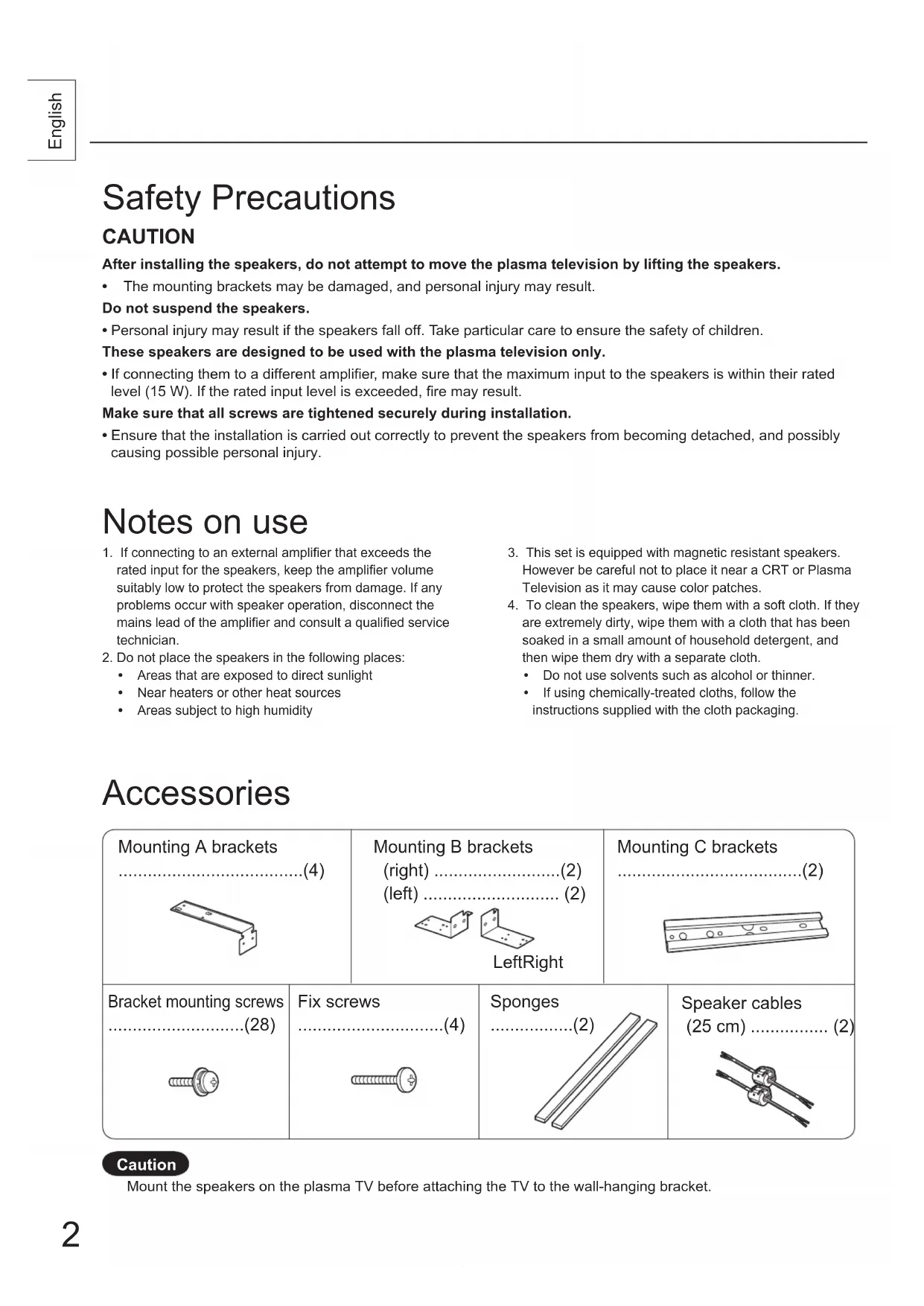

Safety Precautions

CAUTION

After installing the speakers, do not attempt to move the plasma television by lifting the speakers.

- The mounting brackets may be damaged, and personal injury may result.

Do not suspend the speakers.

- Personal injury may result if the speakers fall off. Take particular care to ensure the safety of children.

These speakers are designed to be used with the plasma television only.

- If connecting them to a different amplifier, make sure that the maximum input to the speakers is within their rated level (15 W). If the rated input level is exceeded, fire may result.

Make sure that all screws are tightened securely during installation.

- Ensure that the installation is carried out correctly to prevent the speakers from becoming detached, and possibly causing possible personal injury.

Notes on use

1. If connecting to an external amplifier that exceeds the rated input for the speakers, keep the amplifier volume suitably low to protect the speakers from damage. If any problems occur with speaker operation, disconnect the mains lead of the amplifier and consult a qualified service technician.

2. Do not place the speakers in the following places:

- Areas that are exposed to direct sunlight

• Near heaters or other heat sources

- Areas subject to high humidity

1. This set is equipped with magnetic resistant speakers. However be careful not to place it near a CRT or Plasma Television as it may cause color patches.

2. To clean the speakers, wipe them with a soft cloth. If they are extremely dirty, wipe them with a cloth that has been soaked in a small amount of household detergent, and then wipe them dry with a separate cloth.

- Do not use solvents such as alcohol or thinner.

- If using chemically-treated cloths, follow the instructions supplied with the cloth packaging.

Accessories

Mounting A brackets......(4)		Mounting B brackets(right) ......(2)(left) ...... (2)LeftRight		Mounting C brackets......(2)
Bracket mounting screws......(28)	Fix screws......(4)		Sponges......		Speaker cables(25 cm) ...... (2)

Caution

Mount the speakers on the plasma TV before attaching the TV to the wall-hanging bracket.

For left For Example showing left speaker 5 mm (0.2") Trim 5 mm (0.2") Trim Trim Sponges Slot Mount A brackets Hook Bracket mounting screws Slot Rear of Plasma Television

Speaker (right) Bracket mounting screws Mount B brackets (right) Mount B brackets (left) Speaker (left) Clips (Claws)

Mount A bracket Mount B bracket Rear of Plasma Television Bracket mounting screws

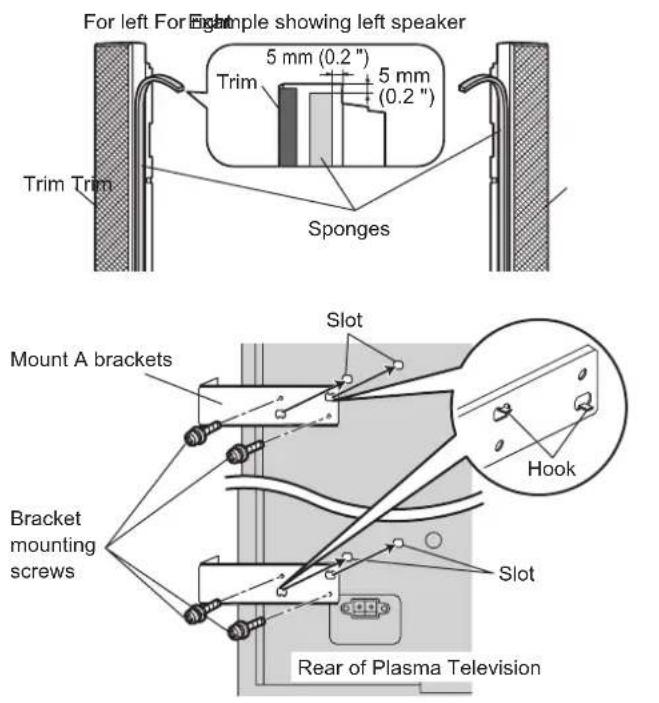

1. Attach the sponges to the speakers.

2. Attach the sponges to the surfaces which are in contact with the plasma television.

3. Clean the surfaces before attaching the sponges.

4. Mount A brackets to the plasma television.

(Four A brackets, for the left, right, top and bottom)

• Fit each hook into the slot of the plasma television, and securely fasten with two screws.

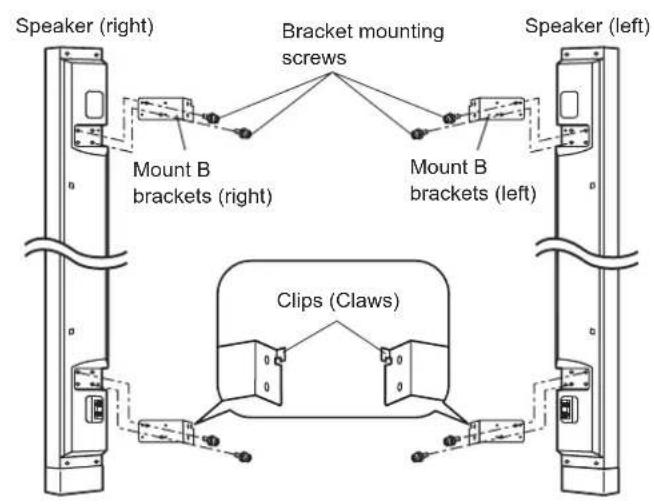

1. Mount B brackets to the speakers.

(Four B brackets, for the left, right, top and bottom)

Caution

• Fit with the clips (claws) at the top.
- The left and right brackets are different, so please check carefully when mounting.

1. Catch the B bracket claws in the A brackets (plasma television side).

Fasten the A and B brackets with bracket mounting screws.

Note

Adjust plasma television and speaker position (front face and height) when fastening the A and B brackets.

Rear of speaker Rear of Plasma Television + + Mounting C bracket Fix screws Bracket mounting screws

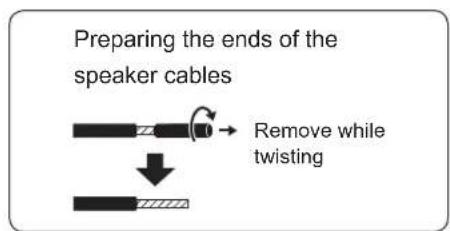

Preparing the ends of the speaker cables Remove while twisting

1. Press down on the lever. 2. Insert the cable. 3. Release the lever. Black Red 1. Push down the lever. 2. Insert the cable. 3. Return the lever to its normal position.

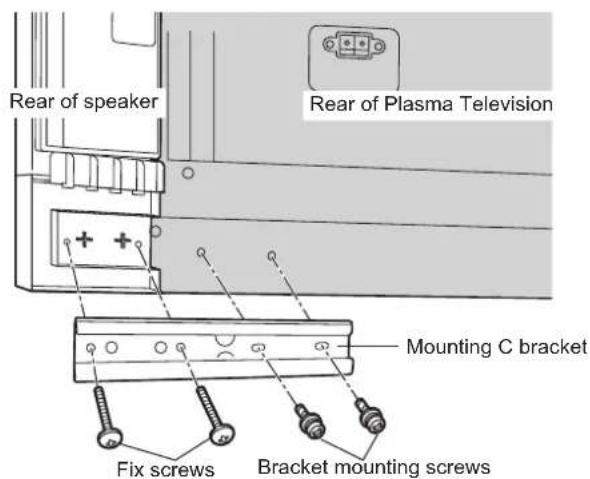

5. Attach C brackets

- To attach to each speaker, use the fixing screws. To attach to the plasma TV, use the bracket mounting screws.

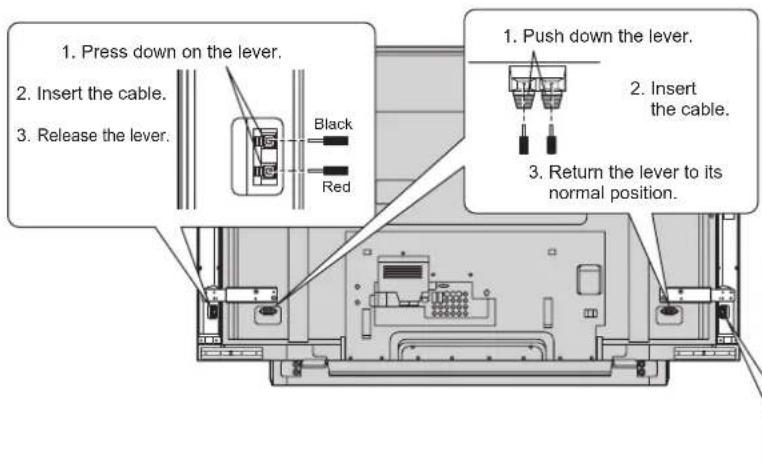

6. Connect the speaker cables.

• After preparing the ends of the speaker cables for the right and left speakers, connect them as shown in the illustration.
- The red cable is for the (+) polarity and the black cable is for the (-) polarity. Do not connect the cables to the wrong polarities.
- If fixing the plasma television to the wall-hanging bracket, first connect the speaker cables to the plasma television.
