USER MANUAL PE800US Pattfield

Supporto attrezzo SDS

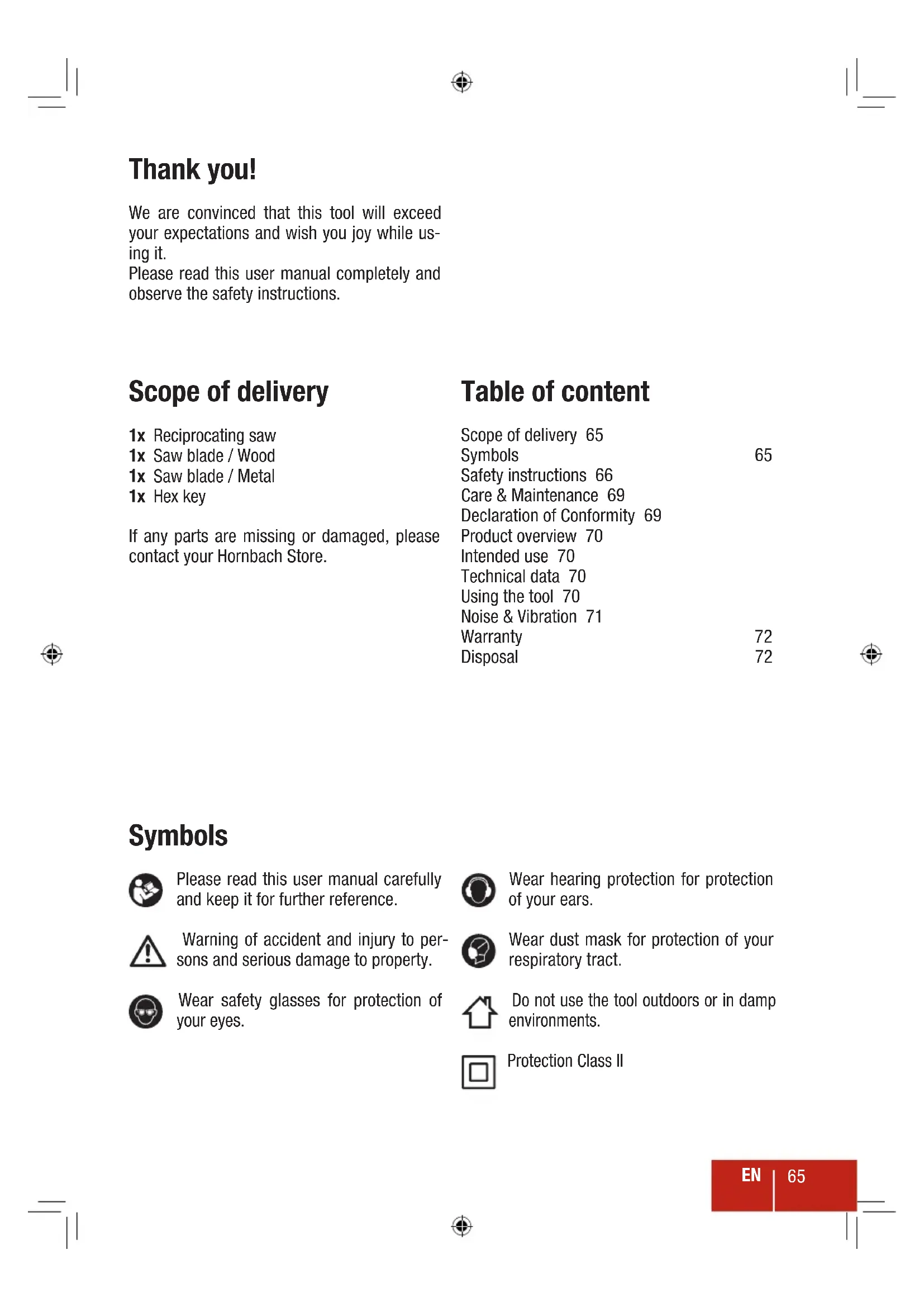

We are convinced that this tool will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Reciprocating saw
1x Saw blade / Wood
1x Saw blade / Metal
1x Hex key

If any parts are missing or damaged, please contact your Hornbach Store.

Table of content

Scope of delivery 65

Symbols 65

Safety instructions 66

Care & Maintenance 69

Declaration of Conformity 69

Product overview 70

Intended use 70

Technical data 70

Using the tool 70

Noise & Vibration 71

Warranty 72

Disposal 72

Symbols

Please read this user manual carefully and keep it for further reference.

Wear hearing protection for protection of your ears.

Warning of accident and injury to persons and serious damage to property.

Wear dust mask for protection of your respiratory tract.

Wear safety glasses for protection of your eyes.

Do not use the tool outdoors or in damp environments.

Protection Class II

Safety Instructions

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1 WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3 PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
1) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4 POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

MACHINE SPECIFIC SAFETY WARNINGS FOR RECIPIROCATING SAWS

a) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
b) Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
c) Apply the machine to the workpiece only when switched on. Otherwise there is danger of kickback when the cutting tool jams in the workpiece.
d) When sawing, the adjustable footplate must always faces against the workpiece. The saw blade can become wedged and lead to loss of control over the machine.
e) When the cut is completed, switch off the machine and then pull the saw blade out of the cut only after it has come to a standstill. In this manner you can avoid kickback and can place down the machine securely.
f) Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback.
g) Do not brake the saw blade to a stop by applying side pressure after switching off. The saw blade can be damaged, break or cause kickback.
h) Clamp material well. Do not support the workpiece with your hand or foot. Do not touch objects or the floor with the saw running. Danger of kickback.
i) When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
j) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

k) Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

Care & Maintenance

Caution! Make sure the tool is switched off and unplugged.

• Always keep the tool clean, dry and free of oil or grease.
• Wear safety glasses to protect your eyes whilst cleaning.
• For safe and proper working, always keep the machine and ventilation slots clean.
• Regularly check to see if any dust or foreign matter has entered the grills near the motor and around the on/off switch. Use a soft brush to remove any accumulated dust.
• If the body of the tool needs cleaning, wipe it with a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent.
• Never use caustic agents to clean plastic parts.
• Lubricate all moving parts at regular intervals.
• Periodically check all fixings. These could become loose with time due to vibration.

Caution! If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or similarly qualified person in order to avoid hazard.

Declaration of conformity

We declare, that the product described in Technical Data:

ERGO TOOLS

800 W Reciprocating Saw PE-800US

manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

EMC Directive 2004/108/EC

and in accordance to the following applicable harmonized standards:

EN 60745-1:2009+A11

EN 60745-2-11:2010

EN 55014-1:2006+A1

EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2

EN 61000-3-3:2008

iA. udms fack

Andreas Back

Head of Quality Assurance

1 Speed dial
2 Blade clamp
3 Footplate
4 Saw blade
5 Lock on button
6 On/Off switch
7 Power cord
8 Footplate screws / Grip

Intended Use

The tool is intended for wood, plastic and metal cutting applications. The tool is not intended for commercial use.

Any other use or modification to the tool is considered as improper use and could cause considerable dangers.

Using the tool

1. Place the tool on the workpiece so that the footplate is in contact. Make sure your workpiece can not slip.
2. To switch on the tool, press and hold the on / off switch 6. To lock the on / off switch 6 in position, press the lock on button 5 while the on / off switch 6 is pressed. Start working, while holding the tool with one hand at the handle and the other on the insulated Grip 8.
3. Let the tool come to full speed and slowly cut the workpiece.
4. To switch off the tool, press and release the on/off switch 6.

Warning! The saw blade becomes hot during use. Be careful not to

touch it. Burn hazard.

Technical Data

Nominal voltage 230V / 50Hz

Rated power 800 W

No-load speed (n_0) 0 - 2800/min

Tool holder SDS

Stroke length 20 mm

Max. cutting capacity Wood 105 mm

Weight

Protection Class / II

Sound pressure level (L_)

Sound power level (L_WA)

Max. vibration emission (a_h,B)

Non-alloy steel 6 mm

2.43 kg

88 dB(A) / Uncertainty K = 3dB( A)

99 dB(A) / Uncertainty K = 3 dB(A)

11.34 m/s² / Uncertainty K = 1.5 m/s²

FOOTPLATE ADJUSTMENT

1 Loosen the two footplate screws 8 with the hex key and set the footplate to the desired position.

2 Tighten the two footplate screws 8

with the hex key.

Caution! Make sure the tool is switched off and unplugged.

SAW BLADE REPLACEMENT

1 Calorally ptleolathe slamplace founter clockwise.

2

the blade clamp and release the blade clamp 2.

Caution! Make sure the tool is switched off and unplugged.

Caution! The saw blade is sharp.

3

Insert the new blade through the opening in the footplate 3.

4

Rotate the blade clamp 2 counter clockwise. Insert the blade into the SDS clamp and release the blade clamp 2. Check if the saw blade is securely fixed.

GENERAL CUTTING

1 The sawblade must always exceed the workpiece.

The footplate must always be in contact with the workpiece.

PLUNGE CUTTING

2

Set the footplate on the workpiece. Start the tool and slowly move the saw blade tip into the workpiece.

Plunge cutting is only suitable for soft materials like plaster board.

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60745 and can be used to compare tools. It may be used for a preliminary assessment of exposure. The declared vibration data represents the main applications of the tool, but different uses of the tool or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.

An estimation of the vibration level should also take into account the intervening periods, when the tool is switched off or it running but is not actually in use. This can result in a much

lower vibration load over the whole working period.

Additional safety measure can be taken to protect the user from effects of vibration: Maintain the tool and its accessories, keep the hands warm and organize work patterns.

Warranty

In case of malfunctions, which are pointing out material or manufacturing faults, please contact your Hornbach store:

1. These conditions are ruling additional warranty performances and are free of charge. The warranty rules given by law will remain untouched.
2. The warranty performance is limited on material or manufacturing faults and the elimination of those or alternatively exchange of the product. As our products are not constructed for professional use, we see the warranty contract as not valid, if the product is used under those circumstances. Excluded are warranty claims for transportation damages, damages coming from non-observation of the installation or user manual (like connection to wrong voltage or wrong electricity), unprofessional installation, abuse or incorrect use (like overstressing the product or usage of not approved tools or accessories), non-observation of the maintenance and safety rules, infiltration of foreign objects (like sand, stones or dust), wrong force or man inducted events (like damages by falling down) plus normal accepted attrition (like battery packs, blades and so on). The warranty claim expires if intrusions were already done.
3. The warranty period is three years and is starting with the date of purchase of the product. Warranty claims must be raised within two weeks after realising the defect. Warranty claims coming later are excluded. The warranty period is neither extended after repair or exchange nor a new warranty period is started for the product or possible spare parts.
4. To enforce warranty claims contact your Hornbach store and show your bill as an original or another dated buying proof. Therefore keep your receipt accurately. Explain the reason of your claims as good as

possible. Is the defect part of our warranty performance, you will get a repaired or new product at once.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may be dangerous and hazardous substances tools must be returned to a desig collection point for the recycling of and must not be disposed as unsorted coal waste. By doing so, you will help to create resources and protect the environment your local authorities for more than 10 years.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.
