USER MANUAL PE430ES Pattfield

60 Stage of Sensitivity

Vielen Dank!

MACHINESPECIFIEKE VEILIGHEIDHEIDSWAARSCHUWINGEN VOOR SCHUURMACHINES

Max. vibrationsemission (a h)

230 V/~50 Hz

430W

1 = 8000/min - MAX = 13000/min

125 mm

1 mm

2,15 kg

77 dB(A)/osakerhet K = 3 dB(A)

88 dB(A)/osakerhet K = 3 dB(A)

7,6 m/s²/osakerhet K = 1,5 m/s²

DAMMBOX

Pattfield ERGO TOOLS

430 W Slefuitor orbital PE-430ES

fabricat pentru:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germania

in sens orar, pana cand intra in locas

printr-un declic.

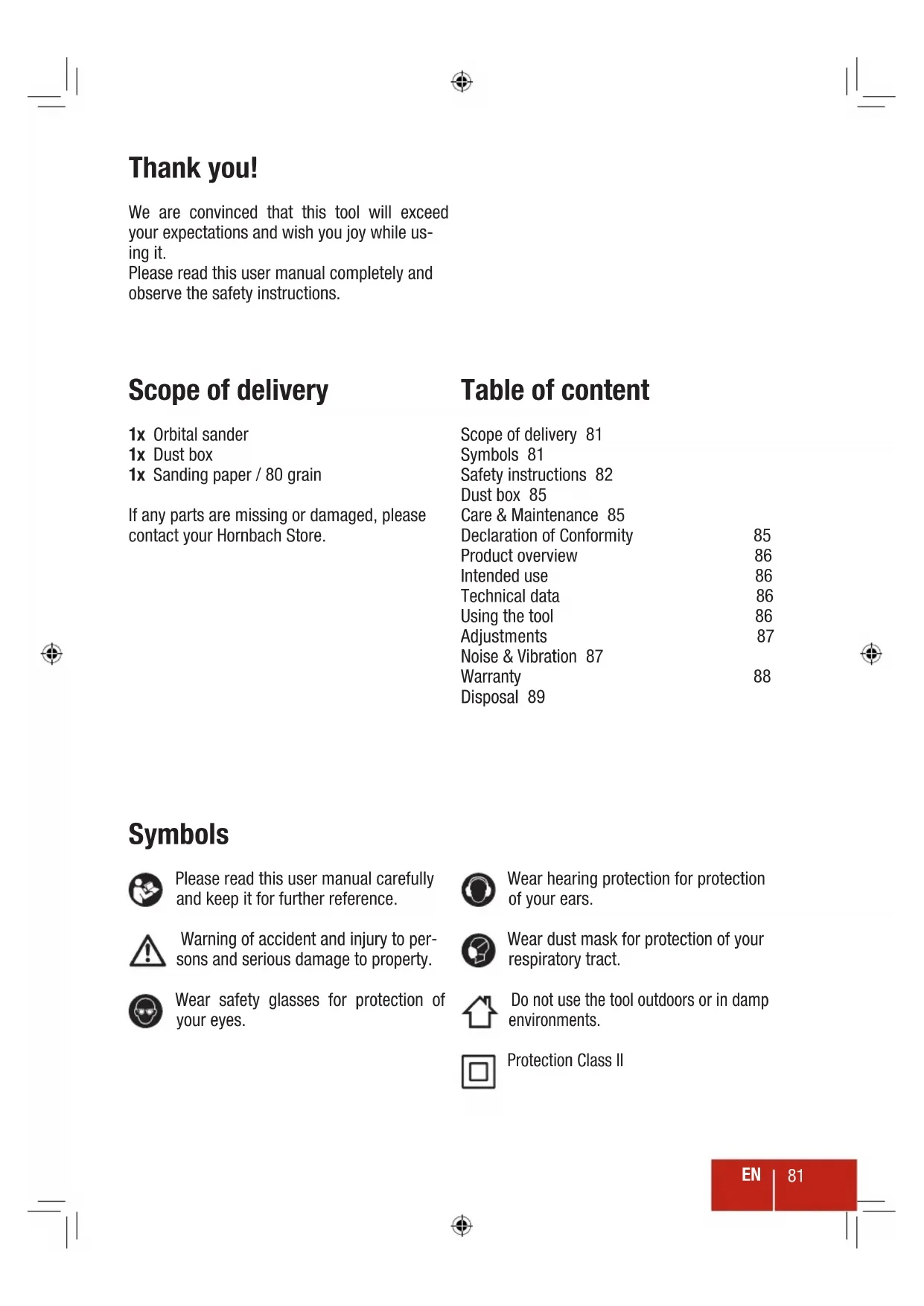

We are convinced that this tool will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Orbital sander
1x Dust box
1x Sanding paper / 80 grain

If any parts are missing or damaged, please contact your Hornbach Store.

Table of content

Scope of delivery 81

Symbols 81

Safety instructions 82

Dust box 85

Care & Maintenance 85

Declaration of Conformity 85

Product overview 86

Intended use 86

Technical data 86

Using the tool 86

Adjustments 87

Noise & Vibration 87

Warranty 88

Disposal 89

Symbols

Please read this user manual carefully and keep it for further reference.

Wear hearing protection for protection of your ears.

Warning of accident and injury to persons and serious damage to property.

Wear dust mask for protection of your respiratory tract.

Wear safety glasses for protection of your eyes.

Do not use the tool outdoors or in damp environments.

Protection Class II

Safety Instructions

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1 WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3 PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4 POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

MACHINE SPECIFIC SAFETY WARNINGS FOR SANDERS

a) Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
b) Pay attention that no persons are put at risk through sparking. Remove any combustible materials in the vicinity. Spark- ing occurs when sanding metal materials.
c) Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust box before taking breaks. In unfavourable conditions, e.g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of varnish, poly-urethane or other chemical materials and when the sanding debris is hot after long periods of working.
d) When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
e) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
f) Do not touch and/or inhale harmful/ toxic dust generated during sanding. All persons in the vicinity of the work area must wear appropriate personal protective equipment for protection against harmful/toxic dusts. Use the dust extraction facility and keep the work area well ventilated.
g) Ensure that you have removed foreign objects such as nails and screws from the workpiece before commencing sanding.
h) Do not force sander, let the tool do the work at a reasonable speed. Overloading will occur if too much pressure is applied and the motor slows resulting in inefficient sanding and possible damage to the sander motor.
i) Don't continue to use worn, torn or heavily clogged sanding paper.
j) Don't touch the moving sanding paper.

Dust box

Use of the dust box can reduce dust-related hazards.

Make sure the dust box 6 is not full or clogged. To clean the dust box, remove it from the dust port 7 by rotating it counter clockwise. Carefully shake the dust box with the opening pointing downwards to remove the sanding dust.

Care & Maintenance

Caution! Make sure the tool is switched off and unplugged.

• Always keep the tool clean, dry and free of oil or grease.
• Wear safety glasses to protect your eyes whilst cleaning.
• For safe and proper working, always keep the machine and ventilation slots clean.
• Regularly check to see if any dust or foreign matter has entered the grills near the motor and around the on/off switch. Use a soft brush to remove any accumulated dust.
• If the body of the tool needs cleaning, wipe it with a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent.
• Never use caustic agents to clean plastic parts.
• Lubricate all moving parts at regular intervals.
• Periodically check all fixings. These could become loose with time due to vibration.

Caution! If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or similarly qualified person in order to avoid hazard.

Declaration of conformity

We declare, that the product described in Technical Data:

Pattfield

ERGO TOOLS

430 W Orbital Sander PE-430ES

manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

and in accordance to the following applicable harmonized standards:

EN 60745-1:2009+A11
EN 60745-2-4:2009+A11
EN 55014-1:2006+A2
EN 55014-2:1997+A2
EN 61000-3-2:2014
EN 61000-3-3:2013

Andreas Back

Head of Quality Management, environment & CSR

Person authorised to compile the technical file

The tool is intended for dry sanding of wood, plastic, metal and coated surfaces. It is not suitable for plaster or drywall filler. The tool is not intended for commercial use.

Any other use or modification to the tool is considered as improper use and could cause considerable dangers.

Using the tool

1. Place the tool on the workpiece so that the complete sanding paper is in contact. Make sure your workpiece can not slip.
2. To switch on the tool, press and hold the on / off switch 1. To lock the on / off switch 1 in position, press the lock on button 4 while the on / off switch 1 is pressed. Start working, while holding the tool firmly with both hands.
3. Move the tool slowly over the workpiece in parallel lines, circles or crosswise movements and successive passes.
4. To switch off the tool, press and release the on/off switch 1.

Warning! Only switch the tool on when the sanding paper is in full t with the workpiece.

Technical Data

Nominal voltage 230V / 50Hz

Rated power 430 W

No-load speed (_0)

Base plate (0)

Orbit (0)

Weight

Protection Class

Sound pressure level (L_pA)

Sound power level (L_WA)

Max. vibration emission (a n)

1 = 8000/min - MAX = 13000/min

125 mm

1 mm

2.15 kg

77 dB(A) / Uncertainty K = 3 dB(A)

88 dB(A) / Uncertainty K = 3 dB(A)

7.6m / s^2 Uncertainty K = 1.5m / s^2

DUST BOX

1 To connect the dust box 6, align the two nozzles of the dust box with the two grooves inside the dust port 7.

2 When the dust box 6 is fully inserted, turn it approx. 15^ clockwise to click it in place.

Make sure the dust box is empty and not clogged.

Never use the tool without the dust box attached.

SANDING PAPER

1 Aligerthevehate chustheredineing fapperthe sanding pad 3.

Caution! Make sure the tool is switched off and unplugged.

3

To remove the sanding paper carefully peel it off the sanding pad 3.

Do not use the same sanding paper for metal and wood.

2

with the ones in the sanding pad 3 and press the sanding paper into place.

Choose the correct grain size from the table below:

1 TheJospespted spaeled transctet the operation speed.

Caution! Make sure not to cover the ventilation slots during operation.

2

steps from: 1 = 8000/min - MAX = 13000/min

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60745 and can be used to compare tools. It may be used for a preliminary assessment of exposure. The declared vibration data represents the main applications of the tool, but different uses of the tool or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.

An estimation of the vibration level should also take into account the intervening periods, when the tool is switched off or it running but is not actually in use. This can result in a much

lower vibration load over the whole working period.

Additional safety measure can be taken to protect the user from effects of vibration: Maintain the tool and its accessories, keep the hands warm and organize work patterns.

Warranty

This Pattfield item has been produced according to state-of-the-art production methods and is subject to ongoing strict quality control. Hornbach Baumarkt AG, Hornbachstrasse 11, 76879 Bornheim, Germany, guarantees the quality of the machines according to the following terms and conditions.

1. Warranty Period

The warranty period is 3 years. The warranty period starts on the date of purchase. Please retain the original receipt or invoice in order to be able to furnish evidence of the date of purchase.

2. Warranty Scope

The warranty applies exclusively to production or material defects. The warranty applies only in the case of private use of the item.

The warranty does not apply to defects resulting from

misuse or improper use,
- use of force or external influences,
- damage due to failure to observe the installation instructions or instructions for use,
- connecting to an incorrect grid voltage or current type,
- unprofessional installation,
- overloading the device,
- use of non-approved attachments or accessories,
- failure to observe the maintenance and safety instructions,
- entry of foreign matter into the device,
- wear and tear due to normal use or
- commercial use.

Furthermore, the warranty does not cover damage to parts subject to wear and tear, which is caused by normal wear and tear. The warranty does not comprise any collateral or consequential damage or possible installation and dismantling costs in the event of a warranty incident.

3. Warranty Services

During the warranty period, the warrantor will inspect the defective item in order to determine whether a warranty incident is on hand. If a warranty incident is on hand, the warrantor will repair or replace the item at his own expense. If the item is no longer available at the time of the warranty incident, the warrantor may replace the item with a similar product. The replaced item or part shall become property of the warrantor.

Warranty services (repair or replacement) do not extend the warranty period. Warranty services do not result in any new warranty.

4. Warranty Claims

For warranty claims, please contact the nearest HORNBACH DIY store.

You can find it at www.hornbach.com.

Warranty claims will only be accepted if the original receipt or invoice is produced.

5. Statutory Rights

The warranty does not restrict your statutory rights regarding warranty and product liability.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may

contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.
