USER MANUAL PE-RB 400 Pattfield

Pattfield® ERGO TOOLS

D

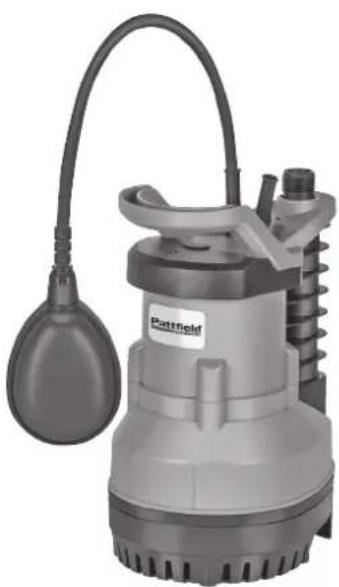

Translation of the Original Instructions Rain barrel pump 400W

Illustration of a portable water purifier with a handle and spool, no visible text or symbols on the device itself.

PE-RB 400

1 2 3 4 5

2 7 6 5

-2-

3 A 7 B 6 4

4 min. 10 cm 5 5 2 5 6 6

7 B 3 C

Simple line drawing of an open book with page number 8 (no text or symbols on the pages)

Pattfield® ERGO TOOLS

Inhaltsverzeichnis

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

6. Bedienung

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

12. Entsorgung

Pattfield® ERGO TOOLS

Sommaire

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Danger!

Pattfield® ERGO TOOLS

Attention!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

5.1 L'installation

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

de l'art.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

8.2 Maintenance

Directive CEM 2014/30/UE (EMV)

documents techniques

Bornheim, 28.10.2024

Hornbach Baumarkt AG

Hornbachstraße 11

Pattfield® ERGO TOOLS

Indice

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pericolo!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

3. Utilizzo proprio

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

12. Smaltimento

Pattfield® ERGO TOOLS

Inhoudsopgave

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Gevaar!

Pattfield® ERGO TOOLS

Gevaar!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Regentonpomp PE-RB 400

geproduceerd voor:

Hornbach Baumarkt AG

Hornbachstraße 11

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

4. Tekniska data

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Nebezpečí!

Pattfield® ERGO TOOLS

738).

Pattfield® ERGO TOOLS

2.2 Rozsah dodávky

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

4. Technická data

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

stěny šachty.

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Nebezpečenstvo! - Aby ste znížili riziko poranenia, prečítajte si ná- vod na obsluhu

SK

-93-

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

4. Technické údaje

Sietové pripojenie: 230 V \~ 50 Hz

Príkon: 400 Watt

Pattfield® ERGO TOOLS

dodatočné ochranné opatrenia.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

9. Skladovanie

Pattfield® ERGO TOOLS

Čerpadlo pre sudy s dažd'ovou vodou PE-RB 400

vyrobený pre:

Hornbach Baumarkt AG

Hornbachstraße 11

Pattfield® ERGO TOOLS

12. Likvidácia

Pattfield® ERGO TOOLS

Cuprins

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pericol!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

4. Date tehnice

Racordul la retea 230 V \~50 Hz

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

8.3 Comanda pieselor de schimb:

Pattfield® ERGO TOOLS

Table of contents

1. Safety regulations
2. Layout and items supplied
3. Proper use
4. Technical data
5. Before starting the equipment
6. Operation
7. Replacing the power cable
8. Cleaning, maintenance and ordering of spare parts
9. Storage
10. Troubleshooting guide
11. Declaration of Conformity
12. Disposal

Pattfield® ERGO TOOLS

Danger! - Read the operating instructions to reduce the risk of inquiry

GB

Pattfield® ERGO TOOLS

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 8)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

Pattfield® ERGO TOOLS

Danger!

The pump must be powered via an earth-leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!

Danger!

- Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.

- The electrical plug-in connections must be protected from wet conditions.

- If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.

- Strictly avoid pumping aggressive liquids and abrasive substances.

- Protect the equipment from frost.

- Protect the equipment from dry running.

- Take suitable measures to keep the equipment out of the reach of children.

2. Layout and items supplied

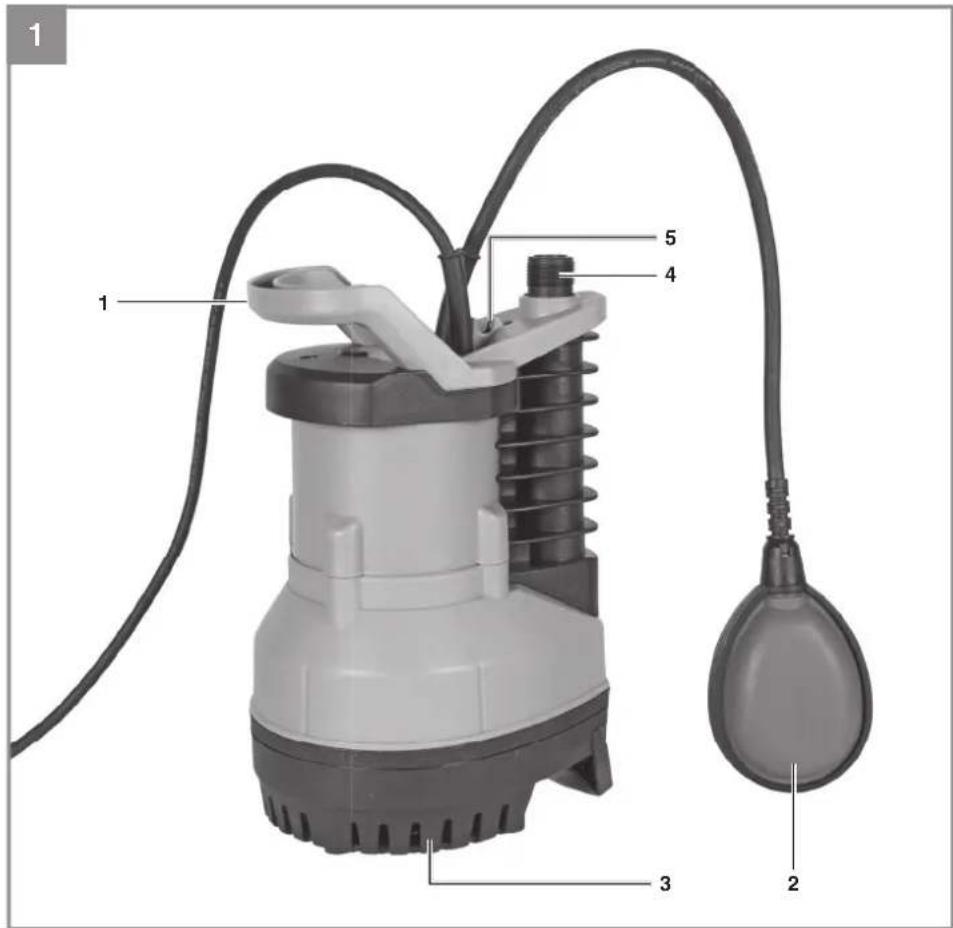

2.1 Layout (Fig. 1)

1. Handle

2. Floating switch

3. Universal hose connection

4. Intake cage

Pattfield® ERGO TOOLS

1. Lock for float switch
2. Extension pipe
3. Pipe bend with stopcock

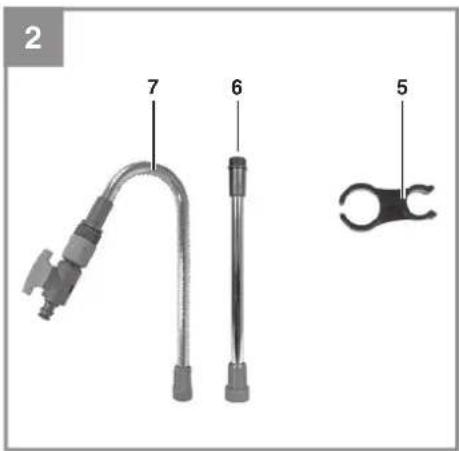

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

GB Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Rain barrel pump
• Pipeset
  • Original operating instructions

Pattfield® ERGO TOOLS

3. Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C . This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!

The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The water may be contaminated by escaping lubricating oil/lubricant.

GB

Pattfield® ERGO TOOLS

4. Technical data

Mains connection: 230 V \~ 50 Hz

Power rating: 400 W

Max. pumping rate: 3900 l/h

Max. delivery head: 10 m

Max. submersion depth: 5 m

Max. water temperature: 35°C

Hose connection: .... approx. 26.4mm (G 3/4) male thread

Max. size of foreign bodies: ....Clean water

Switching point height: ON: max. approx. 50 cm

Switching point height: OFF: min. approx. 5 cm

Suction height: min. 1 mm

Minimum water level when starting up: 50 mm

Protection type.: IPX8

5. Before starting the equipment

GB

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

5.1 Installation

The equipment can be installed either:

• Stationary with a rigid pipe line

or

• Stationary with a flexible hose line

Notice!

Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!

For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.

Pattfield® ERGO TOOLS

Examples of such safety measures:

Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements.

Be sure to consult a professional plumber if you have any doubt.

The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.

When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung on the rain barrel with the help of the pipe set or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).

The pump shaft should be large enough.

GB

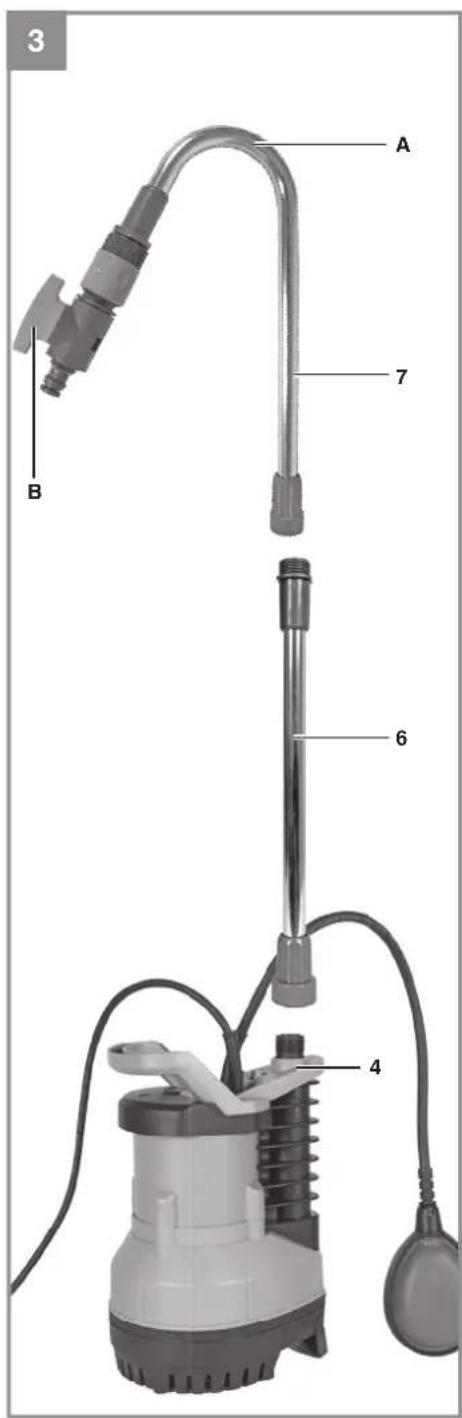

5.2 Using the pump in the rain barrel

Fit the supplied pipe set as described and make sure that the seals between the individual components are correctly seated (Fig. 3):

1. Connect the straight pipe piece (6) to the pipe bend (7).

2. Screw the complete pipe set to the pressure connector (4) of the pump.

Proceed as follows to use the pump in the rain barrel:

- Connect the pipe set to the pump.

- Use the pipe bend (Fig. 3 / Item A) to hang the pump in a rain barrel.

- If necessary, use a hose to extend the telescopic pipe.

• To withdraw water, open the stopcock (Fig. 3 / Item B).

5.3 Mains connection

Danger!

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V \~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

6. Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

• Make sure that the equipment is set up securely.
- Check that the discharge line is fitted correctly.
• Make sure that the electrical connection is 230 V \~ 50 Hz.
- Check that the electrical socket-outlet is in good working order.
- Make sure that no moisture or water can ever reach the power connection.
• Make sure that the equipment does not run dry.
- To switch off the equipment, pull the power plug out of the socket outlet.

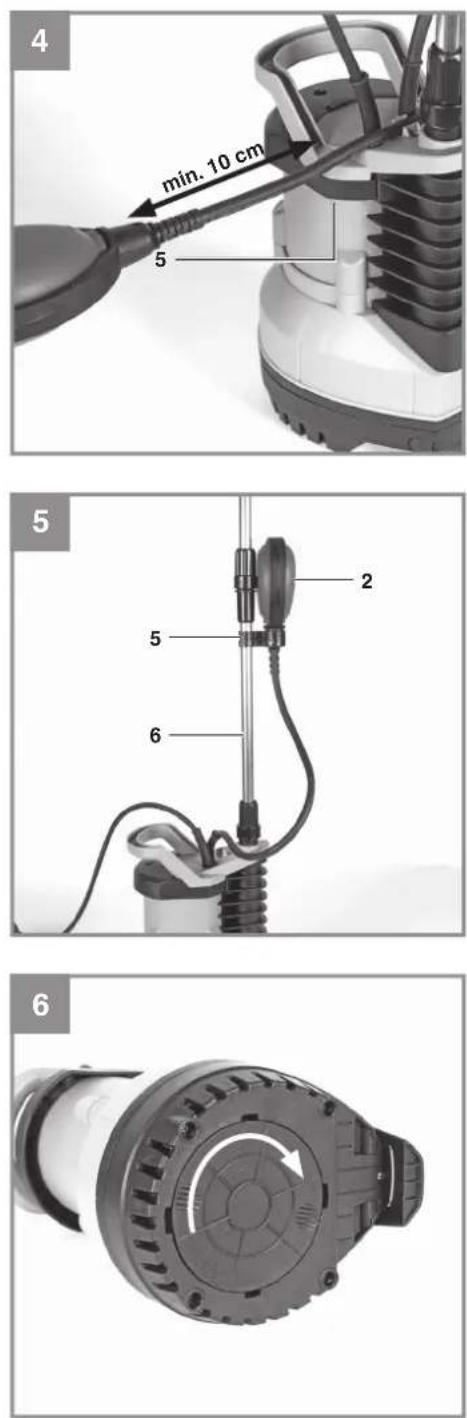

Setting the On/Off switching point:

The ON/OFF switching point of the floating switch can be adjusted by shifting the floating switch in the floating switch notched holder (Fig. 4/Item 5).

- The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whether the

Pattfield® ERGO TOOLS

equipment switches on and off.

• Make sure that the distance between the floating switch head and the cable holder is not too smaller than 10 cm. If the distance is too small, there is no guarantee that the equipment will work correctly.
• When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off. Important! Risk of dry running.

Manual operation:

For manual operation place the lock for the float switch (5) on the straight pipe piece (6) Fig. 5).

Mount the floating switch as illustrated in Fig. 5. The equipment will then run continuously. To prevent dry running, this operating mode is allowed only under supervision. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.

7. Replacing the power cable

GB

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

• Unplug the power plug prior to any maintenance work.
- For mobile applications, the equipment should be cleaned with clear water after every usage.
- For stationary installation, it is recommended that you check the floating switch for proper operation every three months.
• Use a water jet to remove any lint or fibrous particles that may

Pattfield® ERGO TOOLS

have become trapped in the housing.

• Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
• Use clear water to remove deposits from the floating switch.

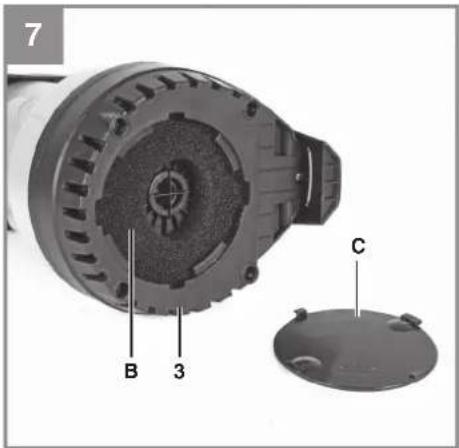

8.1 Cleaning the fi Iter (Figs. 6 and 7)

In order to protect the equipment and the impeller from severe soiling, an additional filter has been installed in the bottom intake cage.

Please proceed as follows when cleaning the fi Iter:

1. Open the filter cover (A) in the intake cage (3).
2. Remove the filter (B) and wash it out under running water.
3. Assemble in reverse order.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
  • Article number of the machine
  • Identification number of the machine
  • Replacement part number of the part required

Current prices and information are available on request at your Hornbach store.

Pattfield® ERGO TOOLS

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

• If the pump is not going to be used for a long time or has to be removed for the winter months, rinse it out with water, empty it completely and allow it to dry.
• The equipment must be completely drained before it is subjected to frost.

GB

1. Troubleshooting guide

Faults Cause Remedy
Theequipment does not start	- Power supply not connected- Floating switch does trigger	- Check power supply- Raise position of floating switch
Theequipment does not pump	- Intake sieve clogged- Discharge hose kinked	- Clean intake sieve with water jet- Unkink the hose
Theequipment does not cut out	- Floating switch cannot sink	- Place equipment correctly on shaft bottom
Insuffi cient pumping rate	- Intake sieve clogged- Performance reduced due to heavily contaminated and abrasive water impurities	- Clean intake sieve- Clean equipment and replace wear parts
Theequipment switches off after briefy running	- Motor circuit-breaker switches the equipment off due to excessive water contamination- Water temperature too high; motor circuit-breaker switches the equipment off	- Unplug power plug and clean equipment and shaft- Ensure that maximum permissible water temperature (35 °C) is not exceeded

GB

11. Declaration of Conformity

Declaration of Conformity

We declare, that the product described in Technical Data

Rain barrel pump PE-RB 400

Manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EG

RoHS Directive 2011/65/EG

and in accordance to the following applicable harmonized standards:

EN 60335-1:2012+A11+A13+A1+A14+A2+A15

EN IEC 60335-2-41:2021+A11

EN 62233: 2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

ppa. Andrews Baile

Andreas Back

Head of Quality Management &

Person authorised to compile the technical file

Bornheim, 28.10.2024

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

Pattfield® ERGO TOOLS

12.Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment.

HORNBACH is committed in Germany:

• when purchasing a new electrical or electronic device, to take back an old device of the same type free of charge at a HORNBACH store.
• You can take back up to 3 old electrical or electronic devices of the same type (up to a maximum edge length of 25 cm) free of charge at a HORNBACH store, even without buying a new one.
• When delivering a new electrical or electronic device to a private household, to pick up an old device of the same type free of charge or to enable you to return it in your immediate vicinity.

GB

For more information, contact www.hornbach.com or your local authorities.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield®

ERGO TOOLS

Manufactured for HORNBACH-Baumarkt AG

Hornbachstraße 11, 76879 Bornheim / Germany

ED202412
