USER MANUAL PE-TP 1000 N Pattfield
Pattfield® ERGO TOOLS
GB Translation of the Original Instructions Deep well pump 1000W
-2-
Inhaltsverzeichnis
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Gefahr!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
2.2 Lieferumfang
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Technische Daten
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
6. Bedienung
Pattfield® ERGO TOOLS
Tiefbrunnenpumpe PE-TP 1000 N
Hergestellt für:
Hornbach Baumarkt AG
Hornbachstraße 11
Pattfield® ERGO TOOLS
12. Entsorgung
Pattfield® ERGO TOOLS
Sommaire
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Danger!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
de l'art.
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Directive CEM 2014/30/UE (EMV)
documents techniques
Bornheim, 05.08.2024
Hornbach Baumarkt AG
Hornbachstraße 11
Pattfield® ERGO TOOLS
12. Élimination
Pattfield® ERGO TOOLS
Indice
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pericolo!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
2.2 Elementi forniti
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Attacco del tubo flessibile ...... ca. 42 mm (11/4") IG
Corpi estranei max. ......Acqua limpida
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
12. Smaltimento
Pattfield® ERGO TOOLS
Inhoudsopgave
Pattfield® ERGO TOOLS
Gevaar!
Pattfield® ERGO TOOLS
aan.
Pattfield® ERGO TOOLS
2.2 Leveringsomvang
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
heeft.
Pattfield® ERGO TOOLS
Diepwelpomp PE-TP 1000 N
geproduceerd voor:
Hornbach Baumarkt AG
Hornbachstraße 11
Pattfield® ERGO TOOLS
12. Afvalverwerking
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Fara!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Djupbrunnspump PE-TP 1000 N
tillverkad för:
Hornbach Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Tyskland
Pattfield® ERGO TOOLS
Obsah
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Nebezpečí!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
2.2 Rozsah dodávky
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
9. Skladování
Pattfield® ERGO TOOLS
Obsah
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Nebezpečenstvo!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Technické údaje
Menovité napätie / frekvencia ....220-240 V\~ 50 Hz
Príkon 1000 W
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Cuprins
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pericol!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Cablu de rețea 22 m
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Utilizarea pompei cu picior suport (Fig. 4+5)
Pattfield® ERGO TOOLS
9. Lagăr
Pattfield® ERGO TOOLS
Table of contents
- Safety regulations
- Layout and items supplied
- Proper use
- Technical data
- Before starting the equipment
- Operation
- Replacing the power cable
- Cleaning, maintenance and ordering of spare parts
- Storage
- Troubleshooting guide
- Declaration of Conformity
- Disposal
Pattfield® ERGO TOOLS
Danger! - Read the operating instructions to reduce the risk of inquiry
GB
Pattfield® ERGO TOOLS
Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
Danger!
Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
GB
Danger!
The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!
- The equipment must always be disconnected from the mains supply before it is assembled, taken apart or cleaned.
- The equipment can be used by people with limited physical, sensory or mental capacities or by persons with restricted experience and restricted knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use.
• Children are not allowed to play with the equipment.
Pattfield® ERGO TOOLS
- If pumps are not accompanied by information confirming that they are protected from freezing, they are not allowed to be left outdoors in frosty weather.
- The equipment is not allowed to be used when there are people in the water.
- The equipment is allowed to be used only with an earth-leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA.
- Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
- The electrical plug-in connections must be protected from wet conditions.
- If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
- Strictly avoid pumping aggressive liquids and abrasive substances.
- Protect the equipment from frost.
- Protect the equipment from dry running.
- Take suitable measures to keep the equipment out of the reach of children.
2. Layout and items supplied

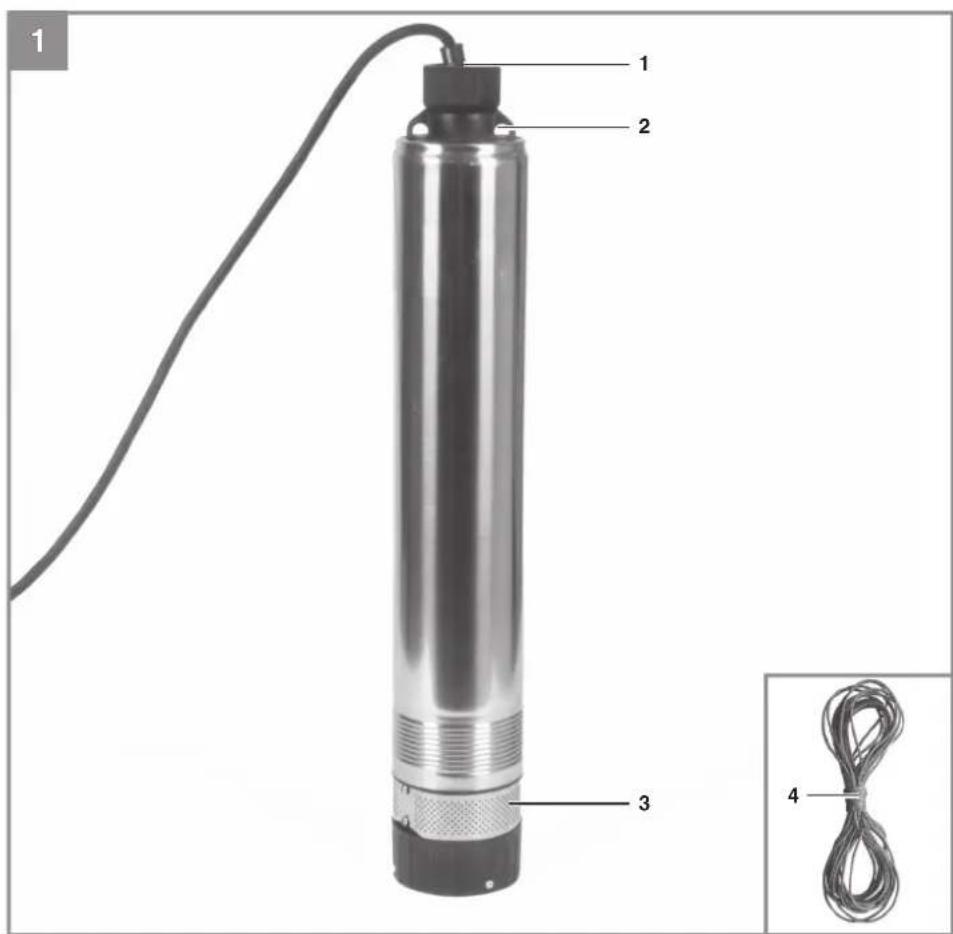

2.1 Layout (Fig. 1)
- Pressureconnector
- Suspension eyelets
- Dirt screen
- Securing cable
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or
Pattfield® ERGO TOOLS
the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Deepwellpump
- Securing cable
- Pedestal
• Original operating instructions
3. Proper use
The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C . This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!
The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!
If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position,
Pattfield® ERGO TOOLS
e.g. on bricks.
The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
The water may be contaminated by escaping lubricating oil/lubricant.
4. Technical data
Rated voltage/frequency 220-240 V\~50 Hz
Power rating 1000 W
Max. pumping rate 6500 l/h
Max. delivery head 45 m
Max.submersion depth 19 m
Max. water temperature 35 °C
Hose connection ....approx. 42 mm (11/4") IG
Max. size of foreign bodies: .... clear water
Protection type. IPX8
Power cable 22 m
GB
Pattfield® ERGO TOOLS
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
5.1 Installation
The equipment can be installed either:
• Stationary with a rigid pipe line
or
• Stationary with a flexible hose line
- Connect the pressure hose or pipe to the pressure connector (1) using a suitable connector.
- Fasten the securing cable (4) to the suspension eyelet (Fig. 1/Item 2).
Notice!
Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!
GB
For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.
Examples of such safety measures:
Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements.
Be sure to consult a professional plumber if you have any doubt.
The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.
Using the securing cable
When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung from the suspensi-
Pattfield® ERGO TOOLS
on eyelets provided or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft must always be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).
Installing the pump:
Avoid intake of sediment and solid matter (e.g. sludge, sand, etc.), which can cause damage to the pump. Make sure there is sufficient distance between the pump and the ground, and clean the pump shaft regularly, as needed. Assemble or remove the pedestal, depending on the intended use of the pump.
The pump shaft should be large enough.

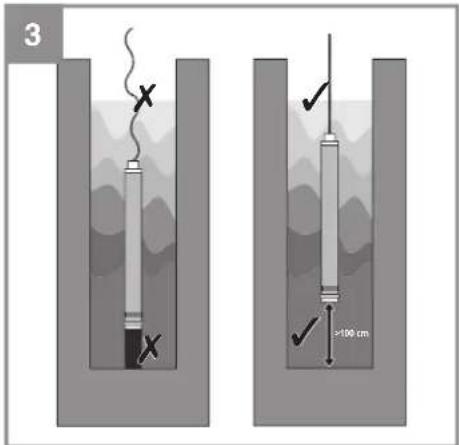

Operating the pump without the pedestal (Figure 3):

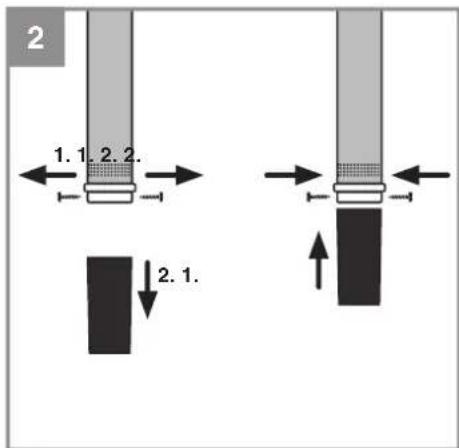

If the pump is to be used in a deep well or in a narrow shaft with a minimum diameter of 100 mm, the pedestal must be removed from the pump (Figure 2). Undo the corresponding screws on the pump.
Attach the securing cable to the deep well pump and lower it into the well or shaft. To ensure that it is safely positioned, first let the pump drop to the bottom. Then pull back on the taut cable and secure the pump at the defined distance. The pump must not be placed on the ground.

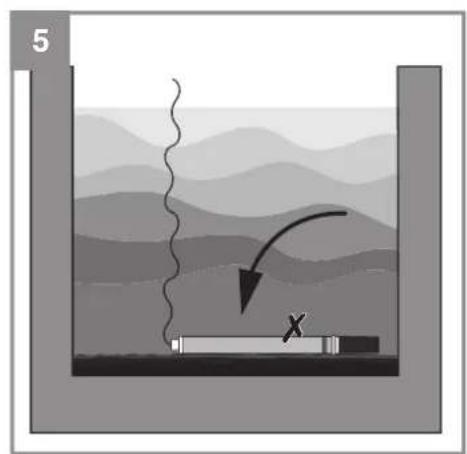

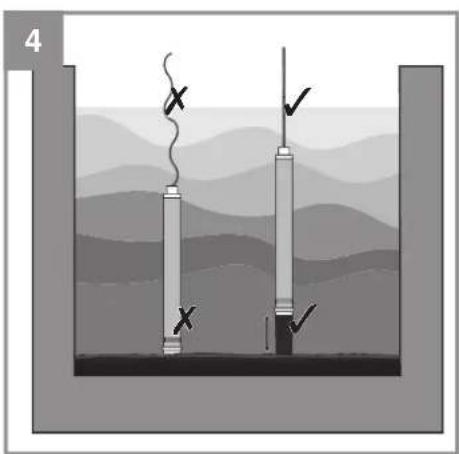

Operating the pump with the pedestal (Figure 4 +5)
If the pump is to be resting on the ground (e.g. when used in a cistern), attach the pedestal to the pump with the corresponding screws (Figure 2). This ensures that the pump will remain at a defined distance from the ground, reducing the intake of sediment and solid matter. Always secure the pump with the securing cable and make sure the cable is taut so that the pump does not fall over.
GB
Pattfield® ERGO TOOLS
5.2 Mains connection
Danger!
The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 220-240 V \~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.
6. Operation
You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:
- Check that the discharge line is fitted correctly.
• Make sure that the electrical connection is 220-240 V \~ 50 Hz. - Check that the electrical socket-outlet is in good working order.
- Make sure that no moisture or water can ever reach the power connection.
- Lower the pump into the well or shaft using the securing cable.
- Ensure that the pump is completely submersed in the water and that there is sufficient distance between the pump intake section and the ground.
• Make sure that the equipment does not run dry. - To switch off the equipment, pull the power plug out of the socket outlet.
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Danger!
• Unplug the power plug prior to any maintenance work.
- For mobile applications, the equipment should be cleaned with clear water after every usage.

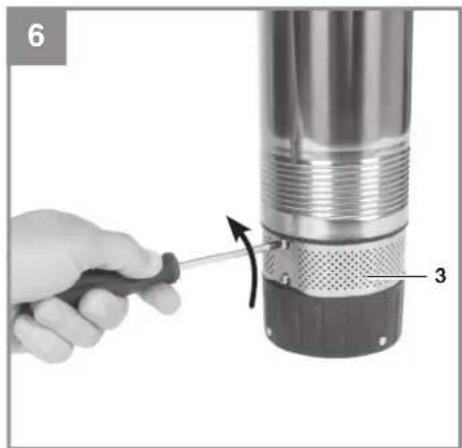

- Undo the fastening screws on the dirt screen (Figure 6/Item 3) and clean the dirt screen and intake section.
- Insert the dirt screen again.
8.1 Maintenance
There are no parts inside the equipment which require additional maintenance.
8.2 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
- Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
Current prices and information are available on request at your Hornbach store.
9. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
- If the pump is not going to be used for a long time or has to be removed for the winter months, rinse it out with water, empty it completely and allow it to dry.
- The equipment must be completely drained before it is subjected to frost.
GB
- Troubleshooting guide
| Faults Cause Remedy | ||
| Theequipment does not start | - Power supply not connected | - Check power supply |
| Theequipment does not pump | - Intake sieve clogged- Discharge hose kinked | - Clean intake sieve with water jet- Unkink the hose |
| Insuffi cient pumping rate | - Intake sieve clogged- Performance reduced due to heavily contaminated and abrasive water impurities | - Clean intake sieve- Clean equipment and replace wear parts |
| Theequipment switches off after briefly running | - Motor circuit-breaker switches the equipment off due to excessive water contamination- Water temperature too high; motor circuit-breaker switches the equipment off | - Unplug power plug and clean equipment and shaft- Ensure that maximum permissible water temperature (35 °C) is not exceeded |
11. Declaration of Conformity
Declaration of Conformity
We declare, that the product described in Technical Data
Deep well pump PE-TP 1000 N
Manufactured for:
Hornbach Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Germany
is in conformity with the following directives:
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EG
RoHS Directive 2011/65/EG
and in accordance to the following applicable harmonized standards:
EN 60335-1:2012+A11+A13+A1+A14+A2+A15
EN IEC 60335-2-41:2021+A11
EN 62233: 2008
EN ISO 12100:2010
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019+A1
EN 61000-3-3:2013+A1+A2
ppa. Andrews Baile
Andreas Back
Head of Quality Management &
Person authorised to compile the technical file
Bornheim, 05.08.2024
Hornbach Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Germany
Pattfield® ERGO TOOLS
12.Disposal
The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment.
HORNBACH is committed in Germany:
- when purchasing a new electrical or electronic device, to take back an old device of the same type free of charge at a HORNBACH store.
- You can take back up to 3 old electrical or electronic devices of the same type (up to a maximum edge length of 25 cm) free of charge at a HORNBACH store, even without buying a new one.
- When delivering a new electrical or electronic device to a private household, to pick up an old device of the same type free of charge or to enable you to return it in your immediate vicinity.
GB
For more information, contact www.hornbach.com or your local authorities.
Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.
Pattfield® ERGO TOOLS
Pattfield®
ERGO TOOLS
Manufactured for HORNBACH-Baumarkt AG
Hornbachstraße 11, 76879 Bornheim / Germany
ED202408
