PE-KW 300 - Water pump Pattfield - Free user manual and instructions
Find the device manual for free PE-KW 300 Pattfield in PDF.
| Brand | Pattfield |
| Model | PE-KW 300 |
| Product type | Clean water pump |
| Power supply | 230 V ~ 50 Hz |
| Power consumption | 300 W |
| Max. delivery | 7000 l/h |
| Max. head | 6 m |
| Max. immersion depth | 5 m |
| Max. water temperature | 35 °C |
| Flexible connection | approx. 47.8 mm (G1½) IG |
| Max. foreign body | ∅ 5 mm |
| Switch-on height | approx. 62 cm max. |
| Switch-off height | approx. 5 cm min. |
| Protection type | IPX8 |
| Float switch | Yes, adjustable |
| Intended use | Pumping of clean water up to 35°C |
| Maintenance | Regular cleaning of filter and impeller |
| Special features | Frost protection, dry-run protection, RCD recommended |
| Warranty | 3 years |
| Supplied accessories | Universal flexible connection, instruction manual |
Frequently Asked Questions - PE-KW 300 Pattfield
User questions about PE-KW 300 Pattfield
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Water pump in PDF format for free! Find your manual PE-KW 300 - Pattfield and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PE-KW 300 by Pattfield.
USER MANUAL PE-KW 300 Pattfield
Pattfield® ERGO TOOLS
D Originalbetriebsanleitung
Klarwasserpumpe 300 W
Traduction de la notice originale
Pompe à eau claire 300 W
Traduzione delle istruzioni originali
Pompa per acque chiare 300 W
Vertaling van de oorspronkelijke gebruiksaanwijzing
Helderwaterpomp 300 W
Oversatning av originalbruksanvishing
Klarvattenpump 300 W
27. Peklad origininimo havoda k pouziti
Čerpadlo na čistou vodu 300 W
Preklad povodneno navodu na pouzitie
Čerpadlo na čistú vodu 300 W
Traducere a instructiunilor originale
Pompă pentru apă curată 300 W
Translation of the Original Instructions

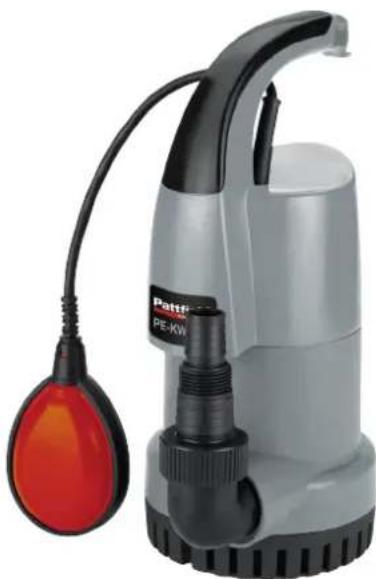

Clear water pump 300 W
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS


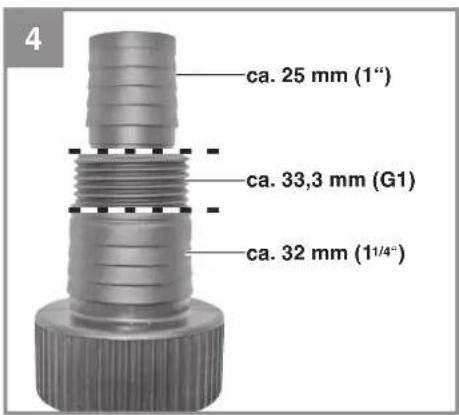

ca. 25 mm (1") ca. 33,3 mm (G1) ca. 32 mm (1¹/⁴°)-3-
Pattfield® ERGO TOOLS
-4-
Pattfield® ERGO TOOLS
Inhaltsverzeichnis
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Gefahr!
Pattfield® ERGO TOOLS
Gefahr!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Hinweis:
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Nur für EU-Länder
Pattfield® ERGO TOOLS
12. Garantieurkunde
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Sommaire
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Danger!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
6. Commande
Pattfield® ERGO TOOLS
Mode manuel:
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
10. Stockage
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
12. Bon de garantie
Chère cliente, cher client,
Pattfield® ERGO TOOLS
Directive CEM 2014/30/UE (EMV)
Pattfield® ERGO TOOLS
Indice
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pericolo!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
3. Utilizzo proprio
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Inhoudsopgave
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Gevaar!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Fara!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Tekniska data
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
6. Använda
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
- Felsökning
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Obsah
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Nebezpečí!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Technická data
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Nebezpečí!
Pattfield® ERGO TOOLS
Ruční provoz:
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
10.Skladování
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Jen pro země EU
Pattfield® ERGO TOOLS
12.Záruční list
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Obsah
Pattfield® ERGO TOOLS
Nebezpečenstvo! - Aby ste znížili riziko poranenia, prečítajte si ná- vod na obsluhu
SK
-108-
Pattfield® ERGO TOOLS
Nebezpečenstvo!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Technické údaje
Sietové pripojenie: 230 V \~ 50 Hz
Príkon: 300 Watt
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
6. Obsluha
Pattfield® ERGO TOOLS
Manuálna prevádzka:
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
10.Skladovanie
Pattfield® ERGO TOOLS
Len pre krajiny EÚ
Pattfield® ERGO TOOLS
12.Záručný list
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Cuprins
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pericol!
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
4. Date tehnice
Racordul de retea 230 V \~50 Hz
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
8.3 Comanda pieselor de schimb:
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
13. Declaratia CE de conformitate
Declaratie de conformitate
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Table of contents
- Safety regulations
- Layout and items supplied
- Proper use
- Technical data
- Before starting the equipment
- Operation
- Replacing the power cable
- Cleaning, maintenance and ordering of spare parts
- Disposal and recycling
- Storage
- Troubleshooting guide
- Warranty certifi cate
- EC declaration of conformity
GB
Pattfield® ERGO TOOLS
Danger! - Read the operating instructions to reduce the risk of injury.
GB
-142-
Pattfield® ERGO TOOLS

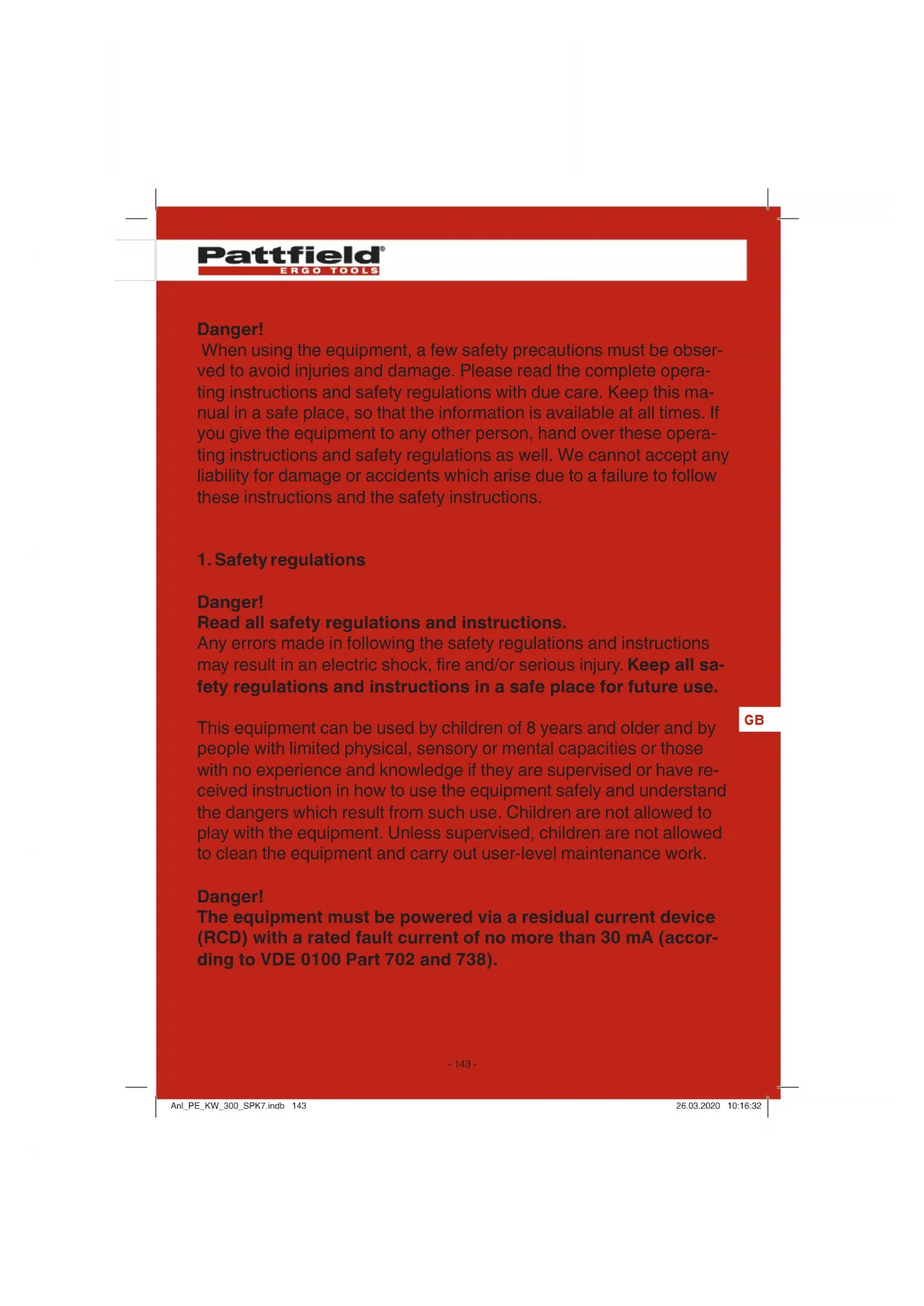

Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
Danger!
Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.
This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.
Danger!
The equipment must be powered via a residual current device (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100 Part 702 and 738).
Pattfield® ERGO TOOLS
If you are uncertain whether there is an RCD in your electrical installation system, we recommend using a PRCD-S safety switch (ask a qualified electrician).
The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!
- Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
- The electrical plug-in connections must be protected from wet conditions.
- If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
- Strictly avoid pumping aggressive liquids and abrasive substances.
- Protect the equipment from frost.
• Protect the equipment from dry running.
• Take suitable measures to keep the equipment out of the reach of children.
Pattfield® ERGO TOOLS
2. Layout and items supplied

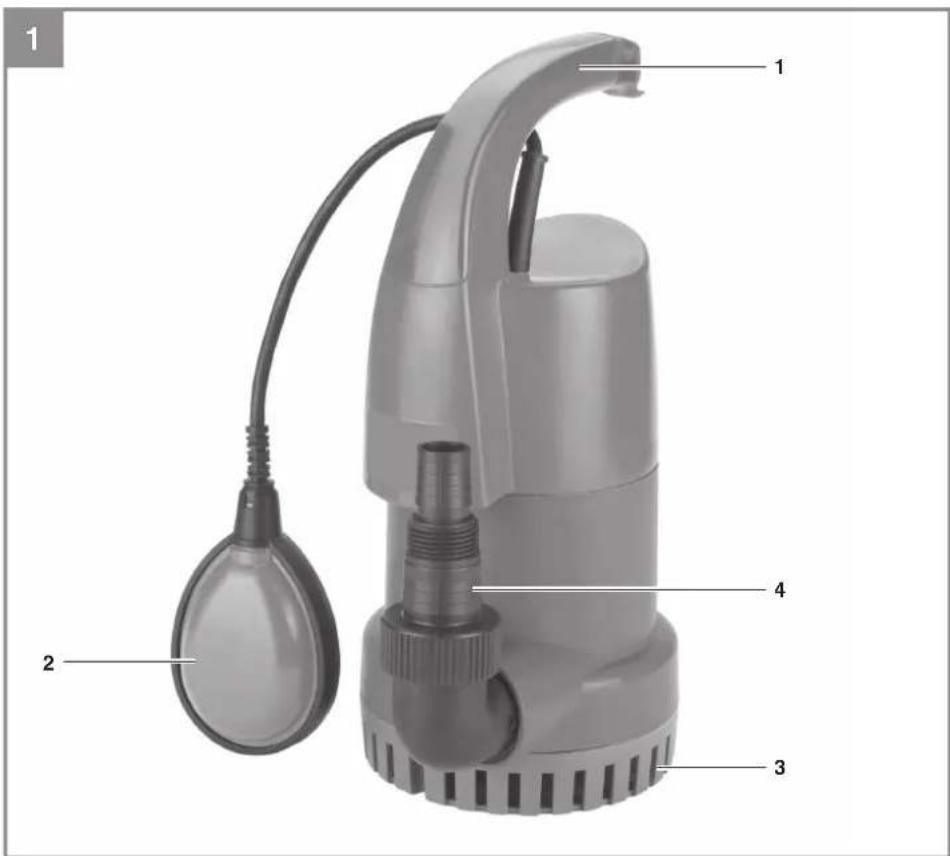

2.1 Layout (Fig. 1)
- Handle
- Floating switch
- Intake cage
- Universal hose connection
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
GB
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Clear water pump
• Universalhoseconnection
• Original operating instructions
Pattfield® ERGO TOOLS
3. Proper use
The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C . This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!
The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!
If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.
The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
The water may be contaminated by escaping lubricating oil/lubricant.
Pattfield® ERGO TOOLS
4. Technical data
Mains connection 230 V \~ 50 Hz
Power rating 300 W
Max. pumping rate 7000 l/h
Max. delivery head 6 m
Max. submersion depth 5 m
Max. water temperature 35°C
Hose connection ....approx. 47.8 mm (G 1½ ) IG
Max. size of foreign bodies: ....∅ 5 mm
Switching point height: ON max. approx. 62 cm
Switching point height: OFF min. approx. 5 cm
Protection type. IPX8
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
GB
5.1 Installation
The equipment can be installed either:
• Stationary with a rigid pipe line
or
• Stationary with a flexible hose line
Notice!
Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!
For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.
Pattfield® ERGO TOOLS
Examples of such safety measures:
Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements.
Be sure to consult a professional plumber if you have any doubt.
The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced. If the universal hose connection (Fig. 1/Item 4) is used, it should be shortened (as shown in Fig. 4) to the connection actually used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply).
When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung up with the provided carry handle or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).
The pump shaft should be large enough.
5.2 Mains connection
Danger!
The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V \~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.
Pattfield® ERGO TOOLS
Danger!
To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.
6. Operation
You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:
• Make sure that the equipment is set up securely.
- Check that the discharge line is fitted correctly.
• Make sure that the electrical connection is 230 V \~ 50 Hz.
- Check that the electrical socket-outlet is in good working order.
- Make sure that no moisture or water can ever reach the power connection.
• Make sure that the equipment does not run dry.
- To switch off the equipment, pull the power plug out of the socket outlet.

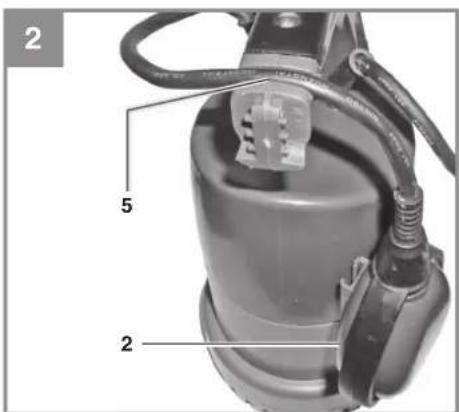

Setting the On/Off switching point:
The ON/OFF switching point of the floating switch can be adjusted by shifting the floating switch in the floating switch notched holder (Fig. 2/Item 5).
- The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whether the equipment switches on and off.
- Make sure that the distance between the floating switch head and the cable holder is not too smaller than 10 cm. If the distance is too small, there is no guarantee that the equipment will work correctly.
GB
Pattfield® ERGO TOOLS
- When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off. Important! Risk of dry running.
Manual operation:

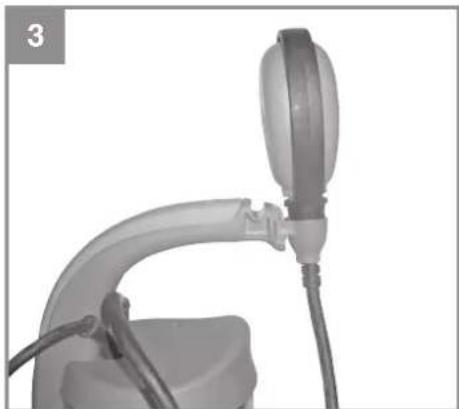

Mount the float switch as illustrated in Figure 3 so that the device runs continuously. In this mode the equipment may be used only under supervision to avoid dry running. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
GB
8. Cleaning, maintenance and ordering of spare parts
Danger!
• Unplug the power plug prior to any maintenance work.
- For mobile applications, the equipment should be cleaned with clear water after every usage.
- For stationary installation, it is recommended that you check the floating switch for proper operation every three months.
- Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
- Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
- Use clear water to remove deposits from the floating switch.
Pattfield® ERGO TOOLS
8.1 Cleaning the paddle wheel
If a lot of deposits collect in the housing, the bottom part of the equipment must be dismantled as follows:
- Disconnect the intake cage from the housing.
-
Clean the paddle wheel with clear water.
Important! Do not put down or rest the equipment on the paddle wheel! -
Assemble in reverse order.
8.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
8.3 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
Current prices and information are available on request at your Hornbach store.
GB
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
Pattfield® ERGO TOOLS
10.Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
GB
- Troubleshooting guide
| Faults Cause Remedy | ||
| Theequipment does not start | - Power supply not connected- Floating switch does trigger | - Check power supply- Raise position of fl oating switch |
| Theequipment does not pump | - Intake sieve clogged- Discharge hose kinked | - Clean intake sieve with water jet- Unkink the hose |
| Theequipment does not cut out | - Floating switch cannot sink | - Place equipment correctly on shaft bottom |
| Insuffi cient pumping rate | - Intake sieve clogged- Performance reduced due to heavily contaminated and abrasive water impurities | - Clean intake sieve- Clean equipment and replace wear parts |
| Theequipment switches off after briefly running | - Motor circuit-breaker switches the equipment off due to excessive water contamination- Water temperature too high; motor circuit-breaker switches the equipment off | - Unplug power plug and clean equipment and shaft- Ensure that maximum permissible water temperature (35 °C) is not exceeded |
GB
Pattfield® ERGO TOOLS
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
GB
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is permitted only with the express consent of Hornbach Baumarkt AG.
Subject to technical changes
12.Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:
-
These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
-
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
- The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as
GB
Pattfield® ERGO TOOLS
sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
GB
Hornbach Baumarkt AG, Hornbachstraße 11, 76879 Bornheim / Germany www.hornbach.com
13. EC declaration of conformity
Declaration of Conformity
We declare, that the product described in Technical Data :
Clear Water Pump PE-KW 300
Manufactured for:
Hornbach Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Germany
is in conformity with the following directives:
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EG
RoHS Directive 2011/65/EG
and in accordance to the following applicable harmonized standards:
EN 60335-1:2012+A11+A13
EN 60335-2-41:2003+A1+A2
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
ppa. Andreas Baile
Andreas Back
Head of Quality Management &
Person authorised to compile the technical file
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Pattfield® ERGO TOOLS
Manufactured for HORNBACH-Baumarkt AG
Hornbachstraße 11,76879 Bornheim/Germany
ED202003
