USER MANUAL PE-AHE 18 Li Pattfield

Pattfield® ERGO TOOLS

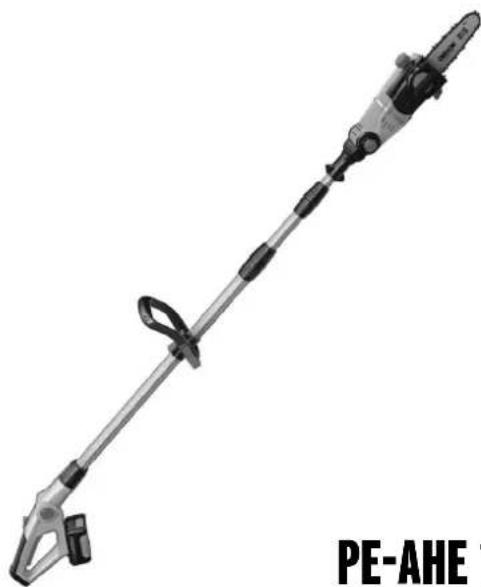

Translation of the Original Instructions Pole-mounted cordless pruner 18 V

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

PE-AHE 18 Li (BASIC)

Pattfield®

ERGO TOOLS

1
Pattfield PE-AHE 18 Li - ERGO TOOLS - 1


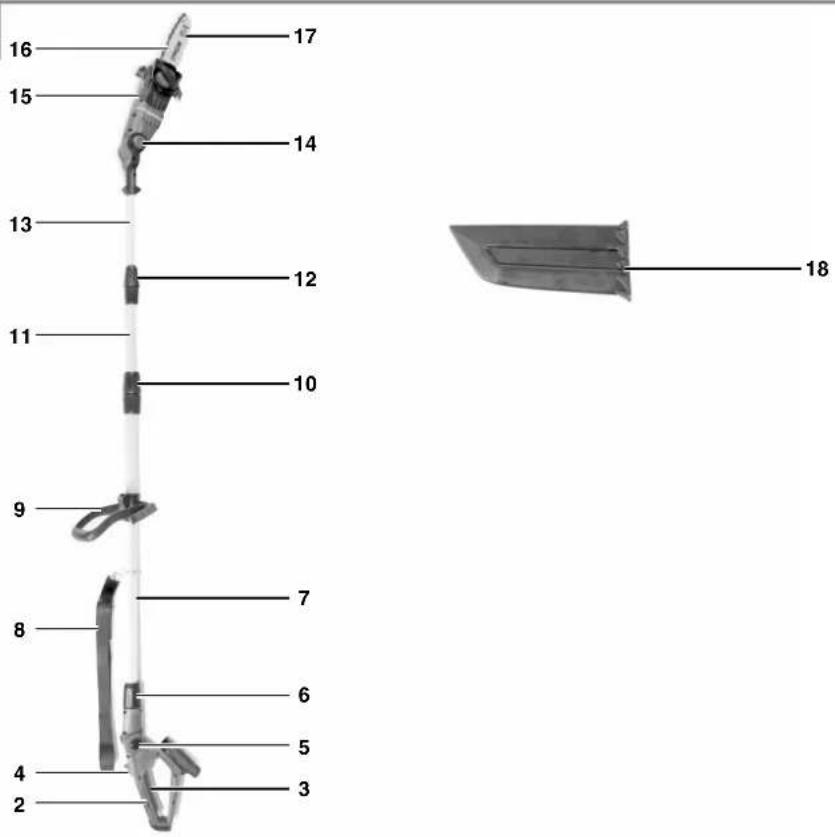

16 15 13 11 9 8 4 2 17 14 12 10 7 6 5 3 18

2
Pattfield PE-AHE 18 Li - ERGO TOOLS - 2

3
Pattfield PE-AHE 18 Li - ERGO TOOLS - 3

-2-

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 2


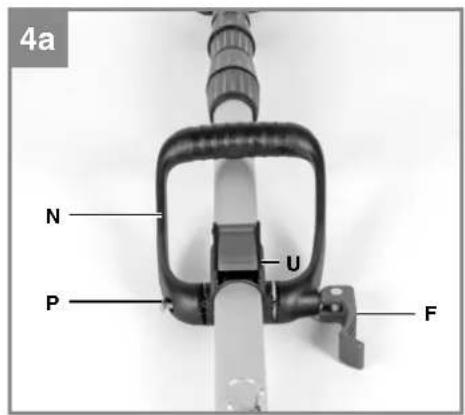

4a N U P F

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 3

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 4


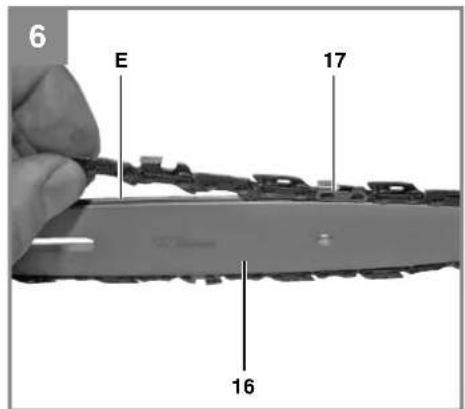

6 E 17 16

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 5


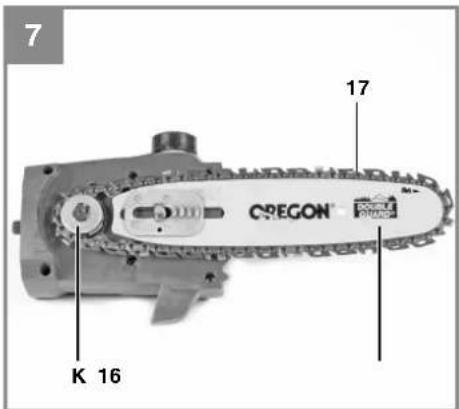

7 K 16 17 CREGON® M-

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 6

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1


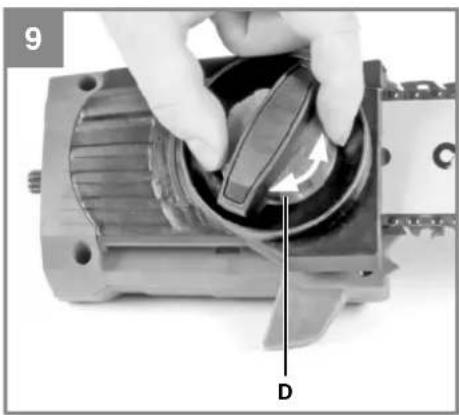

Close-up of a mechanical component with a hand holding a knob, showing a circular dial and directional arrow (no text or symbols)

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 2


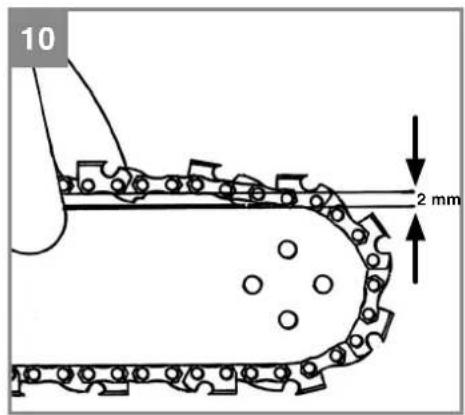

10 2 mm

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 3

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 4


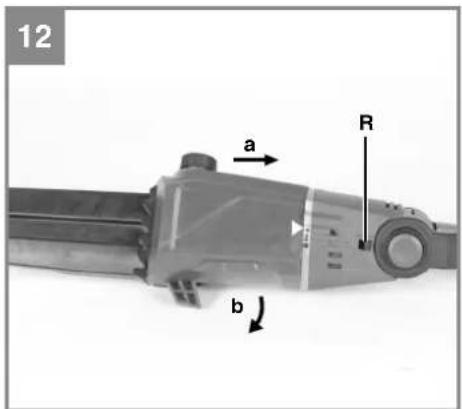

12 a R b

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 5

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 6

-4-

Pattfield®

ERGO TOOLS

Pattfield PE-AHE 18 Li - ERGO TOOLS - 1


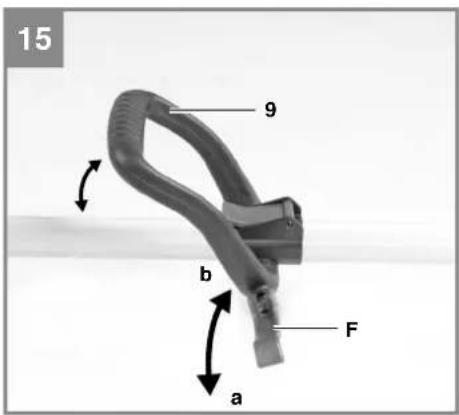

15 9 b F a

Pattfield PE-AHE 18 Li - ERGO TOOLS - 2

Pattfield PE-AHE 18 Li - ERGO TOOLS - 3

Pattfield PE-AHE 18 Li - ERGO TOOLS - 4

Pattfield PE-AHE 18 Li - ERGO TOOLS - 5


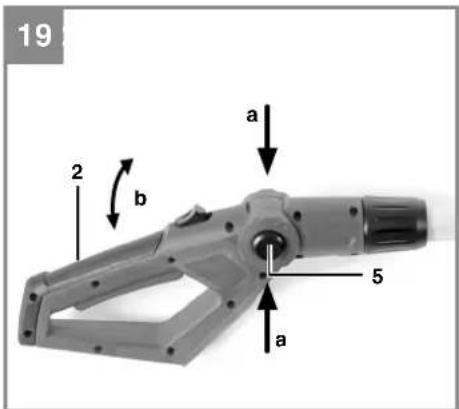

19 2 b a 5 a

Pattfield PE-AHE 18 Li - ERGO TOOLS - 6

-5-

Pattfield®

ERGO TOOLS

Pattfield PE-AHE 18 Li - ERGO TOOLS - 1

Pattfield PE-AHE 18 Li - ERGO TOOLS - 2

Pattfield PE-AHE 18 Li - ERGO TOOLS - 3

Pattfield PE-AHE 18 Li - ERGO TOOLS - 4

Pattfield PE-AHE 18 Li - ERGO TOOLS - 5


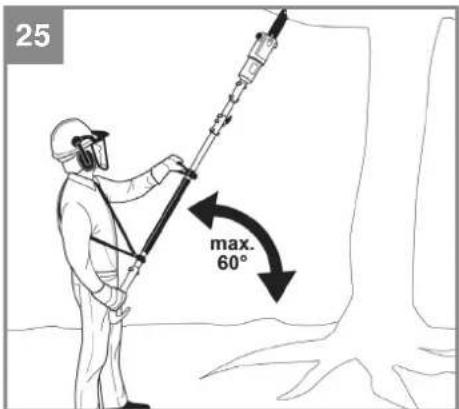

25 max. 60°

Pattfield PE-AHE 18 Li - ERGO TOOLS - 6

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 2

-7-

Pattfield® ERGO TOOLS

Inhaltsverzeichnis

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

rolle.

Pattfield® ERGO TOOLS

Hinweise zum Akku

Pattfield® ERGO TOOLS

Restrisiken

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

Sägekette

Pattfield® ERGO TOOLS

Rückschlag

Pattfield® ERGO TOOLS

9. Störungen

Gerät läuft nicht:

Pattfield® ERGO TOOLS

Danger!

Pattfield® ERGO TOOLS

très graves.

Pattfield® ERGO TOOLS

se.

Pattfield® ERGO TOOLS

blessure.

Pattfield® ERGO TOOLS

Avertissement !

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Risques résiduels

Pattfield® ERGO TOOLS

6. Fonctionnement

Pattfield® ERGO TOOLS

le.

Attention!

Pattfield® ERGO TOOLS

Pericolo!

Pattfield® ERGO TOOLS

tevolmente.

Pattfield® ERGO TOOLS

di taglio.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pericolo!

Rumore e vibrazioni

Pattfield® ERGO TOOLS

Inhoudsopgave

Pattfield® ERGO TOOLS

Gevaar!

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Restrisico's

Pattfield® ERGO TOOLS

Zaagketting: .....Oregon 91P033X, ....Kangxin 3/8 8050X33DL

Zwaard: ...... Oregon 080NDEA041 (520089),

Kangxin AP08-33-507P

Opgelet!

Pattfield® ERGO TOOLS

Gevaar!

Geluid en vibratie

Pattfield® ERGO TOOLS

Olietank vullen (fi g. 11):

Pattfield® ERGO TOOLS

In- / Uitschakelen

Inschakelen

Pattfield® ERGO TOOLS

Zaagtechnieken

Pattfield® ERGO TOOLS

8. Onderhoud

Gevaar!

Pattfield® ERGO TOOLS

Controleren van de automatische kettingsmering

Pattfield® ERGO TOOLS

10.Foutopsporing

Gevaar!

Pattfield® ERGO TOOLS

14. Garantiebewijs

Geachte klant,

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

4. Tekniska data

Svärdlängd: 200 mm

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

Säkert arbete

Pattfield® ERGO TOOLS

Lampor på laddaren

Pattfield® ERGO TOOLS

Nebezpečí!

Pattfield® ERGO TOOLS

6. Servis

Pattfield® ERGO TOOLS

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

chu.

Pattfield® ERGO TOOLS

4. Technická data

Délka lišty: 200 mm

Pattfield® ERGO TOOLS

Nebezpečí!

Hluk a vibrace

Pattfield® ERGO TOOLS

Omezte tvorbu hluku a vibrace na minimum!

Pattfield® ERGO TOOLS

Bezpečná práce

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Pattfield® ERGO TOOLS

k spätnému nárazu.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

použitím.

4. Technické údaje

Dížka lišty:....200 mm

Max. dížka rezu: 170 mm

Delenie ret'aze: 3/8" 33 zubov

Sila retaze: (0,050") 1,3 mm

Reťazové koleso: 6 zubov, 3/8“

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Hlučnosť a vibrácie

Pattfield® ERGO TOOLS

Obmedzte tvorbu hluku a vibráciu na minimum!

Pattfield® ERGO TOOLS

Upozornenia k napínaniu ret'aze:

Pattfield® ERGO TOOLS

chala olejová dýza.

Pattfield® ERGO TOOLS

Ak by napriek tomu nemalo byt stále možné nabitie akumulátora, prosíme Vás, aby ste

Pattfield® ERGO TOOLS

Vypnutie

Pustite vypínač zap/vyp (obr. 3/pol. 3).

Pattfield® ERGO TOOLS

Ochrana sluchu a ochranné okuliare.

Pattfield® ERGO TOOLS

Pericol!

Pattfield® ERGO TOOLS

Indicatii importante suplimentare:

Pattfield® ERGO TOOLS

privind siguranta.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Riscuri reziduale

Pattfield® ERGO TOOLS

Pericol!

Pattfield® ERGO TOOLS

5.10 Reglarea tevilor telescopice (Fig. 21)

Pattfield® ERGO TOOLS

Oprirea

Pattfield® ERGO TOOLS

ferăstrăului!

Pattfield® ERGO TOOLS

9. Defecțiuni

Pattfield® ERGO TOOLS

Safety regulations
Layout and items supplied
Proper use
Technical data
Before starting the equipment
Operation
Working with the chainsaw mounting kit
Care and maintenance
Faults
Troubleshooting guide
Charger indicator
Disposal
EC Declaration of Conformity
Warranty certifi cate

Pattfield® ERGO TOOLS

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

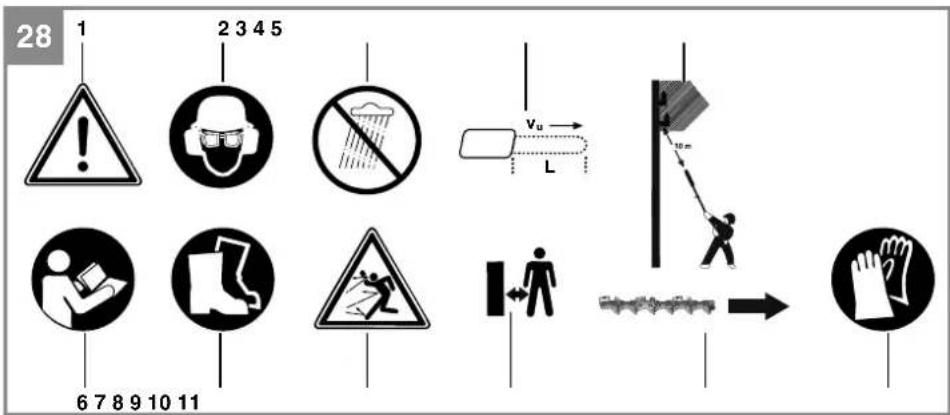

Explanation of the symbols on the equipment (Fig. 28):

Warning!
Wear safety goggles, a face guard and ear protection.
Protect the equipment from rain and damp.
Maximum cutting length of the pole-mounted pruner.
Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
Read the directions for use before operating the equipment.
Wear sturdy, non-slip footwear.

Pattfield® ERGO TOOLS

Watch out for falling and catapulting parts.
Keep your distance.
Direction of the chain movement and teeth of the pole-mounted pruner.
Wear safety gloves.

General safety instructions for electric tools

The term “electric tool” used in the safety instructions refers to electric tools operated from the mains power supply (with a power cable) and to battery operated electric tools (without a power cable).

1. Workplace safety

a) Keep your work area clean and well illuminated. Untidy or un-lit work areas can result in accidents.
b) Do not operate the electric tool in an environment where there is a risk of explosions and where there are infl ammable liquids, gases or dust. Electric tools produce sparks which could set the dust or vapours alight.
c) Keep the electric tool out of the reach of children and other persons. If there is a distraction, you may lose control of the appliance.

2. Electrical safety

a) The connector plug from this electric tool must fi t into the socket. The plug should never be altered in any way. Never use adapter plugs together with earthed electric tools. Un-altered plugs and correct sockets reduce the risk of an electric shock.
b) Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of electric shock is increased if your body is earthed.
c) Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool increases the risk of an electric

Pattfield® ERGO TOOLS

shock.

d) Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled cables increase the risk of an electric shock.
e) If you are working outdoors with an electric tool, only use extension cables which are designed specifically for this purpose. Using specially designed outdoor extension cables, the risk of electric shock is reduced.
f) If operation of the electric tool in a damp environment can not be avoided, use a earth-leakage circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock.

3. Safety of persons

a) Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the electric tool can result in serious injuries.
b) Wear personal protection equipment and always wear safety goggles. Wearing personal protection (such as dust masks, non-slip safety shoes, safety helmet or ear protection, depending upon the type and use of the electric tool) reduces the risk of injury.
c) Make sure that the appliance cannot start up accidentally. Ensure that the electric tool is switched off before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If your finger is on the switch whilst carrying the electric tool or if you connect the appliance to the mains when it is switched on, this can lead to accidents.
d) Remove keys and wrenches before switching on the electric tool. A tool or key which comes into contact with rotating parts of the appliance can lead to injuries.

Pattfield® ERGO TOOLS

e) Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all times. In this way, you can control the electric tool better in unexpected circumstances.
f) Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.
g) If vacuuming devices and draining devices can be fitted, make sure that these are correctly attached and correctly used. The use of a dust extraction system can reduce the danger posed by dust.

Usage and treatment of the electric tool

a) Do not overload the appliance. Use the correct tool for your work. You will be able to work better and more safely within the given performance boundaries.
b) Do not use an electric tool with a defective switch. An electric tool that cannot be switched on or off is dangerous and must be repaired.
c) Pull the plug out of the socket and/or remove the battery before making any adjustments to the appliance, changing accessories or putting the appliance down. This safety measure prevents starting the electric tool unintentionally.
d) Keep unused electric tools out of the reach of children. Do not allow people who are not familiar with the appliance or who have not read these instructions to use the appliance. Electric tools are dangerous if they are used by inexperienced people.
e) Clean your electric tool carefully. Check whether moving parts are functioning properly and not jamming, whether parts are broken or damaged enough that the functioning of this electric tool is affected. Have damaged parts repaired before using the appliance. Many accidents are caused by badly maintained electric tools.

Pattfield® ERGO TOOLS

f) Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges will jam less and are easier to control.

g) Make sure to use electric tools, accessories, attachments, etc. in accordance with these instructions. Take the conditions in your work area and the job in hand into account.

Using electric tools for any purpose other than the one for which they are intended can lead to dangerous situations.

Using and handling the cordless tool

a) Only charge the batteries in chargers that are recommended by the manufacturer. A charger that is designed for a certain type of battery may pose a fire risk if it is used with other types of battery.

b) Use only the correct batteries in the electric tools. The use of other batteries may result in injuries and a fi re risk.

c) Keep unused batteries away from paper clips, coins, keys, nails, screws and other metallic objects that could cause a short circuit between the contacts. A short circuit between the battery contacts may cause burns or a fire.

d) In case of incorrect use, fl uid may escape from the battery. Avoid contact with it. If you touch it by accident, rinse the affected area with water. If you get the fl uid in your eyes, also seek medical advice. Leaking battery fluid can cause skin irritation or burns.

Service

a) Have your electric tool repaired only by trained personnel using only genuine spare parts. This will ensure that your electric tool remains safe to use.

Special safety instructions for chainsaws

- When the chainsaw is running make sure that you keep all parts of your body away from the chainsaw. Before starting

Pattfield® ERGO TOOLS

up the chainsaw make sure that it is not touching anything.

When you are working with a chainsaw, a single moment of carelessness is all it takes for clothing or parts of your body to get caught by the chainsaw.

Always hold the chainsaw securely with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw with your hands in other positions increases the risk of injury and is therefore not allowed.
Wear safety goggles and ear protection. Other safety equipment for the head, hands, legs and feet is recommended. Correct protective clothing reduces the risk of injury caused by catapulted chips or in the event of accidental contact with the chainsaw.
Never use the chainsaw up a tree. You risk injuring yourself if you use the chainsaw up a tree.
Always maintain a steady standing position and only use the chainsaw when you are standing on a solid, safe and flat surface. Slippery or unsafe surfaces in combination with a ladder can cause you to lose your balance and control over the chainsaw.
When cutting through a branch which is under tension, take into account how it will spring back once the cut has been made. Once the tension in the wood fibers is released, the tensioned branch could hit the operator and/or seize control of the chainsaw.
Take special care when cutting undergrowth and young trees. The thin material can become caught in the saw chain and whip back towards you or make you lose your balance.
Carry the chainsaw by the front handle with the chainsaw switched off and the chain facing away from the body. Always fit the protective cover when transporting the chainsaw or putting it into storage. Careful handling of the chainsaw reduces the likelihood of accidental contact with the saw chain while it is running.

Pattfield® ERGO TOOLS

Follow the instructions for lubrication, chain tension and replacement of accessories. A chain which is not properly tensioned or lubricated can either break or increase the risk of kickback.
Keep the handles dry, clean and free from oil and grease. Greasy or oily handles are slippery and will result in loss of control.
Only use the chainsaw to cut wood. The chain must only be used to perform the work for which it is intended. For example: Never use the chainsaw to cut plastic or brickwork or building materials which are not made of wood. Use of the chainsaw for non-intended or non-approved work can create dangerous situations.
When transporting the equipment, remove the battery pack and drain the chain oil from the tank.

Causes of and ways to avoid recoil

Recoil can occur if the tip of the chain bar touches an item or if the wood bends and jams the saw chain in the cut.

In many cases contact with the bar tip can result in an unexpected reaction aimed backwards in which the chain bar is catapulted upwards towards the operator.

Jamming the saw chain on the top of the chain bar can catapult the bar towards the operator at high speed.

Any of these reactions can result in you losing control over the saw and possibly suffering serious injuries. You should therefore not rely totally on the safety equipment fitted to the chainsaw. When using a chainsaw you should take various precautions to enable you to work without suffering accidents or injuries.

Recoil is the result of incorrect or wrong use of the electric tool. It can be prevented by suitable precautions, as described below:

- Hold the saw firmly with both hands, with fingers and

Pattfield® ERGO TOOLS

thumbs gripped around the handles. Steady yourself with your body and arms in a position in which you can control the kickback forces. Provided appropriate measures are taken, an operator should be capable of controlling the kickback forces. Never let go of the chain saw.

Avoid abnormal working postures. Never cut above shoulder height. This prevents accidental contact with the tip of the rail and offers better control over the chainsaw in unexpected situations.
Always use the correct replacement rails and saw chains recommended by the manufacturer. The use of incorrect replacement rails or saw chains may result in breakage of the chain and/or kickback.
Follow the manufacturer's instructions for sharpening and maintaining the saw chain. The risk of kickback is increased if the depth limiter is set too low.

More important information:

Before you start felling branches: Make sure that there is nobody within a range of at least two and a half times the length of the branch.
Take the weather conditions into account when felling trees. Do not fell trees in strong or gusting wind. Do not fell trees in frost conditions or on frozen, icy ground. Do not fell trees in rain or if visibility is poor.
• Comply with local regulations.
Plan an escape route from falling trees or branches in advance. Make sure that this escape route is free of obstacles which could restrict or prevent free movement. Keep in mind that freshly cut grass or bark is slippery.
Ensure that somebody is in the vicinity (but at a safe distance) in case of an accident.
When the chain is moving, do not let the tip of the chain bar come into contact with any objects.

Pattfield® ERGO TOOLS

Start sawing only after the chain has reached full speed.
Never try to target a previous cut. Always start a new cut.
Watch out for moving branches or other forces which could interfere with a cut and impact with the chain.
Never try to cut a branch with a larger diameter than the cutting length of the equipment.
Contact your local government offices for information regarding minimum age requirements for operating the equipment.
Keep the equipment at a minimum distance from overhead power cables.
Before you begin your work, make yourself well acquainted with all the control elements. Practice handling the equipment and have an expert explain its functions, mode of operation and sawing techniques.
Never use the equipment if you are ill, tired or under the influence of alcohol or medication. Always take timely breaks from your work. Change your working position regularly.

Warning!

If the equipment is used for a lengthy period, the vibrations it causes in the hands of the user may result in circulation problems (white finger syndrome).

White finger syndrome is a vascular disease that involves seizure-like spasms of the fingers and toes. The affected areas are no longer sufficiently supplied with blood and therefore appear extremely pale. The frequent use of vibrating equipment may trigger nerve damage in people with an impaired circulation (for example smokers, diabetics).

Should you observe any unusual impairments, interrupt your work immediately and consult a doctor.

Follow these instructions in order to reduce the dangers:

Keep your body and in particular your hands warm when working in the cold.
• Take regular breaks and move your hands to stimulate the blood

Pattfield® ERGO TOOLS

circulation during the breaks.

- Ensure that the equipment makes the least possible vibration through regular maintenance and solid parts on the equipment.

Additional safety instructions

We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries which feature maximum power density, durability and safety. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data are then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use.

Safe use can only be guaranteed if undamaged cells are used. Incorrect handling can cause cell damage.

GB Important: Analyses confirm that incorrect use and poor care are the main causes of the damage caused by high performance batteries.

Information about the battery

The battery pack supplied with your cordless tool is not charged. The battery pack has to be charged before you use the tool for the first time.
For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
Store the battery pack in a cool place, ideally at 15°C and charged to at least 40%.
Lithium-ion batteries are subject to a natural ageing process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements and therefore pose a safety risk.

Pattfield® ERGO TOOLS

Do not throw battery packs into an open fire. There is a risk of explosion!
Do not ignite the battery pack or expose it to fire.
Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partly discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.
Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the battery housing without this overheating actually being apparent externally.
Avoid damage and shocks. Replace batteries which have been dropped from a height of more than one meter or which have been exposed to violent shocks without delay, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suff ered serious damage. In this respect, please also read the waste disposal information.
If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equipment for safety reasons. Important. Do not press the ON/OFF switch any more if the protective cut-off has actuated. This may damage the battery pack.
Use only original battery packs. The use of other batteries may result in injuries, explosion and a fire risk.

Information on chargers and the charging process

Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.
Protect the battery charger and its cable from damage and sharp

Pattfield® ERGO TOOLS

edges. Have damaged cables repaired without delay by a qualified electrician.

Keep the battery charger, batteries and the cordless tool out of children's reach.
Do not use damaged battery chargers.
Do not use the supplied battery charger to charge other cordless tools.
In heavy use the battery pack will become warm. Allow the battery pack to cool to room temperature before commencing with the charging.
Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and cell damage. Do not leave batteries in the charger for days on end.
Never use or charge batteries if you suspect that the last time they were charged was more than 12 months previously. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).
Charging batteries at a temperature below 10^ C will cause chemical damage to the cell and may cause a fire.
Do not use batteries which have heated during the charging process, as the battery cells may have suffered dangerous damage.
Do not use batteries which have suffered curvature or deformation during the charging process or which show other non-typical symptoms (gassing, hissing, cracking,...)
Never fully discharge the battery pack (recommended depth of discharge max. 80%) A complete discharge of the battery pack will lead to premature ageing of the battery cells.
Never charge the batteries unsupervised.

Protection from environmental influences

Wear suitable work clothes. Wear safety goggles.
Protect your cordless tool and the battery charger from

Pattfield® ERGO TOOLS

moisture and rain. Moisture and rain can cause dangerous cell damage.

Do not use the cordless tool or the battery charger near vapors and infl ammable liquids.
Use the battery charger and cordless tools only in dry conditions and an ambient temperature of 10-40°C.
Do not keep the battery charger in places where the temperature is liable to reach over 40^ C. In particular, do not leave the battery charger in a car that is parked in the sunshine.
Protect batteries from overheating. Overloads, over-charging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries which have been overheated – replace them immediately if possible.
Storage of batteries, battery chargers and cordless tools. Store the charger and your cordless tool only in dry places with an ambient temperature of 10-40°C. Store your lithium-ion battery pack in a cool, dry place at a temperature of 10-20°C. Protect them from humidity and direct sunlight. Only place fully charged batteries in storage (charged at least 40%).
Prevent the lithium-ion battery pack from freezing. Battery packs which were stored below 0°C for more than 60 minutes must be disposed of.
When handling batteries beware of electrostatic charge: Electrostatic discharges cause damage of the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Batteries and cordless electric equipment contain materials that are potentially harmful to the environment. Do not place cordless equipment in your household refuse. If the equipment becomes defective or worn, remove the batteries and take the equipment to your Hornbach store. If the batteries cannot be removed, take the complete cordless equipment. You can then be sure that the equipment will be correctly disposed of by the manufacturer.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

Pattfield PE-AHE 18 Li - Pattfield® ERGO TOOLS - 1

Store the battery only in dry rooms with an ambient temperature of +10°C to +40°C. Place only charged batteries in storage (charged at least 40%).

Residual risks

Even if you use this electric power tool in accordance to instructions, certain residual risks cannot be eliminated. The following hazards may arise in connection with the equipment's construction and layout:

• Cut injuries if no safety clothing is used.
- Lung damage if no suitable protective dust mask is applied.
- Damage to hearing if no suitable ear protection is applied.
- Health damage caused by hand-arm vibrations if the equipment is used over a longer period or is not properly guided and maintained.

Do not lose these safety instructions

Pattfield® ERGO TOOLS

2. Layout and items supplied

2.1 Layout (Fig. 1)

Handle
On/Off switch
Safety lock-off
Safety lock-off for the handle angle adjuster
Assembly nut
Tube

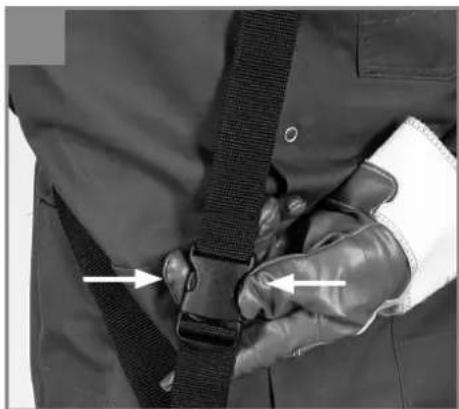

Shoulder strap with safety release
Additional handle
Telescopic tube 1 lock nut
Telescopic tube 1
Telescopic tube 2 lock nut
Telescopic tube 2 with motor housing
Safety lock-off for the motor housing angle adjuster
Chain saw mounting kit
Cutter bar
Saw chain
Cutter guard

2.2 Items supplied

Complete handle
• Complete tube with motor unit
Shoulder strap with safety release
Chain saw mounting kit
Cutter bar
Saw chain
Cutter guard

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of

Pattfield® ERGO TOOLS

a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equipment with care.
Remove the packaging material and any packaging and/or transportation braces (if available).
Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

3. Proper use

The chain saw mounting kit is allowed to be used only on the supplied motor head.

The chainsaw with telescopic handle is designed for lopping off tree branches. It is not suitable for extensive sawing work, felling trees or sawing any materials other than wood.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Pattfield® ERGO TOOLS

4. Technical data

Cutter bar length: 200 mm

Max. cutting length: 170 mm

Chain pitch: 3/8", 33 teeth

Chain thickness: (0.050") 1.3 mm

Sprocket wheel: 6 teeth, 3/8"

Cutting speed

at rated rpm: 3.76 m/s

Oil tank capacity: 125 cm ^3

Net weight without accessories: 3.4 kg

Saw chain:....Oregon 91P033X, ....Kangxin 3/8 8050X33DL

Cutter bar: ..... Oregon 080NDEA041 (520089), ..... Kangxin AP08-33-507P

Important!

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the PE-Power-X-Change series!

PE-Power-X-Change

• 18 V, 1.5 Ah 5 lithium-ion cells
• 18 V, 3.0 Ah 10 lithium-ion cells
• 18 V, 4.0 Ah 10 lithium-ion cells

The lithium-ion batteries of the PE-Power-X-Change series are allowed to be charged only with the PE-Power-X charger.

Pattfield® ERGO TOOLS

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with ISO 22868.

L_pA sound pressure level 81.05 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level measured 98.23 dB(A)

K_WA uncertainty 3 dB

L_WA sound power level guaranteed 102 dB(A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with ISO 22867.

Handle under load

Vibration emission value a_h = 0.947 m/s^2

K uncertainty = 1.5 m/s²

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Pattfield® ERGO TOOLS

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
Wear protective gloves.

5. Before starting the equipment

The equipment is supplied without batteries and without a charger.

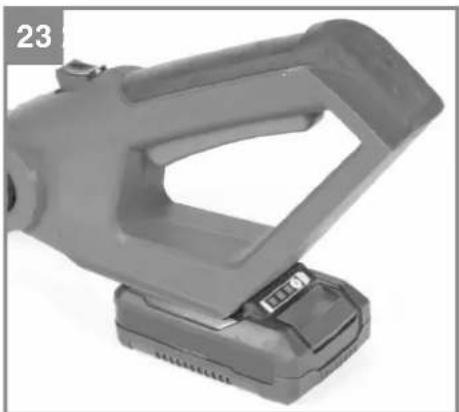

Caution! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury. Carefully unpack all parts and check that they are complete (Fig. 1).

5.1 General information on assembly

a) Fig. 2-3: Push the tube (7) onto the handle housing (2a) as far as the bead (7a) and screw it tight with the assembly nut (6).

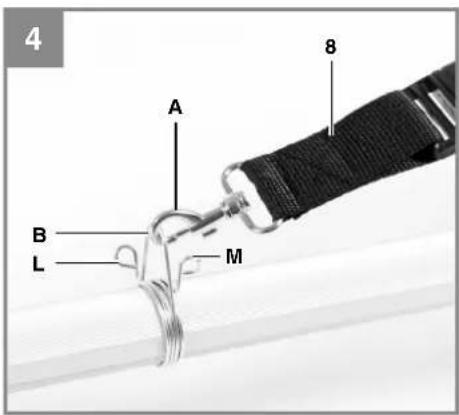

b) Fig. 4: Hook the carabiner (A) of the shoulder strap (8) into the strap attachment (B).
c) Fig. 4a: The additional handle consists of the handle (N), the hexagon screw (P) and the lock (F). It is fitted to the handle attachment (U) as illustrated. Push the hexagon screw (P) into the handle (N) and screw it tight to the lock (F).

Pattfield® ERGO TOOLS

5.2 Fitting the chain saw mounting kit (for use as a pole-operated pruner)

5.2.a Assembly of the cutter rail and the saw chain

Undo the fixing screw (C) of the chain wheel cover (Fig. 5).
• Take off the chain wheel cover.
Lay the chain as shown in the groove which runs around the cutter rail (Fig. 6/Item E).
Insert the cutter rail and chain as shown in the mounting in the chainsaw (Fig. 7). At the same time guide the chain around the chain wheel (Fig. 7/Item K).

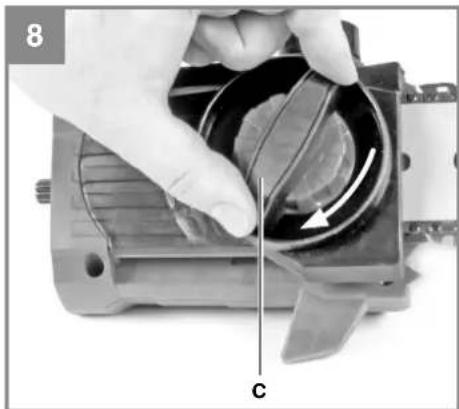

Attach the chain wheel cover (Fig. 8/Item C) and fasten it hand-tight with the fastening screw.

Important! Do not fully tighten the fastening screw until after you have adjusted the chain tension (see section 5.2.b).

5.2.b Tensioning the saw chain

Caution! Always remove the battery from the device before inspection and adjustment. Always wear protective gloves when working on the chainsaw to protect yourself against injury.

Undo the fixing screw (C) of the chain wheel cover a few turns (Fig. 5).
Adjust the chain tension with the chain tensioning screw (Fig. 9/Item D). Turning the screw clockwise increases the chain tension, turning it counter-clockwise decreases the chain tension. The saw chain is correctly tensioned if it can be lifted approx. 2 mm in the middle of the cutter rail (Fig. 10).
Secure the fixing screw (C) of the chain wheel cover (Fig. 8).

Notice! All the chain links must lie properly in the guide groove of the cutter bar.

Notes on tensioning the chain:

The saw chain must be properly tensioned to ensure safe operation.

You can tell that the chain tension is perfect if the saw chain can be

Pattfield® ERGO TOOLS

lifted by around 2 mm in the middle of the cutter rail. As the saw chain heats up during cutting and thus changes in length, check the chain tension no less than every 10 minutes and adjust it again as required. This applies in particular to new saw chains. When you have finished working slacken the chain again, as the chain will shorten when it cools down. This will prevent the chain from being damaged.

5.2.c Saw chain lubrication

Caution! Always remove the battery from the device before inspection and adjustment. Always wear protective gloves when working on the chainsaw to protect yourself against injury.

Important! Never operate the chain if it is not lubricated with saw chain oil. Use of the chainsaw without saw chain oil or if the oil level is below the viewing window will result in damage to the chainsaw!

Important! Be aware of the temperature conditions: different lubricants with completely different viscosities are required at different ambient temperatures. At lower temperatures you will need low viscosity oils in order to achieve a sufficient lubricating film. However, if the same low viscosity oil is used during the summer it will become even thinner due to the ambient temperatures alone, and as a result the lubricating film could break down, causing the chain to overheat and become damaged. In addition, the chain oil would burn and produce unnecessary pollutants.

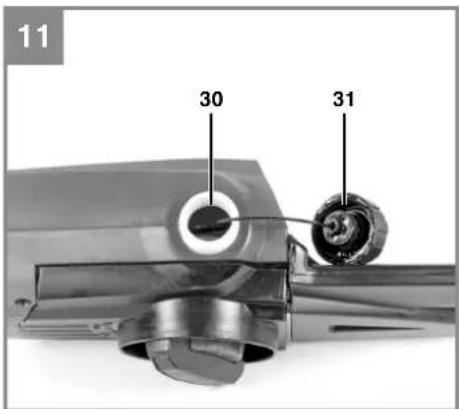

Filling the oil tank (Fig. 11):

Place the chainsaw on a flat surface.
Clean the area around the oil tank cover (Item 31) and then clean the oil tank cover.
Fill the tank (Item 30) with saw chain oil. In the process, make sure that no dirt enters the tank, as this could cause the oil nozzle to become blocked.
Close the oil tank cover (Item 31).

Pattfield® ERGO TOOLS

After the chain saw mounting kit has been fitted and when the equipment is not being used, slip the cutter guard (Fig. 1/Item 18) over the mounted cutter bar with saw chain in order to prevent injuries.

5.3 Fitting the chain saw mounting kit to the motor head (Fig. 12-13)

The cutter guard must be slipped over the mounted cutter bar with saw chain in order to prevent injuries.

Position the chain saw mounting kit and the motor head such that the arrows on both parts coincide.
Press the chain saw mounting kit against the motor head. This will cause the lock button (R) to be pushed to the right. Turn the chain saw mounting kit clockwise. The chain saw mounting kit will lock onto the motor head and is then secured in place. This will cause the lock button (R) to be pushed to the left.

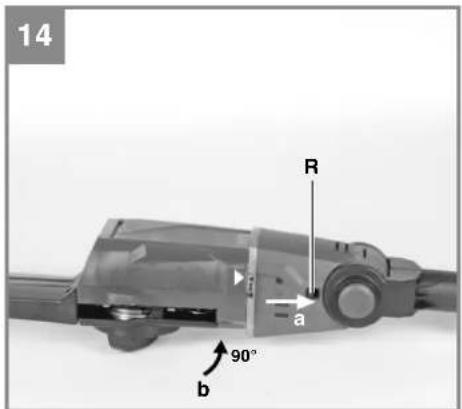

5.4 Turning the chain saw mounting kit through 90° on the motor head (Fig. 14)

The cutter guard must be slipped over the mounted cutter bar with saw chain in order to prevent injuries.

Pull the lock button (R) to the right.
Turn the chain saw mounting kit 90° counter-clockwise. The chain saw mounting kit will lock onto the motor head and is then secured in place.

5.5 Removing the chain saw mounting kit from the motor head (Fig. 12 - 13)

The cutter guard must be slipped over the mounted cutter bar with saw chain in order to prevent injuries.

Pull the lock button (R) to the right.
Turn the chain saw mounting kit to the point where the arrows on the motor head and chain saw mounting kit coincide, allowing the mounting kit to be removed.

Pattfield® ERGO TOOLS

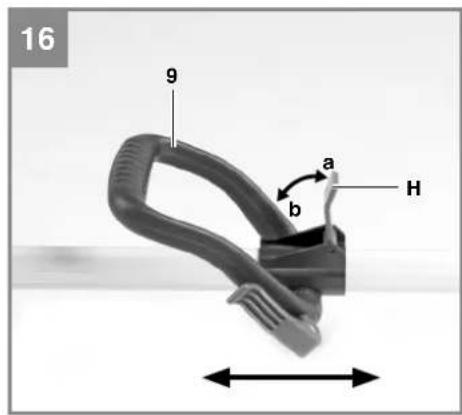

5.6 Adjusting the additional handle (Fig. 15-16)

(a) Setting the tilt of the additional handle

Open (a) the lock (F). Set the desired tilt of the additional handle (9).

Close (b) the lock (F).

b) Shifting the additional handle

Open (a) the lock (H) and slide the additional handle (9) into the required position. Close (b) the lock (H).

5.7 Using the shoulder strap

Warning! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (risk of injury).

Hook the carabiner (Fig. 4/Item A) into the strap holder.

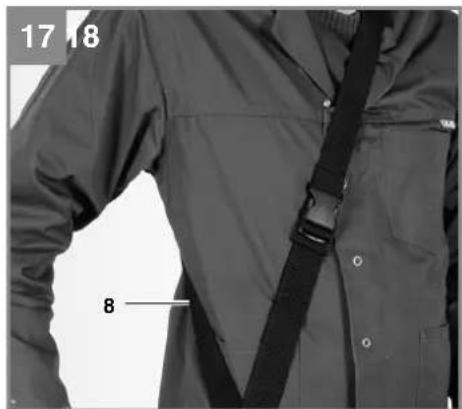

Slip the shoulder strap (Fig. 17/Item 8) over your shoulder.
Adjust the length of the shoulder strap so that the strap attachment is at waist level (Fig. 17).
The shoulder strap is equipped with a buckle. Press the hooks together (Fig. 18) if you need to put down the equipment quickly.
To change the strap position on the equipment, press together the two metal loops (Fig. 4/Item L / M) and adjust the strap attachment on the tube.

5.8 Adjusting the angle of the handle (Fig. 19)

Press the two safety lock-off s (5) and adjust the angle of the handle (2) to any of 4 latching positions.

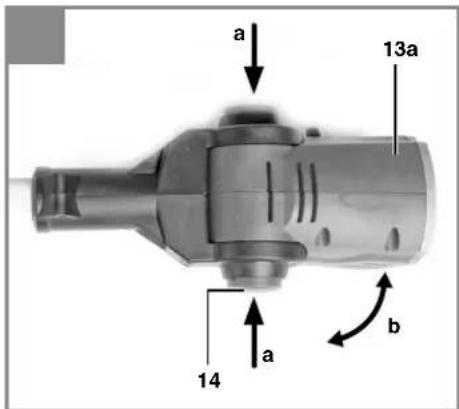

5.9 Adjusting the angle of the motor housing (Fig. 20)

Press the two safety lock-off s (14) and adjust the angle of the motor housing (13a) to any of 7 latching positions.

Pattfield® ERGO TOOLS

5.10 Adjusting the telescopic tube (Fig. 21)

Undo the telescopic tube lock nuts (10 + 12) by turning them counter-clockwise.
Pull out the telescopic tubes (11 + 13) to suit the required working height.
Secure the telescopic tube lock nuts (10 + 12) by them turning clockwise.

5.11 Fitting the battery (Fig. 22 - 23)

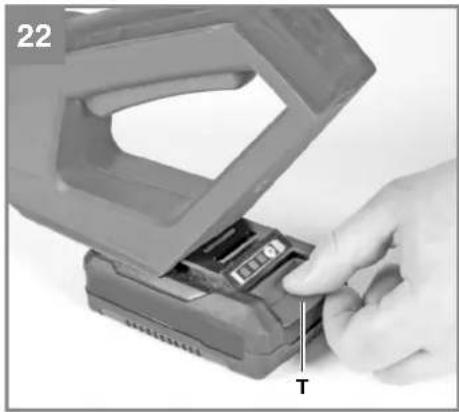

Press the side pushlock button (T) of the battery pack as shown in Fig. 22 and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 23, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order.

5.12 Charging the battery (Fig. 24)

Take the battery pack out of the equipment. Do this by pressing the pushlock button (T).
Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (21) into the mains socket outlet. The green LED will then begin to fl ash.

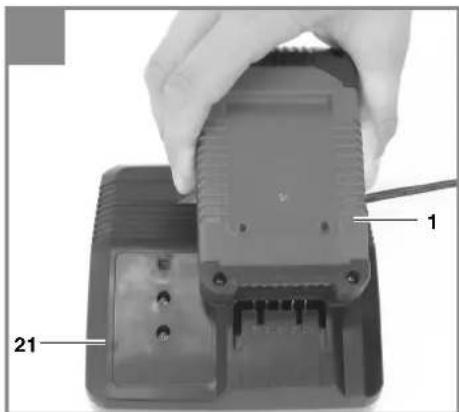

Insert the battery pack (1) into the battery charger (21).
In the section entitled „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts.

Pattfield® ERGO TOOLS

If the battery pack still fails to charge, send

the charging unit
• and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops. Never fully discharge the battery pack. This will cause it to develop a defect.

6. Operation

Please note that the statutory regulations governing noise abatement may differ from one location to another.

Caution! Always use the shoulder strap when working with the equipment. Always switch off the equipment before you take off the shoulder strap. Otherwise there is a risk of injury.

Put on the shoulder strap as described above, fit the required mounting kit and adjust the equipment to suit your needs.

Switching on/off

Switching on

Hold the equipment by the handles with both hands (thumbs under the additional handle).
Slide the safety lock-off (Fig. 3/Item 4) to the front and hold.
Switch on the equipment with the On/Off switch (Fig. 3/Item 3). You can then release the safety lock-off.

Switching off

Release the On/Off switch (Fig. 3/Item 3).

Pattfield® ERGO TOOLS

7. Working with the chainsaw mounting kit

Preparations

To ensure that you can work safely, check the following points before every use:

Condition of the chainsaw

Inspect the chainsaw before the start of work for damage to the housing, the power cable, the saw chain and the cutter rail. Never use a chainsaw which is obviously damaged.

Oil container

Fill level of the oil container. Even while working, keep checking that sufficient oil is in the system. To avoid damaging the chainsaw, never run the saw if there is no oil in the system or if the oil drops below the "min" mark. On average, a single filling will last around 20 minutes depending on the number of pauses in cutting and the loads involved.

GB

Saw chain

Tension of the saw chain, condition of the cutting elements. The sharper the chainsaw, the easier and more controllable it is to operate the chainsaw. The same also applies to the chain tension. Also while working you should check the chain tension no less than every 10 minutes in order to increase your safety. New saw chains in particular often tend to expand more.

Safety clothing

Always wear appropriate tight-fitting safety clothing like special trousers which protect against cuts, protective gloves and safety shoes.

Hearing protection and protective goggles.

Wear a protective helmet with integral face and hearing protection. This will offer protection against falling branches and any branches if they spring back.

Safe working

To ensure that you can work in safety you must use the equipment at a working angle of max. 60°.
Never stand under the branch you want to saw.
Use special caution when working with branches under tension and splintered wood.
Possible risk of injury caused by falling branches and catapulting pieces of wood.
When the equipment is in operation keep other persons and animals away from the danger zone.
The equipment is not protected from electric shock through contact with high-voltage cables. Keep a minimum distance of 10 m from live cables. Electric shock can cause fatal injury.
When working on slopes always stand to the upper or left or right side of the branch you wish to cut.
Hold the equipment as close as possible to your body. This will help you to keep your balance.

Cutting techniques

When removing branches, hold the equipment at an angle of max. 60° to the horizontal to avoid being hit by a falling branch (Fig. 25).
Start with the bottom branches on the tree. This will make it easier for the cut branches to drop.
After completing a cut, the weight of the saw will abruptly increase for the operator as the saw is no longer supported by the branch. This can result in you losing control over the saw.
Remove the saw from the cut only with the saw chain still running. This will prevent the saw from getting jammed.
• Never cut with the tip of the saw.

Pattfield® ERGO TOOLS

- Never cut into the bulging branch collar. This will prevent the tree from healing.

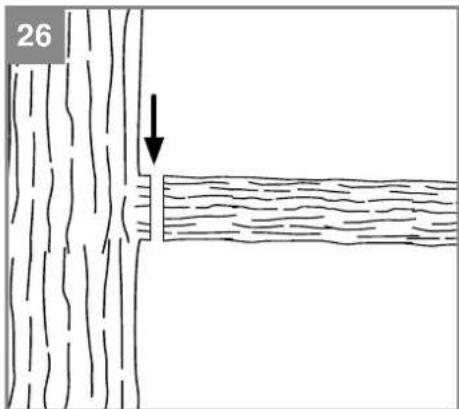

Sawing off smaller branches (Fig. 26):

Place the contact surface of the saw onto the branch. This will prevent the saw from making jerky movements when you begin a cut. Exerting slight pressure, guide the saw from the top to the bottom through the branch.

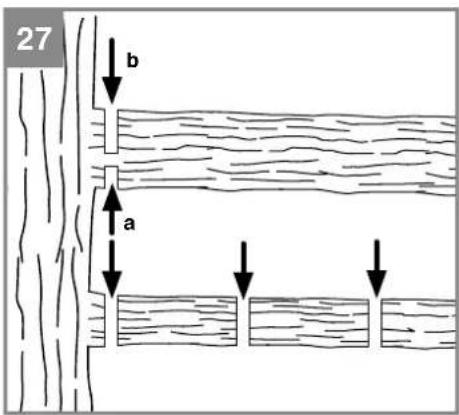

Sawing off larger and longer branches (Fig. 27):

Carry out a relief cut when working on larger branches.

Start by sawing through 1/3 of the branch diameter (a) from the bottom to the top with the top side of the cutter rail. Then saw towards the first cut (b) from the top to the bottom with the bottom side of the cutter rail.

Saw off longer branches in several steps to keep control over the impact location.

GB

Kick-back!

The term “kickback” describes what happens when the running chainsaw suddenly kicks upward and backward. Usually, this is caused by contact between the tip of the cutter rail and the workpiece or the saw chain becoming trapped.

In the event of kickback, large forces occur suddenly and violently. As a result, the chainsaw usually reacts uncontrollably. This can often result in very serious injuries to the worker or persons in the vicinity. The risk of kickback is at its greatest when the saw is positioned for a cut in the region of the tip of the cutter rail, as the leverage effect is greatest there. It is therefore safest to position the saw as flat as possible.

Important!

• Make sure that the chain tension is always correctly adjusted.
- Only use a chainsaw if it is in perfect working order.
• Only work with a saw chain that has been properly sharpened in

Pattfield® ERGO TOOLS

accordance with the instructions.

Never cut with the upper edge or the tip of the cutter rail.
• Always hold the chainsaw firmly with both hands.

Cutting wood which is under tension

Special care is required when cutting wood which is under tension. Wood which is under tension from which it is released by cutting may in some cases react completely unpredictably and uncontrollably. In the worst case this could result in extremely severe or even fatal injuries. This type of work must only be performed by persons who have been specially trained.

8. Care and maintenance

Danger!

Remove the battery pack before doing any cleaning and maintenance work.

Always keep the tool clean and dry and protect it from oil and grease.
Wear safety goggles to protect your eyes during cleaning.
Always keep the tool and the air vents clean in order to ensure safe and correct use.
Check the ventilation grilles at the motor and at the On/Off switch for dust and foreign bodies. Remove layers of dust with a soft brush.
If required, use a soft damp rag to wipe the tool housing clean. You can use a mild cleaning agent but no alcohol, petrol or other cleaning agent.
Never use aggressive cleaning agents to clean plastic parts.
Lubricate all moving parts regularly.
Check all fasteners regularly. Vibrations might cause fasteners to become loose in the course of time.
• Regularly clean the clamping mechanism by blowing it out with

Pattfield® ERGO TOOLS

compressed air or cleaning it with a brush. Do not use tools for cleaning.

- Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid.

Replacing the saw chain and cutter rail

The cutter rail needs to be replaced if the guide groove of the cutter rail is worn; Proceed as described in the section "Assembly of the cutter rail and the saw chain".

Checking the automatic chain lubrication

You should check the operation of the automatic chain lubrication system on a regular basis in order to guard against overheating and the associated damage to the cutter rail and the saw chain. To do this, point the tip of the cutter rail towards a smooth surface (board, section of a cut tree) and allow the chainsaw to run. If an increasing oil trace becomes evident during this process then the automatic chain lubrication system is working properly. If no clear oil trace is evident then please refer to the corresponding instructions in “Troubleshooting”. If the information contained there still fails to remedy the situation then please contact our service department or another similarly qualified workshop.

Important! Do not actually touch the surface with the tip of the cutter rail when performing this test. Keep a safe distance (approx. 20 cm).

Sharpening the saw chain

Eff ective working with the chainsaw is only possible if the saw chain is in good condition and sharp. This also reduces the risk of kickback. The saw chain can be re-sharpened by any dealer. Do not attempt to sharpen the saw chain yourself unless you have the necessary special tools and experience.

Pattfield® ERGO TOOLS

9. Faults

The device does not operate:

Check that the battery is charged and whether the charging unit is working. If the equipment will not work in spite of the voltage supply being OK, please take it to your Hornbach store.

Pattfield® ERGO TOOLS

10. Troubleshooting guide

Caution!

Before troubleshooting, switch off the equipment and remove the battery.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
The equipment does not work	-Batteryempty- Battery is not correctly inserted	-Chargebattery- Remove battery and insert again
Equipment operates intermittently	- Loose connection (external)- Loose connection (internal)- ON/OFF switch defective	- Consult a specialist workshop.- Consult a specialist workshop.- Consult a specialist workshop.
Saw chain is dry	- No oil in the tank- Vent in the oil tank cap is blocked- Oil outlet is blocked	- Top up with oil- Clean the oil tank cap- Clear the oil outlet
Chain/guide bar is hot	- No oil in the tank- Vent in the oil tank cap is blocked- Oil outlet is blocked- Chain is blunt- Chain is overtensioned	- Top up with oil- Clean the oil tank cap- Clear the oil outlet- Re-sharpen or replace the chain- Check the chain tension

Pattfield®

ERGO TOOLS

Fault Possible cause Remedy
Chainsaw judders, vibrates or does not saw properly	- Chain is undertensioned- Chain is blunt- Chain is worn- Saw teeth point in the wrong direction	- Adjust the chain tension- Re-sharpen or replace the chain- Replace the chain- Refi t the chain with the teeth facing in the correct direction

Pattfield® ERGO TOOLS

Charger indicator

Indicator status		Explanations and actions
Red LED	Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery		is 85% charged and ready for use.(Charging time for 1.5 Ah battery: 30 min)(Charging time for 3.0 Ah battery: 60 min)(Charging time for 4.0 Ah battery: 80 min)The unit then changes over to gentle charging mode until the battery is fully charged.(Total charging time for 1.5 Ah battery: approx. 40 min)(Total charging time for 3.0 Ah battery: approx. 75 min)(Total charging time for 4.0 Ah battery: approx. 100 min)Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.

Pattfield®

ERGO TOOLS

Indicator status		Explanations and actions
Red LED	Green LED
Flashing	Off Adapted chargingThe charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge).- The battery pack temperature is outside the ideal range (between 10^ C and 45^ C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing	Flashing FaultCharging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ C).Action:Remove the battery pack and keep it at room temperature (approx. 20^ C) for one day .

12.Disposal

Pattfield PE-AHE 18 Li - 12.Disposal - 1

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

This consignment contains lithium-ion batteries.

In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is permitted only with the express consent of Hornbach Baumarkt AG.

Subject to technical changes

13. EC Declaration of Conformity

Declaration of Conformity

Pattfield PE-AHE 18 Li - EC Declaration of Conformity - 1

declare, that the product described in Technical Data :

Pattfield PE-AHE 18 Li - EC Declaration of Conformity - 2

Pole-mounted cordless pruner PE-AHE 18 Li (BASIC)

Manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

Noise Emission of Outdoor Equipment Directive 2000/14/EC (+2005/88/EC)

EMC Directive 2014/30/EU

and in accordance to the following applicable harmonized standards:

EN 60745-1/A11:2010

EN ISO 11680-1:2011

EN 55014-1/A2:2011

EN 55014-2/A2:2008

Conformity with the EC Machinery Directive is verified by the assessment procedure in accordance with Appendix IV:

Notified Body: TÜV Rheinland

Notified Body No.: 0197

Reg. No.: BM 50329606 0001

Compliance with the noise emissions specified in the Outdoor Directive (2000/14/EC) is assured by the assessment procedure in accordance with Appendix V.

Measured sound power level: 98,23 dB (A)

Guaranteed sound power level: 102 dB (A)

Pattfield PE-AHE 18 Li - EC Declaration of Conformity - 3

Andreas Back

Head of Quality Management &

Person authorised to compile the technical file

Pattfield® ERGO TOOLS

14.Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as

Pattfield® ERGO TOOLS

sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
