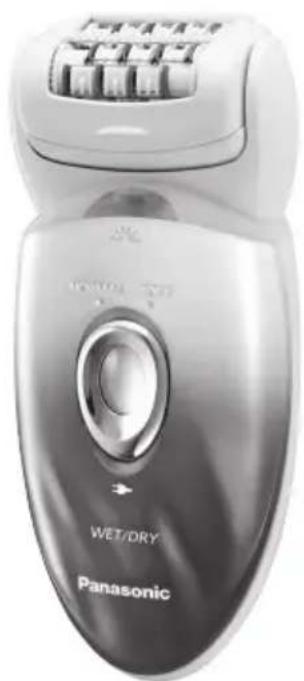

ESED95 - Epilator PANASONIC - Free user manual and instructions

Product type	Epilator
Brand	Panasonic
Model	ES-ED95
Power supply	AC adapter (RE7-87) with automatic voltage conversion
Battery	Built-in rechargeable Li-ion
Charging time	Approximately 1 hour
Running time	Approximately 30 minutes (40 minutes with skin protector attachment)
Interchangeable heads	5 heads: leg/arm epilation, underarm/bikini line epilation, shaving, pedicure, exfoliating sonic brush
Epilation modes	Normal (high speed), Soft (low speed)
Wet/Dry use	Epilation, shaving and brush heads: usable in the shower; pedicure head: washable with water but not under water
Noise level	Leg/arm head: 69 dB, underarm: 67 dB, shaving: 61 dB, pedicure: 66 dB, brush: 65 dB
Maintenance	Dry cleaning (provided brush) or with water and liquid soap
Replaceable parts	Outer foil (1 year), inner blade (2 years), pedicure file (1 year), exfoliating brush (1 year)
Safety	Stop when excessive pressure (built-in protection) and child lock

Frequently Asked Questions - ESED95 PANASONIC

What is the battery life of the Panasonic ESED95 epilator?

The battery life is approximately 30 minutes in normal use, and up to 40 minutes with the skin protector attachment. Full charge takes about 1 hour.

How do I clean the epilator heads?

You can clean the heads dry using the provided brush, or with water using liquid soap. For water cleaning, wet the discs/blades, apply soap, run the device for a few seconds, then rinse thoroughly.

Can I use the epilator in the shower?

Yes, the epilation, shaving and exfoliating brush heads can be used in the shower. The pedicure head is water washable but should not be immersed. Make sure to unplug the adapter before any water cleaning.

When should I replace the outer foil of the shaver?

It is recommended to replace the outer foil about every year. The inner blade should be replaced every two years. Replacement parts are available at authorized Panasonic service centers.

How do I know when the battery is low?

The charge indicator light flashes once per second when the battery is low. The device continues to operate for some time, but it is advisable to recharge it soon.

Can I use the epilator while traveling?

Yes, the supplied AC adapter has automatic voltage conversion (100-240 V), so it can be used in most countries. You just need a suitable plug adapter or travel adapter.

What should I do if the device does not turn on?

Check that the device is charged and the adapter is properly connected. Make sure the head is securely attached. If the problem persists, contact an authorized Panasonic service center.

How can I prevent ingrown hairs after epilation?

Use the skin protector attachment and Soft mode to reduce irritation. Exfoliate regularly with the exfoliating sonic brush, and apply a moisturizing lotion two days after epilation.

Can the pedicure head be used in the bath?

No, the pedicure head should not be used in the bath or shower. It can be washed with water but the device is not designed for full immersion. Use it on dry or slightly damp skin after bathing.

How do I remove the battery for recycling?

Before disposal, unplug the device and fully discharge the battery. Follow the steps illustrated in the manual (Fig. 27) to remove the Li-ion battery. Insulate the terminals with tape and take it to a designated collection point.

USER MANUAL ESED95 PANASONIC

Operating Instructions

(Household) Epilator

Model No. ES-ED95

CE

English 7 Svenska 199

Deutsch 25 Suomi 219

Francais 49 Polski 239

Italiano 71 Cesky 261

Operating Instructions

(Household) Epilator

Model No. ES-ED95

Contents

Safety precautions 10

Intended use 14

Quick steps for using. 15

Parts identification 15

Charging. 15

Before use 16

How to use 16

Cleaning 19

Replacing 20

Troubleshooting 21

Battery life 23

Removing the built-in rechargeable battery 23

Guarantee 23

Specifications 23

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

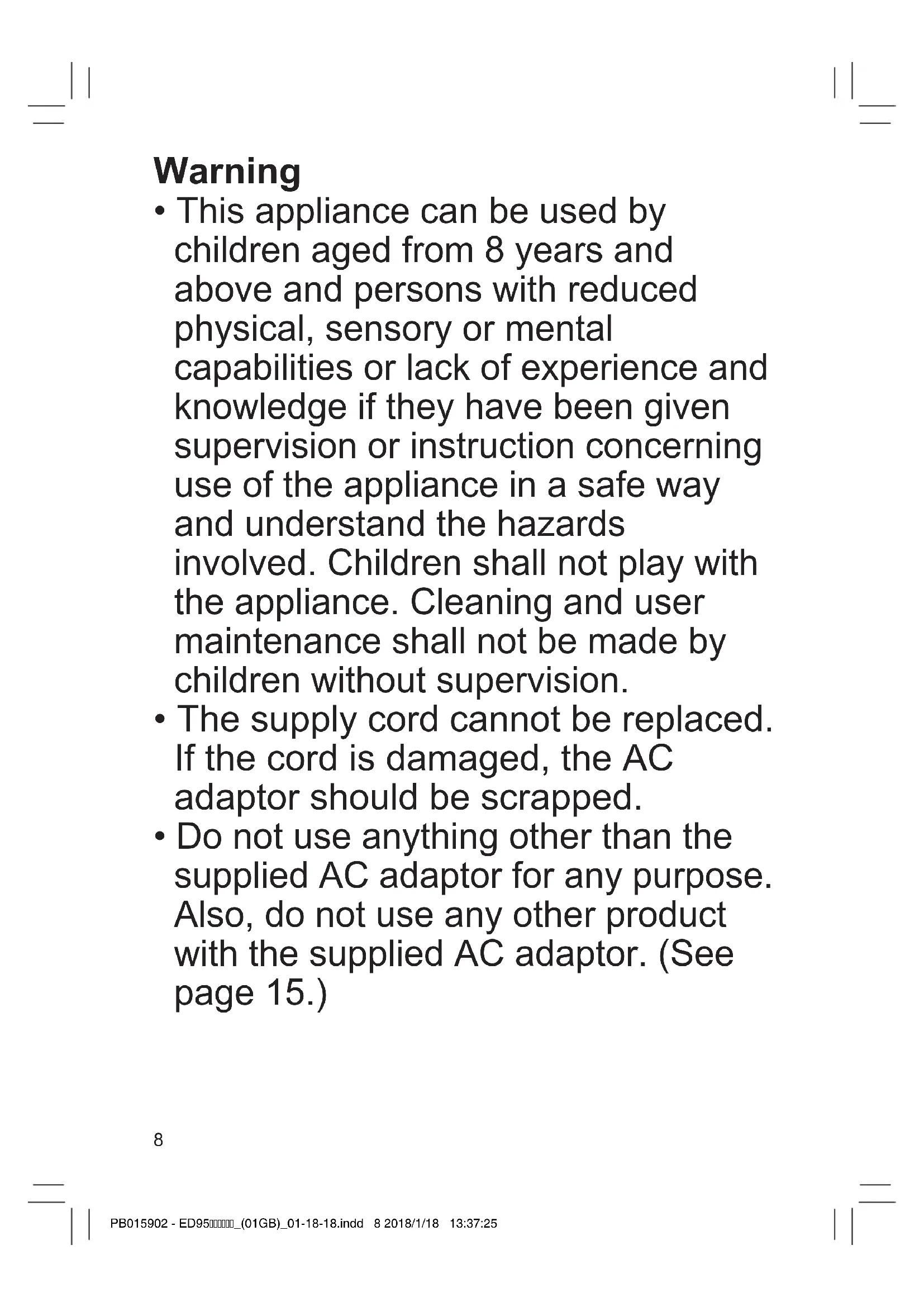

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 15.)

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Using the head of epilation/shaver and the brush

• These heads can be used for wet. The following symbol means suitable for use in a bath or shower.

Using the foot care head

• The foot care head is washable. The following symbol means that the foot care head can be cleaned under the water.

• Detach the main body from the AC adaptor before cleaning it in water.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Power supply

Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. Do not immerse the AC adaptor in water or wash it with water.

Do not place the AC adaptor over or near water filled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

• Doing so may cause electric shock or fire due to a short circuit.

Do not connect or disconnect the adaptor to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor or appliance plug.

• Failure to do so may cause fire or electric shock.

This product

This product has a built-in rechargeable battery. Do not throw into flame or heat. Do not charge, use, or leave in high temperatures.
- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change etc.).

WARNING

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, adaptor or cord is deformed or abnormally hot.

• The main unit, adaptor or cord smells of burning.

• There is abnormal sound during use or charging of the main unit, adaptor or cord.

• Immediately request inspection or repair at an authorized service centre.

Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

• Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc.

Cleaning

Always unplug the adaptor from a household outlet when cleaning.

• Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

CAUTION

To protect the skin

The following persons should not use this appliance:

• Persons suffering from atopic dermatitis or rashes and other skin diseases
• Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.
• Persons who are easily supplurated
• Persons suffering from varicose veins, diabetes, hemophilia, etc.
• Persons who have trouble stopping bleeding
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following cases:

• During menstruation, pregnancy, or about one month after giving birth
• When you are not well or when you feel an abnormality in your skin or body
  After drinking alcohol or taking medicine, or when you are very tired
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following body area:

• Injury, rash, moles, bruises, warts, pimples, etc.
• On suntanned skin
• Doing so may cause injury, inflammation of the skin, or bleeding.

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

• Doing so may cause injury or inflammation of the skin.

Do not press on the blade too strongly when using the shaver head.
- Doing so may cause damage which results in injury to the skin.

CAUTION

Do not touch the blade section (metallic section) of the inner blade when using the shaver head.

• Doing so may cause injury to your hands.

Do not turn ON the switch without the head attached.

• Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use with the frame removed.

• Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use the soap with a scrub or with peeling effect.

• Doing so may cause injury to the skin, colour stains or other skin trouble.

The skin protector and the outer foil are fragile, so store with the protection cap attached.

• Failure to do so may result in deformation or damage to the skin protector or outer foil, which may cause injury to skin.

Before using, check that the skin protector, disc, blade, frame and brush are free from deformities, cracks, and damage.

• Failure to do so may cause injury to the skin.

Apply the skin protector and the epilation discs at a 90^ angle to your skin with gentle force.

• Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage.

If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.

• Failure to do so may cause symptoms to worsen.

About using the epilation/ shaver head

Do not use in the following body area:

• Face, genitals and genital area, or thighs

• Inner side of the upper arms and areas such as elbows or knees which are prone to sagging
• Doing so may cause injury, inflammation of the skin, or bleeding.

The following persons should not use this appliance:

• Persons who have suffered skin problems (suppuration, inflammation, etc.) caused by epilation (plucking, depilation, waxing, etc.)
• Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use epilation/shaver head in the following ways:

• Using just before swimming or sea bathing (use at least 2 days before such activities)

• Using just before bathing
• Engaging in extreme sports or exercise right after epilation
• Doing so may cause infection or inflammation resulting from bacteria that enter the body through the pores.

Do not apply strong pressure to the skin, move repeatedly over the same area or move back and

forth in one area. Also, do not use with a jabbing motion.

• Doing so may cause injury or inflammation of the skin, or increased pain.

About using the foot care head Do not use on blisters and corns.

• Doing so may cause injury, inflammation of the skin, or bleeding.

CAUTION

Do not use foot care head in the following ways:

Filing too deeply
- Letting the file touch soft skin
- Using the foot care head in the bath
- Doing so may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

People suffering from poor circulation in the feet; or swelling, itchiness, pain, or excessive warmth in the feet should consult their doctor before using the foot care head.
- If skin appears abnormal after filing, stop using the foot care head and consult a dermatologist.
- File the hardened skin little by little over a few days.
- File only calluses or hardened skin on your feet.
- Failure to follow the above instruction may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

When using the appliance for filing, be careful of the direction in which the main body moves.

• Rotation of the file may cause the main body to move in an unexpected direction and cause injury to the skin.

Store the foot care head with the protection cap attached.

• Failure to do so may cause damage to surrounding items.

About using the sonic scrub brush

Do not use in the following body area:

• Face, throat, genitals and genital area
• Doing so may cause injury, inflammation of the skin, or bleeding.

Do not use sonic scrub brush in the following ways:

• Apply with strong pressure to the skin
• Use continuously for long periods of time on the same area
• Doing so may cause injury to the skin, infection, inflammation, bleeding, or other trouble, or worsening of such symptoms.

Use to remove calluses on the knees or elbows.

• Failure to do so may cause injury, inflammation of the skin, or bleeding.

Note the following precautions Do not share with your family or others.

• Doing so may cause infection or inflammation.

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not continuously aim the light directly into your eyes.

• Doing so may cause dizziness.

Do not drop or subject to shock. - Doing so may cause injury.

Do not wrap the cord around the adaptor or the appliance when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Disconnecting by holding onto the cord may cause electric shock or injury.

CAUTION

Disconnect the adaptor from the household outlet when not charging.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Handling of the removed battery when disposing

DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.
• Do not charge the battery after it has been removed from the product.
• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.
- The battery will harm the body if accidentally swallowed.
If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

-Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

• Failure to do so may cause inflammation.

Intended use

• Do not use paint thinner, benzene, alcohol, etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body.
• Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
• Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
• When storing, always attach the protection cap for the epilation head/foot care head/sonic scrub brush/the shaver head.

Quick steps for using

1 Charging (This page)

2 Selecting the head ( 一 Page 16)

3 How to use (Page 16)

Parts identification (See page 3)

Protection cap for epilation head (legs/arms)
B Fast cap
Gentle cap (▶ Page 17)

① Skin protector
② Cap release ribs
③ Frame

Epilation head for legs/arms
④ Epilation discs
Protection cap for epilation head (underarms/bikini-line)
Epilation head for underarms/ bikini-line

⑤ Skin protector (metal part on the outside)
⑥ Frame release ribs
⑦ Frame
⑧ Epilation discs (inside)

Bikini comb (Protection cap for shaver head)
H Shaver head

Outerfoil
10 Trimmer
① Pop-up trimmer switch
② Frame
13 Inner blade
⑭ Frame release button

Protection cap for foot care head
Foot care head

15 File
16 Frame release buttons
⑦ Frame

K Protection cap for sonic scrub brush

Sonic scrub brush
Brush head

N Main body

18 Head release button
19 LED light
20 Mode lights
② Power switch (power off/on/model selection)
② Charging indication/notification light
② Socket

AC adaptor (RE7-87)

Adaptor
⑤ Power plug
⑥ Cord
⑦ Appliance plug

Accessories

Cleaning brush
Pouch

Charging

For best performance, fully charge the appliance before use.

You cannot operate the appliance while charging.

Charging time = Approx. 1 hour

The epilator can be used for approximately 30 minutes (40 minutes when using the gentle cap) after 1 hour of charging. (This will differ depending on the temperature.)

Plug the AC adaptor into the epilator (a) and a household outlet (b). (Fig. 1)

Recommended ambient temperature for charging is 15^ - 35^ . The battery may not charge properly or not at all if outside the recommended temperature.
The charging time may decrease depending on the charging capacity.
- Charging the appliance every time it is used will not affect the life of the rechargeable battery.

• When charging the appliance for the first time or when it has not been in use for more than 6 months, the charging time may change or the charging indication/Notification light may not glow for a few minutes. It will eventually glow if kept connected.
• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

(Fig. 2)

A. Red light appears while charging.
B. Red light goes off after charging is completed.
C. Red light blinks twice every second when abnormal charging.

If you remove and reinsert the appliance plug while charging, the charging indication/notification light glows and turns off after approximately 5 seconds.

Before use

Selecting the head

(Fig. 3) Remove the head while pushing the head release button and push the head until it clicks.

Using the bikini comb

(Fig. 4) Place the bikini comb onto the shaver head and slide trimmer up.

• When the bikini comb is in place, make sure the comb is in close contact with the skin.

Changing the sonic scrub brush

(Fig. 5) Holding the brush by side, remove from the brush head.

And align the marks as shown in the diagram, and press firmly until a click is heard.

(Fig. 6)

The LED light comes on when the power is turned on. The light will remain on while the power is ON.

(Fig. 7)

Operation will change in order from "NORMAL" "SOFT" "QFF" each time the power switch is pressed.

NORMAL

In NORMAL mode, epilation is performed in a short time with fast disc rotation speed.

• The orange lamp will light up.
  SOFT

SOFT mode will control the rotation speed of the discs, and minimize irritation at the time of epilation.

The green lamp will light up. OFF

The power will be switched OFF.

When the battery capacity is low

The charging indication/Notification light blinks once every second. (Fig. 8)
- The operating time varies depending on usage or temperature after the charging indication/notification light blinks.

How to use

Epilation head

The epilation head for underarms/ bikini-line is suitable for underarms/ bikini-line and the epilation head for legs/arms is suitable for legs/arms.

Areas suitable for epilation (Fig. 9)

A. Areas the epilation head for legs/arms can be used.
B. Areas the epilation head for underarms/bikini-line can be used. Before epilating the bikini-line, be sure to put on your swim wear or underwear etc. and check the areas you wish to epilate.
- Using the epilator on areas other than those marked areas may cause pain or skin trouble.

Areas not suitable for epilation (Fig. 10)

The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so it is gentler to your skin when epilating. For DRY epilation, begin at step 3. Before DRY epilation, wipe dry any moisture or sweat from the skin.

1 Wet your skin.

2 Wet the discs and place a small quantity of liquid shower gel on the discs. (Fig. 11)

Always use shower gel when wet epilating.
- Do not use a shower gel with a scrub or with granular salt, this may cause a malfunction.
- Rinse any shower gel out of your hands.

3 Select the mode by pressing the power switch [N21].

Foam is created. Foam makes the epilator slide better, so you can move it fast.

• The appliance may not operate in an ambient temperature lower than approximately 5^ .
• Apply the epilator at 90^ to your skin and move it slowly so that it slides over your skin.

(Fig. 12)

Upwards from the bottom of the leg. Inwards from the outside of the arm.

(Fig. 13)

Move in several directions as underarm/bikini line hair grows in different directions.

Stretch the skin with your fingers, and move slowly from inside to outside going against the flow of hair.

Tips for best epilation results

The hair removal is not permanent, so from the second use, it is recommended to epilate the underarms about once a week, and the bikini-line about once every two weeks.

Using the gentle cap that comes with the skin guard is recommended for people using the epilator for the first time or for those with sensitive skin. The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

We also recommend to use the SOFT mode rotation. (▶ Page 16)

1. Remove the fast cap [B].

2. Attach the gentle cap [O]. (Fig. 14)

• Massaging with a body puff may help to prevent ingrown hairs.
  Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
• If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.
  Make sure skin is clean before and after use.

Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

Shaver head

WET Shaving with soap lather makes the skin slippery for a closer shave. For DRY shaving, step 3 is unnecessary. Before DRY shaving, wipe dry any moisture or sweat from the skin.

1 Attach the shaver head [5].

• Confirm the bikini comb [G] is detached.

2 Check that the outer foil is not deformed or damaged.

3 Wet your skin and put shower gel on your skin.

• Do not use a shower gel with a scrub or with granular salt.

Also do not use shaving cream, skin cream or skin lotion.

Doing so may clog the blade and cause a malfunction.

4 Select the mode by pressing the power switch [N2].

• Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

Foot care head

The foot care head cannot be used in a bath or shower.

• Before use, be sure to fully charge the appliance.

We recommend using the product within 30 minutes after bathing or showering. With the feet clean, wipe off any water on the skin. (Each use should be approximately 10 minutes (5 minutes on each foot, 10 minutes total for both feet))

1 Attach the foot care head [O].

• Push down firmly until you hear a "click".

2 Select the mode by pressing the power switch [N21]. (Fig. 15)

NORMAL mode is recommended for rotation speed. (Page 16)

3 Bring the foot care head into contact with the skin, and begin filing.

• Filing a single location for a long time can cause it to become hot with friction. To avoid this, be sure to make small changes in the filing position while filing.

• Filing should be performed about once every two weeks.

The basics of foot care

Do not use the product for filing anything other than calluses and hardened skin on the feet. (Fig. 16)

Callus

A callus is a hardened layer that forms through repeated pressure or abrasion.

Hardened layer
品 Epidermis
Derma

Things to be careful of when filing

Before use After use

a Hardened layer
Epidermis
Derma
Portion to be removed
Leave some of the hardened layer

Filing an area too deeply can cause it to become sore or inflamed.
- Filing too large an area can result in even larger calluses forming. Therefore, be sure to leave some of the hardened layer.

Tips for moving the foot care head

(Fig. 17)

Move in the direction indicated by the arrows.

Use your free hand to support filing.

Sonic scrub brush

We recommend using about once per week.
- We recommend using on areas for epilation about 2 days before actual epilation. Exfoliation may help to prevent ingrown hairs.

1 Attach the brush head [W] with sonic scrub brush [L]. (Page 16)

• Push down firmly until you hear a "click".

Wet your skin.

• Use shower gel to protect your skin.

Pour a small quantity of water and shower gel into the centre of the sonic scrub brush [L]. (Fig. 18)

• Rinse any excess shower gel off your hands.
• Do not use body scrub paste that contains granular salt or abrasive particles to avoid shortening the lifetime of the appliance.

Use shower gel in the amount indicated by line (a) and water in the amount indicated by line on the protection cap for the sonic scrub brush [K].

4 Select the mode by pressing the power switch [N2]. (▶ Page 16)

Foam is created. Foam protects your skin from over exfoliation.

5 Put the sonic scrub brush onto your skin and begin exfoliation. (Fig. 19)

We recommend using on legs, arms (especially elbows and knees) and neckline.
Do not use on sensitive areas of skin or face.
- Do not continue to hold in one place. Slide over skin in a circular pattern.
- Apply to the same area of skin for approximately 30 seconds each time, check your skin and adjust usage accordingly.

6 Press the power switch to turn off the power.

• Moisturise by applying a moisturiser that suits your skin on the area where the sonic scrub brush was used.

Cleaning

Always clean the heads and caps after use to keep them in a hygienic state.
- Switch off and unplug the appliance before cleaning.
- Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning.

Dry cleaning [BODPF]

Epilation head/Shaver head

(Fig. 20)

1. Lift fast/gentle caps, the frame upward while holding the cap release ribs [BCC2]/the frame release ribs [F6] or remove the frame by pushing the frame release button [H14].
2. Clean the gentle cap [C], the epilation head [DF] and the shaver head [H] with the cleaning brush [P].

Wet cleaning [BCDFHJLM]

Epilation head/Shaver head

(Fig. 21)

1. Wet the discs and blades, and then apply liquid hand soap.
2. Turn the switch on and then foam is created.

3. Wash the head with water to wash out hair.

4. Do not use hot water.

5. If soap is not completely washed away, then a white deposit can accumulate and prevent the discs and the blades from moving smoothly.

6. Rinse the shaver head with the frame removed.

7. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

Foot care head

(Fig. 22)

1. Apply liquid hand soap to the central part of the file.
2. Pour a small amount of water on the file and turn the switch on.
3. Rinse any debris thoroughly with water or lukewarm water.
4. After turning the switch off, remove the frame and rinse inside.
5. Wipe with a dry cloth and dry in a well-ventilated location.

Sonic scrub brush and brush head

(Fig. 23)

1. Press the power switch to turn on the power, and thoroughly rinse debris from the sonic scrub brush.
2. Thoroughly rinse the hole in the centre of the brush.
3. Press the power switch to turn off the power, remove the brush head, and thoroughly rinse the underside of the brush head.
4. Wipe the appliance with a dry cloth and dry it well.
5. To protect of deformation of the brush, dry it facing upward, and then store the brush with the protection cap attached.

20

Replacing

Outerfoil

We recommend replacing the outer foil [9] every year and remove it only when replacing it.

(Fig. 24)

1. While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel (on the blade from the hooks on the inside of the frame.
2. The new outer foil should be slightly bent and pushed in until it is hooked in the frame.

Inner blade

We recommend replacing the inner blade [H] every two years.

(Fig. 25)

1. Remove the inner blade by holding it at both ends and pulling straight away from the shaver head.
2. Insert the inner blade by holding it at both ends and press downward.

File

The file lifetime is approximately 1 year (assuming a single use every 2 weeks with approximately 10 minutes per use). We recommend replacing the file about once a year.

(Fig. 26)

1. Press down with your finger and release the file.
2. Align the shaped part with the hark side and press down.

Sonic scrub brush

The scrub brush lifetime is approximately 1 year (assuming 3 minutes use per week). We recommend replacing the scrub brush about once a year.

See page 16 for details regarding replacement of the brush.

Troubleshooting
Problem Possible cause Action
The appliance does not operate.	When epilating	It is not charged. The switch is turned ON with the adaptor connected to the household outlet.	Fully charge the appliance. Charging is only possible when connected to the household outlet. Disconnect from the household outlet before use.
	When epilating or shaving	The skin protector or discs are deformed, cracked, or damaged.	Request repair at an authorized service centre.
	When epilating	Hair dust has accumulated.	Clean the hair dust.
	When shaving	Shower gel has adhered to the discs and blade.	Wash it off by soaking in warm water.
	When caring for feet	The frame is not securely attached.	Reattach it.
	When exfoliating	Shower gel has adhered to the sonic scrub brush or brush head.	Rinse in warm water. If shower gel does not rinse away, remove the sonic scrub head or brush head and soak in warm water.
The usage time gets short.		The appliance is used with approximately 5 °C or lower.	Use the appliance in an ambient temperature approximately 5 °C or higher.
		The appliance is pressed against skin too hard.	Contact to skin with gentle force.
		Not charged fully.	Fully charge the appliance.
The appliance stops during operation.		The appliance is pressed against skin too hard.	Contact to skin with gentle force.
		Not charged fully.	Fully charge the appliance.
Cannot remove hair.	When epilating	The appliance is used on long hair. The way the unit is applied or moved is not correct.	Use on hair approximately 2 to 3 mm long. Refer to page 17.

Problem Possible		cause Action
The hair becomes stubble.	When epilating	The way the unit is applied or moved is not correct.
The appliance is not removing the hair as well as before.		Hair dust has accumulated.
		The skin protector or discs are deformed, cracked, or damaged.
The appliance is not cutting as well as before.	When shaving	Hair dust has accumulated.
		The blade is deformed.
		The blade is worn out.
Cannot file.	When caring for feet	The file is worn out.
		The appliance is used in the SOFT mode.
Cannot get rid of odor.		It is dirty.
Will not produce foam well.	When exfoliating	Insufficient amount of shower gel or water.
		Shower gel used does not create foam.
Does not remove cuticles or dirt sufficiently.		Not applying enough pressure to the skin or for a long enough time.
		Sonic scrub brush deterioration from continuous use

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Battery life

Approximately 3 years.
If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life. (The battery life may change due to usage and storage conditions.)
The battery in this appliance is not intended to be replaced by consumers.
Have the battery replaced by an authorized service centre.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the appliance.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance from the AC adaptor.
• Use the battery until it fully discharges if there is any charge remaining.
  Perform steps ① to ⑤ and lift the battery, and then remove it. (Fig. 27)
  Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials

This appliance contains a Li-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Guarantee

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (You find its contact address in the pan european guarantee leaflet.) if you need information or if the epilator or the cord get damaged.

Specifications

Power supply	See the name plate on the AC adaptor. (Automatic voltage conversion)
Charging time	Approx. 1 hour
Airborne Acoustical Noise	Epilation head for legs/ arms: 69 (dB (A) re 1 pW) Epilation head for underarms/bikini-line: 67 (dB (A) re 1 pW) Shaver head: 61 (dB (A) re 1 pW) Foot care head: 66 (dB (A) re 1 pW) Brush head with sonic scrub brush: 65 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Betriebsanleitung

Nat schoonmake [BCDFHJLM]

Epileerkop/Scheerkop

(Afb. 21)

Ladetid = Omtrent 1 time

Den grona lampan tands.

AV

Strömmen stängs AV.

33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletişim A.Ş.

Cobançesme Mah. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 02124546020

www.tesan.com.tr

URUNUN KULLANIM OMRU 7 YILDIR

© Panasonic Corporation 2018

EN, GE, FR, IT, DU, SP, DA, PT, NW,

SW, FI, PL, CZ, SK, HU, RO, TK

Printed in China

ES9700ED951503 S0118-0
