Cooker Hood T-Shape Wall

Switching the control panel on 7

Selecting lighting and lighting level 7

Selecting the power level 7

Switching the ventilation off 7

Toggling the intensive mode 7

Ventilation mode 24h 7

Shutoff delay 7

Filter saturation alarm 8

Alarm messages 8

Cleaning and care 9

Odour filter 9

Grease filter 9

Cleaning the surfaces of the hood 9

Lighting 9

Spare parts and Accessories 10

Maintenance and repair 10

Disposal 10

Customer service 10

Technical data 10

aBoUT THIS manUaL

This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.

• Carefully read the user manual before using the device.
• Keep the user manual.
• Use the device described in this user manual only according to the intended use.

Symbol Meaning

Warning symbol. Warning against risks of injury.

Actions in safety and warning notes to avoid injury or damage.
Action step. Specifies an action to be done.
Result. Result of one or more action steps.

Precondition that has to be fulfilled before performing the following action.

InTenDeD USe

The hood was developed exclusively for domestic use to eliminate cooking vapours.

The hood, which is equipped with a grease filter, removes vapours forming over a stove top via an air circulation or an air exhaust system.

SafeTY InformaTlon

The manufacturer can not be made liable for possible damage which may occur due to incorrect installation and incorrect, improper or unreasonable use of the device.

The hood can not support heavy loads.

Do not climb, stand or sit on the hood.
Do not place heavy objects on the hood.

Children of 8 years or older and persons with restricted physical, sensory or mental abilities, or with limited experience or knowledge, may not use or clean the device, except they are supervised and instructed by a person responsible for their safety. Children under 8 years may not use or clean the device even if supervised. This device is not a toy.

• Keep children away from the device and the packaging material.
  Do not leave children near the device unattended.
  Do not let children play with the device.
  When using the hood, observe the manuals of the stove top and of the cooking devices that are used beneath the hood or while the hood is running.

Fire hazard and risk of injury due to open flame!

Deposits in the grease filter may catch fire.

Do not use open flames near the device (e.g. flambéing).
Always clean or change all filters at the specified intervals.

When using deep fat fryers, overheated oil can burst into flames.
Continuously monitor fryers during use.

Risk of eye injury due to LED light!

The LED light is very bright and may damage the eyes.
Do not look directly into the LED light for a prolonged time.

Risk of electric shock due to damaged device!

Do not switch on a damaged device.
Switch off the fuse in the fuse box.
Contact the customer service.

Risk of electric shock due to entering liquid!

The device contains electrical components.

Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
Do not use a wet cloth to clean the operating elements.

Risk of burns due to hot surfaces!

Accessible metallic parts of the hood may become very hot when used with cooking appliances, that emit great amounts of heat (e.g. gas hobs).

Do not touch hot surfaces.
Be careful when opening or closing the fold-out panel.
Wear heat-resistant gloves.

oVerView

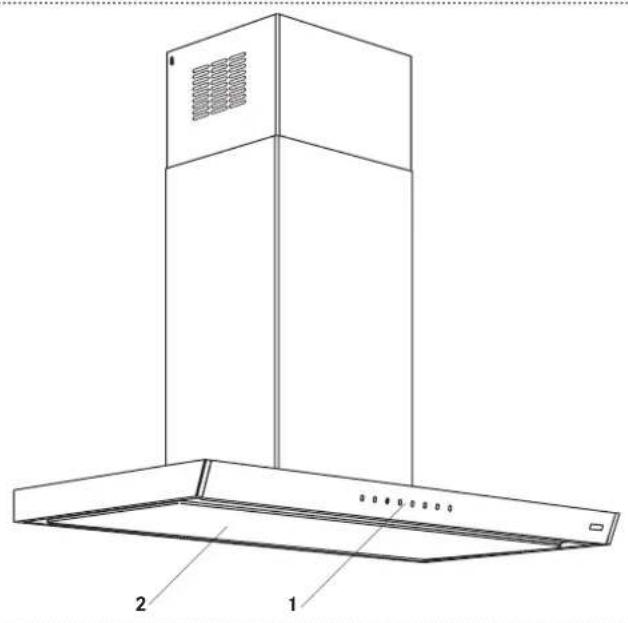

1 Control panel
2 Cover of the grease filter

Key Function

Control panel on/off Ventilation off
Power level 1 Ventilation mode 24h
2 Power level 2
3 Power level 3
Intensive setting on/off
Shutoff delay on/off
Lighting on/off Lighting level
Alarm „filter saturation" active/inactive

Switching the control panel on

Press ①

All icons light up with half their intensity.
If not used for 15 seconds it will revert to standby status.

Selecting lighting and lighting level

Lighting at full intensity

Briefly press

Lighting at half the intensity

Press 2 seconds.

Selecting the power level

Level 1

Press

The icon of the key lights up.

Level 2

Press ②

The icon of the key lights up.

Level 3

Press ③

The icon of the key lights up.

Switching the ventilation off

Press ①

Toggling the intensive mode

The intensive mode fights extensive odour and smoke which may occur when cooking.

The intensive mode can be switched on at any time, at any power level and when the ventilation is switched off. The intensive ventilation runs for 6 minutes. At the end of the 6 minutes the originally selected power level is reactivated.

Switching on

Press

During the running time the icon in the key @blinks 1x per second.

Switching off

Press ①

Ventilation mode 24h

The ventilation mode 24h switches the drive to power level 1 (10 minutes on and 50 minutes off).

The ventilation mode 24h can not be selected while the shutoff delay or the intensive mode is running.

Switching on

Press and hold for 2 seconds.

The icon of the key Binks.

Switching off

Press and hold for 2 seconds or press.

Shutoff delay

The shutoff delay switches the ventilation off automatically after 15 minutes and helps to remove remaining odours. The shutoff delay can be selected at any power level. The shutoff delay cannot be selected while the intensive setting or the ventilation mode 24h is running.

Switching on

Press

The icon of the key lights up.

Switching off

Press ①

Filter saturation alarm

The alarm for cleaning the grease filter turns on after 100 hours of effective running time of the hood. The alarm for changing the odour filter turns on after 200 hours of effective running time of the hood.

Activating the alarm „filter saturation"

Press and hold 3or 2 seconds.
All icons blink 2x. The alarm is activated.

Deactivating the alarm „filter saturation"

Press 3
All icons blink 1x. The alarm is deactivated.

Resetting the „filter saturation“

Press and hold 2 seconds.

All icons blink 3x . The alarm is reset.

Alarm messages

Alarm 1 „Grease filter saturation"

When alarm 1 occurs you have to clean the grease filter.

The icons of the keys A and 2 are blinking.

Clean the grease filter.

Alarm 2 „Odour filter saturation"

When alarm 2 occurs you have to change the odour filter and clean the grease filter.

The icons of the keys A and B are blinking.

Change the odour filter.
Clean the grease filter.

cLeanInG and care

Before performing any cleaning and maintenance:

Switch off the device.
For cleaning and care details, refer to the manual delivered with the filter.

Fire hazard! Risk of injury!

Deposits in the grease filter may catch fire. Filters that are not cleaned or changed regularly may catch fire if open flames or extensive heat are handled beneath the hood.

Always clean or change all filters at the specified intervals.

Odour filter

New odour filters (activated carbon filter) are availab- le in specialist stores.

Do not wash or re-use an unwashable odour filter. Refer to the manual for cleaning and care details.
Change the odour filter after 4 months of operation or earlier after intensive use.
Dispose of the used odour filter in the domestic waste.

Changing the odour filter

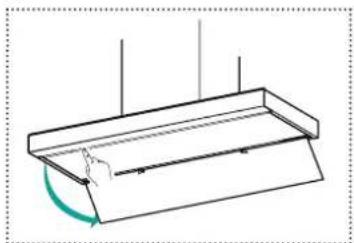

Open the cover.

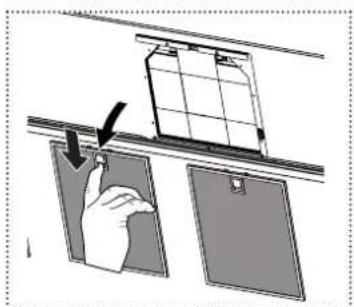

Remove the grease filter.

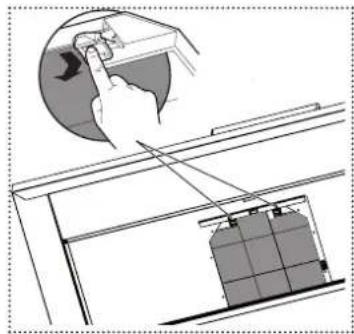

Change the odour filter.

Close the cover.

Grease filter

The grease filter can be cleaned in the dishwasher.

For cleaning and care details, refer to the manual delivered with the filter.
Clean the grease filter after 2 months of operation or earlier after intensive use.

Cleaning the grease filter

Open the cover.

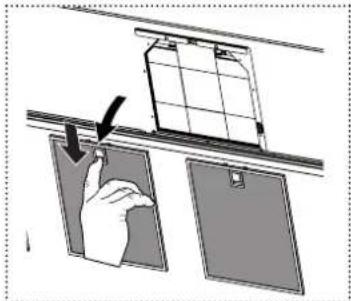

Remove the grease filter.

Clean the grease filter.
Put the grease filter back in place.
Close the cover.

Cleaning the surfaces of the hood

We recommend a damp cloth and a mild detergent.

Do not use any scouring agents or chemical detergents, which could corrode or scratch the durfaces of the device.

Lighting

Make sure that the LED in the spotlights are changed only by the customer service.

SPare ParTS and accessorleS

New odour and grease filters are available in specialist stores.

Component Type, item no. Remark
Odour filter 112.0016.756	not washable
112.0174.992	long lasting, washable
Grease filter 133.0195.979	Cassette filter X 253x300 (FS TS 906 W)
133.0204.883	Cassette filter X 330x294 (FS TS 606 W)

mainTenance and rePaIr

Repairs if carried out incorrectly may cause serious injury, damage to the device and fittings, as well as affect the functioning of the device.

Make sure that maintenance on electrical components and on the smoke vent is carried out only by the manufacturer or the customer service.
Make sure that damaged cables are changed only by the manufacturer or the customer service.

DISPoSaL

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

By disposing of the device in a proper way you help to avoid harmful consequences to environment and health.

Further information about recycling the device is available from the competent authority, the local refuse disposal service or the vendor of the device.

Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.

cUSTomer SerVice

Refere to the contact address for your country on the back page or www.franke.com

TecHnIcaL DaTa

Refer to the type plate placed on the product.

Further information on technical data is available on: www.franke.com
