Tale 915 W XS - Basket FRANKE - Free user manual and instructions

Product Type	Range hood
Brand	Franke
Model	Tale 915 W XS
Use	Domestic, for removing kitchen odors
Power supply	See rating plate (mains voltage)
Electrical class	Class I (mandatory grounding)
Number of motor speeds	3 speeds + intensive speed (6 minutes)
Lighting	LED, control via button E
Filter type	Washable metal grease filters + replaceable activated charcoal filter
Cleaning grease filters	Every 2 months, dishwasher safe
Charcoal filter replacement	Every 4 months, not washable
Saturation alarm	Grease filters: 100h, charcoal filter: 200h
Minimum installation distance	650 mm (or more depending on cooktop)
Exhaust duct diameter	Minimum 120 mm
Controls	5 touch keys (A, B, C, D, E)
Exterior maintenance	Damp cloth and neutral detergent, no alcohol or silicone
Installation	By a competent technician, complying with local standards

Frequently Asked Questions - Tale 915 W XS FRANKE

What is the minimum distance between the cooktop and the hood?

The minimum distance is 650 mm. If the cooktop specifies a greater distance, follow that.

How to clean the grease filters?

Grease filters should be cleaned every 2 months. They are dishwasher safe or can be washed by hand with a neutral detergent.

When should the charcoal filter be replaced?

The activated charcoal filter should be replaced approximately every 4 months of use, or more often with heavy use.

What does the flashing of the LEDs mean?

Slow flashing (hood off): grease filter saturation alarm (after 100h). Fast flashing: charcoal filter saturation alarm (after 200h).

How to reset the filter alarm after cleaning?

With all loads off, press and hold the C key until LED A flashes 3 times.

Can I use the hood without external exhaust?

Yes, in recirculation mode. You must install an activated charcoal filter (not included). The hood will draw in air and return it filtered to the room.

How to activate the intensive speed?

Press and hold the D key (with the motor or light on). The intensive speed lasts 6 minutes, then automatically returns to the previous speed.

Can the hood be installed above a gas cooker?

Yes, but respect the minimum distance of 650 mm and ensure adequate room ventilation.

What to do if the hood stops working?

Check the power supply, plug, and circuit breaker. If the cord is damaged, have it replaced by a qualified professional.

Can I use alcohol or silicone-based products to clean the hood?

No, do not use alcohol or silicone-based products. Use a damp cloth with a neutral liquid detergent.

USER MANUAL Tale 915 W XS FRANKE

Isometric line drawing of a vertical shelf or vent with a top opening and base platform (no text or symbols)

TALE 615 W XS

TALE 815 W XS

TALE 915 W XS

TALE 915 W BK

TALE 1215 W XS

IT 3

EN 7

DE 11

FR 15

TR 19

ES 23

PT 27

GR 31

RU 35

NL 40

SV 44

PL 48

CZ 53

FI 57

UK 61

RO 65

DA 69

NO 73

SK 77

BG 81

ET 85

LV 89

LT 93

SI 97

AR 101

IT

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the character)

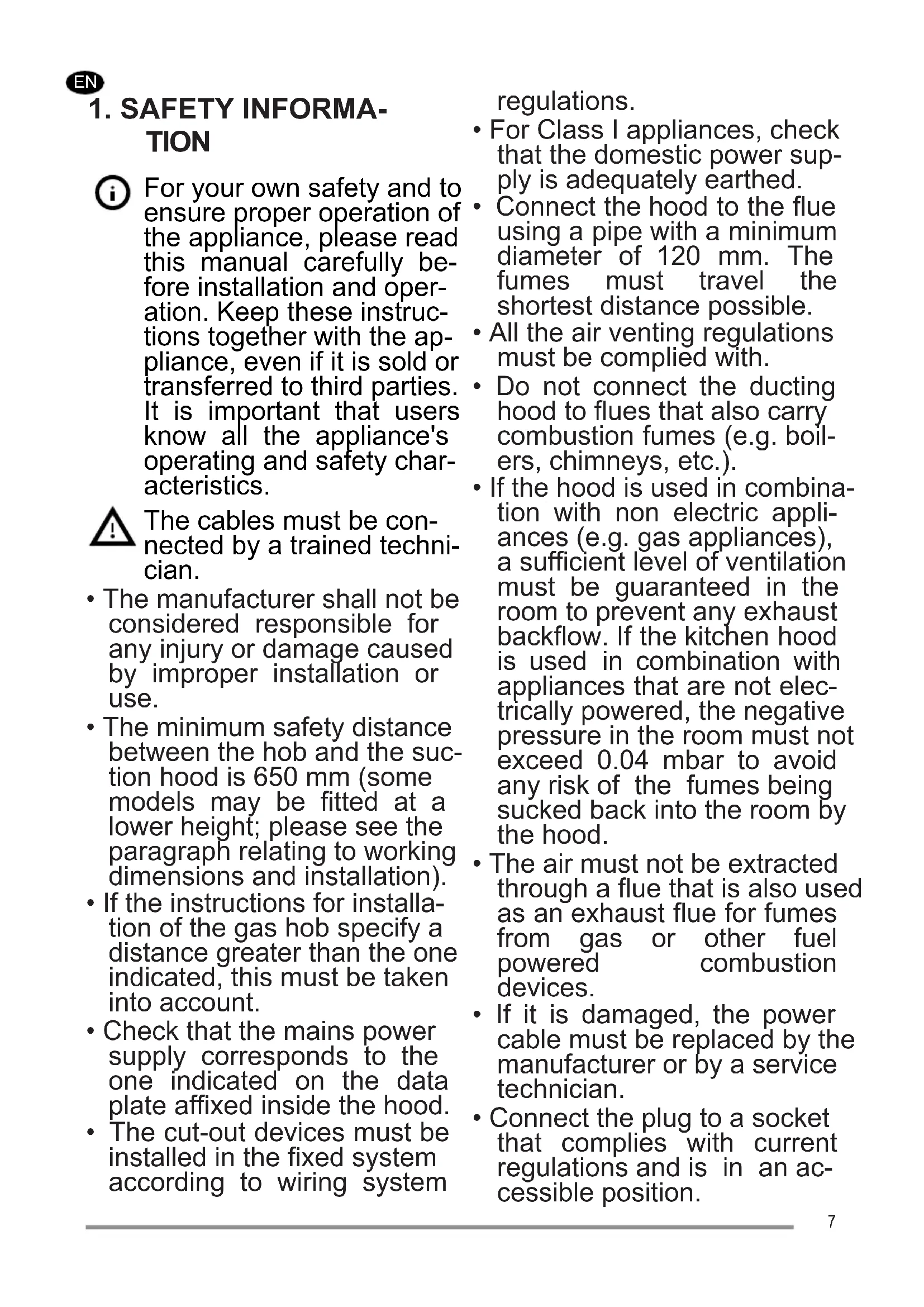

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system according to wiring system

regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make

sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol ☒ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed information on how to re-cycle

this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

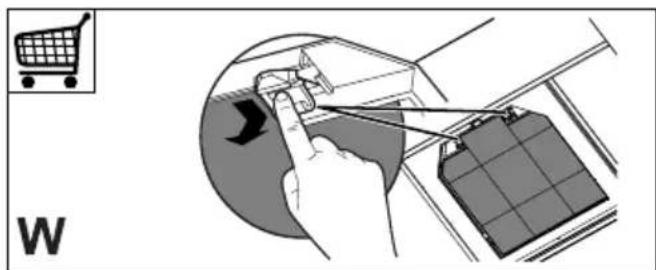

- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).
