USER MANUAL FS VT 606 W XS FRANKE
EN User manual

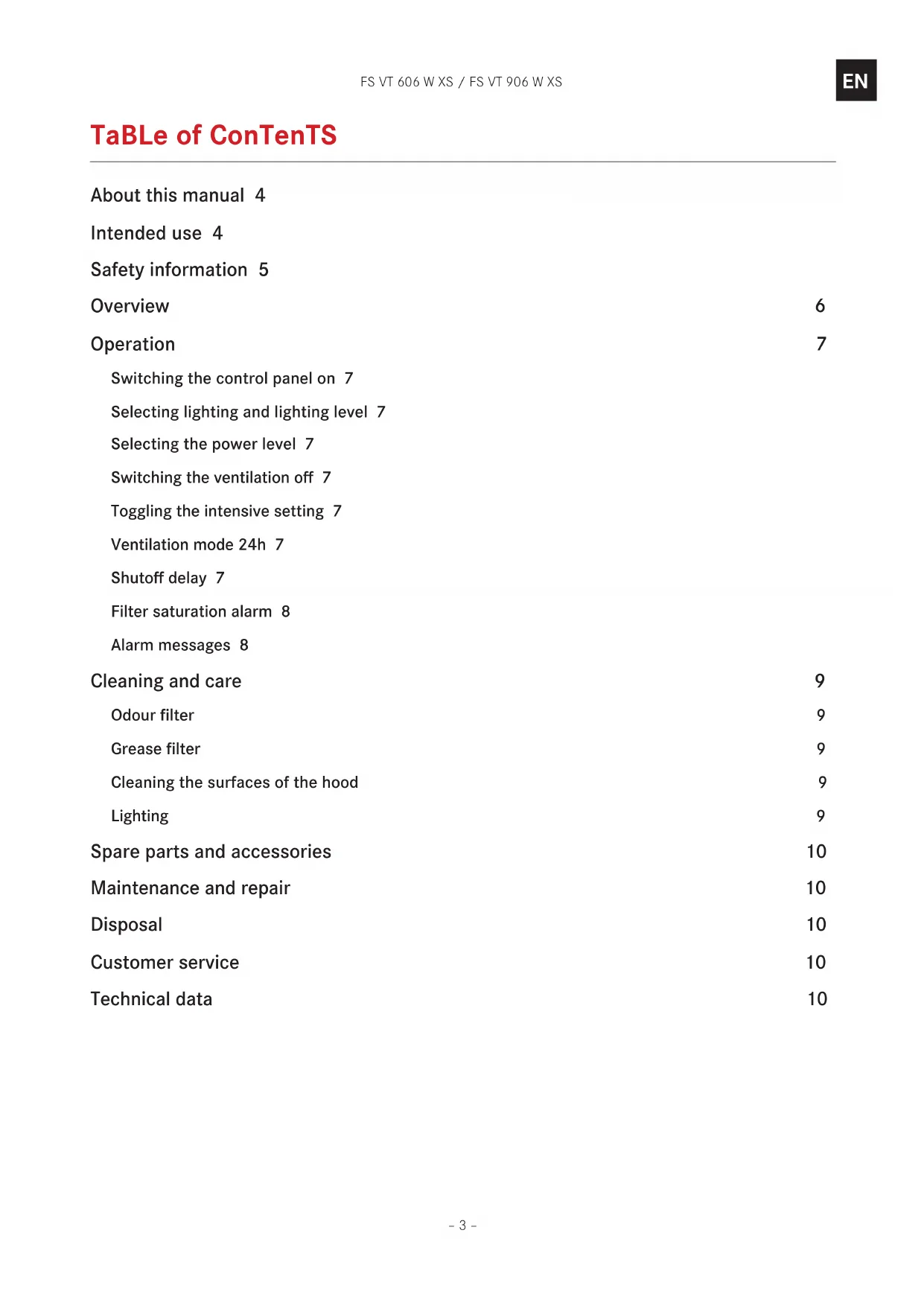

Switching the control panel on 7
Selecting lighting and lighting level 7
Selecting the power level 7
Switching the ventilation off 7
Toggling the intensive setting 7
Ventilation mode 24h 7
Shutoff delay 7
Filter saturation alarm 8
Alarm messages 8
Cleaning and care 9
Odour filter 9
Grease filter 9
Cleaning the surfaces of the hood 9
Lighting 9
Spare parts and accessories 10
Maintenance and repair 10
Disposal 10
Customer service 10
Technical data 10
aBoUT THIS manUaL
This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.
▷ Carefully read the user manual before using the device.
▷ Keep the user manual.
▷ Use the device described in this user manual only according to the intended use.
Symbol Meaning
Warning symbol. Warning against risks of injury.
▶ Actions in safety and warning notes to avoid injury or damage.
▶ Action step. Specifies an action to be done.
■ Result. Result of one or more action steps.
√ Precondition that has to be fulfilled before performing the following action.
InTenDeD USe
The hood was developed exclusively for domestic use to eliminate cooking vapours.
The hood, which is equipped with a grease filter and an odour filter, removes vapours forming over a stove top via an air circulation or an air exhaust system.
SafeTY InformaTlon
The manufacturer can not be made liable for possible damage which may occur due to incorrect installation and incorrect, improper or unreasonable use of the device.
The hood can not support heavy loads.
Do not climb, stand or sit on the hood.
▷ Do not place heavy objects on the hood.
Children of 8 years or older and persons with restricted physical, sensory or mental abilities, or with limited experience or knowledge, may not use or clean the device, except they are supervised and instructed by a person responsible for their safety.
Children under 8 years may not use or clean the device even if supervised.
This device is not a toy.
▷ Keep children away from the device and the packaging material.
Do not leave children near the device unattended.
Do not let children play with the device.
▷ When using the hood, observe the manuals of the stove top and of the cooking devices that are used beneath the hood or while the hood is running.
Fire hazard and risk of injury due to open flame!
Deposits in the grease filter may catch fire.
Do not use open flames near the device (e.g. flambéing).
▷ Always clean or change all filters at the specified intervals.
When using deep fat fryers, overheated oil can burst into flames.
▷ Continuously monitor fryers during use.
Risk of eye injury due to LED light!
The LED light is very bright and may damage the eyes.
Do not look directly into the LED light for a prolonged time.
Risk of electric shock due to damaged device!
Do not switch on a damaged device.
▷ Switch off the fuse in the fuse box.
▷ Contact the customer service.
Risk of electric shock due to entering liquid!
The device contains electrical components.
▷ Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
Do not use a wet cloth to clean the operating elements.
Risk of burns due to hot surfaces!
Accessible metallic parts of the hood may become very hot when used with cooking appliances, that emit great amounts of heat (e.g. gas hobs).
▷ Do not touch hot surfaces.
▷ Be careful when opening or closing the fold-out panel.
▷ Wear heat-resistant gloves.

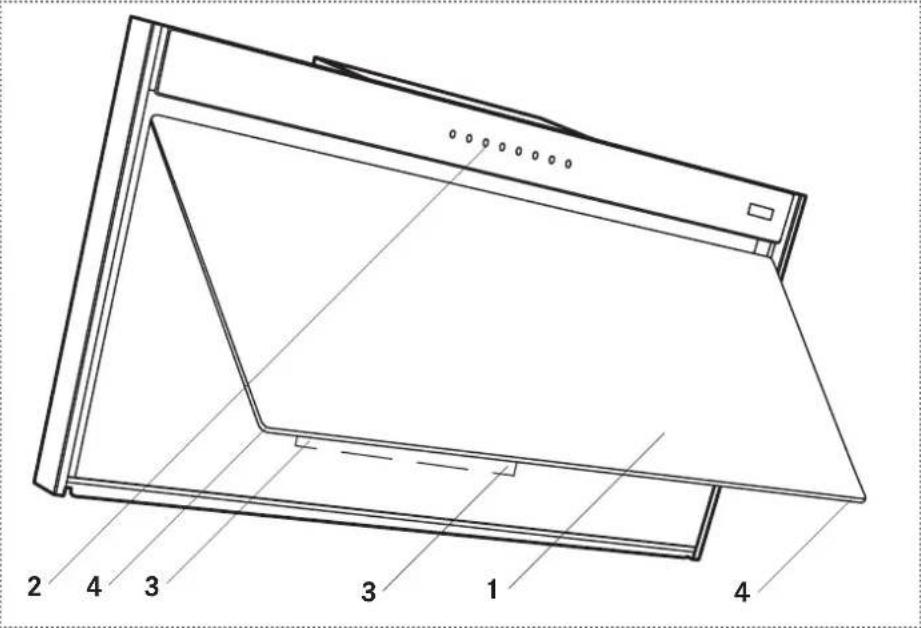

oVerView
2 Control panel
3 Cover of the odour filter
4 Cover of the grease filter, on the bottom side
Key Function
| 1 | Control panel on/offVentilation off |
| 1# | Power level 1Ventilation mode 24h |
| 2 | Power level 2 |
| 3 | Power level 3 |
| 5 | Intensive setting on/off |
| L | Shutoff delay on/off |
| * | Lighting on/offLighting level |
| F | Alarm „filter saturation“ active/inactive |
oPeraTlon
Switching the control panel on
▶ Press Ⓘ
■ All icons light up with half their intensity.
■ If not used for 15 seconds it will revert to its original status.
Selecting lighting and lighting level
Lighting at full intensity
▶ Briefly press
Lighting at half the intensity
▶ Press 📋 for 2 seconds.
Switching off
▶ Briefly press
Selecting the power level
Level 1
▶ Press
■ The icon of the key lights up.
Level 2
▶ Press ②
■ The icon of the key lights up.
Level 3
▶ Press ③
■ The icon of the key lights up.
Switching the ventilation off
▶ Press Ⓘ
■ The ventilation is off.
Toggling the intensive setting
The intensive setting fights extensive odour and smoke which may occur when cooking.
The intensive setting can be switched on at any time, at any power level and when the ventilation is switched off. The intensive ventilation runs for 6 minutes. At the end of the 6 minutes the originally selected power level is reactivated.
Switching on
▶ Press
■ During the running time the icon in the key ≈ blinks 1x per second.
Switching off
▶ Press 🟢 or . ⏱
Ventilation mode 24h
The ventilation mode 24h switches the drive to power level 1 (10 minutes on and 50 minutes off).
The ventilation mode 24h can not be selected while the shutoff delay is running.
Switching on
▶ Press and hold for 2 seconds.
■ The icon of the key blinks.
Switching off
▶ Press and hold Ⓤ for 2 seconds or press . ⏻
Shutoff delay
The shutoff delay switches the ventilation off automatically after 15 minutes and helps to remove remaining odours. The shutoff delay can be selected at any power level. The shutoff delay cannot be selected while the intensive setting or the ventilation mode 24 h is running.
Switching on
▶ Press
■ The icon of the key lights up.
Switching off
▶ Press ⏻ . ⏱
Filter saturation alarm
The alarm for cleaning the grease filter turns on after 100 hours of effective running time of the hood. The alarm for changing the odour filter turns on after 200 hours of effective running time of the hood.
Activating the alarm „filter saturation“
▶ Press and hold Ⓕ for 2 seconds.
■ All icons blink 2x. The alarm is activated.
Deactivating the alarm „filter saturation“
▶ Press Ⓕ
■ All icons blink 1x. The alarm is deactivated.
Resetting the alarm „filter saturation“
▶ Briefly press Ⓕ
■ All icons blink 3x. The alarm is reset.
Alarm messages
Alarm 1 „Grease filter saturation“
When alarm 1 occurs you have to clean the grease filter.
The icons of the keys Ⓕ and Ⓥ are blinking.
▶ Clean the grease filter.
Alarm 2 „Odour filter saturation“
When alarm 2 occurs you have to change the odour filter and clean the grease filter.
The icons of the keys Ⓕ and ⓣ are blinking.
▶ Change the odour filter.
▶ Clean the grease filter.
CLeanInG and Care
Before performing any cleaning and maintenance:
▷ Switch off the device.
For cleaning and care details, refer to the manual delivered with the filter.
Fire hazard! Risk of injury!
Deposits in the grease filter may catch fire. Filters that are not cleaned or changed regularly may catch fire if open flames or extensive heat are handled beneath the hood.
▷ Always clean or change all filters at the specified intervals.
Odour filter
New odour filters (activated carbon filter) are available in specialist stores.
Do not wash or re-use an unwashable odour filter. Refer to the manual for cleaning and care details.
▷ Change the odour filter after 4 months operation or earlier after intensive use.
▷ Dispose of the used odour filter in the domestic waste.

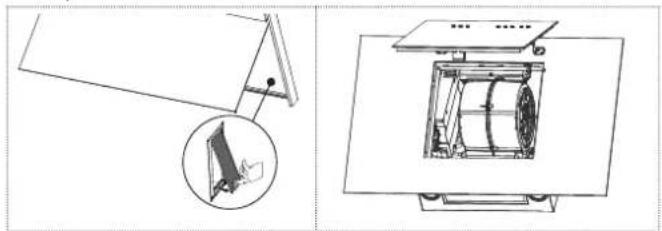

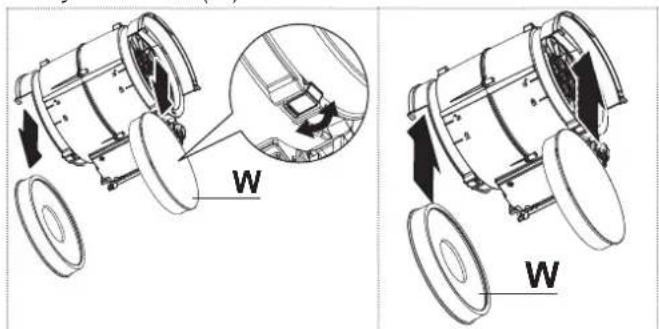

Changing the odour filter
▶ Open the cover.
▶ If necessary, reset the alarm „filter saturation“.
Grease filter
The grease filter can be cleaned in the dishwasher.
For cleaning and care details, refer to the manual delivered with the filter.
▷ Clean the grease filter after 2 months of operation or earlier after intensive use.
Cleaning the grease filter
▶ Open the cover.
▶ Clean the grease filter.
▶ Put the grease filter back in place.
▶ Close the cover.
▶ If necessary, reset the alarm „filter saturation“.
Cleaning the surfaces of the hood
We recommend a damp cloth and a mild detergent.
▶ Do not use any scouring agents or chemical detergents, which could corrode or scratch the surfaces of the device.
Lighting
▷ Make sure that the LED in the spotlights are changed only by the customer service.
SPare ParTS and aCCeSSorleS
New odour and grease filters are available in specialist stores.
Component Type, item no. Remark
| Odour filter 112.0016.755 | not washable |
| 112.0174.995 | high performance, not washable |
| 112.0174.994 | long lasting, washable |
Grease filter 133.0377.820 Cassette filter 124x254 AL
malnTenanCe anD rePalr
Repairs if carried out incorrectly may cause serious injury, damage to the device and fittings, as well as affect the functioning of the device.
Make sure that maintenance on electrical components and on the smoke vent is carried out only by the manufacturer or the customer service.
▷ Make sure that damaged cables are changed only by the manufacturer or the customer service.
DISPoSaL
The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.
By disposing of the device in a proper way you help to avoid harmful consequences to environment and health.
Further information about recycling the device is available from the competent authority, the local refuse disposal service or the vendor of the device.
▷ Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.
CUSTomer SerVICe
▶ Refer to the contact address for your country on the back page or www.franke.com
TeCHnICaL DaTa
▶ Refer to the type plate placed on the product.
Further information on technical data is available on: - www.franke.com
InHaLTSVerZeICHnIS
Illustration of a hand interacting with a smartphone screen, showing the screen and finger (no text or symbols)natural_image
Technical line drawing showing a mechanical assembly with an inset close-up of a component (no text or symbols)natural_image
Illustration of a hand pressing a button on a device (no text or symbols visible)natural_image
Technical line drawing showing a mechanical assembly with an inset close-up of a component (no text or symbols)natural_image
Illustration of a hand interacting with a smartphone (no text or symbols visible)natural_image
Technical line drawing showing a mechanical assembly with an inset close-up of a component (no text or symbols)text_image
Technical diagram showing two views of a mechanical device with labeled parts 'W' and directional arrows indicating motion or assembly.▶ Chiudere la copertura.
Se necessario, resettare l'allarme „Saturazione filtro“.
Filtro antigrasso
Simple line drawing of a mechanical component with an inset showing a bracket detail (no text or symbols)
Illustration of a hand pressing down on a device screen (no text or symbols visible)Limpar as superfícies do exaustor 57
Illuminação 57
Illustration of a hand pressing a button on a smartphone screen (no text or symbols)Limpar as superfícies do exaustor
Illustration of a hand pressing down on a device (no text or symbols visible)SIKKerHeDSoPLYSnInGer
Illustration of a hand pressing a button on a device (no text or symbols visible)Alarm for fullt filter 80
Alarmmeldinger 80
Alarm for fullt filter
Illustration of a hand interacting with a device, showing a finger pressing the screen (no text or symbols present)InneHÅLLSfÖrTeCKnInG
Illustration of a hand interacting with a tablet device (no text or symbols visible)Franke Kindred Canada Limited
Midland, ON L4R 4K9
Phone +1 866 687 7465
Czech Republic
Franke s.r.o.
190 00 Praha 9
Phone +420 281 090 411
Denmark
Franke Kitchen Systems Denmark
8520 Lystrup
Phone +45 8624 9024
Egypt
Franke Kitchen Systems Egypt S.A.E.
6th of October City
Phone +202 3828 0000
Finland
Franke Finland Oy
76850 Naarajärvi
Phone +358 15 341 11
France
Franke France S.A.S.
60230 Chambly
Phone +33 130 289 400
Germany
Franke GmbH
79713 Bad Säckingen
Phone +49 7761 52 0
Greece
Franke Hellas S.A.
19003 Markopoulo Attikis (Athens)
Phone +30 22991 500 00
Hong Kong SAR
Franke Asia Hong Kong Office
Causeway Bay
Phone +852 3184 1900
India
Franke Faber India Limited
Aurangabad - 431 136
Phone +91 240 2556697/98
Italy
Franke S.p.A.
37019 Peschiera del Garda
Phone +39 045 644 9311
Kazakhstan
Franke Kazakhstan Ltd.
040918 Almaty City
Phone +7 727 297 3812
Morocco
Franke Kitchen System SARL
21 000 Casablanca
Phone +212 522 674 200
Norway
Franke Kitchen Systems Norway
8520 Lystrup, Denmark
Phone +47 35 566 450
P.R. China
Franke (China) Kitchen Systems Co., Ltd.
Heshan, Guangdong, 529700
Phone +86 750 841 9288
Shanghai office +86 215 150 6715
Poland
Franke Polska Sp. z o.o.
05-090 Raszyn
Phone +48 22 711 6700
Portugal
Franke Portugal S.A.
2735-531 Cacém
Phone +351 21 426 9670
Romania
Franke Romania SRL
Pantelimon 077145
Phone +40 21 350 1550
Russia
Franke Russia GmbH
199106 St. Petersburg
Phone +7 812 703 1503
Singapore
Franke Singapore Pte. Ltd.
068811 Singapore
Phone +65 6709 5608
Slovak Republic
Franke Slovakia s.r.o.
010 01 Žilina
Phone +421 41 733 6200
South Africa
Franke Kitchen Systems (Pty.) Ltd.
Durban 4052
Phone +27 31 450 6300
Spain
Phone +46 912 405 00
Switzerland
United Arab Emirates
Franke LLC
Ras Al Khaimah
Phone +971 7 203 4700
United Kingdom
Franke UK Ltd.
Manchester M22 5WB
Phone +44 161 436 6280
USA
Franke Kitchen Systems LLC
Smyrna, TN 37167
Phone 800 626 5771
