USER MANUAL FT 95 BEURER

3. Warnings and safety notes ............................. 35

7. Switching on and setting the thermometer ..... 42

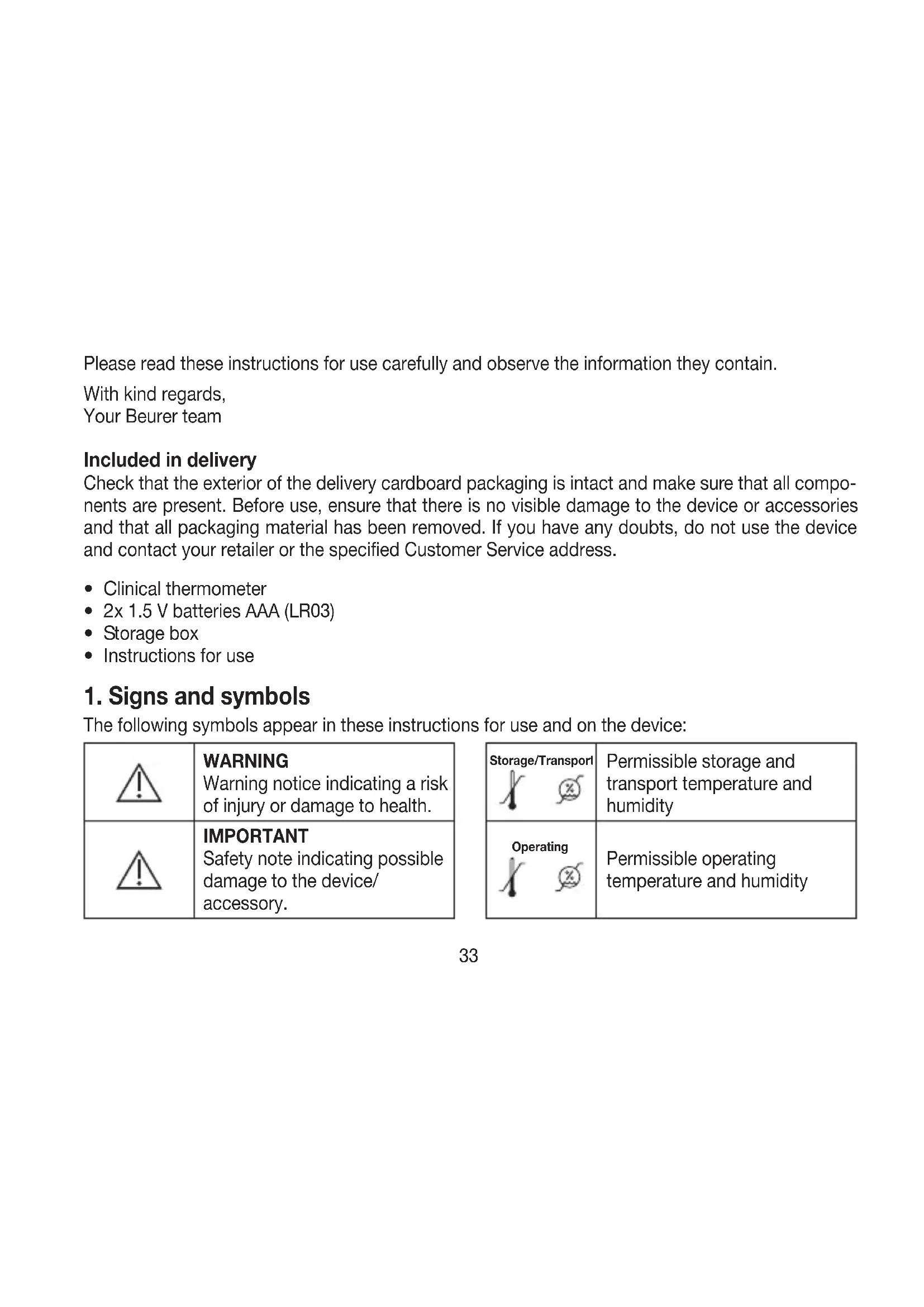

Please read these instructions for use carefully and observe the information they contain. With kind regards, Your Beurer team Included in delivery Check that the exterior of the delivery cardboard packaging is intact and make sure that all compo- nents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

• I nstructions for use

1. Signs and symbols

The following symbols appear in these instructions for use and on the device: WARNING Warning notice indicating a risk of injury or damage to health. Storage/Transport Permissible storage and transport temperature and humidity IMPORTANT Safety note indicating possible damage to the device/ accessory. Operating Permissible operating temperature and humidity34 Note Note on important information. IP 22 Device protected against foreign objects ≥12.5 mm and against water dripping at an angle Observe the instructions for use Serial number Application part, type BF Important information/tip Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE The CE labelling certifies that the product complies with the essential requirements of Directive 93/42/EEC on medical devices.

Cross-reference with another section.

PAP Dispose of packaging in an environmentally friendly manner Manufacturer

This thermometer is intended for non-contact measurement of forehead temperature. You can also measure the temperature of objects and rooms with this thermometer. The thermometer is suitable35 for domestic use. It allows you to quickly and easily measure body temperature. Values are saved automatically.

3. Warnings and safety notes

3.1 Risks to the user

• O nly use the device once you have read and understood these instructions for use.

• R etain these instructions for use. The instructions for use must be accessible to all users. All in- structions must be followed.

he device needs to be in the room in which the measurement is taken for at least 30 minutes before use.

• A fter physical activity, a bath or spending time outdoors, wait approx. 30 minutes before you take a measurement on your forehead.

The FT 95 thermometer is only designed for the measuring area on the human body stated in the instructions for use.

easure your temperature regularly to obtain your normal average temperature. If you suspect you have a fever, simply compare your normal average temperature with the temperature meas- ured currently.

• D o not self-diagnose or self-medicate on the basis of the measurements without consulting your doctor. In particular, do not start taking any new medication or change the type and/or dosage of any existing medication without prior approval.

• T he device is only intended for the purpose stated in these instructions for use.

• T he manufacturer is not liable for damage resulting from improper or careless use.

• C hildren must not be allowed to use the device. Medical devices are not toys.

• C heck before each use that the lens is intact. If it is damaged, please contact your retailer or the service address.36

• D o not touch the lens with your fingers.

• T he measurements taken by you are for your information only – they are no substitute for a medi- cal examination. Consult a doctor before you undertake any medical treatment.

• C lean the thermometer after each use ( w    

12. Cleaning the device).

• S hould you have any questions about using the device, please contact either your retailer or Cus- tomer Services.

3.2 Risks to the device

• D o not drop the device or subject it to any mechanical impacts.

The device is suitable for use in all environments listed in these instructions for use, includ- ing domestic environments.

• T he use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.

• A void using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.

• T he use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device’s electromag- netic immunity; this can result in faulty operation.

• F ailure to comply with the above can impair the performance of the device.

• D o not expose the device to direct sunlight, extreme temperatures or high humidity.

o not expose the device to liquids. The device is not waterproof. Avoid all direct contact with water or other liquids.

• D o not open or repair the device yourself. Have the device repaired by authorised service centres only, otherwise its warranty is invalidated.

Portable and mobile HF communication systems may interfere with this device.37

3.3 Notes on handling batteries

• I f your skin or eyes come into contact with battery fluid, rinse the aected areas with water and seek medical assistance.

Choking hazard! Small children may swallow and choke on batteries. Store batteries out of the reach of small children.

f a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.

• P rotect batteries from excessive heat.

Risk of explosion! Do not throw batteries into a fire.

f the device is not to be used for a relatively long period, take the batteries out of the battery compartment.

• U se identical or equivalent battery types only.

• A lways replace all batteries at the same time.

• D o not use rechargeable batteries.

• D o not disassemble, split or crush the batteries.38

4. Information about this thermometer

The temperature measurement varies depending on the part of the body where the measurement is taken. In a healthy person, the variance can be between 0.2 °C and 1 °C (0.4 °F and 1.8 °F) in dif- ferent parts of the body. Normal temperature range with various thermometers: Measurements Thermometer used Forehead temperature 35.8 °C to 37.6 °C (96.4 °F to 99.7 °F) Forehead thermometer Ear temperature 36.0 °C to 37.8 °C (96.8 °F to 100.0 °F) Ear thermometer Oral temperature 36.0 °C to 37.4 °C (96.8 °F to 99.3 °F) Conventional thermometer Rectal temperature 36.3 °C to 37.8 °C (97.3 °F to 100.0 °F) Conventional thermometer Beurer tip

emperatures measured with dierent thermometers should never be compared with one another.

• T ell your doctor what type of thermometer you used to take your body temperature and on what part of the body. Also bear this in mind if you are diagnosing yourself. Holding the thermometer in your hand for too long before taking a measurement can cause the device to warm up. This means the measurement could be incorrect.39 Influences on body temperature

Body temperature is higher in babies and toddlers than in adults. Greater temperature fluctuations occur faster and more often in children. Normal body temperature decreases with age.

• A mbient temperature

• T ime of day Body temperature is lower in the morning and increases throughout the day towards evening.

• A ctivities Physical and, to a lesser extent, mental activities increase body temperature. Beurer tip Taking the body temperature provides a current measurement of a person’s temperature. If you are uncertain about interpreting the results or if the values are abnormal (e.g. fever), please consult your doctor. This also applies in the case of slight temperature changes if there are other symptoms of illness such as agitation, heavy sweating, flushed skin, fast pulse rate, tendency to collapse, etc.40

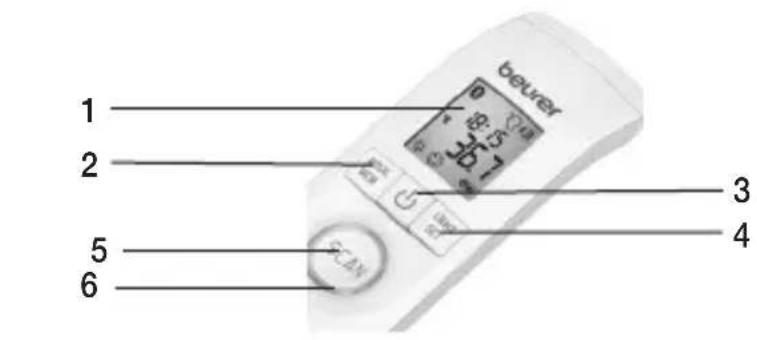

button 4 LIGHT/SET button 5 SCAN button 6 Fever indicator 7 Measuring sensor 8 Battery compartment lid Buttons Functions MODE/MEM MODE Sets the measurement mode. MEM Displays the saved measurements. LIGHT/SET LIGHT Manual switch-on of the illuminated display. SET Sets the basic functions. Switches the device on/o. SCAN Starts the temperature measurement.

Inserting the battery

• R emove the battery compartment lid.

• I nsert both batteries into the battery compartment according to the specified polarity.

• O nly use brand-name batteries of type: 2 x 1.5 V micro (alka- line type LR03). Make sure that the batteries are inserted the correct way round in accordance with the markings. Do not use rechargeable batteries.

• T hen close the battery compartment by positioning the lid and clicking it into place. The thermometer automatically switches on and the settings menu appears in the display (

Switching on and setting the thermometer).

7. Switching on and setting the thermometer

To switch on the thermometer, briefly press the button. After a brief self-test and two short beeps the thermometer is ready for forehead measurement. The device always starts up in forehead temperature mode

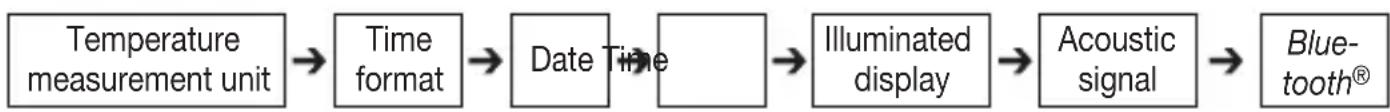

Setting the basic functions This menu allows you to set the following functions individually, one after another. Temperature measurement unit Time format Date Time Illuminated display Acoustic signal Blue- tooth ®43 Temperature measurement unit Insert the batteries or press and hold the LIGHT/SET but- ton for 3 seconds when the thermometer is switched on. The temperature measurement unit flashes on the display (Fig. 1). You can set the device to display the measurements in de- grees Celsius (°C) or degrees Fahrenheit (°F).

Use the MODE/MEM button to set the year, and con- firm with the LIGHT/SET button. The day/month flashes on the display (Fig. 4).

Use the MODE/MEM button to set the day and month, and confirm with the LIGHT/SET button (Fig. 5). If the hour format is set as 12 h, the day/month display sequence is reversed. Be sure to set the date and time correctly. Otherwise, you will not be able to save your measured values correctly with a date and time and access them again later. Fig. 3 Fig. 4 Fig. 5 Time The hour flashes on the display (Fig. 6).

Use the MODE/MEM button to set the hour, and con- firm with the LIGHT/SET button. The minute flashes on the display (Fig. 7).

Use the MODE/MEM button to set the minute, and confirm with the LIGHT/SET button. In the 12 h format, the time is displayed with AM/PM. Fig. 6 Fig. 745 Illuminated display / flashes on the display (Fig. 8). You can activate or deactivate the automatic illuminated display (appears following forehead temperature meas- urement).

To activate the automatic illuminated display, use the MODE/MEM button to select , and confirm with the LIGHT/SET button.

To deactivate the automatic illuminated display, use the MODE/MEM button to select , and confirm with the LIGHT/SET button. Fig. 8 You can also activate the illuminated display manually by briefly pressing the LIGHT/SET button. The display lights up for 5 seconds. The automatic and manual illuminated display cannot be used while measurement is in progress.46 Acoustic signal / flashes on the display (Fig. 9). You can activate or deactivate the acoustic signals (de- vice activation, measurement in progress, measurement completion).

To activate the acoustic signals, use the MODE/MEM button to select , and confirm with the LIGHT/SET button.

To deactivate the acoustic signals, use the MODE/MEM button to select , and confirm with the LIGHT/SET button. Fig. 9 Bluetooth

(for data trans- fer to the smartphone).

, use the MODE/MEM button to select , and confirm with the LIGHT/SET button.

8. Forehead measurement

Beurer tip Remember:

• P hysical activity, increased perspiration on the forehead, taking vasoconstrictive medi- cation and skin irritations can distort the measurement.

• T he forehead, or the temples, must be free from perspiration and cosmetics.

• W e recommend that you take three measurements on the forehead. If the three meas- urements are dierent, use the highest value.

If the forehead area is covered in hair, sweat or dirt, clean the area and then wait for 10minutes to improve the precision of the measurement.

It is important that you keep the thermometer still during measurement. Moving the ther- mometer during measurement may cause imprecise measurements. Forehead temperature mode

o switch on the thermometer, briefly press the button. After a brief self-test and two short beeps the device is ready for fore- head temperature measurement. The device is in forehead tem- perature mode. You can tell this from the symbol on the display. Fig. 1048 Forehead temperature mode

Hold the thermometer 2 to 3 cm in front of the forehead measuring point (Fig. 11). Press the SCAN button. Fig. 11 If the measurement is less than 37.5 °C (99.5 °F), the fever indicator lights up green and if appears on the display to indicate no fe- ver, this indicates that the body temperature is in the normal range. Fig. 12 If the measurement is between 37.5 °C and 37.9 °C, the fever indi- cator lights up yellow. This indicates that the body temperature is in an increased range. Fig. 1349 Forehead temperature mode If the measurement is over 38 °C (100.4 °F), the fever indicator lights up red and appears in the display. This indicates that the body temperature is above the normal range. Fig. 14 The measurement is automatically saved with the date/time and the “fever” /”no fever” classification. The device is ready to take another measurement when two short beeps sound and the fore

is activated on the device, the measurements will be auto- matically transferred to the app after measuring.

symbol flashes on the display (Fig. 15). The device now attempts to connect to the app for approx. 30 seconds.

symbol stops flashing as soon as a connection is es- tablished. All measurement data is automatically transferred to the app. Following successful data transfer, the device will automatically switch o after 60 seconds, or you can press the button to switch it o. Fig. 1550 Forehead temperature mode

• I f a connection to the app cannot be established after 30 seconds, the Bluetooth

symbol goes out and the device switches o automatically after 60 seconds. When connecting for the first time, a randomly-generated six-digit PIN code is displayed on device, and at the same time an input field appears on the smartphone in which you must enter this six-digit PIN code. After successfully entering the code, the device will be connected to your smartphone (see also “Upload the measurements via Bluetooth

on page 51). Displaying stored measurements The device only stores measurements in forehead temperature mode . The device automatically stores the values from the last 60 measurements. When 60 memory spaces are exceeded, the oldest value is deleted.

• T he memory can be called up as follows:

With the thermometer switched on, press and hold the MODE/MEM button for 3 seconds. The most recent measurement is displayed.

• P ressing the MODE/MEM button again will display the measured value.

• I n the upper line, the time and date are displayed alternately.51 Upload the measurements via Bluetooth

It is also possible to transfer the measured values saved on the device to your smartphone using Bluetooth

. To do this you will need the “beurer HealthManager” app or the “beurer BabyCare” app. They are available for free from the Apple App Store and from Google Play. System requirements iOS ≥ 9.0, Android

≥ 4.0 List of compatible devices: Proceed as follows to transfer values: If Bluetooth

is activated in the settings menu, the data will be transferred after every measurement or if the user switches to the memory. The symbol will appear on the display. When connecting for the first time, a randomly-generated six-digit PIN code is displayed on device, and at the same time an input field appears on the smartphone in which you must en- ter this six-digit PIN code. After successfully entering the code, the device will be connected to your smartphone. Step 1: FT 95 Activate Bluetooth

on your device. (see section 7. “Setting the basic functions”).52

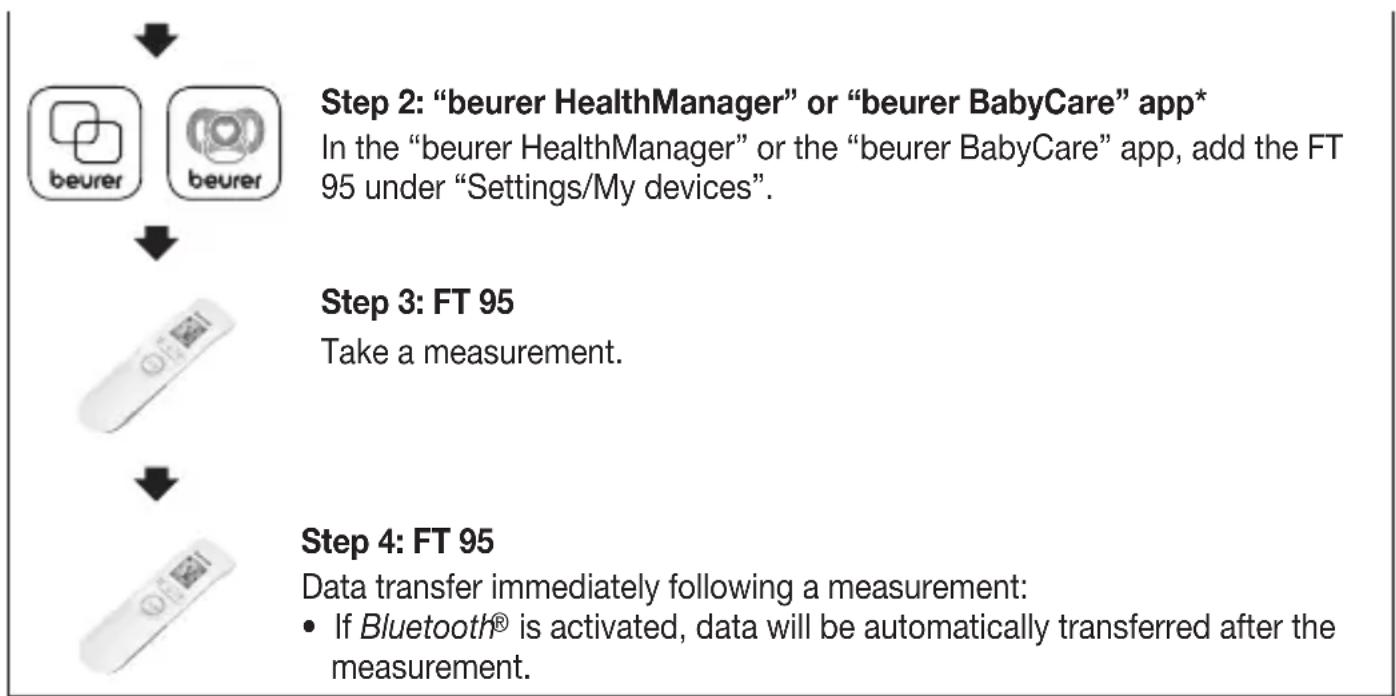

Step 3: FT 95 Take a measurement.

Step 4: FT 95 Data transfer immediately following a measurement:

is activated, data will be automatically transferred after the measurement. The “beurer HealthManager” or “beurer BabyCare” app must be activated to allow data transfer. If your smartphone has a protective cover, remove this to ensure that there is no interference dur- ing the transfer. Begin the data transfer in the “beurer HealthManager” or “beurer BabyCare” app.53

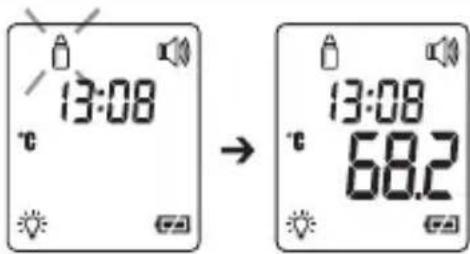

9. Measuring object temperature/room temperature

Object temperature mode If you want to measure an object temperature with this ther- mometer, switch to object temperature mode.

old the thermometer 2 to 3 cm from the measuring point. Briefly press the SCAN button and read the tem- perature on the display (Fig. 17). The device automatically switches o after approx. 60 sec- onds or you can press the button to switch it o. Fig. 16 Fig. 17 Measurements taken in object temperature mode are not stored. Room temperature mode If you want to use the thermometer to measure the room temperature you need to switch to room temperature mode.

ith the thermometer switched on, briefly press the MODE/MEM but- ton twice. The device switches to room temperature mode

• T he room temperature is immediately displayed (Fig. 16). The device automatically switches o after approx. 60 seconds or you can press the button to switch it o. Fig. 18 Measurements taken in room temperature mode are not stored.54

Error message Problem Solution Measurement during self-test, device not yet ready for measurement. Wait until the forehead symbol stops flashing. Room temperature below 15 °C or above 40°C (<59 °F, >104 °F). Room temperature must be between 15 °C and 40 °C (59 °F - 104 °F). Unable to transfer the data via Bluetooth

Please observe the information in chap- ter “Transfer of measurements via Blue- tooth

(1) Forehead temperature mode: The deter- mined temperature is higher than 42.2 °C (108 °F). (2) Object temperature mode: The determined temperature is higher than 80 °C (176 °F). Operate the thermometer only with- in the specified temperature ranges. In the event of a repeated error mes- sage, contact your retailer or Custom- er Services. (1) Forehead temperature mode: The deter- mined temperature is lower than 34 °C (93.2 °F). (2) Object temperature mode: The determined temperature is lower than 0 °C (32 °F). Operate the thermometer only with- in the specified temperature ranges. In the event of a repeated error mes- sage, contact your retailer or Custom- er Services. The batteries are empty. Replace the batteries.55

Changing the batteries The device requires two AAA (LR03) batteries.

• O pen the battery compartment. To do this, push the battery compartment down.

• T ake the used batteries out of the battery compartment.

• I nsert new batteries. Make sure that the batteries are inserted the correct way round.

• C lose the battery compartment. Disposing of batteries

mpty, completely flat batteries must be disposed of through specially designated collection box- es, recycling points or electronics retailers. You are legally required to dispose of the batteries.

• T he codes below are printed on batteries containing harmful substances: Pb = Battery contains lead Cd = Battery contains cadmium Hg = Battery contains mercury

12. Cleaning the device

he measuring sensor is the most sensitive part of the thermometer. Be very careful with the measuring sensor when cleaning the device.

• D o not use any harsh cleaning products.

• A lways observe all safety notes for users and the device.

3. Warnings and safety notes

Clean the measuring sensor after each use. Use a soft cloth or cotton bud that can be moistened with disinfectant or 70% alcohol.56 To clean the entire device, please use a soft cloth slightly moistened with a mild soapy solution. Un

der no circumstances may liquid enter the device. Do not use the device again until it is completely dry.

13. Storing the device

The device must not be stored or used at an excessively high or low temperatures or humidities ( w   

Technical data), in sunlight, in association with an electrical current or in dusty locations. Measure- ment inaccuracies can otherwise occur. If prolonged storage is planned, you should remove the batteries.

14. Disposing of the device

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Elec- tronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

If the device is not used according to the instructions specified, perfect functionality cannot be guaranteed! The accuracy of this thermometer has been carefully checked and it has been developed with a long service life in mind. If the device is used for commercial medical purposes, it must be regularly tested for accuracy by appropriate means. Precise instructions for checking accuracy may be requested from the service address.57 We reserve the right to make technical changes to improve and develop the product. Type FT 95 Measurement method Non-contact infrared measurement Basic functions Forehead temperature measurement Object temperature measurement Room temperature measurement Measurement units Celsius (°C) or Fahrenheit (°F) Operating conditions 15 °C to 40 °C (59 °F to 104 °F) at a relative humidity of < 95% Storage and transport conditions -20 °C to 50 °C (-4 °F to 122 °F) at a relative humidity of < 85% Measuring distance 2 to 3 cm from the measuring point Measurement range and accura

cy of forehead temperature meas- urement Forehead temperature measurement 34 °C to 42.2 °C (93.2 °F to 108 °F) Measurement accuracy: ± 0.2 °C (93.2 °F to 108 °F: ± 0.4 °F) Clinical repeat precision Forehead: Children 1 – 5 years ± 0.07 °C (0.13 °F) Adults ± 0.08 °C (0.14 °F) Measurement range and accuracy of object temperature measurement Object temperature measurement 0 °C to 80 °C (32 °F to 176 °F) Measurement accuracy ± 4 % or ± 2 °C (± 4 °F) Memory function of body temperature measurement Automatically stores the last 60measurements. Acoustic signal With device activation, during measurement, when measure

Weight 73 g (without batteries) 2 x AAA (LR03) batteries Batteries last for approx. 2000 measurements Extra activated functions such as acoustic signal, Bluetooth

illuminated display reduce the battery life. Data transfer 2402 MHz - 2480 MHz frequency band Max. 2.8 dBM transmission power The thermometer uses Bluetooth

low energy technology Compatible with Bluetooth

List of supported smartphones/tablets The serial number is located on the device or in the battery compartment.

The device complies with the EU Medical Devices Directive 93/42/EEC, the German Medical Devic- es Act (Medizinproduktgesetz), the ASTM E 1965 - 98 and the European standard EN 60601-1-2 (in accordance with CISPR 11, IEC61000-3-2, IEC61000-3-3) and is subject to particular precautions with regard to electromagnetic compatibility. The device is suitable for use in all environments listed in these instructions for use, including domestic environments. We hereby confirm that this product complies with the European RED Directive 2014/53/EU. The CE Declaration of Conformity for this product can be found under: https://www.beurer.com/web/ we-landingpages/de/cedeclarationofconformity.php59

17. Warranty/service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) pro- vides a warranty for this product, subject to the requirements below and to the extent described as follows. The warranty conditions below shall not affect the seller’s statutory warranty obligations which ensue from the sales agreement with the buyer. The warranty shall apply without prejudice to any mandatory statutory provisions on liability. Beurer guarantees the perfect functionality and completeness of this product. The worldwide warranty period is 5 years, commencing from the purchase of the new, unused product from the seller. The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use. German law shall apply. During the warranty period, should this product prove to be incomplete or defective in function

ality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions. If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses. The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.60 A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with - a copy of the invoice/purchase receipt, and - the original product. The following are explicitly excluded from this warranty: - deterioration due to normal use or consumption of the product; - accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebu

word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by Beurer GmbH is under license. Other trademarks and trade names are those of their respective owners. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC. Contracted Manufacturer: AViTA ( WuJiang) Co. LTD Factory address: No. 858, Jiao Tong Rd., Wujiang Economic Development Zone, Suzhou City, Jiangsu Province, P.R.C. Phone number: 0512-82078288 Product Name: Touch Free Infrared Thermometer Model: FT 95 ISO Standard: ISO 80601-2-56:2017 China medical production Licence No: SSYJXSCX20040018 Manufactured in China
