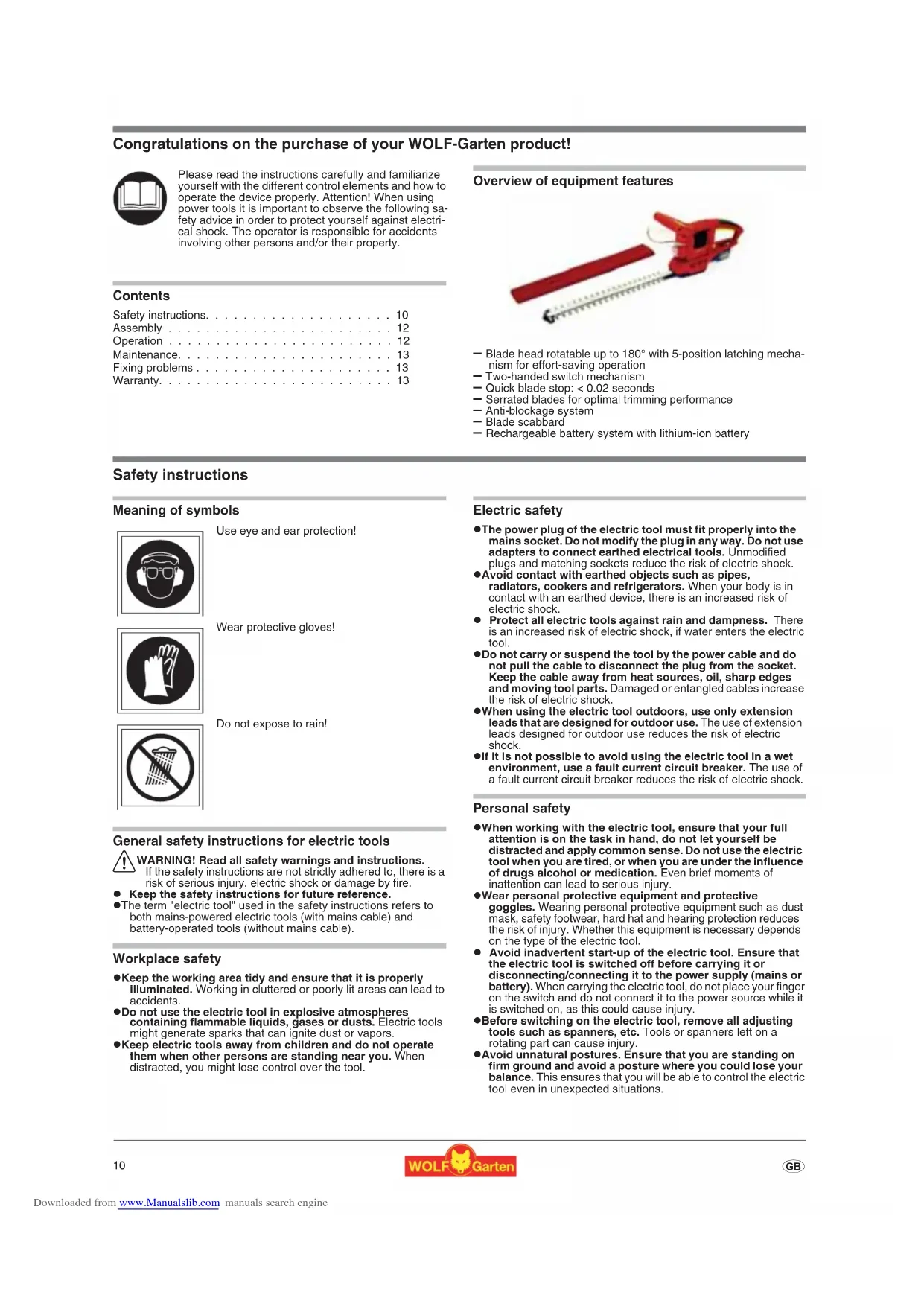

• Congratulations on the purchase of your WOLF-Garten product! Contents Safety instructions p. 10
• Assembly p. 12
• Operation p. 12
• Maintenance p. 13
• Fixing problems p. 13
• Warranty Overview of equipment features – Blade head rotatable up to 180° with 5-position latching mecha- nism for effort-saving operation – Two-handed switch mechanism – Quick blade stop: < 0.02 seconds – Serrated blades for optimal trimming performance – Anti-blockage system – Blade scabbard – Rechargeable battery system with lithium-ion battery Safety instructions Meaning of symbols General safety instructions for electric tools 1 WARNING! Read all safety warnings and instructions. If the safety instructions are not strictly adhered to, there is a risk of serious injury, electric shock or damage by fire. z Keep the safety instructions for future reference. z The term "electric tool" used in the safety instructions refers to both mains-powered electric tools (with mains cable) and battery-operated tools (without mains cable). Workplace safety z Keep the working area tidy and ensure that it is properly illuminated. Working in cluttered or poorly lit areas can lead to accidents. z Do not use the electric tool in explosive atmospheres containing flammable liquids, gases or dusts. Electric tools might generate sparks that can ignite dust or vapors. z Keep electric tools away from children and do not operate them when other persons are standing near you. When distracted, you might lose control over the tool. Electric safety z The power plug of the electric tool must fit properly into the mains socket. Do not modify the plug in any way. Do not use adapters to connect earthed electrical tools. Unmodified plugs and matching sockets reduce the risk of electric shock. z Avoid contact with earthed objects such as pipes, radiators, cookers and refrigerators. When your body is in contact with an earthed device, there is an increased risk of electric shock. z Protect all electric tools against rain and dampness. There is an increased risk of electric shock, if water enters the electric tool. z Do not carry or suspend the tool by the power cable and do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat sources, oil, sharp edges and moving tool parts. Damaged or entangled cables increase the risk of electric shock. z When using the electric tool outdoors, use only extension leads that are designed for outdoor use. The use of extension leads designed for outdoor use reduces the risk of electric shock. z If it is not possible to avoid using the electric tool in a wet environment, use a fault current circuit breaker. The use of a fault current circuit breaker reduces the risk of electric shock. Personal safety z When working with the electric tool, ensure that your full attention is on the task in hand, do not let yourself be distracted and apply common sense. Do not use the electric tool when you are tired, or when you are under the influence of drugs alcohol or medication. Even brief moments of inattention can lead to serious injury. z Wear personal protective equipment and protective goggles. Wearing personal protective equipment such as dust mask, safety footwear, hard hat and hearing protection reduces the risk of injury. Whether this equipment is necessary depends on the type of the electric tool. z Avoid inadvertent start-up of the electric tool. Ensure that the electric tool is switched off before carrying it or disconnecting/connecting it to the power supply (mains or battery). When carrying the electric tool, do not place your finger on the switch and do not connect it to the power source while it is switched on, as this could cause injury. z Before switching on the electric tool, remove all adjusting tools such as spanners, etc. Tools or spanners left on a rotating part can cause injury. z Avoid unnatural postures. Ensure that you are standing on firm ground and avoid a posture where you could lose your balance. This ensures that you will be able to control the electric tool even in unexpected situations. Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following sa- fety advice in order to protect yourself against electri- cal shock. The operator is responsible for accidents involving other persons and/or their property. Use eye and ear protection! Wear protective gloves! Do not expose to rain! Original operating instructions Downloaded from www.Manualslib.com manuals search engine11 p. 13

z Wear suitable clothing. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothing and jewelry and long hear can be caught in moving parts. z When using tools with dust extraction and collection devices, ensure that they are properly mounted. The use of dust extraction devices helps reduce the production of dust in the working area. Proper use of electric tools z Do not exceed the maximum load of the tool. Use the tool only for the intended purpose. To ensure safe and efficient working, operate the electric tool only within the specified power range. z Do not use electric tools whose switches are defective. Electric tools that cannot be properly switched on or off are dangerous and must be repaired without delay. z Before adjusting the tool, changing accessory parts or putting the tool away for storage, disconnect the power plug from the socket or remove the battery. This safety measure reduces the risk of inadvertent tool start. z Store the electric tool outside the reach of children. Do not allow persons who have not read these instructions to operate the tool. When operated by inexperienced persons, electric tools can be very dangerous. z Handle the electric tool with care and service it regularly. Ensure that all moving parts can work properly and are not jammed and regularly inspect the tool for defective or damaged parts that might impair its function. Have damaged parts repaired before you start the tool. Many accidents are caused by insufficiently maintained electric tool. z Keep the cutting parts sharp and clean. Carefully maintained cutting tools with sharp cutting edges will rarely get jammed and are easier to operate. z When using the electric tool, the accessories and replacement parts, strictly adhere to the instructions in this manual. Take into account the actual working conditions and the task in hand. The use of electric tools for purposes other than the intended can lead to dangerous situations. Proper use of battery-powered tools z Recharge the battery only with chargers that have been specifically recommended by the manufacturer. If a different charger is used, there is a risk of fire. z Operate the electric tool only with the battery provided for this task. The use of other batteries can lead to injury or fire. z Ensure that the battery is never in contact with metal objects such as paper clips, coins, keys, nails or screws, as they could short-circuit the contacts. Short-circuiting the battery contact can lead to fire and injury from burns. z If the battery is used incorrectly, fluid might leak out. Avoid contact with the fluid. In event of accidental contact, rinse with water. In case of fluid contact with the eyes, consult a doctor. Leaking battery fluid can cause irritation of the skin and burns. Service z If the electric tool needs to be repaired, have the repair carried out by specialist personnel and instruct them to use only original spare parts. This ensures the operational safety of the electric tool. Tool-specific safety instructions for hedge shears z Keep all body parts away from the cutting blade. Never attempt to remove any cuttings or hold material to be cut while the blade is still running. Do not remove cuttings that have become stuck unless the tool is switched off. A moment of carelessness while using the battery-powered shears may cause serious injury. z Only carry the hedge shear by its handle and if the blade is standing still. Always slip on the protective cover when transporting or storing the battery-powered shears. Handling the tool carefully reduces the risk of injury caused by the blade. z Keep the cable away from the cutting range. While working, you may inadvertently cut the cable as it may be hidden by the shrubbery. z The machine is designed exclusively for cutting hedges. Use for purposes other than those intended qualify as improper use. The manufacturer/supplier is not responsible for any da- mages that result from improper use. The operator is solely re- sponsible for assuming all risks. z Never attempt to use a machine that is not fully assembled or one that has been altered in a manner that is not permitted. z Work at a height where you do not run the risk of the blade coming into contact with the ground. z Reverse blade If the blade becomes jammed by thick branches, for example, the hedge shears must be shut off: – Remove battery. – Do not touch running blades. – Remove the cause of the blockage. z Do not switch on the tool until your hands and feet are far enough away from the cutting blades. z Please note that there is always a risk of injury due to residual charge when switching on the device even after it has been discharged. z These tools are not intended to be used by persons with insufficient experience and/or lack of skills or persons with limited physical, sensory or mental abilities unless these persons are supervised or instructed on the use of the tools by a person responsible for the safety of these persons. z Young adults below the age of 16 may not use the tools. Maintenance z Do not clean or carry out any maintenance work on the tool until after you switch the motor off and pull the mains plug. z Clean and oil the blades (we recommend using WD-40 multi- purpose oil) after each use. z Use the blade guard to sheath the cutting unit before transport and storage. Charger z Do not connect the charger to the power socket if it has become wet or damp. z Use the charger in dry rooms only. z Disconnect it from the power supply by removing the plug from the socket. Do not pull the plug by the cable as this could damage the equipment so that its electrical safety might be impaired. z Never use the charger, if there is visible damage to the cable, the plug or the charger itself. In this case, have the charger repaired at a specialized workshop. z Never open the charger housing. In the event of malfunction, have the charger repaired by a specialized workshop. z Do not charge the battery-powered shears while using them. Battery z In the event of improper use of the battery pack, there is a risk of escaping hazardous vapors. Always ensure proper ventilation and immediately consult a doctor, if you feel unwell. The vapors might irritate the respiratory track. 1 Risk of fire! z Never charge batteries near acids or flammable materials. z Charge battery only at a temperature between 10 - 45 °C. After heavy use, allow battery to cool down before charging it. 1 Risk of explosion! Protect the battery-powered trimmer from direct exposure to heat and fire. z Do not place the battery on radiators. Avoid prolonged direct exposure to sunlight. z Operate the tool only at temperatures between -20 to + 45 °C (-4 to 113 °F). 1 Risk of short circuit z For disposal, transport or storage, pack the battery in a plastic bag or a cardboard box, or isolate the contacts with adhesive tape. z Do not open the battery pack. Downloaded from www.Manualslib.com manuals search engine12

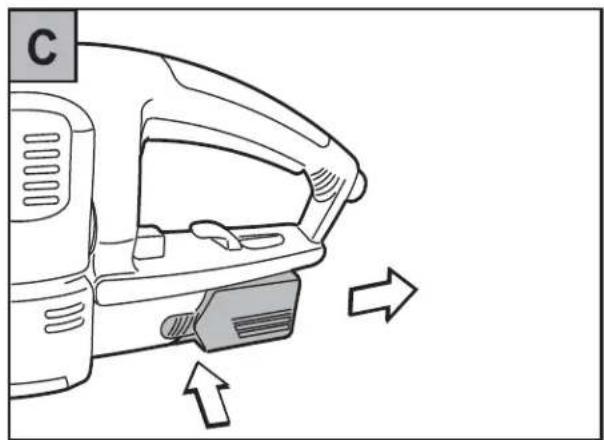

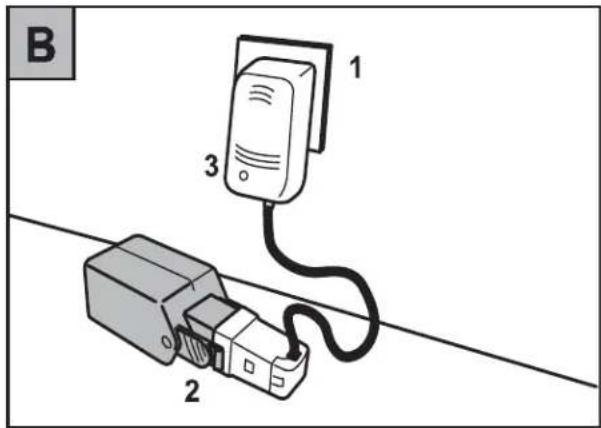

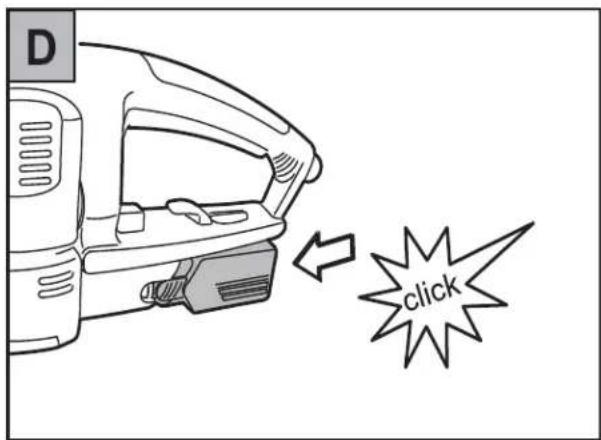

Safe disposal of batteries Disposal Assembly Attach protective shield z Attach the protective shield as shown. Operation Times of operation z Please consult regional/local regulations.z Inquire about the operating times at your local regulatory agen- cy. Charging 1 Caution! The charger must only be operated in dry rooms.Before using the shears for the first time, charge the battery for ap-prox. 2 hours.Recharge only with the original WOLF-Garten charger (part no. 7420 068) !1. Remove the battery from the hedge shears .2. Connect the charger to the power mains (1).3. Insert the battery into the adapter of the charger (2). 3 Instructions for the handling of the charger : z Red LED (3) is on: Battery is being chargedz Green LED (3) is on: Charge process completedz Red LED (3) flashing: Error 1 Self-discharge of batteries! Remove the battery from the charger once it is fully charged. 3 General instructions regarding the battery: In order to maintain the long service life of the battery, always follow the instructions below:z The hedge shears are automatically switched off when the battery voltage is low. The battery must then be re-charged before the shears can be used again.z Always recharge the lithium-ion battery prior to any pro-longed period of non-use, i.e. before storing the shears away in autumn.z The charging time is 2 hours for a battery that is comple-tely empty.z The lithium-ion rechargeable battery can be charged at any charge level and charging can be interrupted at any time without damaging the battery (no memory effect). Adjust blade head In order to ensure the same, ergonomically ideal handling in all cut-ting situations the blade head has a 5-position latching mechanism

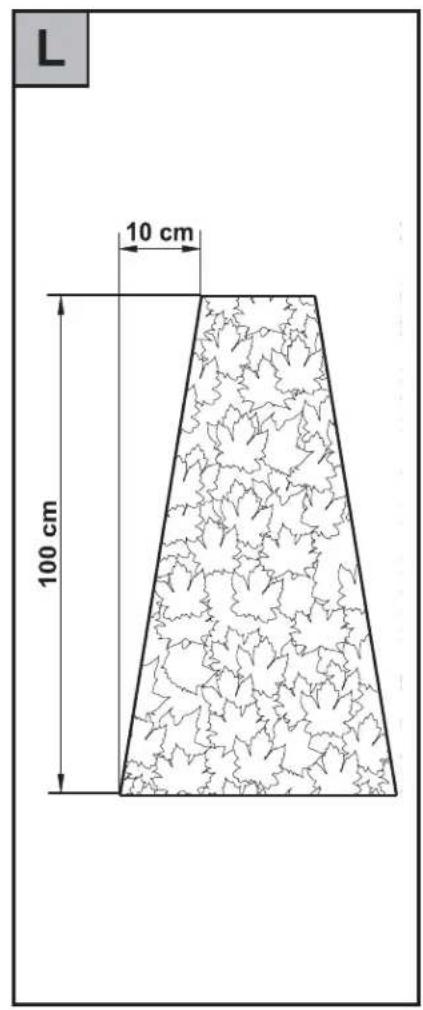

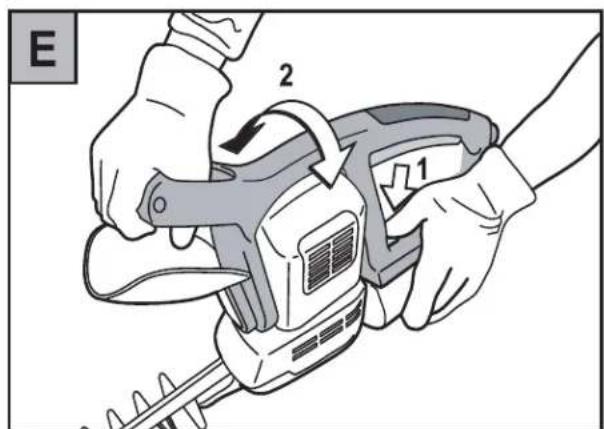

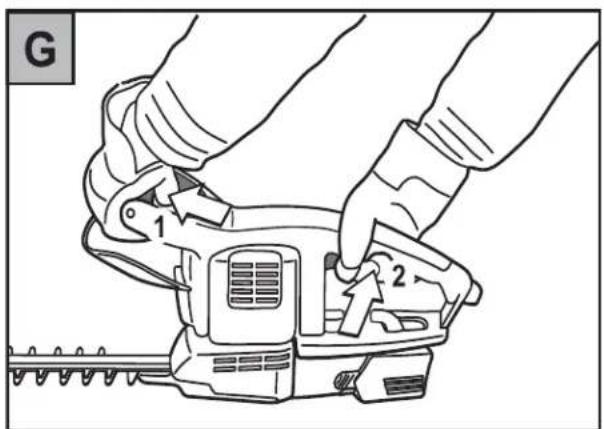

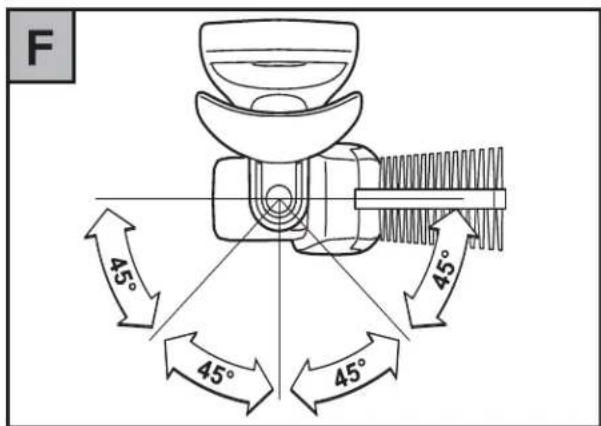

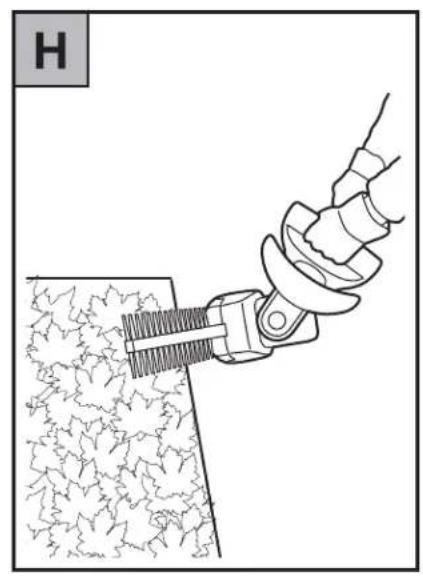

1 Attention! Reverse blade Perform adjustments to the device only when the motor is off and the blade is idle.1. Press the locking button down (1).2. Rotate the blade head into the desired position (2).3. Now release the locking button.4. Check whether the blade head is in place (the hedge shears can only be switched on if the blade head is snapped in). Switching the hedge shears on/off z Make sure that your hands are steady when working above head height.z Hold the blade away from your body.Motor on 1. Hold down the safety switch on the bowed handle (1).2. Press the on/off button on the hand grip (2) at the same time.Motor off z Release one of the two buttons. Tips for cutting z Please observe the brooding season of the birds!z The ideal hedge cutting form is the trapezoid , which provides for adequate light and ventilation for all parts of the hedge.z In order to promote thick growth of young hedges, only half of new shoots should be cut.z If the hedge has already reached the desired height, new shoots can be completely removed.z In order to achieve a steady hedge height you can string up a guide wire at the desired height and cut along this wire.z Cutting seasons: – Deciduous hedges: May/June and October (cutback to ap- prox. 1/3 of the total height in winter) – Conifer hedges: April and October – Conifers: April and October

WOLF-Garten batteries are designed according to the latest state of technology and optimized for the use in electric tools. Lithium ion cells contain hazardous substances and may therefore not be disposed off with normal household waste.z WOLF-Garten batteries are lithium ion cells and are therefore subject to special disposal regulations. Bring defective batteries to your specialist dealer. Before disposing of the tool, remove the battery.z WOLF-Garten wishes to encourage users to act in an environmentally friendly manner. It therefore guarantees to take back and recycle old batteries that are returned to WOLF-Garten dealers.z Electric tools must not be disposed with household waste. Bring the device, accessories and packaging to a recycling centre for proper recycling and disposal.

Downloaded from www.Manualslib.com manuals search engine13

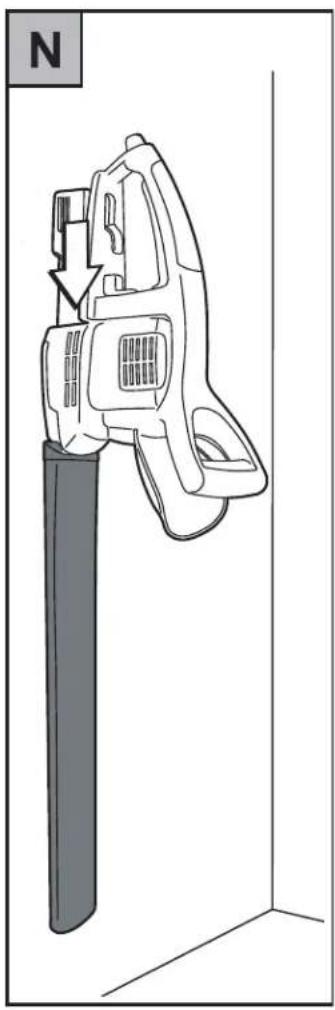

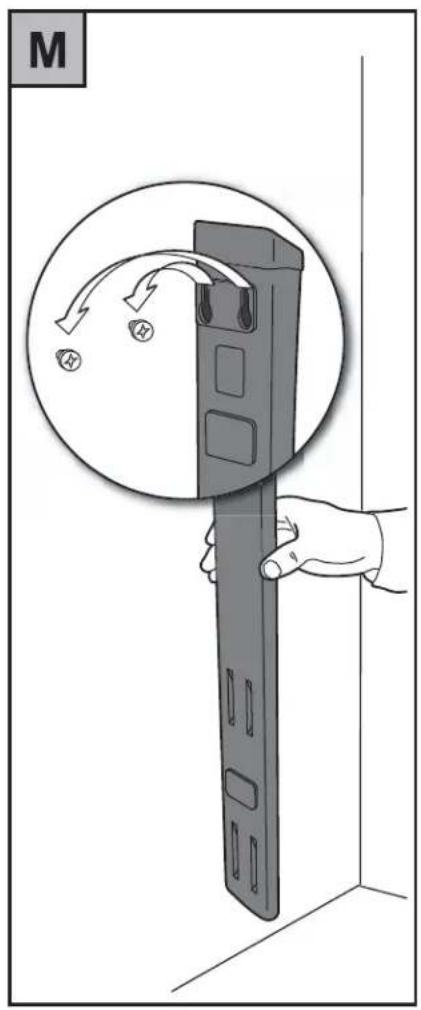

Maintenance General 1 Attention! Reverse blade Before all maintenance and cleaning work: z Pull out the power plug. z Do not touch moving blades. Cleaning z Clean the hedge shears with a dry towel, particularly the ventila- tion slits, after each use or using a brush in the case of heavy soiling. z Spray the blades with oil after each use. z Under no circumstances spray the hedge shears off with water. Storage z Store the hedge shears in the blade scabbard provided. – For easy storage the blade scabbard can be mounted on the wall . – We recommend using the drill template (see page 86) for simple wall-mounting of the blade scabbard. z Store the hedge shears in a dry location out of the reach of children. Fixing problems Warranty The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a war- ranty claim, please turn to your dealer or the nearest branch office.

• Blunt blade. • Go to a WOLF-Garten Service location.

• Too much friction due to inadequate lubrication • Oil blades Motor does not run. • Not connected to voltage supply

• Check the power supply and have electrician per- form repairs if necessary. Jittery operation, hea- vy vibration of the de- vice

• Blade damaged • Go to WOLF-Garten Service location.

• Blade not firmly in stabilizer. • Go to WOLF-Garten Service location. When in doubt, always seek out a WOLF-Garten Service location. 1 Before checking the hedge trimmer or carrying out work on the blade, remove the battery. Downloaded from www.Manualslib.com manuals search engine14
