CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS

15,2 kg

CTM 48 E, CTM 48 E LE

18,8 kg

CTM 48 E AC, CTM 48 E LE AC

19,6 kg

Original operating manual

1 Safety instructions

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

- This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children need to be supervised to ensure they do not play with the appliance.

M ! i M

• WARNING! Machine may contain hazardous dust. Only authorised qualified specialists with suitable protective equipment may perform maintenance, empty the container and change the filter.
• Always operate with the filter system installed!
• Always use suitable protective equipment!
• If intact following a visual inspection, work in a dry environment according to instructions!

When extracting large quantities of oak or beech wood dust or dust that exceeds the permitted limit values, only extract from a single machine (electric or air tool).

– Risk of explosion and fire: Do not absorb:

• Sparks or hot dust;
• Combustible or explosive materials (e.g. magnesium, aluminium, petrol, diluting agents – with the exception of wood);
• Aggressive materials (e.g. acid, alkaline solutions, solvents);

• Chemically reactive materials, which lead to the generation of heat, acids/bases, gases, etc. (e.g. reactive 2-component materials, aluminium and water).

• Observe all national safety regulations as well as the material manufacturer's specifications!

• Always use the socket on the machine for the purpose specified!
• Check the plug and the cable regularly and should either become damaged, in order to avoid a hazard, have them replaced by an authorised after-sales service workshop.
• Do not lift or transport using a crane hook or lifting gear!

2 S y m b o

Symbol Significance

Warning of general danger

Risk of electric shock

Read operating instructions and safety notices!

Wear a dust mask.

Tip or advice

Handling instruction

Warning! The machine may contain hazardous dust!

Do not dispose of as domestic waste.

3 Machine features

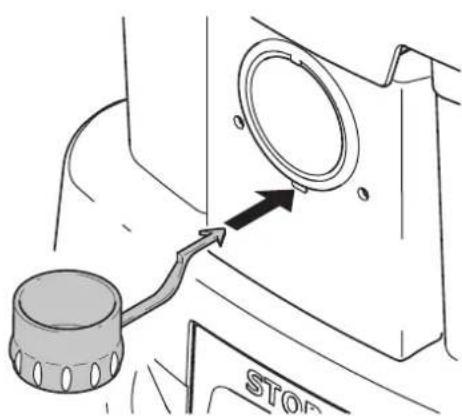

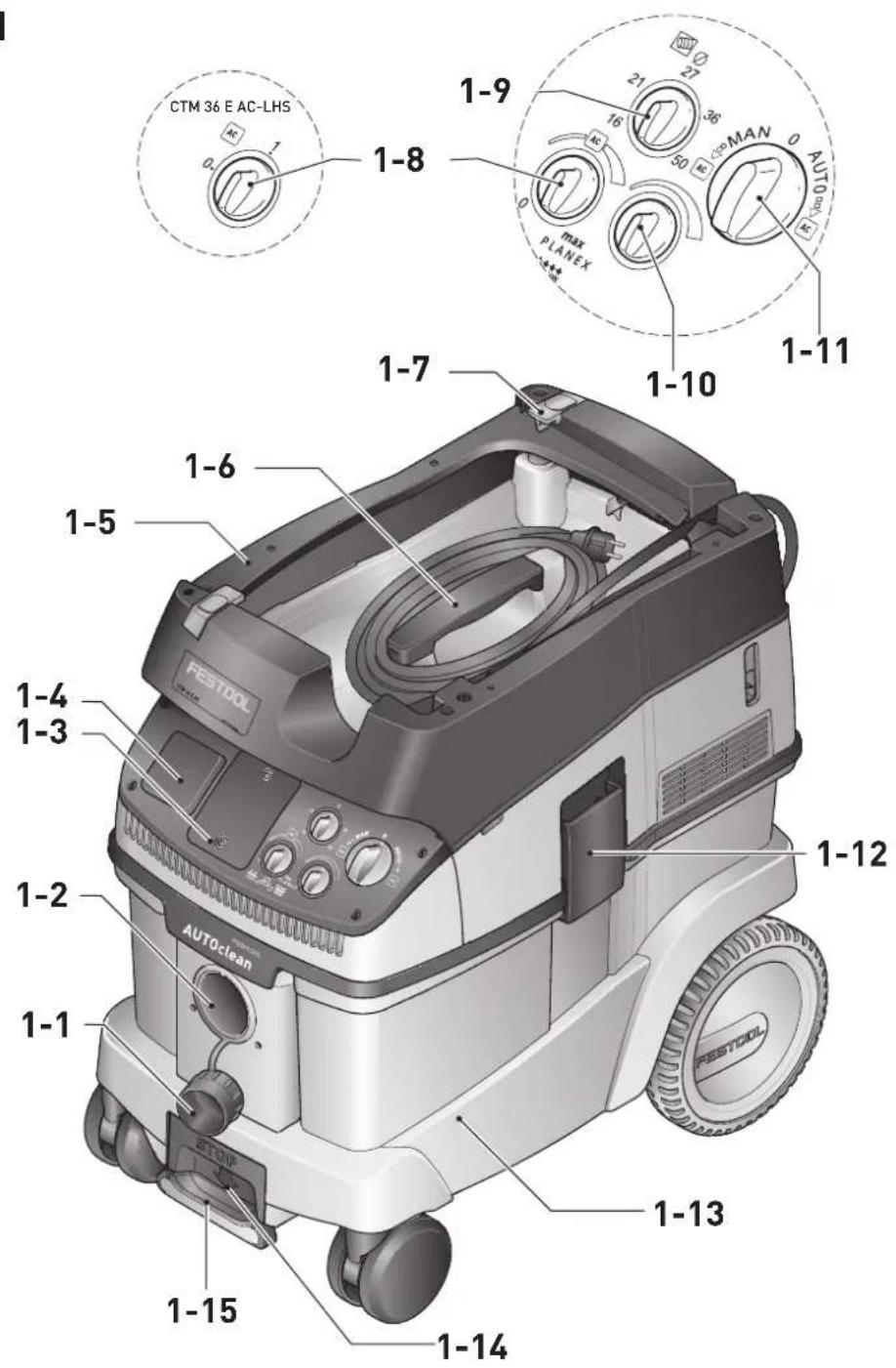

[1-1] Sealing plug

[1-2] Intake opening

[1-3] Module slot (compressed air module for CTM 36 E LE, CTM 36 E LE AC, CTM 48 E LE, CTM 48 E LE AC)

[1-4] Appliance socket

[1-5] Hose store

[1-6] Handle

[1-7] SysDoc

[1-8] Automatic cleaning (only versions with AutoClean)

[1-9] Hose diameter setting

[1-10] Suction power adjuster

[1-11] Switch

[1-12] Locking clip

[1-13] Dust container

[1-15] Brake

The specified illustrations appear at the beginning of the Operating Instructions.

4 T e c h n i c a l d a t

Mobile dust extractors

Power consumption 350 - 1200 W
Maximum appliance socket connected load	EU	2400 W
	CH, DK	1100 W
	GB 240 V/ 110 V	1800 W/ 500 W
Max. suction capacity (air), turbine 234 m3/h (3900 l/min)
Max. vacuum, turbine 24000 Pa
Filter surface area 6318 cm2
Suction hose D 27 mm x 3,5 m-AS
Length of the net cable 7,5 m
Sound pressure level as per EN 60704-2-1 / Uncertainty K 71 dB(A) / 3 dB
Protection category IP X4
Container capacity	CTM 26 E, CTM 26 E AC	26 L
CTM 36 E, CTM 36 E LE, CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS		36 L
CTM 48 E, CTM 48 E LE, CTM 48 E AC, CTM 48 E LE AC		48 L
Dimensions L x W x H	CTM 26 E, CTM 26 E AC	630 x 365 x 540 mm
CTM 36 E, CTM 36 E LE, CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS		630 x 365 x 596 mm
CTM 48 E, CTM 48 E LE, CTM 48 E AC, CTM 48 E LE AC		740 x 406 x 1005 mm
Weight	CTM 26 E	13,9 kg
	CTM 26 E AC	14,7 kg
	CTM 36 E, CTM 36 E LE	14,4 kg

Mobile dust extractors

CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS	15,2 kg
CTM 48 E, CTM 48 E LE	18,8 kg
CTM 48 E AC, CTM 48 E LE AC	19,6 kg

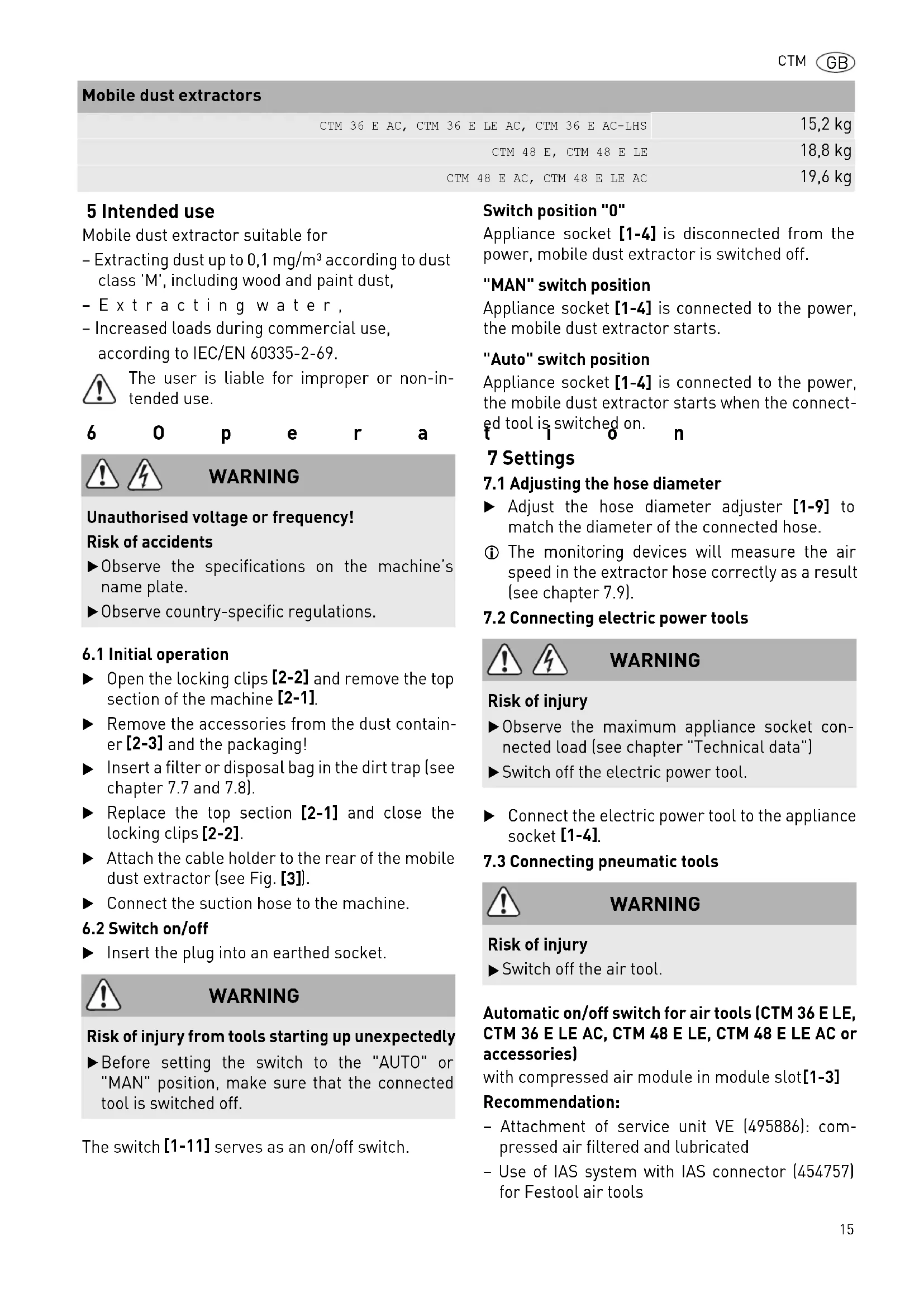

5 Intended use

Mobile dust extractor suitable for

• Extracting dust up to 0,1 mg/m ^3 according to dust class 'M', including wood and paint dust,
• Extracting water,
• Increased loads during commercial use, according to IEC/EN 60335-2-69.

The user is liable for improper or non-in-tended use.

6 0 p e r a

WARNING

Unauthorised voltage or frequency!

Risk of accidents

Observe the specifications on the machine's name plate.
▶ Observe country-specific regulations.

6.1 Initial operation

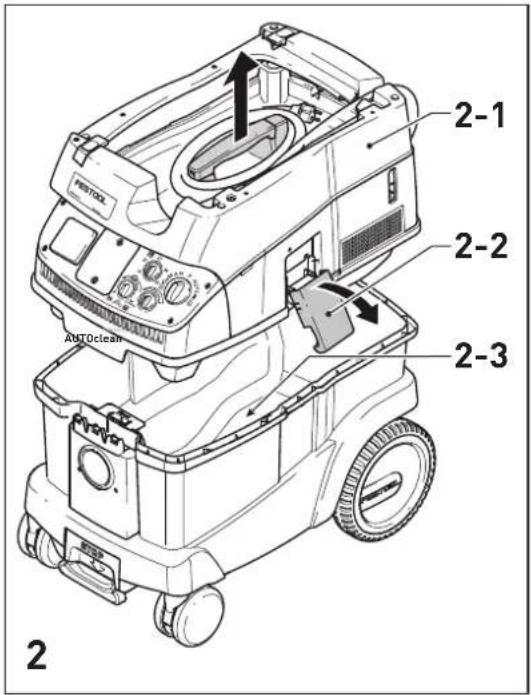

▶ Open the locking clips [2-2] and remove the top section of the machine [2-1] .
▶ Remove the accessories from the dust container [2-3] and the packaging!
▶ Insert a filter or disposal bag in the dirt trap (see chapter 7.7 and 7.8).
▶ Replace the top section [2-1] and close the locking clips [2-2].

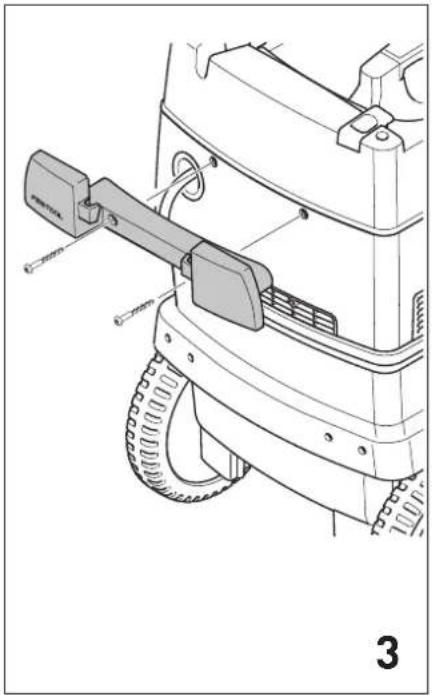

▶ Attach the cable holder to the rear of the mobile dust extractor (see Fig. [3]).
▶ Connect the suction hose to the machine.

6.2 Switch on/off

▶ Insert the plug into an earthed socket.

WARNING

Risk of injury from tools starting up unexpectedly

▶ Before setting the switch to the "AUTO" or "MAN" position, make sure that the connected tool is switched off.

The switch [1-11] serves as an on/off switch.

Switch position "0"

Appliance socket [1-4] is disconnected from the power, mobile dust extractor is switched off.

"MAN" switch position

Appliance socket [1-4] is connected to the power, the mobile dust extractor starts.

"Auto" switch position

Appliance socket [1-4] is connected to the power, the mobile dust extractor starts when the connected tool is switched on.

7 Settings

7.1 Adjusting the hose diameter

▶ Adjust the hose diameter adjuster [1-9] to match the diameter of the connected hose.
① The monitoring devices will measure the air speed in the extractor hose correctly as a result (see chapter 7.9).

7.2 Connecting electric power tools

WARNING

Risk of injury

▶ Observe the maximum appliance socket connected load (see chapter "Technical data")
▶ Switch off the electric power tool.

▶ Connect the electric power tool to the appliance socket [1-4].

7.3 Connecting pneumatic tools

WARNING

Risk of injury

▶ Switch off the air tool.

Automatic on/off switch for air tools (CTM 36 E LE, CTM 36 E LE AC, CTM 48 E LE, CTM 48 E LE AC or accessories)

with compressed air module in module slot[1-3]

Recommendation:

• Attachment of service unit VE (495886): compressed air filtered and lubricated
• Use of IAS system with IAS connector (454757) for Festool air tools

Requirement: tool with operating pressure of 6 bar!

7.4 Adjusting the suction power

▶ Use the rotary knob [1-10].

7.5 Applying the brake

Folding out the black brake lever [1-15] prevents the mobile dust extractor from rolling. To achieve this, lift the front end of the mobile dust extractor slightly and push the black brake lever downwards until it latches into place. Push the green lever [1-14] again to release.

7.6 Temperature cut-out

A temperature cut-out switches the mobile dust extractor off when it reaches a critical temperature to prevent overheating.

▶ Switch off the mobile dust extractor, allow to cool for about 5 minutes then switch on again.

① Not possible to switch on: contact Festool service workshop.

7.7 Changing the filter bag 36/48]

(SC FIS-CT 26/

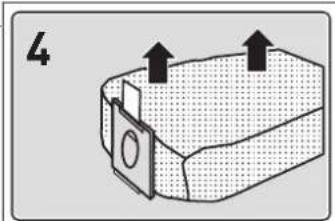

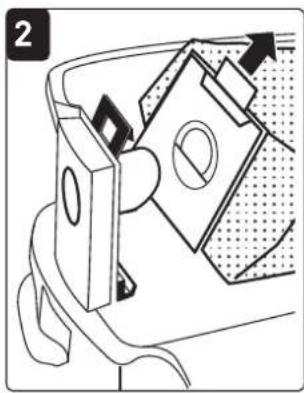

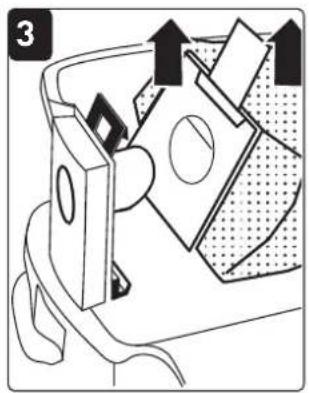

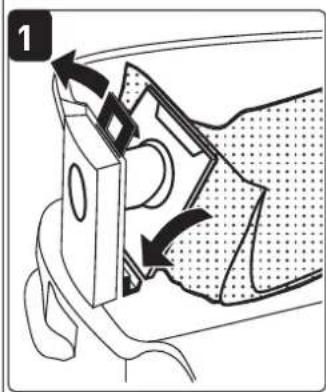

Removing the filter bag [4]

▶ Open the locking clips [2-2] and remove the top section of the machine [2-1] .
▶ Remove the filter bag.
▶ Dispose of the used filter bag in accordance with statutory regulations.
▶ Clean the dust container [2-3].

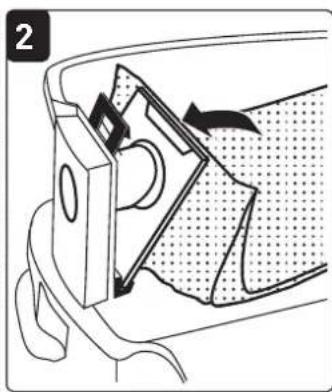

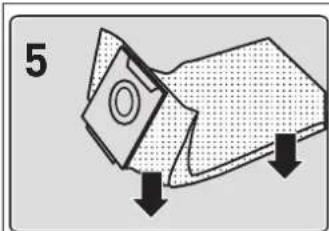

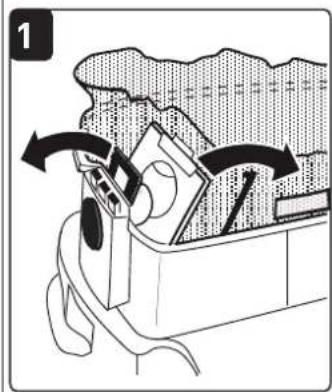

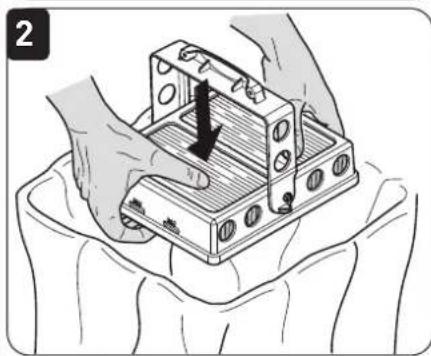

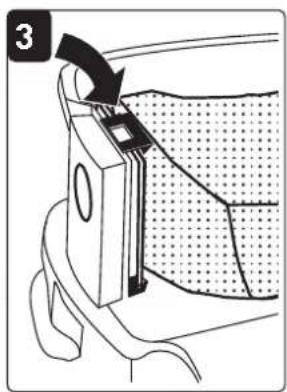

Inserting the filter bag [5]

▶ Insert a new filter bag (SC FIS-CT 26/36/48) in the inlet port of the dust container and interlock it. Important: be aware that the locking engages.

▶ Replace the top section [2-1] and close the locking clips [2-2] .
① Make sure that the filter bag is not pinched between the top and bottom sections.

7.8 Changing the disposal bag

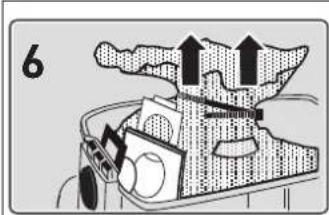

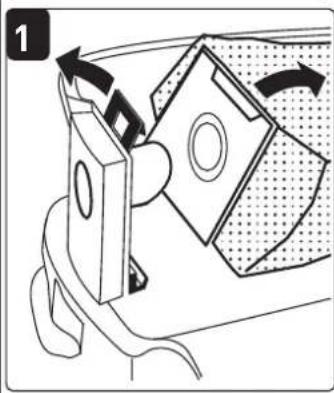

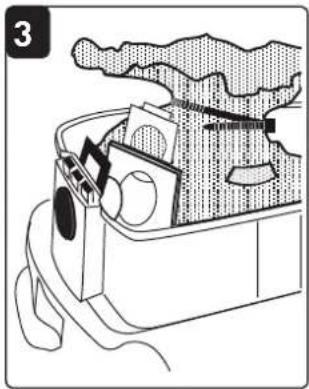

Removing the disposal bag [6]

▶ Close off the extractor opening [1-2] using the sealing plug [1-1].
▶ Open the locking clips [2-2] and remove the top section of the machine [2-1] .

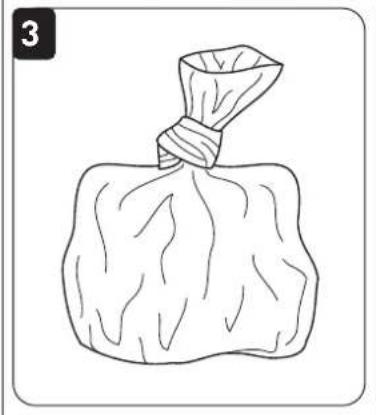

▶ Close the disposal bag.
▶ Remove the disposal bag.
▶ Dispose of the used disposal bag in accordance with statutory regulations.
▶ Clean the dust container [2-3].

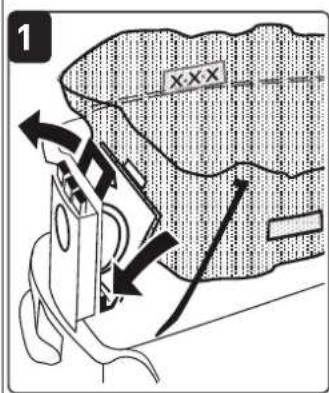

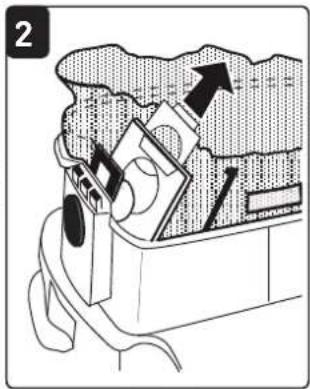

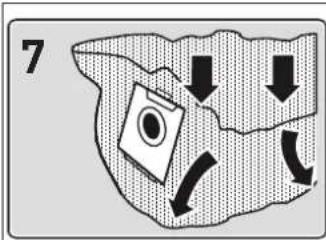

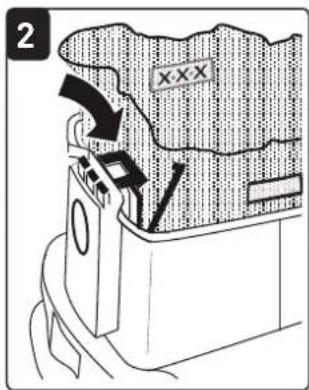

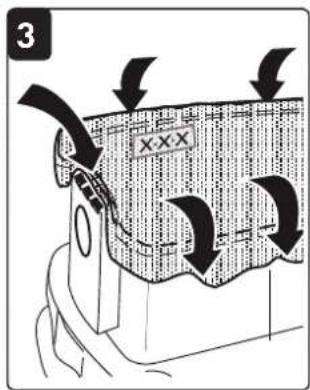

Inserting the disposal bag [7]

▶ Insert a new disposal bag (ENS-CT26/36/48) on the inlet nozzle of the container and lock in position.
Important: The lateral openings on the disposal bag must be positioned inside the container. Make sure that the bolt engages.
▶ Place the disposal bag over the edge of the container.

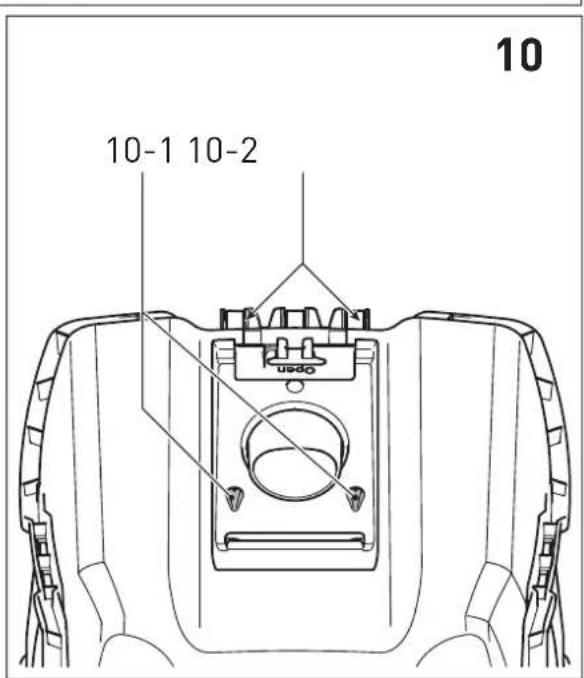

Make sure that the contacts[10-2] are free.

▶ Replace the top section [2-1] and close the locking clips [2-2] .

7.9 Volumetric flow monitoring

An acoustic warning signal sounds if the air speed in the suction hose falls below 20 m/s.

Possible causes Solution
Value set on the suction power adjuster [1-10] is too low.	Set the suction power adjuster to a higher value (see Chapter 7.4).
Rotary knob [1-9] not set to the correct hose diameter.	Set the knob to the correct hose diameter (see Chapter 7.1).
Suction hose blocked or kinked. Remove blockage	or kink.
Filter bag full. Insert a new filter bag (see Chapter	7.7).
Filter element clogged. Change the filter element	(see Chapter 9.1).Only AUTOClean: Clean filter element (see chapter 8.2).
Monitoring electronics malfunction. Send to a Fest	tool service workshop for repair.
Wet extraction. Functional reliability not affected,	no actions required.

8 W o r k i

8.1 Handling

Hose store: after finishing work, you can feed the suction hose through the recess[8-3] and place it in the hose store. You can do the same with the mains cable through the other recess[8-2].

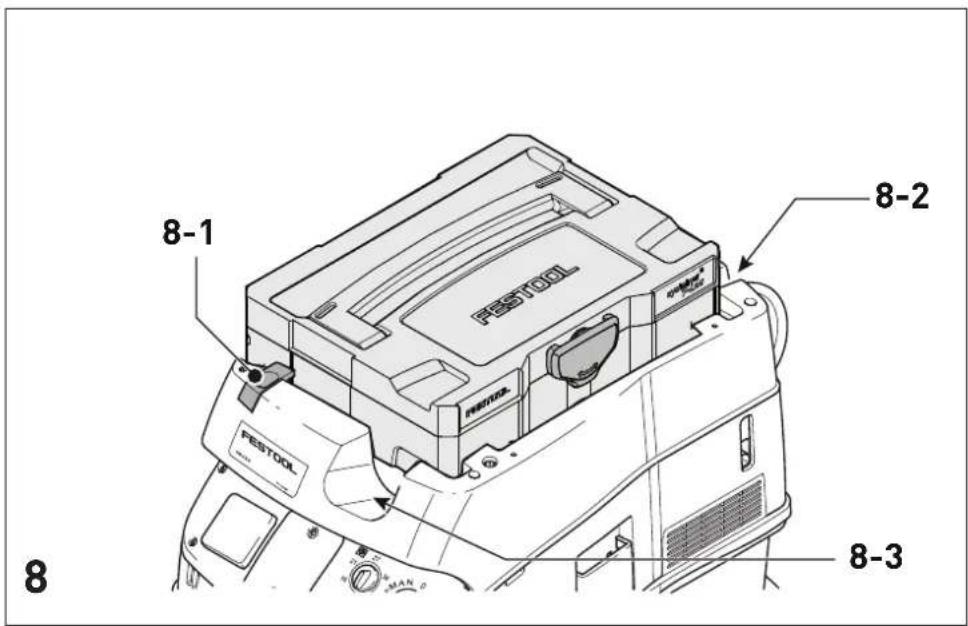

SysDoc Systainer attachment system: a Systainer can be attached to the storage area via the two slides [8-1] .

8.2 AUTO Clean - Cleaning the main filter

(only versions with AutoClean)

Only in conjunction with disposal bag (compliance with dust class 'M'). Not suitable for wet extraction!

Automatic cleaning

Adjust the frequency using the rotary knob [1-8].

Only CTM for 36 E AC-LHS: switch on using the rotary knob [1-8].

Manual cleaning

Turn the switch [1-11] to the AC symbol.

Full manual cleaning

▶ Cover the end of the nozzle or suction hose with your hand or closing slide CT-VS (497926) for 2 seconds.
▶ Turn the switch [1-11] to the AC symbol.

8.3 Special features of the CTM 36 E AC-LHS

To use the mobile dust extractor in combination with the PLANEX:

▶ Use kink-resistant suction hose D 36 mm x 3.5 m-AS.
▶ Use a special suction sleeve for connecting the PLANEX.
▶ Use closing slide CT-VS between the intake opening [1-2] and suction hose.
▶ Attach the tool holder.
▶ Always use with a disposal bag!

8.4 Extracting dry materials

CAUTION

Hazardous dust

Damage to the respiratory passage

▶ Use a filter or disposal bag when extracting hazardous materials!
▶ Do not use the machine if the volumetric flow monitoring function is inactive.

Observe the following when extracting dust generated by operating electric power tools:

In the exhaust air is discharged back into the room, the air renewal rate L within the room must be sufficient. The volume of air discharged back into the room must not exceed 50% of the fresh air volume flow (room volume V_R x air renewal rate L_W ). Observe all the relevant regional regulations.

Remember: A moist main filter clogs more quickly when extracting dry materials. Therefore, dry the main filter before extracting dust or replace the damp filter with a dry one.

8.5 Extracting wet materials/liquids

Remove the filter or disposal bag!

Recommendation: use special wet filter (NF-CT).

The dust extractor stops automatically when the maximum level is reached.

After wet extraction, allow the main filter to dry!

CAUTION

Escaping foam and fluids

▶ Switch off and empty the machine immediately.

8.6 After finishing work

▶ Only versions with AutoClean the main filter automatically or manually (see chapter 8.2).
▶ Switch off the mobile dust extractor and pull out the mains plug.
▶ Wind up the mains power cable.
▶ Empty the dirt trap.
▶ Close off the extractor opening [1-2] using the sealing plug [1-1].

WARNING

Hazardous dust

Damage to the respiratory passage

▶ Wipe down the mobile dust extractor and clean all accessories thoroughly using the extractor (inside and out) before removing from the working area.
▶ Parts that you were not able to clean thoroughly must be sealed in an airtight plastic bag prior to transportation.
▶ Wear a dust mask!

The machine shall be stored indoors only.

GB CTM

▶ Place the mobile dust extractor in a dry room inaccessible to unauthorised users.

9 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always disconnect the mains plug from the socket before performing maintenance work on the machine!
▶ All maintenance and repair work which requires the motor housing to be opened must only be carried out by an authorised service workshop.

Customer service and repair only through manufacturer or service workshops: Please find the nearest address at: www.festool.com/service

Only use original Festool spare parts! Order No. at: www.festool.com/service

Damaged safety devices and components must be repaired or replaced in

a recognised specialist workshop, unless otherwise indicated in the operating manual.

Observe the following instructions:

• The manufacturer or an instructed person must perform a dust test at least once a year to determine whether the filter is damaged, the machine is sealed properly and the monitoring features are functioning correctly.
• Anything that cannot be cleaned must be discarded in impermeable bags. Observe applicable disposal regulations!
• For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include, decontamination before dismantling, provision from local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

9.1 Changing the filter element

NOTE

Motor damage

▶ Never operate the extractor without a filter element fitted as the motor may become damaged.

▶ Open the locking clips [2-2] and remove the top section of the machine [2-1] .

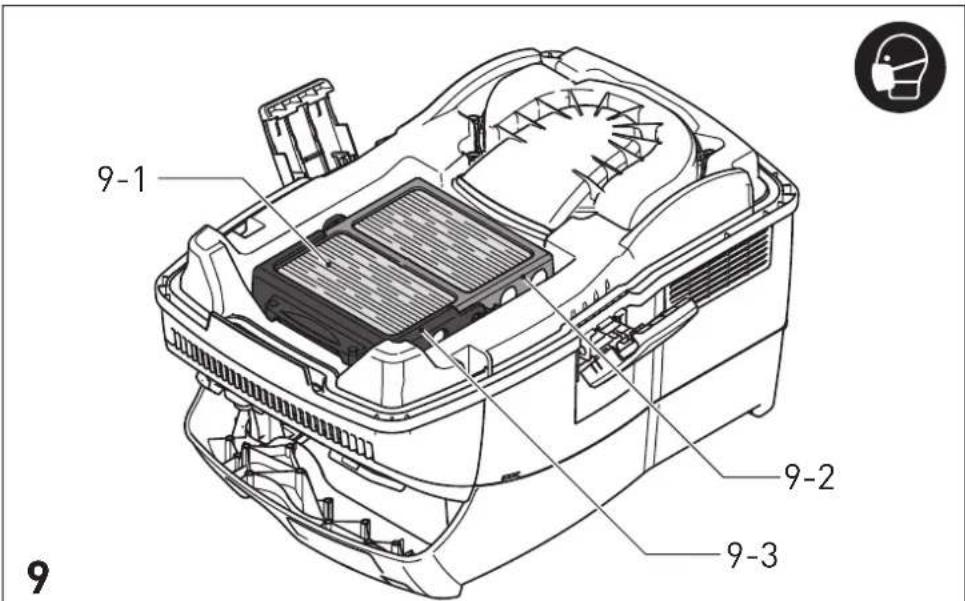

▶ Turn the top section of the machine so that the main filter is facing upwards (Fig.[9]).

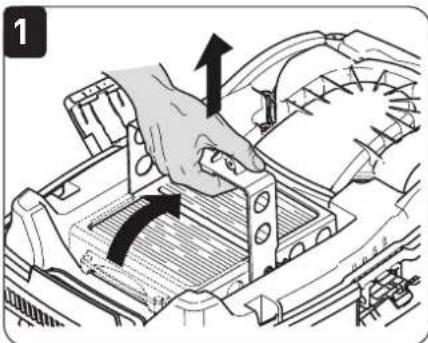

▶ Fold over the lever [9-3] and remove the retainer. [9-2]

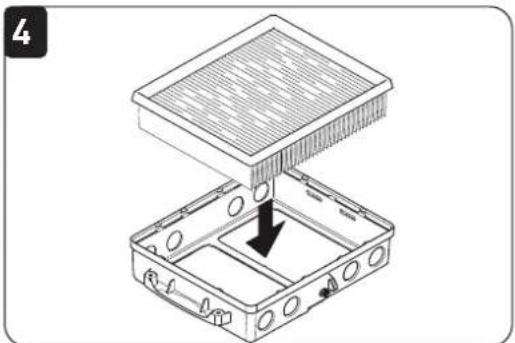

▶ Remove the used main filter and replace [9-1] with a new one.
▶ Dispose of the used filter in accordance with statutory regulations.

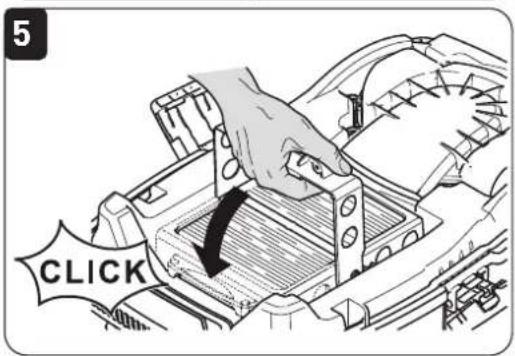

▶ Insert the retainer [9-2] and fold over the lever [9-3] until it engages.
▶ Replace the top section [2-1] and close the locking clips [2-2].

9.2 Emptying the dust container

The dust container [2-3] can be emptied once the top section has been removed.

▶ After extracting fluids, clean the fill level sensors [10-1] regularly with a soft cloth and inspect for damage.

10 Accessories

The order numbers for the accessories and filters can be found in the Festool catalogue or on the Internet at "www.festool.com".

10.1 Modules

The following modules for upgrading the mobile dust extractor are available in the accessories programme. Modules must be fitted to the module slot [1-3] by an authorised service workshop:

• Compressed air module,
• Socket module with permanent power supply,
• Socket module with automatic switch-on unit (not suitable for GB 110 V version),
• Energy box module (EAA) for using the automatic switch-on unit on the EAA.

You can find more detailed information on the modules at "www.festool.com".

11 Environment

Do not dispose of the device in household waste! Recycle devices, accessories and packaging. Observe applicable national regulations.

EU only: In accordance with European

Directive on waste electrical and electronic equipment and implementation in national law, used electric power tools must be collected separately and handed in for environmentally friendly recycling.

Information on REACH: www.festool.com/reach

12 EU Declaration of Conformity

Mobile dust extractor Serial no.
CTM 26 E 495865, 495866, 495870
CTM 26 E AC 498732, 498734, 200443
CTM 36 E 495867, 495868, 495871
CTM 36 E AC 498735, 498736, 498740
CTM 36 E AC-LHS 500862, 500861, 500863, 500865
CTM 36 E LE 495869, 496947
CTM 36 E LE AC 498738
CTM 48 E 498006, 498007
CTM 48 E LE 498008
CTM 48 E AC 498763, 498764
CTM 48 E LE AC 498023
Year of CE mark:
CTM 26 E, CTM 36 E, CTM 36 E LE	2009
CTM 26 E AC, CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS	2010
CTM 48 E, CTM 48 E LE, CTM 48 E AC, CTM 48 E LE AC	2011

We declare under sole responsibility that this product complies with all the relevant requirements in the following directives, standards and normative documents:

2006/42/EC, 2004/108/EC (up to 19.04.2016), 2014/30/EU (from 20.04.2016), 2011/65/EU, EN 60335-1:2012, EN 60335-2-69:2012, EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+Corrigendum 1997+A1:2001+A2:2008, EN 2:2006+A1:2009+A2:2009, EN 61000-3-3:2013.

Festool GmbH

Wertstr. 20, D-73240 Wendlingen, Germany

:v.W.8C

Wolfgang Zondler

Head of Research, Development and Technical Documentation

2015-07-20

CTM 36 E AC, CTM 36 E LE AC, CTM 36 E AC-LHS

15,2 kg

CTM 48 E, CTM 48 E LE

18,8 kg

CTM 48 E AC, CTM 48 E LE AC

19,6 kg

5 Avsedd användning

(SC FIS-CT 26/36/48)

Suodatinpussin irrotus [4]

CTM 36 E AC 498735, 498736, 498740

(SC FIS-CT 26/36/48)

Ta ut filterpose [4]

Sette inn filterpose [5]
