Product type	Spotting scope
Brand	Swarovski
Model	ATS 80 HD
Category	Binoculars
Objective lens diameter	80 mm
Magnification	Variable (depending on eyepiece)
Eyepiece type	Bayonet, interchangeable
Viewfinder	Integrated
Sunshade	Integrated, removable
Tripod attachment	Thread 3/8" UNC with 1/4" UNC reducer
Focus adjustment	Knob
Magnification change	Adjustment ring (on zoom eyepiece)
Eyepiece orientation	Click stops at 0°, ±45°, ±90°
Optical material	HD (High definition)
Optical coating	Swarovski multilayer coating
Power supply	None (optical instrument)
Warranty	10 years international
Maintenance	Microfiber cloth, gentle cleaning
Safety	Do not look at the sun
Spare parts	Eyepieces, sunshade, caps, SOC case

Frequently Asked Questions - ATS 80 HD Swarovski

How to attach the spotting scope to a tripod?

The tripod adapter is equipped with a 3/8" UNC thread. An integrated cover screw allows reducing the thread to 1/4" UNC for standard tripod heads. Tighten the clamping screw on the tripod collar to secure the device.

How to change the eyepiece?

To remove the eyepiece, pull down the locking device on the base body and turn the eyepiece to the left (counterclockwise). To install, align the marks and turn to the right until it locks.

How to adjust sharpness?

Use the focusing ring. For distant objects, turn to the right; for near objects, turn to the left. For precise focus, slightly turn the ring to the left then to the right until maximum sharpness is achieved.

How to use the sunshade?

The integrated, removable sunshade can be removed or installed by turning it slightly. It clicks into place. It protects the lens from side light and rain.

How to clean the lenses?

Use a special brush to remove large particles, then lightly moisten the surface with your breath and clean with a microfiber cloth. For the housing, use a soft, damp cloth. Wash the microfiber cloth in warm soapy water if necessary.

What is the warranty?

Swarovski Optik offers a 10-year international warranty against material and manufacturing defects. The first 5 years include labor. The warranty does not cover damage due to improper use or wear parts.

Can I use other eyepieces?

Yes, bayonet eyepieces from the Swarovski range are compatible (ATS/STS and ATM/STM 65/80). For optimal performance, use the new construction eyepieces.

How to orient the eyepiece?

Loosen the clamping screw on the tripod collar, rotate the telescope around the collar to the desired position, then retighten the screw. The click-stop positions are 0°, ±45°, and ±90° for the ATS model.

What to do in case of a problem?

Contact your Swarovski Optik dealer or an authorized after-sales service. Do not attempt repairs yourself, this would void the warranty. For any questions, consult the manual or the website www.swarovskioptik.com.

Where to find the manual?

The manual is available free of charge on notice-facile.com. You can download it in PDF or request a translation into other languages.

USER MANUAL ATS 80 HD Swarovski

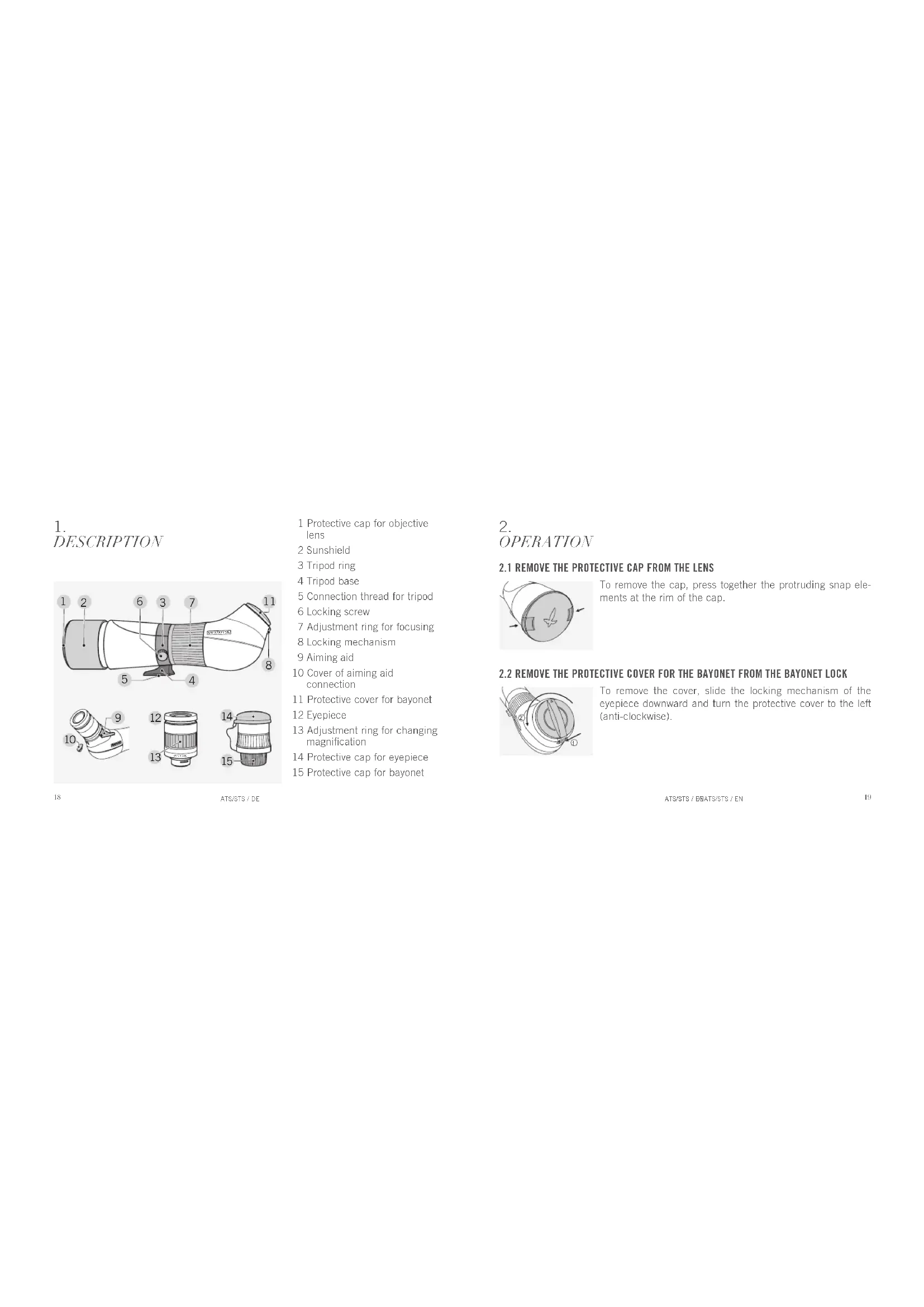

Technical diagram of a telescope with numbered parts and exploded view of the lens assembly

We thank you for choosing this product from SWAROVSKI OPTIK. If you have any questions, please consult your specialist dealer or contact us directly at WWW.SWAROVSKIOPTIK.COM.

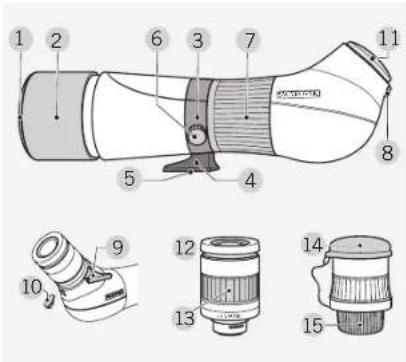

Technical diagram of a telescope with numbered parts and exploded view of the lens assembly

18

AIS/STS / DE

1 Protective cap for objective lens

2 Sunshield

3 Tripod ring

4 Tripod base

5 Connection thread for tripod

6 Locking screw

7 Adjustment ring for focusing

8 Locking mechanism

9 Aiming aid

10 Cover of aiming aid connection

11 Protective cover for bayonet

12 Eyepiece

13 Adjustment ring for changing magnification

14 Protective cap for eyepiece

15 Protective cap for bayonet

2

OPERATION

2.1 REMOVE THE PROTECTIVE CAP FROM THE LENS

To remove the cap, press together the protruding snap elements at the rim of the cap.

2.2 REMOVE THE PROTECTIVE COVER FOR THE BAYONET FROM THE BAYONET LOCK

To remove the cover, slide the locking mechanism of the eyepiece downward and turn the protective cover to the left (anti-clockwise).

ATS/STS / DNA/STS / LN

19

2.3 MOUNTING TO TRIPOD

SWAROVSKI OPTIK tripod

The tripod base fits directly into the SWAROVSKI OPTIK tripod head.

Other tripods

The tripod base has a connecting thread of 3/8" UNC. The inserted bush reduces the connecting thread to 1/4". The spotting scope thus fits on any standard tripod.

2.4 AIMING AID

The mounted aiming aid is designed to help you align the spotting scope with the subject to be observed.

20

AIS/STS / DE

If you do not need the mounted aiming aid, please pull it out and insert the cover supplied.

2.5 ATTACHMENT AND DETACHMENT OF THE EYEPIECE

- Remove the protective cap for the bayonet from the eye-piece by screwing it to the left (anti-clockwise).

ATS/STS / DNA/STS / LN

- Align the marking on the eyepiece with the marking on the bayonet fitting.

- Insert the eyepiece and turn it to the right (clockwise) until the locking mechanism of the body clicks into the eyepiece.

- To remove the eyepiece, press the locking mechanism of the body downward and turn the eyepiece to the left (anti-clockwise) until it can be removed.

2.6 ADJUSTMENT OF THE SCREW-IN-TYP EYE CUP

Use without eyeglasses:

Turn the eye cup (counter-clockwise) until it stops.

Use with eyeglasses:

Turn the eye cup (clockwise) until it stops.

2.7 FOCUSING

- For distant objects, turn the adjustment ring for focusing to the right (clockwise).

- By turning the adjustment ring to the left (anti-clockwise), you can observe objects that are nearer.

- In order to ensure fatigue-free observation, turn the adjustment ring for focusing a bit to the left (anti-clockwise) until

the image becomes slightly unsharp. Then turn the adjustment ring to the right (clockwise) until the maximum image definition is attained for the first time.

- To retain the image definition over the entire range of magnification, you should carry out sharp focusing using the zoom eyepiece with the highest magnification.

Useful tip:

Use the focusing wheel of the spotting scope for accurate focusing. This reduces eye strain.

2.8 USE OF THE ZOOM EYEPIECE

To change magnification:

Turning the adjustment ring to the right (clockwise) decreases magnification.

Turning it to the left increases the magnification. You will be able to read the magnification above the index point.

2.9 CHANGING THE VIEWING ANGLE

- Turn the locking screw to the left (anti-clockwise) to unlock the tripod ring in position.

- With the scope on a tripod, turn the body of the scope to the desired viewing position. The ATS will click into place at: 0^ , ± 45^ , ± 90^ . The STS will click into place at: 0^ , ± 90^ .

24

AIS/STS / DE

- Turn the locking screw to the right (clockwise) to lock the tripod ring in position.

2.10 USING THE SUNSHIELD

The integrated, extendable sunshield keeps away disturbing lateral light and protects the objective lens from rain. The sunshield is best slid out and in with a slight rotary motion.

It snaps in when extended as well as when retracted. The protective cap for the objective lens can also be used

when the sunshield is extended.

ATS/STS / DNA/STS / LN

2.11 DISASSEMBLY OF THE PROTECTIVE CAP FOR THE EYEPIECE

The protective cap for the eyepiece is attached to the eyepiece with a cord. By loosening the screw on the eyepiece with a screwdriver, you can remove the cord with the cap from the eyepiece. Please reinsert the screw.

2.12 AFTER USING THE OBSERVATION SPOTTING SCOPE

• Please put the protective cap for the objective lens back on.
• In order to protect the cover glass in the bayonet fitting, leave the eyepiece mounted and protect it by putting on its protective cap or close the bayonet fitting with the cover provided for this purpose.
  • Additional protection with the SOC stay-on case.

3. MAINTENANCE AND CARE

3.1 LENS-CLEANING CLOTH

You can clean high sensitive lens surfaces with the enclosed special microfibre cloth. It is suitable for objective lens, ocular lens and eye-glasses. Please keep the cloth clean, as dirt can damage the lens surface. If the cloth gets dirty, it can be washed in luke-warm soapy water and air-dried. Please use it exclusively for cleaning lens surfaces!

3.2 CLEANING

We have designed all elements and surfaces to require little care. To ensure the long-lasting optical brilliance of your spotting scope, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the

lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned easily.

3.3 STORAGE

You should keep your spotting scope in a well-ventilated and dark place.

A wet spotting scope should to be dried before storage. In tropical regions or regions with a high humidity the best place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g., silica gel).

3.4 NOTICE

Eyepieces of the SWAROVSKI OPTIK AT and ST 80 spotting scopes fit mechanically into the bayonet lock of the main bodies ATS/STS and ATM/STM 65/80. But the best optical imaging is ensured if eyepieces of the new series are used.

28

AIS/STS / DE

4.

FOR YOUR SAFETY

1

4.1 WARNING!

Never look at the sun with the spotting scope! This leads to injury of your eyes!

4.2 GENERAL INFORMATION

Please protect your spotting scope from jolls and jars.

ATS/STS / DNA/STS / LN

29

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America and any work by non-authorised parties shall render the warranty void.

All details are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.

3D

AIS/STS / DE

ATS/STS / DRATS/STS / CN

1. DESCRIPTION

Technical diagram of a telescope with numbered parts and exploded views for each part

32

AIS/STS / DE

2.3 FIXATION AU TREPIED

Trépieds SWAROVSKI OPTIK

Technical diagram of a telescope with numbered parts and exploded view of the lens assembly

46

AIS/STS / DE

ATS/STS / DGA/STS/IT

1. DESCRIPCIÓN

Technical diagram of a telescope with numbered parts and exploded view of the lens assembly

60

AIS/STS / DE

Technical diagram of a telescope with numbered parts and exploded views for each part

74

AIS/STS / DE

Technical diagram of a telescope with numbered parts and corresponding close-up views of the lens assembly.

88

AIS/STS / DE

Technical diagram of a telescope with numbered parts and exploded views of the lens assembly

102

AIS/STS / DE

ATS/STS / DATA/STS / IT

105

Technical diagram of a telescope with numbered parts and exploded views of the lens assembly

116

AIS/SIS / DL

Technical diagram of a mechanical device with numbered parts and exploded views of the component

130

AIS/STS / DL

In procuring this optical product from SWAROVSKI OPTIK you now own a top quality instrument for which we grant a worldwide warranty of 10 years from the date of purchase in accordance with the following conditions:

If detects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that the range of products is changed, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

This warranty is valid only when this warranty/service document has been duly dated, stamped and signed by the Authorized dealer on the day of purchase.

In a warranty case and as well for service and/or repair work please present the instrument to your authorized SWAROWSKI OPTIK dealer together with this warranty/service document or send it; delivery free, directly to our address. Instruments sent without the warranty/service document enclosed will be repaired and the costs charged to the customer. The return shipment of the instrument. Insured (means of transport at our discretion), is free of charge in the case of repairs covered under warranty, otherwise charged to the customer. For shipments to foreign countries any foreign customs duties or fiscal charges are charged to the recipient.

This warranty is given by SWAROWSKI OPTIK KG, Absam, Austria. The place of jurisdiction is Innsbruck; Austrian law applies.

Insular as other guarantees/warranties (whether legally or voluntary) are pledged in individual countries, these must be fulfilled by the respective importer or authorized dealer. SWAROVSKI OPTIK KC, Absam, Austria, can therefore accept liability only when a legal obligation exists to do so.

Remarks for the United States of America:

For warranty services all products purchased in the United States, our only warranty authorized service is through SWAROVSKI OPTIK North America. For further information please call 1-800-428-3089.
