USER MANUAL CL Pocket 10x25 B Swarovski

DEUTSCH 3
ENGLISH 11
FRANÇAIS 19
ITALIANO 27
ESPAÑOL 35
NEDERLANDS 13
SVENSKA 51
SUOMI 59
DANSK 67
PYCCKN 75

We thank you for choosing this product from SWAROVSKI OPTIK. If you have any questions, please consult your specialist dealer or contact us directly at www.SWAROVSKIOPTIK.COM.

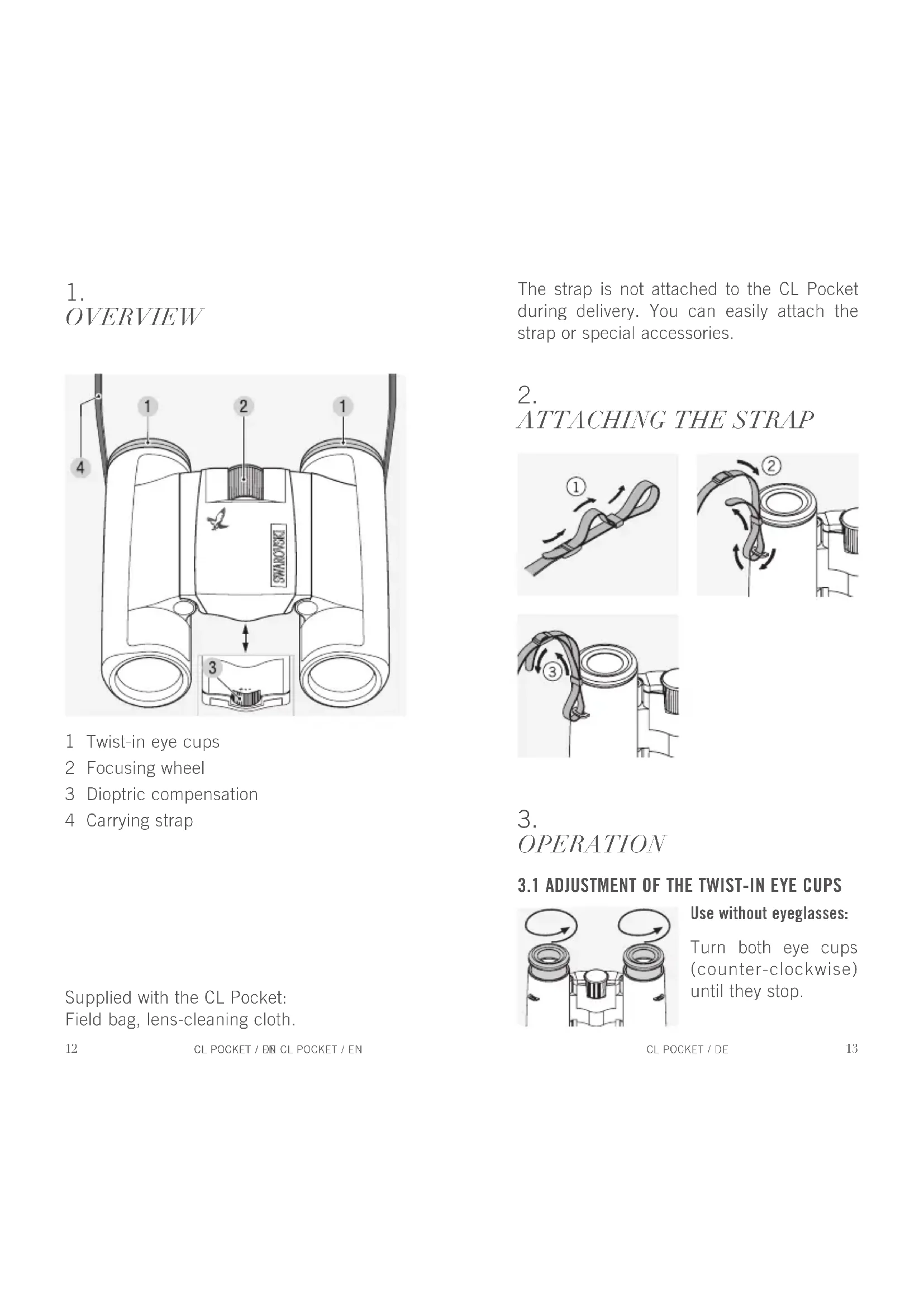

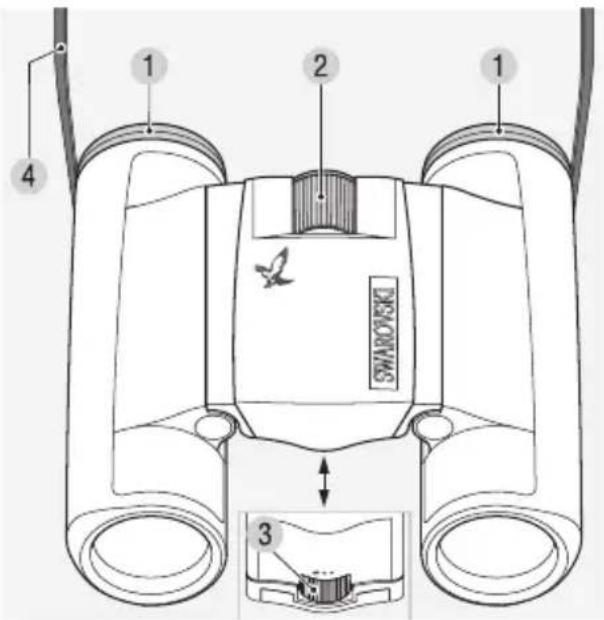

1 Twist-in eye cups
2 Focusing wheel
3 Dioptric compensation
4 Carrying strap

Supplied with the CL Pocket: Field bag, lens-cleaning cloth.

The strap is not attached to the CL Pocket during delivery. You can easily attach the strap or special accessories.

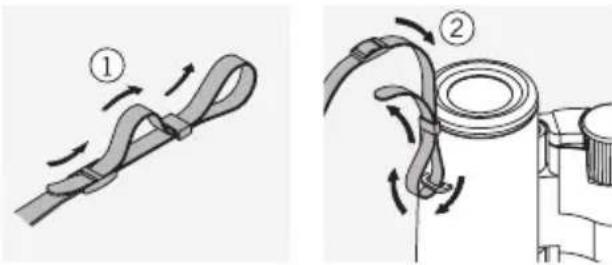

2. ATTACHING THE STRAP

3. OPERATION

3.1 ADJUSTMENT OF THE TWIST-IN EYE CUPS

Use without eyeglasses:

Turn both eye cups (counter-clockwise) until they stop.

Use with eyeglasses:

Turn both eye cups clockwise until they stop.

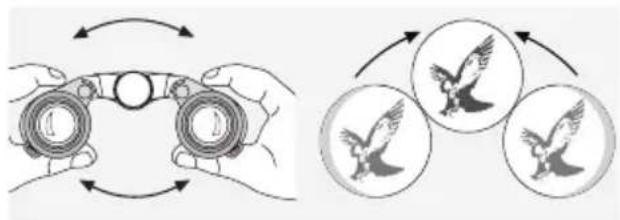

3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

3.3 ADJUSTMENT OF FOCUSING

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to

infinity by turning the focusing wheel.

3.4 DIOPTRIC COMPENSATION

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

Use with equal acuity of both eyes:

The dioptic compensation is set to "zero".

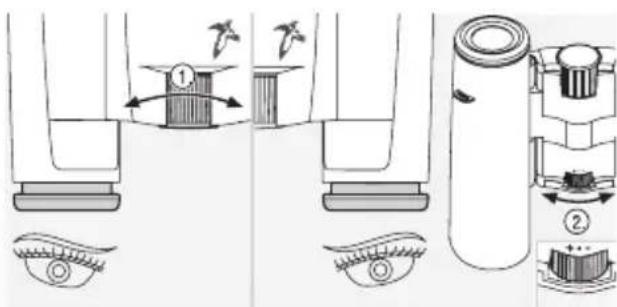

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Now, using your right eye, look at the same object through the right eyepiece and use the dioptic compensation to set the optimal image sharpness.

4. MAINTENANCE AND CARE

4.1 LENS-CLEANING CLOTH

You can clean high sensitive lens surfaces with the enclosed special cloth made of micro-fibres. It is suitable for objective lens, ocular lens and eyeglasses.

Please keep the cloth clean, as dirt can damage the lens surface. If the cloth gets dirty, it can be washed in luke-warm soapy water and air-dried. Please use it exclusively for cleaning lens surfaces!

4.2 CLEANING

We have designed all elements and surfaces to require little care.

To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned very easily.

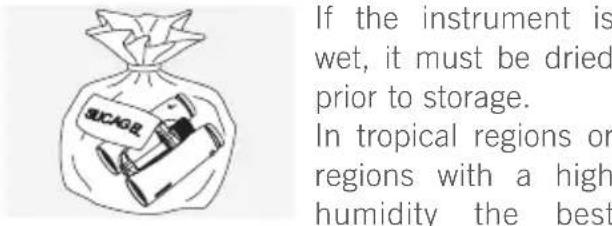

4.3 STORAGE

You should keep your binoculars in their bag in a dry, well ventilated place.

place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

5. FOR YOUR SAFETY!

Never look directly at the sun with the binoculars! This will damage your eyes!

Never look through the binoculars when walking, you could encounter obstacles!

Please protect your binoculars from jolts and jars.

Repair and servicework shall only becarried out by eitherSWAROVSKI OPTIKAbsam (Austria) orSWAROVSKI OPTIKNorth America and

any work by non-authorised parties shall render the warranty void.

All data are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.

1. VUE D'ENSEMBLE

2. APPLICATIONDELLA TRACOLLA

3. USO

3.1 REGOLAIZIONE DELLE CONCHIGLIE OCULARI GIREVOLI

Pn HcnoAb30BaHHN B Ouykax:

BpaaTe o6a Hara-3HnKa (no yacobon cTpeAke)do ynopa.

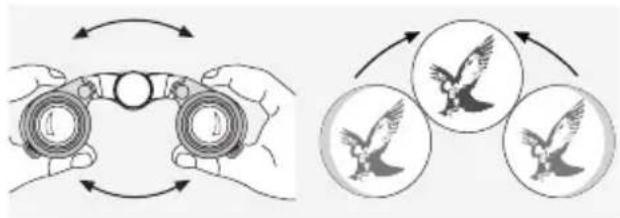

3.2 PEGYAMPOBKA MEX3PAUKOB0P0PACCTOHHN

AЯ noyueyn H3o6paXeHn B OaHOJ OKpyxHocTN Heo6xoAMo pa3BOaNTb OkyApbl AO noyueyn H3o6paXeHn 6e3 TeHei n NOMex.

3.3 HACTPOIKA PE3KOCTH H3OBPAXEHNIA

Bpaa MaxOBnK
0kucpoBKN, Bbl
MOKeTe BbINOAHHTb
0kucpoBky Ha
OBeKT OT camoro
MHHMaIbHOro pacc

TOHn（CM.TEXHueckyU CneuNkauHO）DO 6eckoheuHOCTn.

HnB Koem clyuae He CMOTpebYepe3 npnbop Ha coAnue!To MOxET CTaTB npunHOI NOBpeXdEHHBaWero 3peHH!

HnBkoemcayae He CMOTpeTB B 6HOKb BO BpemxOAb6bl!Bbl MOXeTe He 3aMeNTb npenrTCTBne n CNOTKHyTbcrao6 Hero!

ObeperaTe Baw npnbop oT ydapOB.

Pemont n 06ayknBaanne doxkbl OcyuectBArTbCn TOABKO ANBO SWAROVSKI OPTIK Absam (Abctpna) mSWAROVSKI OPTIK CeBepnA Amepnka.

AIO6bIe pa60tbl HeynoHOMOueHHoN CTOpOHOn pINBOADT K NOTepe rapaHTn.

Bce npametpbI ABMAOTCA TINOBIMN.

PpOIN3BODHTeAeOBCTABAHET 3a CO60IpaBO H3MeHRTb KOHCTyKUHO N KOMIAE NOCTABKN, OH He Hecet OTBETCTBEHHOCTH 3a BO3MOXKHeI ONEaHTKn.

GARANTIE

You have purchased a high class quality product from SWAROVSKI OPTIK for which we grant a worldwide warranty of 10 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that the range of products is changed, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

This warranty is valid only when this warranty/service document has been duly dated, stamped and signed by the Authorized dealer on the day of purchase.

In a warranty case and as well for service and/or repair work please present the instrument to your authorized SWAROVSKI OPTIK dealer together with this warranty/ service document or send it, delivery-free, directly to our address. Instruments sent without the warranty/service document enclosed will be repaired and the costs charged to the customer. The return shipment of the instrument, insured (means of transport at our discretion), is free of charge in the case of repairs covered under warranty, otherwise charged to the customer. For shipments to foreign countries any foreign customs duties or fiscal charges are charged to the recipient.

This warranty is given by SWAROVSKI OPTIK KG, Absam, Austria. The place of jurisdiction is Innsbruck; Austrian law applies.

Insofar as other guarantees/warranties (whether legally or voluntary) are pledged in individual countries, these must be fulfilled by the respective importer or authorized dealer. SWAROVSKI OPTIK KG, Absam, Austria, can therefore accept liability only when a legal obligation exists to do so.

Remarks for the United States of America:

For warranty services all products purchased in the United States, our only warranty authorized service is through SWAROVSKI OPTIK North America. For further information please call 1-800-426-3089.
