USER MANUAL SKHL 1200 A1 SILVERCREST

1.1 Intended use   6

1.2 Scope of delivery   6

2. Safety indications for room heating appliances    8

4.1 Switching the appliance on/Setting heating levels   10

4.4 Switching the appliance off   11

5. Protective devices for the appliance   11

6. Maintenance, cleaning and storage   12

Congratulations on purchasing your new appliance. You have decided in favour of a high-quality pro- duct. The operating instructions are part of this pro- duct. They contain important information regarding the safety, use and disposal. Familiarise yourself with all the operating and safety indications prior to using the product. Only use the product as de- scribed and for the specified areas of use. If you pass the product on to third parties, hand out all the documents too.

This appliance is only determined for heating closed, dry, rooms during the transitory period. It can be used as supplementary heating or a temporary heating op- tion in well-insulated, small rooms. The appliance can

xclusively be used as a floor-mounted appliance. The appliance is not intended for use in rooms in which special conditions prevail, e.g. a corrosive or explo

sive atmosphere (dust, steam or gas). Do not use this appliance out doors. Every further use or change to the appliance is viewed as not in accordance with its intended use and involves considerable accident risks. We assume no liability for damages arising from im

proper use. The appliance is only intended for private and no t for commercial use.

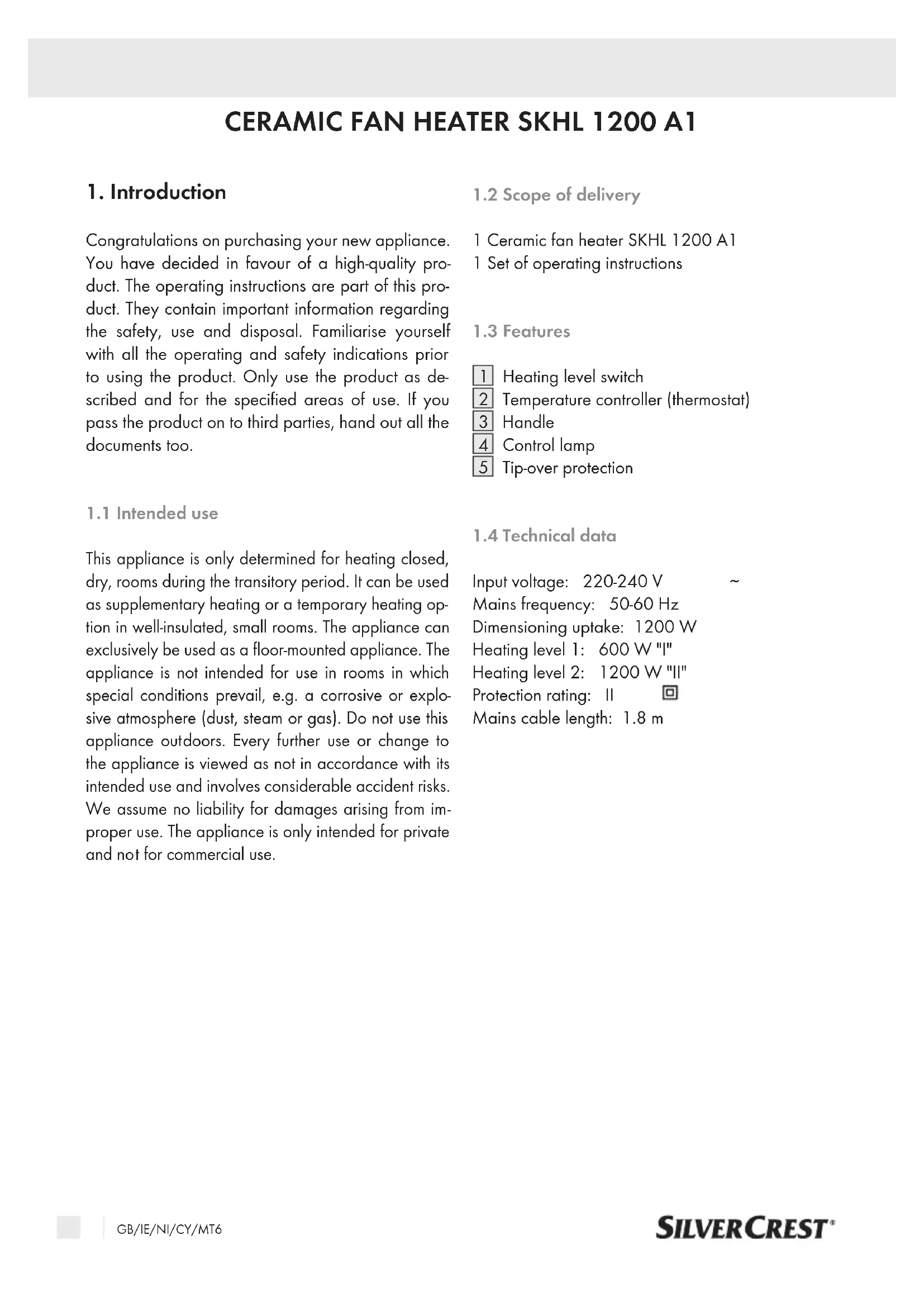

CERAMIC FAN HEATER SKHL 1200 A1

1.2 Scope of delivery

1 Ceramic fan heater SKHL 1200 A1 1 Set of operating instructions

Mains frequency: 50-60 Hz Dimensioning uptake: 1200 W Heating level 1: 600 W "I" Heating level 2: 1200 W "II" Protection rating: II Mains cable length: 1.8 mGB/IE/NI/CY/MT 7 Information requirements for electric local space heaters Model identifier(s): SKHL 1200 A1 Item Symbol Value Unit Heat output Nominal heat output P nom

Minimum heat output (indicative)

Maximum continuous heat output

0 kW Item Unit Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated thermostat [no] manual heat charge control with room and/ or outdoor temperature feedback [no] electronic heat charge control with room and/ or outdoor temperature feedback [no] fan assisted heat output [no] Type of heat output/room temperature control (select one) single stage heat output and no room temperature control [no] Two or more manual stages, no room temperature control [no] with mechanic thermostat room temperature control [yes] with electronic room temperature control [no] electronic room temperature control plus day timer [no] electronic room temperature control plus week timer [no] Other control options (multiple selections possible) room temperature control, with presence detection [no] room temperature control, with open window detection [no] with distance control option [no] with adaptive start control [no] with working time limitation [no] with black bulb sensor [no] ROWI Germany GmbH Werner-von-Siemens-Str. 27 76694 Forst

GERMANYGB/IE/NI/CY/MT8

2. Safety indications for room heating appliances

Read all the safety indications and instructions. Failure to adhere to the safety indications and instructions may cause serious injuries and/or property damages. Please keep all the safety indications and instructions for future use. WARNING! Danger of overheating! To avoid the heater overheating, it must not be covered. The heater may not be placed directly beneath a wall mains socket. Do not use this heater in the direct vicinity of a bathtub, a shower or a swimming pool. WARNING! Fire danger! To reduce the danger of fire, keep textiles, curtains and other combustible materials at least 1 m away from the air outlet.

WARNING: This appliance is not equipped with a device for regu-

lating room temperature. The heater may not be used in small rooms where people live who are not able to leave the room independently unless constant monitoring is guaranteed. Do not operate a dropped unit. Do not use the product if you notice any visible damage. The heater must be placed on a firm, flat and horizontal floor.GB/IE/NI/CY/MT 9

2.1 General safety indications

If the supply cable for this appliance is damaged, it must be re- placed by the manufacturer or his customer service or a similarly qualified person in order to avoid any dangers. This appliance can be used by children of 8 years and more as well as by persons with reduced physical, sensory or mental abili- ties or lacking experience and knowledge, if they are supervised or are instructed in the safe use of the appliance and understand the ensuing dangers. Children may not play with the appliance. The cleaning and maintenance of the appliance by the user may not be carried out by children not under supervision. Children of less than 3 must be kept away unless they are constantly monitored. Children between 3 and 8 may only switch the appliance on and off if they are under supervision or have been instructed in the safe use of the appliance and have understood the resulting dangers, with the prerequisite that the appliance is placed or installed in its normal operating position. Children between 3 and 8 may not plug the plug into the mains socket, control the appliance, clean it and/or not carry out user maintenance. Warning against hot surfaces! ATTENTION: Some parts of the product may become extre- mely hot and cause burns. Special care is required if children and vulnerable persons are present. No user action is required to set the product to 50 or 60 Hz or to 220 or 240 V. The product automatically adjusts to the correct frequency or voltage.GB/IE/NI/CY/MT10 The appliance is only suitable for indoor operation! Danger to life due to electrical current! Danger to life in case of contact with live cables or components!

3. Before commissioning

3.1 Setting up the appliance

Remove all packaging material and transport safety devices from the appliance. For safe, fault-free operation of the appliance, its lo- cation must meet the following prerequisites: The base must be firm, flat and level. Minimum clearance from the casing of 50 cm at the side, 50 cm at the top, 50 cm at the back and 100 cm at the front must be adhered to. Do not place the appliance in a hot, wet or very wet surroundings or in the vicinity of combusti- ble material. The mains socket must be easily accessible, enabling easy removal of the supply cable if necessary. Temperature range: 0 to +40 °C Humidity (no condensation): 5–75 % Note: During initial use, slight odours may arise in the short-term.

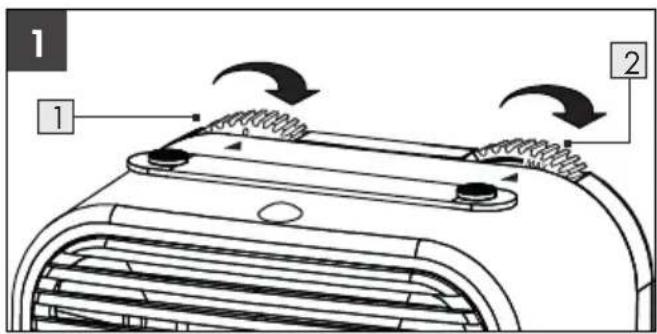

4.1 Switching the appliance on/

Setting heating levels Ensure that the heating level switch

is set to “0”. Then, connect the fan heater to an earthed socket protected by an FI circuit breaker. Then, switch the appliance on by rotating the temperature controller

clockwise until it clicks audibly and move the heating level switch

to the desired position (I or II).

Ensure that the heating level switch

is set to “0”. Then, switch the fan on (without the heating function) by rotating the temperature controller

clockwise as far as it goes to “MAX” and move the heating level switch

is lit during oper- ation.GB/IE/NI/CY/MT 11 Here, the following applies:

is in this position, the fan heater is switched off. Blower position If the heating level switch

is in this position, only the fan is operated. Place the switch in this position if you wish to use the fan heater as a fan.

is in this position, the fan heater provides a heat output of 600 W.

is in this position, the fan heater provides a heat output of 1200 W. MIN position temperature controller

4.3 Setting the temperature

Start the appliance using the heating level switch to set

clockwise up to the limit stop "MAX". If the desired temperature has been reached, rotate the temperature controller back

so far anticlockwise until you hear a clear click. The control lamp

goes off. An integrated thermo- stat controller now automatically switches the heating function on/off. Note: If the thermostat is set to the MIN position, the appliance remains completely off.

4.4 Switching the appliance off

Put the heating level switch

to position "0". Remove the mains plug from the mains socket. Before covering or putting the appliance away, wait until it has cooled down! Note: If you set the heating level switch

to fan position and wait 30 seconds, you can cool the heating elements faster.

5. Protective devices for the

This appliance is equipped with overheating protec- tion. If the appliance becomes too hot, the heating element is automatically switched off. To switch the appliance off, set the on/off switch

to “0” and unplug the heating level switch from the mains socket. Let the appliance cool down for at least 10 minutes. Check the air inlets and outlets and rectify the cause of overheating before recommissioning the appliance. ATTENTION! There’s normally a reason for overheating! It can mean fire danger! Check whether the appliance can give off its heat sufficiently: Is the appliance covered or is it too close to a wall or a further obstacle? Are the air inlets and outlets on the front or reverse sides free? Is the fan blocked? If possible, rectify the problem or revert to the service hotline (see chapter “Service”). Even if you cannot find a cause, but overheating protection is triggered again, you must switch the appliance off and revert to the service hot- line (see chapter “Service”).GB/IE/NI/CY/MT12

5.2 Tip-over protection

This appliance is equipped with tip-over pro- tection

, which is located on the base of the appliance. If the appliance is accidentally knocked over or subjected to significant inclination during operation, it is automatically switched off. The appli- ance works exclusively in an upright position.

6. Maintenance, cleaning and

storage Always unplug the mains cable when the appliance is not in use, prior to each cleaning or in case of operational faults! Only clean the appliance when switched off and cold. Ensure when cleaning that no moisture ingresses into the appliance in order to avoid irreparable damages to the appliance. Clean the casing with a slightly damp cloth and a mild flushing fluid. Do not use aggressive and/ or abrasive cleaning agents under any circums- tances whatsoever. Remove dust deposits on the protective mesh and on the air outlet with a vacuum cleaner. Store the appliance in dry surrounding.

The packaging consists of environmental- ly friendly materials which you can dis- pose of via local recycling points. The Triman logo is valid in France only. This product is subject to the Euro- pean Directive 2012/19/EU. Do not dispose of the product in household was- te, but via municipal collection points for material recycling! Further information on how to dispose of the discarded device can be obtained from your local authori- ty or city council. Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and num- bers (b) with following meaning: 1–7: pla stics / 20–22: paper and fibreboard / 80–98: composite materials.

This product meets the requirements of the valid European and national regulati- ons.GB/IE/NI/CY/MT 13 The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries or those made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintai- ned. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper hand- ling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (IAN 392284_2201) available as proof of purchase. You will find the item number on the type plate on the product, on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provi- ded to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

9. ROWI Germany GmbH Warranty

Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your pro- duct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accor- dance with strict quality guidelines and inspected meticulously prior to delivery.GB/IE/NI/CY/MT14 At www.lidl-service.com you can download this manual as well as many other manuals, product videos and installation software. This QR code will take you directly to the Lidl service page (www.lidl- service.com) and allow you to open your operating instructions simply by entering the article number (IAN 392284_2201).

Should you incur any problems when operating your ROWI Germany product, please do the following: Making contact You can reach the ROWI Germany service team under: ROWI Germany GmbH Werner-von-Siemens-Str. 27 D-76694 Forst GERMANY Lidl-services@rowi-group.com Service hotline: +800 7694 7694 (free from landlines) IAN 392284_2201 Most problems can already be resolved by compe- tent, technical advice from our service team.DE/AT/CH 15
