Features	Details
Type of hood	Decorative hood
Dimensions	60 cm wide
Maximum air flow	400 m9/h
Noise level	65 dB(A)
Number of speeds	3 speeds
Grease filter	Washable metal filter
Lighting	2 LED lamps
Installation	Wall-mounted installation
Energy consumption	Energy class C
Warranty	2 years
Maintenance	Filters to be cleaned regularly, cleaning of the external surface
Safety	Protection against electrical overloads
Included accessories	Mounting kit, user manual

Frequently Asked Questions - HNS61210W BEKO

How do I clean the filters of the BEKO HNS61210W hood?

To clean the filters, simply remove them from the hood and wash them in warm soapy water. Rinse them thoroughly and let them dry before putting them back in place.

Why is my hood not working?

First, check that the hood is properly plugged in and that the switch is in the "on" position. If it still does not work, make sure the fuse is not blown.

Is the hood making too much noise?

Excessive noise may be due to a dirty filter or objects blocking the fan. Check and clean the filters, and make sure nothing is blocking the fan.

How do I install the BEKO HNS61210W hood?

Follow the installation instructions provided in the manual. Make sure the hood is securely fixed to the wall and that the exhaust duct is properly installed.

What types of filters can I use with my hood?

The BEKO HNS61210W hood uses charcoal filters for odor filtration and aluminum filters for grease. Make sure to replace them regularly.

How do I adjust the power of the hood?

The hood is equipped with several power levels. Use the control panel to select the desired level according to your needs.

Is it normal for my hood light to be hot?

Yes, it is normal for the hood light to generate heat. However, if it becomes too hot to touch, it is recommended to contact a technician.

What should I do if the hood light does not turn on?

First check the bulb and replace it if necessary. If the bulb is in good condition, make sure the hood is properly powered.

Can I use my hood in recirculation mode?

Yes, the BEKO HNS61210W hood can be used in recirculation mode with charcoal filters. Make sure to install the filters correctly for optimal operation.

USER MANUAL HNS61210W BEKO

Simple line icon of a chimney emitting steam (no text or symbols)

HNS61210W HNS61210XH

HNS61210B HNS91210X

HNS61210X

EN-DE-FR-NL-LT-CS-SK-RO-BG-ET-LV-PL-AR

CONTENTS

ENGLISH 04-12

DEUTSCH 13-24

FRANÇAIS 25-35

NEDERLANDS 36-46

LIETUVIŲ K 47-56

ČESKY 57-66

SLOVENSKÝ 67-76

ROMÂNĂ 77-89

БЪЛГАРСКИ 90-100

EESTI 101-110

LATVIAN 111-120

POLSKI 121-133

134-146

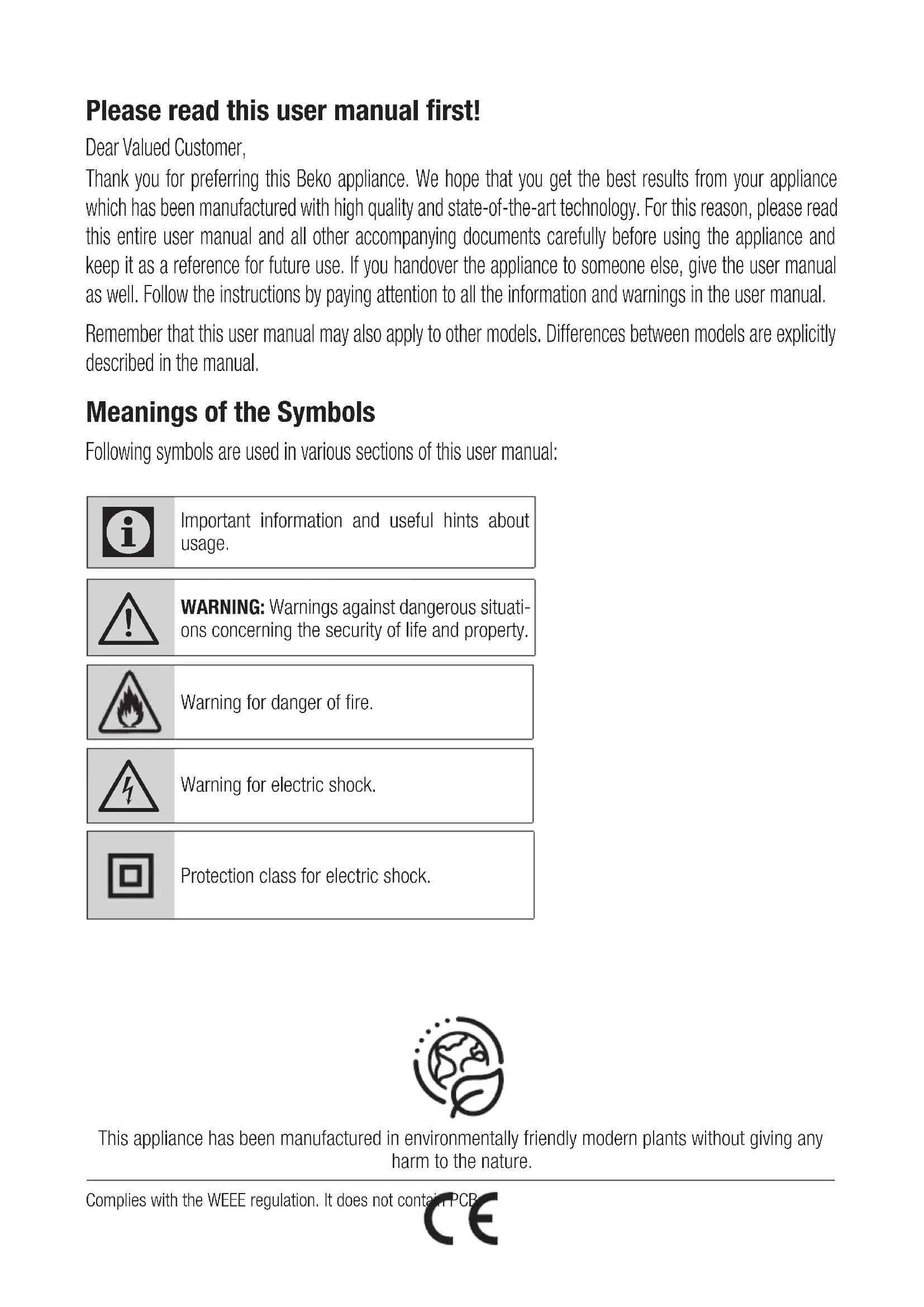

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Warning for danger of fire.

Warning for electric shock.

Protection class for electric shock.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

1 Important Safety and Environmental Instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;

• Farm houses
  — By clients in hotels, and other residential type environments;

• Bed and Breakfast type environments.

• Operate the appliance for its intended purpose only as described in this manual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.
• This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.
• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Use the appliance with a grounded outlet only.
  WARNING: Do not connect the appliance to the mains until the installation is fully complete.
• Place the appliance in a way so that the

1 Important Safety and Environmental Instructions

plug is always accessible.

• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.
• Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

- Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

- Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

• Do not use non-fire-resistant filtering materials instead of the current filter.
• Only use the original parts or parts recommended by the manufacturer.
• Do not operate the product without the fil-

ter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.
• In the event of be started any flame, cover the flame and never use water to extinguish.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.
• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.
• When connecting the flue, use pipes with a diameter of 120 or 150mm . Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

• The product outlet must not be connected to air channels that include other smoke.
• The ventilation in the room may be insufficient when the hood for electric hob is

1 Important Safety and Environmental Instructions

used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

• Objects placed on the product may fall. Do not place any objects on the product.
• Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Prod-

uct: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification

symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must

be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role

in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain

harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General Appearance

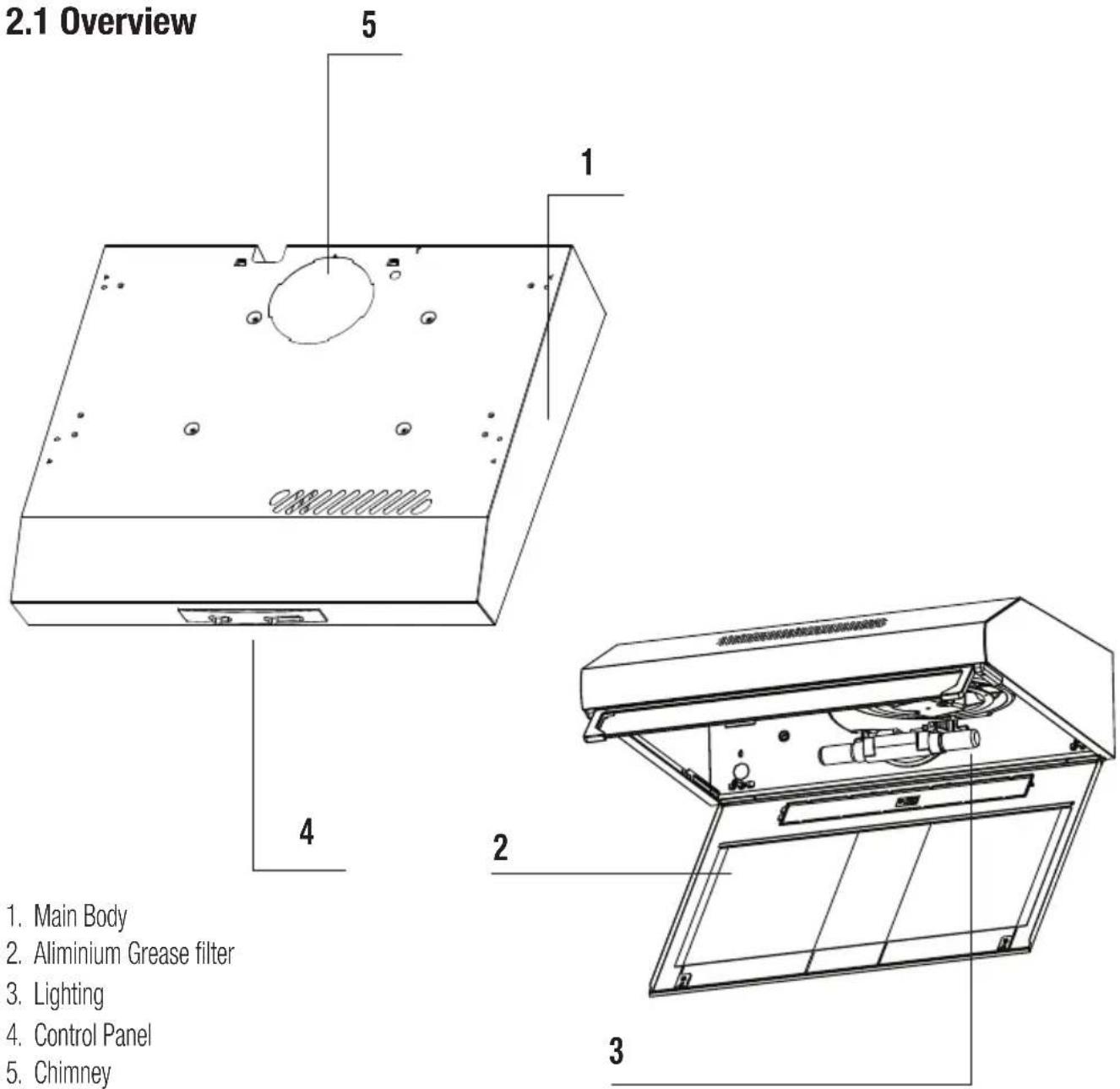

2.1 Overview

2.1 Overview 5 1 4 2 3 1. Main Body 2. Aluminium Grease filter 3. Lighting 4. Control Panel 5. Chimney

2.2 Technical Data

Model HNS61210W - HNS61210B	HNS61210X - HNS61210XH	HNS91210X
Supply Voltage 220-240V ~ 50 Hz
Lamp Power (W) 1x3 2x3
Motor Power (W) 1 x 115
Air Flow ( m^3/h ) – 3. Level 272
Insulation Class CLASS II

3 Using the Appliance

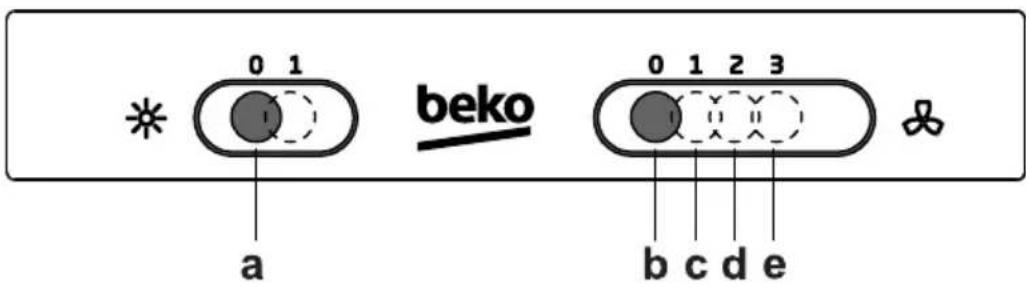

3.1 Controls Panel

0 1 beko 0 1 2 3 a b c d e

a- Switches the lighting system on and off.
b- Speed switches the extractor motor off
c- Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
d- Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
e- Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3 Using the Appliance

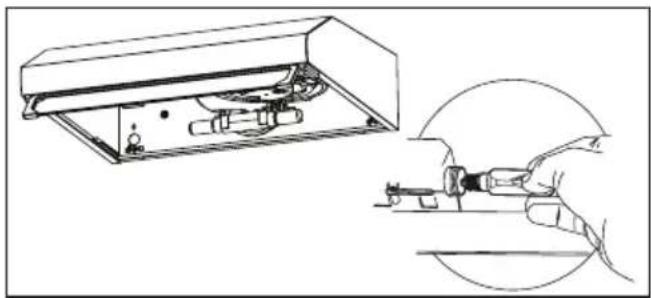

3.2 Lamp Replacement

	Before replacing the light bulbs, disconnect the power supply of the hood.
	Do not touch the light bulbs when they are hot.
	Be careful not to touch the replaced light bulb directly with hands.
	You may procure lamps from Authorised Service Agents.

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
[7760]	3 E14 220	-240 107 x 37 DRBB/F-4-220-240-E14-35/100

● Candle type LED lamp is used in this product
Max 3 W lamp must be used when the change of lamp

4 Cleaning and maintenance

Prior to cleaning and maintenance, unplug the appliance or turn the main switch off or loosen the fuse that supplies the hood.

Failure to comply with the provisions relating to cleaning of the device and replacement of filters may cause fire risks. It is therefore recommended to comply with the guidelines given herein. The manufacturer is not liable for any damage to the engine or fires caused by improper use.

Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instruments. Do not use abrasive products. Do not use alcohol

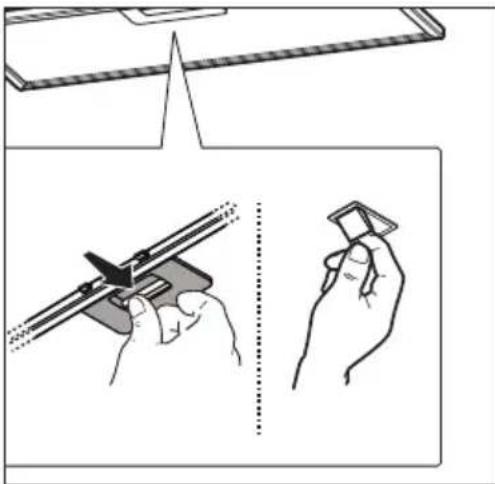

4.1 Cleaning of Aluminium Grease Filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Aluminium grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

Technical diagram showing two-step installation of a tool, with hand holding a clip and a ruler above, and a close-up view of the tool being inserted.

You can wash the Aluminium filter in the dishwasher

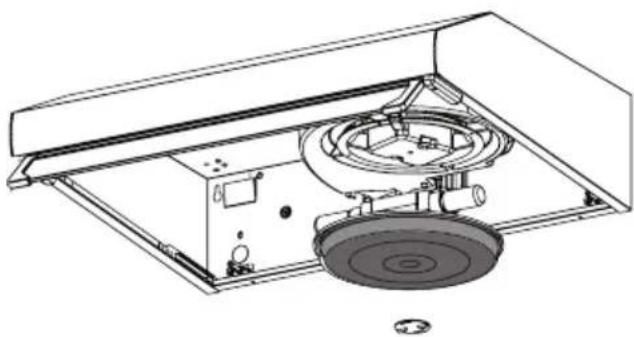

4.2 Changing of Carbon Filter (Air Circulation Mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

In any case it is necessary to replace the carbon filter at least every three months.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

WARNING: The carbon filter is never washed.

WARNING: Carbon filter is available from Authorized Services.

5 Setting Up the Device

WARNING

Please read safety instructions before setting up.

NOTE

Please refer to page 144 for the installation guide

WARNING

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

5.1 Installation

The hood is designed to be used either for exhausting or filter version.

Ducting version

The cooker hood has an upper air duct B1 and an optional rear air duct B2*, for external fumes exit.

Select the suitable air duct and apply the flange C supplied, ensure to close the unused hole duct with cap D* supplied if provided.

NOTE

In some models upper hole B1 is supplied closed: Press firmly to detach the detachable part that closes the outlet hole and remove it.

ATTENTION!

The detachable part cannot be mounted in position again. Carry out this operation only if you are sure of the type of installation to make.

CAUTION!

In some models the rear hole duct is not easily accessible, even when the tap (if mounted) is removed, in this case remove the plastic piece E1 or E2 that is blocking the hole duct, by unwinding using pliers and cutter. Check that the filter/suction selector (inside the cooker hood) G is in the suction (A) position.

Filter version

In the case where it is not possible to discharge the cooking fumes externally, the cooker hood may be used in the filter version by fixing a carbon filter, the fumes and vapours are recycled via the anterior grill placed above the control panel. Check that the filter/suction selector (inside the cooker hood) G is in the filter (F) position.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 65 cm from electric and gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Troubleshooting Reason Help
The product does not work.	Check your fuse. Your fuse might be closed, make it work.
The product does not work.	Check the electrical connection. The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection. Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection. The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Technical line drawing showing a device inside a box and a close-up of a hand using a tool (no text or symbols present)

Diagram illustrating a manual tool application with labeled steps and a magnified view of the tool being processed.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical diagram of a front panel with labeled components and parts in Chinese

Technical line drawing showing a mechanical assembly with a magnified inset of a tool (no text or symbols present)

Lampe	Puissance (W)	Prise Tension (V) Dimensions (mm) Code ILCOS
	3 E14 220	-240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand holding a tool with a pen, alongside a close-up of the tool's tip and tip.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lamp Vermogen (W)	Stopcontact	Spanning (V) Afmetingen (mm) ILCOS Code
[SWHD] 3 E14 220	-240 107 x 37	DRBB/F-4-220-240-E14-35/100

Technical diagram showing two-step installation of a tool, with hand holding a cutting board and holding a flat blade.

U kunt het aluminium filter wassen in de vaatwasmachine.

Technical line drawing of a mechanical device with a central rotating wheel and surrounding components (no text or symbols)

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lemputė Galia (W) Lizdas	Itampa (V) Matmenys (mm) ILCOS kodas
[2774]	3 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

Technical diagram showing two-step installation of a tool, with hand holding a cutting tool and holding a flat blade.

Technical line drawing of a mechanical device with a central rotating disc and surrounding components (no text or symbols)

DÈMESIO: Anglies filtro plauti negalima.

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Illustration showing two hands using a tool to cut a piece of paper (no text or symbols present)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Svietidlo Príkon (W) Zásuvky Napätie (V) Rozmery (mm) ILCOS kód
[47K]	3 E14 220	- 240 107 x 37	DRBB/F-4-220-240-E14-35/100

Illustration showing a hand holding a tool with a bracket and a small object, alongside a schematic diagram of the same hand (no text or symbols present)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

UPOZORNENIE: Uhlíkový filter sa nikdy neumýva.

Technical diagram of a front panel with labeled components and parts in Chinese

2.2 Date tehnice

Model HNS61210W - HNS61210B	HNS61210X - HNS61210XH	HNS91210X
Tensiune de alimentare 220-240V ~ 50 Hz
Alimentare lampă (W) 1x3 2x3
Putere motor (W) 1 x 115
Debit aer (m3/h) – 3. Nivel 272
Clasa de izolatie CLASA II

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lampă Putere (W) Conexiune Tensiune (V) Dimensiune (mm) Cod ILCOS
[ccd7]	3 E14 220	-240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a tool application procedure with labeled steps and a magnified view of the tool being held.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing showing a device inside a box and a close-up of a tool interacting with a component (no text or symbols present)

Лампа	Мощност (W)	Контакт Волтаж (V) Размери (mm) ILCOS Код
[DBOT]	3 E14 220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand holding a tool with a ruler, showing step-by-step instructions for manual or technical installation.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Valgusti Võimsus (W)	Pistiku-pesa	Pinge (V) Mõõde (mm) ILCOS kood
[7734]	3 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a manual tool application with labeled steps and a magnified view of the tool being held.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

HOIATUS: Söefiltrit ei tohi kunagi pesta.

HOIATUS: Söefilter on saadaval volitatud teenindustes.

5 Seadme seadistamine

HOIATUS

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lampa Jauda (W) Ligzda	Spriegums	(V) Izmēri (mm) ILCOS kods
[288K]	3 E14 220	— 240 107 x 37 DRBB/F-4-220-240-E14-35/100

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

BRĪDINĀJUMS. Oglekla filtru nedrīkst mazgāt.

Illustration showing two-step installation: top shows a mechanical part with a triangular cutout, bottom shows hands holding a tool (no text or symbols)

Technical line drawing showing a device inside a enclosure and a close-up of a tool interacting with a component (no text or symbols)

Lampa Moc (W) anteny Napięcie (V) Wymiary (mm) Kod ILCOS
[7507]	3 E14 220	-240 107 x 37	DRBB/F-4-220-240-E14-35/100

Technical illustration showing a hand holding a tool with a cutting tool, alongside a close-up of the tool being held and placed on a surface.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical illustration of a mechanical assembly with a hand holding a tool, showing internal components and a close-up view (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Illustration showing two hands holding a tool, one with a pointed tip and the other holding a square (no text or symbols present)
