CFB 6433 X - Range hood BEKO - Free user manual and instructions

Brand	BEKO
Model	CFB 6433 X
Product type	Extractor hood
Dimensions (W x D x H)	60 cm x 50 cm x 13 cm
Weight	12 kg
Power supply	220-240 V ~ 50 Hz
Motor power	250 W
Maximum airflow	400 m³/h
Maximum noise level	60 dB(A)
Lighting	LED, 2 x 1.5 W
Number of speeds	3
Control type	Push buttons
Grease filter	Stainless steel, dishwasher safe
Material	Brushed stainless steel
Energy class	A
Extraction type	External extraction (recycling possible with optional carbon filter)
Air outlet diameter	150 mm
Timer function	No
Grease filter maintenance	Every month
Carbon filter maintenance	Every 3 months (if recycling)
Safety	Non-programmed automatic shutdown

Frequently Asked Questions - CFB 6433 X BEKO

How to install the Beko CFB 6433 X hood?

Installation must be carried out by a qualified professional. Maintain a minimum distance of 65 cm between the hob and the hood for electric cooking, and 75 cm for gas cooking. Follow the mounting diagram provided in the manual.

How to clean the grease filter?

The stainless steel grease filter can be cleaned in the dishwasher or by hand with hot water and detergent. Let it dry completely before reinstalling. Monthly cleaning is recommended.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode if you install an activated carbon filter (not supplied). The filter should be changed approximately every 3 months.

What to do if the hood is noisy?

First check if the grease filter is clogged and if anything is blocking the exhaust duct. Abnormal noise may also come from an unbalanced turbine. Contact customer service if the problem persists.

How to turn on the hood lighting?

Use the lighting button on the control panel. The integrated LED lights turn on immediately. For replacement, contact a professional.

What is the suitable power for my kitchen?

This hood has an airflow of 400 m³/h, sufficient for a kitchen up to 15 m². For a larger area, choose a more powerful model.

Is the hood compatible with an induction hob?

Yes, it is compatible with all types of cooking. Simply respect the minimum safety distance indicated in the manual.

How to adjust the speed?

Press the speed buttons (1, 2, 3) to select the desired airflow. Speed 1 is for gentle cooking, speed 3 for strong odors.

Where to find spare parts?

Contact BEKO customer service or an authorized dealer. Grease and carbon filters are available online or in specialized stores.

What to do in case of a power outage?

The hood stops. Restore power and reset your functions. If it does not restart, check the circuit breaker or consult an electrician.

USER MANUAL CFB 6433 X BEKO

Simple line icon of a chimney emitting steam (no text or symbols)

CFB 6433 X - CFB 9433 X

EN - FR - RO - DE - ES - NL - PT - LT - CS - SK - HR - EL - TR - RU - AR

CONTENTS

ENGLISH	3-13
FRANÇAIS	14-26
ROMÂNA	27-41
DEUTSCH	42-54
ESPAÑOL	55-67
NEDERLANDS	68-78
PORTUGUÊS	79-91
LIETUVIŲ K 92-102
CESKY	103-113
SLOVENSKÝ	114-124
HRVATSKI	125-135
ΕΛΛΗΝΙΚΑ 136-150
TÜRKÇE	151-165
РУССКИЙ 166-186

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

Protection class for electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

- Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, and other residential type environments;

— Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

- The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The minimum distance between the supporting surface for the

1 Important safety and environmental instructions

cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.
• Do not touch the lamps if they have operated for a long time.

They can burn your hands since they will be hot.

• Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).
• Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.
• Turn off the hob before taking the pot, pan etc. from it.
• Do not leave hot on the hob. Pans with hot may cause self combustion.
• Pay attention to your curtains and covers since may catch fire while cooking food such as fries.
• Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

1 Important safety and environmental instructions

• Do not use non-fire-resistant filtering materials instead of the current filter.
• Only use the original parts or parts recommended by the manufacturer.
• Do not operate the product without the filter and do not remove the filters while the product is running.
• In the event of be started any flame, de-energize your product and cooking appliances.
• In the event of be started any flame, cover the flame and never use water to extinguish.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.
• In the environment where the appliance is being used, the exhaust of devices running on fuel or gas, such as room heater must be absolutely isolated or

device must be hermetical type.

- When connecting the flue, use pipes with a diameter of 120 or 150 mm . Pipe connection must be as short as possible and have as few elbows as possible.

- Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with coo-king appliances.

- The product outlet must not be connected to air channels that include other smoke.

- The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

- Objects placed on the product may fall. Do not place any objects on the product.

- Do not flambe under the your product.

1 Important safety and environmental instructions

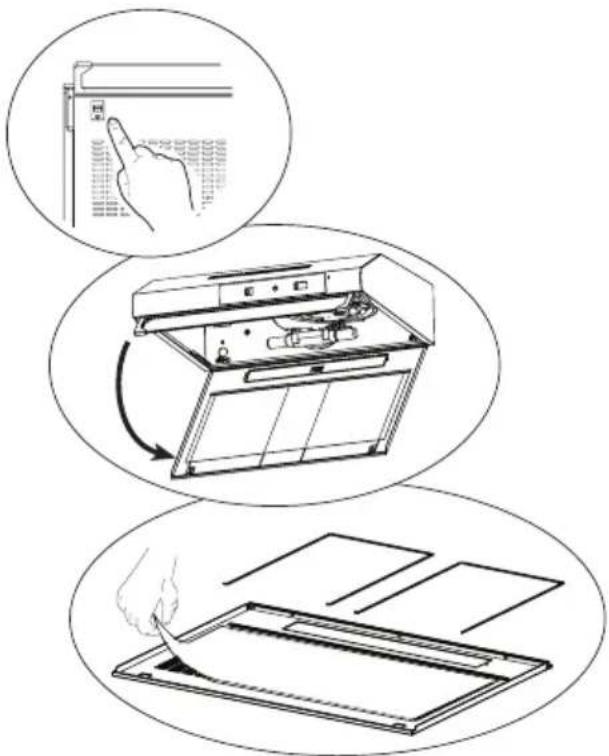

WARNING: Before installing the Hood, remove the protective films.

• Never leave high naked flames under the hood when it is in operation
• Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

2.1 Overview

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

1. Body
2. Grease filter
3. Lighting
4. Control panel
5. Chimney

2.2 Technical data

Model CFB 6433 X CFB 9433 X
Supply voltage & frequency	220-240V ~ 50 Hz
Lamp power 2 x 4 W
Motor power 2 x 115 W
Air flow – 3. Level 380 m3/h
Motor Insulation Class Class F
Insulation class	Class II

3 Using the appliance

3.1 Controls panel

L : Light on/off Switches the lighting system on and off.
V : Speed button	Sets the operating speed of the extractor:0. Speed switches the extractor motor off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/ noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

3.2 Efficient use in terms of energy saving

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.
• Use low speeds (1-2) under normal conditions, and high speed (3) and boost mode for intense odour and vapour.
• The hood is equipped with lamps in order to illuminate the cooking area.
• Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.
• For your device to consume less energy, run it at a low speed level.
• Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.
• Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.

- Keep the lids of the cookware closed to reduce the steam evolving.

3 Using the appliance

3.3 Operating the Hood

• Hood is equipped with a motor having various speed settings.
• For a better performance, we advise you to use low speeds in normal conditions, and high speeds when smell and vapors are intensified.
• You can start the hood by pressing the desired speed level key.(V1,V2,V3)
• You can illuminate the cooking area by pressing the light key (L)

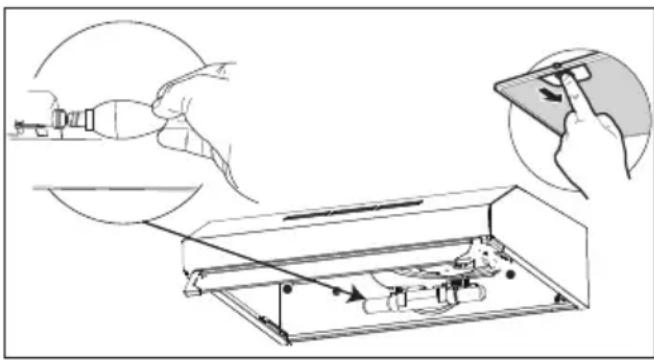

3.4 Lamp replacement

• Before replacing the light bulbs, disconnect the power supply of the hood.
• Do not touch the light bulbs when they are hot.
• Be careful not to touch the replaced light bulb directly with hands.

You may procure lamps from Authorised Service Agents.

Lamp
Bulb power 4 W
Holder/Socket E14
Bulb voltage 220 - 240 V

ILCOS Code D R B B / F	4 - 2 2 0 - 240-E14-35/100
Size 37x100 mm
Luminous flux 400 lm
Correlated colour temperature	3000 K

This product contains a light source of energy efficiency class "F".

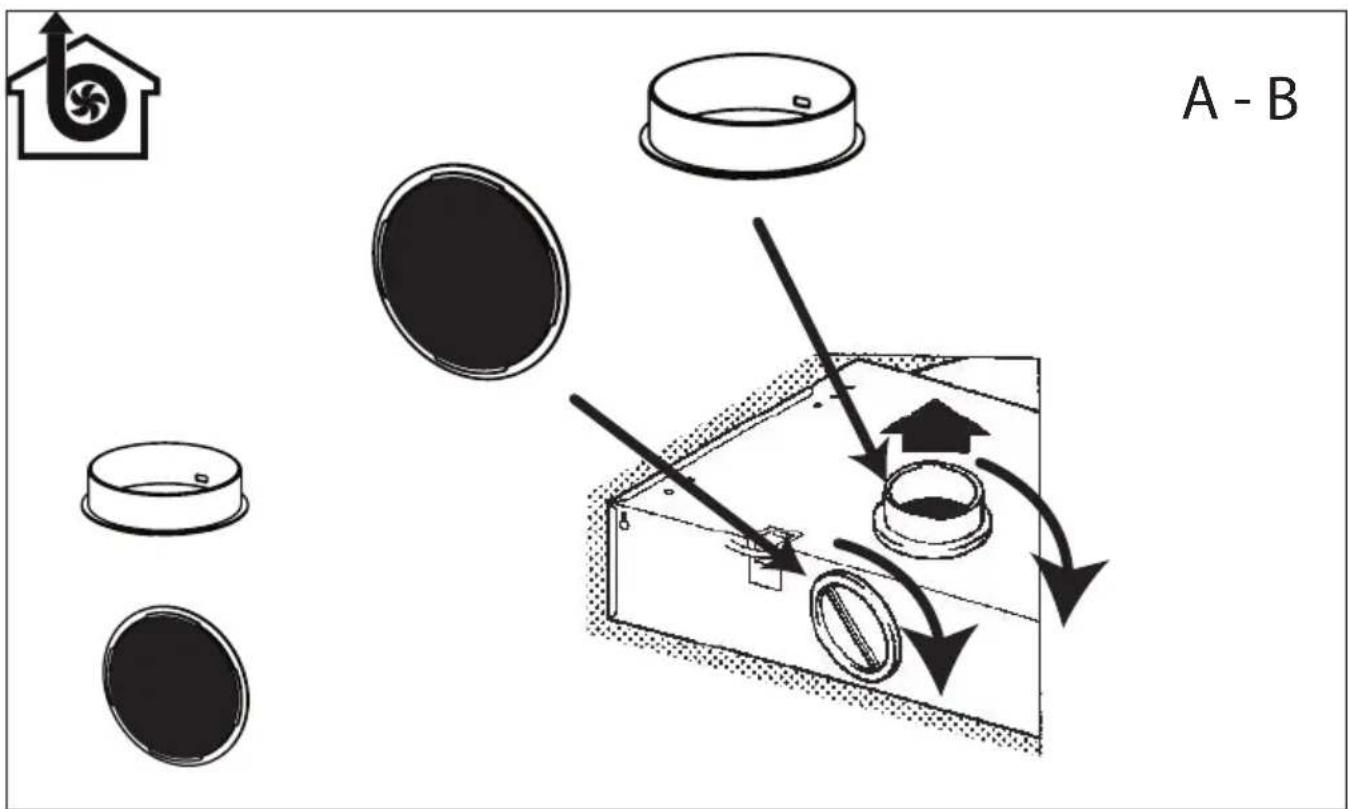

3.5 Operation with flue connection

• Vapour is extracted through the flue duct, which is fastened to the connection head on the hood.

- The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10^irc ) so that the air can exit the room easily.

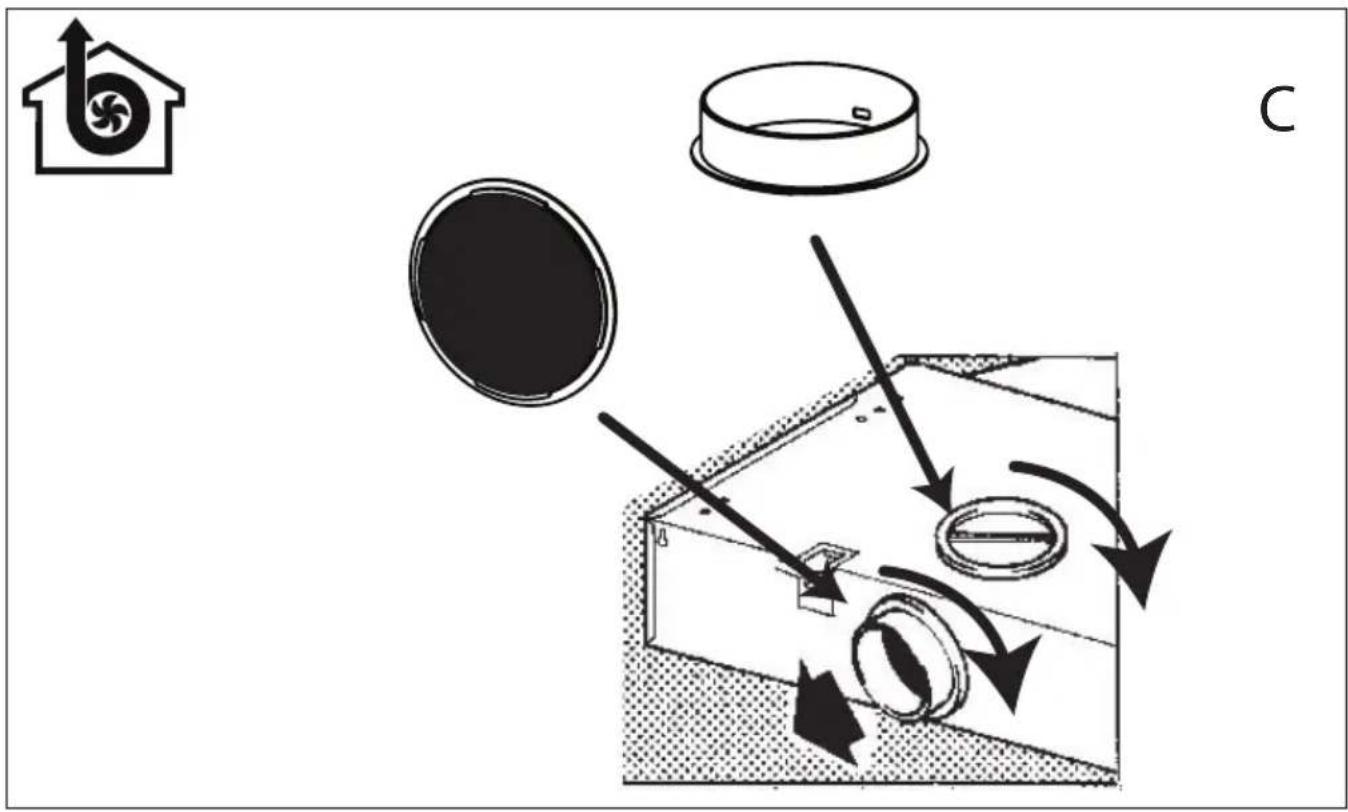

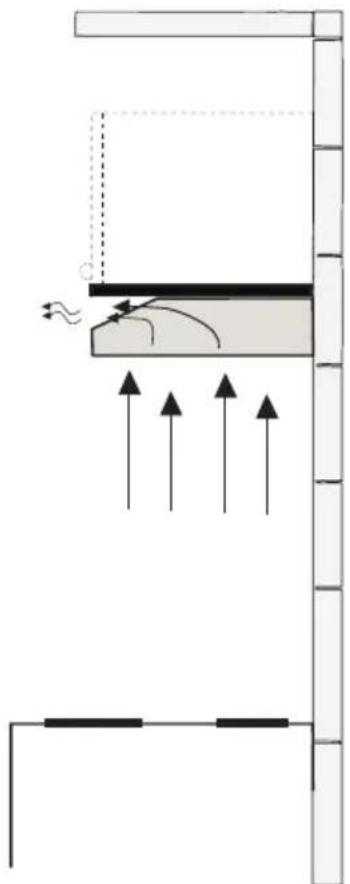

3.6 Operation without flue connection

through the carbon filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the oil filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. Tighten it by turning right or left.
• Replace aluminium oil filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Clean using only a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol.

4.1 Cleaning of grease filter

This filter captures particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

You can wash the grease filter in the dishwasher

CAUTION: In case of normal use, clean your filter once in a month.

4.2 Changing of carbon filter (Air circulation mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

WARNING:

• The carbon filter is never washed.
- Replace carbon filters once every 3 months.
• Carbon filter is available from Authorized Services.

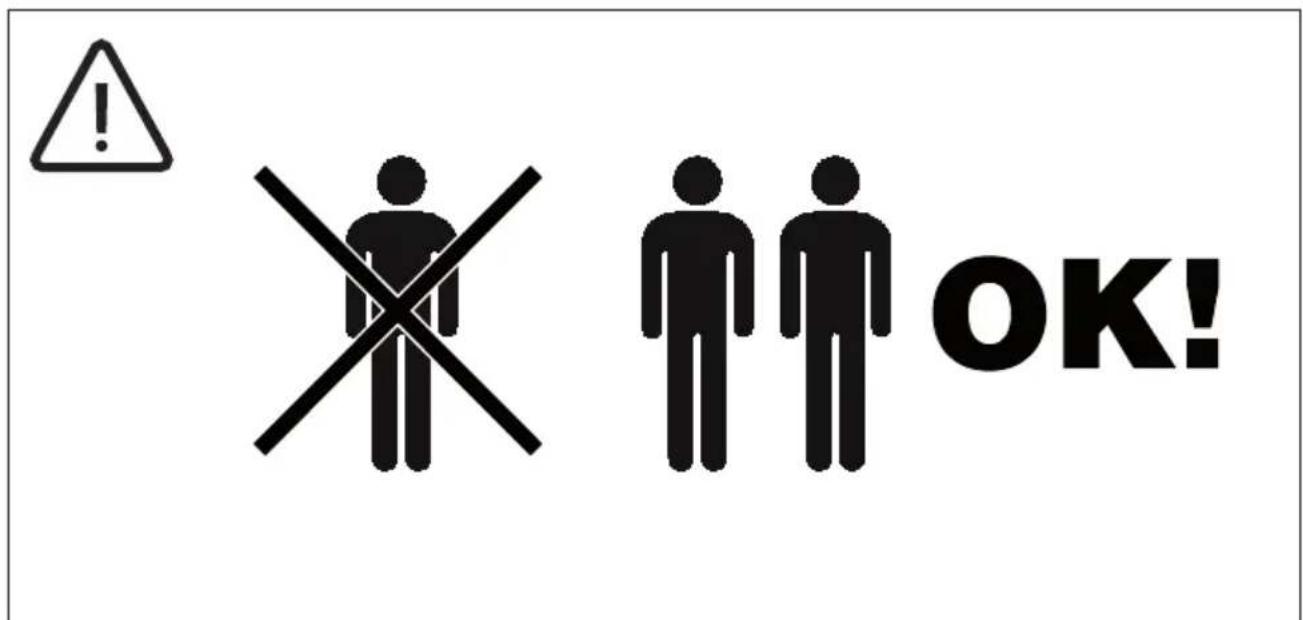

5 Installation of appliance

WARNING: Before starting the installation, read the safety information on user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

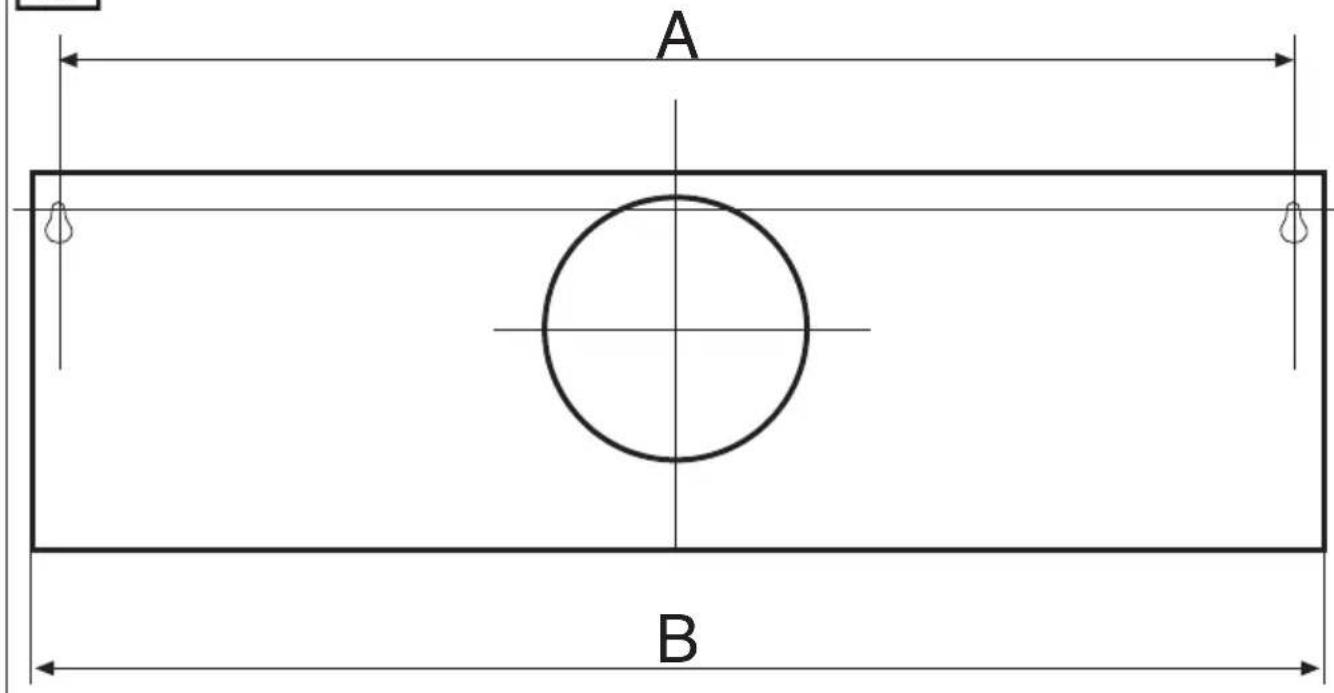

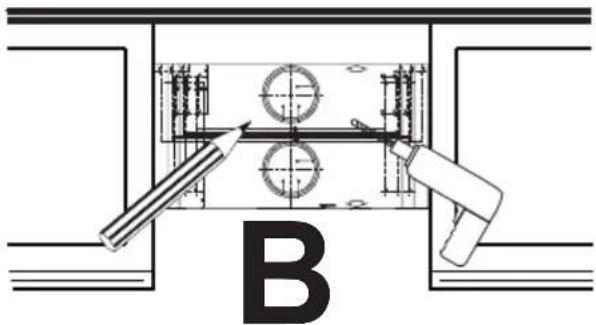

Please refer to page 187 for the installation guide.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.
• Distance must be measured from the surface of grate for gas cookers,
  • from surface of glass for electric cookers.

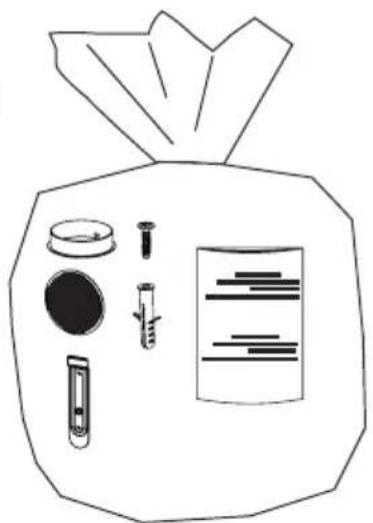

5.2 Installation accessories

1. Hood
2. Air outlet grille
3. Closing element (optional)
4. 4 × 4,2 × 44,4 screws
5. 2 X 4,2 x 12,7 screws
6. 2 × 2,9 × 12,7 screws
7. User manual

5.3 Storage

- If you do not intend to use the appliance for a long time, please store it carefully.

- Please make sure that the appliance is unplugged, cooled down and totally dry.

• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children

5 Installation of appliance

5.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Troubleshooting Reason	Help
The product does not work.	Check your fuse. Your fuse might be	closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter.	For products with carbon filters, the filter should normally be changed every 3 months.

Line drawing of a front-end air purifier with ventilation slots and a circular vent (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

5 1234

Ampoule
Absorption 4 W
Culot E14
Voltage 220 – 240
Code ILCOS D R B B / F	4 - 2 2 0 - 240-E14-35/100
Dimensions 37x100 mm
Flux lumineux 400 lm
Température de cou-leur corrélée	3000 K

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

AVERTISSEMENT:

Line drawing of a front-end air purifier with ventilation slots and a lid (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

1. Corp
2. Filtru de grăsime
3. Iluminat
4. Panou de control
5. Cos

2.2 Date tehnice

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

ATENTIE

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Glühbirne

Technical line drawing of a mechanical assembly with two circular components and a central shaft (no text or symbols)

WARNUNG

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Technical diagram of a mechanical assembly with two wheels and a central motor (no text or labels)

PRECAUCIÓN

Line drawing of a front-end air purifier with ventilation slots and a circular vent (no text or symbols)

Technical line drawing of an open air duct system with internal components and mounting brackets (no text or symbols)

12345

Illustration showing a hand using a tool to adjust a component inside a device, with another hand inserting a device into the background (no text or symbols present)

Lamp
Lampvermogen 4 W
Houder / Stopcontact E14

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

OPGELET

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Technical diagram of a mechanical assembly with two wheels and a central hub (no text or symbols)

CUIDADO

Line drawing of a kitchen air conditioner unit with ventilation slots and mounting points (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

4.2 Anglies filtro pakeitimas

Technical line drawing of a mechanical assembly with two wheels and a central valve (no text or symbols)

DÉMESIO

Line drawing of a kitchen air conditioner unit with ventilation slots and mounting points (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

UPOZORNĚNÍ

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Technical line drawing of a mechanical assembly with two wheels and a support frame (no text or symbols)

VÝSTRAHA

. 1 Výrobok

Line drawing of a front-end air purifier with ventilation slots and a circular top (no text or symbols)

Technical line drawing of an open air duct system with internal components and mounting brackets (no text or symbols)

12345

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Čistite koristeći se samo s krpom namočenom u neutralni tekući deterdžent. Ne koristite s alatom ili instrumentima. Ne koristite abrazivne proizvode. Ne koristite alkohol.

4.1. Čišćenje filtra masnoće

Filtar masnoće koristi se za hvatanje čestica ulja u zraku. Filtar masnoće mijenja boju nakon uzastopnog čišćenja. To je normalno i zbog toga ne trebate mijenjati filtre.

Filtar masnoće možete prati u perilici posuđa.

OPREZ: Prilikom normalne primjene filtar masnoće očistite jednom mje-sečno.

Technical line drawing of a mechanical assembly with two wheels and a central housing (no text or symbols)

OPREZ

1. Napa
2. Rešetka za izlaz zraka
3. Element za zatvaranje (opcionalno)
4. 4 × 4,2 × 44,4 vijci
5. 2 x 4, 2 x 12, 7 vijci
6. 2 x 2,9 x 12,7 vijci
7. Korisnički priručnik

5.3 Pohrana

Line drawing of a front-end air purifier with ventilation slots and a circular top component (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Technical line drawing of a mechanical assembly with two wheels and a central hub (no text or symbols)

Line drawing of a front-end air purifier with ventilation slots and a circular top component (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

1. Gövde
2. Yağ filtresi
3. Aydınlatma
4. Kontrol grubu
5. Baca

2.2 Teknik veriler

Ampul
Ampul Gücü 4 W
Ampul Voltajı 220	- 240 V
ILCOS Kodu DRBB/F	-4-220-240-E14-35/100

Technical diagram of a mechanical assembly with two circular components and a central shaft (no text or labels)

DİKKAT

• https://www.instagram.com/bekoturkiye/
• https://twitter.com/beko_tr
• https://www.facebook.com/bekoturkiye/
• https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Simple line icon of a chimney emitting steam (no text or symbols)

CFB 6433 X - CFB 9433 X

RU

Line drawing of a front-end air purifier with ventilation slots and a circular vent (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

Simple line drawing of a box inside a house-shaped frame with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two wheels and a handle (no text or symbols)

ВНИМАНИЕ

Diagram of a building interior with airflow indicators and structural supports (no text or symbols)

B

Technical drawing of a mechanical assembly with circular components and dimension lines (no text or symbols)

A

Line drawing of a bag with various items including a lid, screwdriver, and document (no text or symbols)

Line drawing of a mechanical device with a circular top and side supports (no text or symbols)

A1

4X

1X

1X

A2

4X

4X

1X

1X

2X

A3

2X

2X

1X

1X

B mm	500 550 600 700 760 800 900 1000 1200
A mm	468 518 568 668 728 768 868 968 1168

A2

4X

4X

1X

1X

2X

Technical diagram showing a mechanical assembly with labeled component B, no readable text or symbols present

Simple line drawing of a door with an arrow indicating direction, no text or symbols present

Illustration showing two hands performing a manual task: one pointing at a keyboard, the other holding a tab (no text or symbols present)

Pure diagram of a mechanical or structural component with no text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a mechanical setup with a lever and rotating components (no text or symbols)

A3

2X

2X

1X

1X

1

Technical diagram showing mechanical assembly with two tool holders and a central circular component (no text or symbols)

3

2

4

CFB 6433 X

CFB 9433 X

Technical line drawing of a mechanical assembly inside a rectangular housing (no text or symbols)

A - B - C

Diagram of a structural support system with arrows indicating force or movement, no text or symbols present

Technical line drawing of a mechanical device with two wheels and a housing (no text or symbols)

Arçelik A.Ş.

Karaağaç Caddesi No: 2-6, 34445,

Thank you for purchasing BEKO product. We are confident that you will enjoy this product

for many years. In case you need any further information,

Please contact us on short number 16165

عَدَرِي العَّمِيل

العربية من نصاني

العربية

الرقم المخصص 17:30

Terms and Conditions

- This Card and Sales Invoice must be presented upon any service

-Warranty starts from date of purchase tax invoice, if no proof for purchase date, the warranty starts with a maximum 6 months from production date.

-Warranty covers spare parts, Repair Fees, Inspection Fees, Examination Fees, service center representative transportation, and unit transportation fees -for repair purpose from customer to service center and back.

- Warranty valid for Product home use only, and does not cover commercial use.

-This warranty doesn't cover damages caused by misuse, accident or non-compliance with User Instruction Manual.

- This Warranty is void if unit was opened or repaired at an any unauthorized service center.

-This warranty is void for the dish washers and washing machines if they were installed by an unauthorized service provider

-This warranty doesn't cover:Cabinet - Lamps - Control Knobs - Glass parts - Rust resulting from misuse. -This Warranty is void if this card is lost or fabricated by any means.

- This warranty card doesn't cover product installation visit. A separate fee to be paid by the customer. The company is committed to providing spare parts for a period of two years after the end of the main warranty period, and the full cost is at the customer's expense

- The device life span for spare parts availability is 2 years after the end of the original warranty registered in the warranty table, and the full expense would be paid by the customer after the end of the original warranty

-In case of exchanging a product with the same product, the warranty continues to follow the old device buying date

- The company has the right to proceed with any spare parts or product modifications that deems suitable as long as it does not affect the product efficiency without getting back to the customer

الشروط والأحكام

Service and Sales on short number

16165

ختم الموزع

Technical line drawing of a mechanical assembly with two wheels and a central motor (no text or symbols)

Line drawing of a front-end air purifier with ventilation slots and mounting feet (no text or symbols)

Technical line drawing of an open air duct system with internal components (no text or symbols)

12345

البيانات الفنية 2.2

Simple geometric shape resembling a T or block (no text or symbols)

[Figure]

CFB 6433 X - CFB 9433 X

AR
