USER MANUAL Adam 50 Top BARBECOOK

QR code image containing encoded data, with a central logo or watermark

GO TO WWW.BARBECOOK.COM, REGISTER YOUR BARBECOOK AND YOUR BARBECOOK EXPERIENCE WILL BE FURTHER IMPROVED!

THIS IS YOUR UNIQUE SERIAL N°

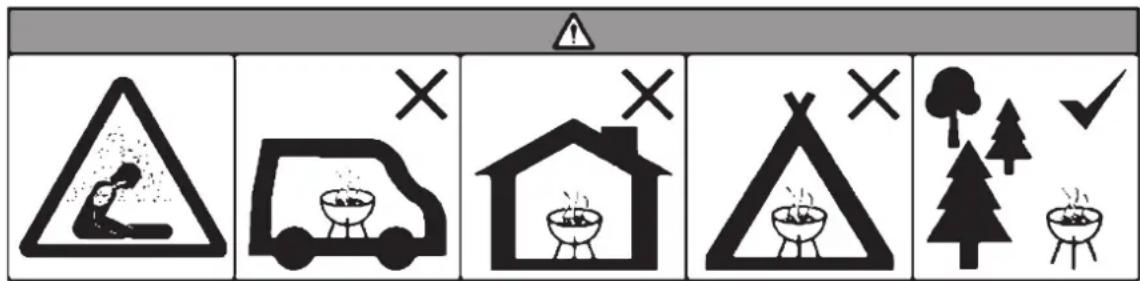

Warning sign with pictograms and symbols for outdoor activities including a person, a van, a house, a tent, and trees.

[EN] Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motorhomes, boats. Danger of carbon monoxide poisoning fatality.

Thank you for purchasing a Barbecook appliance! A whole new world is waiting for you to explore, whether it be in the peace and quiet of nature or amidst the hustle and bustle of the city. Become a grill master in our #barbecook community and let us put your grill skills in the spotlight.

Register your Barbecook appliance online and get some major benefits:

• You get access to the full user manual and get to know every bit of your appliance.
• You benefit from a personalized after sales service, allowing you to quickly find spare parts and to profit from an optimal warranty service.
• We inform you about product updates and give you tips, tricks and grillspiration to bring out the grill master in you.

Ready for an adventure? Register your product and join the #barbecook community!

For more information about registering your appliance, refer to www.barbecook.com.

Barbecook respects your privacy. Your data will not be sold, distributed or shared with third parties.

2 ABOUT THIS MANUAL

This manual is composed of two parts. The first part is what you are reading now. It includes instructions for the assembly, use and maintenance of your appliance. The second part starts on page 96. It includes all kinds of illustrations:

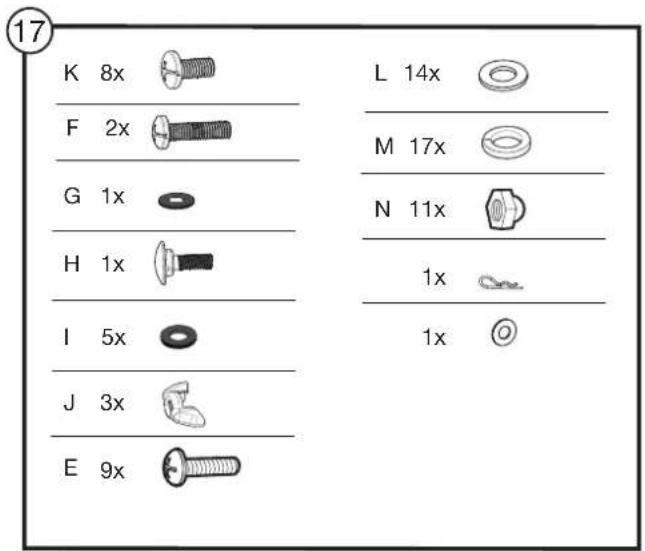

• Exploded views, parts lists and assembly drawings of the appliances described in this manual.
• Illustrations that support the most important instructions of the first part of the manual.

If there is an illustration available for a particular instruction, you find a reference to that illustration in the instruction. These references are preceded by a pencil icon, like the one you see here on the left.

3 IMPORTANT SAFETY INSTRUCTIONS

Read the instructions before using the appliance. Always follow the instructions carefully. Assembling or using the appliance differently can cause fires and material damage.

Damages caused by not following the instructions (improper assembly, misuse, inadequate maintenance...) are not covered by the warranty.

• Do not leave the appliance unattended when in use.
• WARNING! This barbecue will become very hot, do not move it during operation.
• Use appropriate protection when handling hot parts (lid, grill ...).

• Keep flammable materials, flammable liquids and dissoluble objects away from an appliance in use.

• WARNING! Keep children and pets away.

• Keep a bucket of water or sand at hand when using the appliance, especially on very hot days and in dry areas.
  • WARNING! Do not use indoors

Use the appliance outdoors only. Using it indoors, even in a garage or shed, can cause carbon monoxide poisoning.

• Place the appliance at least three meters away from any building, in an open and well-ventilated area.
• Make sure the appliance is not under an overhanging structure (a porch, a shelter...) or under foliage.
• The barbecue has to be installed on a secure level base prior to use. Never put it on a moving vehicle (a boat, a trailer...).

4 RECURRENT CONCEPTS

This part includes definitions of some less familiar concepts. These concepts are used in several topics of the manual.

4.1 QuickStart® lighting system

The appliance is equipped with a QuickStart® lighting system. This system allows you to light your appliance using nothing but some old newspaper and a match. You do not have to add any lighting fluids or firelighters. The system also works very quickly: only 15 minutes after lighting the appliance, you can start grilling.

You find step-by-step descriptions of how to use the QuickStart® system further in this manual.

4.2 QuickStop® extinguishing system

The appliance is equipped with a QuickStop® extinguishing system. This system allows you to extinguish and clean your appliance in no time. After grilling, you just have to brush the ashes into the water container at the bottom of the central pipe. The water container of the QuickStop® system also adds to the safety of the appliance. It increases the stability and puts out glowing charcoal in case the appliance would fall over.

You find step-by-step descriptions of how to use the QuickStop® system further in this manual.

4.3 Enamel

Some parts of the appliance are covered in a layer of melted glass, called enamel. This enamel protects the underlying metal from corrosion. Enamel is a high-quality material: it is resistant to rust, does not fade under the influence of high temperatures and is very easy to maintain.

Because the enamel is less flexible than the metal which the appliance incorrectly. To avoid problems, be careful when assembling enamelled parts and always maintain the enamel as described further in this manual.

5 ASSEMBLING THE APPLIANCE

5.1 Safety instructions

• Do not modify the appliance when assembling it. It is very dangerous and not allowed to alter parts of the appliance.
  • Always follow the assembly instructions carefully.
• The user is responsible for the correct assembly of the appliance. Damages caused by improper assembly are not covered by the warranty.

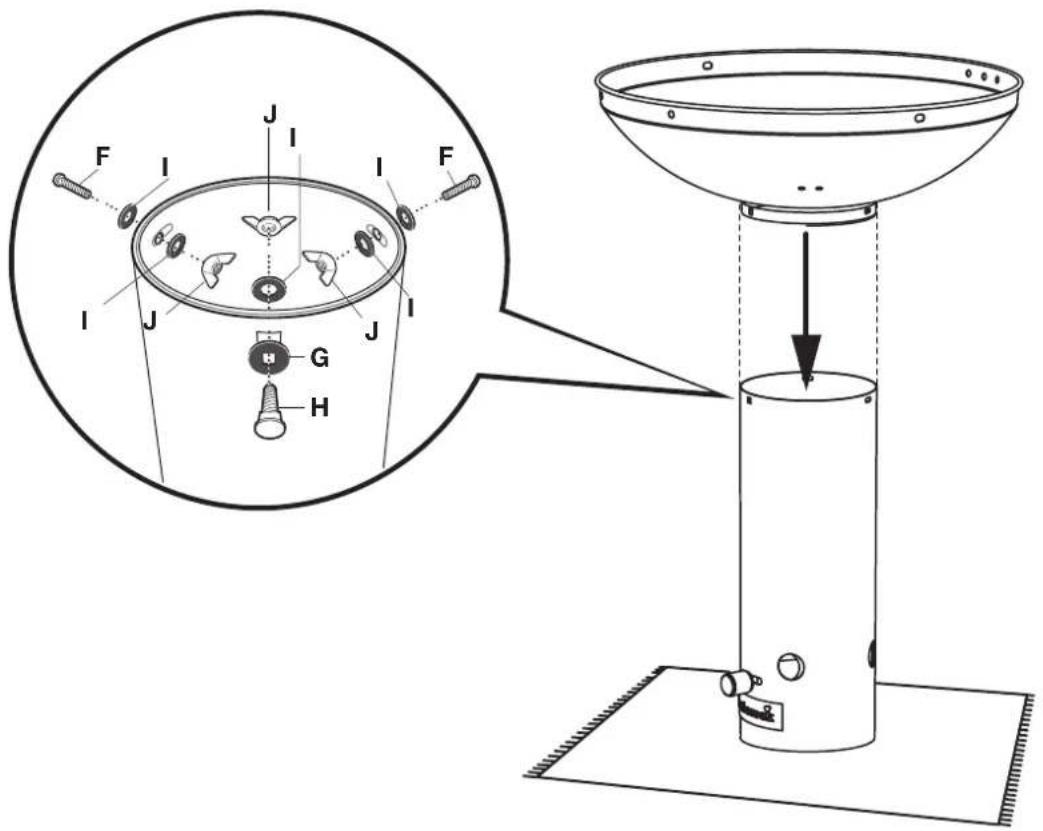

5.2 To assemble the appliance

1. The barbecue has to be installed on a secure level base prior to use.

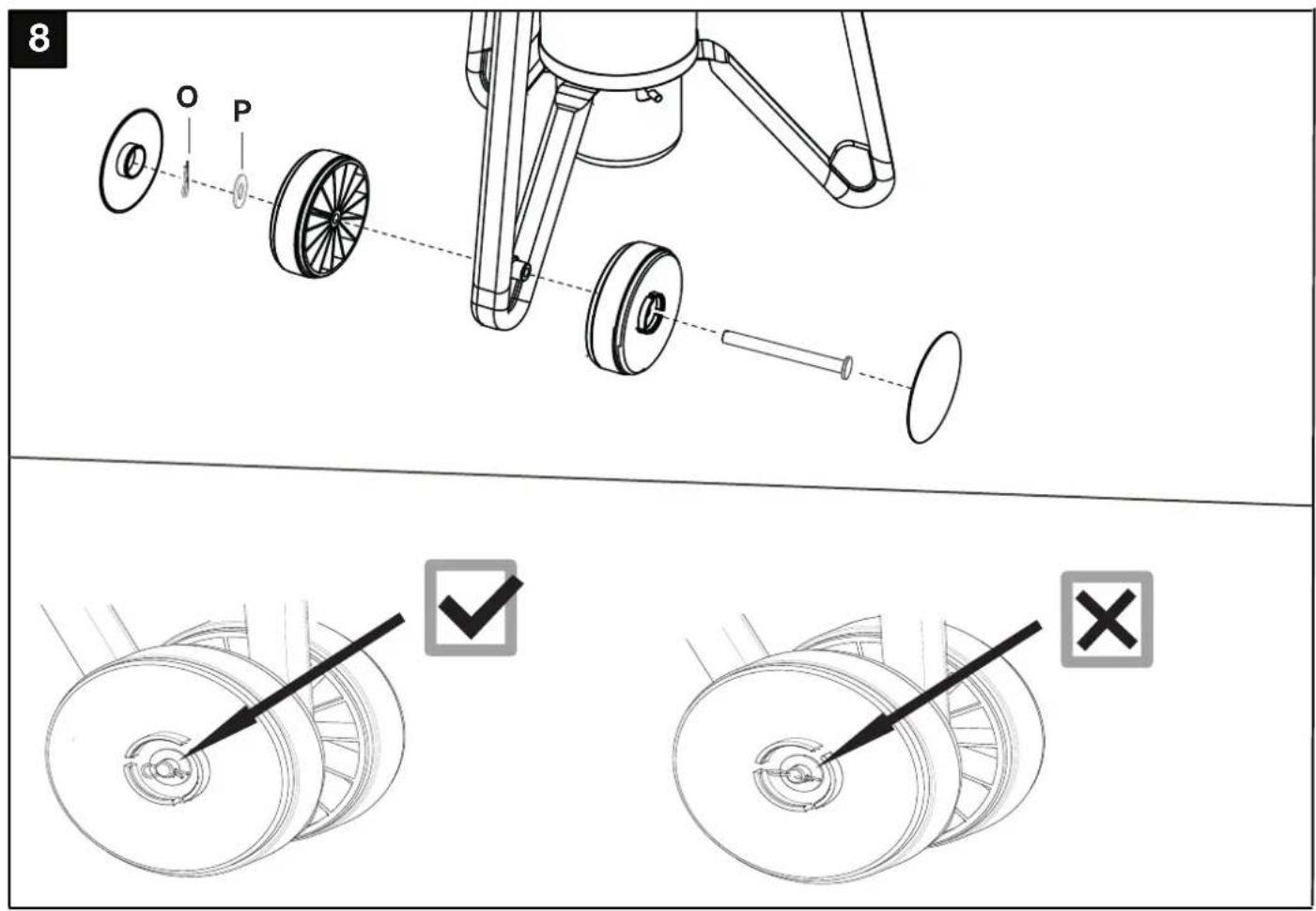

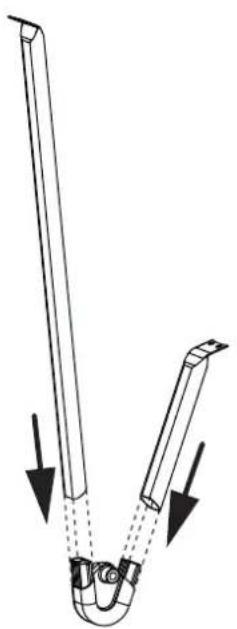

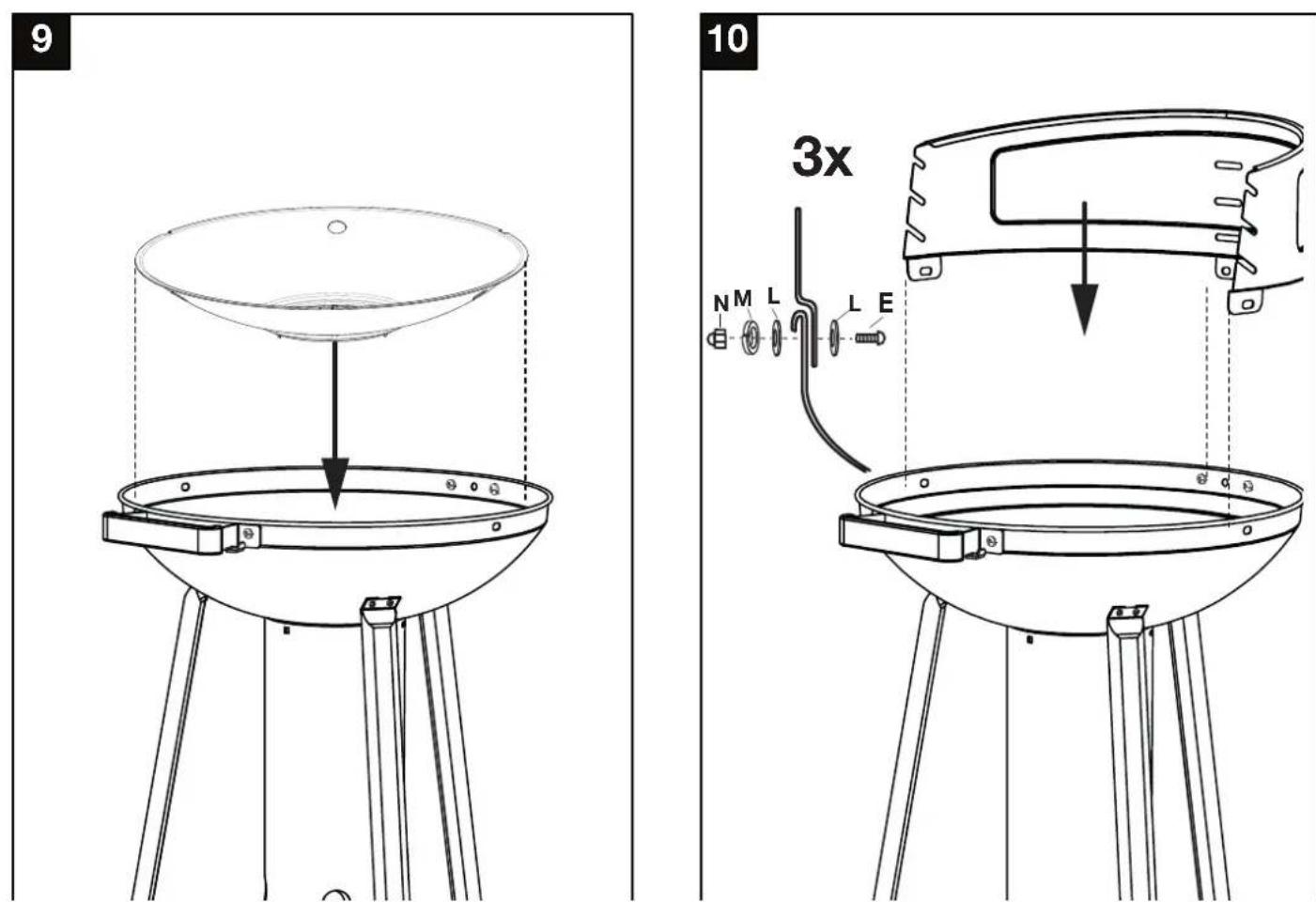

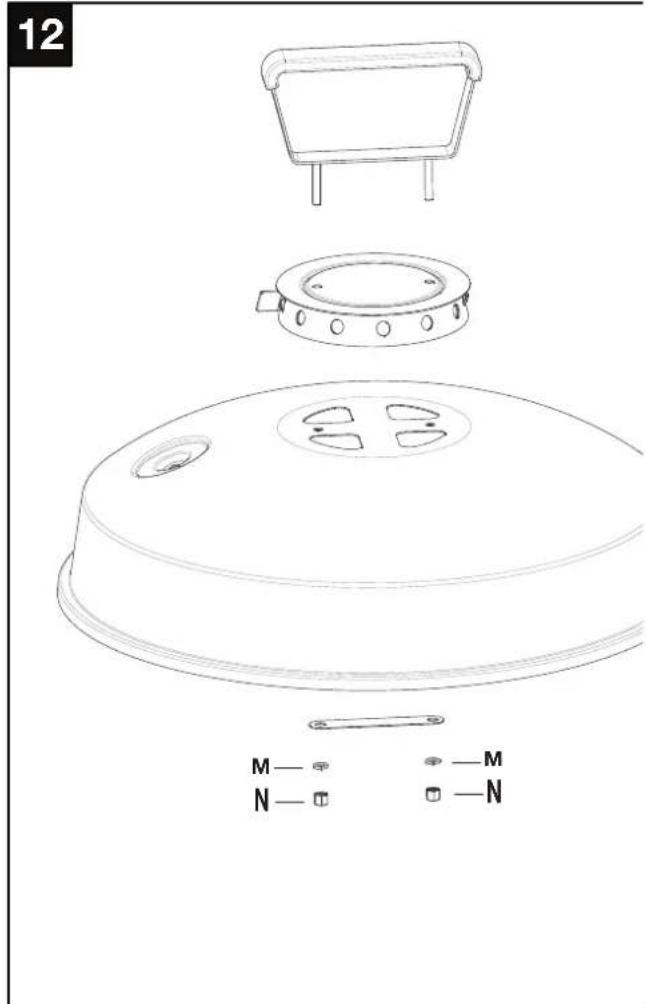

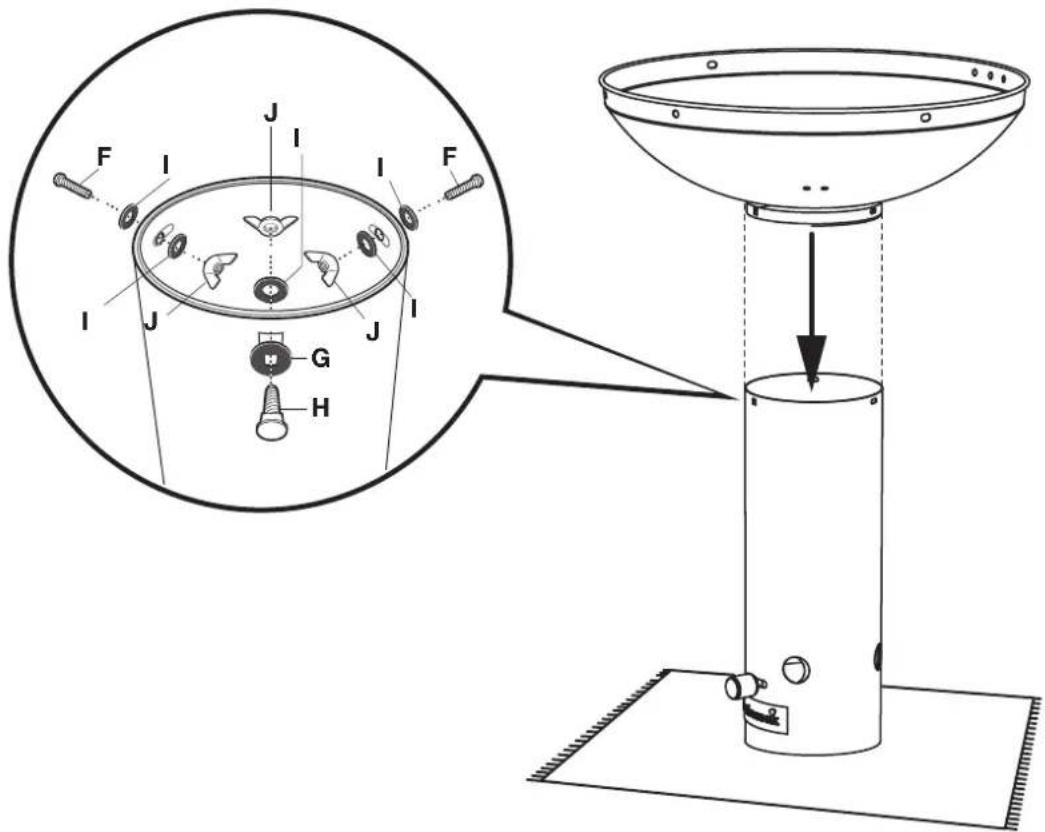

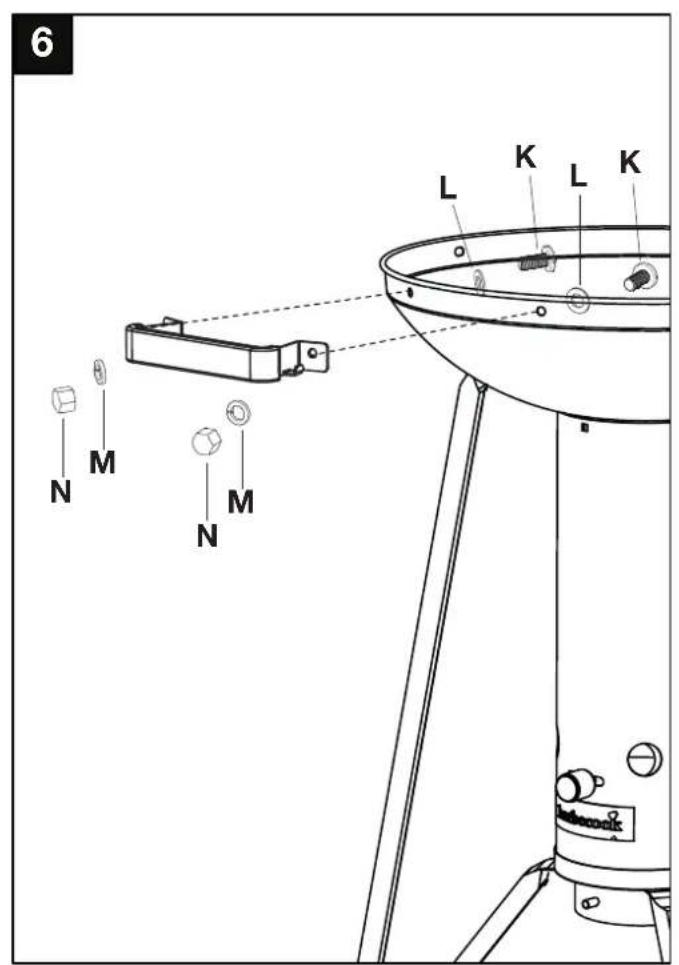

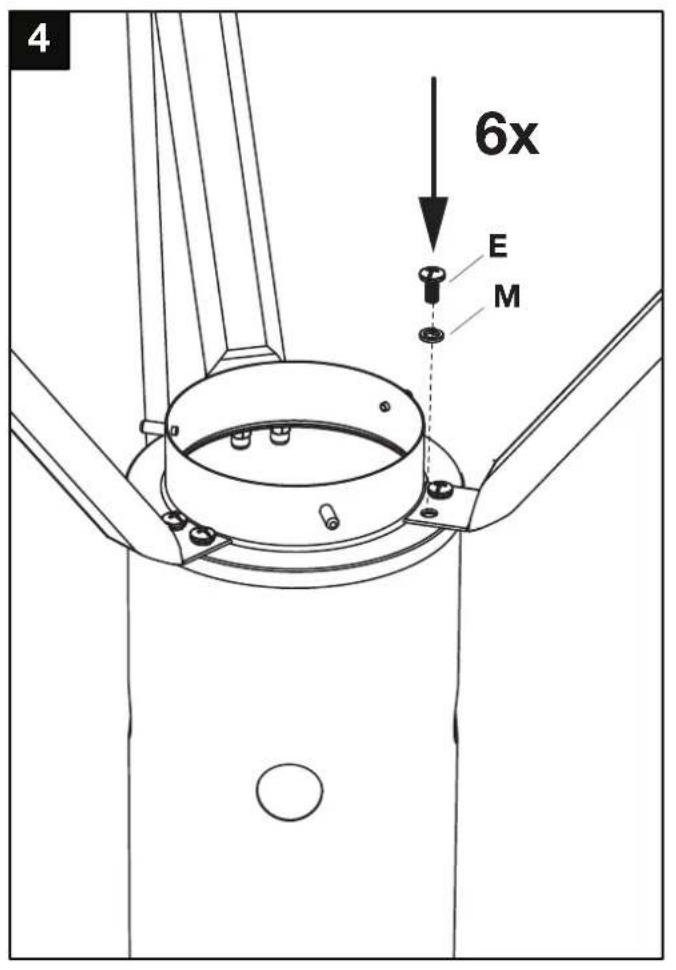

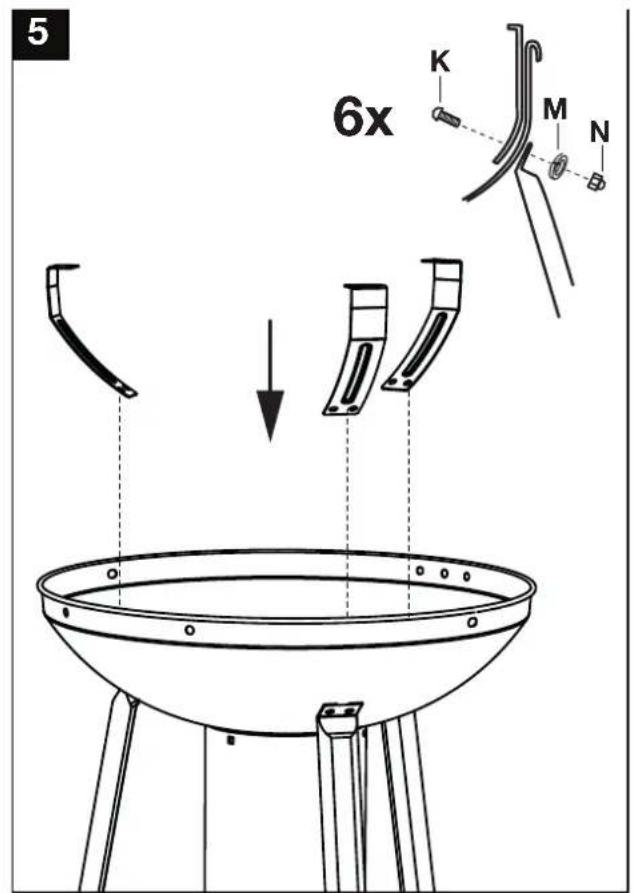

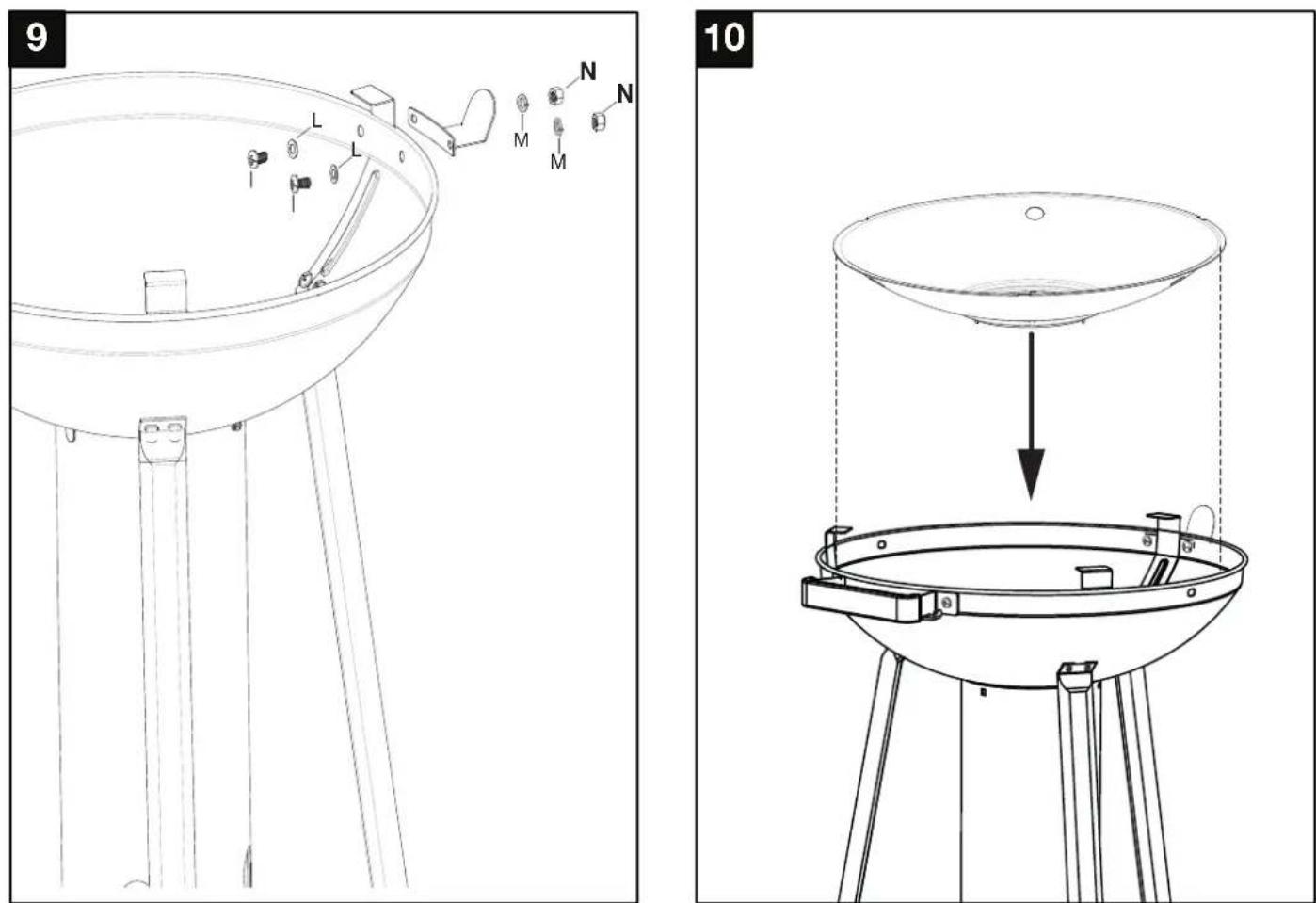

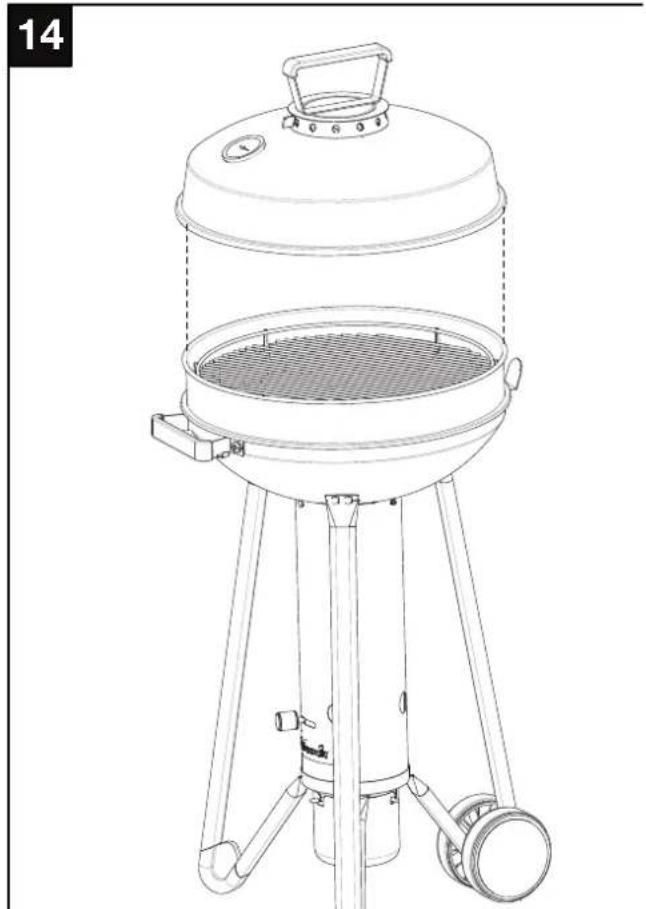

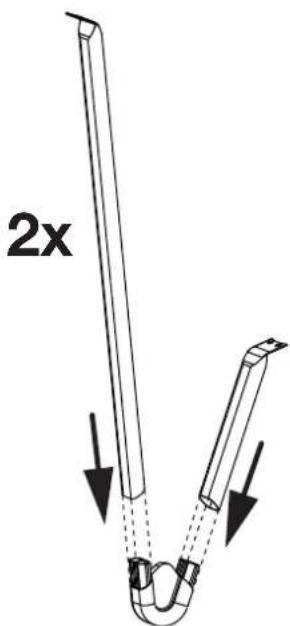

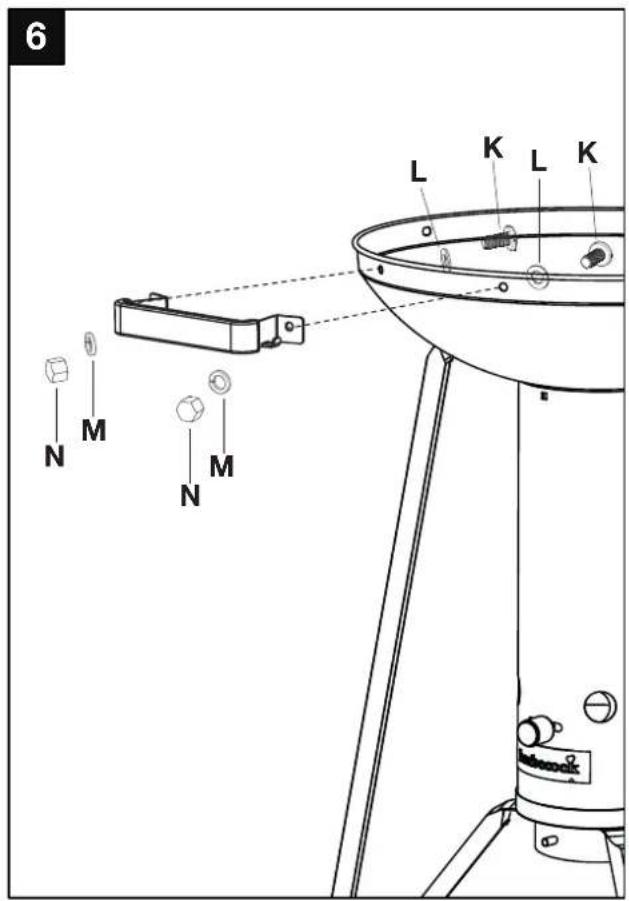

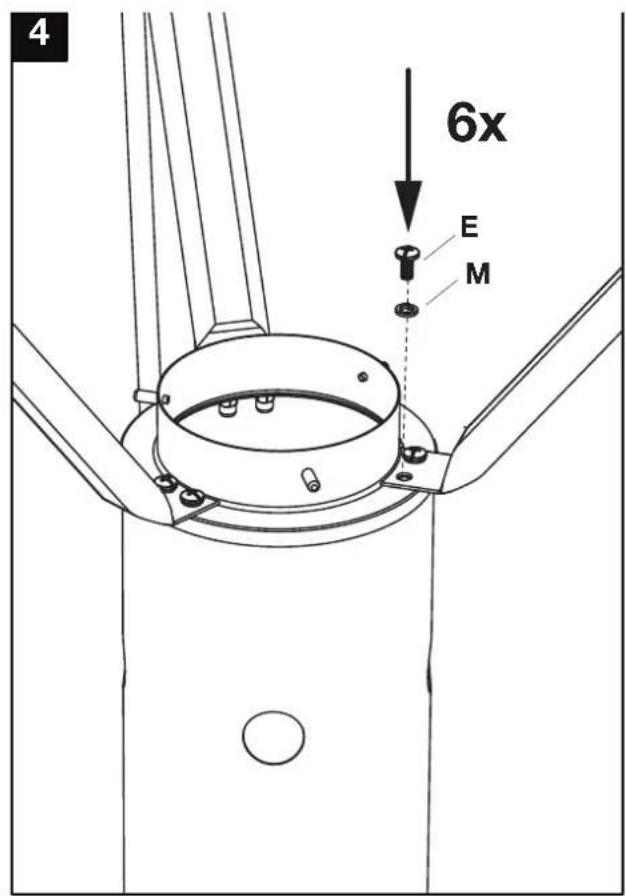

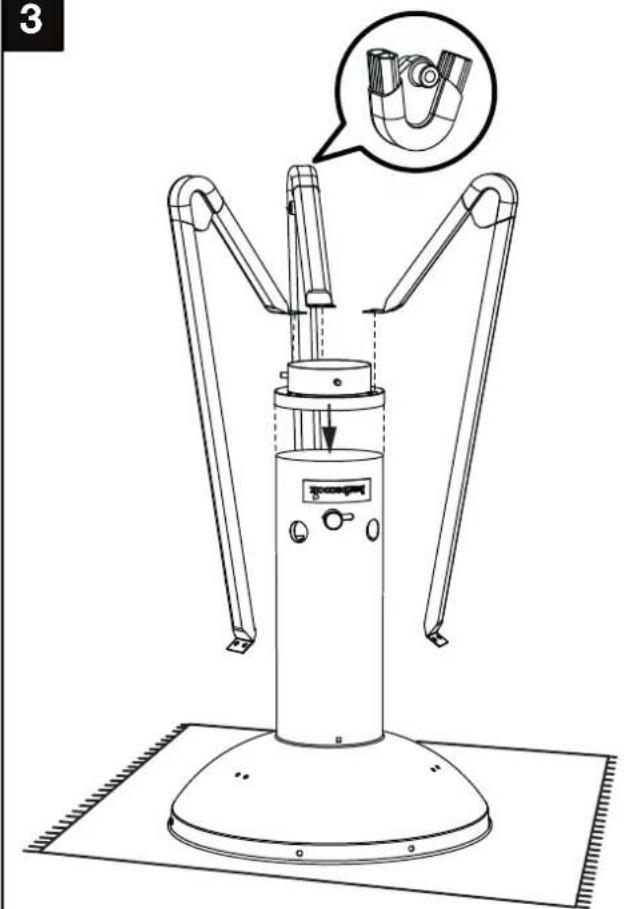

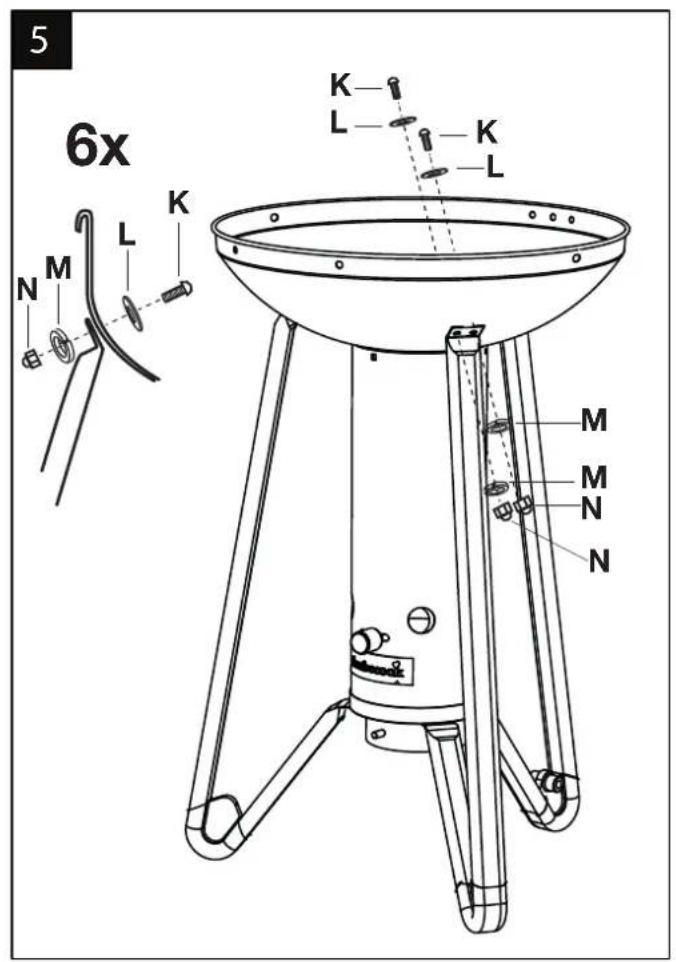

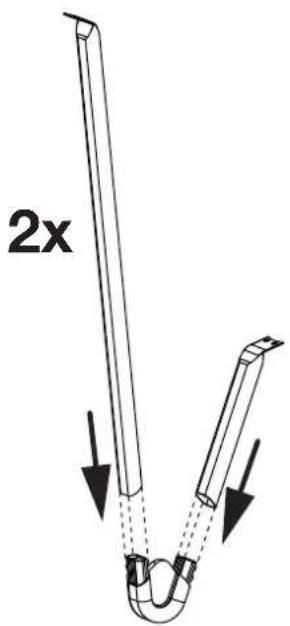

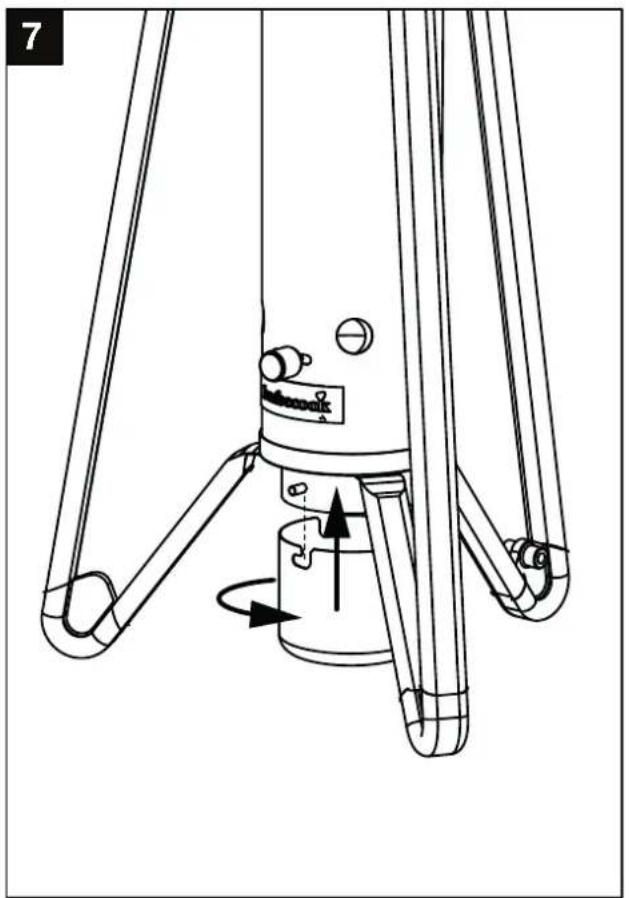

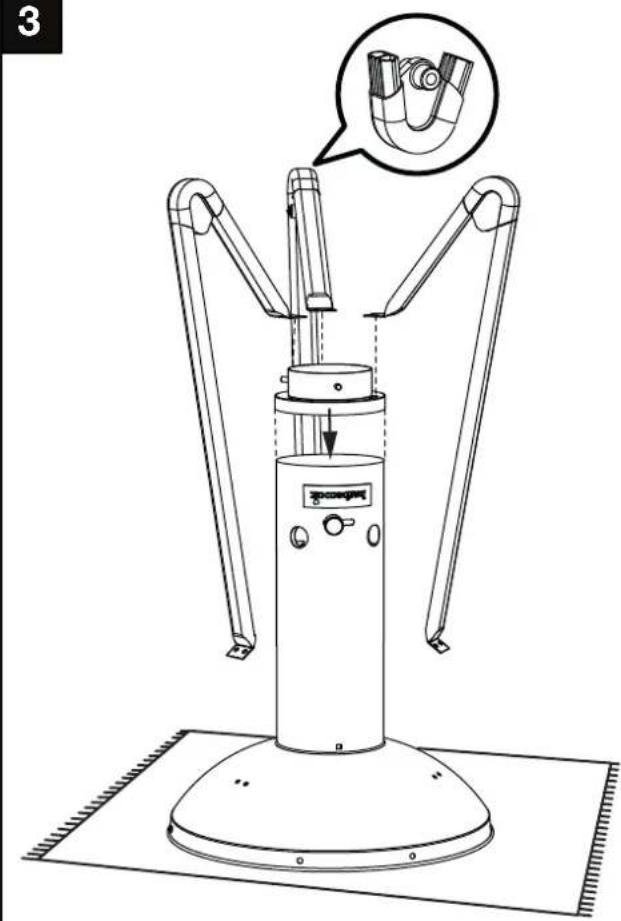

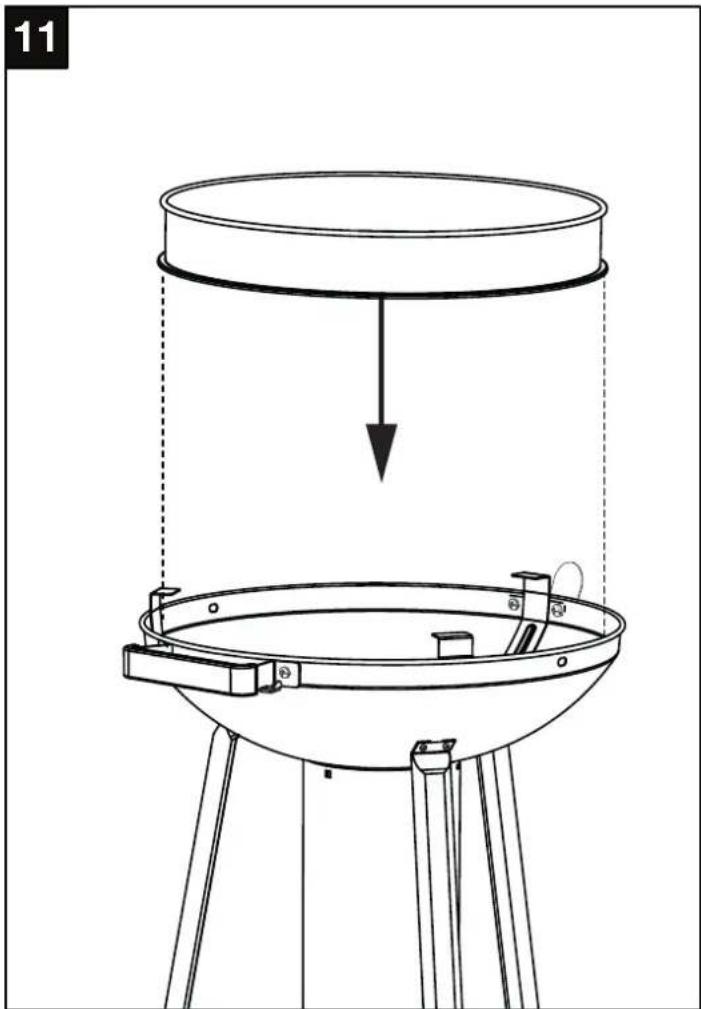

2. Assemble the appliance as shown on the assembly drawings.

You find the assembly drawings in the second part of this manual, after the exploded view of your appliance.

Be careful when assembling enamelled parts. Use the provided fiber washers to protect the enamel around the screws.

Do not use any tools to assemble the appliance. You can only use a cross-slotted screwdriver to adjust the tension on the clips at the bottom of the central pipe.

6 GETTING THE APPLIANCE READY FOR USE

You need water, charcoal, dry newspaper and a long match.

6.1 Which charcoal should I use?

Always light your appliance with traditional charcoal, never with briquettes. Once the appliance is lit, you can add briquettes. Use good quality charcoal to light the appliance, preferably complying with EN 1860-3. Good quality charcoal is composed of large, shiny bricks and does not give off much dust.

Close your bag of charcoal properly before storing it. Always store it in a dry place, do not store it in a cellar.

Do not overfill the inner charcoal pan. Make sure that charcoal lumps do not exceed the top edge of the charcoal pan (max 66%). Overfilling the bowl can seriously damage your barbecue due to extensive heat.

6.2 Step 1: Filling the ash pot

The main steps of this task are illustrated in Figure 1, on page 108.

We recommend filling the ash pot with water before each use. Proceeds as follows:

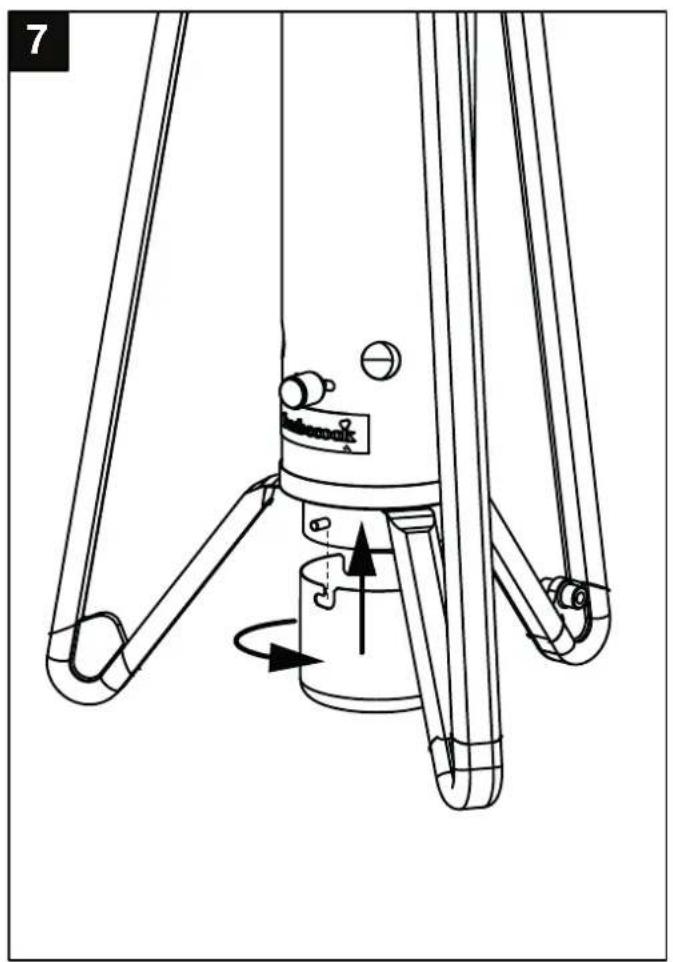

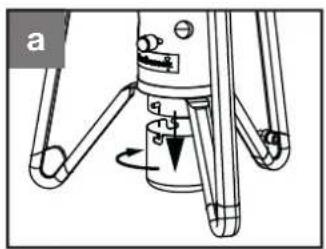

1. Turn the ash pot to the left to detach it.
2. Fill the ash pot half-full with water.
3. Reposition the ash pot. Turn right to lock.

6.3 Step 2: Putting the paper in place

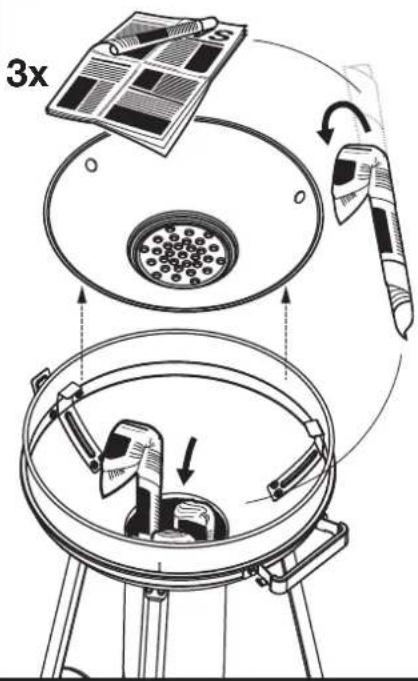

The main steps of this task are illustrated in Figure 2, on page 108.

For a proper functioning of the QuickStart® system, your have to put the paper correctly in the appliance. Proceed as follows:

1. Take three double sheets of newspaper. Always use dry newspaper, preferably a few days old.
2. Roll each sheet of paper diagonally, into a torch-like shape. Do not roll the torches too tightly.
3. Fold over one end of each torch.
4. Remove the charcoal pan from the bowl.
5. Put the torches in the pipe, with the folded ends upwards.

Do not put the torches too deep. They still have to touch the charcoal pan when you put it back in the bowl.

1. Put the charcoal pan back in the bowl.

6.4 Step 3: lighting the appliance

The main steps of this task are illustrated in Figure 3, on page 108.

Once the paper is in place, you can light your appliance. Proceed as follows:

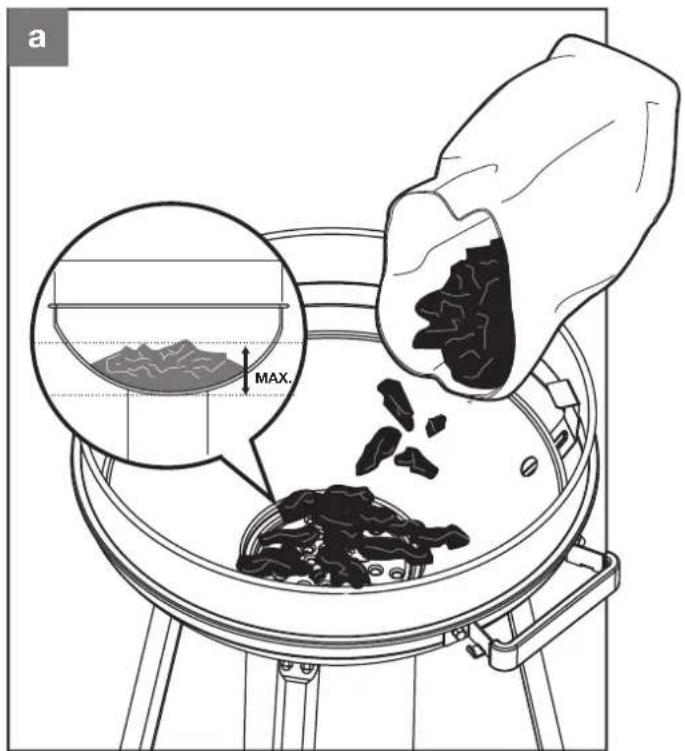

1. Cover the bottom of the bowl with charcoal (Fig. 3a). Tips:

2. Do not use too much charcoal. See 6.1

3. Use small pieces of charcoal to light the appliance. You can add larger bricks afterwards.

4. Open the air supply holes at the bottom of the pipe.

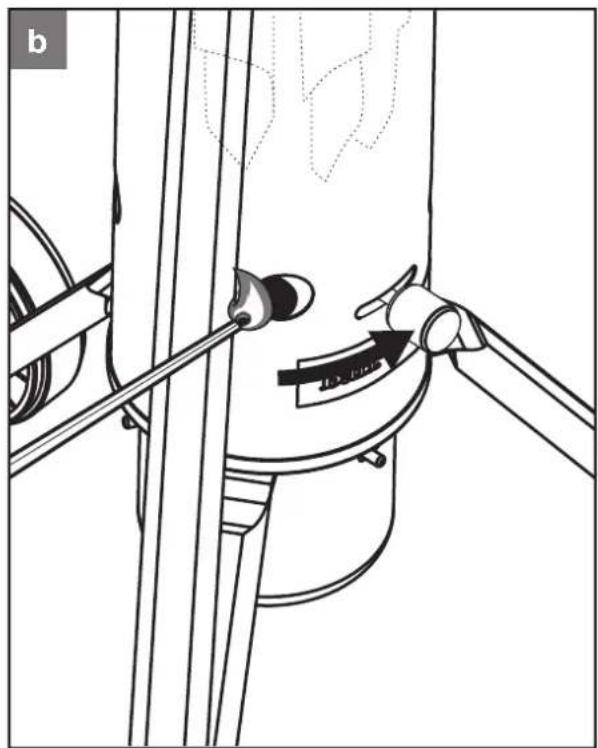

5. Take a long match and light the paper through the air supply holes (Fig. 3b). The burning paper can cause heavy smoke.

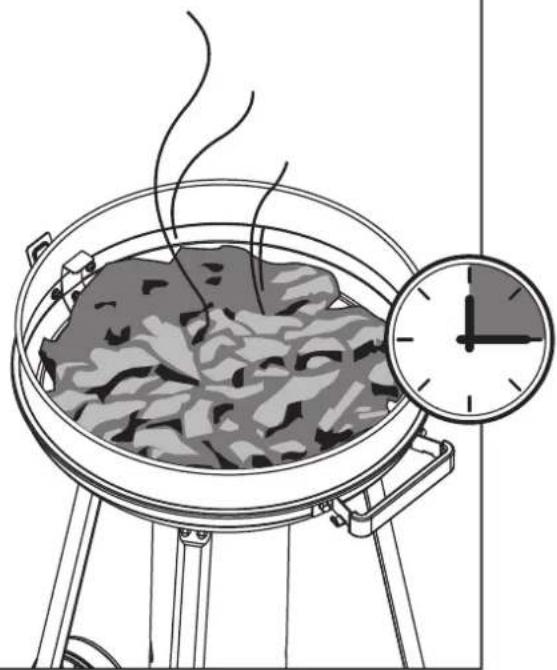

The barbecue shall be heated up and the fuel kept red for at least 30 minutes prior to first cooking. This removes any remaining manufacturing greases from the appliance.

Do not put the grill on the appliance yet. An empty grill can deform when held in the heat for too long.

WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!

1. Do not cook before the fuel (charcoal) has a coating of ash. Normally, this takes about 15 minutes (Fig. 3c)

Adam Top: do not close the lid before the charcoal is covered with a thin layer of white ashes.

7 USEFUL TIPS AND TRICKS

7.1 Adjusting the fire intensity

You can adjust the intensity of the fire by opening and closing the air supply holes at the bottom of the central pipe:

• The more you open the holes, the more air is sucked into the pipe and the more intense the fire will be.
• The more you close the holes, the less air is sucked into the pipe and the less intense the fire will be.
• ADAM Top: the fire intensity can also be adjusted by manipulating the ventilation control knob on top of the lid.

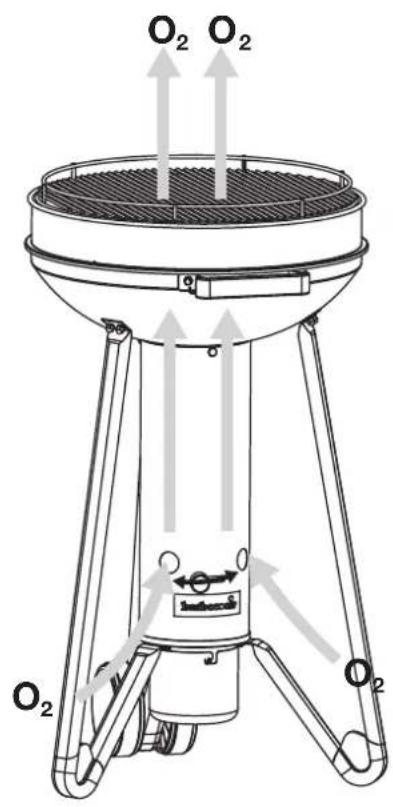

How the air flows through the pipe and fans the fire is illustrated in Figure 4, on page 109.

7.2 Preventing food from burning

To prevent your food from burning:

• Never start grilling when there still are flames in the bowl. Wait until the charcoal is covered with a thin layer of white ashes.
• Avoid exposing your food to excessive heat. You can:
• Protect the food by moving the grill to a higher position.
• Reduce the heat by (partially) closing the air supply holes at the bottom of the pipe
• Adam top: reduce the heat by closing the ventilation control knob on top of the lid

7.3 Preventing food from sticking

To prevent your food from sticking to the grill:

• Oil the food lightly with a brush before you put it on the grill. You can also oil the grill itself.
• Do not turn the food too quickly. let it catch some heat first.

7.4 Avoiding flare-ups

Flare-ups are sudden flames that spark from the bowl when you are grilling. They are usually caused by dripping fat or marinade. During grilling, some flare-ups are normal. Too many flare-ups, however, increase the temperature in the bowl and can ignite accumulated fat. To avoid flare-ups:

• Make sure the bowl is clean before you start grilling. We recommend cleaning the bowl after each use.
• Remove excess fat and marinade from the meat. You can also use a grill pan for fatty and/or marinated meat.

7.5 Grilling under the Dome (Adam 50)

To use your appliance to its full potential, you can equip it with a Dome. The Dome is a half-open, shell-shaped lid that reflects the heat of the charcoal back onto the food. As a result, your food is heated from the bottom and from the top. This allows you, amongst others, to evenly cook large pieces of meat, to prepare beer canned chickens and even to grill pizzas.

Use Dome 223.0050.000 for the Adam 50. For more information on the Dome, refer to www.barbecook.com

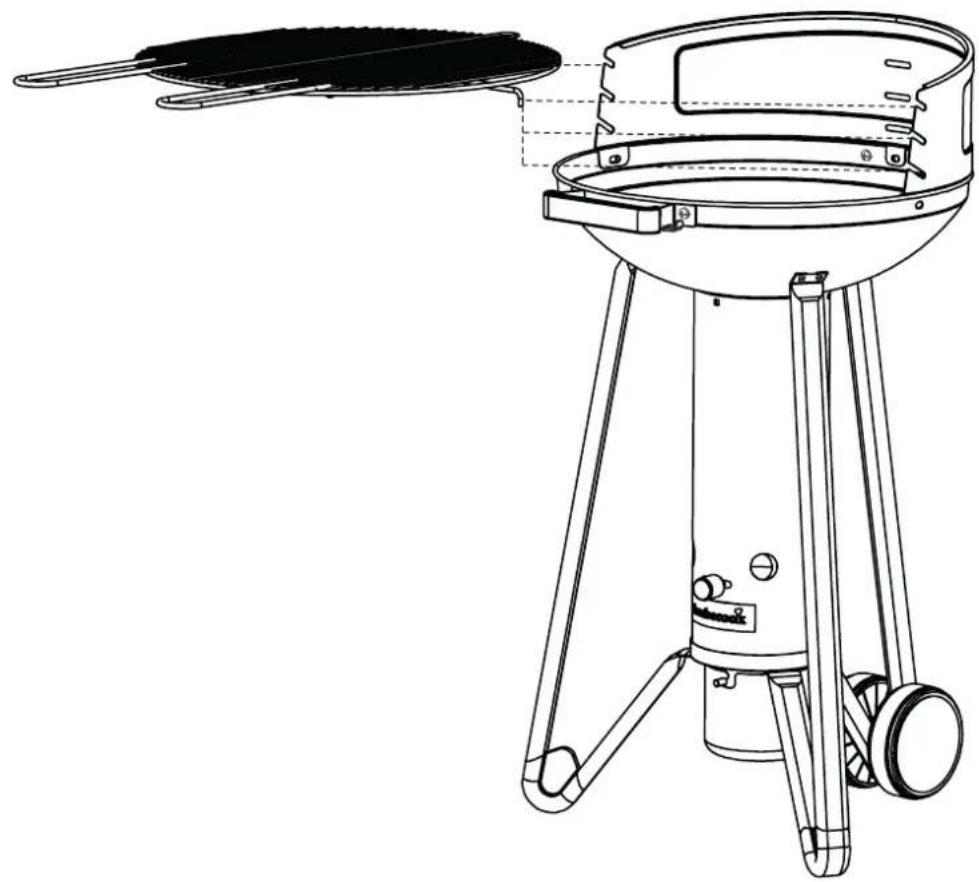

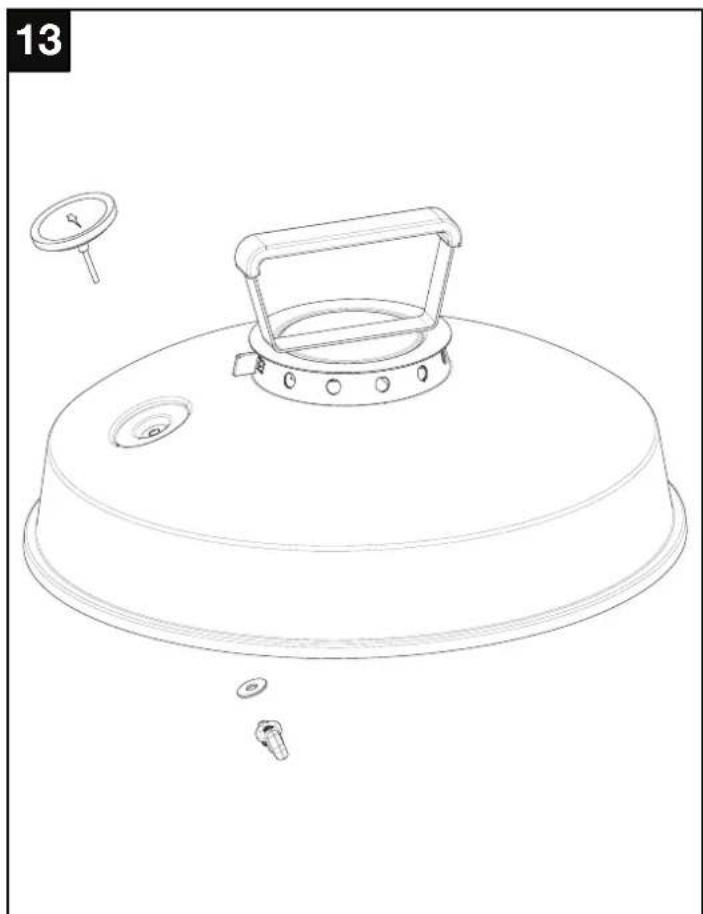

7.6 Grilling under the lid (Adam 50 Top)

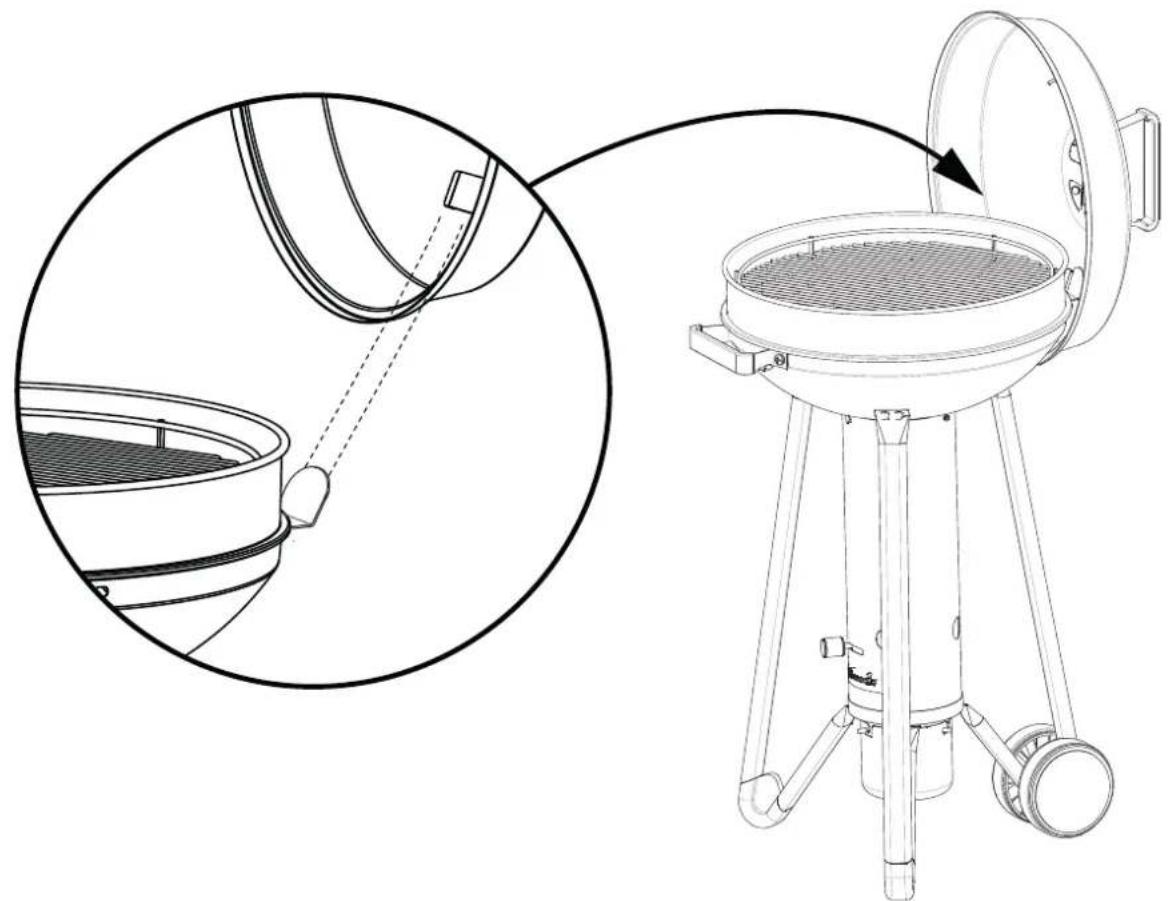

The Adam 50 Top is equipped with a removable lid. The lid reflects and holds the heat. This allows you to evenly cook large pieces of meat, to prepare beer canned chickens and even to grill pizzas. Proceed as follows:

• Open the lid when the fire is intense.
• Close the lid at low heat for to slowly cook large pieces of meat.

8 MAINTAINING THE APPLIANCE

8.1 Cleaning the bowl

The main steps of this task are illustrated in Figure 5, on page 109.

We recommend cleaning the bowl after each use. Proceed as follows:

1. Let the appliance cool down completely and remove the grill.

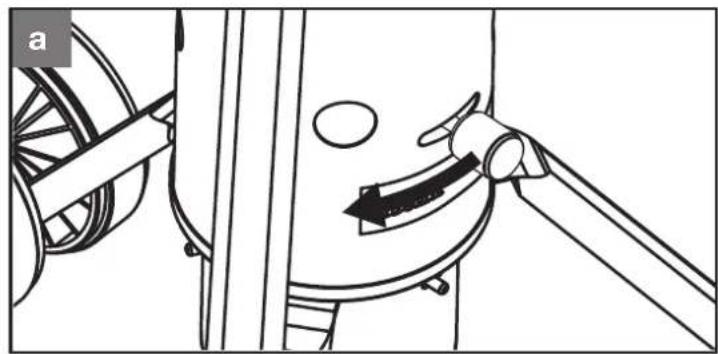

2. Close the air supply holes at the bottom of the central pipe (Fig. 5a).

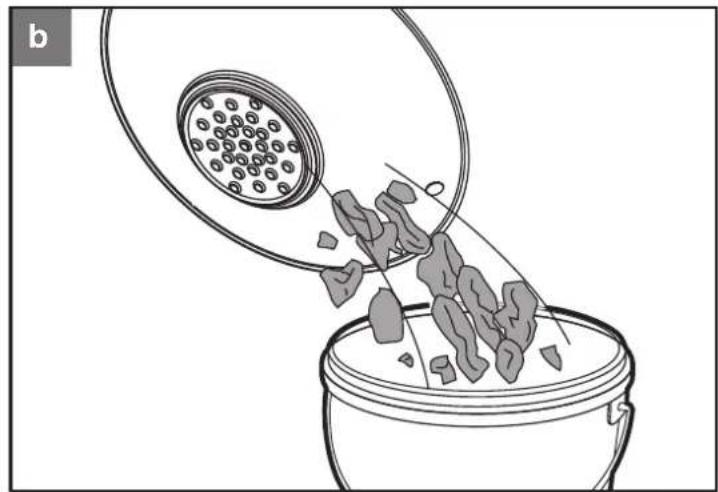

3. Remove the charcoal pan from the bowl and pour the ashes into a bucket. Sweep the remaining ashes into the pipe (Fig. 5b).

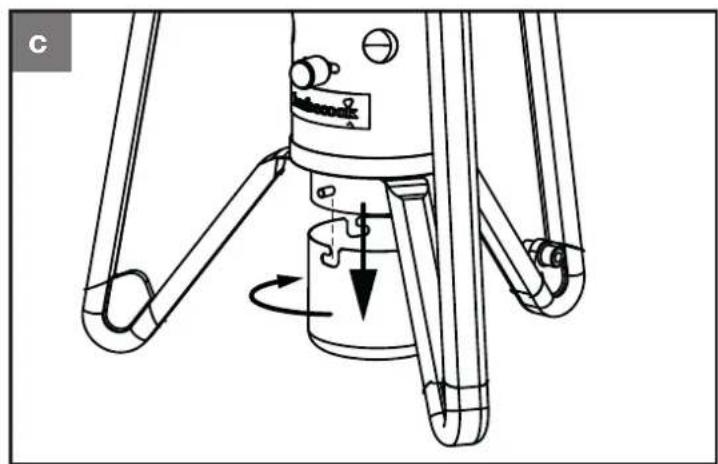

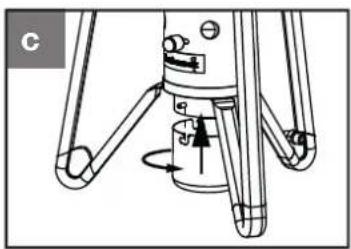

4. Release the ash pot by turning it to the left (Fig. 5c).

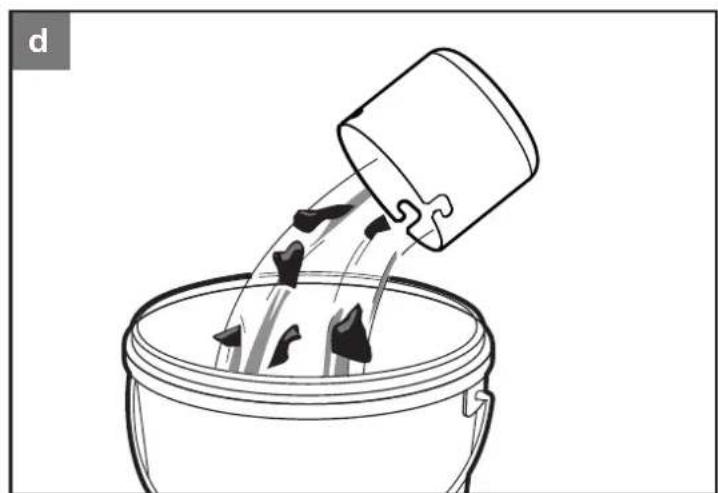

5. Pour the water with the ashes into a bucket (Fig. 5d).
6. Reposition the ash pot. Turn right to lock.
7. Put the charcoal pan back in the bowl.

8.2 Cleaning the grill

We recommend cleaning the grill after each use, with a Barbecook cleaner.

You can also clean the grill with a soft detergent or with sodium bicarbonate. Never use oven cleaners on the grill.

8.3 Storing the appliance

Store the appliance in a dry place (indoors, under a shelter...) after each use. To extend the lifespan of your appliance, we recommend covering it with a Barbecook cover. Register your appliance at www.barbecook.com to find out which cover you need..

Make sure the appliance is completely dry before you store it. This prevenst formation of rust.

8.4 Maintaining enamel, (stainless) steel and chrome

The appliance is composed of enamelled, stainless steel and chromed parts. Each material has to be maintained differently:

Material How to maintain this material
Enamel	Do not use sharp objects and do not knock against a hard surface.Avoid contact with cold liquids while still hot.You can use metal sponges and abrasive detergents.
Stainless steel and chrome	Do not use aggressive, abrasive or metal detergents.Use soft detergents and let them act on the steel.Use a soft sponge or cloth.Rinse thoroughly after cleaning and dry well before storing.
Powder coated	Do not use sharp objects. Use soft detergents and a soft sponge or cloth.Rinse thoroughly after cleaning and dry well before storing.
Oiled steel	Use a steel brush or steel wool to clean the surface.Rub the inside & outside surface with a cooking oil after every use. This will prevent the bowl from rusting. However, over a period of time rust will develop eventually.

To prevent formation of rust on stainless steel, avoid contact with chlorine, salt and iron. We recommend not using the appliance near the coast, near railways or near swimming pools.

Damages caused by not following these instructions are regarded as inadequate maintenance and are not covered by the warranty.

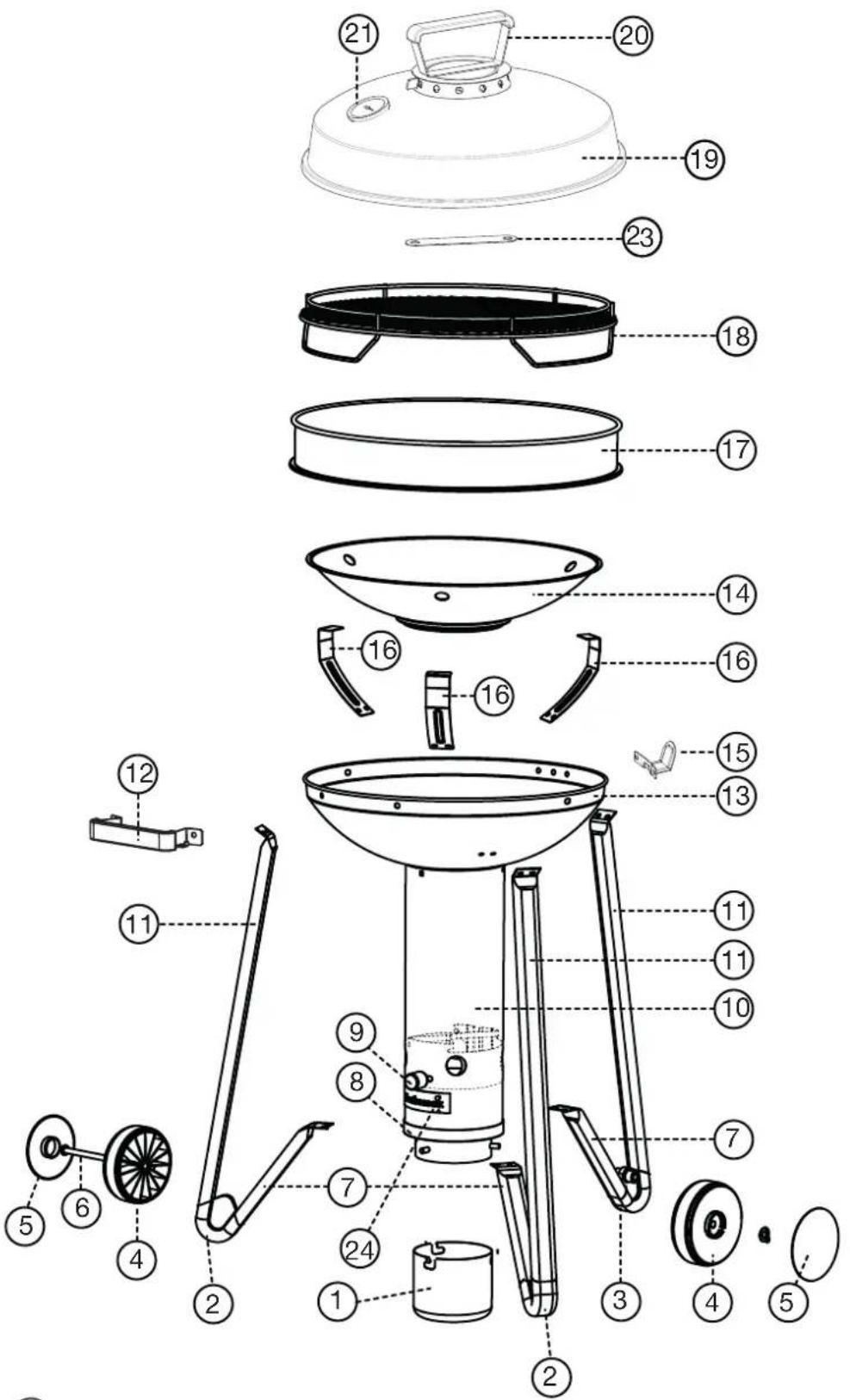

Below the exploded view of your appliance (second part of the manual), you find a list with all parts of which the appliance is composed. This list includes a symbol that specifies the material of each part, so you can use it to check how you have to maintain a particular part. The parts list uses the following symbols:

Symbol	Material
●	Enamel
▲	Chrome
■	Stainless steel
★	Powder coated steel
○	Oiled steel

8.5 Ordering spare parts

Parts that are directly exposed to fire or intense heat have to be replaced from time to time. To order a spare part:

1. Look up the reference number of the part you need. You find a list of all reference numbers below the exploded views in the second part of this manual and on www.barbecook.com.

If you registered your appliance online, you will automatically be guided to the correct list in your MyBarbecook account. There you have the possibility to order your parts online.

1. Order the spare part via www.barbecook.com or at your point of sale. Parts under warranty can only be ordered at your point of sale.

9 WARRANTY

9.1 Covered

Your appliance comes with a warranty of two years, starting from the date of purchase. This warranty covers all manufacturing defects, provided that:

• You used, assembled and maintained your appliance according to the instructions in this manual. Damages caused by misuse, incorrect assembly or inadequate maintenance are not regarded as manufacturing defects.

• You can present the receipt and the unique serial number of your appliance. This serial number starts with a G, followed by 15 digits. You can find it:

• On this manual.

• On the packaging of the appliance.
• On the bottom of the foot of the appliance.

- The Barbecook quality department confirms that the parts are defective and that they proved defective under normal use, correct assembly and adequate maintenance.

If one of the above conditions is not met, you cannot claim any form of contribution. In all cases, the warranty is limited to the repair or replacement of the defective part(s).

9.2 Not covered

The following damages and defects are not covered by the warranty:

• Normal wear and tear (rusting, distortion, discolouration...) of parts that are directly exposed to fire or intense heat. It is normal to replace these parts from time to time.
• Visual irregularities that are inherent to the manufacturing process. These irregularities are not regarded as manufacturing defects.
• All damages caused by inadequate maintenance, incorrect storage, improper assembly or modifications made to pre-assembled parts.
• All damages caused by misuse and abuse of the appliance (not using it according to the instructions in this manual, using it for commercial purposes, using it as a fire basket...).
• All consequential damages caused by careless or non-compliant use of the appliance.
• Rust or discolouration caused by external influences, the use of aggressive detergents, exposure to chlorine... These damages are not regarded as manufacturing defects.

To use your appliance to its full potential, you can equip it with a Dome. The Dome is a half-open, shell-shaped lid that reflects the heat of the charcoal back onto the food. As a result, your food is heated from the bottom and from the top. This allows you, amongst others, to evenly cook large pieces of meat, to prepare beer canned chickens and even to grill pizzas.

7.6 Grillning under locket (Adam 50 Top)

8 VEDLIKEHOLD AV APPARATET

3 DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

3 OLULISED OHUTUSJUHISED

Exploded view diagram of a portable oven with numbered parts for identification

ADAM 50223.7050.900
1 227.7050.000	●
2 227.7050.005
3 227.7050.010
4 227.7050.015
5 227.7050.020
6 227.7050.025
7 227.7050.030	■
8 227.7050.035	■
9 227.7050.040
10 227.7050.045	●
11 227.7050.050	■
12 227.7050.055
13 227.7050.060	●
14 227.7050.065	○
15 227.1400.050	▲
16 227.4550.001	●
17 227.7050.070
18 227.2200.200

17 K 8x F 2x G 1x H 1x I 5x J 3x E 9x L 14x M 17x N 11x 1x 1x

1 ADAM 50

Technical diagram of a device with labeled components and an inset showing a circular component with internal parts labeled F, I, J, H, G.

2

Diagram of a mechanical component with two rods and a curved end, showing motion direction (no text or symbols)

2x

3

Technical line drawing of a robotic device with articulated arms and a control panel, showing internal components and a magnified inset (no text or symbols)

4 6x E M

5 6x N M L K K L K L M M N N

6 N M N M L K L K

Technical line drawing of a mechanical device with no visible text or symbols

9 10 3x N M L L E

Line drawing of a portable grill with handle and legs, no text or symbols present

Exploded view diagram of a portable stove with numbered parts for identification

ADAM 50 TOP223.7150.900
1	227.7050.000	●
2	227.7050.005
3	227.7050.010
4	227.7050.015
5	227.7050.020
6	227.7050.025
7	227.7050.030	■
8	227.7050.035	■
9	227.7050.040
10	227.7050.045	●
11	227.7050.050	■
12	227.7050.055
13	227.7150.045	●
14	227.7050.065	○
15	227.7150.000	■
16	227.7150.005	■
17	227.7150.010	■
18	227.7150.015	▲
19	227.7150.020	●
20	227.7150.025
21	227.7150.030
22	227.7150.035
23	227.7150.040	■
24	227.2200.200

22

E 10x F 2x G 1x H 1x

I 5x J 3x K 6x L 4x

M 18x N 12x 1x 1x

1 ADAM 50 TOP

Technical diagram of a device with labeled components and an inset showing a circular component with internal parts and a funnel-shaped structure.

2

Diagram of a bent pipe with two vertical posts and directional arrows indicating flow or movement (no text or symbols)

2x

Technical diagram of a robotic device with labeled components and an inset showing a mechanical component detail.

4 6x E M

5 6x K M N

6 N M N M L K L K

Technical line drawing of a mechanical assembly with no visible text or symbols

9 L M N M N 10

Line drawing of a scientific instrument with a circular top and tripod base, showing a downward arrow indicating motion (no text or symbols)

12 M—● N—□ ●—M □—N

Line drawing of a circular mechanical component with a lid and mounting holes, no text or symbols present

Line drawing of a portable heater with lid, gridded top, and tripod base (no text or symbols)

Line drawing of a portable grill with a lid and side arm, showing structural components and a close-up inset (no text or symbols)

1

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

b

Technical line drawing of a mechanical device with no visible text or symbols

2

3x

3

a MAX.

Technical diagram showing mechanical assembly with tool and component (no text or symbols)

C

Line drawing of a hot pot with steam rising, accompanied by a wall-mounted gauge showing time (no text or symbols)

4

O₂ O₂ O₂ O₂

5

Diagram of a mechanical device with a lever and directional arrow, no visible text or symbols

Illustration of a cooking step showing ingredients being added to a pot (no text or symbols)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a bucket pouring liquid into a container (no text or symbols)

JOIN THE # BARBECOOK COMMUNITY

GRILL MASTER barbecook

REGISTER NOW & GET ACCESS TO:

BARBSTOCK www.bartbstock.com MY PRODUCTS / BAMBSTOCK EOGEN BLACK ACCESSORIES SPARE ITEMS MANUALS NUTTANT

• Online Product Manuals
• Personalised Grillspiration
• Product Tips & Tricks
• Barbecook Challenges
- Spare Parts Lists
...

WWW.BARBECOOK.COM

Barbecook® is a registered trade mark of SAEY Home & Garden N.V. Industrielaan 4, B-8501, Heule (Kortrijk) Belgium

barbecook®
