USER MANUAL 72V LiIon Accu Power 55H Wolf Garten
72V Li-ION POWER 55H
DE Deutsch 6
(Original operating instructions)
FR Français 26

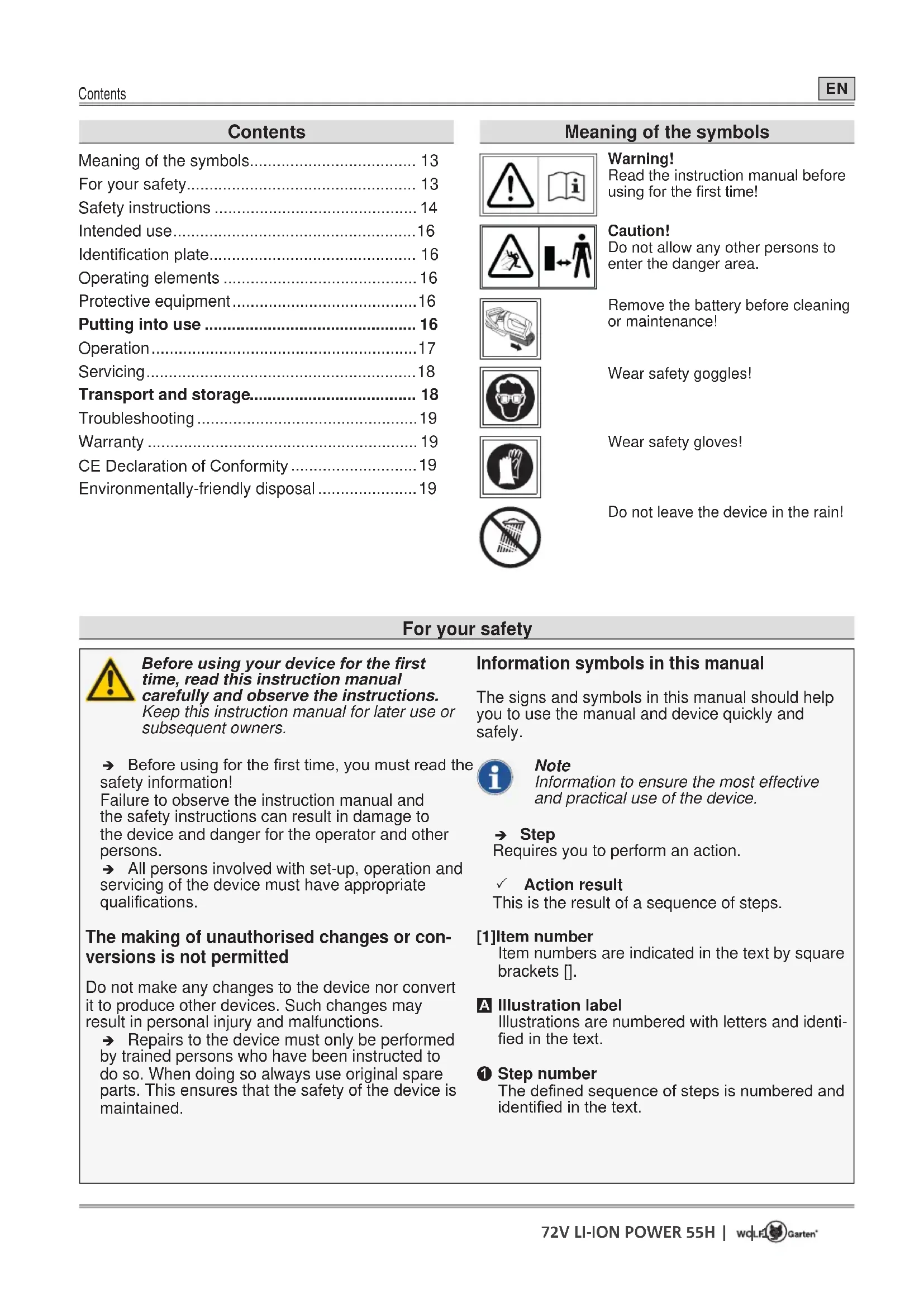

Meaning of the symbols.... 13
For your safety.... 13
Safety instructions 14
Intended use....16
Identification plate.... 16
Operating elements ...... 16
Protective equipment....16
Putting into use 16
Operation....17
Servicing....18
Transport and storage.... 18
Troubleshooting 19
Warranty 19
CE Declaration of Conformity 19
Environmentally-friendly disposal 19
Meaning of the symbols
Warning!
Read the instruction manual before using for the first time!
Caution!
Do not allow any other persons to enter the danger area.
Remove the battery before cleaning or maintenance!
Wear safety goggles!
Wear safety gloves!
Do not leave the device in the rain!
For your safety
Before using your device for the first time, read this instruction manual carefully and observe the instructions.
Keep this instruction manual for later use or subsequent owners.
→ Before using for the first time, you must read the safety information!
Failure to observe the instruction manual and the safety instructions can result in damage to the device and danger for the operator and other persons.
→ All persons involved with set-up, operation and servicing of the device must have appropriate qualifications.
The making of unauthorised changes or conversions is not permitted
Do not make any changes to the device nor convert it to produce other devices. Such changes may result in personal injury and malfunctions.
→ Repairs to the device must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the device is maintained.
Information symbols in this manual
The signs and symbols in this manual should help you to use the manual and device quickly and safely.
Note
Information to ensure the most effective and practical use of the device.
→ Step
Requires you to perform an action.
√ Action result
This is the result of a sequence of steps.
[1]Item number
Item numbers are indicated in the text by square brackets [].
A Illustration label
Illustrations are numbered with letters and identified in the text.
① Step number
The defined sequence of steps is numbered and identified in the text.
Safety instructions
Danger levels of warning information
The following danger levels are used in this instruction manual to indicate potentially dangerous situations:
DANGER!
A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death.
WARNING!
A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death.
CAUTION!
A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries.
Attention!
A possibly harmful situation may occur which if not avoided will result in property damage.
Safety information content
DANGER!
Type and source of the danger!
Consequences of non-observation
➢ Measure for preventing the danger
Protection of yourself and others
For safety reasons, children or persons who are not familiar with the instruction manual and operation of the hedge trimmer, must not use it. The minimum age of users may be defined by local or national legislation.
Do not operate the hedge trimmer when there are people (especially children) or animals in the immediate vicinity. Ensure children do not play with the hedge trimmer.
➢ Stop using the device if persons (especially children) or animals are nearby.
This device must not be used by children or persons with reduced physical, sensory or mental capabilities or with inadequate experience and knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specified by local or national legislation.
Only switch the motor on if your feet and hands are at a safe distance from the cutting element.
Always disconnect the device from the power supply if you are leaving it unattended or removing a blockage.
Always wear sturdy shoes and long trousers as well as other appropriate personal protective equipment (safety glasses, ear defenders, safety gloves etc.) when working on the hedge trimmer. The wearing of personal protective equipment minimises the risk of injury. Do not wear loose clothing, etc., which could be caught by the cutting tool.
Before use
Before use, make sure you are familiar with the hedge trimmer, its functions and controls.
Do not use any hedge trimmer whose switch is defective and which can no longer be switched on or off. It must be repaired by a qualified expert or workshop.
Never use a device with damaged or missing guards or covers. They must be repaired or replaced by a qualified expert or workshop.
Before making adjustments to the device or cleaning it, switch it off and remove the power pack.
Read and observe the operating instructions of the power pack and its charger.
Safety instructions
When in use
Keep all body parts away from the cutting blade. Do not attempt to remove grass cuttings or hold material to be cut with the blade running. Only remove jammed grass cuttings with the device switched off. One moment of inattentiveness when using the hedge trimmer can result in serious injuries.
Hold the hedge trimmer at the handle with the blade at a standstill. Always put on the protective cover when transporting or storing away the hedge trimmer. Careful handling of the device reduces the risk of injury from the blade.
Only hold the power tool by the insulated handles, because the cutting blade can come into contact with hidden power cables. Contact of the cutting blade with a live cable can conduct electrical voltage into metallic device parts resulting in an electric shock.
Do not use the device in an explosive environment, where there are inflammable liquids, gases or dusts. The device may create sparks, which could ignite the dust or vapours.
➢ Never leave the hedge trimmer unattended during breaks and store it in a secure location.
➢ Check for hidden objects in the hedge, such as wire fencing, before commencing work.
➢ Hold the hedge trimmer securely with both hands.
Hold the hedge trimmer parallel to the hedge when switching on, otherwise there is a risk of injury.
Also when working maintain a safe distance relative to the cutting tool.
- Wear suitable safety goggles and ear defenders!
➢ Adopt a normal posture. Ensure you are standing securely and that you maintain your balance at all times. Do not run, rather walk forwards at a steady pace. This will ensure that you can maintain better control of the device if unexpected situations occur.
Take extra care if you are walking backwards. Risk of tripping!
Switch the motor off when carrying the device to or from separate working positions.
➢ Never bypass or tamper with safety devices installed on the device (e.g. by taping the switch to the handle).
After use
Switch the device off, remove the power pack and check the device for damage. Attention, danger! Cutting tool still running!
If you need to clean or service the device, switch it off and remove the power pack.
➢ Always wait until the cutting tool comes to a standstill.
➢ Removal of the protective equipment must only be performed with the motor stationary and the power pack removed.
➢ Ensure that ventilation slots are free from dirt.
Do not clean the hedge trimmer using water.
Store the device in a safe location out of reach of children.
Do not repair the device yourself; it must be repaired by a qualified expert or workshop.
General safety instructions
➢ Spare parts must meet the requirements of the manufacturer. Therefore use only original WOLF-Garten spare parts or spare parts approved by the manufacturer. During replacement, always observe the supplied fitting instructions, remove the power pack in advance.
➢ Repairs must only be performed by a qualified expert or workshop.
This hedge trimmer is intended for the care of hedges in private households. The device must not be used for purposes other than those intended because of the risk of bodily injury to the user or other persons.
Only use the hedge trimmer in daylight or under bright artificial light. Keep your work area clean and well lit.
Only use the hedge trimmer in dry weather conditions. Keep it away from rain or damp. The ingress of water into the hedge trimmer increases the risk of an electric shock.
Intended use
The hedge trimmer is intended solely for the cutting of hedges and bushes with a maximum branch thickness of 26 mm (1 inch).
Any other use is classed as unintended use. The user is liable for any damages arising from unintended use.
Incorrect/abnormal use
This hedge trimmer should not be used in public facilities, parks, sports grounds, roads etc. nor in agriculture or forestry.

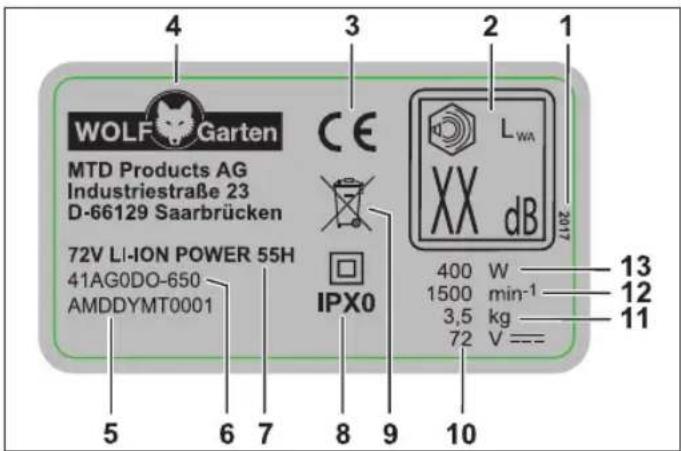

Identification plate
Position
The identification plate is located on the casing of the hedge trimmer.
Note
The label has the status of a certificate. It must never be altered or obliterated.
Layout
2 Guaranteed sound level
3 CE label
4 Manufacturer
5 Serial number
6 Model number
7 Model name
8 Protection class/IP code
9 Disposal note
10 Rated voltage, kind of current
11 Weight
12 Motor rotation speed in rpm
13 Capacity
Operating elements

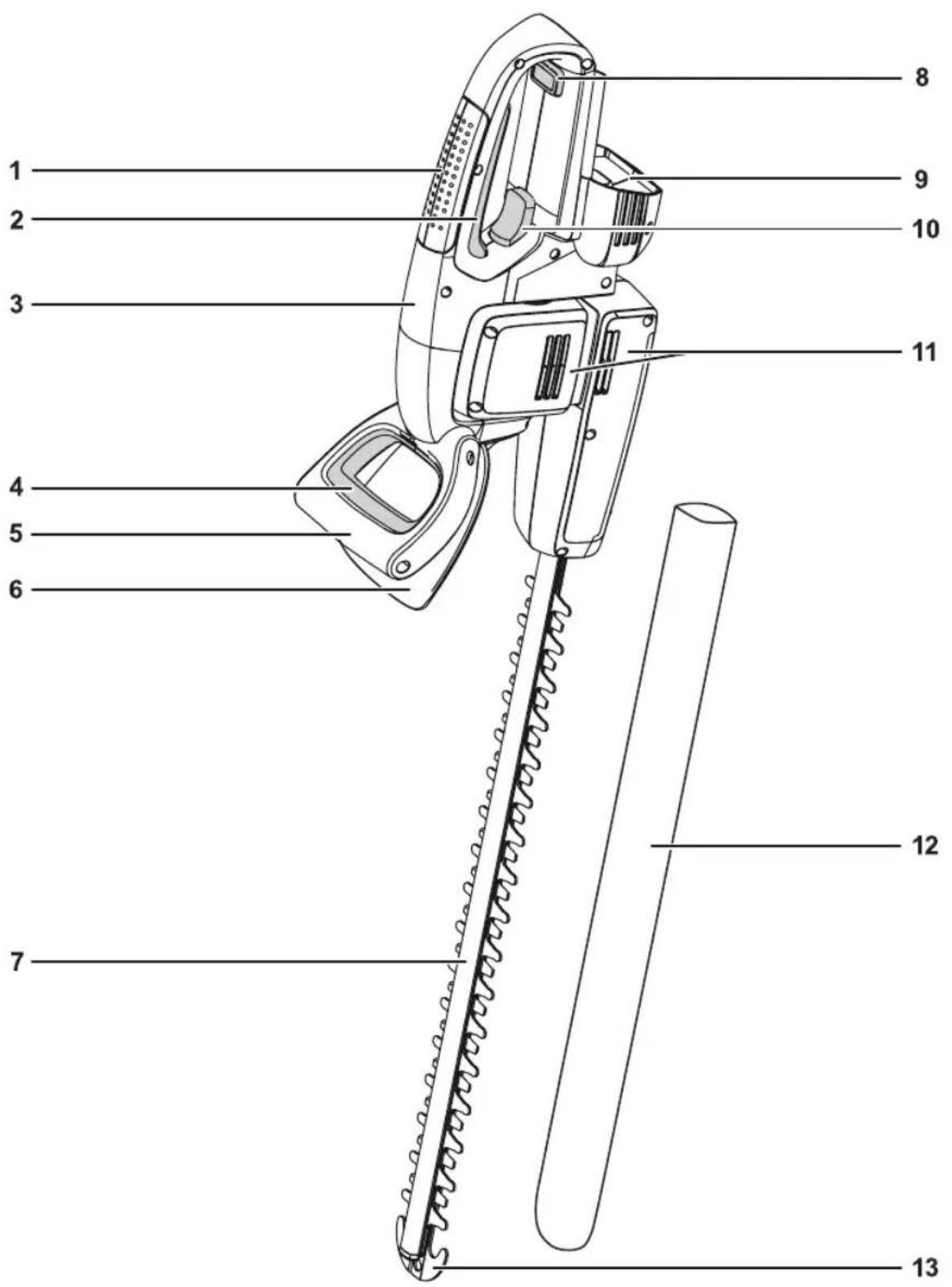

Operating elements (Fig. H)
1 Handle
2 On/off switch on handle
3 Handle part
4 On/off switch on bow-shaped handle
5 Bow-shaped handle
6 Shield
7 Cutting blade
8 Power pack release
9 Power pack compartment
10 Working angle adjustment
11 Motor-/gearbox unit
12 Protective cover
13 Impact protection
Protective equipment
Protective equipment (Fig. H)
Shield H 6
The transparent shield protects your hands ensuring easy cutting with a good view of the cutting area.
Impact protection H 13
The projecting guide rail protects you against unpleasant impacts, e.g. recoil moments, if you hit a solid object (wall, floor, etc.).
Two-handed safety switch H 2 H 4
Switching on and operation of the hedge trimmer requires both hands. One hand operates the on/off switch on the handle, the other hand operates the on/off switch on the bow-shaped handle. If one or other of the switches is released, the cutting blade automatically comes to a standstill.
Putting into use
Supplementary documentation
Make sure the operating instructions of the POWER Base 72V / POWER Base 72V Basic charger and of the Li High Energy 72V power pack are available and that you understand them and adhere to them.
Power pack charging
WARNING!
Risk of injuries or material damage
Only charge the power pack with charger POWER Base 72V / POWER Base 72V Basic.
Attention!
The power pack is supplied partially charged. Before first use, fully charge the power pack using the charger POWER Base 72V / POWER Base 72V Basic to ensure the full capacity of the power pack.
→ Power pack charging must be carried out according to the instructions in the supplementary documentation.
Operating times
√ Observe the times stipulated in local byelaws.
→ Check if there are any operating time limitations with your local authorities.
Operation

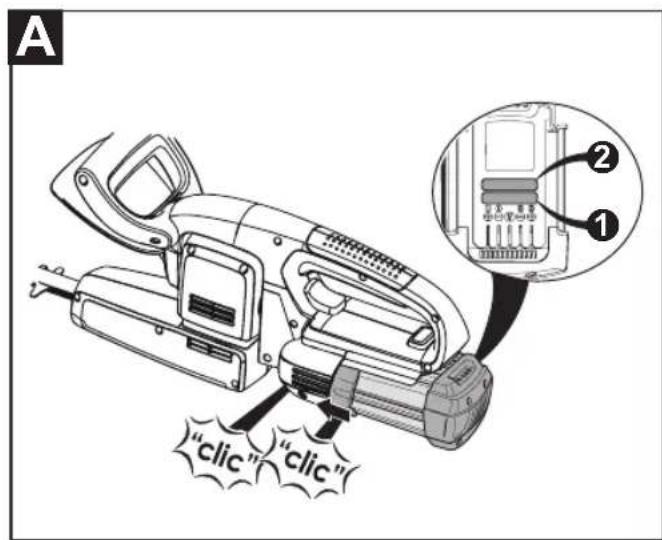

Inserting the power pack (Fig. A)
WARNING!
Incorrect handling of the power pack and the charger
Risk of injuries and material damage
➢ Read and observe the operating ins-
tions of the power pack and the charger.
The 2-stage latching mechanism is used to set operating or transport mode of the power pack.
Position 1 A 1
√ The power pack is in transport mode.
- Electric contacts are open to prevent the power pack from self-discharging during storage.
Position 2 A ②
√ The power pack is in operating mode.
- The electrical contacts are closed and the device is ready for use.

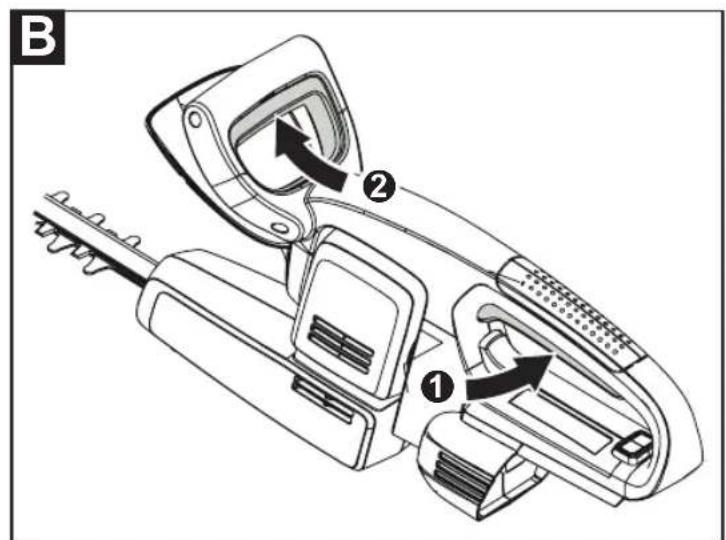

Switching the device on (Fig. B)
→ With one hand maintain the on/off switch depressed on the handle B 1.
→ Then with the other hand simultaneously press the on/off switch on the bow-shaped handle B ②.
√ The device operates.

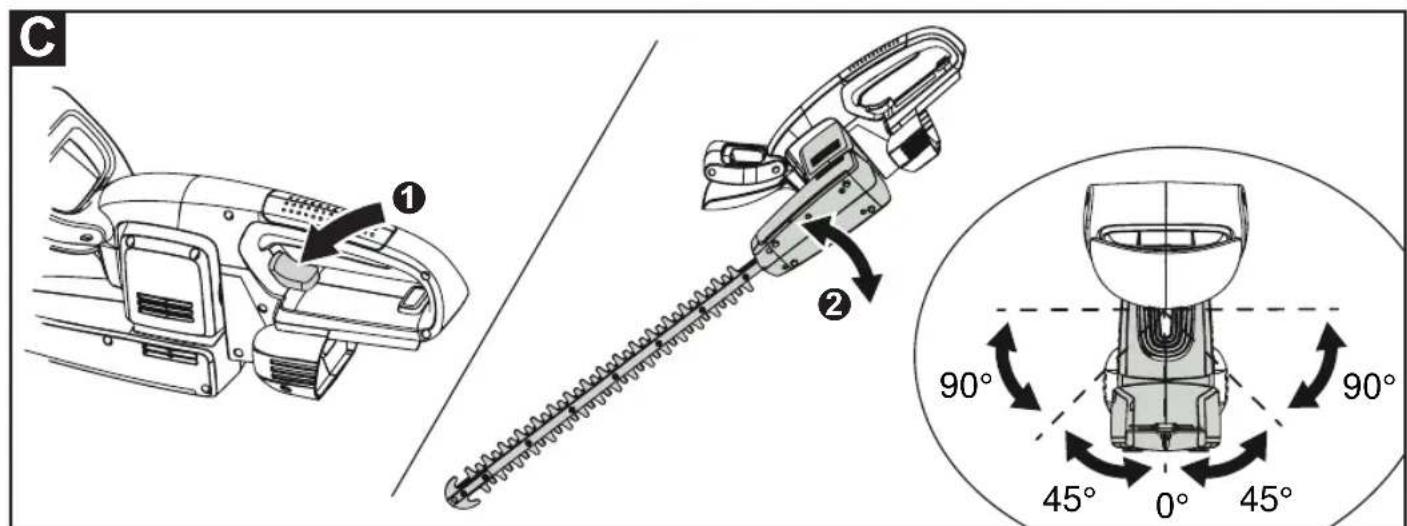

Adjusting the working angle (Fig. C)
WARNING!
Risk of injuries due to the cutting tool.
Switch off the device and wait until the cutting tool comes to a standstill before making adjustments to the device.
The hedge trimmer can be set in any of five different operating angles. You can rotate the motor / gear unit on which the cutting blade is located through 45^ or 90^ to the left or right.
This allows you to easily reach problematic and difficult-to-access positions in the garden.
→ Press the locating butCn1.
√ The motor/gearbox unit comes free from the engaging position.
→ Set the operating angle by turning the motor/gearbox unit to the left or right.
√ The motor/gearbox unit engages in the next position C ②.
→ To start the motor/gearbox unit again, press the locating button C 1.
Cutting (Fig. D E F)

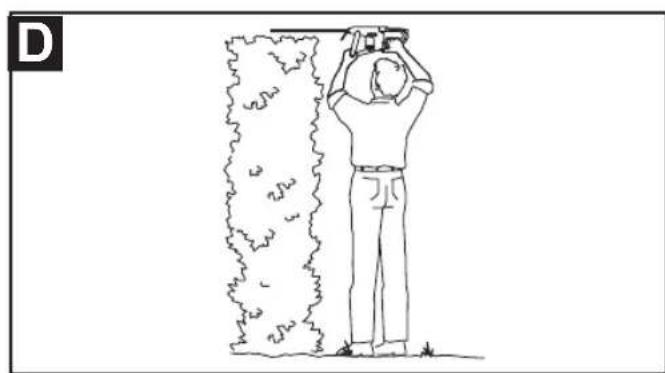

-Cutting the top of the hedge D
- To cut the hedge top, perform swinging/sweeping movements to the left and right using the hedge trimmer.
- For optimum cutting results, maintain the cutting blade in a slightly inclined position in the direction of the cutting movement.

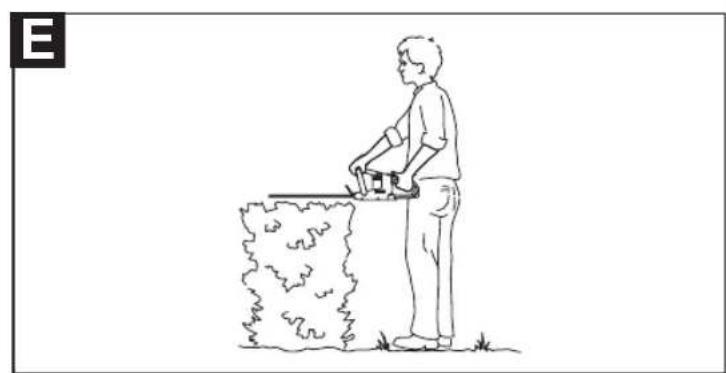

Cutting the hedge sides E
- If the hedge sides are to be cut, start at the bottom part of the hedge and cut upwards.
- For optimum cutting results, maintain the cutting blade in a slightly inclined position in the direction of the cutting movement.

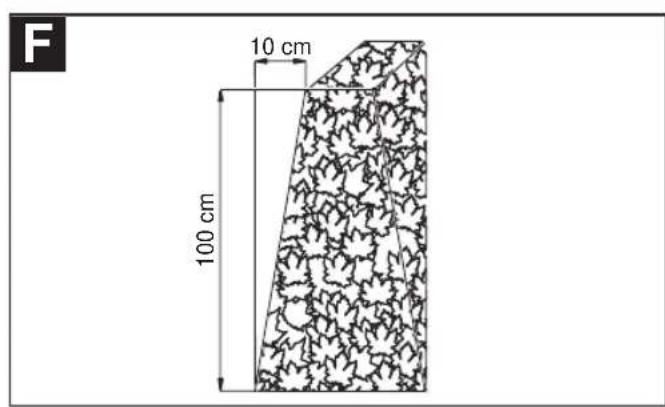

- Cut the sides of the hedge so that the hedge narrows towards the top. This ensures uniform hedge growth.
Cutting tips
- Please remember the breeding season of birds!
- The ideal shape for hedge cutting is trapezoidal, which allows enough light and air to reach all parts of the hedge F.
- To promote thick growth in young hedges new shoots should only be shortened by half.
- If the hedge has already reached your desired height, now shoots can be completely removed.
- To obtain a uniform hedge height, you can tension a guide line at the desired height and then cut along this line.
Cutting times
Deciduous hedges May/June and October
(perform pruning by about 1/3
of the total height in winter)
Evergreen hedges April and October
Conifers April and October
Switching the device off (Fig. B)
√ The device switches off as soon as you release one of the two on/off switches B ① or B ②.

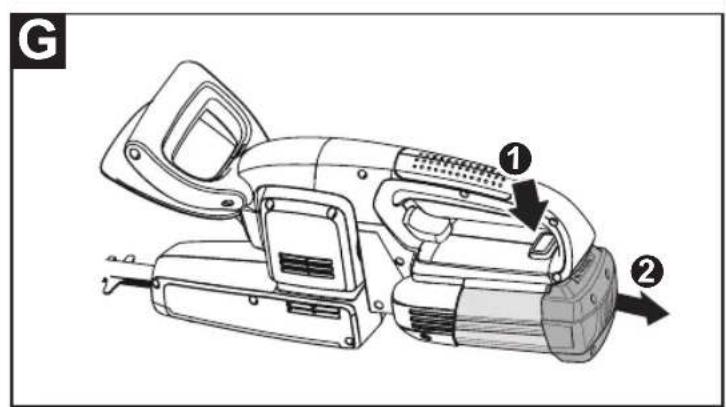

Power pack removal (Fig. G)
→ Press the power pack release butGn1.
→ Remove the power page2.
Servicing
WARNING!
Risk of injuries or material damage.
➢ Only clean or service the device if the motor and cutting tool are stationary.
➢ Always remove the power pack prior to working on the device.
➢ Repair and service work as well as the replacement of safety elements must be performed by a qualified expert or workshop.
Cleaning
→ Clean the hedge trimmer after every use, especially the ventilation slots, using a dry cloth or, in the event of heavy soiling, a brush.
→ Carefully clean the cutting blade after each use.
→ After use, spray the cutting blade with conditioning oil to ensure a long service life for the hedge trimmer. Where possible, use an environmentally friendly lubricant.
→ Do not oil the hedge trimmer during use.
→ To oil the hedge trimmer, place it on its side and apply a thin oil film to the cutting blade.
→ During extended periods of hedge cutting, interrupt your work frequently to oil the hedge trimmer cutting blade.
Attention!
Never spray the device with water or a pressure washer.
Transport and storage
WARNING!
Risk of injuries due to the cutting tool.
Before transport or storage, switch off the device and wait until the cutting tool comes to a standstill.
Remove the power pack before transport or storage.
Storage
→ Thoroughly clean your device after every season.
→ Always store the device in a dry and safe location that is inaccessible to children.
→ Store the power pack and hedge trimmer separately.
→ Store the power pack in a cool and dry location. Recommended storage temperature approx. 18 °C.
→ Keep the hedge trimmer and especially its plastic components away from brake fluids, petrol, mineral oil containing products, penetrating oils etc. They contain chemical substances that can damage, attack or destroy the plastic components of the hedge trimmer.
→ Fertilizers and other garden chemicals contain substances that may have a highly corrosive effect on the metal parts of the hedge trimmer. Therefore do not store your hedge trimmer in the vicinity of these substances.
Troubleshooting
WARNING!
Risk of injuries or material damage
In case of doubt always consult a specialist workshop.
Before any inspection or any work on the device, switch off the motor and remove the power pack.
| Problem Possible cause Remedy | ||
| The device switches off. | The power pack is too hot. Allow the power pack to cool. | |
| The power pack is discharged. Charge the power pack. | ||
| The temperature of the device (electronics) is too high. | Allow the device to cool and if necessary, clean the ventilation slots | |
| Overcurrent release If this occurs again take your device to a specialist workshop. | ||
| The device will not switch on. | The power pack is discharged. Charge the power pack. | |
| Overvoltage release If this occurs again take your device to a specialist workshop. | ||
| Overcurrent release If this occurs again take your device to a specialist workshop. | ||
| Power pack temperature too high or too low. | Allow the power pack to cool down or heat up. | |
| The power pack is defective. Replace the power pack. | ||
| The cutting blade becomes hot. | The cutting blade is blunt. Take your mower to a specialist workshop. | |
| There is a lot of friction because of a lack of lubrication. | Oil the cutting blade. | |
| Uneven running, severe vibration of the hedge trimmer. | The cutting blade is damaged. Take your mower to a specialist workshop. | |
| The cutting blade fastening has come loose. | Take your mower to a specialist workshop. | |
Spare parts and accessories
| Order no. | Part code | Part description |
| 196-651-650 | POWER Base 72V | 72V charger |
| 196-652-000 | POWER Base 72V Basic | 72V charger |
| 196-650-650 | Li-High Energy 72V | 72V power pack |
Warranty
The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your device free of charge, insofar as material or manufacturing defects are the cause. Should you need to make a claim under warranty, please apply to the vendor of your machine or to the nearest branch.
CE Declaration of Conformity
Further details about the device are contained on the separately enclosed CE Declaration of Conformity, which forms part of this instruction manual.
Environmentally-friendly disposal
Electrical tools, accessories and packaging must be routed into an environmentally compatible recycling chain.
Power packs/batteries:
Do not dispose of power packs/batteries in domestic waste, by burning or throwing into water. Power packs/batteries must be collected, recycled or disposed of in an
environmentally friendly manner.
For EU countries only:
Defective or used power packs/batteries must be recycled in accordance with 2013/56/EU.
Do not throw your power tool away with domestic waste! Take it to a disposal facility.
Table des matières
Signification des symboles ...... 20
Fareniveauer for advarsler
Iglavci April in oktober
