M51150R Classic - Lawn mower MCCULLOCH - Free user manual and instructions

Technical specifications	4-stroke gasoline engine, 140 cm\u00b3 displacement, 2.5 kW power
Cutting width	51 cm
Cutting height	6 adjustable positions from 25 to 75 mm
Starting type	Manual start
Grass box capacity	60 liters
Weight	32 kg
Usage	Ideal for medium to large-sized gardens
Maintenance	Check oil, clean air filter, sharpen blades regularly
Safety	Wear gloves, do not touch moving blades, follow manual instructions
General information	2-year warranty, spare parts available, accessible after-sales service

Frequently Asked Questions - M51150R Classic MCCULLOCH

How do I start the MCCULLOCH M51150R Classic lawn mower?

Make sure the tank is filled with fuel, the fuel valve is open, and pull the starter cord while holding down the safety button.

What should I do if the lawn mower won\u0027t start?

Check the oil level, ensure the fuel is fresh and the air filter is not clogged. If the problem persists, consult the user manual.

How do I adjust the cutting height of the lawn mower?

Use the adjustment lever located near the wheels to set the cutting height to the desired level.

How do I maintain the MCCULLOCH M51150R Classic lawn mower?

Clean the blade after each use, check and change the oil regularly, and replace the air filter according to the manufacturer\u0027s recommendations.

The lawn mower vibrates excessively, what should I do?

Check if the blade is properly tightened and not damaged. Also ensure the wheels are in good condition and the mower is on a flat surface.

What type of fuel should be used?

Use unleaded fuel with an octane rating of at least 87. Avoid using gasoline containing more than 10% ethanol.

How do I know when it\u0027s time to replace the blade?

If the blade is rusty, cracked, or not cutting properly, it\u0027s time to replace it. A dull blade can also damage the lawn.

What should I do if the lawn mower isn\u0027t cutting properly?

Check the cutting height, make sure the blade is sharp and clean, and check for debris blocking the cutting area.

Is it normal for the lawn mower to emit smoke?

A slight smoke may be normal at startup, but if smoke persists or is excessive, check the oil level and fuel mixture.

How do I properly store the lawn mower for winter?

Empty the fuel tank, clean the mower, and store it in a dry place protected from frost.

USER MANUAL M51150R Classic MCCULLOCH

SE Bruksanvising 2-16

DK Brugsanvising 17-31

FI Kayttoohje 32-46

NO Bruksanvisning 47-61

GB Operator's manual 62-76

John Thompson, Product and Marketing director EUAP.

(Bemyndigad representant for Husqvarna AB somt ansvarig for tekniskt underlag.)

SYMBOLFORKLARING

Symbolforklaring

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others. Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface.

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

Contents Dear Customer,

KEY TO SYMBOLS

Key to symbols 62

Explanation of warning levels 62

PRESENTATION

Contents 63

Dear Customer, 63

WHAT IS WHAT?

What is what on the lawn mower? 64

MACHINE'S SAFETY EQUIPMENT

General 65

ASSEMBLING AND ADJUSTMENTS

General 66

Handle 66

Cutting height 66

Catcher 66

Mulch plug 66

Filling with oil 66

FUEL HANDLING

General 67

Fuel 67

Fueling 67

Transport and storage 67

OPERATING

Personal protective equipment 68

General safety precautions 68

Basic working techniques 69

Transport and storage 69

Starting and stopping 70

MAINTENANCE

General 71

Maintenance schedule 71

General inspection 71

Spark plug 72

Adjusting the clutch wire 72

Air filter 73

Oil change 73

Fuel system 73

TECHNICAL DATA

Technical data 74

EC Declaration of Conformity 76

The line of innovative chainsaws would continue over the decades, and business was expanded, first by airplane and kart engines in the 1950s, then by mini chainsaws in the 1960s. Later, in the 1970s and 80s, trimmers and blower vacs were added to the range.

Today, as a part of the Husqvarna group, McCulloch continues the tradition of powerful engines, technical innovations, and strong designs that have been our hallmarks for more than half a century. Lowering fuel consumption, emissions and noise levels are of top priority to us, as is improving safety and user-friendliness.

We certainly hope that you will be satisfied with your McCulloch product, as it is designed to be your companion for a long time. By following this operators manual's advice on usage, service, and maintenance, its lifespan can be extended. If you should need professional help with repair or service, please use the Service Locator at www.mcculloch.com.

McCulloch has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

This manual can also be downloaded at www.mcculloch.com.

WHAT IS WHAT?

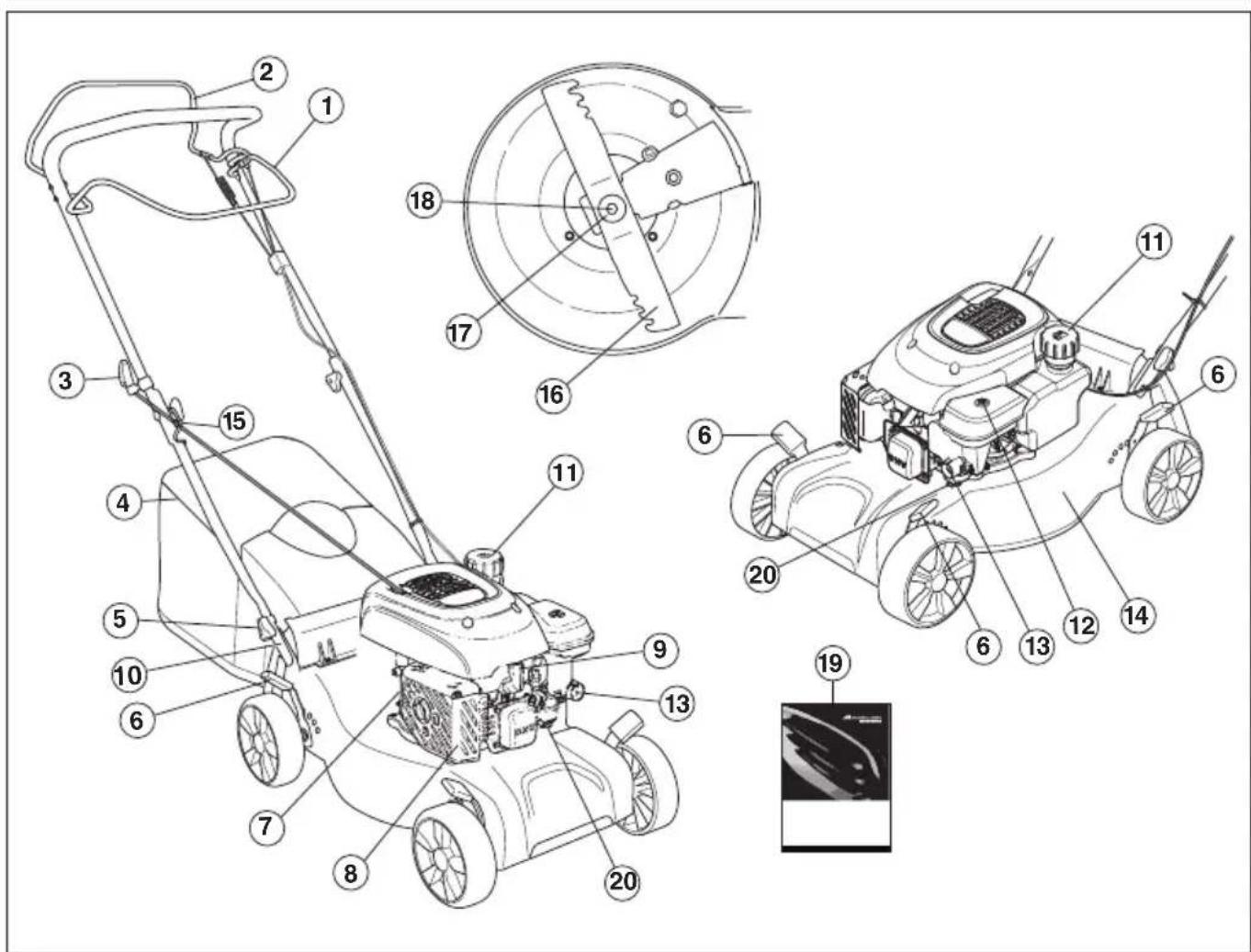

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar (M46-125R Classic+, M46-110R Classic, M51-140WR Classic+, M51-150WR Classic, M51-150R Classic)
3 Starter handle
4 Catcher
5 Handle, handle height
6 Cutting height control
7 Dipstick/oil filler
8 Muffler
9 Spark plug

10 Lower handle mounting
11 Refuelling
12 Air filter
13 Primer diaphragm
14 Cutting cover
15 Starter cord guide
16 Cutter
17 Spring washer
18 Cutter bolt
19 Operator's manual
20 Carburetor bowl drain plug

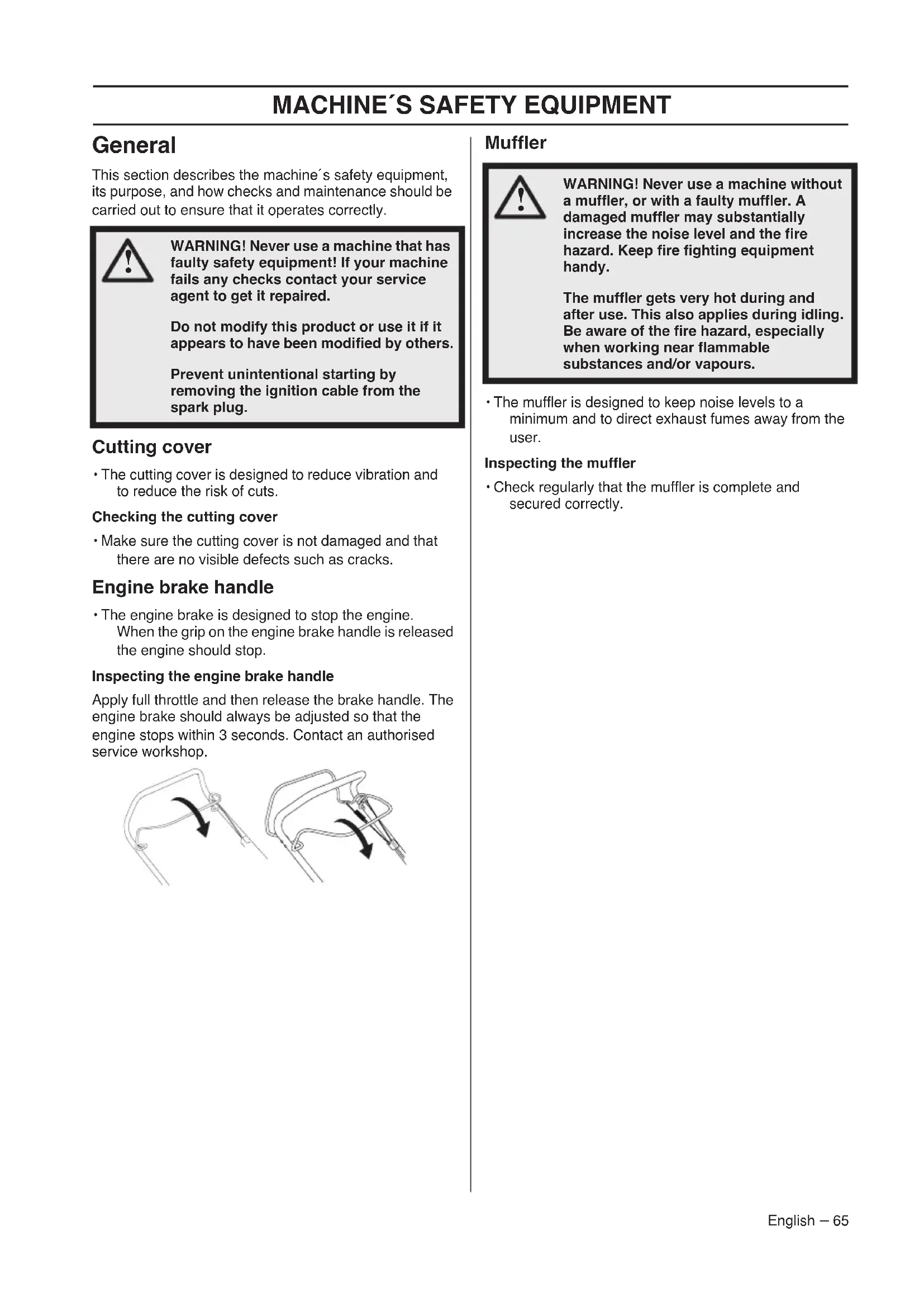

MACHINE'S SAFETY EQUIPMENT

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Do not modify this product or use it if it appears to have been modified by others.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

• The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

• Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

Engine brake handle

• The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Inspecting the engine brake handle

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds. Contact an authorised service workshop.

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

• The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

• Check regularly that the muffler is complete and secured correctly.

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

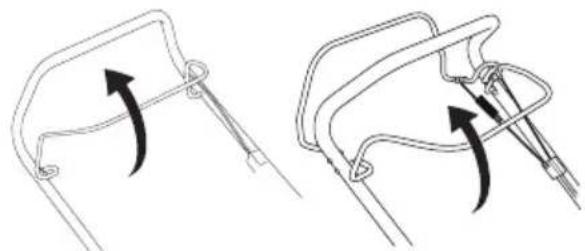

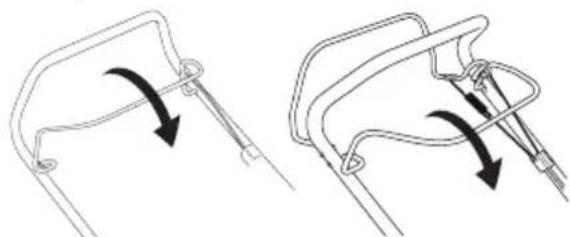

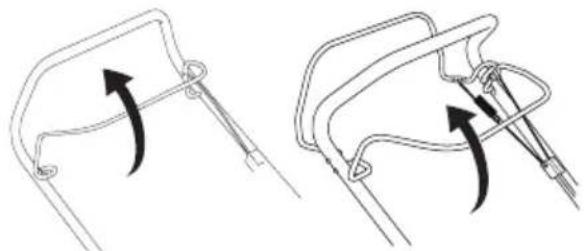

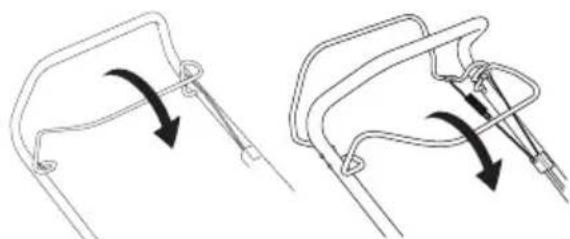

Handle

Assembly

Top handle

Place the handlebar's tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly.

Use enclosed straps to secure cables to the handle. Do not overstretch cables when mounting.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Move the lever to the back for higher cutting height and to the front for lower cutting height.

Catcher

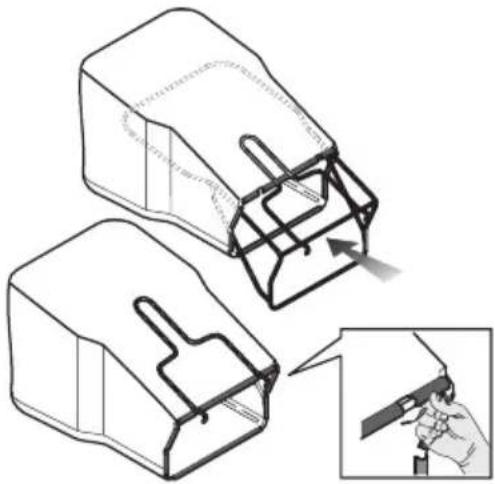

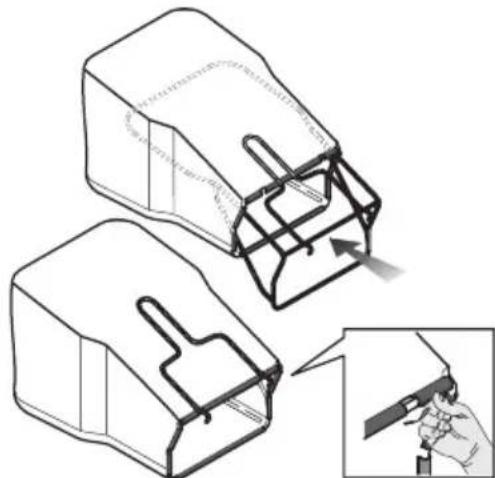

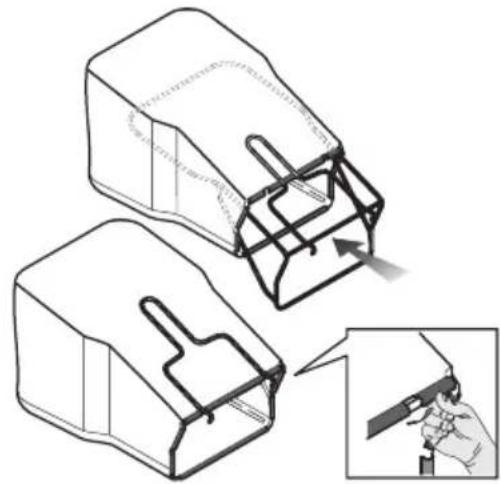

Assembly of the catcher

• Place the frame into the fabric collector.
• The collector's handle situated on the frame must be placed over the collector bag.
• Secure the frame by using the quick-action clips.
• Attach the hooks in the upper edge of the chassis. Fit the bagger bottom in the discharge hole.

Mulch plug

Optional mulch kit accessory required to be ordered on M46- models (kit PNC 579679201) and M51- models (kit PNC=579679301). No kit available for M40 models.

• Raise the discharge guard to mount / dismount the mulch plug.

Filling with oil

• The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed according to the engine manual.

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly flammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

• Use good unleaded petrol with a maximum of 10% ethanol (E10).
• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
• Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

• The engine oil should be changed according to the engine manual. Refer to the engine manual for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a fuel can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3m from the refuelling point before starting it.

Never start the machine:

• If you have spilled fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

• When storing the machine for long periods, the fuel tank and carburetor bowl must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Always wear:

• Use ear muffs if the noise level exceeds 85 db.
• Sturdy, non-slip boots or shoes.
• Heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored to the handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• Do not mow the lawn while walking backwards.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.
• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
• Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

OPERATING

Starting and stopping

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

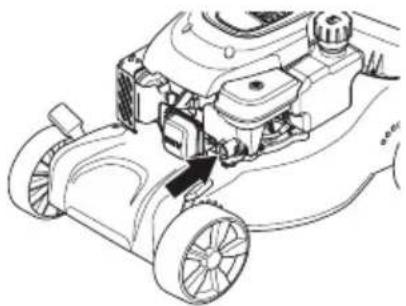

Starting

All models have manual choke (primer diaphragm).

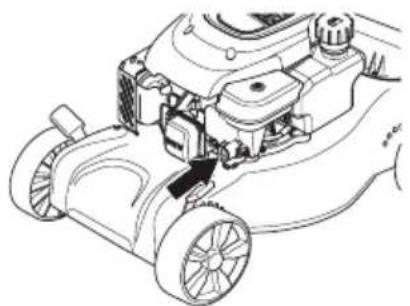

If the lawn mower is being started for the first time press on the fuel pump five times. After that you should press on the fuel pump three times when starting a cold engine.

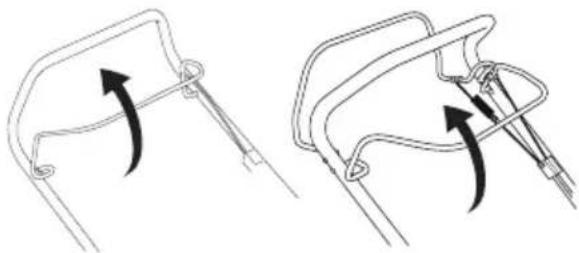

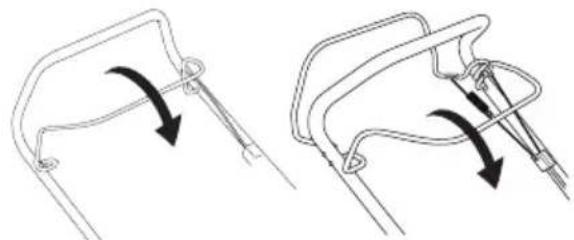

The engine brake handle must be held against the handlebar when the engine is started.

• Position yourself behind the machine.
• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand.

Drive

(M46-125R Classic+, M46-110R Classic, M51-140WR Classic+, M51-150WR Classic, M51-150R Classic)

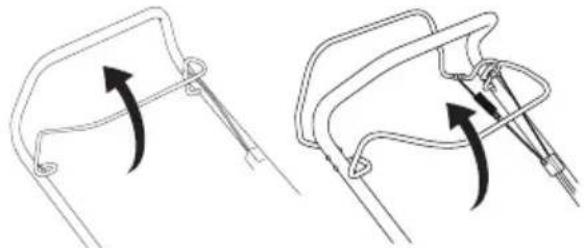

• Push the propulsion bar in towards the handle in order to start the drive.

Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

Stopping

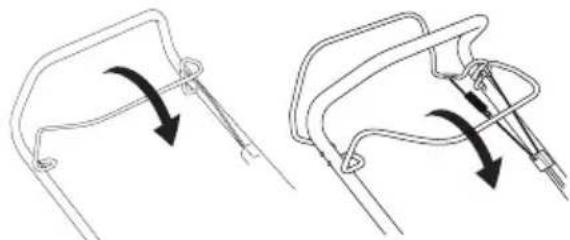

• Stop the engine by releasing the engine brake handle.

• The drive is also disengaged when you release the brake handle.
• By releasing the brake lever a bit only the drive will be disengaged.

MAINTENANCE

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Switch off the engine before carrying out any checks or maintenance. Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug Air filter
External cleaning	Muffler* Fuel system
Oil level
Cutting equipment
Cutting cover*
Adjusting the clutch wire
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

General inspection

• Check that nuts and screws are tight.
• Replace any damaged, worn or broken parts.

External cleaning

• Brush leaves, grass and the like off of the lawn mower.

• Do not use a high pressure washer to clean the machine.

• Never flush water directly on the engine.

• Clean the air intake on the starter. Check the starter and starter cord.
• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.

• Remove the oil cap and wipe the dipstick clean.
• Put the dipstick back in.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

Cutting equipment

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
• Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening.

Damaged blades should be replaced when hitting obstacles that result in a breakdown.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

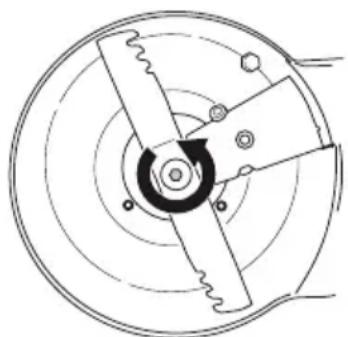

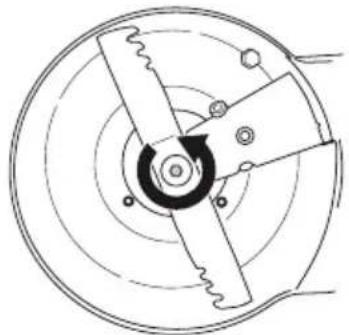

Dismantling

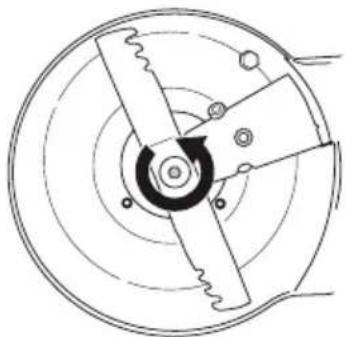

• Unscrew the bolt holding the cutter.

• Remove the old blade. Make sure the blade bracket is free of damage. Also check that the blade bolt is undamaged and that the engine shaft is not bent.

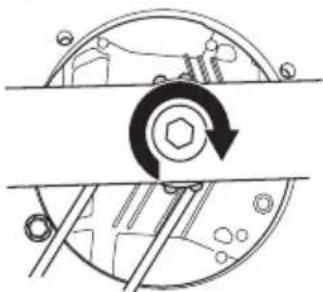

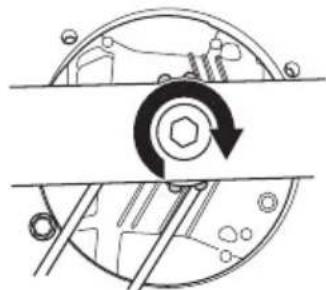

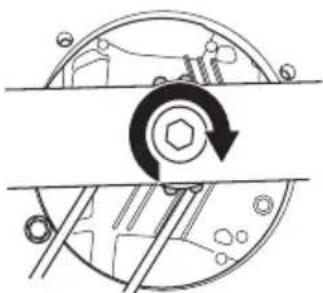

Assembly

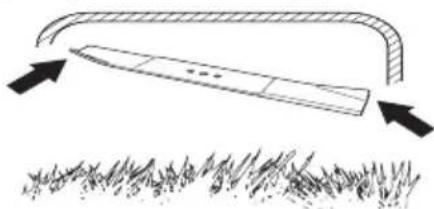

• The blade must be mounted with the angled ends pointing up towards the cover.

• Make sure the cutter centres correctly on the shaft.

• Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

• Pull the blade around by hand and make sure it rotates freely.
• Test run the machine.

IMPORTANT!

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorised service workshop.

Always use genuine parts. For more information, see the "Technical data" section.

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.
• If the spark plug is dirty, clean it and check the electrode gap. Refer to technical data sheet for spark plug gap. Replace if necessary.

Adjusting the clutch wire

• Finely adjust the wire using the adjuster screw.

• Roughly adjust the cluch wire when the fine adjustment is not enough.
• Extend the wire using the fine adjustment screw.
• Roughly adjust the clutch wire by attaching it to the different holes on the clutch bar. Then adjust the wire finely.

Air filter

• Remove the air filter cover and take out the filter.
  An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter

• Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter

• Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

• Empty the fuel tank.
• Unscrew the oil filler cap.
• Place a suitable vessel to collect the oil in.
• Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
• Fill with new engine oil of a good quality. See the supplied instruction manual for the engine.

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

Technical data

	M40-110CLASSIC	M40-125Classic+	M46-110CLASSIC	M46-110RCLASSIC	M46-125RClassic+
Engine
Engine manufacturer McCulloch		Briggs & Stratton	McCulloch McCulloch		Briggs & Stratton
Cylinder displacement, cm3	110 125 110 1	0 125
Speed, rpm 2950 2900 2950 2950	2900
Nominal engine output, kW (see note 1)	1,6 1.6 1,6 1,6	1.6
Ignition system
Spark plug	Torch A5RTC	QC12YC	Torch A5RTC	Torch A5RTC	QC12YC
Electrode gap, mm 0,7 0,5 0,7 0,7	0,5
Fuel and lubrication system
Fuel tank capacity, litre 0.8 0.8 0.8	0.8 0.8
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg 24	25 27 29 27
Noise emissions (see note 2)
Sound power level, measured dB(A)	90 93 92 92 95
Sound power level, guaranteed LwA dB(A)	92 94 94 93 96
Sound levels (see note 3)
Sound pressure level at the operators ear, dB(A)	77 80 79 79 82
Vibration levels, a hveq (see note 4)
Handle, m/s2	6,3 14,75 4,82	4,98	15,68
Cutting system
Cutting height, mm	20-75	20-75	30-80	30-80	30-80
Cutting width, cm	40 40 46 46 46
Cutter	Combi 40	Combi 40	Combi 46	Combi 46	Combi 46
Article number	5871590-10	5871590-10	5811889-10	5811889-10	5811889-10
Bagger capacity, litre	50 50 50 50 50

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power (LwA) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to ISO 5395:2013. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2dB(A)
Note 4: Vibration level according to ISO 5395:2013. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2m/s^2 .
*Use engine oil of quality SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

TECHNICAL DATA

	M51-140WR Classic+	M51-150R Classic M51-150WR Classic
Engine
Engine manufacturer Briggs & Stratton McCulloch McCulloch
Cylinder displacement, cm3	140 150 150
Speed, rpm 2900 2900 2900
Nominal engine output, kW (see note 1)	1,9 2,3 2,3
Ignition system
Spark plug	QC12YC	Torch K7RTC	Torch K7RTC
Electrode gap, mm 0,5 0,7 0,7
Fuel and lubrication system
Fuel tank capacity, litre	0.8	1	1
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg	32,0	33,0	33,0
Noise emissions (see note 2)
Sound power level, measured dB(A)	97	95	97
Sound power level, guaranteed LwadB(A)	98	98	98
Sound levels (see note 3)
Sound pressure level at the operatorsear, dB(A)	82	81	84
Vibration levels, a hveq (see note 4)
Handle, m/s2	4,27	4,06	5,55
Cutting system
Cutting height, mm 30-90	30-90	30-90
Cutting width, cm	46	51	51
Cutter	Combi 51	Combi 51	Combi 51
Article number	5041133-10	5041133-10	5041133-10
Bagger capacity, litre	55	55	55

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power (L_WA) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to ISO 5395:2013. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2dB(A)
Note 4: Vibration level according to ISO 5395:2013. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2m/s^2 .
*Use engine oil of quality SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EC Declaration of Conformity

Manufacturer's name: Husqvarna AB, SE-561 82 Huskvarna, Sweden (Tel: [phone]).

Husqvarna AB claims sole responsibility for the rotary mower with fixed blades model(s):

McCulloch M40-110 Classic, M40-125 Classic+, M46-110 Classic, M46-110R Classic, M46-125R Classic+, M51-140WR Classic+, M51-150R Classic, M51-150WR Classic.

from 2016 serial numbers and onwards. The model number is clearly stated in plain text on the type plate along with the year with subsequent serial numbers.

The object of the declaration described above is in conformity with the requirements of the Council's Directives:

·2006/42/EC "relating to machinery" 17 May 2006.
2014/30/EU "relating to electromagnetic compatibility" February 26, 2014
2000/14/EG "relating to the noise emissions in the environment" of May 8 2000
2005/88/EC "amending Directive 2000/14/EC" 14 December 2005

The declared sound values are stated in the technical data sheet of the operator's manual.

The following standards have been applied: ISO5359-1&2:2013; ISO3744, ISO11094; EN1032, EN1033; ISO14982;

Conformity Assessment Procedure, Annex VIII.

20 April 2016

John Thompson, Product and Marketing director EUAP. (Authorized representative for Husqvarna AB and responsible for technical documentation.)

EXPLICATION DES SYMBOLES

Attention: projections et ricochets.

I nclude 153

Prezado cliente! 153

COMO SE CHAMA?

Substituir as laminas

TEXHINCHECKOE OBCJYWBAHNE

06uie cBeHnna 176

TpaΦnK TexHnueckoro 06cnyHnBaHnA 176

O6ua npoBepka 176

Cbeua 3aHnraHna 177

PerynipoBka Tpoca cCenHeHH 178

Bo3nyHbI ΦnIbTp 178

3aMeHa MacJa 178

ToJIINBHa cIcTeMa 178

TEXHNUECKNE DAHHbIE

Texnueckne daHHbIe 179

DEKJAPAUH COOTBETCTBNA EC 181

OcHOBHbIe npHcInbI pa60TbI

-Дя onTmMaJbHOro pe3yJbTaTa cIeIyEt NcNoJIb3OBaTb ocTpoe Je3BHe. 3aTynNBWeecr Je3BHe 6yJeT cTpNb HepOBHo, IN B MeCTe Cpe3a TpaBa 6yJeT HeJIeTb.
He cKaunBaIe 6oJee 1/3 Bcei IINHbI TpaBbl. 3To KacaetcB, B nepByo oupepeB, 3acyuNIBoro BpemEn rOda. BbnoJIHnTe nepBoe cKaunBaHne Ha 60nbWei Bbcote. 3aTeM npOBepbTe pe3yNbTaT n CKocnte TpaBy Do Heo6xOIMOrO ypoBnE. EcIn TpaBa Bbcoka, nepeDbiratE ra3oHoKocnKy MeJeHHO N,

npu Heo6xOJIMocT, NcnoJIb3yITe ra30HOKOChIky dBa pa3a.
- EcIIN BbIXoTIne N36eHaTb 06pa3OBAHnnoJIOc HaBaWeMra3OHe,HyKHO KaHdbI pa3 cTpNpy erO Bpa3HbIX HApabJIeHNx.

TpaHcnpTnpOBka n xpaHeHne

HaJeHHo 3akpenIte o6OpyoBaHne Bo BpeMraTpaHCnOPTnpOBKn BO n36eHaHne NOBpeKHeHn HecuactThbIX cJyuaEB.
XpaHnTe 60bpyoBaHHe B 3aKpbBaeMoM Ha 3aMOK NOMEeHn, He IOCTyHOM IJIa DeTei n NOcTOPOHHx.
XpaHNTe INHCTpyMeHT BCyXOM TENJOM NOMEueHIN.
- PeKoMeHdauCn no TpaHcnpTIpOBKe n xpaHeHIO ToNJIbA npNBeDeHbI B pa3JeIe 'IpaBnla o6paueHn c TOnJIbBOM'.

3anyck n octaHOBka

IpeiHaayalompa6oTbI

PPEyIPEKDEHNE! BHIMaTeJbHo
n3yuNTe 3TO PyKOBoDCTBO n
y6eINTEcb, yTo Bam noHrTHbI erO
nHCTpyKcun, do NaHaJa
nCNoJIb30BaHHn IHCTpyMeHTa.

NoIb3yTecb cpeCTBaMn HINIBNyaJIbHOJ 3aunTbI. CM.pa3eJ 'CpeIcTBa 3aunTbI noJIb30BaTeJr'.

-03a6oTbTecb, yTo6bI B pa6oey 3OHe He HaxoINIOCb JIOe N HINBOTHbIX.
- BbINOJIHЯIe eHeIHeBHOe 06cJyKINBaHne. CM. yKa3aHnB pa3JeIe "TexHuecKoe 06cJyKINBaHne".
-6eNTecbB KoppeKTHOCTN NOKJIIOUeHNA Ka6eJKA CBeue 3aHHraHn.

3anyck

Bce moJeIIN o6OpyIOBaHbI pyuHoN Bo3NyUHoi 3acJIoHkoI (MeM6paHa HAcoca noKauKn TOnJIiBa).

Pn nepBOM 3anycke ra3oHokocnIKNI pTb pa3 HAKMITE Ha TOnJIINBHy HAcOC. NocJe 3TOrO Heo6xOIMHO HAHaTB Ha TOnJIINBHy HAcOC eue TpN pa3a B Cnyae XoJIOHOro 3anycka.

-Пи зауcke ДВИгаTeЯ ппнмITE pyKoTky TopMo3a DBIgatela KpyKoTKe.

• BCTaTb 3a MaunHoi.
  B3aTbCya pyky cTape, npaBoi pyKoI MeJHeHNo noTaNHyTb Ha ce6y Tpoc, noKa He noCyBcTByeTc conpoTnBJeHne (cTapTe BxOHTB 3aCenJeHne). Pe3KO noTaNHyTb Tpoc, YTo6bl 3aBeCTn DnRaTeNb. HNKOrda He NaKpyuBaYTe cTapTObBmHyp BoKpyr pyKn.

PbIyar BKJIIOUeHn npINBoDa

(M46-125R Classic+, M46-110R Classic, M51-140WR Classic+, M51-150WR Classic, M51-150R Classic)

HaHMMTe Ha cko6y npINbOa B HAnpaBHeHH pyKoRTKn, UTo6bHaCuA Tb DBnHexHe.

-ПпсддчмNotHyTb arperat Ha ce6a, Heo6xoIMMo OTKJIIOHTb npINBOI N ToJKNHyTb arperat BnpeepnpN6Jn3nteJbHo Ha 10 cm.

OctaHOBka

• OctaHOBnTE IbIraTeJIb, OTnyCTNb pyKoTky TopMo3a IbIraTeJIa.

• PnBOD TAKHe paCenJIeTc npO OTnyckaHnpyKoRTKn TopMo3HO pBuHa
  -ПивоД монно расцeNTь,ЧуТь OТпсТИВ TopMo3HyO pyKoTKy.

O6uine cBeJeHnIa

PNEUYPENHEI NOJIb3oBaTeJIb MoHET BbINOJHrTb ToJIbKO TaKHe pa6Otbl no 06cLyHHaHNIO cepBcY, KoToPbIE OINCAHb I DaHHOM pyKOBODCTBE no pa6Ote.Bce npOue pa6Otbl DoJIHbI BbINOJHrTbcA BTOpN3oBAHHoM MacTepecko no 06cLyHHaHNIO.

IpeE BbINOJIHeHMe IpoBepOK NITexo6cnyHnBaHnB YbIKJIOuayTe DBnraTeJIb.IpeDoTbpaTnte HenpeHaMepeHHbl 3anyck,OTcoeINHNB Ka6eJbOCTBeU 3aHHnAHHN.

Cpok cIyH6bl MaunHb MoHeT 6bItb yKopoueH n pNc k ABapn yBeJIuYeH, ecJIn o6cIyHHBaHne MaunHb He BbINOJIHReTc npaBnIbHbIM o6pa3oM n eCJn cepBNC n/ nn peMOHT He 6bl N BbIOJIHHeH npoecccnoHaJIbHo. Ecln Bam Tpe6yeTc IOnoHNTeJIbHa nHOpMaUria, 6paTntEcB 6JInxAaMyo MacTepcKyIO O6cIJyHHBaHHIO.

BHIMAHHE!EcHHeo6xoDnMoHaKJIOHNb MaunHy,y6eHTecb,HTOBo3dUuHBiΦNtBtp HaxoNTcB B BepxHemNoJIOKeHN.

-ПовьтуТсБТольКО opИнHaJIbHbIMN 3aЧаCTЯМ.

TpaΦnK TexHnueckoOro 06cJyXnBaHn

B rpaΦke 06cLyJHbAHn yKa3aHo, KaKne YacTn MaunHb Tpe6yIOT TexHnueCKOrO 06cLyJHbAHn, n C KaKIMN INTEPBAJIaMn OHO IOnHHo npOn3BOIDITbcR. 3TN INTEPBAJIb paCCuHTaHb INC0xOJa N3 EeJeDHeBHOrO NCNoJb30BaHnMaUNHbI, IN MorY MeHrTbcR B 3aBNCIMocTn OT YacToTbI NCNoJb30BaHn.

TEXHnueCKOE OBCJIyJINBAHNE

3aMeHaJIe3BnI

PNEyPENHE!PnppeMOHTe peKyuero 06OpdyoBaHnBcerda oDeBaTe KpenKne pa6Oue nepaTkN. HoN ouEnb ocTpbie n mN Bcerda Jerko nope3aTbcra.

Pa36opKa

-OTKpyTITe BnHT,ydepHHBaHHOHH.

CHaTb NcNoJIb30BaHHyIO peHcyUHO HacaIky. OcMoTpeTb KpenJIeHne JezBn Ha HauNue noBpeJHeH.NaKHe Heo6xoDmO y6eINTbc8, YTO BnHT HoHa He NoBpeJDeH, a BaI DnRaTeJIa He corHyT.

C6opKa

HHe06xOIMO yCTaHaBJIINBaTb TaKIM 6pa3OM, yTo6bI HaxoJIeNecr noy rJIOm Kpa8 6bln 6paueHb BBepx no OTHoSeHIO K KpbIiKe.

-6eHITecb,HTo peHyuee ycTpoCtBe npaBnIbHO OTuEHTpOBAHo Ha BaJe.

• YCTaHOBnTE 7aI6y n 3aTaNHTe BnHT. MoMeH 3aTAAKK BuHTa paBeH 45 - 60 Hm.

-Провернълелвпе ркои,у6eДNTься,чTO OHO BpauaaeTcCBO6OДHo.
-ПронзВecтпnpo6ньлзanyckMaшины.

BAHHO!

Heo6xoJIMo 6bTb ocToPOHHbIMn pyKOBOIDCTBOBaTbCra 3dpaBBIM CMBICJOM. N36eaiTe pa60T,ДЯ KoTOpBX, NO BaweMy MHeHIO, yPoBeHb BaWeKBAJIINΦIKAUIn HeOcTaToueH. EcIIN nocIe n3yueHn HAcToaNx INcTpkyuBAC Bo3HNKJIN Bonpocbl OTHCOnTEJIbHO 3KcPnyaTaUIN MaUNHb, npexJe Yem npncTyuNTb K pa60Te, o6paTntEc b 3a KOHCyJIbTaUneK cpeuaJIncTy. O6paTntEc b K oHnuaJIbHOMy dIIepy.

Bcerda nCnoJb3yTe opnHnHaJbHbIe deTaJI.
IJa noJyueHn6oJee noDpo6Ho HhOpMaUIn
cm.pa3dJeN《TexHnueckne daHHbIe》

Cbeua 3aHHraHn

3AMEUAHNE!BcerdaHcnoJb3yIeToJIbKo yKa3aHHbTIN CBeu!PpIMHeHne HecooTBcTeCTByIOSeM OMeJIIM MoKeT npNBecTNI K cepbe3HbIM NOBpeXdEHNrM nopShr/UnnHnpa.

• EcIINHcTpymeHT CHN3HJ MOUHocTb, C TpydOM 3aBOIDNTcra nn pa6oTaet HeycTouNo Ha XOIOCTOM XOy: Bcerda cnaJnpoBepaITe CBey 3aHnraHn, npexJeem npednpnHrTb dpyrne war.
• EcHn Ha cBuee o6pa3oBaIcra Harap, Heo6xoIIMo ee npOuNCtNb npOBepNTb 3a3Op MeJy 3JIeKToPdAm. 3HaueHne 3a3opa JIa CBeu CM. B pa3JeIe 'TexHueckne DaHHble'. 3aMeHnte erO B cIyae Heo6xoIIMocTn.

PergunpoBka Tpoca cCenJeHnA

ToUHO OTopeRyIInpyTe IInHy TpOca nOMoBIO peRyIInpoBOuHOrO BnHTa.

• EcHn ToUHa peryJInpoBKa He o6ecneuHBaET HeJaEMoPo pe3yJbTaTa, BblNOJIHTe rpy6yio peryJInpoBKn Tpoca MyfTbl.
  To6bIyJINHITbTpoc,NCnOJIb3yIe BHT ToHOn peryJNIpOBKn.
• UTo6bl OtperyJInpoBaTb Tpoc MyfTbI, 3aKpenNTe ero Ha npyRnx KPOHHTeHax pbUaracCuenJeHHra. 3aTeM BblnoJIHNte ToHyIO peryJInpoBky Tpoca.

Bo3dUHbI ΦnJIbTp

CHIMTe BO3dyHbI ΦNJIbTp, CHAB KpbIJKy BO3dyHOrO ΦNJIbTpA.
Bo3dyuHbI HnBtp NoCne 3KcnnyaTaun B TeueHHeKOTOpO BpeMeHN HeBO3MOHHo NOJIHOCTbIO BbUcHCTnTb. N03tOMy ero HyHXo nepNoDnueckn MeHATb Ha HObI. NOBpeJdeHHbI BO3dyuHbI HnBtp Heo6xoDnMo 3aMeHHTb.
-Пи NOBTOpHoi c6OpKe y6eIITecb,уTO ΦNtTp 3aRepeMeTn3uPoBaH b paNoHe IepKaTeJIa ΦNJIbTpA.

YnCTKa 6yMaXHoRo ΦnIbTpα

OuNCTnTe HnIbTp, nocTyuAB NM no nlockoI NOBepxHocTn. HnkOrda He noJIb3yIteCb pactBOpnteJeM c Do6abLeHneM KepocHa, KepocINHom NJIcKAtbIM Bo3dYXOM JIa OuNCTKN FInbTpA.

YnctKa neHonJaactoBOrO fNJIbTpa

PeryIaRHO 06cJyHnBaIte rHy6aTbI hIbTp. TuaTeJIbHO npOMbIaIte hIbTp B pactBope TeNIOI MblbHO BOI. NocJe 3TOrO npOMoITe fIbTp B uCTOn BOJe. BbHMITE n daTIe fIbTppy npocoxHyTB. BAHHO! CkaTb BO3dyX NOB BBICOKIM DAJIeHNEM MOKeT NOBpeINTb erO rHy6aTyU ctpkTypy. NocJe YnCTKn fIbTp Heo6xOJMo Cma3aTb MoTopHbIM MacJIoM. UTo6bI ydaJIHT b3JIuIKu MacJa, IpOMOKHIne hIbTp qNCTOn TKaHbIO.

3aMeHa MacJa

-OnopoHHnTeToNnHBb6aK.
- OTKpyTnTe KpbIuKy MacNo3anpaBoUHoro oTBepCTn.
-ПонсТаВБTe noДхОДЯш尼 cocуД ДЯ c6opa Macna.
CneIe MacNo, onpOKHyB DnIRaTeJIb TaK, TTo6bl MacNo BByTEKaNo Ype3 HaINIBHyO Tpy6ky. EcIn Heo6xOIMo HAKIoHHTb MaunHy, y6eINTeCb, TTo BO3DyHbIyΦNtbp HaxOnITcB B BepxHeM NOLOKeHN. Ppi 3Tom cJeDeYET npokOHcyJbTIpOBaTbcraHa 6nnaHwe 3anpaBOUHOcTaHcN, Kyda cJeDeYeT cDaTb JnUHee MacNo dJa DnIRaTeJIa.
3aJeTe HOBoe MoTOpHoe MacJoXopoWero KaVecTBa.CM.pyKoBOIcTBoNo 3KcnJyaTaCIN DnRaTeJI, BXOJaUee B KOMnJIeKT NocTaBKN.

TOnJIuBHa cncTeMa

-ПроверътTo,чTo TOnIINBHaЯ KpbIshKa n ee npokJaKa He NOBpeHdEhl.
-Поверп Te TOnJIиВнI NaTppy60K. 3aMeHInTe B cnyuae Heo6xoДИМOCtN.

TexHnueckne daHHbIe

	M40-110 CLASSIC	M40-125 Classic+	M46-110 CLASSIC	M46-110R CLASSIC	M46-125R Classic+
Двига teль
Пробимеителов двига teль М. McCulloch	Briggs & Stratton	McCulloch McCulloch	McCulloch McCulloch	Briggs & Stratton
Оьем сизлинира, см³	110 125 110 110	125
Частоа вразецни, об/Mин 2950 2900 2950	2950 2900	2950 2900
Номнадьна мошноctь олковая тела, KBТ (см. поимechanicals)	1,6 1,6 1,6 1,6	1,6
Систema зангаганя
Сөүчүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнгүдөнg
Зазор олковая MM 0,7 0,5	0,7 0,7 0,5
Систema толпва / смашки
Емкосъ толпвого бака, лintров	0,8 0,8 0,8 0,8	0,8
*Масло дley двига teль	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Вес
Маша с пухтымп бakамп, кг	24 25 27 29 27
Эмисьшuma (См.Примechanicals 2)
Уровеньшuma, Измерений дБ(A)	90 93 92 92 95
Уровеньшuma, rapанtripованный LWAДБ(A)	92 94 94 93 96
Уровишuma (См.Примechanicals 3)
Уровень зукового давлений на уш onepatopa, дБ(A)	77 80 79 79 82
УровиBNБраций, a hveq (См.Примechanicals 4)
Руковая, M/c²	6,3 14,75 4,82	4,98 15,68
Систema салшаня
Высota стейки, MM 20-75 20-75 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30-80 30	40 40	46 46 46
Ширна рета, см	40 40	46 46 46
Нож	Combi 40	Combi 40	Combi 46	Combi 46	Combi 46
Аrtникул	5871590-10	5871590-10	5811889-10	5811889-10	5811889-10
Объем Травосборника, Л	50	50	50	50	50

PnmeaHne 1:HomHaBnaMoHocb yka3aHHoDBiTaTeJ -3TO cpeHraNoJe3Ha MoHocTb TnHOrO cepHoro DBIgatEn npu yka3aHHo YacToe Bpaehn,06/MnH,JIy onpeJeHHo MoeJIN DBrAteJN,ImpeHHa B COOTBeCTBmcoTahapTom SAE J1349/ISO1585. Poka3aTeJn DBiRaTeJen MaccOBorO npOn3BOcTBaMoryT OTnUaTbcr OT 3tOro 3NaueHn.ФakTuueckar BixOHa Ha MOHocTb DBiTaTeJy,yCTaHOBJeHHoHa OnpeJeHHoMaunHe,3ABNCIT OT pa6oey cKopocTn,ycIOBn OKpyHauOe Cpebl nDpyrnx napameTpob.
PnmuueHne 2:3MnccnB yMa B okpyhaOyU cpeNy n3MepeTcK kak yMoBoN aΦeKT (LwA) corJacho NapeKtNBec EC 2000/14/EG.
PpmeaHne 3: ypoBeHb yMBOTo daJIeHnB CooTBeTCTBnC ISO 5395:2013. YkaaHbIe daHbIe o6 ypoBHe yMBOTo daJIeHnA IMeOT TnNHy b CTaTnCTnueckn pa36poc (cTaHapTHe OTKNoHeHne) B 1,2 d5 (A).
PpmeaHne 4: UpoBeHb Bn6paunB COOTBeTCTBnC ISO 5395:2013. Ka3aHHbIe daHHbIe o6 ypoBHe Bn6paun ImeOT TINuHbI CTaTNCtUueckn pa36poc (CTaHapTHoe OTKNoHeHne) 0,2 M/c²
*UcnoJIb3yIte ToJIbKO MOTOpHoe MacJIO KNaCCs SJ N Bblie. Cm. Ta6NlCy B8aKocTn B pykoBoIDCTBe npOnBDOInTeJIa DBIgATEJIY N BbI6epHTe ONTImaJIbHOE 3HaueHHe B COOTBETCTBnC OOniJaEMoTempeaTyPOj OKpyHauOJe Cpebl.

MOHTIpaHE N HACTPOIBAHE

OchOBHn npHHnn 186

PbKoxBaTKa 186

BvocuHa Ha p3aHe 186

KoJIeKTop 186

IuΦT 3a MyJUnpaHe 186

3apeKdaHe c MacNo 186

PABOTACFOPNBOTO

OchOBHn npHcHn 187

TopNBHa cMec 187

3apeHdaHe c rOpuBo 187

TpaHcnpT n cBxpaHeHne 187

EKCJIIOATAUIA

JIuHa 3aunTHa eKnnpOBKa 188

OchOBHn npeIpa3Hm MepKn no TexHKaTa 3a

6e3oNaChocT 188

OchOBHn npHHuHn Ha pa6oTa 189

TpaHcnpT n cBxpaHeHne 190

CTaptnpaHe Nn3KJIIOUBaHe 190

ПОДРБЖKA

OchOBHn npHcHn 191

TexHnuecko 06cJyKBaHe 191

O6ua nHcneKcui 191

3anaJIteJIHa cBeeu 192

PerylnpaHe Ha Ka6eJa Ha cBeiHnTeJr ... 193

Bb3dyweH fIJIeTp 193

CmHa Ha MacJIoTo 193

TopNBHa cncTeMa 193

I3BECTE! He 3aDaBaYTe BncoUHaTa Ha
pR3aHe TBbPde HnCKo, TbKaTo mApNcK
pe3uTE Da nonaHaT Ha cKJIoHOBe C
HepaBHOCTN.

PpIiBnKeTe pBcKaTa Ha3aJ 3a no-roJaMa BnCOuHa Ha p3aHe, HAnpeJ 3a no-MaJa Ka BnCOuHa Ha p3aHe.

KoJIeKTop

MOnTnpaHe Ha KoJIeKTop

-Пocтавета paMaTаВ кОлЕКТopa oT nlaT.
-ДрьнКаТаHaKoJeKTopaepa3noJIoHeHaBbpxy paMaTaH Tp86BaJa 6bJe nocTaBeHa Bbpxy Top6aTaHa KoJeKTopa.
3aKpenete pamaTc nOMoTaHa 6bp3oJeCTBaUu INKN.
3aKpeneTe KyKnTe 3a rOpHaTa YacT Ha Kopnyca. HanoHeTe OTBopa Ha yBaJa KaBm DoJHaTa YAcT Ha npCtTabKa 3a CyBaJIn.

UHΦT 3a MmJyIpaHe

Heo6xoJnMo eJa nopByate DOnbHnHTeJeH aKcecoap 3a KOMnJIeKTa 3a MyJUHpaHe npu MoJeM46 (KomnIeKT PNC 579679201) mOeM51 (KOMnIeKT PNC=579679301).Hma DocTbneH KomnIeKT 3a MoJeM40.

-ПовдигнелпpeДиаNTeЛЯ,3aДаМоHTиpaTe/ DeMOHTnpaTe npicTaBkata 3a MyJUnpaHe.

3apeKdane c Macno

• Pe3epBoapbT 3a MacNo Ha HOBaTa MaunHa e npa3eH. CnBaiTe MacIoTo 6abHo. Bk. HNCTpyKUInTe B rIaBa rOndpBXKa". MotopHOTo macIo Tpr6Ba Da ce CMeHr B cBOTBeTcTBne C pBkoBOdCTBOTo 3a DBnraTeJI.

OcHOBHn npHHznn

IPEJYIPENHEHIE！Pa6oTaHa
DINrTeB3aTBopeHo NIN
NoonpoBeTpBaHO NoMeueHHe MoHe Da
IOBeJe Do CmbpTT nopAn 3aUwBaHe
NIOOTpaBHe C BbIpeOeH OKNC.

TOpINBOTo nOTnAdHnTe npOyKTn O T
TOpINBOTo ca JIeCHO Bb3nJaMeHIMN I
MOraT Da npUHNrT cepNo3Ho
HaPahraBaHe npBdNWBaHe NnKorATo
BJra3aT B KOHTaKrC KOHaTa. IopaNi Ta3N
npuYnHa c6bIIOdaBaTe BnMaHne
KoraTo 60paBnTe C rOpINBo HnpeMeHHO
npoBepRaBaiTe daJIncbIeCTByBa
aJeKBaTHa BeHTnlaCaIy.

Otpa6oTeHnTe r3oBe oT DnIraTeJc a ropeuN B TEx MoarTa cBbPkaT uckpN, KOnTo Da npEiIN3BnKaT noKap. He CTapTnpaIte HNKora MaunHaTa B nOmeJeHne IIn 6bn30 Do roPnBn MaTePnAIn!

He nyuweTe Hn NoMeCTBaHrTe HnKaKbN HArOpEeHn PpeDMeTu B 6JIn3OcTdo RopNBOTo.

Topnbacmec

I3BECTNE!MaunHaTa e 6opuDbaHa c YeTnpTuKToB IINrATeJ.YBepTe ce,Ye BpeepBoapa 3a MacNo BNHaNIMa DocTaTbUHO MacIO.

BeshnH

-ИзANOДБаиTe KauecTBeH 6e30ЛоВeH 6eH3ин c MaKcIMaJIHo KoJIuYeCTBO Ha eTaHOr ot 10% (E10).
- Han-HnCKoTo npenopbUbaHo OKTaHOBO YnCNo e 90 (RON). Ako Bne noDaBaTe Ha DnBnAteJr rOpNBO C OKTaHOBO YnCNo, No-HnCKo oT 90, MoHe Da Ce noJyUn ChyKaHe. Toba BoDn Do eDHa BnCoKa TeMnepaTypa Ha DnBnAteJr, KoETo MoHe Do DoBeJe Do cepNo3Ha NOBpeJa Ha DnBnAteJr.
Ako nMaTe Ha pa3noJIOHeHne ekOJIoNueH 6eH3nH, T.H. aJKNlaTeH 6eH3nH, cJeDbTaToI da ce n3NoJ3Ba.

DINrTaTeJIHoMaCIO

N3BECTNE!IpoBepeTe HnBOTo Ha MacNoTo, npeNi Da cTapTnpaTe KocayKaTa. TBbpDe HnCKo HnBO Ha MacNoTo MoHe Da npuHn cepno3Hn 1eTu Ha DBnraTeJb. Bk. yKa3aHnTa B pa3deJrNoDpBHKa"

MoTopHoTo MacNo Tp6Ba Da ce CMeHnB CbOTBeTCTBVe CpbKOBoDcTBOTO 3a DBnraTeJ. 3a npenopbKo KOn Tn MacNo Da n3noJI3BaTe HnpaBeTe cnpaBka C pbKOBoDcTOTo 3a DnRaTeJ. Hnkora He

H3NOJI3BaIteMaCIO npeHa3HaueHo 3a DByTaKToBn DBrVaTeN.

3apeKdane c rOpNBO

IPEДУПЕХДECHNE！IpeDn 3apeJdaHeTo c ropNBo Tpr6Ba HEnpeMeHNO Da ce N3KJIIOUч DBNIGaTeJIrT I Da Ce ocTaBn 3a HAKOJIKO MNHyTN Da n3CTNIHe.

BnHaN n3noJ3BaIe Te Ty6a 3a 6eH3nH, 3a Da n36erHeTe pa3JInuBaHe.

OTBopeTe BHHMaTeJHo Kanaka Ha ropNBHnpe3epBoap 3a Da ce OTCpaHn eBEHTyJIHO CBpBXHaJIraHe.

NoicTeOkoNokaKaTaHa TropBnpeepBoap.

CneI3apeHdaHeTo c rOpINBO rpnHJNBO 3aBnHTeTe KaNaKa Ha rOpINBHnpe3epBoap. He6peHHocT Ta MoHe Da DoBeJe Do N36yXBaHe Ha noKap.

IpeDn Da cTapTnpaTe MaHnHaTa npHeceTe Ha-MaJIko Ha 3M pa3ToHne OT MAcTOTO Ha 3apeHdahe C rOpNBO.

Hnkora He cTapTnpaIe MaunHaTa:

Ako cTe pa3JIeJIr rOpINBO INI MoTOpHO MacJIO Bbpxy MaunHaTa. N3TpNIte pa3JIaITo ce rOpINBO INI MaCJO INocTaBeTe ocTaTbUInTe OT rOpINBOTo Da ce I3napaT.

Ako cTe n3JIeIIN rOpNBO Bbpxy ce6e cn nnI npexnte cn ce npeo6JeueTe. N3MnTe Te3N qactn Ha TaJIoTo cn, KOtO ca 6NJN B KOHTaKT C rOpNBO. N3NoJ3BaIte canyH n BOda.
- Ako MaunHaTa NMa Teu Ha rOpNBo. PpOBepaBaiTe peIOBHO 3a TeOBe oT Kanaka M MapKyuHrTe 3a rOpNBOTo.

TpaHcnpT n cBxpaHeHne

CbXpaHraBaTe N TpaHCnOpTnpaIe MaunHaTa n ropnboto TaKa, Ye da Hma onacnoct eBeHTyaJIeH TeU INn IN3napEny Ia BnJ3aT B KOHTaKT C NCKPn INn OTKpNT PnAmBk, HanpImepOT eJIeKTPnueckN MaunHn, eJIeKTPoDnBnRaTeJIn, eJIeKTPnueckN/CINIOBn INpeBKIOuYBaTeJIn INn HApeBaTeJIn.
-TopuBoTo Tp86Ba Da ce CbXpaH8Ba n TpaHCnOpTnpa B CneUHaJIHo NpeJHa3HaueHn 3a Ta3N CEIn Oo6peHn Ty6n.

PpoIbJIxHTeJHo cBxpaHaBaHe

Korato c6xpaHbAte MaunHaTa 3a npoIbJIHnTeJHn nepNoDn OT BpeMe, pe3epBoapbT 3a rOpNBO n KaMepaTa Ha Kap6ypaTopa Tp86Ba Da ce N3npa3HrT. O6bpHeTe ce KbM 6eH3nHocTaHcUra Ta cn 3a INHopMauJa KbDe Ja N3JIeTe N3JIuBka oT rOpNBO.

JInuHa 3auntHa eKnnpOBka

Ppna pa6oTa c MaunHaTa Tpr6Ba BnHarn da noJ3BaTe
JIuHa 3aUnTHa ekInnpOBKa OIO6peHa OT
cBoTBeTHoTo BeIoMCTBO. JNuHaTa 3aUnTHa
ekInnpOBKa He N3KIOUyBa pNCK OT TpaBMn, Ho
HamaJaBa cepno3HocTTa Ha TpaBMaTa npn 3JIONoIyKa.
PiomJeTe CBOIncTpN6yTop 3a IOMou Pp nI36opa Ha
noJxOJaAeKInnpOBKa.

Heo6xoDIMOeBnHarIaN3noJ3BaTe:

-ИзнолзВаиТе танп 3а уши,akO HnBOTo Ha shуMa HанБишаВa 85 db.
KopabN 60Tuyn NnO6yBKn, KOnTo He ce XJIb3raT.
-Дын naHTaNoH O T 3dpab nlaT. He HocTe Kbcn NaHTaNoH, caHaJI N He pa6oTeTe 6ocn.
-Пин hyнда Трябва де сесугт рькавицn, HanprIMep npN MoHTaH, orIeД nII IN noUncTBAHe HapeHeuNTe npucnocO6JIeHn.

OchOBHn npeIpa3Hm MepKn noTexHnKaTa 3a 6e3OpacHocT

To3n pa3dJI onNCBa oChOBHIne npenopbKn 3a 6e3oNaHa pa6oTa c MaunHaTa. Ta3n HhOpMaUng He MoHe Da 3aMeHN pOoecnoHaJHaTa KBaJIuNkAUNr N OHT Ha eINH CneuaJIncT.

-Ппетдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳 -поче TeTe BHHMaTeJIHo pБКoBoДcTBoTO 3a eKcnIIOaTaLIIЯ n ce y6eJeTe, Ye ro pa36npaTe npaBnJIHO.
He 3a6paBnTe, ye onepaTopbTe oTROBopeH npn HeuacTHN cJyuaH nn OnaChOCTN, cJyUHn Ce Ha dpyrN Xopa Nn TqxHO MyeCTBO.
MaunHaTa Tp6Ba Da ce noiBbPbHa YnCTa. 3NaIte N CTNKePnte Tp6Ba Da 6bDaT HanbJHo YeTtMn.

BnHa n ce ocJanaHnTe Ha 3npaBn cMncbJn

HeBnHaR MoHe Da ce npedyraN BCraKa Bb3MoHNa cHTyaUaN, KOrTo MoHe Da ce c6JIbckaTe. BnHar npa6oTeTe c NOBnSeHO BVHMaHne n Ce ocJaHnTe Ha 3dpaBn r Ca3yM.AKc Ce OKaHeTe B cHTyaUaN, B KOrTo CyBCTBaTe HeyBepeHocT, ppeYctaHOBeTe pa6oTa n Ce nocBbETBaIte Cbc CneLnaJInCT.

CbpeTe ce c Baunia NnIbP, cepBn3eH areHT nJIn c onnten noTpe6nTeHa nHcTpymeHTa 3a p3aHe.
N36raBaIte pa6oTa, 3a KOrTo cmTaTe, Ye He cTe DocTaTbUHO KBaINnIuPaH!

PNEUYPENKDEHNE！Ta3MaunHa cB3daBa eJekTpoMaHHTHO NOJe no BpeMe Ha pa6oTa.Ipn HraKoI 06CToTeJIcTBa TOBa NoJe MoHe Da INHTepΦepnca CakTNBHNINnacNBHN MeuLHNCN IMnJaHTaHTN.3a da HAmaJIte pncKa oT cepno3Ho INI ΦaTaNHO HapaHbAHe, Hne npenopbYBaMe JNuCaTa C MeiUHckN IMnJaHTaHTN Da ce KOHCyTTnpaT C JeKapr cn IN npou3BOIDNTeJHa MeiUHckN IIMnJaHTaHT, npeNi Da 3anoQHaT da pa6oTATC Ta3n MaunHa.

PNEUYPENHEHIEMaHaTaMoHe da ce OKaHe ONaCe HnHCTpymeHT aKOce n3NoJ3Ba HnPaBnIHO Nn6EzrpHHo, KOeTo MoHe Da DoBeDe Do cepNo3HO Nn PhaTALHO HapaHbAHe Ha OpeaTopa Nn DpyrNnua.

Hnkora He no3BoJaBaiTe Ha daa nnI npynxopa da n3noJ3BaT nnO6cnyBbMaHHaTa, 6e3 da ca o6yehn npedBapuTeJIHo.

MaunHaTa He 6nBa da ce n3noJ3Ba oT
Xopa c noHHeHN Hn3NueeCKn JnI
ymCTBeHN Bb3MOxHocTN JnXopa, KOITOn
He e noDxoJaIO da pa6oTc MaaHnHaTa
nopadN 3dpaBOChn npuHn, 6e3
Ha6JIoJeHne ot OOBek, OTROBopeh 3a
TxAHa Ta 6eONaHocT.

HnkoraIe IOnyckaIte npyn da
n3no3BaT MaunHaTa 6e3 Da cTe ce
ye6einnu, ye Te ca pa36paN
cbIbpxHaHneTo BnHCTpyKcInTe 3a
eKcnloaTaLna.

Hnkora He n3noJ3BaIte MaunHaTa aKo CTe yMopeHn, aKO cTe yNoTpe6BaJIaIKoxoJIuN aKO B3emaTe MeDnKaMeHTN, KOINTBb3JeIcTBaT Ha 3peHHeTo BN, npceHKaTa BN NJI KoOpDnHaCnTa BN.

IPEyPENHEHNE! Hepa3peweHn
N3MeHeHn I/IN npncnoc6JeHn
MoraT Da DOBeaT Do cepNo3Ho
HaPaHbAHe Nn CmBpTHn CnyaHn
noTpe6nteJn nn dpyrn nua. Pn
HnKaKn 06ctOaTeJcTBa He 6nBa da
ce BHaCrt N3MeHeHn B
nbpBoHaJaHaTa KoHcTppyKuHa
MaunHaTa 6e3 pa3peWeHne Ha
npoN3BOOnTeJI.

Hrkora He npomeHaTe Ta3n MaunHa no Haun, KOTo He CbOTBeTCTBa Ha opnHaJIHaTa KOHcTpkyLUn, H He n3NoJ3BaIte KOraTO Ce BnJa, Ye e 6nla npomeHa OTHaKoN dpyr.

He pa6oTe c Hen3npaBHa MaunHa.
H3BbPwBaIte OnUcaHInTe B ToBa
pbKOBoDcTBo 3a eKcnloaTaun
peoBHN npoBepKN, noDpBkKa n cepBn3. OnpeJeHn onepaun no
noDpBkKaTa n cepBn3a ce
n3BbPWBat eINHCTBeHO OT
KBaJIuNfUpaHn CneuaJNtN.

Ioi3yBaTe cAmO opuHaJIHn npucnoc6JeHn.

БezonaHocT ha pa6oThaTa o6JaCT

KlnoHOBe,BeiKN,KambHnIpyrTpr6BaJa 6bDaT npemaxHaTN oT MopaBaTa, npeNi da 3anoCHTe Da Kocnte.
- PpeIMeTn, yIpyIu peKeIooTo o6OpyIbAHe, MoaT Da 6bDaT N3XBpJeH N da npUHHa T BpeIHa Xopa I npeIMeTn. Ha6JIIn3o He 6NuBa Ia IMa BbHUn Hxa Opa I KINBOTHN.
Hrkora He H3noJ3BaIe MaunHaTa B looBpeMe, HanpImep npi MbIa, IbKd, BJaHHOBpeMe nn Ha MOKpn MeCTa, npn cnJIHNBeTPOBe, MHOrO cInJeCtUd, pNCK OT MbJHnA nT.H. Pa6oTaTa B loo BpeMe e N3MopNTJIHa nMOHe Da IOBeDe Do Bb3HnKBaHe Ha OnacnCITyaUN, HanpImep Do noRaTa Ha XJIb3raBVyAcTb4u.
- Ha6IIOdaBaTe oKoJHaTa cpeJa, 3a Ja cTe cnrgpHn, Ye HNsO HMa Da nonpeuHa pa6oTaTa Bn C MaunHaTa.
BHMaBaTe 3a KopeH, KaMbH, BeiKN, AMN, DynKn N T. H. BucKaTa TpeBa MoHe Da Kpne npenrTcTBn.
- KocHeTo no cKIoH MoHe Da 6bDe onaCHO. He H3noJI3BaIte KocauKaTa Ha MHOro CTp'bMHN cKIOHOBe. KocauKaTa He 6nBa Da ce H3noJI3Ba Ha cKIOHOBe, No-CTpbMHN ot 15 rpaIyca.
BnKIOHeH TepeH CJIeBa npoxHaTa nTbTeKa Da ce npokapa HnpraKO Ha cKIoHa. 3HaunTeJHo no-Jecho e da ce DnHHTe HanpRA KO Ha cKIoHa, oTKoJkoTo Da ce N3KaUBaTe n CJIu3aTe no cKIoHa.
BnMaBaTe, KOraTo npn6JnKaBaTe cKpntu bTIn npeDMeTu, KOITo MoTa Da 6JoknpaT 3PHTeJIHOTo BN noJe.

БezonaHocT npa6oTa

KocaykaTa e c3daHe ha camo 3a KocHe Ha mopabn. Bcnkn npyrgn ynoTpe6n ca 3a6paHeHn.
-ИЗнолзbaиTe JИЧаТа 3aUNTHa eKINnIpOBka. BnH yKa3aHnIЯТaВ pa3deJлUnHa 3aUNTHa ekINnIpOBka.
He cTaptnpaTne Kocayka,ocBeH aKo pe3eUbT n BCnuk Kaan ca nocTaBeH npaBnJHo.B npOTnBEH cLyaupe3eUbT MoHe da ce pa3Xla6n I da npeDn3BnKa TpaBMn.
- YBepTe ce, ye pe3eT HMa da ydapn DpyrN obekTN, KaTo HAnpIMep KaMbHn, KopeHn Nn DpyrN. ToBa MoHe Da 3aTbnn pe3eua n da orbHe DByceKUHOHHa BaI Ha DBrTaTeJI. AKe oOrbHaT, ocTa MoHe Da npuHN dnc6aJahc n cnHn Bn6paun, KoTo Da IOBeDe Do rOJAM pNCK 3a OCBO60XdaBaHe Ha pe3eua.
- PbykaTata cnnpaKaTaNkora He 6nBa da 6bnde nepMaHeHTHO 3actOnopeHa,doKaTo MaunHaTa pa60Tu.
- NocTaBeTe KocauKaTa Ha Cta6nJIHa, NIOCKa NOBbpxHocT Ia CTapTnpaIte. YBepeTe ce,Ye pe3eTHe MoKe Da BNe3e B KOHTaKT Cbc 3emrTa nn DpyrO o6eKtN.

BnHaH6bTe3aMaunHaTa.03BOJeTE BCNUKIOJIa Da OCTaHaT Ha 3eMra N dpbHTe IN DBeTe CN pue Ha pkoXBaTKaTa, KOrato Kocnte. DpbHTe pueTe IN KpaKaTa cN daLeu OT BpTAAnte ce ocTpneTa.
HeHaKlaHnTeMaunHaTa,Korato eKeKTpOdBnRaTeJrTpa60Tu.
- Oco6eHO BHNMaBaITe, KOraTo IbPaTe MaunHaTa KbM ce6e cn no BpeMe Ha pa6oTa.
Hikora He BnraTe NIn HocTe KocaKaTa, DOKaTo DnraTeJaT pa6Ot. Ako ce HaIar a Da BnIRHeTe KocaKaTa, NpBo N3KJIOUeTe DnirAteJIu N3KJIOUeTe Ka6eJa 3a 3anaJIbHaTeO t 3anaJInteJIHaTa cBeI.
-HeKoCeTe TpeBHaTa nIIOu, B'bpBeiKN Ha3a.I.
-ДИгаTeЯТТя6ВаДа 6Бдe ИЗКЛIOуЕн, KOraTo ce npIuBnKBaTe Ipe3 NOBbpxHocT, KOraTo HЯMaДа 6Бдe КосяHa. HanpIMep, NbTEKN C YaKbJ, KaMbK, peuHn KaMbHn, acФaJIrИnp.
- HnKora He TnuaaTe c MaunHaTa, IOKaTo Ta pa6oTu. BnHaru Tp8Ba Da BbPbTe c KocayKaTa.
-ИЗклочeteДВигaterЯ,пpeДЯпрмeнTe BUCOчHaTaHa рязаHe.HNKOra HeperyIpaTe,doKaToДВиrgaterЯТ pa6OTN.
- Hikora He ocTaBnTe MaunHaTa 6e3 HaI3Op, DokaTo DniratelaTpa6oTu. N3KIOUcTe Dniratela.YBepTe ce, ye peKeioTo o6opyDbaHe e cnpa Da ce BbptN.
Ako HkaKaBb CtpaHueH 6eK T 6bJe ydapeH nn Ce noJyauT Bn6paun, BeHara cnpeTe MaunHaTa. Pa3kayete HT-Ka6eJa oT 3anaJIteJIHaTa CBeu. IpOBepeTe MaunHaTa daJI He e NobpeHa. NopabTe BCraKa noBpeJa.

OchOBHn npHHuHn Ha pa6oTa

BnHaH npEHe c ocTpo ocTpne 3a onTmMaJIHN pe3yJtATn. N3TbNeHOTo ocTpne DaBa HepaBeH cpe3 n TpeBaTa CtaBa XbJTA no NOBbpxHocTTa Ha cpe3a.
- HnKora He KocTe NoBce oT 1/3 OT bJIHHHaTa Ha TpeBaTa. ToBa ce OTHacr ocObeHo 3a cyxN nepNoi. PbPBO KocTe npn BncoUHa Ha pR3aHe, 3aJaIeHa Ha BnCOKa. CJeI TOBa npoBepTe peyJITaTa n HaMaJIeTe Do cBoTBeTHaTa BnCOUHa. Ako TpeBaTa e MHO rIgra, KapaTe 6abH0u - aKO e Heo6xoIMo - OKocTe DBA PtN.
- PeHHeTe BceKN nT B pa3JIuHn NocOKn, 3a da H36erHeTe JINHN B MopabaTa.

TpaHcnpT n cBxpaHeHne

-06e3onacTe o6opydBaHeTo no BpeMe Ha TpaHcnpTnpaHe, 3a Ja n36erHeTe noBpeJa INHcNdeHTN.
CbxaHbAte 60pyuBaHeTo B3akJIOUbaOce MrcTo, TaKa Ye da 6bIe N3BbH IocTbNa HaDeua INN HeynblHomOseH Nlca.
CbxaHbAaTeMaunHaTaNo6OpyBaHeToHa cyxoN3auntetoCTKpeMmcto.
-3a TpaHcnpTnpaHe n 3apeKJaHe c rOpNBO Bn. pa3deJa r3apeKJaHe c rOpNBO".

Статуше и захова:

PpeiIa 3anoHHeTe

PNEUYNPEXDEHNE! Ppei Da 3anoHete pa6ota c MaunHaTa npoyeTe BHMateJHo pBkoBOcTBTo 3a ekcnloaTaUH nCe y6eDeTe, ye ro pa3bnpaTe npabnHO.

H3noJIbAaTe JnUHaTa 3aunTHa eKnnpOBKa.BNK yKa3aHnra Ta B pa3eJIuHa 3aUnTHa eKnnpOBKa.

B30HaTaHa pa6Ota He 6nBa Da nMa BbHnHn Xopa.
ИЗБьшВаиTe BCEКДНЕВНТEXHNYECKO 06слунваHe.Вн.уkaЗанЯТВ pa3дeЛ rПОДрьнKa".
- YBepTe ce, Ye Ka6eJIbT 3a 3anaJIbHaHeTo e npaBnIHo nocTaBeH B 3anaJIteJHaTa CBeII.

CTapTnpaHe

BcunMoIpa3noJaaratcpbueHcMyKau (MeM6paHa Ha noKauBaua nomna).

Ako cTaptnape Kocaykata 3a nbpBn nbT, HaTncHeTe rOpNBHaTa nomna net nbTu. CJeT ToBa HaTnCKaIe TropNBHaTa nomna no Tpu NbTu npn cTaptnape CoxlaJeH dBVaTeJ.

PbkoxbatkataHa cnpaKaTa Ha DnBnRaTeJr Tp6Ba Da ce IbpHn Cpeu rOpHTo ynpabHeHne npcTapTnpaHe Ha DnBnRaTeJr.

• 3actaHete 3aMauHHaTa.
  XBaHeTe DpBHKaTa Ha CTapTepa Nn3TerIeTe 6aBHO CTapTepHna Whyp c DaChTa pKa Do noLoKeHne, KOraTo yceTnte CbnpoTnBa (3b6uTe Ha CTapTepa 3aCenBaT).NdBpnaTe cnHNo uHpy,doKaTo DBnraTeJrT 3anaJI. He 6nBa HnKora da HabnBaTe CtapTepHna Whyp oKOJIO pKaTa cn.

3aDnBnBaHe

(M46-125R Classic+, M46-110R Classic, M51-140WR Classic+, M51-150WR Classic, M51-150R Classic)
HaTnCHHeIocTa3a3aBnHbAHeKbM pkoXBaTKaTa,3aJaCTapTnpaTe 3aDnHBaHETo.

• PpeHn Da npndbpaTe MaunHaTa KbM ce6e cn, ocB06oJeTe 3aADBnBaHeTo N npndBnHeTe MaunHaTa Hanpei Ha np6JIn3nteJHo 10 cm pa3cTOnHne.

N3KJIIOUBaHe

CnpeteIbIraTeJIa,KAToOTnycHeTeIpBHKaTa Ha cnpaKaTaHa IbIraTeJIa.

• PpeaBkata ce N3KJIIOUyBa cIso N KOraTo ocBo6oNDTe p'koXBtKaTa Ha cnnpaQKaTa.
• CaMo 3aIbIbIbHaHeTo MoHe Da 6bIe N3KJIIOUeHO npI JeKO OTnYcKaHe Ha cnIPAuHnI JIoCT.

OcHOBHn npHHznn

IPE.DYIPENHEHNE!NoTppe6nteJrT Tp6Ba Da n3BbpwBa cmo pa6oTaTa no NoDpHKata N o6cnyhBaHeTo,OnncAHn B To3n HapbUHk Ha onepaTopa. KpyNHTe peMOHTn Tp6Ba da ce N3BbpWbAT B cepBu3.

N3KJIIOUBaIe TE DBIraTeI npeIIN3nBJIHeHHeTo Ha KaKBInTo I da e npOBepKII INI TexHnueCk noIdpbHexKa.IpeIoTbpaTe HeKeJNaHo cTapTnpaHe, KaTO n3BaIITe 3anaJIteLHHa Ka6eIOT3anaJIteJIHaTa CBeI.

EknoTaUHnTcPOKaHaMaHHaTa MoKe Da 6bDe HamaJeH, a pUCKbT OTe HAcTHN cLyuayn yBeJnueH, aKO TexHueCKTo o6cLyBaHe Ha MaHHaTa He ce npoBeHKDa npaBnHNo n aKO o6cLyBaHeTo n/nnpeMoHTHnTe DeHocTu He ce n3nBnHBaT npoecnoHaJIHo. Ako mATE Hykda OT oIe INfOpMaUN, MoJ, 06bPHeTe ce KbM Han-6Jn3Kn cepBu3.

BHIMAHHE!PnHaKJaHHe Ha MaunHaTa BnHaNc yeYBepaBaiTe,Ye Bb3DyuHNrTΦnITbpe pa3noJIOKeH Bb3MOxHo Hain-BuCOKo.

-ПолзуВаite caMo opИнHaJIHn npIcncoc6JIeHn.

TexHnuecko 06cIyXBaHe

B rpaФИKa 3a TexHnueecko o6cIyHbAHe MoHTe da BnDNTe KOn YacTn Ha MaWnHaTa N3NCKBaT NOI,dpbKHa NHa KaKBn INTEpBaJI.N INTEpBaJIIne Ca N3YNCJIeHN Ha 6a3aTa Ha eKeJdHeBHO N3NoJ3BaHe Ha MaWnHaTa N MOHe Da ce pa3JIuYaBaT B 3aBNCIMoCT OT CTeNEHTa Ha ekCnIooTaLIA.

Прешида започны	Седимочно обслужванe	Месучно обслужванe
Овessa Инспекция	Заразиные на сveш.	Въдуншen фелтур
Външно почистванe	Aусpenx*	Горовна систema
Нимо на маслоTO
Рөжescо оборudванe
Калak срец порязванe*
Рergүлiverпане на кавела на съединения
Ръчka за спирачкatable на двига teля*

*BHK. INCTpyKUInTE B pa3dela rO6OpyDbaHe 3a 6e3onacHa pa6oTa C MaunHata".

O6ua nHcpeKzna

-Побере Te Дали BCnUKN raiKu IN BnHTOBe ca 3aTeRHeTn.
CMeHeTe BcNk NOBpeHn, H3HOceHN JIN cnyeHH qactn.

BbHnHO nouCTBaHe

-ИЗиСTeTe ЛиСТаТa,TpeBaTaиДруги ПОДбНOT KOCaЧКаТa.
-He MInTe MaHnHaTa cTpyN NOI BncoKo HAnraHe.
- Hnkora He nyckaIe BOda IInpeKTHo Bbpxy DnBraTeJIa.
-ПочиTeпnpoe3nTe 3a 3acMyKBaHe Ha Bb3duxHa cTapTOBoTo ycTpoIcTBo.ПpoBepeTeДаИ He ca N3HOCEH Ил NOBpeHcTapTepa ИВьжToHa cTapTepa.
Korato nouCTBaTe noi KoKyxa Ha peKeuNTe YacTN, 3aBbpTeMaHHaTa CbC 3anaJIteJHaTa cBeu HArope. I3npa3HeTe pe3epBoapa 3a rOpNBO.

HnBOHaMacJIoTO

KocaykaTatp6BaDaCeHnIIOCKa NOBbpxHocT, KOraTo npoBepBaTe HNBOTo Ha MacJIoTO. IpOBepeTe HNBOTo Ha MacJIoTO C MepHTeJIHaTa NpBuKaHa KaNaYkata Ha NbJIHITeJIra 3a MacJIoTO.

• MaxHeTe KanaUkaTa 3a MacJIoTo I noUcTeTe MePnTeJIHaTa npbUka.
• NocTabeTe OTHOBo MepntelHaTa npbka.
• Ako HNBOTo Ha MacNoTo e HnCKo, DonbJIHeTe Ro c MoTOpHo MacNo Do rOpHOTo HNBO Ha MepNTeJIHaTa npbUka.

Pecheseo o6opuyBaHe

-ПоверявайтpeхшоTo o60pyДBAHe 3a nobpeNi O6pa3yBaJIи ce nyKHATINH. NOBpeJeHo peKHeIoo o6OpUДBaHe noJleHn BnHaRn Ha noDMHn.
BnHaH npOBepaIte daJIpe3eUbTe eo6pe nocTaBeH npaBUNHO 6aJahCnpaH.

BHIMAHHE! Pe3uTe BnHaTn Tp86Ba Da ce 6aIahcnpa t CJeI 3aToUbaHe.

IobpeHHepe3uTpr6Ba da 6bdaT noMeHn, aKo yapT npenTCTBn I TOBa doBeJe do nobpea.

Помяна на ДИСКOBeTe

PNEUYPENHE!BnHaHn Hocete pKabu3a TeHKn ycNoBn, KOrato 06cLyBaTe n noDbPnaTe peKeIoTo 06OpyDbAHe. Pe3uTe ca MHOro ocTpni IleCHO MoRaT Da HaCTbNt NOP3BaHn.

ДемоHTиранe

-Pa3BnTe 6oJTa, KoITo IbprHn pe3eua.

• OTCpaHeTe cTapoTo ocTpne. YBepeTe ce, ye ckobata Ha ocTpneTo He e HapaHeHa. Cbto TaKa npOBepRaTe 60JTa Ha pe3eua 3a noBpeNi N DByceKUHOHHn BaI 3a or'bbAHnA.

MOnTnpaHe

• HoHbT Tp6Ba Da ce MoHTnpa C n3BNTnTe KpaIuHa HacoYeH Harope, KbM KanaKa.

• YBepTe ce, ye ocTpneTo e ueHTpnpaHo npabNJHO cnpMa Baj.

• NocTaBeTe Wai6aTa n 3aterHeTe npaBnH0 6oIa.BoNTbT Tp86Ba Da 6bJe 3aterHaT C BbpTAA MOMENT 45 - 60 Nm.

Pa3BnHeTe OCTpneTo Ha pKa n Ce yBepeTe, Ye To Ce Bbptn CBO6oJHo.

• HanpaBeTe TecToBo nycKaHe Ha MaunHaTa.

3ANOMHETE!

BnHa r pa6oTe c noBwSeHO BHMaHne n ce ocJaanHe Ha 3dpabn Cn pa3ym. N36rBaIte BCNUCNTyaU, B KOIT OMaTe CbMHeHn, Ye HMa da MoKeTe Da ce cnpaBnTe. Ako BCE oOe ce CyBCTBaTe HecnrypHn 3a pa6oTHnTe npoZeDpyn CJeI npOHTaHETo Ha Te3N INcTpyKuIN, NoTbpCeTe cBBeT OT cNeuaJIncT npEiN da npOdbJHHePa6oTa. O6bPHeTe ce KbM yNbJHOMOueH cepBn3.

N3noJ3BaIte caMo opnHnHaHn pe3epBn YacTn. 3a noBeue INΦopMaun Bk. pa3deJa rTexHnueckn xapaKTepNCtKn".

3anaJInteJHa cBeu

N3BECTNE! N3noJ3yBaTe BnHaRn 3anaJIteJIHHeTc CBeU O T npenOpbHaHn BnI! N3noJ3yBaHeTo Ha nOrpeSeH TIn CBeU MoHe Da npEdn3BnKa cepNo3Hn NOBpeDn Ha 6yTaIoTO/ UINIHDbpa.

Ako MaunHaTa r6n MoHocT, TpydHo ce cTapTnpa npa60Tu 3ne Ha npa3eH xoJ: BnHar npOBepBaIte 3anaJIteJIHaTa CBeu, npeDu npEppMeTe dpyr CTbKn.
Ako 3anaJIteJIHaTa cBeeU e 3aMbpeHa,Я NOuHcTeTe I npoBepeTe pa3cToHneTo MeHdy eJIeKTpOdnte. HanpaBeTe cnpaBaKa c TexHnuecknTe xapaKTepeNCTnK 3a pa3cToHnE MeHny eJleKTpOdnte Ha 3anaJIteJIHaTa cBeeU. POnmHeTe rB CnUyai Ha Heo6XoDnMocT.

PereynilpaHe Ha Ka6eHa HacbeHnHTeJIa

PerynpaTe BHMateJHo Ka6eHa HcbeHNHTeJa c noMoTu Ha peryInpoBbHnBAHT.

PeyunpaTe no-CTerHaTo Ka6eHa Ha cBeiHHTeJIa, KOraTO BHNMaTeJHoTo peryInpaHe He e DocTaTbUHO.
- YIbJIHeTe Ka6eJa c nomOuTa Ha BnHTa 3a BHIMATEJHo peryJnPaHe.
- PerynpaTe no-cTerHaTo Ka6eHa Ha cBeHNHTeJI, KaTO FO 3aKpeNtE KbMa pa3JNUHNTe cKO6Ha JIOCTa 3a CbeHNHTeJI. CLeT ToBa perynpaTe Ka6eJa BHNMaTeJIHo.

Bb3duyweHnTbp

-ДемоHTирайтЕkanakаHaВb3dUshnЯФИТьрИВb3dUshnЯФИТьрT.
Bb3dyuhen HnTTbp, n3noJ3yBaH nJrro Bpeme, He MoKe Da ce noUcTn HanbJHo. ETo 3aOHa onpeJeIeHN nHTepBaJn OT Bpeme ToI Tpr6Ba Da ce NoDMeH C HO. NOBpeDeH Bb3dyuHen HnTTbp Tpr6Ba Da 6bJe HENpeMeHHo CMeHeH.
Korato ro MoHTnpaTe OTHoBO, npoBepeTe daJIH cnTbpB T npnIra nIbTHO KbM IbpxaTeJHa cnNTbpa.

NoucTeTe xapTneHna fNITbp

-ПочиTeTe Фнлтьpa, KaTo roЧКHeTe B nIoCKa nobbpxHocT. HnKOra He n3noJ3BaIte pa3TBOPHTeHa HeФTeHa OChOBa, KaTo HanpIMep KepocIN, IInBb3dY NOd HaJIraHe, 3a Da noUcNTe Фнlтьpa.

NouchTbaHe Ha 9nltbpa oT nopecTa nlaactMaca

CbaJIeTe nopeCTnI nlaCTMaOB hnITbI.
H3MnIe Te hnITbpa c XJaIka canyHeHa B0da.
CJeI NOuNcTBAHe N3NJaKHeTe rHe3DoTo Ha
HnITbPa c YnCTa BoJa. H3CTNuCKaIe To Iro
ocTabe Ta n3cbxHe. 3A6EJIENKAI!
H3NoJ3BaHepTo Ha crbCTeH Bb3dYx NoD BnCOKO
HaJIraHe MoKe Da nobpei NopeCTnI
MaTePnaI. CJeI NOuNcTBAHe HnITbPbT
Tp8Ba Da ce CmaHe C DnRaTeJHo MaNo.
H3bPeTe H3JIuNHOTo MacLo Upe3 HaTuCKaHe
c YncTa KbPnaNo HnITbPa.

CmHa Ha MacJIoTO

-ИзпраЗHeTe peЗерBoара 3a ГориВо.
Pa3BnTe KanaykaTa Ha nblHITeJra 3a MacJoTo.
- NocTaBeTe noDxOJaU, CbI 3a Cb6npaHe Ha MacJIoTO.
-3ToeMacNoTo,KaToHaKIOHHTBnraTeJIa,TakaYe MacNoTo Da N3Teue npesTp6NkKaTa 3a nJIHe. Pn HaKJaHRe HaMaHHaTa BnHar ce yBepaHTe,yeBb3dUHnT fHJTbp e pa3noJokHe Bb3MOHOHn-BnCOKo.PonTaNTE B MecTHaTa6EH3nHOCTaHcIg KbDe MoKeTe Da N3JeTeN3JIuHOTo MoTopHo MacNo.
3apeTe c HOBO, BnCOKOKaueCTBeHO MOTOPH MacNo. BnHTe npEIOCTaBEHOTo p'bKOBoIcTBO 3a pa6oTa C DnVraTeJIa.

TOpNBHa CnCTema

• YBepTe ce, ye KanaUkKaTa Ha pe3epBoapa n HeHTo ynTbTHHeHne He ca NOBpeDeHN.
• PpOBepeTe Mapkya 3a rOpNBoTo. PpHHeo6xoDnMoCT ro NoDMHeHe.

TexHnueckxapaKTepeNCTnKn

	M40-110 CLASSIC	M40-125 Classic+	M46-110 CLASSIC	M46-110R CLASSIC	M46-125R Classic+
Двигатул
Проблемы на двигатул McCulloch	Briggs & Stratton	McCulloch McCulloch		Briggs & Stratton
Обем на цлинке, см³	110 125 110 110	125
Скорocт, rpm 2950 2900 2950	2900
Номиная поеда мошност на[eilektroд brigatingя, кW (Ви.завелега 1)	1,6 1,6 1,6 1,6	1,6
Заплиные сисма
Заплиные с蜱с.Torch A5RTC QC12YC Torch A5RTC Torch A5RTC QC12YC
Хлабина мений[eilektroдпente, мм]	0,7 0,5 0,7 0,7 0,5
Систа на зхраимвае/cmaазвае
Вмост immост на горовниразервоар, лintри	0,8 0,8 0,8 0,8	0,8
*двигатулно масло	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Тerglio
Маша на пазниразервоари, Кг 2	4 25 27 29 27
Шутоны emиси(Bи. заебелега 2)
Равшице на звековя[eфekt,измерения в dB (A)	90 93 92 92 95
Равшице на звековя[eфekt, rapанtripано LWA dB (A)	92 94 94 93 96
Равшице на Шуma(Bи. заebелега 3)
Нево на Шуma рoni ухото наразOTESSHA, dB(A)	77 80 79 79 82
Равшице на Вибрацьята, a hveq(Bи. заebелега 4)
Ръковbatka, m/s²	6,3 14,75 4,82	4,98	15,68
Рожец сисма
Височина на ряZAHe, mm	20-75	20-75	30-80	30-80	30-80
ШирINA на ряZAHe, cm	40 40	46 46 46
Нон	Combi 40	Combi 40	Combi 46	Combi 46	Combi 46
Сереньnomер	5871590-10	5871590-10	5811889-10	5811889-10	5811889-10
КалачитET на риславката зачвали, лintри	50	50 50 50	50

3a6eJekka 1: HomnHaHaTa Moochc H a eJeKtpoDburatae I cpeHaTa HeTha MoHocT (pnu yKa3aHt e0./MnH.) Ha DbrarateI cbc tAnaptha npou3bOndteJIHOCT 3a MoeJa eJeKtpoDburatae, n3MepeH cnprMo SAE cTaHdapTa J1349/ ISO1585. DbrarateI NTe MacoBO npou3bOndcTB OMO He da ce OTKIOHBArOT Ta3N CToHOCr. JeicTBuTeJIHaTa n3XoHa Moochc 3a DbrarateJr, INcTaJIupaH Ha KpaHATA MaunHa, Ize 3aBncn OT pa6oTHa TcKOpocT, ycIOBnraTa Ha OKoJHaTa Cpea N dpyrnt CTOHCTn.
3a6eJenKa 2: WymoBa emncn B OKoJIHaTa CpeJa, n3MepeHa KaTo 3ByKOB eΦeKT (LwA) cbrJacHo EO dIpeKtNbBa 2000/14/EO.
3a6eJenka 3: HnBO Ha 3BykoBoTo HnIraHe cBrlacHo ISO 5395:2013. OTYeTeHInTe daHHn 3a HnBOTo Ha 3ByKOBoTo HnIraHe IMAT TnNuaHa cTaTnCTnueCeKa dncpeCnA (cTaHapTHO OTKIoHeHne) ot 1,2 dB(A).
3a6eJHKa 4: PaBnHSe Ha Bn6paunTe cIgLnacHo ISO 5395:2013. OTYeTeHnTe daHHn 3a paBnHSeTo Ha Bn6paunn IMaT TnNnHa cTaNTcUHeCKa nCnepcn (CTaHdApTHO OTKIoHeHne) ot 0,2m / s^2
*N3noJI3BaIte DnBraTeJIHo MacNo c KaueCTBO SJ nIi C no-BnCOKo KaueCTBO. BnHTe Ta6nIaTa C BuCKO3nteTb HapbUHnKa Ha npOn3BoDInTeJHa DnBraTeJIg N I36epTe ONtMaJIHHy BuCKO3nteT cnpMo OuaKbaHaTa OkoJIHa TempeAtypa.

SIGURNOSNA OPREMA STROJA

Opencito 290

MONTIRANJE I PODESAVANJA

Opencito 291

Ručka 291

Visina rezanja 291

Sakuplajc 291

Priključak za malčiranje 291

Ulijevanje ulja 291

RUKOVANJE GORIVOM

Opencito 292

Gorivo 292

Punjenje goriva 292

Prijevoz i skladišenje 292

RUKOVANJE

SIGURNOSNA OPREMA STROJA

Općenito

IeBnpi6 BiNobiJa eHaJIeHHM BnMOraE C.

WymoBI BnKnDy HABKOJIuHHe cepeOBNue BiINOBIAOTb HopMaM EC.deTalbHiuy iHOpMauiIO npo WymoBI BnKnDInIHCTpyMeHTy noDaHO y po3di "TexHiHi DaHI" Ta Ha 6ipU.

HikoJNe KopncTyTecra
iNCTpyMeHTOM y npMiuueHHia6oB Micux, De Hemae
HaJIeKHOI BeHTnlaui.
BxlonHi DmIMu MicrTaB
MOOHKnD ByrJeUO,
OTpyHn Ta dyHe
He6e3neuHn ra3 6e3
3anaxy.

He6e3neKa Bn6yxy

Ipeep3a npabJeHHm 3aBHN BIMNKaTe DBNrH.

Tapya noBepxH.

OnncanHpaBHBnopepeHHeHHa

IChyIOb Tpni piBHi nonepeJKeHHa.

YBARA!

YBAI! BnKOpncToByeTbc8, JaKIO icHype pN3NK TpaBMyBaHHa KopNcTyBa4a a6o N0sKOJHeHHaHbKOJIuHix 06'EKTiB BHaCJIIOk npuyehn IHCtpyKci, HabeJeHx y cboMy KepiBHuNTbi.

BAHJIINBOI!

BAKINBO!BnKOpncToByeTbcra,RAKIO icHypeNtIK TpaBMyBaHHa KopNCTyBaay a6o noWkoJHHeHHa HABKOJIuHix 06'ekTIB BHaCNIdoK npuyenHInCTpykui,HaBeJeHx y zuBoMy KepiBHNCTBI.

YBAGA!

YBAI! BnKOpncToByeTbcra, kKIO icHye pN3NK noKoJHHeHH HaBKOJIINHIX 06'EKTB a60 npNCtpo, BHacJIIOK nopUWeHHIHCtpyKciH, HabeJeHHx yCbOMy KepiBHNCTBI.

ПЕЗ entalı

3MiCT

YMOBHI N03HAUEHH

Bn3HaueHHcIMBOJIB 362

OncaHH npBHB nonepdHexHH 362

PPE3EHTAU

3mict 363

IaHOBnKopncTyBauy, 363

U0E UO?

IeTajra3oHoKocapKn 364

YCTATKOBAHHДJIЯBE3NEUHOIPOBOTNIPIUCTPOIO

3araJIbHe 365

MOHTAK TAHAJI TYBAHHY

3araalbHe 366

Pyka 366

Bucota pi3aHH 366

TpaBo36ipHnK 366

3arnyka dIy MyIbUyBaHH 366

3aJIiBaHHMaTnla 366

POBOTA 3 NAIINBOM

3araJIbHe 367

PaaBHe 367

3anpaBJIeHHn naJIbOM 367

TpaHcnopTyBaHH Ta 36epiraHH 367

KOPNCTYBAHH

Oco6ncTe 3axnche cnpaJHeHH. 368

3araIbHi npabuJa 6e3neKu 368

OchOBHi npHOMn po6OTn 369

TpaHcnoptyBaHHra 36epiraHH 370

Iyck Ta BIMnKaHH 370

TEXHUIHE OBCJYTOBYBAHH

3araalbHe 371

TpaΦik npoBeHnH TeXHiHOrO

06cnyroByBaHHa 371

3araIbHa nepeBipka 371

Cbiuka 3anaJIeHHra 372

BidperyIIOTe dpit 3uenenHH 373

PoiipraHn 373

3amHa oJINBn 373

Cnctema naJInBa 373

TEXHIYHXAPAKTEPNUCTUKN

TexHiuH daHi 374

ДeКларuaBiINOBiHNoCTiCTaHdapTaM

EbponecboKoro Coo3y 376

UaHOBnKOpncTyBauy,

Pozp6ka IHHIi HHOBauiHnX NaHcIgOBnx nI npOIOBHyBaJACn npOTyROM DecaTNIITb, 6i3Hec po3uipBoBcR, cNoayKy LiTaKOBmN i KapTHROBIMn DnIgYHaMn y 1950-x, noTIm MiHiIaHcIgOBmN nIJaMn y 1960-x. Ni3Hiwe, y 1970-x i 80-x pokax, do Bnpo6Hnuoi LiHiKn DoJaInscr TpImepn Ta nobITpoDyBN.

CboorDi, kacTnHa rpyH Husqvarna, KOMnHi
Mcculloch npoOBHy e TpaNciio noTyHHx
DBrHyH, TexHicHNx IHHOBaCi i MiuHx
KoHCTpyKci, k6yJn HauHMi BiIMiTHMn
O3HaKaMn IpotrGm 6JIbwe noJIOBHN CToJIIT.
3HHeHH BHTPaTN naINBa, BKNIDIBipHBiWMy e
nepeOpEroBm3aBdaHHMaI HaC, oCKIbKn
Ce nokpaUye 6e3NeKy i 3pyHicTb y BkOpncTaHHi.

Mn 3BnuaHcnoiBaemocHa Te, 10 Bn 6yTeTe 3aOBOJeHi BaWIM BInpo6oBM BiD KOMnaHII Mcculloch, ockIbKn BIn po3po6LeHni, 106 6yTuBaWM nomuHekom npotraqm Tpmbaloro yacy. Cidyuohnopaam Liei HCTpykui 3 ekcnnyataui BiHNOcHOBKOpNC TaHHN, EKcNlyaTaui i TexHCHOr O6cLyroByBaHHa, MoJINBO npoIOBHNr TepMH NOro cLyn6n. JxOo Bam 6yde noTpi6Ha npopeciHa donomora 3 peMOHTy a6o 6cLyroByBaHHo, 6yNb IacKa, BIKOpncToByTe POKaHnK UeHTPiB 06cLyroByBaHHa 3a aDpecoio Ww.mcculloch.com.

FipMa McCulloch doTpMMyeTbcn noJItKn noctiHoro BDOCKoHaJeHHaTOBapiB, aOTHe, 36epirae 3a co60IO npaBO 3MiHOBaTN KOHCtpyKluTo Ta 3OBHiHi BnIJaD Bnpo6IB 6e3 nonepedHboro nobIDOMJIeHHra.

LiaHctpyKciTaKoH DocTynHa IJIA 3aBaHTaKyBaHHa 3a aDpecoo www.mcculloch.com.

山 O 山 O ?

Деталгазонокаскн

1TalmbiHa pyKoYKa DnVryHa
2ПивODньань(M46-125R Classic+,M46- 110R Classic,M51-140WR Classic+,M51-150WR Classic,M51-150R Classic)
3Pyka cTapTepa
4 TpaBo36ipHnK
5 Pykiv, peryIaTOp BucTo npykiv'
6 YnpabJIHHBnCoToIO p3aHH
7BmipOBaJIbHnIyI/OTBipJJIaJIbAHHHOJIbN
8TnyuHnK
9 CbiKa 3anaJIeHHa

10 HnHHn onopa pykib'
113anpaBJIeHHa
12 NobitpHn HjIbTp
13 Mem6paHa 3anaJIbHnKa
14KoHxJe3a
15 Ihctpykui do nyckoBoro uHypa
16 Pi3eUb
17 PpyHnHa 6a
18 BoJr pi3a
19 Noci6HnK KopncTyBaHa
20 PpO6Ka 3JINBHorO oTbOpy 6aKa Kap6HopaTopa

YCTATKOBAHNJa E3NEUHOI POBOTn PNCPTPOIO

3araalbHe

B zuomy po3diJI onicaHo cnopraJkeHHa JI
6e3neuHoi po6oTu i Ioro npna3HaueHHa, Ta
noaHeHO, k noTpi6Ho npoBoDHTn nepeBipKy Ta
06cLyroBaHHa JI npaBnIbHOrO
fhyKIOHyBaHHa 6boRo cnopraJkeHHa.

YBAI!HikoJI He BnKOpncToByTe iHCTpyMeHT i3 DeΦeKTamn cnopJHHNJa 6e3neuHOi po60Tu! RaIO iHCTpyMeHT He BiINoBIaE xOua 6 oHi i3 BnMOr nepeBipKn, 3BepHiTbcra Do UeHTpy 06cLyroByBaHHa DnpeMOHTy.

He BHocntb 3MiH Do cIbO Ro Bnpo6y ChBnKOpncToBynte NOro, RaQIO BnBnTbcra, 0o Do HbOro 6yJN BHeceHi 3MiHn IHmMn Oco6amn.

ДляЗANO6iraHЯ HeHaBMnchHOrO 3anycky DnurHyBaIe'EdHaTe npoBiD 3anaJIOBaHHa BiD CBiUKN 3anaJIIOBaHHN.

KoHxJe3a

KoHxJe3a npn3HaueHn nn 3HHHeHHB i6paui Ta pn3Nky nop3iB.
IpebeBipka konhyxa Jea
KoJyX Je3a He noBHeH 6yTu noKoJHeHn a6o DeOpMoBaHn, Ha HbOMy He Mae 6yTu BUNIMx DeEeKTiB, HanpNKJaTpiuH.

TajmbiHa pyKoTka DnBryHa

• RaJbMo DnBryHa BnKOpncToByeTbcraДлЯ 3ynHKn DnBryHa. PpN BiDnyckaHHi pyuKN RaJbMa DnBryHa DnBryH MaE 3ynHHTncrA.

Ipebeipka pyuKraJbMa IbnuHa

IobHicTbBIDKpNHeDPOceJIbHy3acJIiHKy,aNOTIM BiDnycTiTpbyuKyraJbMa.ΓaIbMo DnRgamma3abXdM Ma6byTN BIDperpyIbObaHe TaKIM YHOM,0o6 DBrHy 3ynHRA pOToYROM 3ceKHyd. 3BepHITbcndoABTopn3OBAHorO cepBicHoro ueHTpy.

TnyuHnK

YBAI!HikoJIHe BnKOpncToByTe npncTpi6e3 rnyuHnka a6o i3 HecnpaBHm rnyuHnKOM. POnkoJHeHr rnyuHnK MoKe cnpuHHTu 36JIbWeHHra pIBHa Wym Ta noHexHo He6e3neKn.CiIz 3aBKn MaTu HAnoxBaTi BiNoBiDHe npToNnoHe He 06laHaHHa

IyshnK cnbHo HarpiBaetbcra nac Ta nicna po6oTu. Ce cTocyeTbcra i po6oTu Ha xoNocToMy xOdy.
Pam'raTe npo He6e3neky 3aropHn, o06nBO KOJn npaOoeTe no6n3y JERKO3aMnCTnx pINH Ta BInapB.

TnyuHnK npnaHaueHn IJIa 3MeHneHHyMIB Ta BiIDBOy BuxnonHx Ra3iB BiK KopNCTyBaYa.
IpebeipTe IyushnK
PeryIpaHNo nepeBipraTe, qn ciIIM e rLyuHnk, i nn BiPHiM YInHom Bn noD6aJI npo 6e3neHicTb po60Tu 3 Hm.

3araJIbHe

BAJINBO!IJIa3ano6iraHHa HeHaBMnCHOro 3anycky DInrhya BiEJaHaiTe npoBiD 3anaJIIOBaHHa BID CBiUKN 3anaJIIOBaHHa.

Pyuka

36ɪpaɪn

BepxHe pyKIB'

Pomictb Tpy6oNoi6Hy KOHcTpyKuio pykib' npamo HABnpOTn HHHboi YacTHn pykib'a. PeTeIbHo 3aTgHiB fikcyoi rojibKn.

CkopncTaTecpeMeHmN,IOdoaIObCBA KomnkeTi,IJI KpinIeHHKa6eJIIB IO pyKIB'.PiJ yac yCTAHOBLeHH He HATyryTe Ka6eJI NaTo cnJIbHO.

Bncota pi3aHHa

YBA!He BcTaHOBJIIOTe 3aHaITo Hn3bKy BnCOTy p3aHHa, OCKJIbKn pi3Li MoKytb 3aueHNTncra HepiBHoCTi 3eMJI.

BiBBeiItb BaxiNb Ha3aI dIy 6IbwoI BnCoTn pi3aHH Ta BnepeI dIy MeHooI BnCoTn pi3aHH.

TpaB036ipHnK

MOnTaH TpaBo36ipHnKa

• Po3auyyTe paMy B TkaHHHomy 36ipHnky.
• Po3TaWoBaHe Ha pami pyKIB' 36ipHnKa cIiD po3TaWyBaTn HAd MiWkOM 36ipHnKa.
• CkopnctaItecKlincam3i WbNko0 3acti6ko1, 0o6 3axnCTNT npamy.
• PpikpiTb rakn y BepxHbMy Kpai paM. PpncToCyIe dHO 36ipHnKa Do BnnyckHoro oTBOPY.

3arLyuKa dIyMyIbUyBaHnI

ДлmaMoideleM46-(Ha6ipPNC579679201)iM51- (Ha6ipPNC=579679301) Heo6xioHO 3amOBtInIdoaTkoBe npuJaIg IЯ MylbUyBaHH.Длma MoideJeM40 Ha6opib Hemae.

Пднимь зхичу Кршky BunyckHoro OTbopy, ьб BCtaHOBHTN/3HRTN 3aRJySKyДлЯ MyJIbUyBaHHa.

3aJIiBaHHMaCTnla

• Ppi nocTabu macJHn 6ak npTn. NobIbHo 3aJIne OJy. Hctpykui nnBiTbcn iD 3arOJOBKOM 'TexHue o6cLyroBvBaHH'. MotopHy OJy noTpip6Ho 3amHHTn 3riHNo noci6Hnka 3 ekcnnyatauii DBrVgamma.

3araalbHe

YBAI!Po6oTaIbVryHaB i30JIbObaHOMy Nn nOraHo npOBiTpOBAHOMy npMlueHHIO MOne npN3BeCTN Do CmepTi BHaCNIkOK JaDyXN OITpyEHHa MOHOKcNDom ByrJIeIO.

PanaBo Ta Ioro Bnnapn JereKo 3aMaIOtbcI MoKyTB 3aBdaTn cepNo3Hoi WkoDn npn BduXaHHi Ta noTpanJAAHHi Ha Wkipy. Tomy 6ybTe o6epeKHi npn po60ti 3 naJINBOM i nepeKHaTecr, 10 npmMiueHHa DocTaTHbO npoBiTpOeTbcra.

BnxionHi ra3n Maotb Bncoky TemnepaTpy i MoHcytb Mictntu icKpn, BiD kNx MOHNBe 3aropHH. HikoJI He BMKaIe IHCtpyMeHT y npMlueHHi cn 6IJI NERKO3aIMCTNX MaTeiaJIB.

He naJIb TcIrapok Ta He cTaBTe rapaHx npedMeTIB no6n3y naINBa.

PajbHe

YBA!KocapKy 06laHaHo QoTnpTuKaTHHM DnHyHom.3aBnI nepeBipJrTe,IO B MacnHomy 6aCi e DocTaTHbO OINBn.

BeshnH

BnKOpncToByTe RaichH HeeTNoBaHn 6eH3nH i3 MaKcMaJIbHm BMcTOM eTaHOJy 10% (E10).
MiHimaJIbHe peKOMeHIOBaHe OKTaHOBe YnCIO IopIBHIOE 90 (YncIIO RON).PpBnKOpNCtAHHi 6EH3NHy 3 OKTaHOBIM YnCJLOM, HnKUIM 3a 90, MOJIINBNI TAK 3BaHNI CTyKiT. Ce CnpuYNHe neperpiB DnBryHa, IO MoJe npNBecTI Do NOro cepNo3HOrO NOWKODHeHH.
- Pn MoHJIbOCtI BnKOpNCToByTe 6eH3nH i3 Hn3bKmP iBHeM BnKnDIB uKiJiJIbNx peOBNH (Tak 3BaHn aIKiNat).

Tin MacJa

YBAΓA! NpeεД 3anyckOM ra3oHokocapKn nepeBipTe pibeHb OJIINB. 3aHaITo Hn3bKni piBeHb OJIINBMOJE cnpuHHTN cepNo3Hi NowKOJHeHHa DBnryHa. IHCTpyKciD nBiTbcra B po3diI"TexHiue 06cnyroByBaHHa".

MoToPhy OJINBy noTpIbHo 3amHHTn 3rIHO noci6Nka 3 ekcnlyaTaui DBnryHa. PeKomeHdaui 0do Bn6Opy oJINBn DnBiTbcB noci6Nky 3 ekcnlyaTaui DBnryHa. HiKoJIn He BnKOpNCToByuTe OJINBy, npn3HaueHy dJa DBoTaKTTHx DBnYHiB.

3anpaBJIeHHI naINBOM

YBAI! Npee3anpaBHeHHa m 06OB'9KOBO BIMKHiTb DBNyH i daTe Iomy OxIoHyTu npOTraGM deKiJIbKox XBNiH.

3aBnBn BnKOpncToByTe KaHicTpyn 6eH3nHy, 0o6 yHnKHyTN npoJIiBaHH.

Pn3a npabci BiikpyuyeKe pniuky naIIBHO 6aky noBilbHo,io6 nocTynoBO 3MeHINTTNCK.

BntpiTb KpnKy naJIINBHO 6aKy Ta noBepxHIO 6iJa rOpIoBNH.

IicJra 3anpaBneHHn o6epenHo, aJe ⅢJIbHO 3aKpnTe KpnKy. He6aicTb MoKe npN3BeCTn Do noKeHl.

IpeMeTItb KylbTnBaTOp npHaMHi Ha 3 MeTpN BiD MicUa 3anpaBJeHHe nepeTtM, k3anyctNTuNo.

B HODHomy paai He BMKAaTe iHCTpyMeHT:

JaKIO Bn npOJIIN naJIbHe a6o MoTOpHe MacTInNo Ha npIcTpIi. BuTpiTb IHCTpyMeHT Ta 3aueKaITe, nOKN BUNapyIObCra 3aJIuIKN naJIbHOrO.
- YKsqo Bn po3JIINI naJInBO Ha ce6e qH cBiO Jg, nepeoJrHiTbcR. BmNtTe yacTHNI TiJa, Ha KI noTpanNJIO naJInBO.ДЯ CbOrO cKOpNCTaITeCra MIIOM Ta BOIOJ.
- RaKIO iHcTpymeHT npOnyckaI naJIInBO. PeryJRAHPO nepeBipraIte, uN KpNIka 6aKy Ta Tpy6Kn NaJIiBHOe CnCTMmH He npOnyckAIO Tb naJIiBa.

TpaHcnpTyBaHHaTa 36epirahHH

36epiraTe Ta TpaHcnpTyIte iHCTpyMeHT i naJIbO TaK, 0o5 HabiTb y BnnaDky BnToKy naJIbBa YI NOrO BnnapIB BOHN He NoTpanJLny y KOHTaKT 3 BiIDKPNTIMBORHEm Ta icKpaMn BiEJeKTPnUHnx MaunH, DBNrHyHIB, eJeKTPnUHnx peJIe/BMkaIiv Cn 6oJInePIB.
Дя 36epirahнячп népebezeHH naJnBa KopncTyIeTecB BiIObIDHIMN EMHOCTaMn, npn3HaueHIMN dJa TaKnx CiJeN.

IobroctpokObe 36epiraHHA

JIKIOHCpymENT6yDe36epirataTncn npoTgrom DOBOrO Yacy, cnopOHHiTB naINBnH 6ak i 6ak Kap6IopaTopa.06 DoBiAtncra, de Kpaue 3JIHTNaIINWoK NaINBa, 3BepHiTbcra Ha MicCeBy 6eH303anpaBky.

Oco6ncte 3axncHe cnopdHexHHa.

KoHHoro pa3 npn po60ti 3 iHCTpyMeHTOM Heo6xIHNO KOpNCyBaTncBiNObiHIM Oco6NCTM 3axHCNH CnpaJHeHHM. Oco6NCTe 3axNCHe CnpaJHeHH He MoKe NOBHCIOJIKBiDyBaTNI He63neKy TpaBMyBaHH, aJe npn HeuacHMy BnnaKDy BOHO 3HN3NTb CTynHb BaHKocTi TpaBM. 3BepHiTbcI Do npOdaBcno DOnOMry y Bn6opi npaBnIbHoro cnopaJHeHH.

06OB'ЯЗКОВ ВДЯгТe:

JaKpo pBeHb WMy nepeBnUye 85 n6, BIKOPncToByTe npoTnWMoBi HabyuHNKn.
Mi cihi cepeBnKn a6o 060Tu 3 HeCJIN3bKOIO niOOWBOIO.
Lynki OOBri WtAHn. He HaJraTHe Ha vac po60TN wOPTn, caHdaJI, a TaKOH He XoDiTb 6ocOH.
3a Heo6xidHocTi Tpe6a HaIraTpyKaBnKn, HanpNKla nd niac ycaTaHOBJeHHnepeBipKn a6o YnueHH piaJIbHnx HacaDOK.

3aRaJIbHi npaBnla 6e3neKeN

Ley po3di onncye ochoBn npabnla 6e3neKn npi KopnCTyBaHHI MexaHicHQ nllkoIO. LirihOpmaui B HODomy pa3i He 3amHb npopecinHnx Habuok Ta doCBiy.

• Pene ekcnnyaTauiio KyIbTnBaTopa yBaHHo npouHraTe ue KepiBnTuBo Ta nepeKoHaTecb, 00 Bam Bce 3po3yMio.
  Pam'raTne, 0c came BN, KopncTyBauch, BiNIOBIAaJIbHm3aTe, 06 NIOI TaixHE MaHHe HapaxaIINcHa He6e3NeKy Ta He cTpaJdaJIi BiN HeuacnX BnnaKIB.
  CJIikkyTe 3a TtM, 06bnpncTpip 6yB YnCTn. YcimTKn Ta no3HaKm MaOt b 6yTu iTKIMn Ta po36ipJINBUMN.

3aBnKopntyTeCyaOpOBm Iy3dOM

HemohJINBO nepe6aunBnoc6Hky BciCtyaui,aki MOHyTB BVHNKHYTu niD qac BVKnOpncTaHH npNCToPO. 3aBxDi 6yDbTe o6epEHHi Ta KepuTecraDopOBUM rLy3Dom. Jkso BVNHKJa cTuayi, KOJI BN He BnEBHeHi y BlacHi 6e3neU, 3ynHiTbcr Ta 3BepHiTbcr 3a nopadoIO do faxibur. 3BepHiTbcr DO BaWoRo dInlepa, ceHTpy 06cIyroByBaHHr YN DocBiJeHOro KopncTyBaHa. He 6epiTbcr 3a BVKOHaHHr po6Ot, kJo BV He MaeTe ocTaToHoi BnEBHeHocTl!

YBAI!PiJvacpo6oTuIeIHCTpyMeHT CTBOPIOE eJIeKTPOMarHITHe noJe. Lc noJe MOHe 3a DeAky M0B B3a6MoOiaTn 3 AKTNBHIMN UIN NACNBHMN MeDNUHMN iIMNaHTaTaMn.IJr 3MeHWeHHpN3kKy cepno3HNx a6o CmeptelbHnx TpaBM, nepei Noayakom po6oTu 3 IHCTpyMeHTOM MN peKOMeHdyE MoOCobam 3 MeNuHIMN iIMNaHTaTMn npOKOHcyJIbTyBaTncs3i CBOIM IIKapeM Ta BInp6HikKom MeDnuHOro iIMNaHTaTy.

YBAI!BnKOpncToByeTbcS，KIO icHye pN3NK cepno3HoITpABMn Yn CMepti KopNCTyBaay，a6o 3Haunx nookOJeHb HABKOJIuHix o6'kTIIBhAcJlOk npuyenHH iHCTpyKui, HabeJeHNx y Mbomy noci6Hky.

HikoJHe Oo3BOJyTe iTAM a60 HeniIroTOBJIeHIM IIOJAM BIKOpNCToByBaTu npICTpii a60 3DiINCHIOBaTu NOro TexHiUHe 06cLyROByBaHHa.

IhCTpyMeHT He MoHHa BIKOpNCToByBaTN oO6am i3 06MeHeHIMN fI3nHIMN qH pO3yMOBIMM MOHJIINBOCTAM a6o oO6am, kKi 3 MeIuHNx npuHn He npuaTHi IJyynpaJIiHHa hCTpyMeHTOM, 6e3 HargJny oO6n, kKa BiIDNoBIdae 3aixHo 6e3neKy.

3a60pOHaETbCk KopnCTyBaHHaUM npncTpoem 6yDb-KoMy iHouMy 6e3 nonepeHbOi nepeBipKn po3yMiHHa 3MicTy Ubo ro nocihNka KopncTyBaaya.

B HIOHOMy pa3i He KopncTyItecra IHCtpymeHTOM, kKIO Bn BTomJIeHI, BHNBaJI N CnpTHi Hanoi, npIMaTe JIKN a6o 0o-He6yIb, 1O MoKe HeRaTINBO BNIInHyTN Ha BaW 3ip, peakio, KOOPINHaIIO pyxIB cBiIDomictb.

YBAΓA! BHeceHHa3MH qn BVKnOpNCaHHa akcecyapIB, He CXBaJIeHNx BInpO6HNIKOM, MoKe npN3BecTNo TpaBMN KOpNCTyBaHa aHinX JIOeI, a6o Do CmePteJIbHIN HacJIiKIB. 3a JoNDHX o6CTaBNH He 3MiHOJTe KOHCTpyKUII IHCTpyMeHTy 6e3 D03BOJy BInpO6HNIka. 3aBHKn KOpNCTuNTecr OpIRHaJIbHIMM 3aNcactNaHMaTa pNlaDJaM.

He Bnocntb 3MiH Do UboTo Bnpo6y ChBnKOpNCToByTe NOro, RKnO BnRnBtbcra, 0do HbOro 6yJn BHeceHi 3MiHn iHnMMn oc6amn.

Hikoln He KopncTyTecr HecnpaBnHm
iHcTpymeHTOM. DToPmMyTEcra iHcTpkyu
3 nepeBipKn, DOrIy Ta
06cnyroByBaHHra, 1o HaBeDeHi y
nocibNy. DeKaI 3axoOn 3 DoRJaY Ta
06cnyroByBaHHra NobHHHi 3diChIOBaTnCra
cneiaJbHO NiIroTOBJeHMn faxIBaMn.

3aBKn KopnCTyTecr opnHaJIbHIMN 3anuactnHaMn Ta npnaIaIaIaM.

Бezпека робочи зони

-Перд поатkom с кошувань слд пибрази 3 ra30Hy rIKN, cUyKN, KaMHHToIo.
-ПпeДмETи,якВьдApЯOTbСО6piaJIbHy HacaIky,MonyTb 6yTN BiKINHyTi i 3aBdATn NOWkoJxHeH JIOJAM Ta MaHHy.CJIiKpyTe 3a Tm,io6 JIOJN i TBapuHn 3HaxOJUncra Ha DoCTaTHiBiCtAHi BiD Micu CkOswyBaHH.
3a6opoHeHo BnKOpncToByBaTni IHcTpmyHT y norany noro, Hapnknai, niD qac TymaHy, dooy a6o y BoIornx Micx, npn cnIbHomy BITpi, xOJOni, pn3NkY bpaKeHH 6JIncKaBKOIO Too. Po6oTa B noraHy noroNy BTOMIOe, a TaKOH CTBopoe DoJaTKOBy He6e3neKy, Hapnknai, cIn3bKi nobepxHi.
-ПepeKoHaITeCЯ,лоЛIOn,TВариHу 6yДь- 卢iHWe HaBkoJIo BAc He nepeшКoДжaTmMe KepyBaHHIO iHCTpyMeHTOM.
- Берешпъг Кориня,Кamihя,сукib,ЯM, KaHab Tso.пepшков МоутхoВaTncy Bucokii TpaBi.
CkoWyBaHHHa CxHax MoHe 6yTn He6e3neuHm. He KopncTyItecra3OHokocapKoHO Ha dyHe KpyTxxCxHax. Ra3OHokocapKy He MOHb BnKOpncTOByBaTu Ha cxHax KpyTiue 15 rpaDyciB.
Ha cxnili cnil npaioBAtn B3IOBHNbOro. Ha6arato Ierwe npaioBAtn B3IOBHNcxNJy, aHIX Bropy-BHn3.
-БудьTe 06epeHHi,Ha6JIINHauOuNcBdo npnxOBaHNx KyTib i npeJMeTIB,ЯKI MoHyTb 3a6NoKyBaTN BaWe noJe 3opy.

Texhika 6e3nekn

• Ra3oHokocapKy npn3HaYeHo TiIbKn IJnaCKOuYBaHHra3oHiB. 3a6OpOHReTbcBnKOpNCToBvBaTN npncTpIi He 3a npn3HaueHHAM.
  KopnteyTeCnO6nCTNM 3axnCHn m cnpaHHeHHaM. hctpykuii dNbiTbcy y po3diNi iD 3arOJIOBkOM "OcoNcTe 3axnche cnopraHeHHa."
  3a6opohreTbc8ekcnnyatyBaTu ra3oHOKocapky 6e3 npabnIbHO BCTaHOBJeHOro pi3u Ta Bcix KOhyXIB. IHaKwe p3eMu He BiD'EDHaTnci 3aBdaTN TpaBMn.
  CπiKyITe, ΜΟ6 p3eUb He 3auiNJIb CTOPOHNI npEiMeTn, TaKi Jk KamiHn, KopiHn Too. BiD zuBOro p3eUb MoHe 3aTyuNTncr, a BaI DnBryHa - nOHyTuC. 3irHyTa Bic cnpuHne E nuc6aIahc i cnJbHy Bi6paIIO, 0o npu3BOdntb Do BeJIKoRo pnsIKy Bi'EDHaHHraPi3z.
  Pyuka ralbMa HIKoJn He noBHHa 6yTn noctiHo 3akPinJeHa B pyuCi, KOJn IHcTpymeHT yBIMKHeHn.
• IocTaBTe raoHoKocapKy Ha TBepNy piBHy noBepxHIO i BBiIMKHITb II. IpekeKaHaTecra, Io pizHe MoHe 3aueHNTn 3eMJIIO a6o IHwi npedMeTu.

3aBnCtiTe no3aNy iHcTpymeHTa. Nic cKOuSyBaHHK KOJeca MaOTb 3aJIiHaTNCra Ha 3emIi, a 06nDi pykN Tpe6a TpImaTH Ha pyuCi. He Na6JIiKaHte pyKn Ta Horn do fpe3 lo o6epTaIOTBcR.
-He HaxnIyTe iHcTpymeHT, KoJN DvryH yBIMKHeHn.
-БудьTe oO6LInBO nINlbHi,ЯкsoТягHeTeIHCtpymeHTdoce6e nID yac po6oTu.
3a6oHЯeTbcn iHimaTu a6o nepeHocHTn ra3oHoKocapKy 3 yBIMKHeHIM DBNyHom. JaKuo Tpe6a nHraTn raoHoKocapKy, cnoYaTKy BmKHITb DnRyH Ta BiJ'eHaIte npoBiD 3anaJIbBaHHB Bd CBUKN 3anaJIbBaHH.
- He pyxaIte Kocapky, nepeCyBaIOuNcB cINHO BnepeI.
-Пи попемишни no Длянци,як He Tpe6a ckошувати,дВИгун Tpe6a ВIMКHyTu.Цe, HanрNKлад,дорінки, nocunahi ГраBIEM, KaMIHHraJIbKa, acФаЛТTOso.
3a60pOHaTebC6irTn 3 yBIMKHeHMM iHCTpyMeHTOM.3ra3oHOKocapKoIcJIi3aBHN IITN KpOKoM.
BIMKHiTb DnHy, nepH Hix 3MiHOBaTN BnCOTy pi3aHH. 3a6OpHReTbcra BIKoHYBaTN peryIIOBaHH npN BBIMKHeHOMy DnHyHi.
HikoJn He 3aIiwaIte iHcTpymeHT 3 yBIMKHyTm DBNyHom 6e3 Hargny. BIKIOUITb DBNyH. NepeKoHaTec, oO piaIbHa HacaIka npnnHnla o6epTaTncr.
-Пиулapi66ydb-якni cToPoHHi npeMeT qn noRBI Bi6pauiI HeaHIO 3ynHITb IHcTpymeHT. Bi'EDHaIte npoBID BucOKoi HanpyrN BiD CBiKu 3anaJIOBaHn. IpeBipTe, uHcTpymeHT He nowkoJdHeHn. BiDpeMoHTyIte 6ydb-ЯKe noxkoJdHeHH.

Ochobhi npniomnpo60tn

3aBnBn BnKOpncToByte roctpe Je3o,0o6 oTpMaTu ONtMaJIbHi pe3yJbTaTu. Tyne Je3o piHe HepiH0, i TpaBa Ha noBepxHi po3pi3y KOBTie.
He ckowyte 6Ibwe 1/3 doBHHn TpaBn. Lc oO6JIbBO BaJInBo B cyxipepioi. CnoaTky Tpe6a BkOHyBaTHn cKoUyBaHHa 3 BeJIHKoTO BnCOTIO p3aHH. Npim nepeBipTe pe3yJIbTaTH i 3MeHwITb II Do nOtpi6HOi BnCOTn. JkIo TpaBa DyHe DOBra, BeiTB ra3OHokocapKy nobIbHo i BkOHaTe cKoUyBaHHa DBiHi, kKIO ue Heo6xIDHO.
KociTb 0pa3y BpiHnx HaprMkax, 06 Ha ra3oHi He 6yNo cmYr.

TpaHcnpTyBaHHaTa 36epirahnn

HaHIO 3aKpinitb cnpaJHHn iI qac TpaHCnOpTyBaHH, 06 yHKnHyTn nowkoJHeHH Ta Heuachnx BnnaqkIB.
36epiraTe MexaHiHy nIky y MicLax He DOctynHx DiTAM Ta CTOpOHHIM Oco6am.
36epiraTe npucpti Ta o6laHaHnHn Do Hboro B cyxomy Mici npi TemnepaTypi Bnue 0 rpaDyciB.
-1HOpMaIIO 36epirAHnTa TpaHCnpTyBaHH naJbHoro MOxHa 3HaHTy y po3diJIi "Po6Ota 3 naJbHIM".

Iyck Ta BmKKaHHa Ipeid noaTkom po6oTN

YBAI! Npee ekcnnyaTaCIO KyIbTnBaTopa yBaHNo npOHTaTe UKepiBnCTBO Ta nepeKoHaTecb, IO Bam BCE 3pozymIo.

KopncTyTecr oco6nTm 3axnCHm cnopraHHM. Ihctpykuii DnBiTbcy po3di ni3 3arOJbKoM "Oco6nTe 3axnche cnpraHHa."

CπiKyTe 3a Tm, 06 JIOu Ta TBapHn 3HaxoDnIcra DaJIeKO BiD po6Ooi 3OHN.
3diHouTe 0eHHn TexHiuHn orJnI HctpyKuii DnBiTbcB B po3di "TexHiue 06cnyroByBaHHa".
-NepekoHaTecs, npoBid 3anaJIOBaHH npaBnBHO 3'EDHaHO 3i CBIUKO 3anaJIOBaHH.

Nysck

Yci MoJeI o6HaHaHo noBtprHoi 3acJIHKoIO 3 pyHIM KepyBaHHaM (MeM6paHa Hacoca).

Pn3anyckyra0HOKocapKnBnepweHaTncHtBa H naNBnHacoc n'ayb pa3ib.YnoaJIbwoMy npn 3anyckyXoNoDHorODbNryHa Heo6xIdHo HAtnCKaTN Ha naNBnHnHacoc Tpnui.

Плд уac 3anyckу ДВИгуна рчky raJIbma DBИгуна Tpe6a npNTnCKaTN Do pyKoTKn.

CTaHbTe no3aIy iHcTpMyMeHTa.
Bizbmitpyky cTapTepa noBilbno notarHITb HHyp npaBOIO pyKOIO, nOKn He BiDyTe cnpoTINB (cnpaUboBye 3uenJeHHra 3y6IB).NToTHiTb shHyp CInbHO, 06 3anyCTHTn DnBuYH. HikoN He HaMoTyIte uHyp cTapTepa Ha pyKy.

3anyck

(M46-125R Classic+, M46-110R Classic, M51-140WR Classic+, M51-150WR Classic, M51-150R Classic)

HaTnCHiB npuBoHn BaHijb Bnepey Hanpymky pykib'ay, 06 3anyCTnTn npuBid.

-Перд.TIMяКТЯнHyTиIHCTpyMeHTdoce6e, BiKJIIOUHTb npNBId i WTOBxHITb IHCTpyMeHT ypepeI np6JIN3Ho Ha 10 cm.

BumKHeHH

ДяЗУнКИДВИгуHa BiDnycTiTb pyKy raJIbMaДВИгуHa.

• Pn BiDnyckaHHi pyKn ralbMa TaKoH BiKJIouHTbcr npBID.
  -ПилERKOMy BiDnyckaHHI BaHJIraJBMa BIDKJIQUHTbcr TINbK nPnBId.

3araalbHe

YBAI! KopncTyBauchOBHHe BIKoHyBaTNI JIe T3axOJN 3TexHiUHO 06cLyroByBaHHa, kI ONcaHO B noci6nky KopncTyBaay. BiJbW cepno3Hi po6oTNI NobHHI BIKoHyBaTNCa KBaJIiOkoBaHMn npaCIBHKAMU LeHTpiB 06cLyroByBaHHa.

BIMKHiTb DnHyH, nepu HiB BnKOHyBaTHnepeBipKn a6o TexHiue He6cIyROByBaHHJa 3ano6irAHHeHaBMnCHOro 3anyckyDnHyHa BiE'edHaHTe npoBi3anaIOBAHH Bi CbiKn 3anaIOBAHH.

TpBaIicTb cIy6n IHcTpymeHTy MoHe 3MeHnITncA, a He6e3neKa HeaacnHex BnAnkIB 3pocTn, kKIO noRo 06cLyROByBaHH npoBOuNTn HnpabNtBHo, a6o kKIO o6cLyROByBaHH Ta peMOHT BnKOHyBaTMyTbcr He axiBzMn. KaO Bu notpe6yeTe DoaTKoBoi iHOpMaui, 3BepHiTbcra, 6yNb NaCa, do HaIbnnuO rO ceHTpy 06cLyROByBaHH.

YBAI! KoJn iHcTpymeHT HaxnJIeHni, nepeKoHaIteCra, IIO NOBITPRAHNI IbTp 3aBHHN 3HaxOuTbcR B HaBnOOMy noLoHeHHI.

3aBnI KOpncTyIeoc opnHaJIbHIMn 3anuactnHaM Ta npJaIaIaM.

TEXHlUHE OBCJnyrOByBAHHRA

3amHaJIe3

YBAI! 3aBnDn BnKOpncToBy Te LyNki pyKaBnCi NiacpeMoHTy n 06cLyroBaHHpiaJbHoro 06laHaHH. Pizdyhe roCTpi, i HmM MoHa JERKO npisaTcra.

dEmOHtAn

-BiikpyTITb 6oT, 0o Tpmae pizc.

3a6epitbctapeJe3o.NpekoHaTecra,0 KpinnIbHa cKo6aJe3aHeMae noKoJHb. TaKOH nepeBipTe,HN6oNTp34HeMa e noKoDHe,1NBAI DnRyHa He BnHyBCa

36npaHH

JIe3o cIiJ yCTaHOBJIOBaTn TaK, 06 KpaI 3 KyTaMn 6yIu cnPraMoBaHi Bropy, I0 KpnIKN.

-NepekoHaTecs,po p3eBbipHO BiueHTPOBaHn Ha BaJI.

-Пилайтугшайу Та корково Зakpyтб 60ЛТ.БОЛТ Heo6xIDH O MlH O 3aTyrHyTN i3 3ycnJnM 45-60 H6M.

• PpokpyTiB Ie3o BpyHy Ta nepekoHaITecA, 00 BOHO 06epTaEBcBAJbHO.

-3diinchiTb TecToBn nyck npnilaNy.

BAHJIINBO!

3aBn6yIbTe 6epeHHi Ta KepuTecra 3dOpOBm rLy3dOm. YHnKaIte cTuayau, aKi BNXoYr8 3a MeKi Baunx MoNlNbOcTe. RaKo nicna O3HaonMJIeHHa 3 iHCTpyKUJAMMyBa 3aJINaTaBcC yMHIB NIO TOrO, AK KopNCtBuTncI HcTpymHTom, nepeI npOobHeHHa Heo6xIDHO npOKOHcyMbTaBcA y CneuaIicTa. 3BepHiTbcra Do aBTOpn3oBaHOro cepBichoro ueHTpy.

3aBnKopncTyTecraOpriHaJIbHIMn 3anuactnHaM.NoklaDiHiBiIDOMocTi nVB.y po3diI《TexHiDaHI》.

Cbiuka 3anaJIeHHa

YBAI! 3aBdN KOpncTyTecra peKoMeHDoBaHMM CbiUcKaMN 3anaJIeHHa! BnKOpncTaHHa HeBiNoBIHNx CbiUOK 3anaJIeHHa MoHe npu3BeCTN Do noWkoJHeHHa nopshra/ cnliHpy.

• RaKIO iHcTpmyHT Btpaue NoTyHHicTb, noraHo npaUoe Ha xOJocToMy xOdy Nn Ioro BaHKo 3aBecTN, nepeBipTe CBiKy 3anaJIeHHNn nepu HnK nepeuTN do 6yNb-aknx iHux dii.
  -якwo CBiKa 3anaIIOBaHHa36pyHeHa, nouHcTiB II Ta nepeBipTe npomixoM iK eJIeKtpoJamn. IpomixoM iK eJIeKtpoJamn IJRA CBiKN 3anaIIOBaHHa Bka3aHO B po3diJIi TexHiUHX daHnx noci6Hnka 3 ekCnIyatauii. 3amHITb B pa3i noTp6n.

BidperyIIOte dpit 3uENJIeHHa

-ДлpeRyJIOBaHHДpoTy BnKOpncToByTe rBnHT peRyJIOBaHH.

BukohaiTe rpy6e peryIIOBaHHapoTy 3uenHn, kto ToHOro peryIIOBaHHa HeocTaTHbo.
36IbIteIOBHHHyIpOty3aDOnOMoIO rBnHTapepyJIIOBaHHJ.
BVKoHaTe rpy6e peryIOBaHHn dpoTy 3eHnEHHn, npKpInIIOUOu NOro Do p3Hnx KpinIbHnX cKo6 Ha pyuCi 3eHNHeHH. Picna LboR BVKoHaTe ToUHe peryIOBaHHn dpoTy.

PobitpHnIpbTp

3HimiTb KpnuKy noBipraHoro oIbtpy Ta BnTaHiTb oIbTp.
-HeMoHJIINBO NOBHCIO ONUCTHTN NOBIITpHNIbTp,IKN BIKOPNCTOByBaBCn pOToTROMoBrorO yacy.Tomy Yac BiD Yacy Noro CnID3amIHOBaTH.NoIkwKoJKeHNIΦJIbTp 06OB'raKOBOnoTpi6HO 3AmIHNTN.
-Пи noBToPcHMy 36npaHHi cJIiKyuIte,io6 ΦIbTp uJNbHO cIB Ha TpImaU φIbTpY.

Nouchte nanepoBn iJIbTp

-Дя ouHHe iJbTpnoctyKaIte Hm no nJaacki nobepxHi. HikoN He BnKOpncToBynte po3HHNK Ha oCHOBi HaFTN, HanpNKJaI rac, abo CTncHe NOBITpy IJIry ouHHe HnH JIbTpA.

YnueHH npoJIoHOBOrO iJIbTpa

PeryIpaHNo 06cIyroBnyTe ry6aCTn IiNbTp. Ipomnte Ioro peTeIbHo y TeNl mIbHi BoDi.IicIa cIbOpeTeJIbHO MIIte IiNbTp y uNCTiBoDi.BidIMtBfIbTp Ta daITe BncoxHyTu.3BEPHTb YBARY! CTncHe He noBItpMa MoHe nowKoUtn NiHy Ioro ry6aCtY cTpyKTypy.PicIra OunSeHHA fIbTp Heo6XiHNO 3MaCTnMoTpHO OJInBOIO.BuTpiTB HaJIINWOK OJINB,IpOMOKHyBUn IiNbTp UNCTOHO raHUpKOIO.

3aMiHa OJINBn

BnIyTe naJIbHe 3 naINBHoro 6aky.
BiKpyTiB KpnuKy OTBOpy IJIa 3aJIbAHN OJINBn.
PiCTaBTe npuaTHy nocuHy dJa 36npaHnOJINBn.
BnHnTe OJINBy,HaxNJINBUN DBNHyTakIM
HNOM,IO6OJINBA BNTiKaJa Kpi3b 3aPabHy
tpy6Ky.KoJInHCtpyMeHT HaxNJeHNI,
nepeKoHaTEcR,IO NOBIITpHNI FIJIbTp 3aBHnI
3hAxODnTBcB HauBNuOmy NoJIOKeHHI.
3aNTaTe Ha MicUeBiI 3aPabHni cTaHciI, De
MOxHa yTuJIi3yBaTu HAJIINoK MOTOPHO
0JINBn.
3aHnTe HOBy MOtopHy OINBy IO6poi YKocTi. DeTaIbHiu yIHOpMaIio 0oO dBnryHa nBiTbcB noc6hNky 3 ekCnIyatauii, kKn BxOHTb DO KOMnJIeKTy.

CnCTema naJIInBa

-ПepeBipTeЧи Кршкп naJINBHorO 6aka i 3aTBOp He yuKoDHeHi.
- IpeBipTe ⅢaHr noaui naIbHoro. 3aMiHiTb B paai nortpe6n.

TexHiuHi daHi
