USER MANUAL KHS 3704 AL-KO

Technical line drawings of two agricultural machinery components with wheels and structural supports (no text or symbols)

DE

GB

NL

FR

ES

IT

SI

HR

HU

DK

SE

NO

FI

PL

CZ

SK

RU

RO

Inhaltsverzeichnis

Deutsch 6

English....27

Nederlands 45

Français....67

Español 89

Italiano 110

Slovenščina 131

Hrvatski....150

Magyarul....168

Dansk 187

Svensk....205

Norsk 222

Suomi 240

Polski 258

Česky 280

Slovenská 298

Русский 318

Român 343

© 2017

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

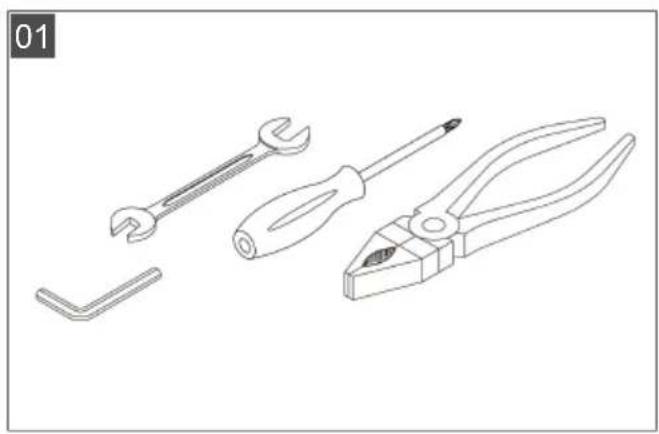

Line drawings of four different tools: wrench, screwdriver, pliers, and angle tool (no text or symbols)

Technical diagram showing mechanical components with numbered labels 1 and 2 pointing to specific parts of a vehicle or assembly.

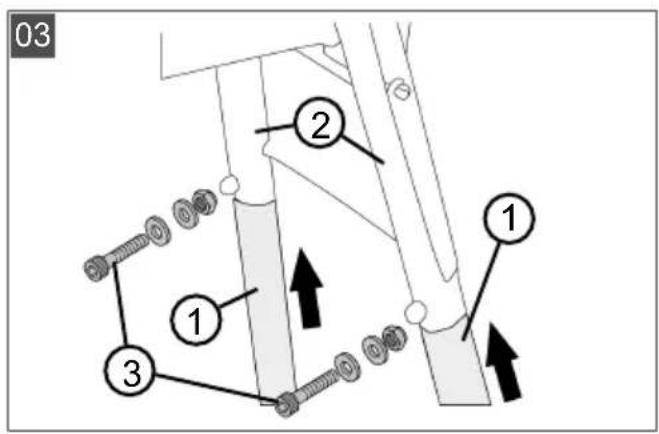

03 1 2 3 1

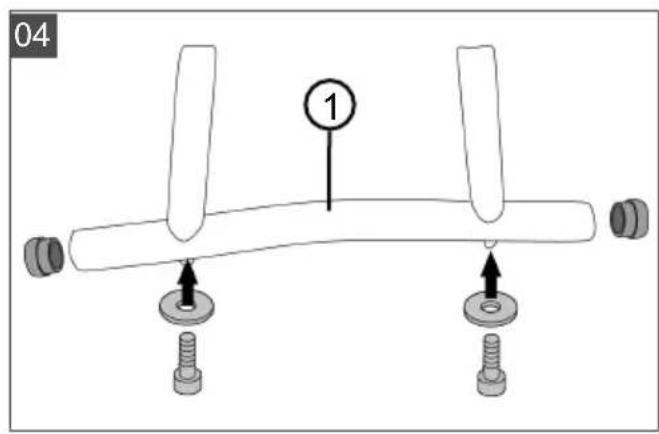

04 1

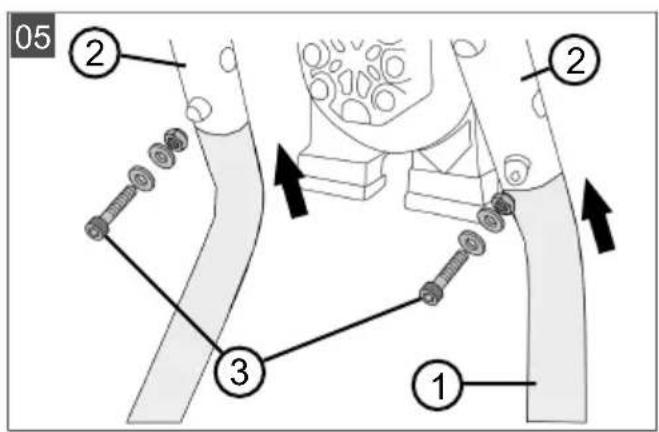

05 ② ② ③ ①

06 ① ②

07 ①

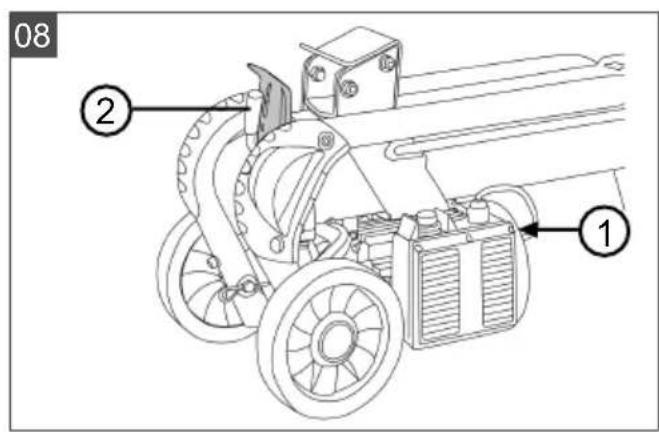

08 ② ①

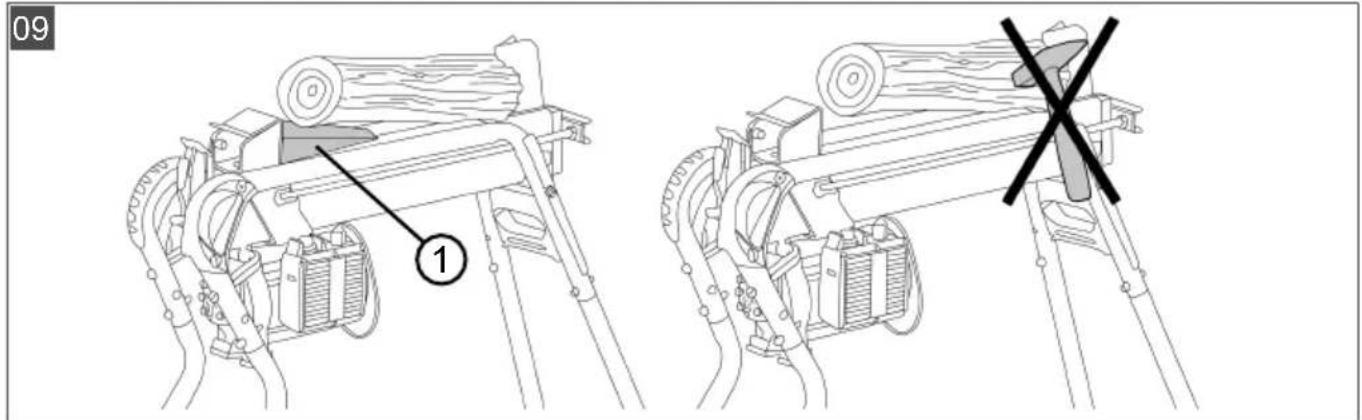

09 1

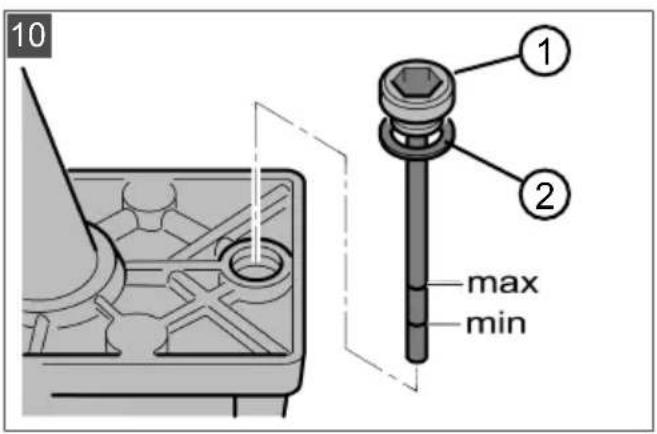

10 ① ② max min

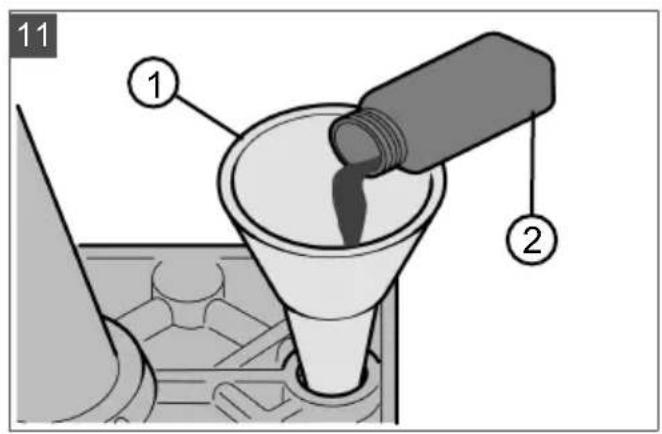

11 ① ②

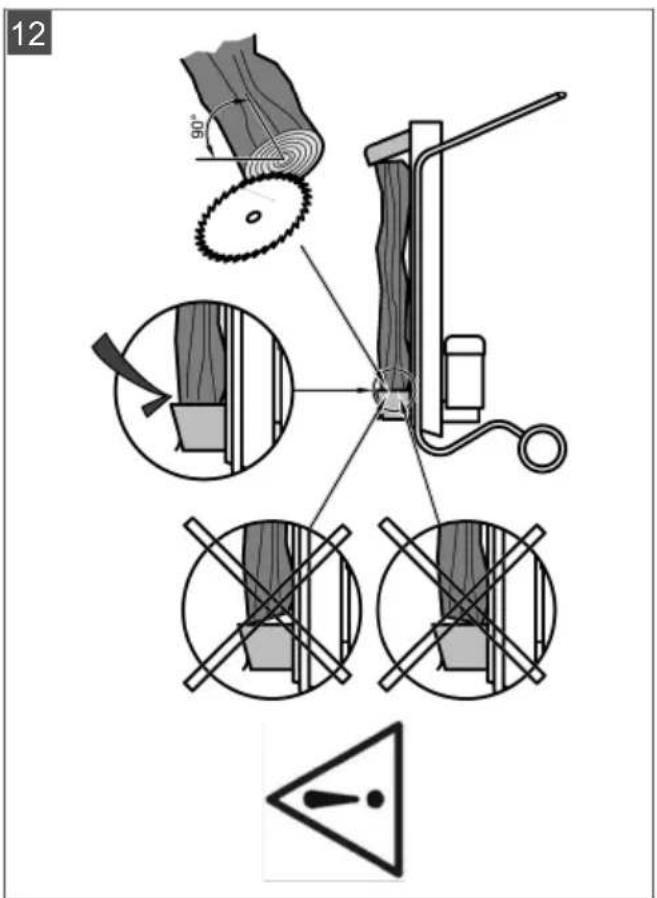

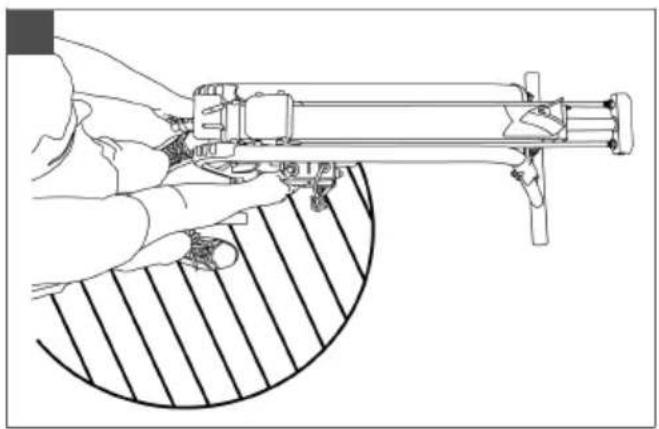

12 90° =

Line drawing of a hand holding a firearm with a shaded circular area underneath (no text or symbols)

	KHS 3704Art.-Nr. 113 250	KHS 5204Art.-Nr. 113 251	KHS 8552Art.-Nr. 127 415
	230 V AC/50 Hz 230 V AC/50 Hz 230 V AC/50 Hz
	1500 W 200 W S6 40% 200 W S6 40%
	max. 4,0 t max. 5,0 t max. 5,0 t
	max. 250 mm max. 250 mm max. 250 mm
	max. 370 mm max. 520 mm max. 520 mm
	16 MPa (160 bar) 20 MPa (160 bar) 20 MPa (160 bar)
	2,7 | 3,1 | 3,1 |
	4,0/6,0 cm/s 3,3/4,0 cm/s 3,3/4,0 cm/s
	II / IP 54 II / IP 54 II / IP 54
	LpA = 68,6 dB(A), k = 3
	LwA = 84,6 dB(A)
	42 kg 53 kg 53 kg

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANTIE

1 About these operating instructions 29

1.1 Legends and signal words.... 29

2 Product description 29

2.1 Designated use 29
2.2 Possible foreseeable misuse.... 29
2.3 Safety and protective devices 30

2.3.1 Motor protection switch 30
2.3.2 Mains cable 30

2.4 Electrical requirements.... 30
2.5 Product overview 31
2.6 Symbols on the appliance 31

3 Safety instructions 32

3.1 Operator 32
3.2 Personal protective equipment 32
3.3 Safety in the workplace 32
3.4 Safety of persons, animals and property 33
3.5 Appliance safety 33
3.6 Electrical safety 33
3.7 Use and handling of the electrical tool 34
3.8 Safety instructions relating to operation 35

4 Assembly (01).... 36

4.1 Mounting the transport wheels (02) 36
4.2 Mounting the feet (KHS 5200) (03 - 06) 36

5 Start-up 36

5.1 Before each use 37
5.2 Putting the log splitter into operation (07, 08).... 37

6 Operation (13).... 38

6.1 Splitting a log (08, 12) 39
6.2 Removing a jammed log (09) 39

7 Working behaviour and working technique.... 39

8 Maintenance and care 40

8.1 Maintenance and care work 40
8.2 Maintenance tasks 40

8.2.1 Sharpening of the splitting wedge 40
8.2.2 Checking and topping up hydraulic oil (10, 11) 40

9 Help in case of malfunction.... 42
10 Transport 43
11 Storage 43

12 Disposal 43
13 After-Sales / Service 44
14 Guarantee.... 44
15 EU declaration of conformity.... 44

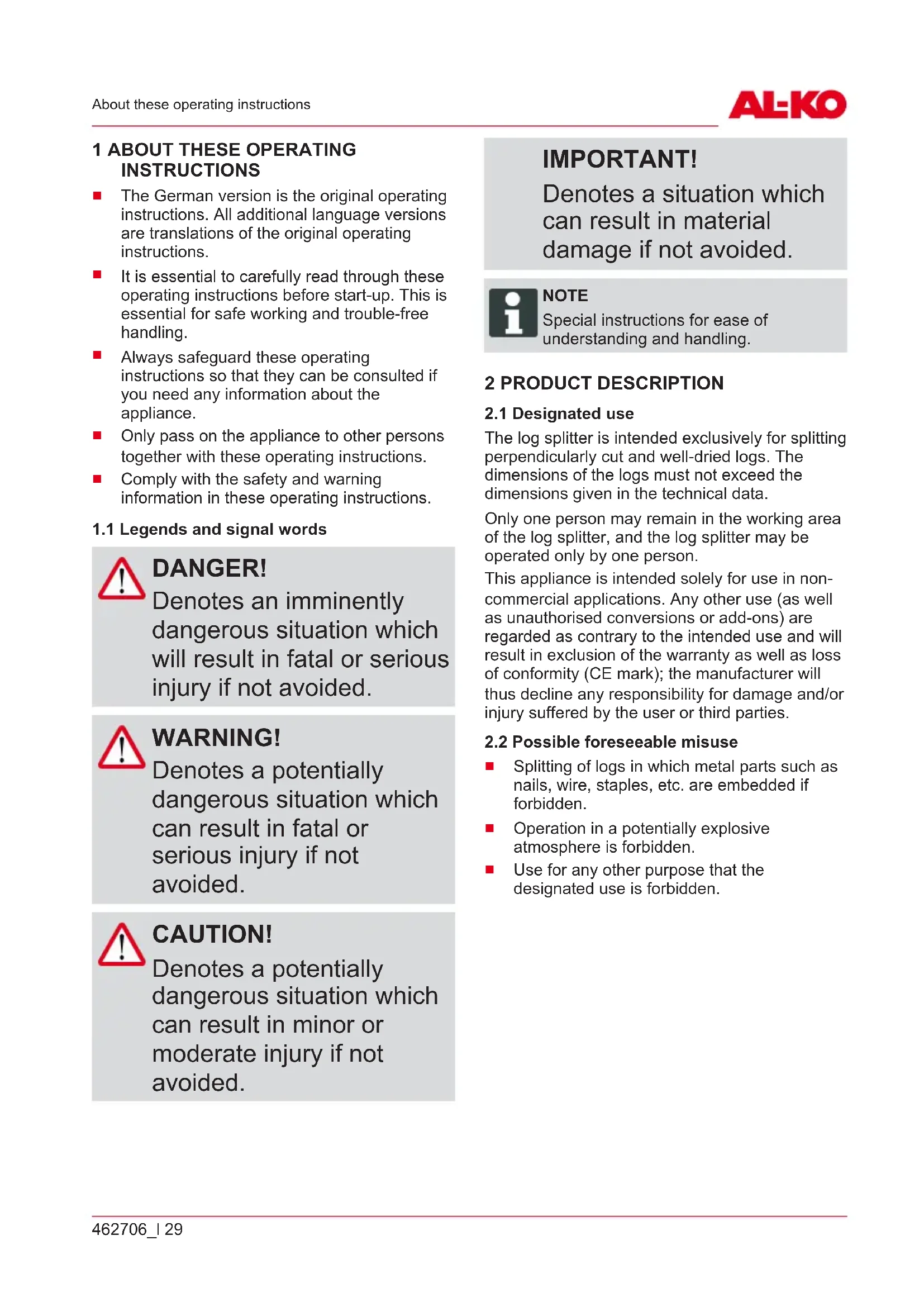

1 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
It is essential to carefully read through these operating instructions before start-up. This is essential for safe working and trouble-free handling.
■ Always safeguard these operating instructions so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

1.1 Legends and signal words

DANGER!

Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING!

Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.

CAUTION!

Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT!

Denotes a situation which can result in material damage if not avoided.

NOTE

Special instructions for ease of understanding and handling.

2 PRODUCT DESCRIPTION

2.1 Designated use

The log splitter is intended exclusively for splitting perpendicularly cut and well-dried logs. The dimensions of the logs must not exceed the dimensions given in the technical data.

Only one person may remain in the working area of the log splitter, and the log splitter may be operated only by one person.

This appliance is intended solely for use in non-commercial applications. Any other use (as well as unauthorised conversions or add-ons) are regarded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

Splitting of logs in which metal parts such as nails, wire, staples, etc. are embedded if forbidden.
■ Operation in a potentially explosive atmosphere is forbidden.
■ Use for any other purpose that the designated use is forbidden.

2.3 Safety and protective devices

WARNING! Risk of injury

Defective and disabled safety and protective devices can lead to serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

2.3.1 Motor protection switch

The motor protection switch switches off the motor if the log splitter is overloaded.

Do not deactivate the function of the motor protection switch.

If the motor protection switch has switched off the log splitter, proceed as follows:

1. Disconnect the log splitter from the mains.
2. Determine the cause of the overload.
3. Allow the log splitter to cool down for several minutes, then connect to the mains again.
4. Switch on the log splitter.

2.3.2 Mains cable

WARNING! Risk of injury from electric shock

A defective mains cable can result in serious injuries due to electric shock.

■ Ensure that the mains cable is not damaged or severed.

■ Use only rubber-sheathed cables of quality H07RN-F according to VDE 0282 Part 14 with a conductor cross section of at least 2.5 mm ^4 .
The maximum permissible cable length is 10 m. A longer cable impairs the motor power and hence the performance and function of the log splitter.
■ Mains cable, mains plug and coupling socket must be undamaged. A defective mains cable (e.g. with cracks, cuts, crushed or kinked points in the insulation) must not be used.
■ Repairs to the mains cable, mains plug and coupling socket may only be carried out by qualified electricians.
- Do not expose plug connectors to moisture.
If the mains cable is damaged, immediately disconnect it from the mains.

2.4 Electrical requirements

AC 230 V / 50 Hz
■ Minimum cross-section of the mains cable = 2.5 mm ^4
■ Minimum fusing of the mains connection = 16 A

2.5 Product overview

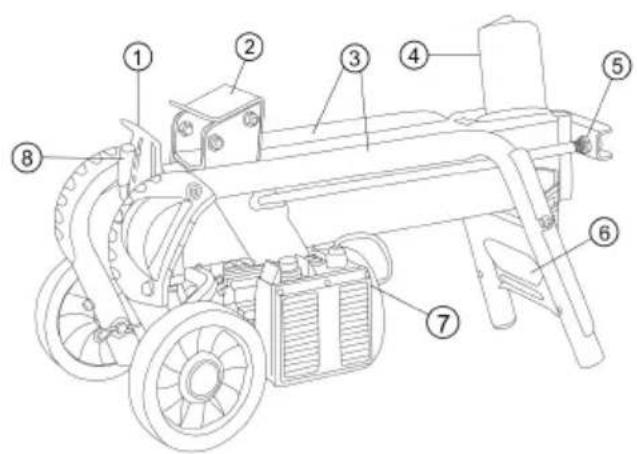

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

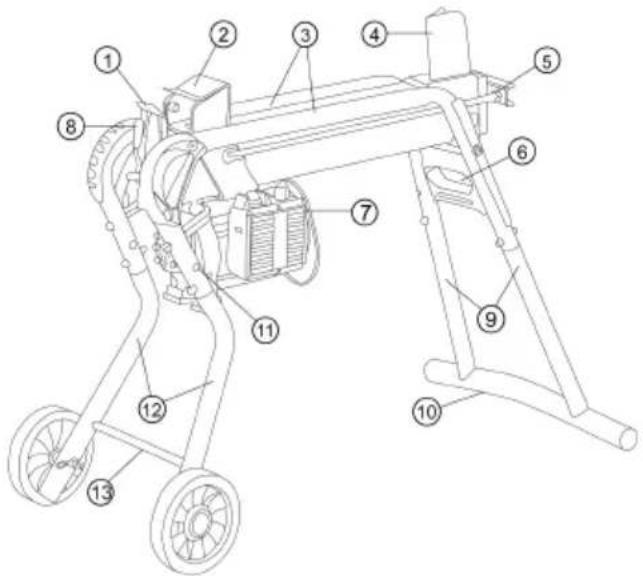

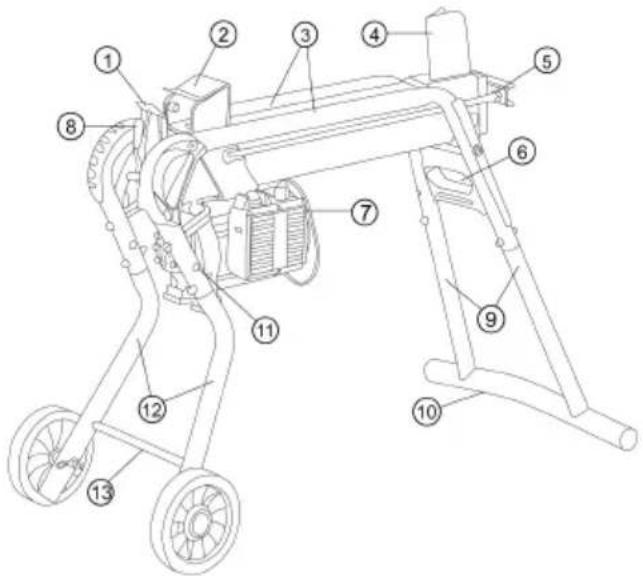

1 Guard plate 8 Control lever
2 Log pusher 9 Feet, rear (KHS 5204 and KHS 8552 only)
3 Log guide pipe 10 Support foot (KHS 5204 and KHS 8552 only)
4 Splitting wedge 11 Transport wheels park position (KHS 5204 and KHS 8552 only)
5 Piston rod 12 Feet, front (KHS 5204 and KHS 8552 only)
6 Transport bracket 13		Cross-strut, front (KHS 5204 and KHS 8552 only)
7 On/Off switch on the electric motor

2.6 Symbols on the appliance

Symbol Meaning

Read the operating instructions before starting operation!

Keep third parties away from the danger area!

Important – danger!

Keep your hands away from the splitting wedge!

Disconnect the appliance from the mains before starting maintenance work!

Wear protective gloves!

Symbol Meaning

Wear safety boots!

Wear protective glasses!

Operate the appliance with both hands.

3 SAFETY INSTRUCTIONS

DANGER!

Lack of knowledge of the safety instructions can pose a danger of extremely severe or even fatal injury.

Lack of knowledge of the safety instructions and operating instructions can lead to extremely serious and even fatal injury.

- Observe all safety instructions and instructions for use in these operating instructions as well the operating instructions which are referred to before you start using the appliance.

- Keep all supplied documents in a safe place for future reference.

3.1 Operator

■ Young people under 16 years of age and people who do not know the operating instructions are not allowed to use the appliance. Observe any country-specific safety regulations concerning the minimum age of the user.

■ Do not operate the appliance if you are under the influence of alcohol, drugs or medication.

3.2 Personal protective equipment

■ Wear clothing and protective equipment in accordance with the regulations in order to avoid injury to the head and limbs as well as to avoid hearing impairment.

■ The clothing must be appropriate (tightly fitting) and must not restrict movements. If you have long hair, it is essential to wear a hair net. Never wear loose items of clothing or accessories that be pulled into the appliance, e.g. scarves, loose-fitting shirts, long neck chains.

■ The personal protective equipment comprises:

■ Hearing protection and protective eyewear
■ Long trousers and sturdy shoes
- Protective gloves

3.3 Safety in the workplace

■ Work only in daylight or under very bright artificial light.

■ Operate the appliance only on solid and level ground and not on sharp inclines.
■ Pay attention to stability.

3.4 Safety of persons, animals and property

■ Note that the user is responsible for accidents and damage that may befall other persons or their property.
■ Use the appliance only for the purposes for which it is intended. Any non-intended use can lead to injury and property damage.
■ Switch on the appliance only when there are no other persons or animals in the working area.
- Maintain a safe distance to persons or animals, or switch off the appliance if persons or animals approach.

3.5 Appliance safety

■ Use the appliance only under the following conditions:

■ The appliance is not soiled.
■ The appliance show no signs of damage.
■ All controls function properly.

• Do not overload the device. It is intended for light work in the private sector. Overload can lead to damage to the appliance.
  ■ Never operate the appliance with worn or defective parts. Always replace defective parts with original spare parts from the manufacturer. If the appliance is operated with worn or defective parts, guarantee claims against the manufacturer are excluded.

NOTE

Repair work is only allowed to be carried out by expert workshops or our AL-KO service centres.

3.6 Electrical safety

■ The connection plug of the power tool must fit into the socket. The plug is not allowed to be changed in any way. Do not use any plug adapters together with earthed power tools. Unmodified plugs and matching sockets reduce the risk of electric shock.
■ Avoid physical contact with earthed surfaces such as on pipes, heaters, cookers

and refrigerators. There is an increased risk of electric shock if your body is earthed.

• Keep electrical tools out of the rain and away from moisture. Water getting into an electrical tool increases the risk of an electric shock.
• Do not use the connection cable for incorrect purposes such as carrying the electrical tool, hanging it up or for pulling the plug out of the socket. Keep the connection cable away from heat, oil, sharp edges and moving parts. Damaged or tangled connection cables increase the risk of electric shock.
  If you are working outside with a power tool, only use extension cables that are also suitable for outside. Using an extension cable that is suitable for outside decreases the risk of electric shock.
  If the operation of the power tool in a humid environment cannot be avoided, use a fault current circuit breaker. Using a fault current circuit breaker decreases the risk of electric shock.

3.7 Use and handling of the electrical tool

• Do not overload the power tool. Use the appropriate power tool for the job you are doing. Using the appropriate power tool will enable you to work more effectively and safely in the specified performance range.
• Do not use a power tool if it has a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.
  ■ Disconnect the plug from the socket and/or remove the battery before you make adjustments to the appliance, replace parts or put the power tool away. This precautionary measure will prevent the power tool from starting inadvertently.
• Keep unused power tools out of the reach of children. Do not allow people to use the power tool if they are not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced people.

- Look after power tools and the insertion tool with care. Check whether moving parts function perfectly and do not stick, whether there are any broken parts or parts that are damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the power tool. Many accidents are caused by failure to maintain power tools properly.

- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharper cutting edges are less likely to stick and are easier to control.

■ Use power tools, accessories, insertion tools, etc. according to these instructions. When doing so, take account of the working conditions and the activity to be undertaken. Using power tools for applications other than the intended purpose can result in dangerous situations.

- Keep the grips and grip surfaces dry, clean and free from oil and grease. Slippery grips and grip surfaces

prevent safe operation and control of the power tool in unforeseen situations.

3.8 Safety instructions relating to operation

■ Never leave the operational appliance unsupervised.
■ Clean the appliance after every use.
■ Protect the appliance against unauthorised access.
■ The appliance may only be operated by one person.
■ Never move the appliance while the motor is running.
■ Never operate the appliance in rain or snow.
■ Disconnect the appliance from the mains for:
■ Maintenance and cleaning work
■ Adjustment work
Transport
■ Interruptions in work
Faults
■ Do not touch the splitting wedge.

4 ASSEMBLY (01)

WARNING!

Danger if assembly is not carried out completely!

Operation of an incompletely assembled appliance can result in serious injury.

■ Only operate the appliance when it is fully assembled.
■ Check that all safety and protective devices are in place and functioning correctly before switching on.

NOTE

The tools required for assembly are not included in the scope of supply.

Required tool: See Figure 01.

4.1 Mounting the transport wheels (02)

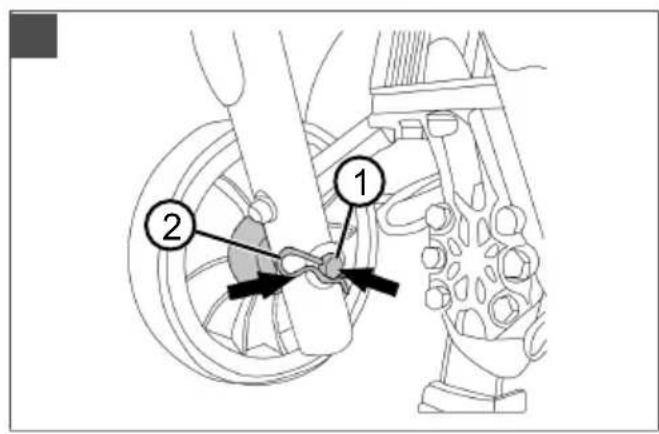

Insert the axis (02/1) through the wheel from outside and through the pipe and secure with the cotter pin (02/2).

4.2 Mounting the feet (KHS 5200) (03 - 06)

NOTE

The transport wheels are only intended for transporting the log splitter.

The transport wheels must be dismounted from the feet and mounted in the park position.

1. Mount the transport wheels on both front feet.
2. Tilt the log splitter to one side and mount the rear foot.

3. Insert the foot (03/1, 05/1) into the pipe frame (03/2, 05/2) up to the stop and screw tight with screws, washers and locking nuts (03/3, 05/3).

4. Ask a second person to help tilt the log splitter to the other side, mount the remaining feet and then position the log splitter.

5. Position the log splitter vertically (piston rod upwards) and screw the support foot (04/1) to the rear feet.

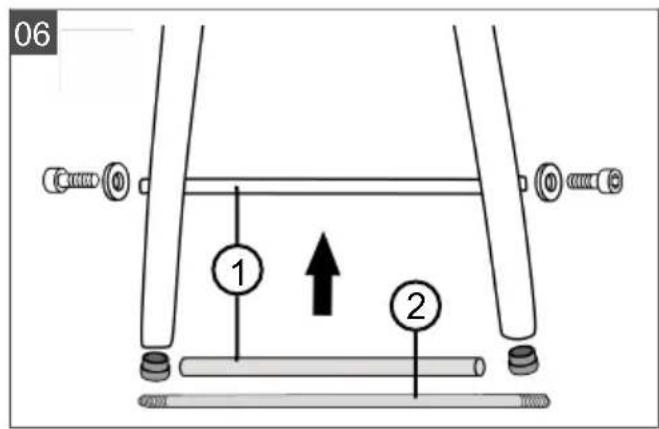

6. Position the log splitter and mount the front cross-strut (06/1) using the threaded rod (06/2).

5 START-UP

WARNING!

Danger of injury if the appliance tips over

A tipping appliance can result in serious injury and damage to the appliance.

■ Ensure that the appliance cannot tip over.

WARNING!

Danger of injury from faulty appliance

Operation of an faulty appliance can result in serious injury and damage to the appliance.

■ Operate the appliance only when it is undamaged and has not defects, and when no parts are missing or loose.

DANGER!

Risk of electric shock if the log splitter is operated without residual current circuit breaker

Operation of the appliance without residual current circuit breaker in the mains connection can result in serious injuries or even death due to electric shock.

■ Before connecting the appliance, check whether the mains connection has a residual current circuit breaker for a maximum leakage current of 0.03 A.

If you cannot be sure that a residual current circuit breaker is installed: Use an additional portable residual current device with switched PE conductor.

5.1 Before each use

WARNING!

Danger of injury if the appliance tips over

A tipping appliance can result in serious injury and damage to the appliance.

■ Ensure that the appliance cannot tip over.

1. Carry out a visual inspection of the log splitter.

■ The log splitter must not be put into operation if parts of the appliance are missing, defective or loose.

1. Carry out a visual inspection of the mains cable.

A defective mains cable (e.g. with cracks, cuts, crushed or kinked points in the insulation) must not be used.

1. Carry out a visual inspection for leaks in the hydraulic system.

■ The log splitter must not be put into operation if the hydraulic system has leaks.

1. Use suitable means to fix the appliance securely to the ground.

5.2 Putting the log splitter into operation (07, 08)

NOTE

The transport wheels are only intended for transporting the log splitter.

The transport wheels must be dismounted from the feet and mounted in the park position.

1. Install the log splitter on level, solid ground, if possible with a slight slope towards the control lever (as the valves are located here). If the log splitter slopes towards the splitting wedge, the splitting force will be lost.

2. Lay the mains cable in such a way that it cannot be kinked, crushed or damaged in any other way.

3. Connect the mains cable to the mains power supply.

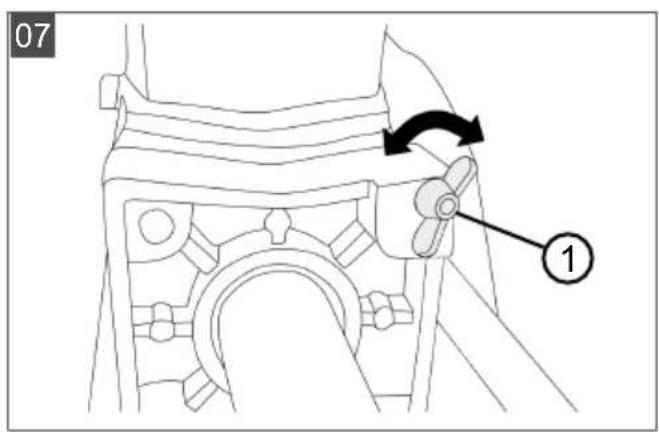

4. Loosen vent plug (07/1) by 3 - 4 turns.

Note: Tighten the vent plug again after use.

1. Testing the safety stop:

■ With one hand, press and hold the ON button (08/1) of the electric motor.
■ When the motor has reached its operating speed, press control lever (08/2) completely down with your other hand.
■ Release one of the two controls: ON button or control lever. The log pusher must stop immediately.
■ Release the other control. The log pusher moves back to its starting position.

6 OPERATION (13)

WARNING!

Risk of injury if operated by more than one person

Operation of the appliance by two or more persons can result in serious injuries.

■ Operate the appliance only alone.
- Keep other persons away and in particular prevent them from reaching into the log that is currently being split.

WARNING!

Risk of injury from shattering log

Stored hardwood, irregular branches, irregular logs and logs with a large number of knots tend to shatter during splitting. Flying pieces of wood can then cause serious injuries.

■ Split only straight logs with a perpendicular and straight cutting surface.

■ Wear the prescribed protective clothing at all times.

IMPORTANT!

Damage due to incorrect use

The appliance can be damaged or destroyed.

■ Always place the log longitudinally and never transversely into the log splitter.
■ Never try to force a log to split by maintaining the hydraulic pressure.

When using the appliance, remain in the operating area (13) only.

6.1 Splitting a log (08, 12)

WARNING!

Danger of injury outside of the operating area

If you are outside of the operating area when splitting wood, there is a danger of serious injuries.

■ When splitting logs, remain in the operating area of the log splitter only.
■ Do not reach into the piece of wood that is being split.

CAUTION!

Risk of injury due to untidy workplace

Untidiness and logs lying around pose a risk of tripping and slipping in the working area.

■ Store the logs to be split in a tidy pile.
- Immediately remove split logs and wood chips from the working area.

1. Place the log longitudinally onto the log splitter in such a way that the log is held by the log guide pipes.
   Note: Only place straight logs with a perpendicular and straight cutting surface on the log splitter (12).

2. With one hand, press and hold the ON button (08/1) of the electric motor.

3. When the motor has reached its operating speed, press control lever (08/2) completely down with your other hand.

The log pusher pushes the log against the splitting wedge. The log is split.

1. When the ON button and control lever are released, the log pusher moves back into its starting position.

6.2 Removing a jammed log (09)

CAUTION!

Risk of injury from a jammed log flying out

If a jammed log flies out of the appliance, injuries can be caused and the appliance may be damaged.

■ Never try to free a jammed log using tools.

1. Take both hands away from the ON button and control lever.
2. Allow the log pusher to come to a complete standstill.
3. Push a wooden wedge (09/1) under the jammed log.
4. Drive the wooden wedge completely under the jammed log using the log pusher.
5. If necessary, repeat with a larger wooden wedge until the log is freed.

7 WORKING BEHAVIOUR AND WORKING TECHNIQUE

■ Always split only well-dried logs. These can be split far easier than fresh, moist wood.
■ Very thick logs can be split more easily if they are not too long.

8 MAINTENANCE AND CARE

WARNING!

Risk of injury during maintenance work

Improper maintenance can result in serious injury and damage to the appliance.

■ Disconnect the appliance from the mains before starting maintenance work.
■ Have repairs to the appliance carried out only by qualified companies.

8.1 Maintenance and care work

Cleaning of the guideway

1. Clean the guideway of the log pusher at regular intervals, particularly when splitting logs with high resin contents.

8.2 Maintenance tasks

8.2.1 Sharpening of the splitting wedge

1. Sharpen the splitting wedge, when necessary, using a suitable file.

8.2.2 Checking and topping up hydraulic oil (10, 11)

Check the oil level every day and change the hydraulic oil after 1 year or 150 operating hours. Use only hydraulic oil HLP 46 for topping up and changing.

WARNING!

Danger of injury due to tipping

A vertically erected, horizontal log splitter can tip very easily. This can cause serious injuries and damage to property.

■ Always have two persons to turn the appliance upright.
■ Always hold an upright appliance or secure it to prevent it from tipping over.

IMPORTANT!

Risk of appliance damage from use of wrong hydraulic oil

Use of the wrong hydraulic oil and oil levels that are too high or too low result in malfunctions and heat development and can damage the hydraulic pump.

■ Use only the prescribed hydraulic oil.
- Check the hydraulic oil level at regular intervals and top up, when necessary.

Use only hydraulic oil of the viscosity class HLP 46.

NOTE

Always check the hydraulic oil level with the log pusher retracted.

1. Tilt the log splitter over the wheels, position upright and hold securely during the whole process.
2. Unscrew the oil dipstick (10/1) and wipe using a clean, lint-free cloth.
3. Insert the dipstick up to the stop and pull out again.

The oil level must be between the marks "min." and "max." (10). If necessary, top up hydraulic oil (11/2) using a funnel (11/1).

1. Check seal (10/2) for damage and replace if necessary.
2. Screw in the oil dipstick again and tighten only slightly to avoid damaging the thread of the cylinder cover.

NOTE

An oil change is not necessary.

9 HELP IN CASE OF MALFUNCTION

In the event of malfunctions, switch off the log splitter and remove the mains plug. Faults that cannot be remedied following the table below must be remedied by an authorised specialist company.

Malfunction Cause Remedy
Log pusher does not extend/retract	Insufficient hydraulic oil Top up hydraulic oil
	Hydraulic pump defective Have hydraulic pump replaced by a specialist company or by an AL-KO service centre
	Appliance is tilted towards the splitting wedge	Position the appliance level or tilted towards the control lever
Log pusher has no force Insufficient hydraulic oil Top up hydraulic oil
Hydraulic pump whistles, log pusher moves jerkily	Insufficient hydraulic oil Top up hydraulic oil
	Appliance is tilted towards the splitting wedge	Position the appliance level or tilted towards the control lever
	Air in circuit Loosen vent plug
Motor becomes very hot Cable cross-section of an extension lead too small		Use an extension lead with a larger cable cross-section
Motor does not start Motor protection switch has switched off		Wait until the motor has cooled down
		Mains plug or plug socket defective
		Mains cable defective Have inspected and replaced, if necessary, by a qualified electrician
		Electric motor defective Have inspected and replaced, if necessary, by a qualified electrician

10 TRANSPORT

IMPORTANT! Risk of damage from improper transport

If the transport is not carried out properly, the log splitter can be damaged.

■ Always remove the mains plug and tighten the vent plug before moving the log splitter.
■ Lift the log splitter only at the transport bracket.
■ Do not lift the log splitter at the cylinder mounting, piston rod or other components.

1. Lift the log splitter at the transport bracket and transport by pushing or pulling.

11 STORAGE

1. Disconnect the log splitter from the mains.
2. Thoroughly clean the appliance after each use and – if present – attach all covers. The log pusher must be in the end position.
3. Store the appliance in a dry, lockable place out of the reach of children.

12 DISPOSAL

Information on the German Electrical and Electronic Equipment Act (ElectroG)

■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

Electrical and electronic appliances can be handed in at no charge at the following places:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

13 AFTER-SALES / SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre.

These can be found on the Internet at:

www.al-ko.com/service-contacts

14 GUARANTEE

We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased.

Our warranty promise applies only if:

■ These operating instructions are heeded
■ The appliance is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
Non-intended use

The guarantee excludes:

■ Paint damage that can be attributed to normal wear and tear
■ Wear parts that are marked with a frame xxxxxx (x) on the spare parts card

The guarantee period commences with purchase by the first end user. The date on the proof of purchase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.

15 EU DECLARATION OF CONFORMITY

We hereby declare that this product in its marketed form conforms to the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards.

Product	Manufacturer	Duly authorised person for technical file
Log splitter	AL-KO Geräte GmbH
Serial number	Ichenhauser Str. 14	Andreas Hedrich
G4064065	D-89359 Kötz	Ichenhauser Str. 14
	Germany	D-89359 Kötz
		Germany
Type	EU directives	Harmonised standards
KHS 3704	2006/42/EC	EN 60335-1
KHS 5204	2014/30/EU	EN 60204-1
KHS 8552	2011/65/EU	EN 60204-1/A1

Type	EU directives
KHS 3704	2006/42/EC
KHS 5204	2014/30/EU
KHS 8552	2011/65/EU

Wolfgang Hergeth

Managing Director

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

2 PRODUCTOMSCHRIJVING

WAARSCHUWING! Risico op letsel

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANTIE

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANTIE

15 DÉCLARATION DE CONFORMITÉ CE

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANTÍA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANZIA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

1 Zaščitna plošča 8 Upravljalna ročica
2 Potiskalo hlodov 9 Zadnji nogi (samo KHS 5204/KHS 8552)
3 Vodilna cev za hlode 10 Podporna noga (samo KHS 5204/KHS 8552)
4 Cepilni klin 11 Parkirni položaj transportnih koles (samo KHS 5204/KHS 8552)
5 Batnica 12 Sprednji nogi (samo KHS 5204/KHS 8552)
6 Transportni lok 13 Sprednji prečni opornik (samo KHS 5204/KHS 8552)
7 Stikalo za vklop/izklop na elektromotorju

2.6 Simboli na napravi

Simbol Pomen

Pred zagonom preberite navodila za uporabo!

www.al-ko.com/service-contacts

14 GARANCIJA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

1 Zaštitni lim 8 Upravljačka poluga
2 Gurač trupaca 9 Stražnje nožice (samo KHS 5204 / KHS 8552)
3 Usmjerne cijevi za trupce 10 Potporna nožica (samo KHS 5204 / KHS 8552)
4 Klin za cijepanje 11 Transportni kotači za parkiranje (samo KHS 5204 / KHS 8552)
5 Klipnjača 12 Prednje nožice (samo KHS 5204 / KHS 8552)
6 Transportna poluga 13 Prednja poprečna poluga (samo KHS 5204 / KHS 8552)
7 Sklopka za uključivanje i isključivanje na elektromotoru

2.6 Simboli na uređaju

Simbol Značenje

www.al-ko.com/service-contacts

14 JAMSTVO

Možebitne greške u materijalu ili proizvodnji na uređaju uklonit ćemo tijekom zakonskoga roka zastare za jamstvo na nedostatke prema vlastitom izboru popravljanjem ili zamjenskom dostavom. Rok zastare određuje se prema pravu države u kojoj je uređaj kupljen.

Wolfgang Hergeth Managing Director

AZ EREDETI KEZELÉSI ÚTMUTATÓ FORDÍTÁSA

Tartalomjegyzék

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANCIA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

1 Beskyttelsesplade 8 Betjeningsarm
2 Trykstempel 9 Bagerste fødder (kun KHS 5204 / KHS 8552)
3 Føringsrør 10 Støttefod (kun KHS 5204 / KHS 8552)
4 Kløvekile 11 Parkeringsposition for transporthjul (kun KHS 5204 / KHS 8552)
5 Stempelstang 12 Forreste fødder (kun KHS 5204 / KHS 8552)
6 Transportgreb 13 Tværstiver foran (kun KHS 5204 / KHS 8552)
7 Start/stop-kontakt på el-motoren

www.al-ko.com/service-contacts

14 GARANTI

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

7 ARBEIDSFREMTREDEN OG ARBEIDSTEKNIKK

8 VEDLIKEHOLD OG PLEIE

ADVARSEL!

www.al-ko.com/service-contacts

14 GARANTI

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 TAKUU JA TUOTEVASTUU

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GWARANCJA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 ZÁRUKA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 ZÁRUKA

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 ГАРАНТИЯ

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

www.al-ko.com/service-contacts

14 GARANTIA
