USER MANUAL LSV 5506 AL-KO
2 LSV 6, LSV 7, LSV 8
14 LSV 6, LSV 7, LSV 8
8 LSV 6, LSV 7, LSV 8
10 LSV 6, LSV 7, LSV 8
12 LSV 6, LSV 7, LSV 8
5 Adern (3P + N + PE)
14 LSV 6, LSV 7, LSV 8
16 LSV 6, LSV 7, LSV 8
18 LSV 6, LSV 7, LSV 8
4. Bedienarm (06/4) in den Querbügel (06/3)
20 LSV 6, LSV 7, LSV 8
22 LSV 6, LSV 7, LSV 8
24 LSV 6, LSV 7, LSV 8
26 LSV 6, LSV 7, LSV 8
28 LSV 6, LSV 7, LSV 8
30 LSV 6, LSV 7, LSV 8
1 ABOUT THESE OPERATING
The German version is the original operating instructions. All additional language versions are translations of the original operating in- structions.
It is essential to carefully read through these operating instructions before start-up. This is essential for safe working and trouble-free handling.
Always safeguard these operating instruc- tions so that they can be consulted if you need any information about the appliance.
Only pass on the appliance to other persons together with these operating instructions.
Comply with the safety and warning informa- tion in these operating instructions.
1.1 Legends and signal words
DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided. WARNING! Denotes a potentially dan- gerous situation which can result in fatal or serious in- jury if not avoided. CAUTION! Denotes a potentially dan- gerous situation which can result in minor or moderate injury if not avoided. IMPORTANT! Denotes a situation which can result in material dam- age if not avoided. NOTE Special instructions for ease of under- standing and handling. 2 PRODUCT DESCRIPTION
The log splitter is intended exclusively for splitting perpendicularly cut and well-dried logs. The di- mensions of the logs must not exceed the dimen- sions given in the technical data. Only one person may remain in the working area of the log splitter, and the log splitter may be op- erated only by one person. This appliance is intended solely for use in non- commercial applications. Any other use (as well as unauthorised conversions or add-ons) are re- garded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.
The following applications are expressly forbid- den:
Splitting of freshly cut logs.
Splitting of logs in which metal parts such as nails, wire, staples, etc. are embedded.
Operation by more than one person
Operation in a potentially explosive atmo- sphere
After unpacking, check whether all the parts have been delivered. NOTE A mains cable is not included in the scope of supply and must therefore be purchased separately.GB
32 LSV 6, LSV 7, LSV 8

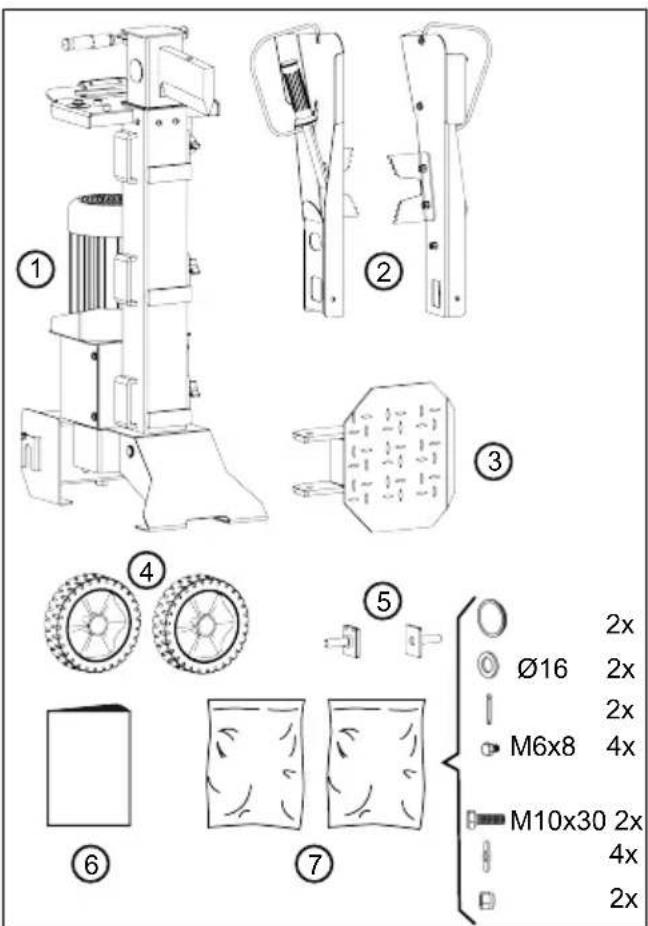

2.3.1 Scope of supply for LSV6
2 wheel caps, 2 washers Ø16, 2 cot- ter pins, 4 screws M6x8
2 screws M10x30, 4 washers Ø10, 2 self-locking nuts M10

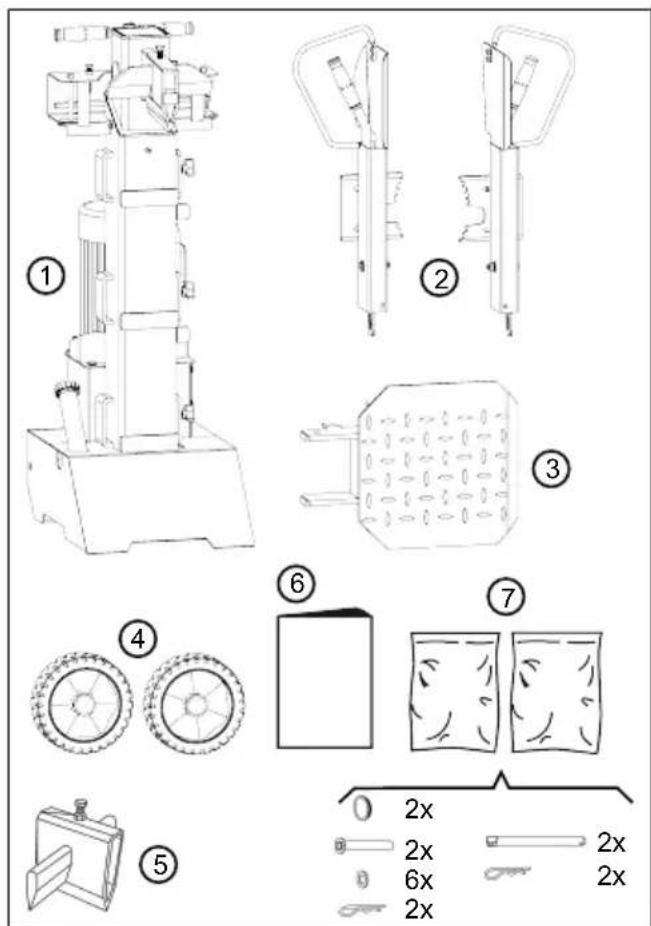

2.3.2 Scope of supply for LSV7 and LSV 8
2 wheel caps, 2 wheel axles, 6 washers, 2 spring cotter pins

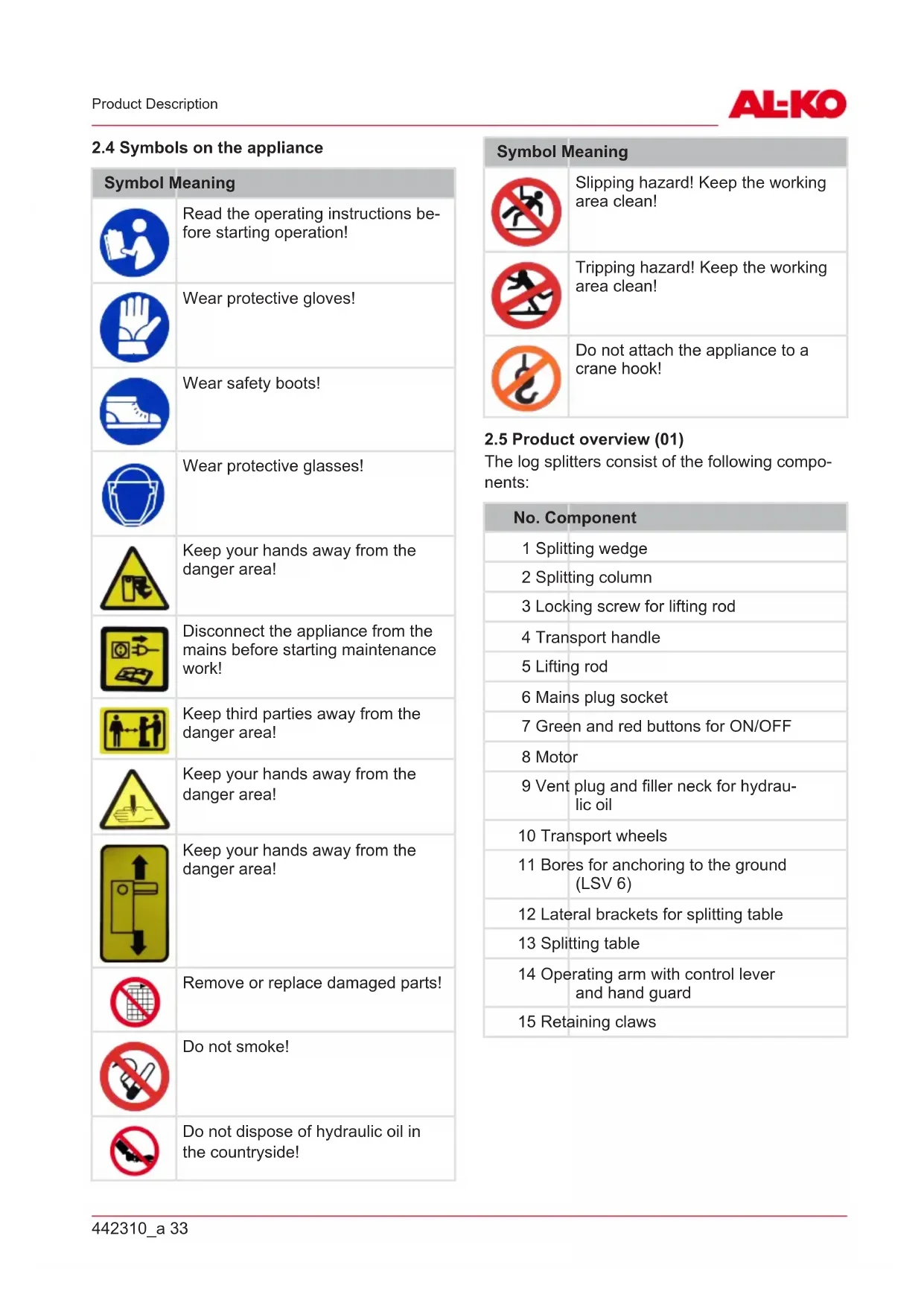

2.4 Symbols on the appliance
Symbol Meaning Read the operating instructions be- fore starting operation! Wear protective gloves! Wear safety boots! Wear protective glasses! Keep your hands away from the danger area! Disconnect the appliance from the mains before starting maintenance work! Keep third parties away from the danger area! Keep your hands away from the danger area! Keep your hands away from the danger area! Remove or replace damaged parts! Do not smoke! Do not dispose of hydraulic oil in the countryside! Symbol Meaning Slipping hazard! Keep the working area clean! Tripping hazard! Keep the working area clean! Do not attach the appliance to a crane hook!

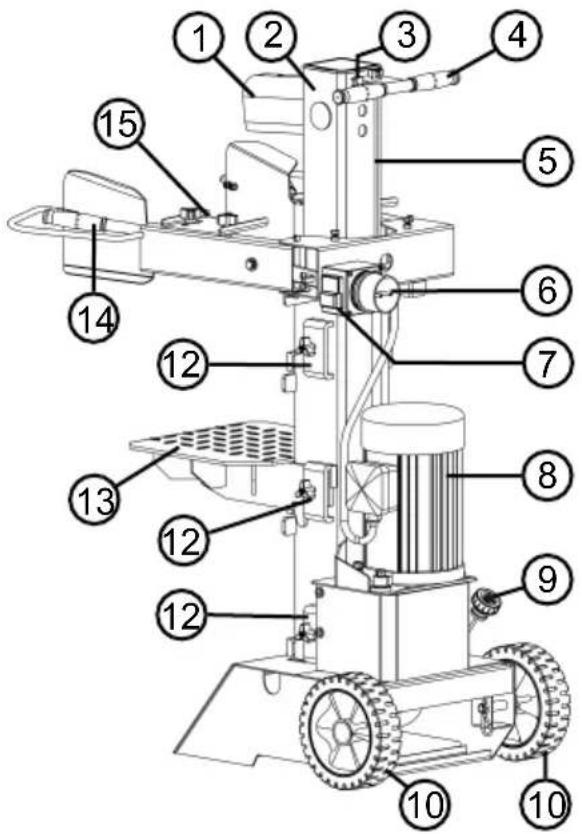

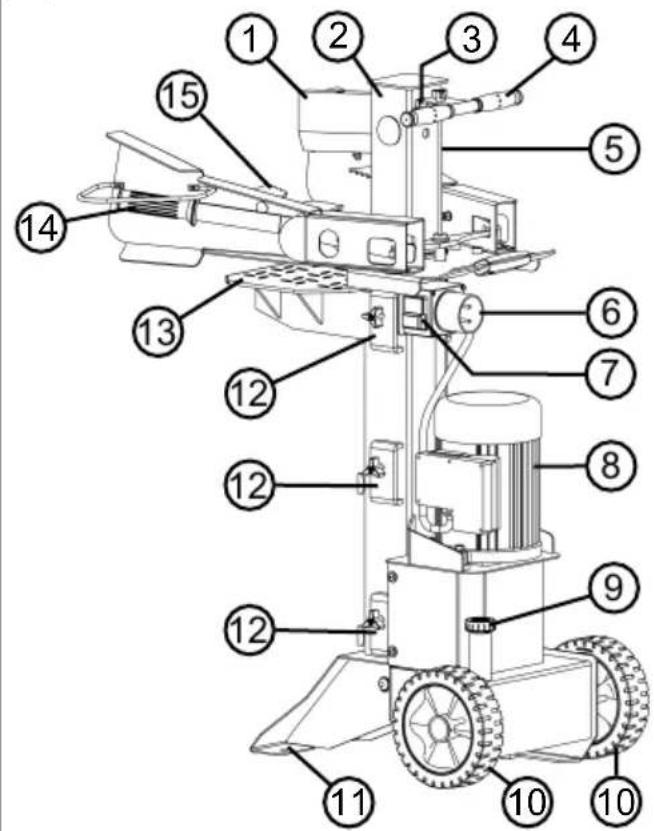

2.5 Product overview (01)
The log splitters consist of the following compo- nents: No. Component 1 Splitting wedge 2 Splitting column 3 Locking screw for lifting rod 4 Transport handle 5 Lifting rod 6 Mains plug socket 7 Green and red buttons for ON/OFF 8 Motor 9 Vent plug and filler neck for hydrau- lic oil 10 Transport wheels 11 Bores for anchoring to the ground (LSV6) 12 Lateral brackets for splitting table 13 Splitting table 14 Operating arm with control lever and hand guard 15 Retaining clawsGB
34 LSV 6, LSV 7, LSV 8
2.6 Safety and protective devices
Motor protection switch The motor protection switch switches off the mo- tor if the log splitter is overloaded. Do not deacti- vate the function of the motor protection switch. If the motor protection switch has switched off the log splitter, proceed as follows:
1. Disconnect the log splitter from the mains.
2. Determine the cause of the overload.
3. Allow the log splitter to cool down for several
minutes, then connect to the mains again.
4. Switch on the log splitter.
Two-hand operation The splitting wedge travels down only when both operating arms are actuated simultaneously. This eliminates the risk of the operator’s hands being in the danger area.
2.7 Electrical connection
WARNING! Risk of injury from elec- tric shock A defective mains cable can result in serious inju- ries due to electric shock.
Ensure that the mains cable is not damaged or severed.
The maximum permissible cable length must not be exceeded. A longer cable impairs the motor power and hence the performance and function of the log splitter.
Mains cable, mains plug and coupling socket must be undamaged. A defective mains ca- ble (e.g. with cracks, cuts, crushed or kinked points in the insulation) must not be used.
Repairs to the mains cable, mains plug and coupling socket may only to be carried out by qualified electricians.
Do not expose plug connectors to moisture.
If the mains cable is damaged, immediately disconnect it from the mains. Demands on the electrical connection The mains power supply must be equipped with protective devices against low voltage, overvolt- age, overload current (16A) and an earth leak- age circuit breaker (max. leakage current 0.03A). Further demands on the electrical connection can be found in the technical data. Requirements for the mains cable NOTE A mains cable is not included in the scope of supply and must therefore be purchased separately. The mains cable must satisfy the following de- mands: For LSV6 and LSV7:
Suitable for 230V AC
Maximum cable length: 10m For LSV8:
Suitable for 400V AC
Maximum cable length: 10m442310_a 35 Safety instructions 3 SAFETY INSTRUCTIONS DANGER! Lack of knowledge of the safety instructions can pose a danger of ex- tremely severe or even fatal injury. Lack of knowledge of the safety instructions and op- erating instructions can lead to extremely serious and even fatal injury.
Observe all safety in- structions and instruc- tions for use in these operating instructions as well the operating in- structions which are re- ferred to before you start using the appli- ance.
Keep all supplied docu- ments in a safe place for future reference.
Young people under 16 years of age and people who do not know the operating instruc- tions are not allowed to use the appliance. Observe any country-specific safety regula- tions concerning the minimum age of the user.
Do not operate the appliance if you are under the influence of alcohol, drugs or medica- tion.
Wear clothing and protective equipment in accordance with the regulations in order to avoid injury to the head and limbs as well as to avoid hear- ing impairment.
The clothing must be appro- priate (tightly fitting) and must not restrict movements. If you have long hair, it is essential to wear a hair net. Never wear loose items of clothing or ac- cessories that be pulled into the appliance, e.g. scarves, loose-fitting shirts, long neck chains.
The personal protective equipment comprises:
Hearing protection and pro- tective eyewear
Long trousers and sturdy shoes
3.3 Safety in the workplace
Work only in daylight or under very bright artificial light.GB
36 LSV 6, LSV 7, LSV 8
Operate the appliance only on solid and level ground and not on sharp inclines.
Pay attention to stability.
3.4 Safety of persons,
animals and property
Note that the user is responsi- ble for accidents and damage that may befall other persons or their property.
Use the appliance only for the purposes for which it is in- tended. Any non-intended use can lead to injury and property damage.
Switch on the appliance only when there are no other per- sons or animals in the working area.
Maintain a safe distance to persons or animals, or switch off the appliance if persons or animals approach.
3.5 Appliance safety
Use the appliance only under the following conditions:
The appliance is not soiled.
The appliance show no signs of damage.
All controls function proper- ly.
Do not overload the device. It is intended for light work in the private sector. Overload can lead to damage to the ap- pliance.
Never operate the appliance with worn or defective parts. Always replace defective parts with original spare parts from the manufacturer. If the appliance is operated with worn or defective parts, guar- antee claims against the man- ufacturer are excluded. NOTE Repair work is only al- lowed to be carried out by expert workshops or our AL-KO service centres.
3.6 Electrical safety
The connection plug of the appliance must fit into the socket. The plug is not al- lowed to be changed in any way. Do not use any plug adapters together with earthed appliances. Unmodi- fied plugs and matching sock- ets reduce the risk of electric shock.
Avoid physical contact with earthed surfaces such as on pipes, heaters, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.442310_a 37 Safety instructions
Keep electrical tools out of the rain and away from moisture. Water getting into an electrical tool increases the risk of an electric shock.
Do not use the cable for in- correct purposes such as carrying the electrical tool, hanging it up or for pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving parts of the equip- ment. Damaged or tangled cables increase the risk of an electric shock.
If you are working outside with a power tool, only use extension leads that are al- so suitable for outside. Us- ing an extension lead that is suitable for outside decreases the risk of electric shock.
If the operation of the power tool in a humid environment cannot be avoided, use a fault current circuit breaker. Using a fault current circuit breaker decreases the risk of electric shock.
3.7 Use and handling of the
Do not overload the appli- ance. Use the appropriate electrical tool for the job you are doing. Using the ap- propriate electrical tool will en- able you to work more effec- tively and safely in the speci- fied performance range.
Do not use an electrical tool if it has a defective switch. An electrical tool that can no longer be switched on or off is dangerous and must be re- paired.
Disconnect the plug from the socket and/or remove the battery before you make adjustments to the ma- chine, change accessories or put the machine away. This precautionary measure will prevent the machine from starting inadvertently.
Keep unused electrical tools out of the reach of children. Do not allow peo- ple to use the machine if they are not familiar with it, or have not read these in- structions. Power tools are dangerous if they are used by inexperienced people.
Look after electrical tools with care. Check whether moving parts function per- fectly and do not stick, whether there are any bro- ken parts or parts that are damaged in such a way thatGB
38 LSV 6, LSV 7, LSV 8
Unpacking the appliance (02) the function of the power tool is impaired. Have dam- aged parts repaired before you use the machine. Many accidents are caused by fail- ure to maintain electrical tools properly.
Keep cutting tools sharp and clean. Carefully main- tained cutting tools with sharper cutting edges are less likely to stick and are easier to control.
Use electrical tools, acces- sories, insertion tools, etc. according to these instruc- tions. When doing so, take account of the working con- ditions and the activity to be undertaken. Using electri- cal tools for applications other than the intended purpose can result in dangerous situa- tions.
3.8 Safety instructions
relating to operation
Never leave the operational appliance unsupervised.
Clean the appliance after ev- ery use.
Protect the appliance against unauthorised access.
The appliance may only be operated by one person.
Never move the appliance while the motor is running.
Never operate the appliance in rain or snow.
Disconnect the appliance from the mains for:
Maintenance and cleaning work
Interruptions in work

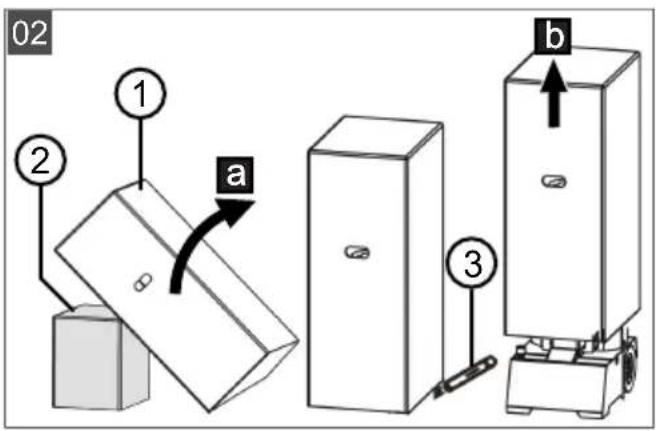

Do not touch the splitting wedge. 4 UNPACKING THE APPLIANCE (02) WARNING! Danger of crushing if the appliance tips over! The appliance is heavy! If it tips over, limbs can be crushed and persons can be seriously injured.
At least two persons are required for unpacking the appliance!
Prevent the appliance from tipping over by placing blocks and wedges under the legs!442310_a 39 Assembly If the case with the log splitter is not already in an upright position:
1. Lift case (02/1) on one side (02/a) with two
persons. Take care that the case does not slip. If necessary: Push a block (02/2) under the opposite side to support the case.
2. Raise the case until it is upright and straight.
3. Cut open the case carefully on the underside
using a knife (02/3), taking care that the ap- pliance is not damaged.
4. Lift the case off the appliance (02/b).
5. Check the scope of supply (see chapter 2.3
"Scope of supply", page31). 5 ASSEMBLY WARNING! Danger if assembly is not carried out complete- ly! Operation of an incom- pletely assembled appli- ance can result in serious injury.
Only operate the appli- ance when it is fully as- sembled.
Check that all safety and protective devices are in place and func- tioning correctly before switching on.
5.1 Assembly for LSV6

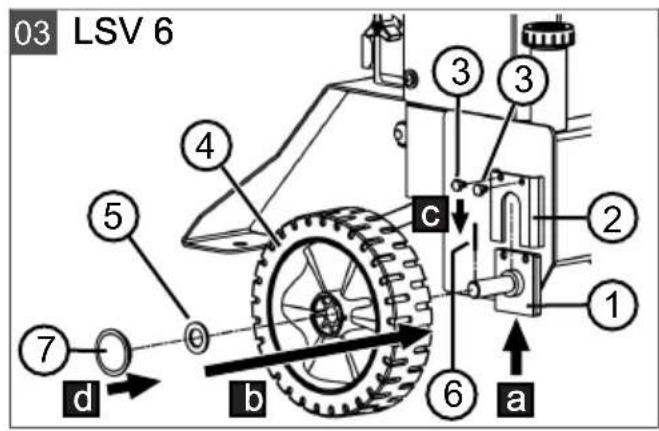

5.1.1 Installing wheels (03)
Perform the steps described here for both wheels:
1. Push wheel axle (03/1) into holder (03/2) on
the base unit from below (03/a) and hold tight.
2. To secure the wheel axle, screw two M6x8
screws (03/3) securely into the bores above one another in wheel axle and holder.
3. Push wheel (03/4) and washer (03/5) onto
the wheel axle (03/b).
4. Push cotter pin (03/6) through the bore in the
wheel axle to prevent the wheel from falling off (03/c).

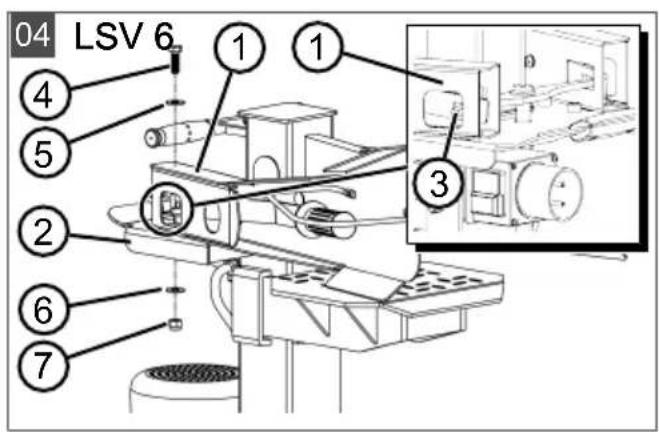

Perform the steps described here for both operat- ing arms:
1. Place operating arm (04/1) on transverse
plate (04/2) so that their mounting bores are aligned. Insert the lever of pump controller (04/3) into the recess in the operating arm. Note:Pay particular attention that the lever of the pump controller is inserted correctly!
2. Insert M10x30 screw (04/4) with washer
(04/5) through the bores in operating arm and transverse plate.
3. Push second washer (04/6) and self-locking
nut (04/7) from below onto the screw and tighten securely.
5.2 Assembly for LSV7 and LSV 8

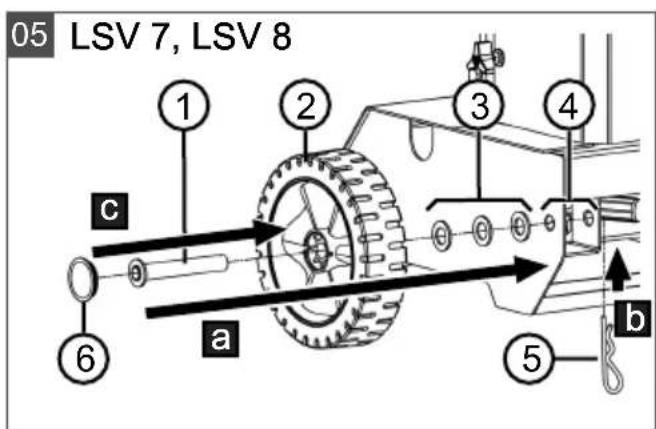

5.2.1 Installing wheels (05)
Perform the steps described here for both wheels:
1. Push the following parts onto wheel axis
2. Push wheel axis with wheel and washers into
bearing (05/4) as far as it will go (05/a).
3. Push spring cotter pin (05/5) through the bore
in the wheel axle until it engages (05/b).
4. Push on (05/c) wheel cap (05/6).

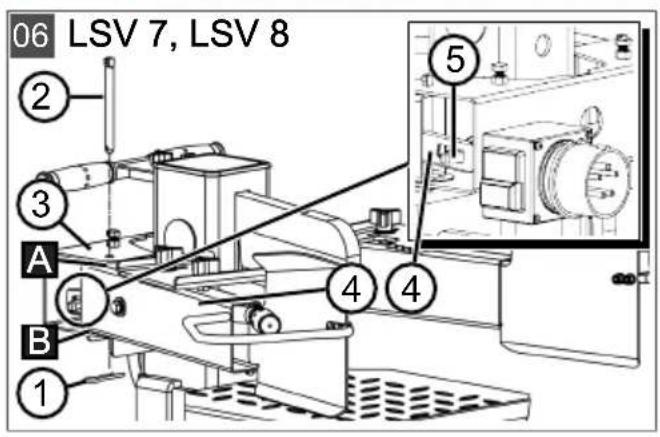

5.2.2 Installing operating arms (06)
Perform the steps described here for both operat- ing arms:
1. Pull spring cotter pin (06/1) out of locking pin
2. Pull locking pin out of transverse bracket
3. Coat operating arm (06/4) slightly with grease
at points (06/A) and (06/B).
4. Push operating arm (06/4) into transverse
bracket (06/3) and onto the level of pump controller (06/5). Note:Pay particular attention that the lever of the pump controller is inserted correctly!GB
40 LSV 6, LSV 7, LSV 8
5. Insert locking pin (06/2) into the aligned
bores of transverse bracket (06/3) and oper- ating arm (06/4) as far as it will go.
6. Push spring cotter pin (06/1) into the bore of
locking pin (06/2) until it engages.

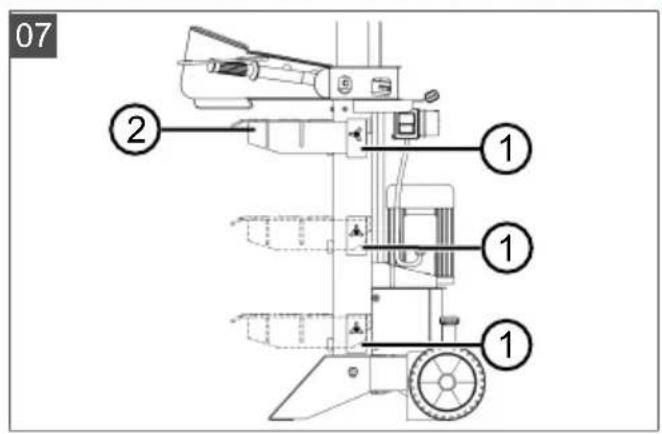

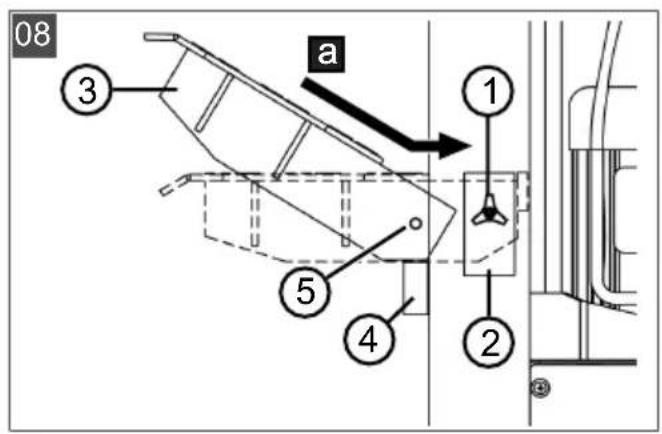

5.3 Installing splitting table (07, 08)
The splitting column has lateral brackets (07/1) at three heights for installation of splitting table (07/2) so that the height of the table can be adapted to the different lengths of the logs to be split.
1. Loosen locking screw (08/1) of lateral bracket
(08/2) until splitting table (08/3) can be pushed in.
2. Position splitting table at an angle on fixing
block (08/4) and push into the lateral bracket as far as it will go. Lower the splitting table onto the fixing block until it is finally in the horizontal position (08/a).
3. Insert the locking screw through bore (08/5)
of the splitting table to fix it in place. Proceed analogously in reverse order to remove the splitting table.

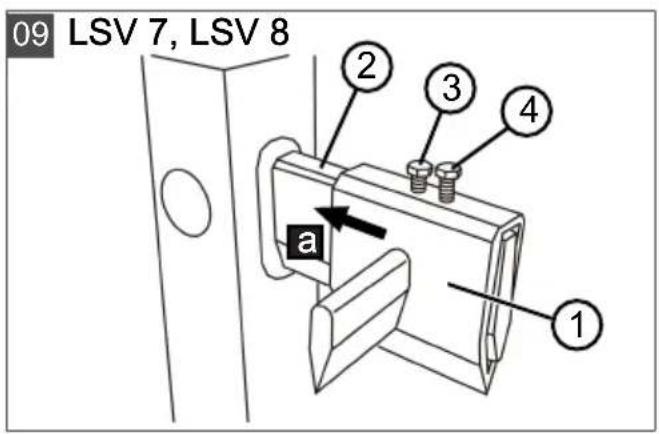

5.4 Installing splitting cross [LSV7, LSV8]
1. Push splitting cross (09/1) onto splitting
wedge (09/2) as far as it will go (09/a).
2. Insert screw (09/3) into the bore of the split-
ting wedge to secure the splitting cross.
3. Tighten screw (09/4) securely to push the
splitting cross upwards.

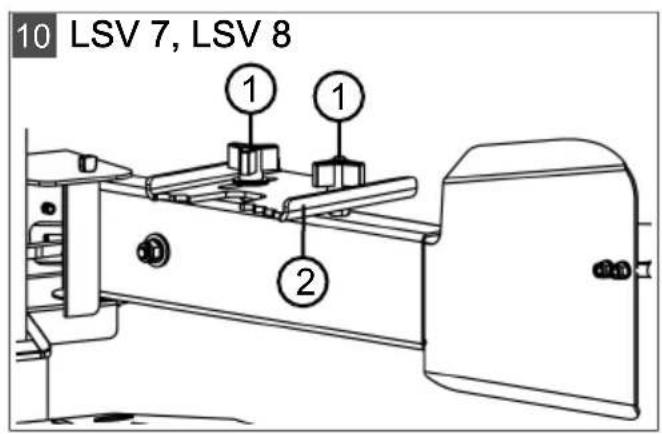

5.5 Adjusting retaining claws [LSV7, LSV8]
(10) Each operating arm has a retaining claw. The re- taining claws can be adjusted according to the di- ameter of the logs to be split. Adjust both retain- ing claws to the same dimension:
1. Loosen both locking screws (10/1) of retain-
2. Push retaining claw (10/2) to the required di-
3. Tighten both locking screws (10/1).
6.1 Setting up and connecting log splitter
DANGER! Risk of electric shock if the log splitter is operat- ed without residual cur- rent circuit breaker Operation of the appliance without residual current cir- cuit breaker in the mains connection can result in serious injuries or even death due to electric shock.
Before connecting the appliance, check wheth- er the mains connection has a residual current circuit breaker for a maximum leakage cur- rent of 0.03A.
If you cannot be sure that a residual current circuit breaker is in- stalled: Use an addition- al portable residual cur- rent device with switched PE conductor.442310_a 41 Start-up WARNING! Danger of injury if the appliance tips over A tipping appliance can re- sult in serious injury and damage to the appliance.
Ensure that the appli- ance cannot tip over.
1. Stand the log splitter horizontally on a level,
firm surface. Do not place the log cutter on the mains cable! Note:Do not place any material under the log splitter to change the height of the appli- ance or to try to increase its stability. If the log splitter is not level and/or is unstable, it must be moved to another location. Opera- tion on soft ground such as lawns or gravel is not permitted as the appliance could sink in and/or tip over during operation.
2. Lay the mains cable in such a way that it can-
not be kinked, crushed or damaged in any other way.
3. Plug the mains cable into plug socket (01/6)
of the appliance and then connect the mains cable to the mains power supply. Note:During disconnection, first disconnect the mains cable from the mains power sup- ply.

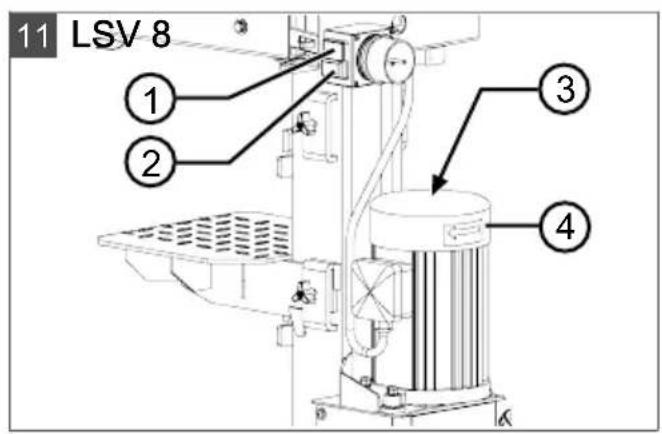

6.2 Check direction of rotation of motor
[LSV 8] (11) IMPORTANT! Danger of damage to the hydraulic pump The hydraulic pump will be damaged if the motor ro- tates in the wrong direc- tion.
Switch off the log splitter again immediately if the motor rotates in the wrong direction or the splitting wedge does not move upwards after switching on.
Reverse the phases of the mains voltage.
1. At the same time:
Press green button (11/1) and then red button (11/2) to allow the motor to run briefly.
Observe the direction of rotation of the motor through ventilation slots (11/3). The direction of rotation must correspond to the arrow (11/4) on the motor.
2. If the direction of rotation does not corre-
spond: see chapter 6.3 "Reversing phases of the mains voltage [LSV 8] (12)", page41.

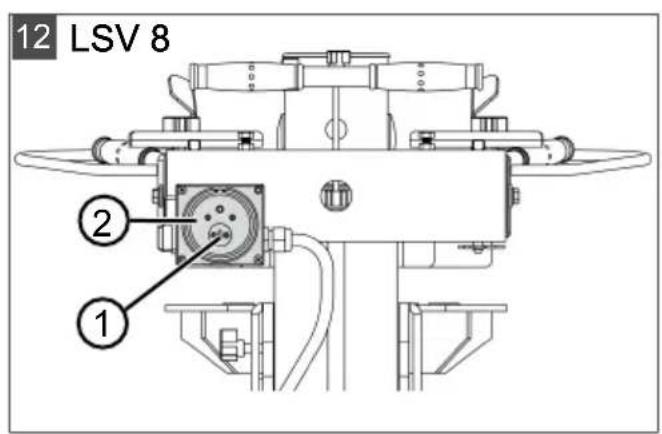

6.3 Reversing phases of the mains voltage
1. Switch off the log splitter immediately and un-
plug the mains cable.
2. Insert a flat-tip screwdriver into phase invert-
er (12/1) in mains plug socket (12/2) of the log splitter.
3. Press in the phase inverter and turn by 180°.
4. Plug in the mains cable.
5. Switch on the log splitter and check the direc-
tion of rotation of the motor again. The split- ting wedge must move upwards.GB
42 LSV 6, LSV 7, LSV 8

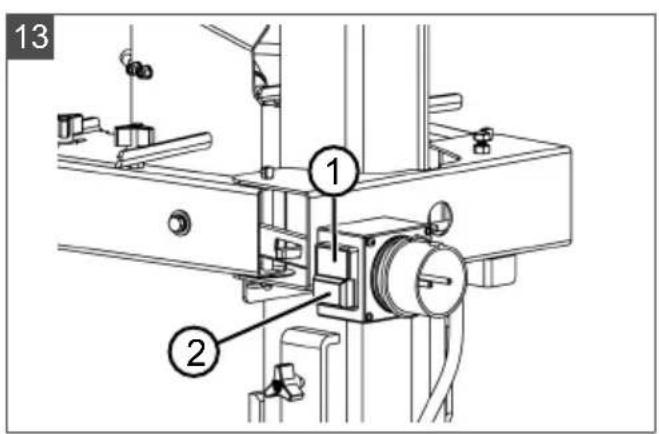

1. Press green button (13/1) to switch on. The
splitting wedge automatically moves up- wards.
If the splitting wedge is already in the up- permost position, briefly press both oper- ating arms downwards, then switch the log splitter off and on again. Press red button (13/2) to switch off.
On LSV8, if the splitting wedge does not move upwards: Switch off the log splitter immediately to prevent appliance dam- age. Check direction of rotation of the motor and correct, if necessary (see
chapter 6.2 "Check direction of rotation of
Press both operating arms downwards si- multaneously. The splitting wedge must move downwards and stop approx. 5cm above the uppermost table position.
Release one of the operating arms. The splitting wedge must stop in the momen- tary position.
Release both operating arms simultane- ously. The splitting wedge moves up- wards.
3. If it is very cold, allow the log splitter to run at
idle speed for approx. 15min. to allow the hy- draulic oil to warm up. 7 OPERATION WARNING! Risk of injury if operated by more than one person Operation of the appliance by two or more persons can result in serious inju- ries.
Operate the appliance only alone.
Keep other persons away and in particular prevent them from reaching into the log that is currently being split. IMPORTANT! Risk of damage from im- proper use Improper splitting of the logs can result in damage or destruction of the appli- ance.
Always place the log on the splitting table per- pendicularly, i.e. in the direction of the wood grain, never at right an- gles.
Never try to force a log to split by maintaining the hydraulic pressure for several seconds.442310_a 43 Operation WARNING! Risk of injury from shat- tering log Stored hardwood, irregular branches, irregular logs and logs with a large num- ber of knots tend to shatter during splitting. Flying pieces of wood can then cause serious injuries.
Split only straight logs with a perpendicular and straight cutting sur- face.
Wear the prescribed protective clothing at all times. NOTE
Always split only well-dried logs. These can be split far easier than fresh, moist wood.
Very thick logs can be split more easily if they are not too long.
WARNING! Danger of injury from faulty appliance Operation of an faulty ap- pliance can result in seri- ous injury and damage to the appliance.
Operate the appliance only when it is undam- aged and has not de- fects, and when no parts are missing or loose.
The log splitter must not be switched on if parts of the appliance are missing, defec- tive or loose.
A defective mains cable (e.g. with cracks, cuts, crushed or kinked points in the insu- lation) must not be used.
3. Carry out a visual inspection for leaks in the
The log splitter must not be switched on if the hydraulic system has leaks.
4. Clean and then grease the sliding surfaces of
the splitting column and splitting wedge (see
chapter 8.1.1 "Grease sliding surfaces (16)",
5. Carry out a function check of the operating
arms (see chapter 6.4 "Carry out function check (13)", page42).
7.2 Adjusting the splitting table
1. Adjust the splitting table to the height of the
1. Place the log onto the splitting table.
2. Press both operating arms down to move the
splitting wedge down.GB
44 LSV 6, LSV 7, LSV 8
Maintenance and care
3. When the splitting wedge is approx. 3 – 5cm
above the log: Release one operating arm to stop the splitting wedge in its momentary po- sition.
4. Switch off the appliance.

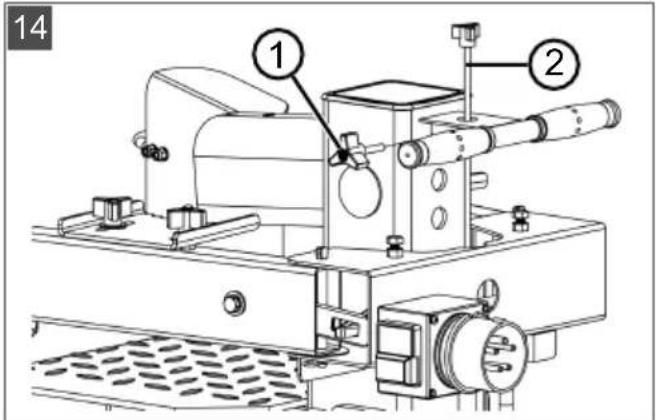

5. Loosen locking screw (14/1) and pull lifting
rod (14/2) completely up.
6. Tighten the locking screw again.
7. Switch on the appliance. The splitting wedge
CAUTION! Risk of injury due to un- tidy workplace Untidiness and logs lying around pose a risk of trip- ping and slipping in the working area.
Store the logs to be split in a tidy pile.
Immediately remove split logs and wood chips from the working area.
1. For LSV7 and LSV8: Adjust the retaining
claws to the diameter of the logs to be split (see chapter 5.5 "Adjusting retaining claws [LSV7, LSV8] (10)", page40).
2. Place the log absolutely perpendicularly onto
the splitting table. Note:The log must stand freely on the split- ting table. Never try to split crooked logs!

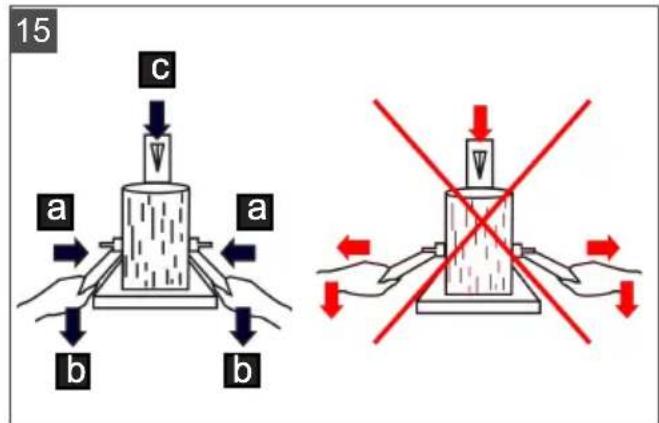

3. Press both operating arms together simulta-
neously so that the log is clamped (15/a).
4. Press both operating arms down simultane-
ously (15/b). The splitting wedge moves down (15/c).
5. When the splitting wedge can completely split
the log: Release both operating arms so that the splitting wedge moves up.
6. Remove the split logs from the working area.
7.5 Removing a jammed log
CAUTION! Risk of injury from a jammed log flying out If a jammed log flies out of the appliance, injuries can be caused and the appli- ance may be damaged.
Never try to free a jammed log using tools.
1. Allow the splitting wedge to travel up com-
2. Position a wedge-shaped log on the splitting
3. Allow the splitting wedge to travel down. The
jammed log is forced forwards by the wedge- shaped log.
4. Repeat the steps above with larger wedges
in turn until the jammed log is freed.
8 MAINTENANCE AND CARE
WARNING! Risk of injury during maintenance work Improper maintenance can result in serious injury and damage to the appliance.
Disconnect the appli- ance from the mains be- fore starting mainte- nance work.
Have repairs to the ap- pliance carried out only by qualified companies.442310_a 45 Maintenance and care
8.1 Maintenance and care work

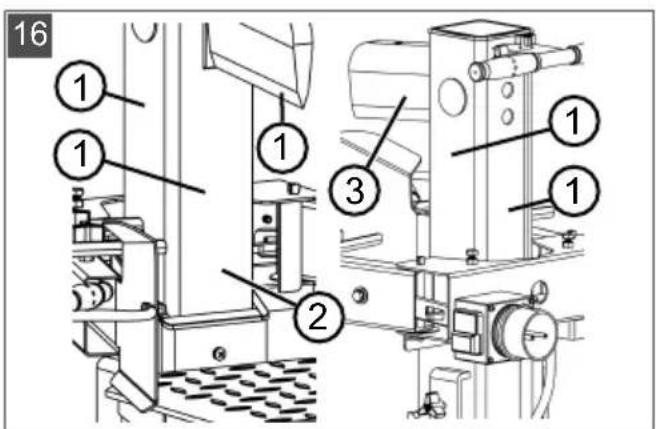

8.1.1 Grease sliding surfaces (16)
Grease the sliding surfaces at regular intervals, particularly when splitting very resiny logs:
1. Clean sliding surfaces (16/1) of splitting col-
umn (16/2) and splitting wedge (16/3).
2. Grease the sliding surfaces with a resin and
8.2 Maintenance tasks
8.2.1 Sharpening the splitting wedge
If the splitting wedge has become blunt after a long period of use:
1. Remove material deposits on the splitting
wedge using a suitable file and then sharpen the splitting wedge.
2. Apply oil or lubricant to the sharpened surfac-

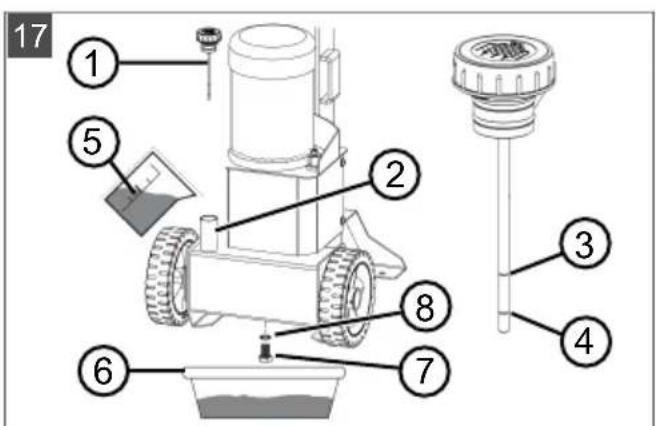

8.2.2 Checking and topping up hydraulic
oil(17) Check the oil level every day and change the hy- draulic oil after 1year or 150operating hours. Use only hydraulic oil HLP46 for topping up and changing. IMPORTANT! Risk of appliance dam- age from use of wrong hydraulic oil Use of the wrong hydraulic oil and oil levels that are too high or too low result in malfunctions and heat de- velopment and can dam- age the hydraulic pump.
Use only the prescribed hydraulic oil.
Check the hydraulic oil level at regular intervals and top up, when nec- essary.
1. Stand the log splitter upright and disconnect
from the mains power supply.
2. Allow the log splitter to stand for a few min-
utes so that the oil can settle in the oil tank.
3. Unscrew oil dipstick (17/1) from oil filler neck
(17/2) and wipe using a clean, lint-free cloth. Check the oil level
1. Insert the dipstick up to the stop and pull out
2. Read off the oil level from the dipstick. The oil
level must be between the upper (17/3) and lower (17/4) mark. Top up hydraulic oil If the oil level is below the lower mark:
1. Pour in hydraulic oil (17/5) through the oil fill-
er neck. Use a funnel, if necessary. Do not allow any foreign particles to get into the oil tank!
2. Check the oil level (see above).
3. Screw in the dipstick again and tighten slight-
ly. Change hydraulic oil The complete hydraulic oil must be changed once a year.
1. Place oil drip tray (17/6) under the log splitter.
2. Unscrew oil drain plug (17/7) with seal ring
(17/8) and allow all the oil to drain into the oil drip tray. Dispose of the old oil in the pre- scribed manner!
3. Place a seal ring on the oil drain plug and
screw in the drain plug tightly.
4. Pour in hydraulic oil (see above).GB
46 LSV 6, LSV 7, LSV 8
Transport (18) 9 TRANSPORT (18) IMPORTANT! Danger of damage to the appliance due to improp- er transport Improper transport can re- sult in damage to the appli- ance.
Remove the mains plug at all times before trans- port.
Pull the appliance at a slight angle using the transport handle.
When using a crane: Do not lift the appliance at individual components or at the transport han- dle! Use a sturdy sling for lifting. WARNING! Danger of crushing if the appliance tips over! The appliance is heavy! If it tips over, limbs can be crushed and persons can be seriously injured.
Transport the appliance with the greatest care.
Move any obstacles out of the planned transport route.

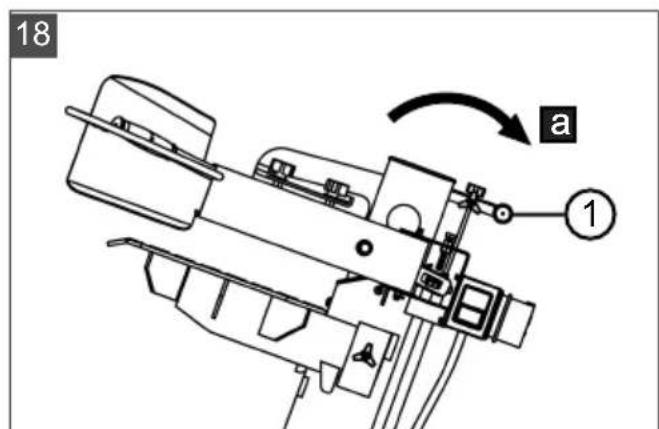

1. Grip the log splitter with both hands at trans-
port handle (18/1) and tilt slightly so that it is resting (18/a) on the wheels (18/2).

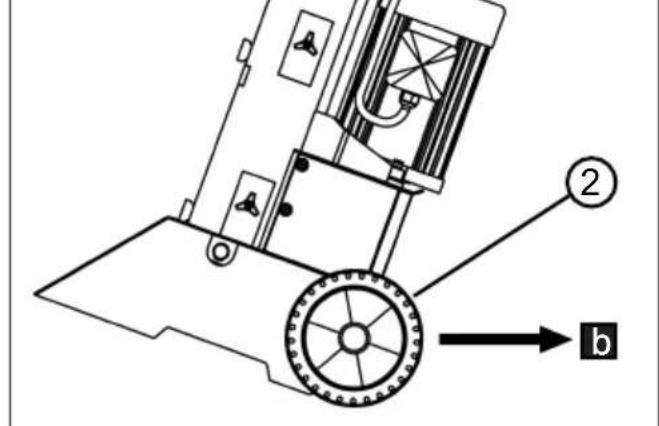

2. Pull the log splitter to the required location
(18/b) using the transport handle. 10 STORAGE
1. Disconnect the log splitter from the mains.
2. Thoroughly clean the appliance after each
use and – if present – attach all covers. The splitting wedge must be in the end position.
3. Store the appliance in a dry, lockable place
out of the reach of children. 11 DISPOSAL Information on the German Electrical and Electronic Equipment Act (ElectroG)
Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
Used batteries or rechargeable batter- ies that are not installed permanently in the old appliance must be removed be- fore disposal. Their disposal is regulat- ed by the battery law.
Owners or users of electrical and elec- tronic appliances are obliged by law to return them after use.
The end user bears personal responsi- bility for deleting his personal data from the old appliance to be disposed of. The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish. Electrical and electronic appliances can be hand- ed in at no charge at the following places:
Public service disposal or collection points (e.g. municipal building yards)
Points of sale of electrical appliances (sta- tionary and online) provided traders are obliged to take them back or offer this volun- tarily. These statements only apply to appliances that are installed and sold in the countries of the Eu- ropean Union and are subject to European Direc- tive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appli- ances in countries outside the European Union.442310_a 47 After-Sales / Service 12 AFTER-SALES / SERVICE In the event of questions of warranty, repair or spare parts, please contact your nearest AL- KOService Centre. These can be found on the Internet at: www.al-ko.com/service-contactsGB
48 LSV 6, LSV 7, LSV 8
Help in case of malfunction
13 HELP IN CASE OF MALFUNCTION
In the event of malfunctions, switch off the log splitter immediately and remove the mains plug! CAUTION! Risk of injury Sharp-edged and moving appliance parts can lead to injury.
Always wear protective gloves during maintenance, care and cleaning work. Malfunction Cause Remedy Motor does not start. Motor protection switch has tripped. Wait until the motor has cooled down. Mains plug or plug socket defec- tive Have inspected and replaced, if necessary, by a qualified electri- cian. Defective mains cable Have inspected and replaced, if necessary, by a qualified electri- cian. Defective motor Have inspected and replaced, if necessary, by a qualified electri- cian. Green ON button does not latch when pressed in No PE conductor or a phase not connected. Have inspected and replaced, if necessary, by a qualified electri- cian. Defective switch Splitting wedge does not move up/down, but motor is running. Insufficient hydraulic oil Top up hydraulic oil. Defective hydraulic pump Have replaced by a specialist company or AL-KO service centre. Valve not open caused by loose connection. Tighten loose parts. Operating lever or connecting parts bent Have bent parts repaired. For LSV8: Wrong direction of rotation of the motor caused by incorrect phase connection of the mains voltage Reverse the phases of the mains voltage at the plug socket of the log splitter. Have inspected and corrected, if necessary, by a qualified electri- cian. Splitting wedge has no force. Insufficient hydraulic oil Top up hydraulic oil. Bent actuating lever Have replaced by a specialist company or AL-KO service centre. Unusual noises and vibrations Insufficient hydraulic oil Top up hydraulic oil.442310_a 49 Guarantee Malfunction Cause Remedy Hydraulic pump whistles, split- ting wedge moves jerkily. Insufficient hydraulic oil Top up hydraulic oil. Air in hydraulic circuit Loosen vent plug. Motor becomes very hot. Inadequate cable cross-section of an extension lead Use an extension lead with a larger cable cross-section. Missing phase Have inspected and corrected, if necessary, by a qualified electri- cian. NOTE If you encounter any malfunctions that are not listed in this table or that you cannot rectify yourself, please contact our customer service. 14 GUARANTEE We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased. Our warranty promise applies only if:
These operating instructions are heeded
The appliance is handled correctly
Original spare parts have been used The warranty becomes void in the case of:
Unauthorised repair attempts
Unauthorised technical modifications
Non-intended use The guarantee excludes:
Paint damage that can be attributed to normal wear and tear
Wear parts that are marked with a frame xxxxxx (x) on the spare parts card The guarantee period commences with purchase by the first end user. The date on the proof of pur- chase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.
15 EU DECLARATION OF CONFORMITY
We hereby declare that this product in its marketed form conforms to the requirements of the harmon- ised EU Directives, EU safety standards and the product-specific standards. Product Log splitter Serial number G4032012 Manufacturer AL-KO Geräte GmbH Ichenhauser Str. 14 D-89359 Kötz Germany Duly authorised person for technical file Andreas Hedrich Ichenhauser Str. 14 D-89359 Kötz Germany Type LSV6 LSV7 LSV8 EU directives 2006/42/EC 2014/30/EU 2011/65/EU Harmonised standards EN 60204-1:2006+A1:2009 EN 609:1999+A2:2009 EN 55014-1:2006+A2:2011 EN 55014-2:1997+A2:2008 EN 61000-3-2:2014 EN 61000-3-11:2000GB
50 LSV 6, LSV 7, LSV 8
52 LSV 6, LSV 7, LSV 8
54 LSV 6, LSV 7, LSV 8
56 LSV 6, LSV 7, LSV 8
58 LSV 6, LSV 7, LSV 8
60 LSV 6, LSV 7, LSV 8
62 LSV 6, LSV 7, LSV 8
64 LSV 6, LSV 7, LSV 8
66 LSV 6, LSV 7, LSV 8
68 LSV 6, LSV 7, LSV 8
70 LSV 6, LSV 7, LSV 8
72 LSV 6, LSV 7, LSV 8
74 LSV 6, LSV 7, LSV 8
76 LSV 6, LSV 7, LSV 8
78 LSV 6, LSV 7, LSV 8
80 LSV 6, LSV 7, LSV 8
82 LSV 6, LSV 7, LSV 8
84 LSV 6, LSV 7, LSV 8
86 LSV 6, LSV 7, LSV 8
88 LSV 6, LSV 7, LSV 8
90 LSV 6, LSV 7, LSV 8
92 LSV 6, LSV 7, LSV 8
94 LSV 6, LSV 7, LSV 8
96 LSV 6, LSV 7, LSV 8
98 LSV 6, LSV 7, LSV 8
102 LSV 6, LSV 7, LSV 8
106 LSV 6, LSV 7, LSV 8
110 LSV 6, LSV 7, LSV 8
134 LSV 6, LSV 7, LSV 8
140 LSV 6, LSV 7, LSV 8
144 LSV 6, LSV 7, LSV 8
3st distansbrickor (05/3)
ManualGo.com
