ZHT531W - Range hood ZANUSSI - Free user manual and instructions

Product type	Extractor hood
Brand	Zanussi
Model	ZHT531W
Supply voltage	220-240 V
Frequency	50 Hz
Protection class	Class I
Air outlet diameter	120 mm minimum
Minimum safety distance to hob	650 mm
Lighting	LED bulb 4 W, E14 base
Number of speeds	3 (speeds 1, 2, 3)
Control type	Push buttons
Grease filter	Washable metal
Charcoal filter	Non-washable, replace every 4 months
Extraction mode	External evacuation or recirculation (with charcoal filter)
Material	Stainless steel (estimated)
Use	Domestic, indoor
Warranty	2 years
Installation	Wall mounting, electrical connection by professional

Frequently Asked Questions - ZHT531W ZANUSSI

What is the minimum installation height of the ZHT531W hood?

The minimum safety distance between the hob and the hood is 650 mm. Respect this distance to avoid fire hazards.

How to replace the hood bulb?

First disconnect the power supply. The bulb is type E14, 4 W. Remove the old bulb and insert the new one. Do not look directly at the light when on.

How often should I clean the grease filter?

The metal grease filter should be cleaned every month with warm soapy water or in the dishwasher. A clogged filter reduces efficiency and poses a fire risk.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable. It should be replaced every 4 months or more often with heavy use.

Can I use the hood without the charcoal filter?

Yes, if you connect the hood to an external evacuation. In recirculation mode, the charcoal filter is mandatory to purify the air.

What to do if the hood stops working?

First check the power supply (socket, fuse). If the cord is damaged, have it replaced by an approved professional. Contact customer service.

What diameter of exhaust duct should be used?

Use a duct with a minimum diameter of 120 mm. The path should be as short as possible for efficient evacuation.

Can I install the hood above a gas hob?

Yes, but respect the minimum distance of 650 mm or the distance indicated in the cooker instructions if greater. Ensure the room is well ventilated.

How to adjust the hood speed?

Use the control buttons: 0 off, 1 low for gentle cooking, 2 medium for normal use, 3 high for strong odors or steam.

The hood is noisy, is this normal?

Yes, some noise is normal, especially at high speed. If the noise becomes excessive, check that the filters are clean and the duct is not blocked.

USER MANUAL ZHT531W ZANUSSI

EN USER MANUAL 2 DE GEBRAUCHSANLEITUNG 6 FR MANUEL D'UTILISATION 10 NL GEBRUIKSAANWIJZING 14 ES MANUAL DE USO 18 PT LIVRO DE INSTRUÇÕES PARA UTILIZAÇÃO 22 IT LIBRETTO DI USO 26 SV ANVÄNDNINGSHANDBOK 30 NO BRUKSVEILEDNING 34 FI KÄYTTÖOHJEET 38 DA BRUGSVEJLEDNING 42 RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 46 ET KASUTUSJUHEND 50 LV LIETOŠANAS PAMĀCĪBA 53 LT NAUDOTOJO VADOVAS 57 UK ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 61 HU HASZNÁLATI ÚTMUTATÓ 65 CS NÁVOD K POUŽITÍ 69 SK NÁVOD NA POUŽÍVANIE 73 RO MANUAL DE FOLOSIRE 77 PL INSTRUKCJA UŻYTKOWANIA 81 KNJIZICA UPUTAMA 85 SL NAVODILO ZA UPORABO 88 EL ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ 91 TR KULLANIM KILAVUZU 95 BG РЪКОВОДСТВО ЗА ПОТРЕБИТЕЛЯ 99 KK НАШАНДАУШЫ НҰСҚАУЛЫҒЫ 103 MK УПАТСТВО ЗА КОРИСНИК 107 SQ UDHËZUES PËR PËRDORIMIN 111 SR КОРИСНИЧКО УПУТСТВО 115 AR دليل المستخدم 119

USER MANUAL

ZHT531X

ZHT531W

ZHT631W

ZHT631X

ZHT631B

Cooker Hood Motorháztető Dunstabzugshaube Odsavač par Hotte de cuisine Kapucna Afzuigkap Cappa Campana Okap Kucher Exaustor Kapuljača Cappa Napa Spisfläkt Απορροφητήρας Kjøkkenvifte Ocak Davlumbaz Liesituuletin Απορροφητήρας Emhætte Вытяжка Pliidikumm Tvaika nosūcējs Dangtis Būtka Motorháztető Odsavač par Kapuchna Cappa Okap Kuchenny Kapuljača Napa Απορροφητήρας Ocak Davlumbaz Απορροφητήρας Сорбин Аспиратор Kapak Tenxhere

Kuhinjska napa

ZANUSSI

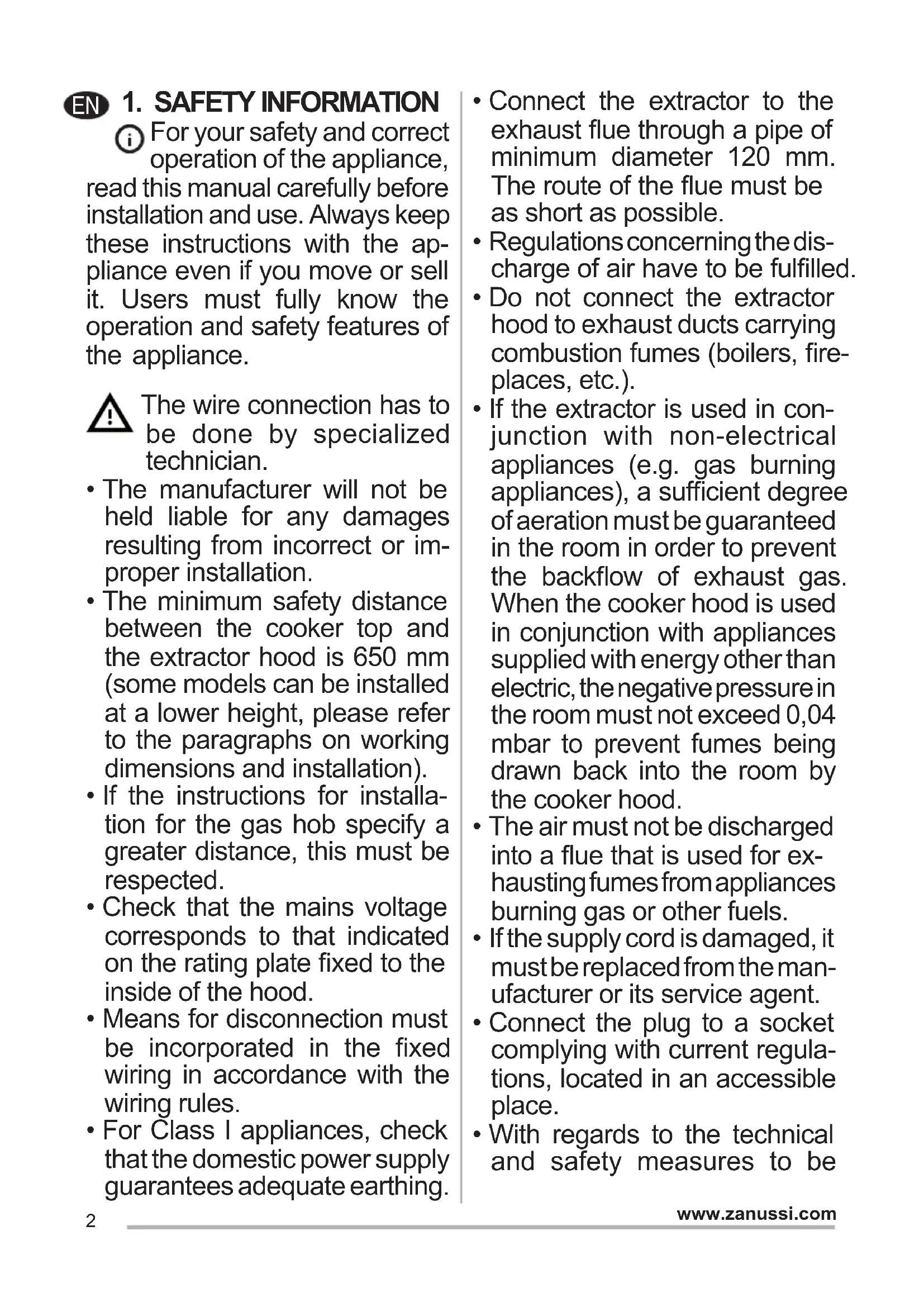

EN 1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

• Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

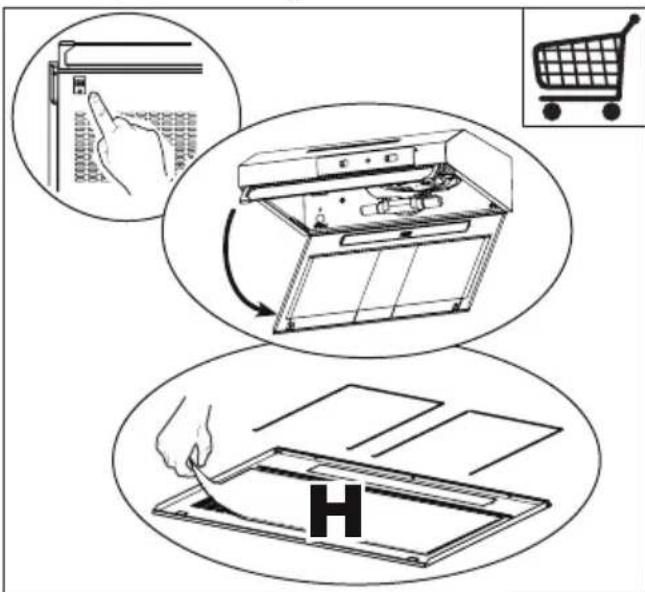

3. CARE AND CLEANING

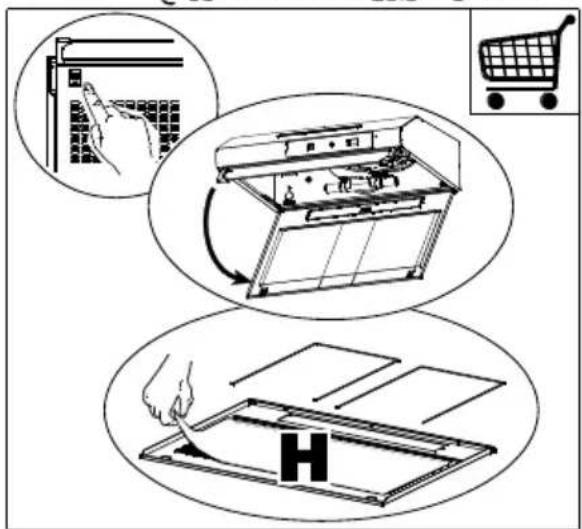

• This filter cannot be washed and should be replaced every 2 months H.

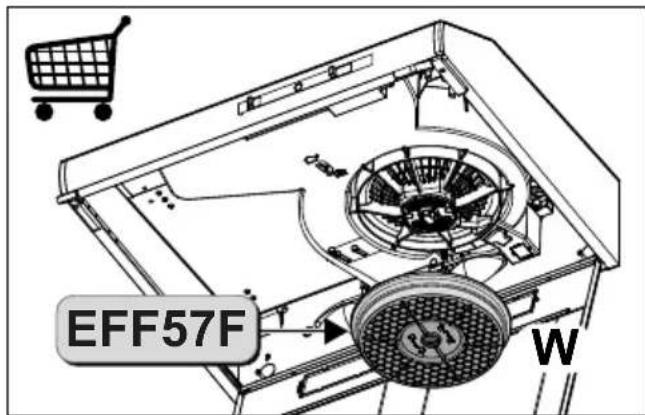

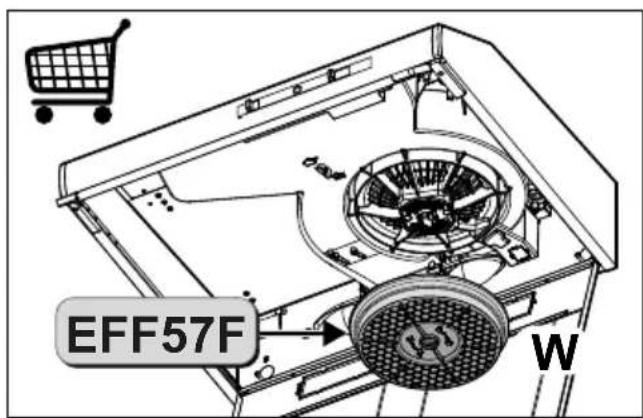

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

4. CONTROLS

L	Light Switches the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

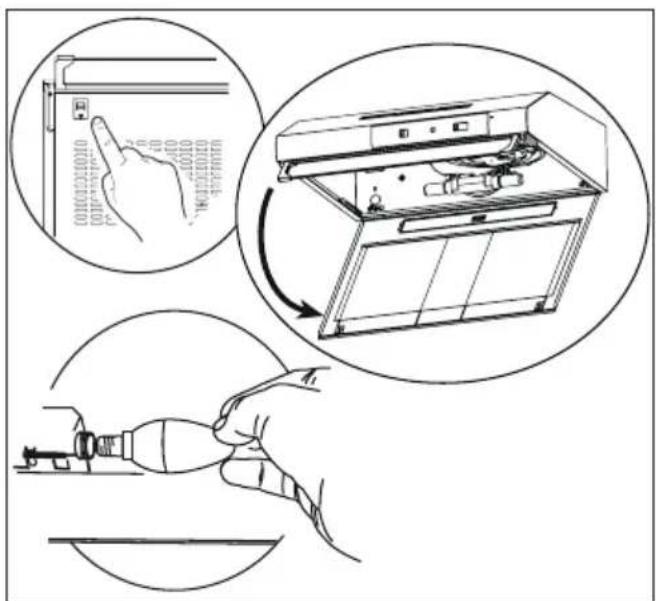

5. LIGHTING

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOs Code
	4 E14 20-240 107	x 37 DRBB/F-4-220-240	E14-35/100

This appliance is intended for household use only. The manufacturer cannot be held responsible for any damage resulting from incorrect or improper use. Please read the instruction manual carefully before using the appliance and keep it for future reference. If you pass the appliance on to a third party, please also pass on this instruction manual. The appliance is designed for normal household use and is not intended for commercial or industrial use. Please dispose of the appliance in accordance with local regulations. For more information on recycling, please contact your local council, your local waste disposal service, or the shop where you purchased the appliance.

2. OPERATION

• The suction hood is intended solely for the removal of cooking fumes and odors. Never use the hood for any other purpose.
• Never leave high flames under the hood while it is in operation.
• Adjust the flame so that it stays under the bottom of the pan and does not extend beyond its edges.
• When cooking with oil or fat, always supervise the appliance: overheated oil may catch fire.

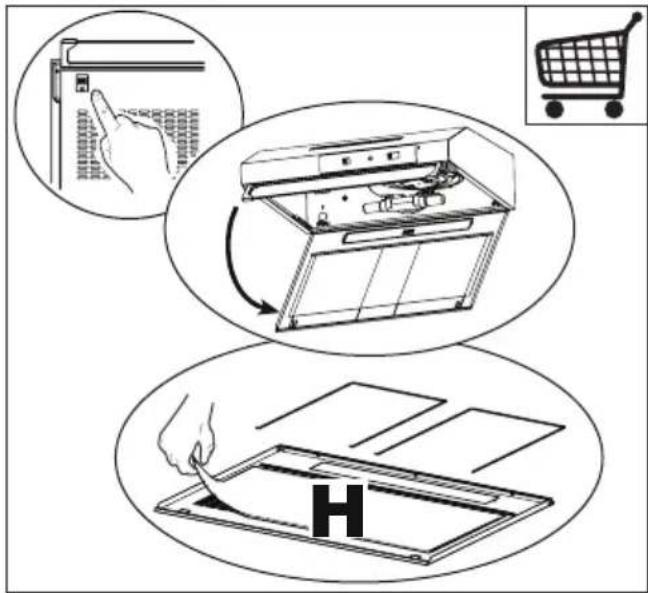

3. CLEANING AND MAINTENANCE

The filter should be cleaned at least every two months, and more frequently in case of very intensive use.

The activated charcoal filter cannot be washed or regenerated; it must be replaced approximately every four months, or more often in case of very intensive use.

4. CONTROLS

Pans must not extend beyond the cooking zone.

1. SAFETY INFORMATION

For your safety and to ensure correct operation of the appliance, please read this manual carefully before installation and use. Always keep these instructions with the appliance, even if you transfer it to third parties. It is important that users are familiar with all operating and safety features of the appliance.

ELECTROLUX HOME PRODUCTS CORPORATION NV.

RAKETSTRAAT 40 / RUE DE LA FUSEE 40

B-1130 BRUSSEL / BRUXELLES

BELGIUM

TEL: [phone]

FAX: [phone]

www.electrolux.com
