USER MANUAL SHTD 2200D A1 SILVERCREST

Operation and safety notes

FR BE

SECHE-CHEVEUX A TECHNOLOGIE IONIQUE

GB/IE Operation and safety notes Page 13

Warnings and symbols used 14

Introduction 14

Intended use. 14
Scope of delivery. 15
Description of parts 15
Technical data 15

Safety instructions. 15

Before first use 18

Operation. 18

Drying hair. 18
Styling hair. 18

Cleaning and care 19

Cleaning the housing, the concentrator nozzle and the diffuser 19
Cleaning the protection grid and the air inlet 19

Storage 19

Disposal. 19

Warranty 20

Warranty claim procedure.. 20

Service 20

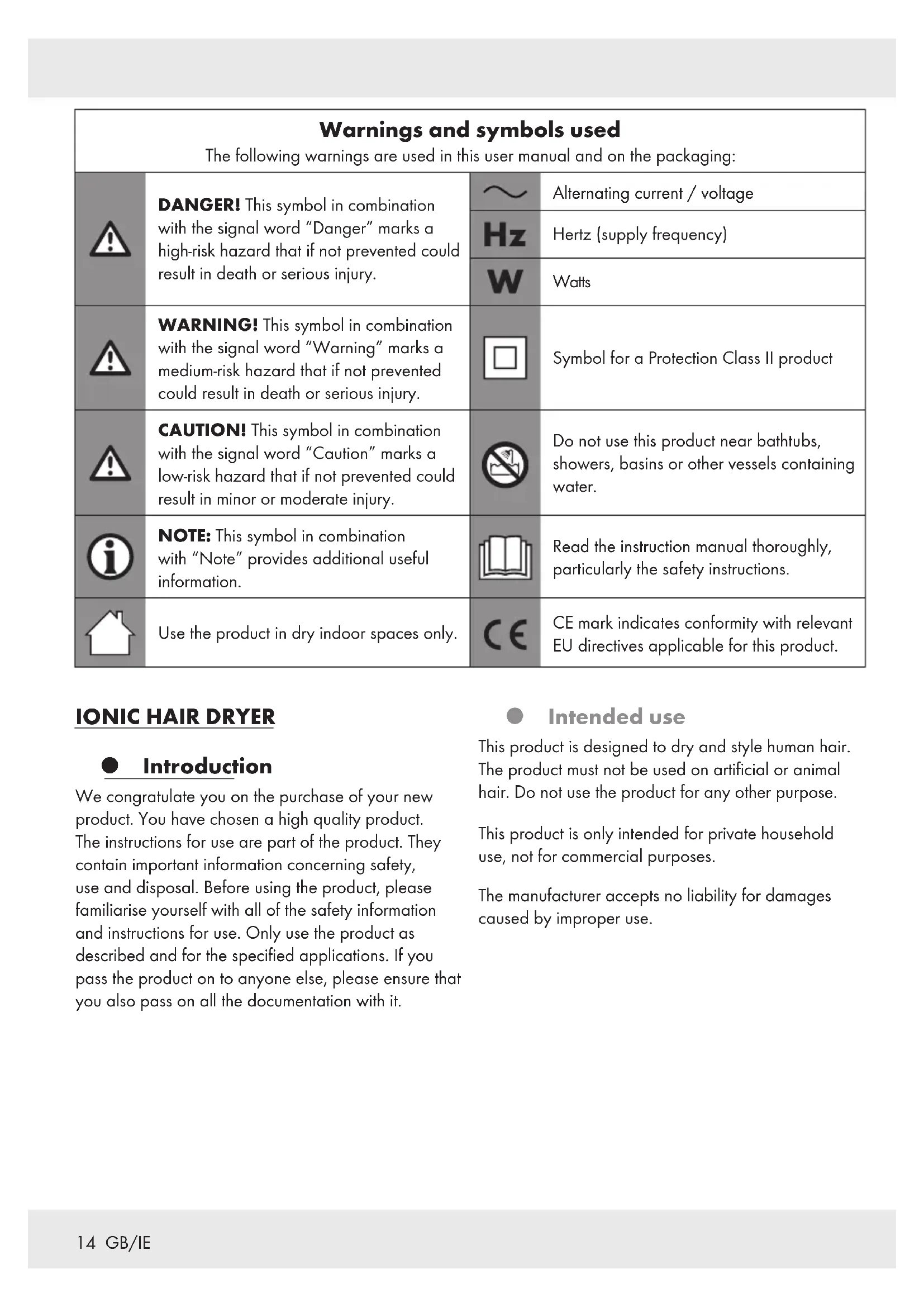

Warnings and symbols used The following warnings are used in this user manual and on the packaging:
!	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.	~	Alternating current / voltage
		Hz	Hertz (supply frequency)
		W	Watts
!	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.		Symbol for a Protection Class II product
!	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Do not use this product near bathtubs, showers, basins or other vessels containing water.
i	NOTE: This symbol in combination with "Note" provides additional useful information.		Read the instruction manual thoroughly, particularly the safety instructions.
	Use the product in dry indoor spaces only.	CE	CE mark indicates conformity with relevant EU directives applicable for this product.

IONIC HAIR DRYER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed to dry and style human hair. The product must not be used on artificial or animal hair. Do not use the product for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1x lonic hair dryer
1x Diffuser
1x Concentrator nozzle
1x User manual

Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

Air inlet
2 Protection grid
3 Hanging loop
4 Power cord and power plug
5 O/xy Air flow switch)
6 -/≠ (heat control switch)
7 (Cooling mode button)
Air outlet
9 | Concentrator nozzle
10 Diffuser

Technical data

Input voltage: 220-240 V , 50 Hz

Rated power: 2000-2200 W

Protection class: II

HG09376A:

Purple

HG09376B:

Grey

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.
- Cleaning and user maintenance shall not be made by children without supervision.

Intended use

WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

Electrical safety

DANGER! Risk of electric shock! Never attempt to repair the product yourself.

In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! Risk of electric shock! Do not immerse the product in water or other liquids. Never hold the product under running water.
WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.
Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.
Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.
  For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
  The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A. Lay cords in such a way that they may not be tripped over or otherwise damaged.

Operation

WARNING! Risk of electric shock! Do not use this product near bathtubs, showers, basins or other vessels containing water.

The product must not be left unattended while it is connected to the supply mains.
- Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
- Do not pull the power plug out of the electrical outlet by the power cord. Do not wrap the power cord around the product.
Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
- Switch off the product before - changing attachments, - cleaning, - disconnecting the product from the power supply.
When the product is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the product is switched off.

Cleaning and storage

Store the product in a cool, dry place, protected from moisture and out of the reach of children.

Before first use

Remove the packaging. Check if all parts are complete.

NOTE: The product may give off some odour during first use. These are production or transport residue that will quickly subside.

Operation

Drying hair

(Fig. A)

Connect the power plug 4 to a suitable electrical outlet.
Select the desired air flow and heat levels (Fig. B):

○/x/5 (Switch position)	Air flow
○	Product off
×	Product on: gentle air flow
×	Product on: strong air flow

Switch position\(\equiv\)6	Heat
-	No heat
=	Low heat
≡	High heat

After use: Select 5 to switch off the product. Disconnect the power plug 4 from the electrical outlet.

Styling hair

Using the concentrator nozzle

Put the concentrator noz9 on the air outlet 8.
Rotate the concentrator no.9 to change the position.
Switch on the product. Use the concentrator nozzle to direct the air flow onto a specific section of the hair.

NOTE: We recommended to use gentle air flow (x 5) and low heat level (6) when styling hair.

CAUTION! Do not remove the concentrator nozzle when it is still hot.

Using the Diffuser

Place the diffuser 10 on the air outlet 8.
Switch on the product. Use the diffuser 10 to create curls and gentle waves in the lengths and tips, as well as for body and volume at the roots of the hair.

NOTES:

For long hair: Draw diffuser through to the tips, and style the hair into gentle waves in the direction of the roots.
For short hair: Use the diffuser to work on the hair around the roots, generating body and volume.

CAUTION! Do not remove the diffuser 10 when it is still hot.

Cooling mode

Use the cooling mode to make the hairstyle last longer:

Cool air flow

Press and hold button

Cool air flow on

Release button Cool air flow stops

① NOTES:

The cooling function ( 7) does not work when the heat level is set to "no heat" (一 6)
When the product fails to function, disconnect the product from power. Let the product to cool.

Ionisation function

Ions are continuously applied to the hair. This reduces the static loading of the hair and improves its stylability. The hair becomes soft, smooth, glossy, and easier to style.

NOTE: We recommend the use without attachments for the optimum activity of the ions.

- Cleaning and care

DANGER! Risk of electric shock! Always switch off the product and disconnect the power plug 4 from the electrical outlet before cleaning the product.
WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.
CAUTION! Do not use corrosive or abrasive cleaning agents or material to clean the product.

- Cleaning the housing, the concentrator nozzle and the diffuser

Remove the concentrator nozzle 9 or the diffuser 10 from the air outlet 8.
Wipe the housing, the concentrator nozzle 9 and the diffuser 10 with a dry cloth.

- Cleaning the protection grid and the air inlet

Hold the handle of the product. Rotate the protection grid 2 in a counterclockwise direction.

Remove the protection grid 2 from the air inlet 1 (Fig. C).
Clean the protection grid 2 and the air inlet 1 with a soft brush.
- Attach the protection grid 2 back onto the air inlet 1.
Rotate the protection grid 2 in a clockwise direction to securely attach it onto the air inlet 1.

Storage

Store the product at a dry location out of the reach of children.
Store the product in the original packaging when it is not in use.
Alternatively, the product can also be hung on its hanging loop 3.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 377264_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
