SHTD 2200 D2 - Hair dryer SILVERCREST - Free user manual and instructions

Product type	Hair dryer
Brand	SilverCrest
Model	SHTD 2200 D2
Rated power	2000 - 2200 W
Mains voltage	230 - 240 V ~, 50 Hz
Protection class	II (double insulation)
Number of speeds	2 (low, high)
Number of temperatures	3 (low, medium, high)
Cool air function	Yes, dedicated button
Ion generator	Yes, ON/OFF switch
Included accessories	Concentrator, diffuser
Power cord length	Approximately 1.8 m
Weight	Approximately 0.5 kg
Dimensions (L x W x H)	Approximately 20 x 8 x 25 cm
Housing material	Plastic
Color	Black / silver
Cleaning	Soft damp cloth and brush for air inlet grille
Safety	Overheating protection
Warranty	3 years
Manufacturer	Kompernass Handels GmbH
After-sales service France	0800 919270
Intended use	Private use, for human hair

Frequently Asked Questions - SHTD 2200 D2 SILVERCREST

How to activate the ionic function on the SilverCrest SHTD 2200 D2 hair dryer?

Use the "ion generator" switch (③) located on the device. Set it to the " " position to activate the function. To deactivate, set it to "2017". The ionic function neutralizes static electricity for shinier and easier-to-style hair.

How to clean the air inlet grille of the hair dryer?

Always unplug the device before cleaning. Turn the air inlet grille (②) counterclockwise to remove it. Brush the openings with a soft brush. Put it back and turn clockwise until it clicks into place.

Can I use the SilverCrest SHTD 2200 D2 hair dryer in a bathroom?

Yes, but with caution. Never use it near a bathtub, sink, or water source. After use, always unplug from the outlet. The manual recommends installing a residual current circuit breaker ≤ 30 mA in the bathroom.

What to do if the hair dryer suddenly stops working?

The device is equipped with overheating protection. Unplug it and let it cool for a few minutes, then try again. If the problem persists, contact customer service at 0800 919270 (France).

How to use the diffuser provided with the SilverCrest hair dryer?

First remove the concentrator if in place. Attach the diffuser (⑧) to the front of the hair dryer by applying gentle pressure until it clicks. It allows gentle drying, ideal for curly or fragile hair. Remove it after cooling.

How to use the concentrator for precise styling?

Place the concentrator (①) on the front of the hair dryer by applying gentle pressure until it clicks. It directs the airflow precisely for accurate styling. Remove it after cooling by pulling it downwards.

What is the maximum power of the SilverCrest SHTD 2200 D2 hair dryer?

The rated power is between 2000 and 2200 W, depending on the voltage of 230-240 V. This allows fast and efficient drying.

Does the hair dryer have overheating protection?

Yes, the device includes overheating protection that automatically cuts off the heating in case of excessive temperature. If this happens, unplug the device and let it cool before using it again.

How to properly store the SilverCrest hair dryer?

Allow the device to cool completely. Clean it as indicated in the manual. Use the hanging loop (④) to hang it in a dry and clean place. Avoid wrapping the cable around the hot device.

What is the warranty period of the SilverCrest SHTD 2200 D2 hair dryer?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear and tear or damage caused by improper use.

USER MANUAL SHTD 2200 D2 SILVERCREST

IONEN-HAARTROCKNER / IONIC HAIR DRYER / SÈCHE-CHEVEUX À TECHNOLOGIE IONIQUE SHTD 2200 D2

DE AT CH

IONEN-HAARTROCKNER

Bedienungsanleitung

FR BE

SÈCHE-CHEVEUX À TECHNOLOGIE IONIQUE

Mode d'emploi

CZ

VYSOUŠEČ VLASŮ

Návod k obsluze

PT

Operating instructions

NL BE

HAARDROGER MET IONEN

Gebruiksaanwijzing

ES

SECADOR IÓNICO

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 13

Inhaltsverzeichnis

Einleitung 2

Urheberrecht 2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Index

Introduction 14

Copyright....14

Intended use 14

Items supplied 14

Disposal of the packaging 15

Appliance description....15

Technical data 15

Safety instructions .... 16

Operation 18

Heat and blower levels 18

Cooling level 18

Ionisation function 19

Drying and styling hair 19

Cleaning 20

Cleaning the housing 21

Cleaning the air suction grill 21

Storage 22

Troubleshooting 22

Disposal of the device 22

Kompernass Handels GmbH warranty 23

Service 24

Importer 24

Read the operating instructions thoroughly, particularly the safety instructions.

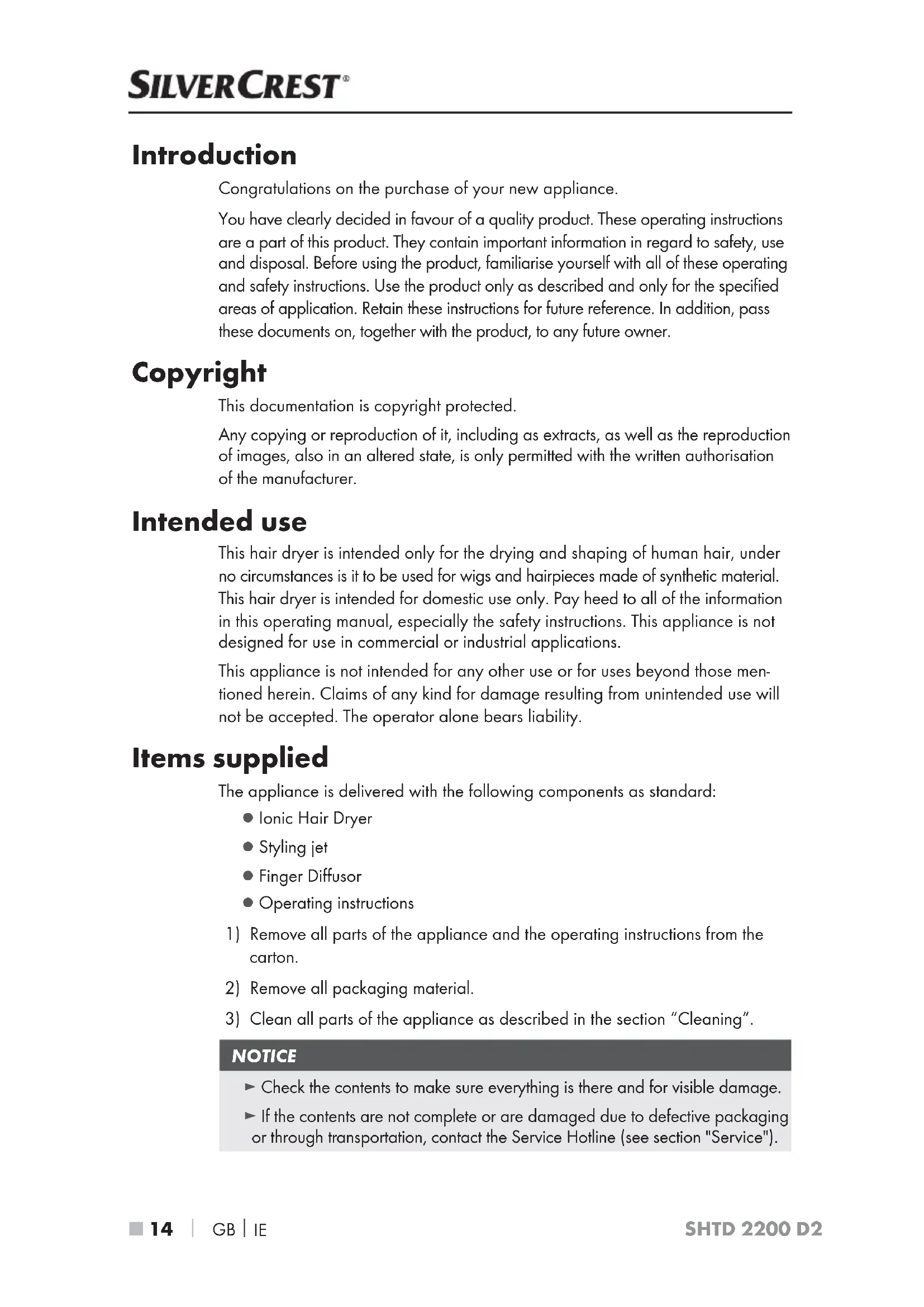

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This hair dryer is intended only for the drying and shaping of human hair, under no circumstances is it to be used for wigs and hairpieces made of synthetic material. This hair dryer is intended for domestic use only. Pay heed to all of the information in this operating manual, especially the safety instructions. This appliance is not designed for use in commercial or industrial applications.

This appliance is not intended for any other use or for uses beyond those mentioned herein. Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

• Ionic Hair Dryer
• Styling jet
• Finger Diffusor
• Operating instructions

1) Remove all parts of the appliance and the operating instructions from the carton.
2) Remove all packaging material.
3) Clean all parts of the appliance as described in the section "Cleaning".

NOTICE

▶ Check the contents to make sure everything is there and for visible damage.
If the contents are not complete or are damaged due to defective packaging or through transportation, contact the Service Hotline (see section "Service").

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed according to the regionally established regulations.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (b) and numbers (a) with the following meanings:

1-7: Plastics

20-22: Paper and cardboard

80-98: Composites

NOTICE

▶ If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance ideally for its return.

Appliance description

Figure A:

① Styling jet
② Air intake grill
③ lonic switch-in
4 Suspension loop
⑤ Blower level switch (2 levels)
⑥ Heater level switch (3 levels)
⑦ Cooling level button

Figure B:

8 Finger Diffusor

Technical data

Mains voltage 230 - 240 V	~ (AC), 50 Hz
Nominal power 2000 - 2200 W
Protection class	II □ (Double insulation)

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the hair dryer only to a correctly installed mains power socket providing electrical energy at the level detailed on the rating plate.
  ▶ Under no circumstances may the hair dryer be submerged in fluids, or fluids be permitted to enter the appliance housing. Do not expose the appliance to humidity and do not use it outdoors. Should liquids enter the housing, disconnect the appliance from the power source immediately and arrange for it to be repaired by a qualified technician.
  ▶ Disconnect the hair dryer from the mains power socket if defective operation is apparent and before cleaning it.
  ▶ To disconnect it, pull only on the plug itself, not on the power cable.
  ▶ Do not wrap the power cable around the appliance and protect the cable from being damaged.
  ▶ Should the power cable of the appliance be damaged, to avoid potential risks it must be replaced by the manufacturer, his customer service or by a qualified technician.
  ▶ Do not kink or crush the power cable and lay it in such a way as to prevent people from stepping on or tripping over it.
  ▶ Do not use extension cables.
  ▶ Never touch the hair dryer, the power cable or the plug with wet hands.
  ▶ Disconnect the hair dryer from the power source immediately after use. The appliance is completely free of electrical power only when you unplug it.
  ▶ You are not permitted to open or repair the housing of the hair dryer. Should you do so, appliance safety can no longer be assured and the warranty will become void. Arrange for the hair dryer to be serviced and repaired only by qualified specialists.

RISK OF ELECTRIC SHOCK

Never use the appliance near water, particularly not near sinks, baths or other vessels. The proximity of water presents a risk, even when the appliance is switched off. After use, always disconnect the plug from the mains power socket. As additional protection, the installation of a faulty-current protection unit with an activation power rating of not more than 30 mA is recommended for the power circuit in the bathroom. Consult your electrician for advice.

If the hairdryer is being used in the bathroom, disconnect the plug from the mains power socket after use, as the close proximity of water represents a hazard – even when the hairdryer is switched off.

WARNING! RISK OF PERSONAL INJURY!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- When it is switched on, NEVER lay the hair dryer down or leave it unsupervised.

▶ Never place the hair dryer close to sources of heat and protect the power cable against potential damage.

WARNING! RISK OF PERSONAL INJURY!

- Do not take the hair dryer into use if it has fallen down or is damaged in any way.

Arrange for the appliance to be checked and/or repaired by qualified technicians.

- Do not cover the air intake grill while operating the appliance. Clean the grill at regular intervals.

The hair dryer becomes hot when it is in use. Hold it only by the grip when it is hot.

Operation

Heat and blower levels

1) Insert the plug into a power socket.
2) Switch the hair dryer on with the blower level switch ⑤.

The hair dryer is fitted with two function switches. With these you can separately select the strength of the air flow (blower level switch ⑤) and the level of heat (heat level switch ⑥):

Blower levels

0 The hair dryer is switched off

reduced air flow

full power air flow

Heat levels

3) After use, switch the appliance off in that you place the blower level switch ⑤ into position "0". Then remove the plug from the wall socket.

Cooling level

You can use the cooling level button ⑦ to produce a cool air flow. The works with low and high airflows as well as with medium and high heat levels. The low heat setting has no heat function.

The cold air is useful, for example, to cool down the still-warm hair after styling so that the style holds for longer.

Ionisation function

With the ionic switch-in ③ you can additionally add the ionic function to every combination of blower and heat level.

Set the ionic switch-in ③ to the "≡" position: The ionisation function is turned on.

■ Set the ionic switch-in ③ to the "×" position: The ionisation function is turned off.

When drying the hair using a hair dryer, the hair takes on a static charge and begins to "fly".

The ionisation function ensures that this charging of the hair is neutralised and cancelled. The hair becomes soft, supple, shiny and easier to style.

Please note, however, that the ionisation function will only work optimally if the attachments (finger diffuser 8/styling jet 1) are removed as the attachment will interfere with the application of the ions to the hair. Therefore, use the hairdryer without attachments for maximum ionisation effect.

Drying and styling hair

To quickly dry hair, we recommend first of all using a high blower and heater setting for a short period. Also, place the ionic switch-in ③ at the position "____". After drying the hair, switch to a lower blower and heat level to shape the hairstyle.

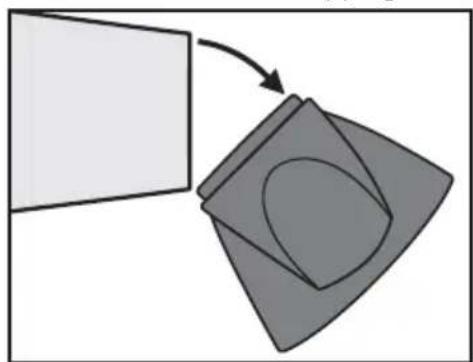

With the supplied styling jet ① you can apply a directed airflow to shape and style your hair. Fit the styling jet ① by pushing it with light pressure onto the hair dryer so that it snaps into place and sits evenly on the hair dryer. If you no longer require the styling jet ①, wait until the appliance has cooled down and pull it off with a downwards snapping motion:

If you wish to dry your hair especially gently, or create a so-called "air-dried wave", then use the finger diffusor ⑧. Start by removing the styling jet ① with a downwards snapping motion.

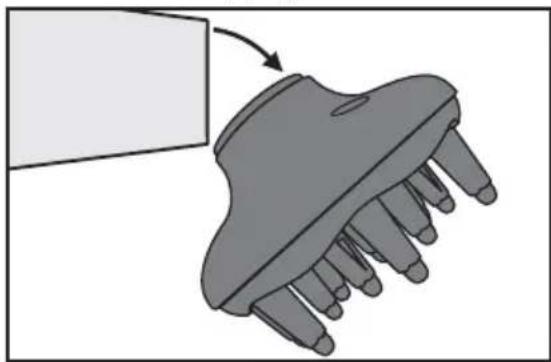

Fit the finger diffusor ⑧ by pushing it with light pressure onto the hair dryer so that it snaps into place and sits evenly on the hair dryer. If you no longer require the finger diffusor ⑧, wait until the appliance has cooled down and pull it off with a downwards snapping motion:

■ Before you comb your hair out, allow it to cool so that the shaping and styling can retain its form.

■ You can use the cooling level button ⑦ to cool down your hair down.

Cleaning

RISK OF ELECTRIC SHOCK

▶ Always remove the mains plug from the socket before you clean the appliance.
▶ Under no circumstances may you immerse the appliance in water or other liquids when cleaning it!
▶ After being cleaned, the hair dryer must be completely dry before using it again.

WARNING - RISK OF PHYSICAL INJURY!

▶ Allow the appliance to cool sufficiently before cleaning it.

CAUTION - PROPERTY DAMAGE!

▶ Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

Cleaning the housing

■ Use a soft cloth lightly moistened with a mild soap solution to clean the housing and attachments.

Cleaning the air suction grill

WARNING - RISK OF FIRE!

▶ Clean the air intake grill ② at regular intervals with a soft brush.

1) Turn the air intake grill ② a little way anticlockwise so that it can be removed from the hair dryer.

2) Clean the openings of the air intake grill ② with a soft brush.
3) Push the air intake grille ② back onto the hairdryer so that the tabs on the air intake grille ② click back onto the recesses on the hairdryer housing. Turn the air intake grille ② clockwise a little way so that it clicks into place and sits tightly.

Storage

CAUTION - PROPERTY DAMAGE!

▶ First pack and transport the hair dryer when it has completely cooled down. Otherwise, it could damage other items.

- Clean the hair dryer as described in the section "Cleaning".

■ For storage purposes, you can hang the hairdryer up by the suspension loop ④.

■ Store the hair dryer at a dustfree and dry location.

Troubleshooting

Should your hair dryer not function as expected, first remove the plug from the mains power socket and allow the appliance to cool down for a few minutes. The appliance is fitted with an overheating protector!

Should the appliance still not function, consult the service department detailed under "Service".

Disposal of the device

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 290023

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction 26

Droits d'auteur 26

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 38

Auteursrecht 38

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

VAARSCHUWING - LETSELGEVAAR!

⚠ WAARSCHUWING - BRANDGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....50

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Indice

Introducción....62

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Índice

Introdução ....74

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones · Estado das informações:

12 / 2017 · Ident.-No.: SHTD2200D2-112017-1
