USER MANUAL SRHK 1600 A1 SILVERCREST

Warnings and symbols used

Short manual. 14

Intended use. 14
Scope of delivery. 14
Parts description. 15
Technical data. 15

Safety instructions. 15

Before first use 17

Operation. 17

Unfolding the handle. 17
Setting the voltage. 18
Drying hair. 18
Styling hair. Page 18

Cleaning and care 18

Cleaning the housing and concentrator nozzle.. 18
Cleaning the air inlet. 19

Storage 19

Disposal 19

Warranty 19

Warranty claim procedure. 19

Service 19

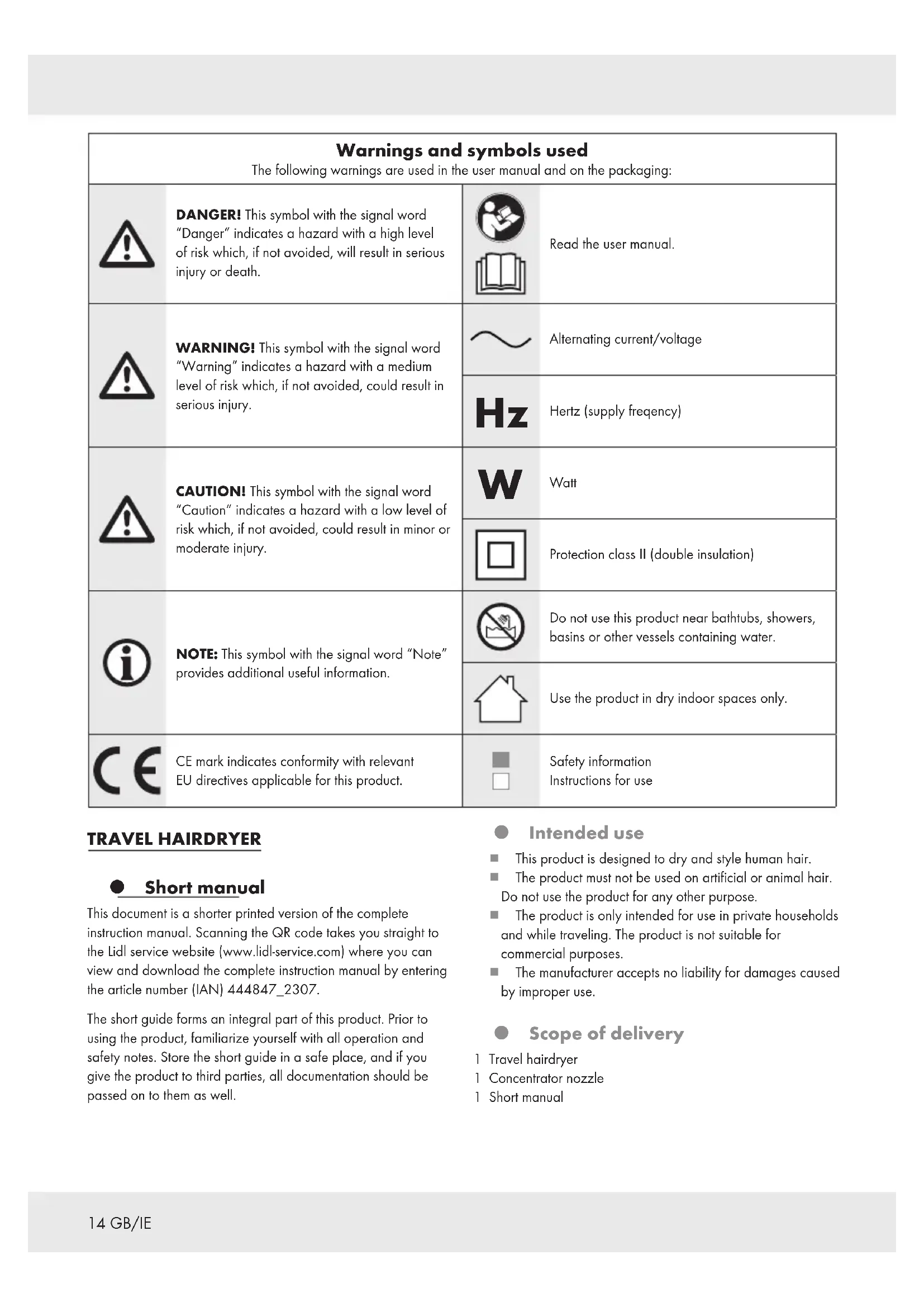

Warnings and symbols used The following warnings are used in the user manual and on the packaging:
!	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Read the user manual.
!	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.	~	Alternating current/voltage
		Hz	Hertz (supply frequency)
!	CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.	W	Watt
			Protection class II (double insulation)
i	NOTE: This symbol with the signal word "Note" provides additional useful information.		Do not use this product near bathtubs, showers, basins or other vessels containing water.
			Use the product in dry indoor spaces only.
CE	CE mark indicates conformity with relevant EU directives applicable for this product.		Safety information Instructions for use

TRAVEL HAIRDRYER

Short manual

This document is a shorter printed version of the complete instruction manual. Scanning the QR code takes you straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 444847_2307.

The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Store the short guide in a safe place, and if you give the product to third parties, all documentation should be passed on to them as well.

Intended use

This product is designed to dry and style human hair.
The product must not be used on artificial or animal hair. Do not use the product for any other purpose.
The product is only intended for use in private households and while traveling. The product is not suitable for commercial purposes.
The manufacturer accepts no liability for damages caused by improper use.

Scope of delivery

1 Travel hairdryer
1 Concentrator nozzle
1 Short manual

Parts description

1
2
3
4 Handle
5 0/1/II switch (on/off, air flow and heat control)
6 Mains cord and mains plug
7 Hanging loop
Dual voltage selector
9 Foldable joint
10 Air inlet

Technical data

Input voltage: 120/230 V~,	50/60 Hz
Power consumption: 1200/1600 W
Protection class: II/	☐

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling

or non-compliance with the safety instructions, no liability is accepted!

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children
unsupervised with the
packaging material. The
packaging material represents a
danger of suffocation. Children
frequently underestimate the
dangers. Always keep children
away from the packaging
material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.
- Cleaning and user maintenance shall not be made by children without supervision.

WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! Risk of electric shock! Do not immerse the product in water or other liquids. Never hold the product under running water.

Do not drop the product to avoid damage to the product.
To prevent the product from overheating, never block the air inlet and air outlet during use.

WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.
Regularly check the mains plug and the mains cord for damages. If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Protect the mains cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the mains cord away from hot surfaces and open flames.
For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A. Lay cords in such a way that they may not be tripped over or otherwise damaged.

WARNING! Risk of electric shock! Do not use this product near bathtubs, showers, basins or other vessels containing water.

The product must not be left unattended while it is connected to the supply mains.

Do not operate the product with wet hands or while standing on a wet floor. Do not touch the mains plug with wet hands.

Do not pull the mains plug out of the electrical outlet by the mains cord. Do not wrap the mains cord around the product.

Protect the product, its mai cord and mains plug against dust, direct sunlight, dripping and splashing water.

• Switch off the product before
• changing attachments,
• cleaning,
• disconnecting the product from the power supply.

When the product is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the product is switched off.
No action is needed from users to shift the product between 50 and 60Hz The product adapts itself for both 50 and 60Hz
Incorrect setting of the dual voltage selector will damage the product.
Do not use any attachment which is not provided by the manufacturer.

Before first use

NOTE: The product may give off some odour during first use. These are production or transport residue that will quickly subside.
Remove the packaging. Check if all parts are complete.

Operation

Unfolding the handle

(Fig. E)

NOTE: Do not switch on the product if the handle 4 is still in position a or b.
Unfold the handle 4 until the foldable joint 9 engages in position c.

Setting the voltage

(Fig.B,C)

NOTE: Required tool for setting the voltage: Flat-head screwdriver

Dual voltage selector 8	Voltage
Turn clockwise 120 V~
Turn counter-clockwise 230 V	~

Drying hair

(Fig. D)

1. Before connecting the product to the mains supply: Set the dual voltage selector 8 to the voltage suitable for your current location.
2. Connect the mains plug 6 to a suitable mains outlet.
3. Select the desired air flow/heat level:

0/I/II 5	Air flow/heat level
0	Product off
I	Product on: □ Gentle air flow □ Low heat
II	Product on: □ Strong air flow □ High heat

1. After use: Slide the 0/1/1 switch 5 to position 0 to switch off the product.
2. Disconnect the mains plug 6 from the mains outlet.
3. Let the product cool down completely.

NOTE: In the event of overheating, the product switches off automatically.

In this case, slide the 0/1/1 switch 5 to position 0 and disconnect the mains plug 6 from the mains outlet.

Styling hair

(Fig. F)

Using the concentrator nozzle

CAUTION! Risk of burns!

• Do not touch the air outlet [1] when the product is switched on and the air outlet is still hot.
• Do not touch or remove the concentrator nozzle 2 when it is still hot.

① NOTE: We recommend to use gentle air flow and low heat level when styling hair.

1. Attach the concentrator nozzle 2 to the air outlet 1. Rotate the concentrator nozzle to adjust its orientation, if necessary.
2. Switch on the product. Use the concentrator nozzle 2 to direct the air flow onto a specific section of the hair.
3. Removing the concentrator nozzle from the air outlet: Pull the concentrator nozzle off with a downward motion.

Using the cooling mode

① NOTES:

After styling the hair: Use the cooling mode to make the hairstyle last longer.
The cooling mode can only be selected when the product is switched on.
Use the 念 button 3 to switch the cooling mode on or off:

* button 3	Cooling mode
Press and hold	Switched on The product emits a cool air flow.
Release	Switched off The cool air flow stops.

Ionisation function

Ions are continuously applied to the hair. This reduces the static loading of the hair and improves its stylability. The hair becomes soft, smooth, glossy, and easier to style.
① NOTE: We recommend the use without attachments for the optimum activity of the ions.

- Cleaning and care

WARNING! Risk of electric shock!

Always switch off the product and disconnect the mains plug 6 from the mains outlet before cleaning the product.
- Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

CAUTION! Do not use corrosive or abrasive cleaning agents or material to clean the product.

Remove the concentrator nozzle 2 from the air outlet 1.

- Cleaning the housing and concentrator nozzle

Wipe the housing and the concentrator nozzle 2 with a slightly damp cloth.

For stubborn soiling, add a mild cleaning agent on the cloth.
Dry all parts thoroughly.

Cleaning the air inlet

Wipe the air inlet 10 with a dry cloth.

Storage

Store the product at a cool, dry place, protected from moisture and out of the reach of children.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

The marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 444847_2307) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

- Indstilling of spending

(Fig.B,C)

Model No.: HG11072A/HG11072B

Version: 02/2024

IAN 444847_2307
