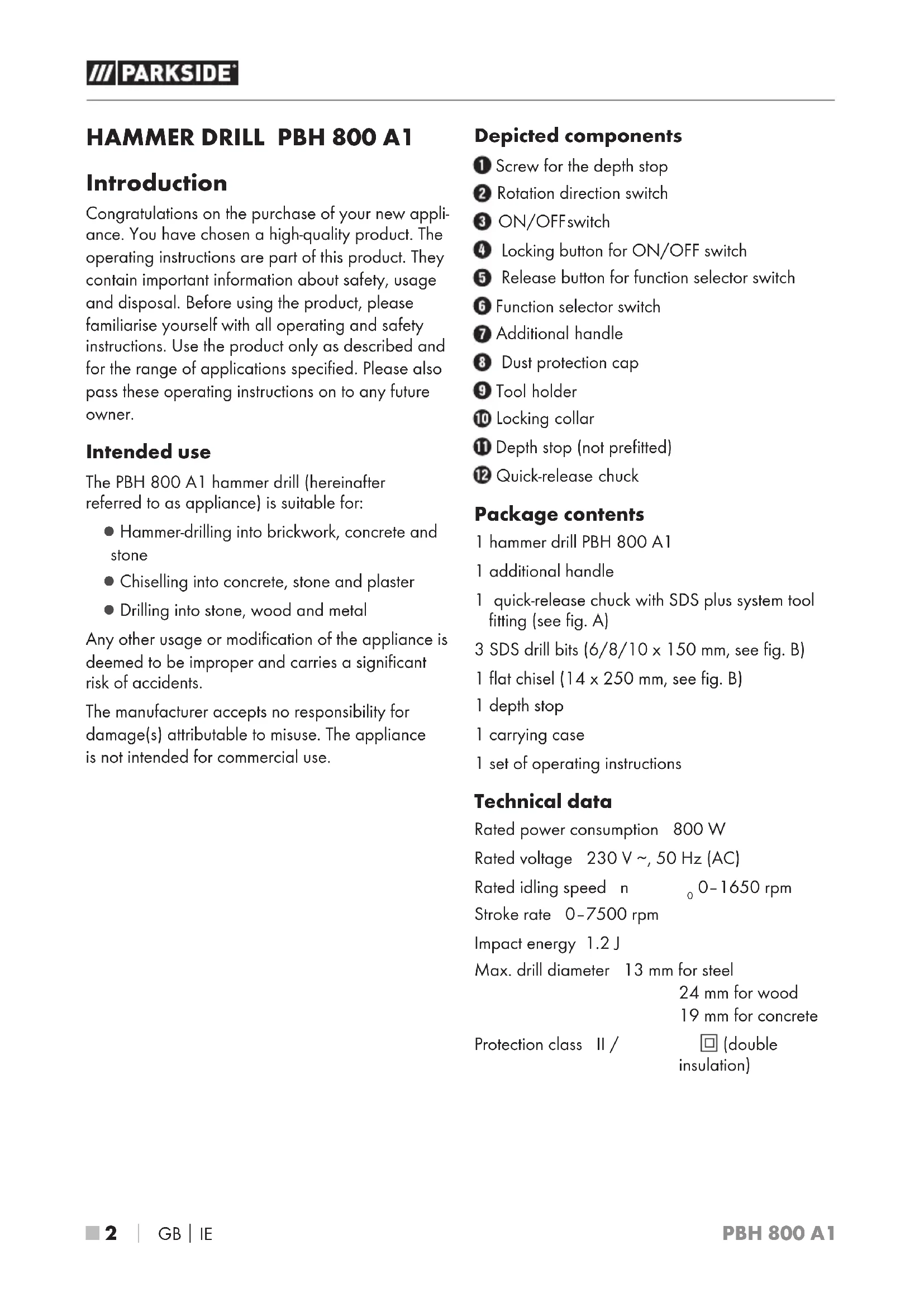

HAMMER DRILL PBH 800 A1

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The PBH 800 A1 hammer drill (hereinafter referred to as appliance) is suitable for:

• Hammer-drilling into brickwork, concrete and stone
• Chiselling into concrete, stone and plaster
• Drilling into stone, wood and metal

Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents.

The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.

Depicted components

Screw for the depth stop
Rotation direction switch
3 ON/OFFswitch
4 Locking button for ON/OFF switch
5 Release button for function selector switch
6 Function selector switch
7 Additional handle
Dust protection cap
Tool holder
10 Locking collar
1 Depth stop (not prefitted)
Quick-release chuck

Package contents

1 hammer drill PBH 800 A1
1 additional handle
1 quick-release chuck with SDS plus system tool fitting (see fig. A)
3 SDS drill bits (6 / 8 / 10× 150mm see fig.B
1 flat chisel (14× 250mm see fig.B
1 depth stop
1 carrying case
1 set of operating instructions

Technical data

Rated power consumption 800 W

Rated voltage 230V 50Hz (AC)

Rated idling speed n 0-1650 rpm

Stroke rate 0-7500 rpm

Impact energy 1.2 J

Max. drill diameter 13 mm for steel

24 mm for wood

19 mm for concrete

Protection class II /

double

insulation)

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L pA = 96.3dB(A) Uncertainty K = 3dB Sound power level L WA = 107.3dB(A) Uncertainty K = 3dB

Wear hearing protection!

Total vibration value

Total vibration values (vector total of three directions) determined in accordance with EN 62841:

Hammer drilling

in concrete a_h(HD) = 12.604 m/s^2 , K = 1.5 m/s^2 Chiselling a_h(CHeq) = 13.466 m/s^2 , K = 1.5 m/s^2

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool SafetyWarnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-slip safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing on jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for hammers

Safety instructions for all work

Wear hearing protection. The effect of noise can lead to hearing loss.

Use the additional handles supplied with the appliance. Loss of control can lead to injuries.
Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Wear a dust mask.

Safety information for using long drill bits

Do not use a higher rotational speed than the maximum permissible speed. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece and this can lead to injuries.

Always start drilling at a low speed and with the drill bit in contact with the workpiece. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece and this can lead to injuries.
Do not exert excessive pressure and only along the length of the drill bit (no lateral pressure). Drill bits can bend and break which can lead to a loss of control and injuries.

WARNING! TOXIC DUST!

Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity.

CAUTION, POWER CABLES! DANGER!

Ensure that you are not likely to hit power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface.

Residual risks!

Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in relation to the power tool's design and structure:

1. Lung damage if no suitable dust protection mask is worn.
2. Hearing damage, if no suitable hearing protection is worn.
3. Damage to health caused by hand-arm vibrations if the appliance is used for extended periods or is not properly used and maintained.

WARNING!

The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating this machine.

Original accessories/auxiliary equipment

Only use the accessories and additional equipment which are specified in the operating instructions.

Operation

Additional handle

NOTE

For safety reasons, you should only use this appliance with the additional handle attached.
The gripping position of the additional handle 7 can be varied.
Turn the additional handle 7 clockwise and pull the additional handle 7ff the appliance a little way.
Turn the additional hand to the desired position.
Now, slide the locking positions on the additional handle over the two locking pins on the spindle of the appliance.
Retighten the additional handle afterwards by turning it in an anticlockwise direction.

NOTE

Turn the additional handle into the various locking positions depending on your working position. Undo and lock the additional handle as described previously.

Depth stop

Undo the screw on the depth stop 1.
Insert the depth stop into the additional handle
Ensure that the toathing on the depth stop is facing downwards.
Pull the depth stop out until the distance between the tip of the drill and the tip of the depth stop with the required drilling depth.
Tighten the screw on the depth stop to lock the depth stop into place.

Fitting/removing a tool

WARNING!

Switch the appliance off and remove the power plug before starting any work on the appliance.

Fitting a tool

Before fitting a tool, grease the tool holde lightly with machine grease.
Place the tool in the tool holder so that it rotates until it locks automatically.
Check that the tool is properly locked by pulling it. The system has radial play because of the design.

Removing a tool

To release the tool, pull the locking colla backwards.

Quick-release chuck for round shaft drill bits

WARNING!

Do not use the quick-release chuck for hammer drilling or chiselling!

Set the function selector switch to the drill symbol

Inserting the quick-release chuck for round shaft drill bits

Place the quick-release chuck in the tool holder so that it rotates until it locks automatically.
Check that the tool is properly locked by pulling it.

Removing the quick-release chuck for round shaft drill bits

To remove the quick-release chuck, pull the locking collar backwards and remove the quick-release chuck

Use

Select operating mode

Function selector

Press and hold the release button 5 on the function selector switch 6. Turn the function selector switch 6o that the required symbol engages at the arrow mark:

Function Symbol
Drilling/screwing	#
Hammer drilling	T#
Chiselling	T
Chisel position adjustment	#

Adjusting chisel position

You can rotate the tool to the required position for chiselling using this function.

Turn the function selector switch to position
Turn the tool in the tool holde to the required position.
Turn the function selector switch to position for the chiselling function.

Switching on and off

Switching the appliance on

Press the ON/OFF switch 3.

Switching the device off

Release the ON/OFF switch 3.

Switching to continuous operation

Press the ON/OFF switch. Lock it in the pressed position with the ON/OFF switch lock button

Switching off continuous operation

Press the ON/OFF switch and release it again.

Adjusting the rotational speed

The ON/OFF switch 3 as a variable speed control. Pressing the ON/OFF switch 3 tightly yields a low speed. Increasing pressure increases the speed.

Changing the direction of rotation

Change the direction of rotation by pressing the rotation direction switch 2 towards the left or right.

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.

Never permit liquids to penetrate inside the appliance.
Use a soft, dry cloth to clean the housing.
Clean the tool holde regularly: CAUTION! PRELOADING!
To do this, pull the locking collat0 backwards and pull the dust protector cap 8 with the help of a screwdriver off the tool holder 9

WARNING!

If the power cord requires replacement, this should be carried out by the manufacturer or an approved representative to avoid safety hazards.

NOTE

• Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline.

Disposal

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is

subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material

components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

FR

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly

maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 389831_2201 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 389831_2201.

NOTE

For Parkside tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

W

WARNING!

Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN389831_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21,

44867 BOCHUM, Germany, hereby declare that this product complies with the following standards,

normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 62841-1:2015

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

Type designation of machine: Hammer drill PBH 800 A1

Year of manufacture: 05-2022

Serial number: IAN 389831_2201

Bochum, 30/03/2022

CE

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Inhaltsverzeichnis

Einleitung 12

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

(Courant alternative)

Plage nominale de vitesses n 0-1650 min

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

• Responsible qualite -

WAARSCHUWING! GIFTIGESTOFFEN!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

VRTACÍ A SEKACÍ KLADIVO PBH 800 A1

Uvod

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMECKO

www.kompernass.com

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

Indkobling af permanent drift

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

$$ L _ {W A} = 1 0 7, 3 \mathrm {d B} (A) $$

Bizonytalansagi ertek K = 3 dB

$$ a _ {h (H D)} = 1 2, 6 0 4 m / s ^ {2}, K = 1, 5 m / s ^ {2} $$

Vesés

$$ a _ {h (C H e q)} = 1 3, 4 6 6 \mathrm {m} / \mathrm {s} ^ {2}, K = 1, 5 \mathrm {m} / \mathrm {s} ^ {2} $$

MEGJEGYZES

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

NAPOTEK

Pri orodjih Parkside nam posljite samoPokvarjeni izdelek brez opreme (npr. akumulator, kovcek za shranjevanje, vgradno orodje itd.).

OPOZORILO!

Naprave dajte v popravilo samo servisni sluzbi ali strokovnjaku za elektrotehniko, ki naj uporablja le originalne nadomestndele. S tem zagotovite, da se ochrani varnost naprave.
Zamenjavo vtica ali priključnega voda zmeraj prepustite proizvajalcu naprave ali njegovisi servisni sluzbi. S tem zagotovite, da se ochrani varnost naprave.

Pooblasceni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN389831_2201

Garancijski list

EN IEC 62841-2-6:2020/A11:2020

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

Oznaka tipa stroja: Pnevaticni udarni vrtalnik PBH 800 A1

Leto izdelave: 05-2022

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompermass.com

Last Information Update - Stand der Informationen - Version des informations - Stand van de informatie - Stav informaci - Stan informaci Stav informaci - Estado de las informaciones - Tilstand af information - Versione delle informazioni - Informacionk allasa - Stanje informacij: 03 / 2022 - Ident-No.: PBH800A1-032022-1
