USER MANUAL PAT 4 B2 PARKSIDE

Translation of the original instructions

NL BE

ACCU-NIETPISTOOL

GB / IE Translation of the original instructions Page 28

Intended use.. Page 30
Parts description.. Page 30
Scope of delivery.. Page 31
Technical data.. Page 31

General power tools safety warnings......Page 33

Tacker safety warnings.. Page 37
Charger safety warnings . Page 38

Before use. Page 39

Starting the charging process.. Page 39
Completing the charging process.. Page 40

Initial use . Page 40

Adding Staples.. Page 40

Functions Page 40

Cleaning and care.. Page 42

Disposal

Service

Warranty claim procedure.. Page 44
Service . Page 45

Warranty.. Page 45

Translation of original conformity declaration

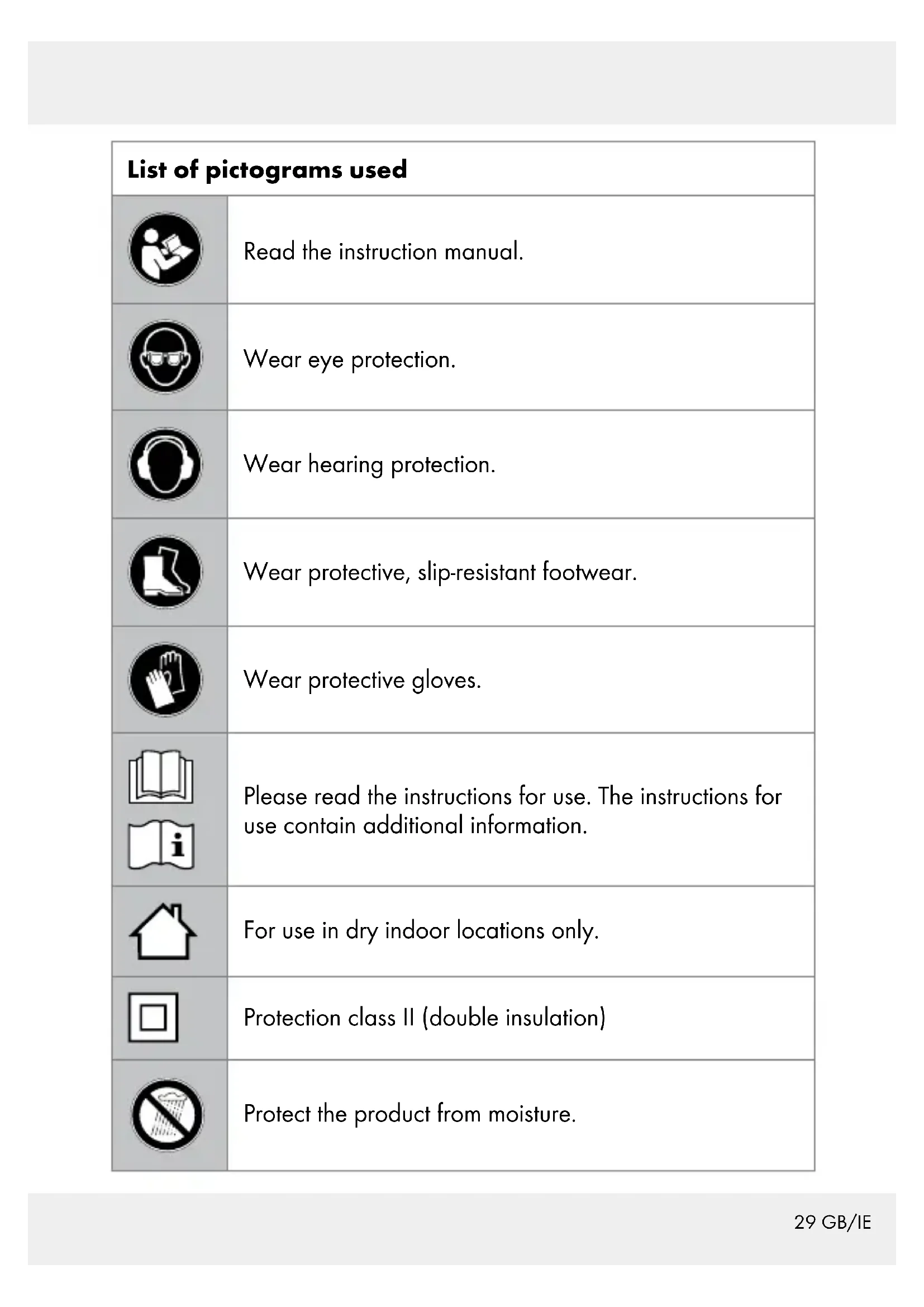

List of pictograms used
	Read the instruction manual.
	Wear eye protection.
	Wear hearing protection.
	Wear protective, slip-resistant footwear.
	Wear protective gloves.
	Please read the instructions for use. The instructions for use contain additional information.
	For use in dry indoor locations only.
	Protection class II (double insulation)
	Protect the product from moisture.

Cordless Stapler PAT 4 B2

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important infor

mation concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for stapling paperboard, sheets of paper, leather, insulation, fabric and similar materials onto soft wood (real wood), plywood boards and medium density fibreboard. It is only intended for private household use. Any other use or modification of the product shall be considered improper use and may result in serious accident hazards. The manufacturer is not liable for any damages caused by improper use. Not intended for commercial use. This product is not intended for securing electrical cables.

-Partsdescription

1 Trigger

2 Micro-USB charging socket

3 Pusher

3a Release button

4 Magazine

5 Fill indicator (staples)

6 Safety contact

7 Charger
7a USB cable
8 On/Off switch
9 Charge indicator

Scope of delivery

1 Cordless stapler PAT 4 B2
1 Charger RSS1002-030050-W2E-W-C
1000 Staples 8 mm
1 Operating instructions

-Technicaldata

Cordless stapler: PAT 4 B2

Rated voltage: 4V (direct current) Rechargeable battery (installed): LITHIUM-ION Cells: 1 Capacity: 1300 mAh Speed: max. 30 / mn Magazine capacity: 100 staples Wire staples: Type 53 / JT21 4-10 mm 5/32-3/8 in Stap

Staple width: 11.4 mm
Staple length: 4-10 mm

Battery charger: RSS1002-030050-W2E-W-C Input:

Rated voltage: 100-240V\~, 50/60Hz
Rated current: 0.2A
Connection type: USB

Output:

Rated voltage: 5 V = (direct current)

Rated current: 600mA

Output power: max. 3.0 W

Charging time: approx. 180 min

Protection class: II/ (double insulation)

Noise emission value:

The measured values for sound comply with EN 60745. The A-weighted single-event noise level, standardised to 1~s , is typically:

Sound pressure level: L_pA = 80.6 dB(A)

Uncertainty: K_pA = 3 dB(A)

Sound power level: L WA = 91.6 dB(A)

Uncertainty: K_WA = 3 dB(A)

Wear hearing protection!

Vibration values determined in accordance with EN 60745:

Vibration emission value a_hw = 2.75 m/s^2

Uncertainty K = 1,5m / s^2

Note: The vibration level specified in these instructions has been measured in accordance with a standardized measuring procedure specified in EN60745 and can be use for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the users to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. All states of operation much be taken into account (e.g. time when the power tool is switched off and time where the power tool is switched on but running without load).

- General power tools safety warnings

WARNING!

Read all safety directions and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and / or the battery pack from the power tool before making

any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a

connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Tacker safety warnings

1. Always assume that the tool contains fasteners. Careless handling of the tacker can result in unexpected firing of fasteners and personal injury.
   2.D o not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.
2. Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.
3. Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.
4. Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
5. Do not use this tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

- Charger safety warnings

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. Do not charge non-rechargeable batteries. Disregarding this instruction may be hazardous.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the product under running water. Pay attention

to the instructions provided for cleaning, maintenance and repair.

1. The charger is suitable for indoor use only.

Before use

Note: Remove all packaging materials from the product.

Note: The rechargeable battery comes partly charged. Charge the battery prior to first use, ideally at least 3-5 hours. Li-lon batteries may be charged at any time without reducing their life. Interrupting the charging process does not damage the rechargeable battery.

This product is equipped with a depth discharge protection which prevents discharging below final discharging voltage.

Do not continuously pull the trigger 1 to prevent damaging the built-in rechargeable battery.

Set the On / Off switch to the "0" position if the product will not be used or will be stored for extended periods.

Note: If the charge indicator 9 lights up red during use, the charge is below 30% and the battery must be recharged.

Starting the charging process

Connect the USB cable 7a to the charger 7 using the USB socket.
Connect the other end of the USB cable 7a to the micro-USB charging socket 2 on the product.
Connect the charger 7 to a 100 - 240V 50 / 60Hz power source. The charge indicator 9 shows the charging progress. It will light up red whilst charging. Once the battery is fully charged it lights up green.

- Completing the charging process

Disconnect the charger 7 from the power source.
- Disconnect the charger 7 from the micro-USB charging socket 2 on the product.

Note: The product cannot be used whilst charging. It is normal for the handle to warm up slightly whilst charging.

- Initial use

- Adding Staples

Set the On / Off switch 8 to the "0" position before working on the product.
Turn the product over.
Squeeze the release button 3a (see Fig. A).
Pull back on the pusher 3 (see Fig. A).
Add staples to the magazine 4 (see Fig. B).
After adding staples, slide the pusher 3 in again until the magazine 4 is fully closed. Release the release button 3a. It must click and lock into place for the magazine 4 to be closed correctly.

Note: Use the window on the fill indicator 5 to see if the magazine 4 is empty.

- Functions

Stapling

Set the On/Off switch 8 to the "l" position to switch the product on.
Press the safety contact 6 a few millimetres into the work piece.
Squeeze the trigger 1 whilst holding the product against the work piece to drive a staple into it.
Set the On / Off switch 8 to the "0" position to switch the product off.

Clearing Jammed Staples

WARNING! If a staple is jammed, do not squeeze the trigger 1 It may otherwise accidentally be triggered after removing the staple.

Note: Set the On / Off switch to "O" position prior to clearing the jammed staple.

Open the magazine 4 and pull back on the pusher 3.
Remove the jammed staple from the magazine 4.

Note: Do not trigger the staple gun when empty to prevent wear.

Determining the Staple Length

Consider two factors when determining the correct staple length:

• the thickness of the material being stapled
• the composition (hardness) of the material being stapled.

Staples 4 - 6mm in length will typically suffice when stapling into hard materials such as hardwood.

Staples 8-10 mm in length will typically suffice when stapling into soft materials such as softwood. This should suffice to fasten any materials. The crown of the staple should be flush with the top of the material being fastened as shown.

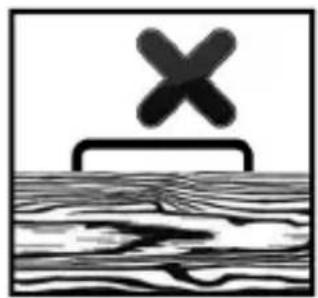

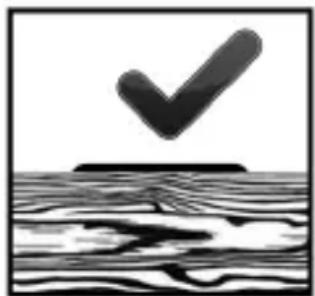

If the crown of the staple is not flush with the top of the material being fastened, the staple is too long. In this case, use the next smaller size staple for optimal results.

- Cleaning and care

Set the On / Off switch 8 to the "0" position to switch the product off before cleaning or maintaining the product.
The product must always be clean, dry, and free from oil and grease.
Clean the housing with a dry cloth.

This product contains a Lithium-ion rechargeable battery and is therefore subject to hazardous materials regulations. The user may transport the rechargeable batteries on roads without special requirements.

The packaging and marking is subject to special requirements when transported by third parties (e.g. airline, courier, carrier).

A hazardous materials expert must be consulted when transported by third parties.

Rechargeable batteries may only be shipped if the housing is intact. Cover open contacts with tape and package the rechargeable batteries so they cannot move inside the packaging. Particularly observe the specific national regulations.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Service

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.
Always have a plug or power cord replaced by the product manufacturer or its service centre. This will maintain the safety of this product.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

$$ (0. 0 7 \text {£} / \min - 0. 6 8 \text {£} / \min + 0. 1 3 \text {£} / \text {c a l l (s e t u p f e e)} $$

$$ (f e e s \quad d e p e n d s \quad o n \quad o p e r a t o r)) $$

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

$$ (0. 0 5 2 \epsilon / \min + 0. 2 0 \epsilon / \min (\text {s e t u p f e e}), \text {m o b i l e} $$

$$ 0. 1 5 \epsilon / \min - 0. 3 0 \epsilon / \min (\text {f e e d e p e n d s o n o p e r a t o r})) $$

E-Mail: [e-mail]

IAN 286098

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Translation of original conformity declaration

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Akku-Tacker PAT 4 B2, Model No.: HG02732, Version: 06 / 2017, to which this declaration refers, complies with the standards / normative documents of 2006/42/EC, 2014/30/EU, 2011/65/EU.

Applied harmonised standards:

EN 60745-1:2009+A11

EN 60745-2-16:2010

EN 60335-1:2012/A11:2014

EN 60335-2-29:2004/A2:2010

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

EN 61558-1:2005+A1

EN 61558-2-16:2009+A1

EN 50581:2012

Serial number: IAN 286098

tobias /tacay

Tobias König

Division Manager / Responsible for documentation

The declaration of conformity can also be viewed at: www.owim.com.

C E

The object of the declaration described above satisfies the provisions of Directive 2011/65/EUof the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

RSS1002-030050-W2E-W-C

100-240V\~,50/60Hz

0,2A

USB

SORTIE/Output:

Incertitude: K WA = 3 dB(A)

(set up fee) 0.3882 €/min + 0.3879 €/call (set up fee)

E-Mail: [e-mail]

IAN 286098

Garantía
